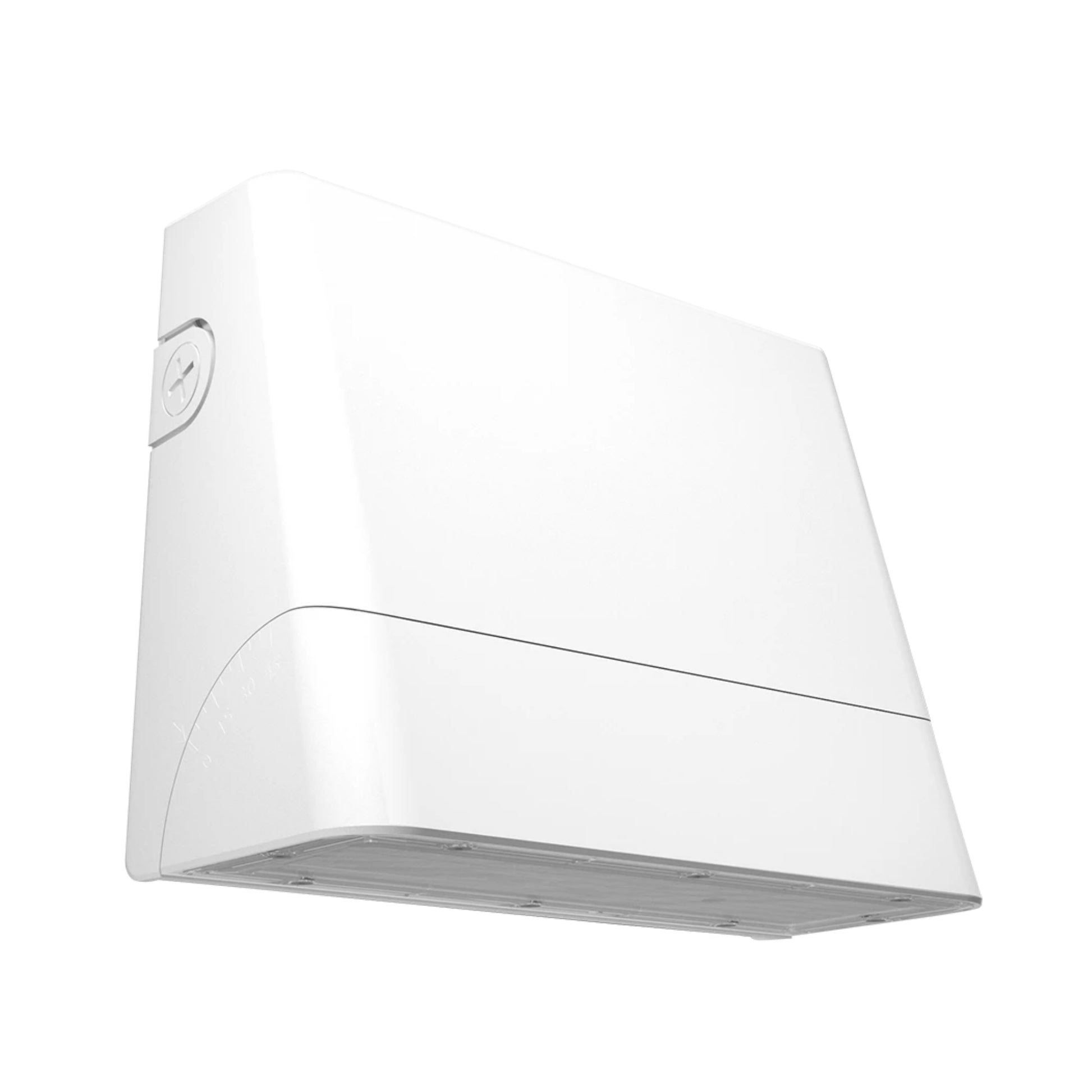

RAB SLIM22-S-30W Adjustable Throw Slim LED Wall Pack — 30/25/20/15W Selectable — 3000K/4000K/5000K — White

The RAB SLIM22-S-30W (Small housing size) is a commercial field-adjustable cutoff wall pack, adjustable throw wall pack, and slim LED wall pack—engineered as a full cutoff wall pack with adjustable forward throw—delivering 2,199 to 4,833 lumens at up to 158.5 lm/W across selectable 30W (factory default), 25W, 20W, and 15W power settings and switchable 3000K, 4000K, and 5000K color temperatures (default 4000K). Operating on universal 120-277V electrical systems with 0-10V dimming down to 10%, it replaces legacy fixtures up to 175W Metal Halide (MH) or 150W High Pressure Sodium (HPS) while qualifying for DLC 5.1 Premium utility rebates. Built with a weatherproof IP65 die-cast aluminum body and UL wet-location listing, this versatile exterior luminaire features a slim 4-3/4" wall projection depth, selectable 0° (full cutoff default), 15°, 30°, and 45° forward throw angles that aim the beam without tilting the outer housing, hinged wiring access with conduit entries on the back, sides, top, and bottom, a polycarbonate lens, an integrated selectable on/off photocell, and 6kV surge protection.

Key Features

  • Selectable Wattage: Field-adjustable 30W (factory default), 25W, 20W, and 15W (Small SLIM22 housing)
  • Wattage Equivalency: 30W & 25W replace up to 175W MH or 150W HPS; 20W replaces up to 125W MH or 100W HPS; 15W replaces up to 100W MH or 70W HPS
  • Lumen Output Range: 2,199 to 4,833 lm across 48 wattage, CCT, and throw combinations
  • Peak Efficacy: Up to 158.5 lm/W
  • CRI: 83–86 CRI
  • Field-Adjustable CCT: 3000K / 4000K / 5000K selectable (factory default 4000K)
  • Color Consistency: 7-step MacAdam Ellipse binning; ANSI C78.377-2017 compliant
  • Selectable Forward Throw: Field-adjustable 0° (full cutoff default), 15°, 30°, and 45° forward throw angles
  • Lens & Gasket: UV-free polycarbonate lens with continuous silicone gasket
  • Photocell & Controls: Integrated 120-277V selectable on/off photocell included
  • Dimming: 0-10V continuous dimming down to 10% (requires separate 0-10V DC dimming circuit)
  • Voltage & Surge Protection: 120-277V AC, 50/60Hz Class 2 driver; 6kV DM (L/N) and 6kV CM (L/N-PE) surge protection
  • Location & Body Rating: UL Listed for wet locations; IP65 weatherproof rated die-cast aluminum housing
  • Operating Temperature: -40°F (-40°C) to 104°F (40°C)
  • Certifications, Lifespan & Warranty: DLC 5.1 Premium Listed, UL Listed, IP65, RoHS Compliant; L70 100,000-hour LED lifespan (IES LM-80 / TM-21); 5-year limited warranty covering light output, driver performance, and paint finish - RAB

Performance & Light Output

At 30W (Factory Default — 31.6W–32.8W Input; Replaces up to 175W MH or 150W HPS):

  • 0° Full Cutoff (Default): 4,445 lm (135.9 lm/W) at 3000K | 4,821 lm (152.6 lm/W) at 4000K | 4,819 lm (146.9 lm/W) at 5000K
  • 15° Forward Throw: 4,446 lm (136.0 lm/W) at 3000K | 4,824 lm (152.7 lm/W) at 4000K | 4,822 lm (147.0 lm/W) at 5000K
  • 30° Forward Throw: 4,454 lm (136.2 lm/W) at 3000K | 4,831 lm (152.9 lm/W) at 4000K | 4,831 lm (147.3 lm/W) at 5000K
  • 45° Forward Throw: 4,457 lm (136.3 lm/W) at 3000K | 4,833 lm (152.9 lm/W) at 4000K | 4,830 lm (147.3 lm/W) at 5000K

At 25W (26.3W–27.3W Input; Replaces up to 175W MH or 150W HPS):

  • 0° Full Cutoff: 3,790 lm (139.3 lm/W) at 3000K | 4,111 lm (156.3 lm/W) at 4000K | 4,109 lm (150.5 lm/W) at 5000K
  • 15° Forward Throw: 3,799 lm (139.7 lm/W) at 3000K | 4,122 lm (156.7 lm/W) at 4000K | 4,120 lm (150.9 lm/W) at 5000K
  • 30° Forward Throw: 3,793 lm (139.4 lm/W) at 3000K | 4,114 lm (156.4 lm/W) at 4000K | 4,114 lm (150.7 lm/W) at 5000K
  • 45° Forward Throw: 3,797 lm (139.6 lm/W) at 3000K | 4,117 lm (156.5 lm/W) at 4000K | 4,115 lm (150.7 lm/W) at 5000K

At 20W (20.7W–21.5W Input; Replaces up to 125W MH or 100W HPS):

  • 0° Full Cutoff: 3,024 lm (141.3 lm/W) at 3000K | 3,280 lm (158.5 lm/W) at 4000K | 3,278 lm (152.5 lm/W) at 5000K
  • 15° Forward Throw: 3,022 lm (141.2 lm/W) at 3000K | 3,279 lm (158.4 lm/W) at 4000K | 3,278 lm (152.5 lm/W) at 5000K
  • 30° Forward Throw: 3,021 lm (141.2 lm/W) at 3000K | 3,277 lm (158.3 lm/W) at 4000K | 3,277 lm (152.4 lm/W) at 5000K
  • 45° Forward Throw: 3,025 lm (141.4 lm/W) at 3000K | 3,280 lm (158.5 lm/W) at 4000K | 3,278 lm (152.5 lm/W) at 5000K

At 15W (15.5W–16.0W Input; Replaces up to 100W MH or 70W HPS):

  • 0° Full Cutoff: 2,199 lm (137.4 lm/W) at 3000K | 2,385 lm (153.9 lm/W) at 4000K | 2,384 lm (149.0 lm/W) at 5000K
  • 15° Forward Throw: 2,201 lm (137.6 lm/W) at 3000K | 2,388 lm (154.1 lm/W) at 4000K | 2,387 lm (149.2 lm/W) at 5000K
  • 30° Forward Throw: 2,204 lm (137.8 lm/W) at 3000K | 2,391 lm (154.3 lm/W) at 4000K | 2,391 lm (149.4 lm/W) at 5000K
  • 45° Forward Throw: 2,206 lm (137.9 lm/W) at 3000K | 2,392 lm (154.3 lm/W) at 4000K | 2,391 lm (149.4 lm/W) at 5000K

Engineered with long-life, high-efficacy, surface-mount LEDs delivering 83–86 CRI across all configurations. Rated life of 100,000 hours (L70) based on IES LM-80 results and TM-21 calculations.

Lens & Optics

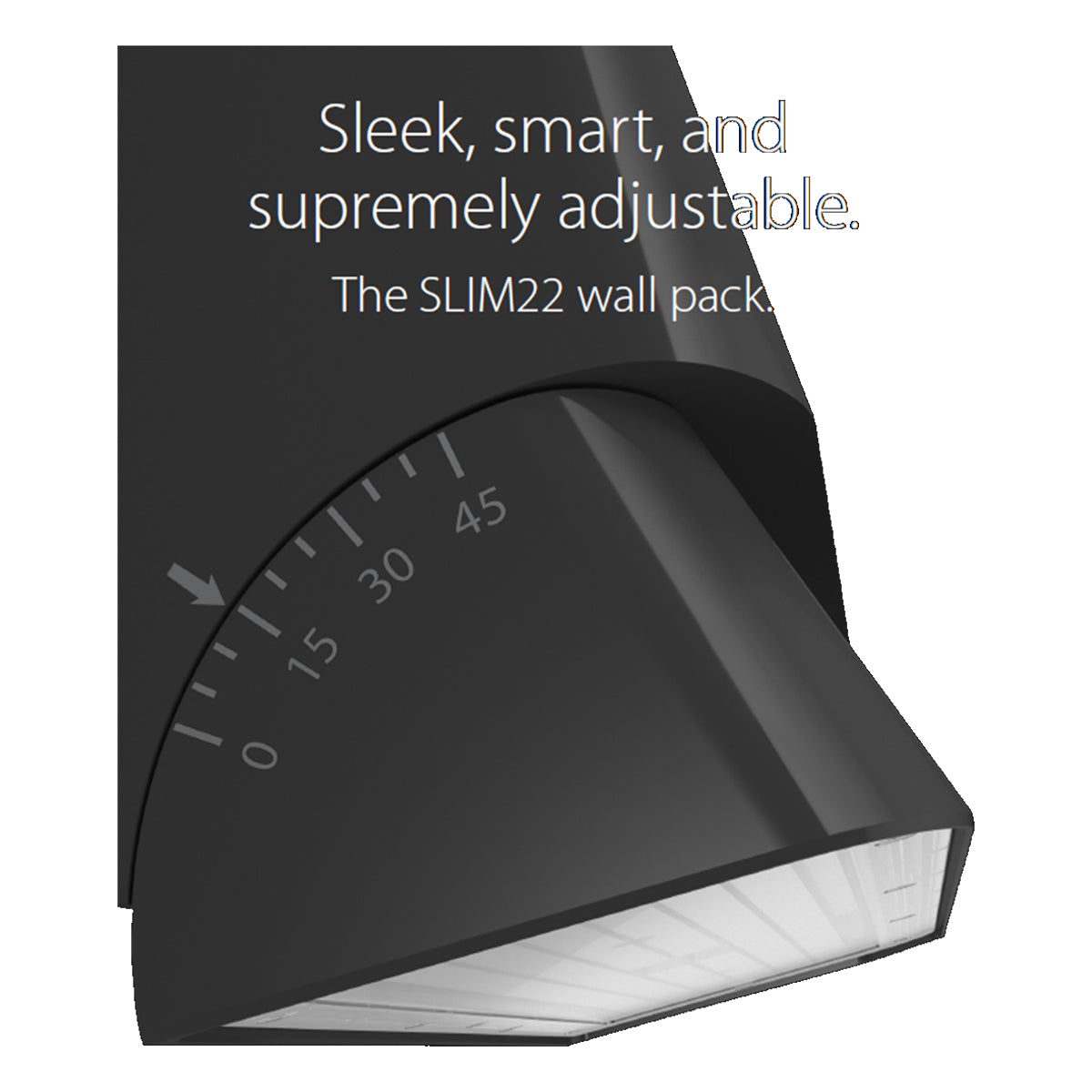

The SLIM22 adjustable-throw optical system combines a durable polycarbonate lens with an internal 4-position forward-throw selector:

  • 0° Full Cutoff Setting (Factory Default): Directs illumination straight down below the horizontal plane for zero-uplight perimeter and doorway lighting.
  • 15° & 30° Intermediate Forward Throw Settings: Projects the beam progressively further outward from the building facade to cover wider walkways, drive lanes, and loading aprons.
  • 45° Maximum Forward Throw Setting: Aims light outward at a 45-degree angle to illuminate broad parking areas and commercial yards without tilting the external architectural housing.

Onboard forward-throw adjustment lets contractors dial in the exact beam projection angle on-site while keeping the fixture's sleek, level wall profile intact.

Smart & Control Features

Engineered for 48-in-1 on-site customization, automated dusk-to-dawn operation, and commercial dimming:

  • Integrated Selectable On/Off Photocell: Built-in 120-277V dusk-to-dawn photocell can be switched on for automatic nighttime operation or turned off for wall-switch, timer, or lighting panel control.
  • 3-Axis Field Adjustability (Wattage, CCT & Throw): Internal selectors adjust wattage (30/25/20/15W), color temperature (3000K, 4000K default, 5000K), and forward throw angle (0° default, 15°, 30°, 45°).
  • 0-10V Continuous Dimming: Driver includes control wiring for 0-10V DC dimming systems (requires separate 0-10V DC dimming circuit) and dims smoothly down to 10%.

Electrical

Powered by a Class 2 driver operating on universal 120-277V AC at 50/60Hz with a Power Factor at 30W of 99.5% at 120V and 94.8% at 277V and Total Harmonic Distortion (THD) at 30W of 6.6%–6.7% at 120V and 12.7% at 277V across all four throw angles. Integrated 6kV surge protection (DM L/N: 6kV, CM L/N-PE: 6kV) protects internal electronics against line transients and lightning surges. Includes pre-wired 0-10V dimming leads and an integrated 120-277V selectable on/off photocell. (Also available in the SLIM22 series in 480V /480 and 120-277V battery backup /E configurations rated for 32°F/0°C to 104°F/40°C).

Operating current and amp draw across input voltages and selectable wattage steps for branch circuit and breaker loading calculations:

Selectable Wattage Tier 120V Current (A) 208V Current (A) 240V Current (A) 277V Current (A)
30W (Default) 0.28A 0.17A 0.15A 0.13A
25W 0.24A 0.14A 0.13A 0.11A
20W 0.19A 0.12A 0.11A 0.09A
15W 0.14A 0.09A 0.09A 0.08A

Construction

Housing & Thermal: Precision die-cast aluminum housing (Small SLIM22 size tier) engineered for passive thermal management across all four wattage settings.

Finish: Architectural White powder-coat finish formulated for high outdoor durability and long-lasting color stability (Bronze finish variants also available in the SLIM22 family).

Environmental Sealing: IP65 weatherproof rated for dust and water ingress and UL Listed for wet locations with continuous silicone gaskets. Ambient operating temperature: -40°F (-40°C) to 104°F (40°C).

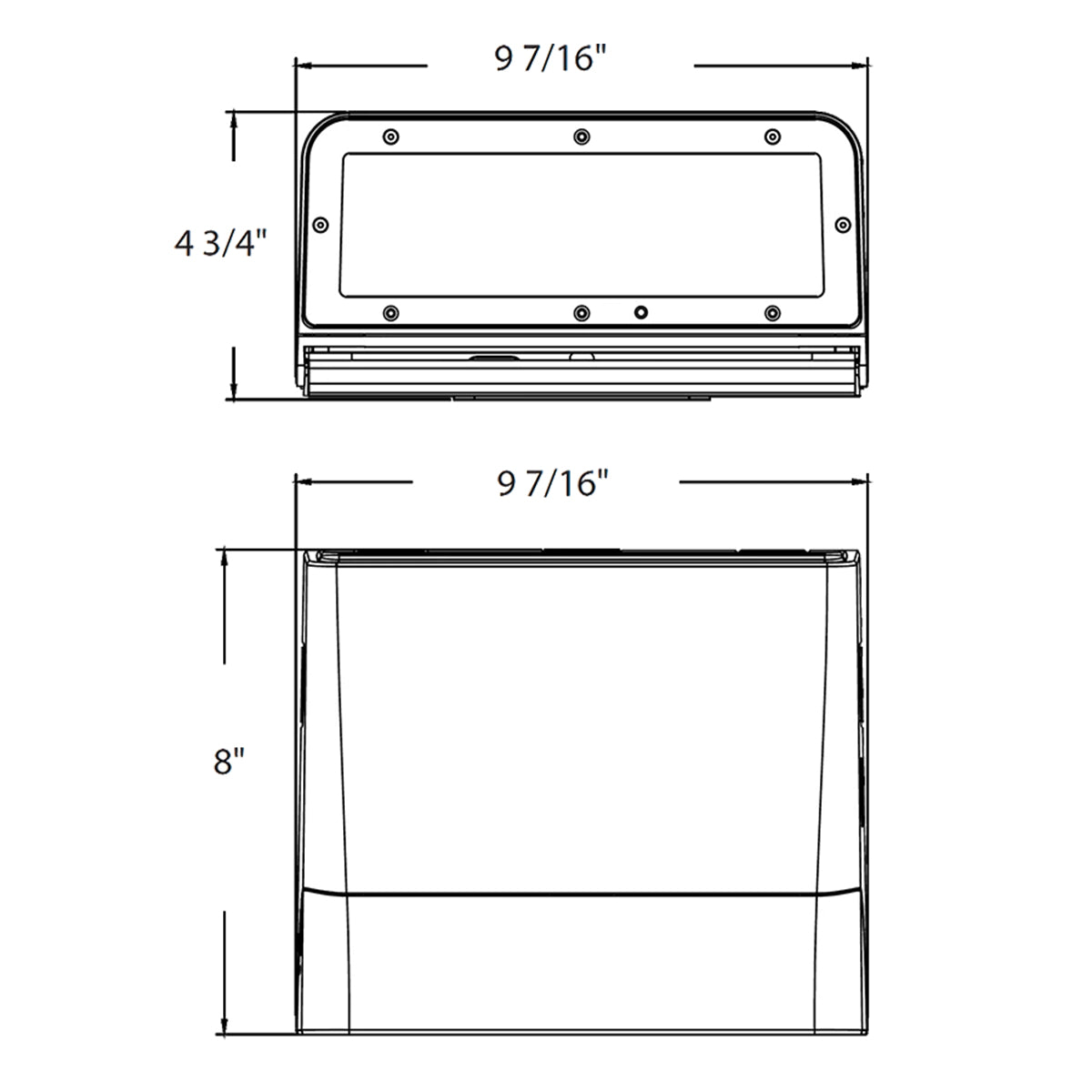

Dimensions & Weight: 9-7/16" W x 8" H x 4-3/4" D. Fixture weight: 6.0 lbs.

Installation & Mounting

Mounting Hardware: Sleek 9-7/16" W x 8" H x 4-3/4" D (6.0 lbs) die-cast aluminum wall-mount housing features hinged wiring access that makes electrical installation and on-site switch adjustment fast and hands-free while maintaining a level horizontal housing profile across all 0°, 15°, 30°, and 45° forward throw settings.

Conduit & Wiring Access: Equipped with threaded conduit entries on the back, sides, top, and bottom for recessed junction box feeds or surface conduit runs.

Certifications & Rebates

  • DLC 5.1 Premium Listed: Listed by the DesignLights Consortium as an ultra-efficient premium product qualifying for the highest tier of utility rebates (searchable on designlights.org under DLC ID S-RGJHKZ)
  • UL Listed: Certified for wet locations
  • IP65 Rated: Ingress protection rating of IP65 for dust and water
  • ANSI C78.377-2017 Chromaticity: Follows American National Standards for Solid State Lighting color uniformity
  • IES LM-80 & TM-21 Tested: LED lumen maintenance validated per IES LM-80 results and TM-21 calculations
  • RoHS Compliant: Green technology with mercury-free and UV-free RoHS-compliant components

Typical Applications

  • Commercial Building Perimeters & Walkways - Selectable 0° full cutoff setting directs up to 4,833 lumens downward without tilting the sleek 4-3/4"-deep housing
  • Parking Lots, Drive Lanes & Loading Docks - Selectable 15°, 30°, and 45° forward throw settings project wide perimeter light to replace up to 175W Metal Halide (MH) or 150W High Pressure Sodium (HPS)
  • Schools, Retail Centers & Office Complexes - 4 selectable wattages and 3 selectable CCTs (3000K/4000K/5000K) let contractors standardize on a single fixture across multiple mounting heights
  • Surface Conduit & J-Box Retrofits - Hinged wiring access and conduit entries on the back, sides, top, and bottom speed up installation
  • All-Climate Security Lighting - Integrated selectable on/off photocell, 6kV surge protection, and -40°F (-40°C) to 104°F (40°C) rating ensure year-round outdoor reliability

What's Included

  • RAB SLIM22-S-30W Adjustable Throw Slim LED Wall Pack - Bronze
  • Pre-installed 120-277V selectable on/off photocell
  • Conduit plugs, installation hardware, and operation manual

Specifications

Dimensions

Length/Depth
9.44 in
Width/Diameter
4.75 in
Height
8 in
Weight
7.1 lb

Style & Materials

Material
Aluminum
Shape
Slim

Characteristics & Features

Lamp Source
led
Lamp Color
3000K, 4000K, 5000K, Selectable CCT
Color Rendering
86 CRI
Delivered Lumens
4833
Dimmable
Yes

Electrical Information

Voltage
120-277V
Total Wattage
30W

Item Details

MPN
SLIM22-S-30W
Brand
RAB Lighting
Family
SLIM22 Field Adjustable Wall Pack
UPC
192552042826

Warranty & Certifications

Product Warranty
5 Years
Lamp Life
100,000 Hours
Product Rating
IP65 Rated

Shipping & Returns

Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.

Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.

See Full Shipping Policy | See Full Return Policy

Frequently Asked Questions

How does the forward throw adjust on the RAB SLIM22-S-30W, and how does it mount?

The internal optical assembly adjusts across 0° (full cutoff factory default), 15°, 30°, and 45° forward throw settings without tilting the outer housing. Its 9-7/16" W x 8" H x 4-3/4" D (6.0 lbs) die-cast aluminum body includes hinged wiring access and conduit entries on the back, sides, top, and bottom.

What wattages, lumen outputs, HID equivalencies, and color temperatures does the SLIM22-S-30W offer?

An internal selector adjusts between 30W (up to 4,833 lm), 25W (up to 4,122 lm), 20W (up to 3,280 lm at 158.5 lm/W), and 15W (up to 2,392 lm) to replace 100W–175W MH or 70W–150W HPS fixtures. A second switch selects between 3000K, 4000K (factory default), and 5000K with 83–86 CRI.

Can the built-in photocell on the RAB SLIM22-S-30W be turned off, and does it support 0-10V dimming?

Yes, this luminaire includes an integrated 120-277V selectable photocell that can be switched on for automatic dusk-to-dawn operation or turned off for manual control. Its Class 2 driver (0.28A max at 120V; 0.13A max at 277V) includes 0-10V control wires that dim down to 10%.

How is the RAB SLIM22-S-30W protected against outdoor weather and electrical surges?

The white die-cast aluminum housing and UV-free polycarbonate lens are sealed with continuous silicone gaskets for IP65 dust and water protection and UL wet-location compliance. It includes 6kV differential and common-mode surge protection and operates in ambient temperatures from -40°F (-40°C) to 104°F (40°C).

What is the rated LED lifespan, utility rebate status, and warranty coverage for the SLIM22-S-30W?

The RAB SLIM22-S-30W is rated for a 100,000-hour L70 LED lifespan based on IES LM-80 testing and TM-21 calculations and holds DLC 5.1 Premium certification for utility rebates. It is backed by RAB's 5-year limited warranty covering light output, driver performance, and paint finish.
