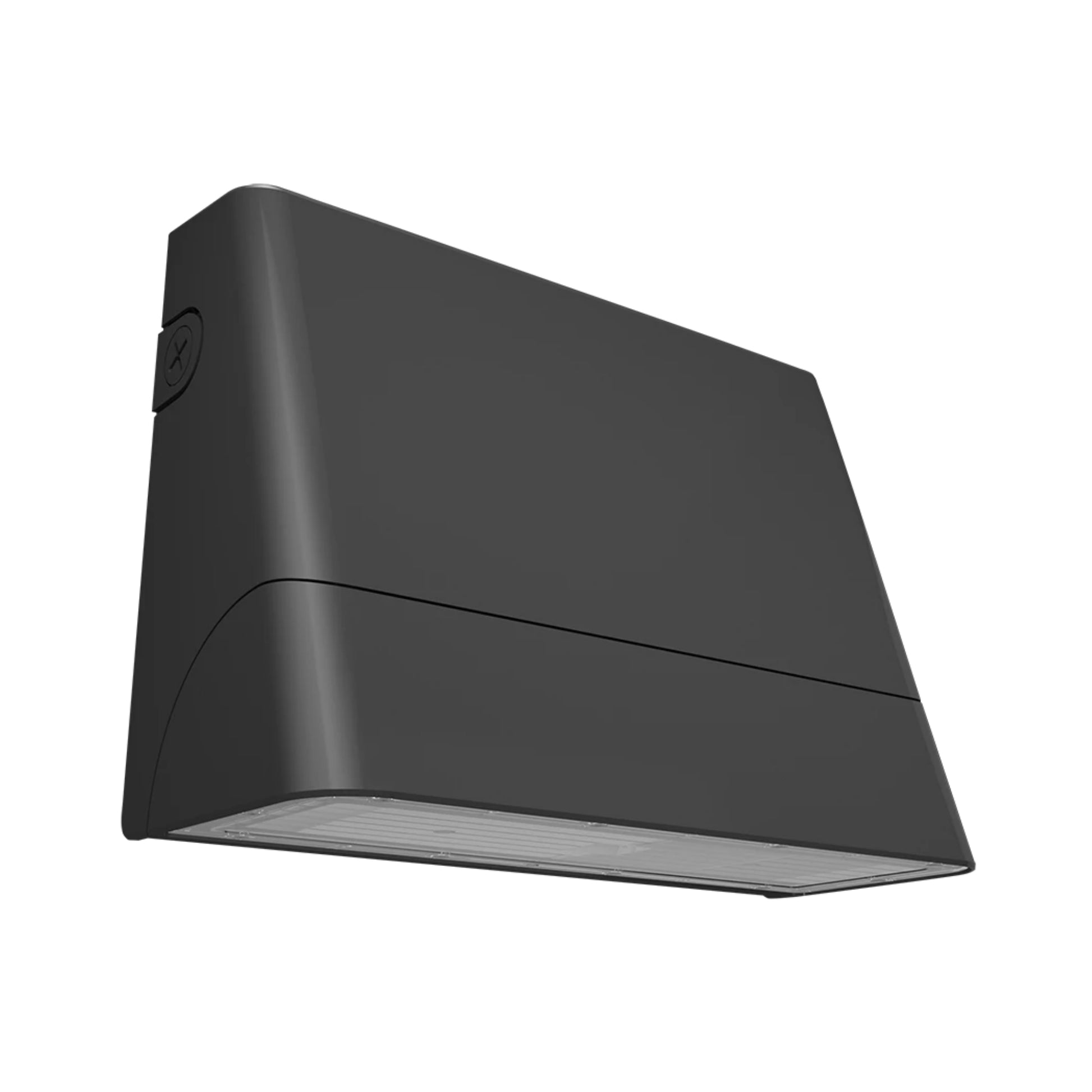

RAB SLIM22-M-100 Adjustable Throw Slim LED Wall Pack — 100/85/70/50W Selectable — 3000K/4000K/5000K — Bronze

The RAB SLIM22-M-100 (Medium housing size) is a commercial field-adjustable cutoff wall pack, adjustable throw wall pack, and slim LED wall pack—engineered as a full cutoff wall pack with adjustable forward throw—delivering 7,219 to 14,382 lumens at up to 169.3 lm/W across selectable 100W (factory default), 85W, 70W, and 50W power settings and switchable 3000K, 4000K, and 5000K color temperatures (default 4000K). Operating on universal 120-277V electrical systems with 0-10V dimming down to 10%, it replaces legacy fixtures up to 400W Metal Halide (MH) or 310W High Pressure Sodium (HPS) while qualifying for DLC 5.1 Premium utility rebates. Built with a weatherproof IP65 die-cast aluminum body and UL wet-location listing, this versatile exterior luminaire features a slim 5-3/8" wall projection depth, selectable 0° (full cutoff default), 15°, 30°, and 45° forward throw angles that aim the beam without tilting the outer housing, hinged wiring access with conduit entries on the back, sides, top, and bottom, a polycarbonate lens, an integrated selectable on/off photocell, and 6kV surge protection.

Key Features

• Selectable Wattage: Field-adjustable 100W (factory default), 85W, 70W, and 50W (Medium SLIM22 housing)
• Wattage Equivalency: 100W & 85W replace up to 400W MH or 310W HPS; 70W replaces up to 400W MH or 250W HPS; 50W replaces up to 350W MH or 200W HPS
• Lumen Output Range: 7,219 to 14,382 lm across 48 wattage, CCT, and throw combinations
• Peak Efficacy: Up to 169.3 lm/W
• CRI: 83–86 CRI
• Field-Adjustable CCT: 3000K / 4000K / 5000K selectable (factory default 4000K)
• Color Consistency: 7-step MacAdam Ellipse binning; ANSI C78.377-2017 compliant
• Selectable Forward Throw: Field-adjustable 0° (full cutoff default), 15°, 30°, and 45° forward throw angles
• Lens & Gasket: UV-free polycarbonate lens with continuous silicone gasket
• Photocell & Controls: Integrated 120-277V selectable on/off photocell included
• Dimming: 0-10V continuous dimming down to 10% (requires separate 0-10V DC dimming circuit)
• Voltage & Surge Protection: 120-277V AC, 50/60Hz Class 2 driver; 6kV DM (L/N) and 6kV CM (L/N-PE) surge protection
• Location & Body Rating: UL Listed for wet locations; IP65 weatherproof rated die-cast aluminum housing
• Operating Temperature: -40°F (-40°C) to 104°F (40°C)
• Certifications, Lifespan & Warranty: DLC 5.1 Premium Listed, UL Listed, IP65, RoHS Compliant; L70 100,000-hour LED lifespan (IES LM-80 / TM-21); 5-year limited warranty covering light output, driver performance, and paint finish - RAB

Performance & Light Output

At 100W (Factory Default — 98.3W–103.2W Input; Replaces up to 400W MH or 310W HPS):

• 0° Full Cutoff (Default): 12,670 lm (123.1 lm/W) at 3000K | 14,382 lm (146.2 lm/W) at 4000K | 13,900 lm (134.7 lm/W) at 5000K
• 15° Forward Throw: 12,678 lm (123.2 lm/W) at 3000K | 14,339 lm (145.7 lm/W) at 4000K | 13,941 lm (135.1 lm/W) at 5000K
• 30° Forward Throw: 12,718 lm (123.6 lm/W) at 3000K | 14,319 lm (145.7 lm/W) at 4000K | 13,964 lm (135.3 lm/W) at 5000K
• 45° Forward Throw: 12,770 lm (124.1 lm/W) at 3000K | 14,274 lm (145.2 lm/W) at 4000K | 13,990 lm (135.6 lm/W) at 5000K

At 85W (81.8W–85.9W Input; Replaces up to 400W MH or 310W HPS):

• 0° Full Cutoff: 11,184 lm (130.5 lm/W) at 3000K | 12,600 lm (153.8 lm/W) at 4000K | 12,270 lm (142.8 lm/W) at 5000K
• 15° Forward Throw: 11,187 lm (130.7 lm/W) at 3000K | 12,635 lm (154.5 lm/W) at 4000K | 12,301 lm (143.4 lm/W) at 5000K
• 30° Forward Throw: 11,217 lm (130.9 lm/W) at 3000K | 12,647 lm (154.2 lm/W) at 4000K | 12,316 lm (143.4 lm/W) at 5000K
• 45° Forward Throw: 11,255 lm (131.3 lm/W) at 3000K | 12,676 lm (154.6 lm/W) at 4000K | 12,330 lm (143.5 lm/W) at 5000K

At 70W (67.2W–70.6W Input; Replaces up to 400W MH or 250W HPS):

• 0° Full Cutoff: 9,605 lm (136.6 lm/W) at 3000K | 10,821 lm (161.0 lm/W) at 4000K | 10,537 lm (149.5 lm/W) at 5000K
• 15° Forward Throw: 9,610 lm (136.7 lm/W) at 3000K | 10,854 lm (161.5 lm/W) at 4000K | 10,567 lm (149.9 lm/W) at 5000K
• 30° Forward Throw: 9,619 lm (136.6 lm/W) at 3000K | 10,845 lm (161.1 lm/W) at 4000K | 10,561 lm (149.6 lm/W) at 5000K
• 45° Forward Throw: 9,651 lm (137.1 lm/W) at 3000K | 10,869 lm (161.5 lm/W) at 4000K | 10,573 lm (149.8 lm/W) at 5000K

At 50W (48.2W–50.6W Input; Replaces up to 350W MH or 200W HPS):

• 0° Full Cutoff: 7,219 lm (143.2 lm/W) at 3000K | 8,133 lm (168.7 lm/W) at 4000K | 7,920 lm (156.5 lm/W) at 5000K
• 15° Forward Throw: 7,227 lm (143.4 lm/W) at 3000K | 8,162 lm (169.3 lm/W) at 4000K | 7,947 lm (157.1 lm/W) at 5000K
• 30° Forward Throw: 7,224 lm (143.3 lm/W) at 3000K | 8,145 lm (169.0 lm/W) at 4000K | 7,932 lm (156.8 lm/W) at 5000K
• 45° Forward Throw: 7,243 lm (143.7 lm/W) at 3000K | 8,157 lm (169.2 lm/W) at 4000K | 7,935 lm (156.8 lm/W) at 5000K

Engineered with long-life, high-efficacy, surface-mount LEDs delivering 83–86 CRI across all configurations. Rated life of 100,000 hours (L70) based on IES LM-80 results and TM-21 calculations.

Lens & Optics

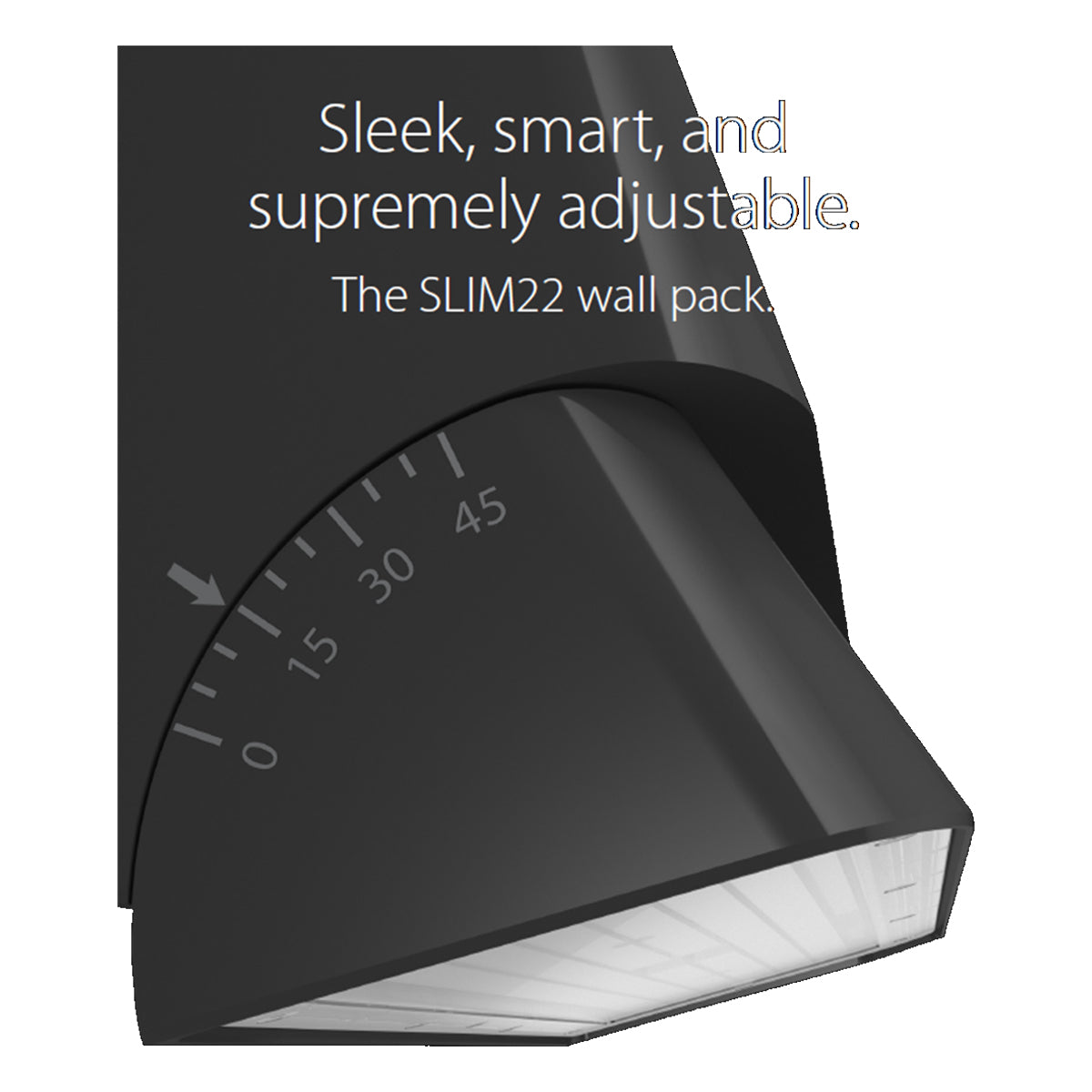

The SLIM22 adjustable-throw optical system combines a durable polycarbonate lens with an internal 4-position forward-throw selector:

• 0° Full Cutoff Setting (Factory Default): Directs illumination straight down below the horizontal plane for zero-uplight perimeter and doorway lighting.
• 15° & 30° Intermediate Forward Throw Settings: Projects the beam progressively further outward from the building facade to cover wider walkways, drive lanes, and loading aprons.
• 45° Maximum Forward Throw Setting: Aims light outward at a 45-degree angle to illuminate broad parking areas and commercial yards without tilting the external architectural housing.

Onboard forward-throw adjustment lets contractors dial in the exact beam projection angle on-site while keeping the fixture's sleek, level wall profile intact.

Smart & Control Features

Engineered for 48-in-1 on-site customization, automated dusk-to-dawn operation, and commercial dimming:

• Integrated Selectable On/Off Photocell: Built-in 120-277V dusk-to-dawn photocell can be switched on for automatic nighttime operation or turned off for wall-switch, timer, or lighting panel control.
• 3-Axis Field Adjustability (Wattage, CCT & Throw): Internal selectors adjust wattage (100/85/70/50W), color temperature (3000K, 4000K default, 5000K), and forward throw angle (0° default, 15°, 30°, 45°).
• 0-10V Continuous Dimming: Driver includes control wiring for 0-10V DC dimming systems (requires separate 0-10V DC dimming circuit) and dims smoothly down to 10%.

Electrical

Powered by a Class 2 driver operating on universal 120-277V AC at 50/60Hz with a Power Factor at 100W of 99.8% at 120V and 94.9% at 277V and Total Harmonic Distortion (THD) at 100W of 3.0%–3.1% at 120V and 5.8% at 277V across all four throw angles. Integrated 6kV surge protection (DM L/N: 6kV, CM L/N-PE: 6kV) protects internal electronics against line transients and lightning surges. Includes pre-wired 0-10V dimming leads and an integrated 120-277V selectable on/off photocell. (Also available in the SLIM22 series in 480V /480 and 120-277V battery backup /E configurations rated for 32°F/0°C to 104°F/40°C).

Operating current and amp draw across input voltages and selectable wattage steps for branch circuit and breaker loading calculations:

Construction

Housing & Thermal: Precision die-cast aluminum housing (Medium SLIM22 size tier) engineered for passive thermal management across all four wattage settings.

Finish: Architectural Bronze powder-coat finish formulated for high outdoor durability and long-lasting color stability (White W finish variants also available in the SLIM22 family).

Environmental Sealing: IP65 weatherproof rated for dust and water ingress and UL Listed for wet locations with continuous silicone gaskets. Ambient operating temperature: -40°F (-40°C) to 104°F (40°C).

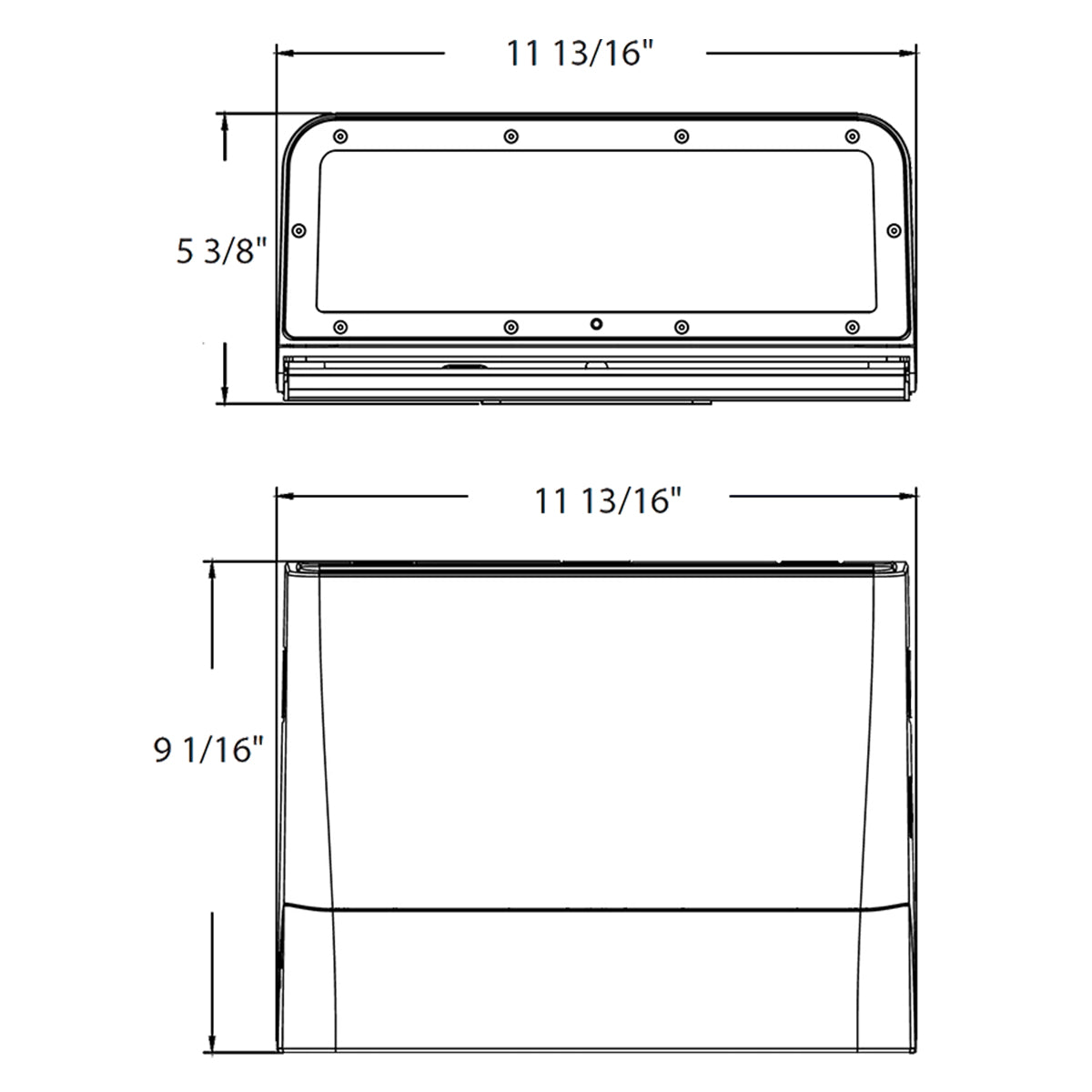

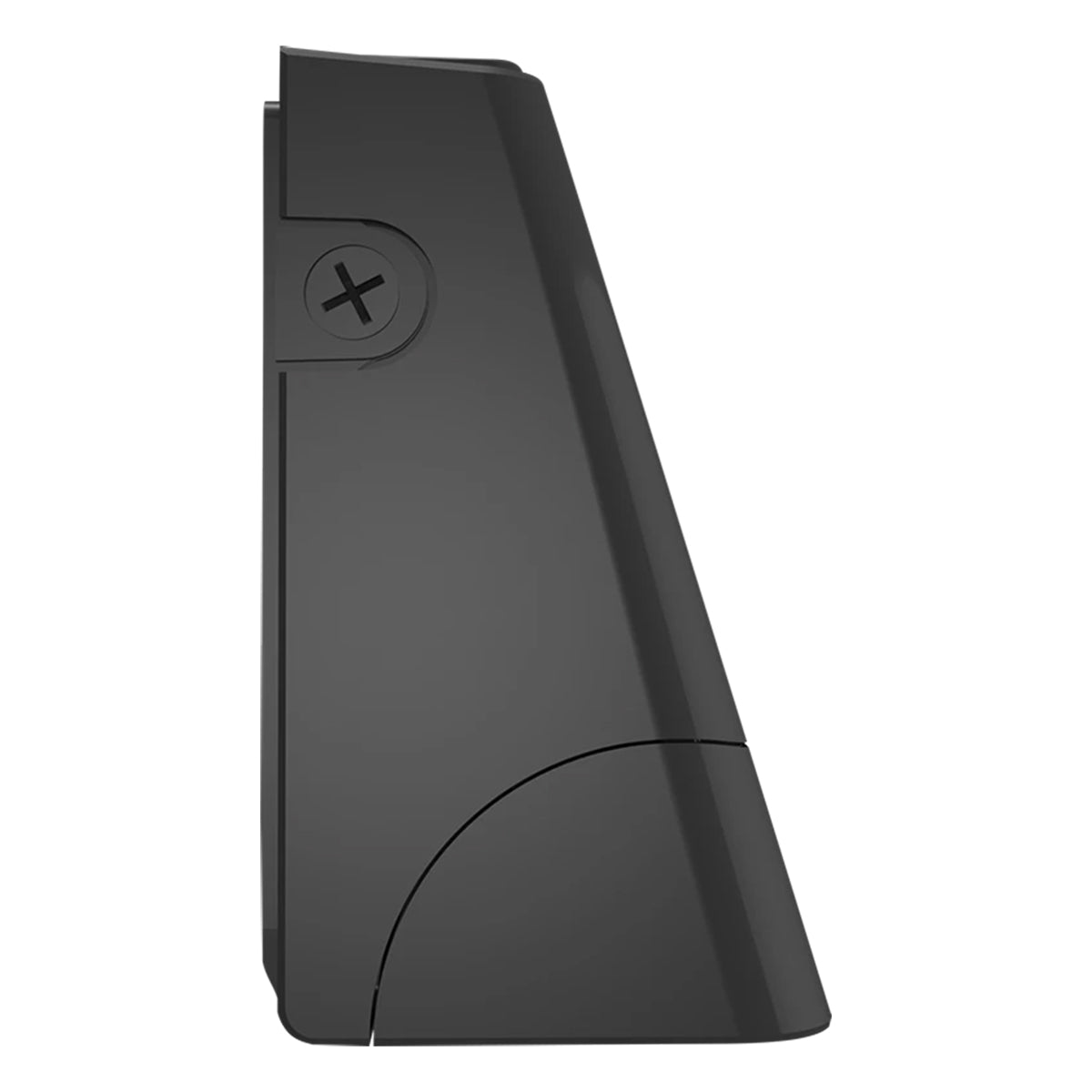

Dimensions & Weight: 11-13/16" W x 9-1/16" H x 5-3/8" D. Fixture weight: 8.4 lbs.

Installation & Mounting

Mounting Hardware: Sleek 11-13/16" W x 9-1/16" H x 5-3/8" D (8.4 lbs) die-cast aluminum wall-mount housing features hinged wiring access that makes electrical installation and on-site switch adjustment fast and hands-free while maintaining a level horizontal housing profile across all 0°, 15°, 30°, and 45° forward throw settings.

Conduit & Wiring Access: Equipped with threaded conduit entries on the back, sides, top, and bottom for recessed junction box feeds or surface conduit runs.

Certifications & Rebates

• DLC 5.1 Premium Listed: Listed by the DesignLights Consortium as an ultra-efficient premium product qualifying for the highest tier of utility rebates (searchable on designlights.org under DLC ID S-N7LBHX)
• UL Listed: Certified for wet locations
• IP65 Rated: Ingress protection rating of IP65 for dust and water
• ANSI C78.377-2017 Chromaticity: Follows American National Standards for Solid State Lighting color uniformity
• IES LM-80 & TM-21 Tested: LED lumen maintenance validated per IES LM-80 results and TM-21 calculations
• RoHS Compliant: Green technology with mercury-free and UV-free RoHS-compliant components

Typical Applications

• Commercial Building Perimeters & Walkways - Selectable 0° full cutoff setting directs up to 14,382 lumens downward without tilting the sleek 5-3/8"-deep housing
• Parking Lots, Drive Lanes & Loading Docks - Selectable 15°, 30°, and 45° forward throw settings project wide perimeter light to replace up to 400W Metal Halide (MH) or 310W High Pressure Sodium (HPS)
• Schools, Retail Centers & Office Complexes - 4 selectable wattages and 3 selectable CCTs (3000K/4000K/5000K) let contractors standardize on a single fixture across multiple mounting heights
• Surface Conduit & J-Box Retrofits - Hinged wiring access and conduit entries on the back, sides, top, and bottom speed up installation
• All-Climate Security Lighting - Integrated selectable on/off photocell, 6kV surge protection, and -40°F (-40°C) to 104°F (40°C) rating ensure year-round outdoor reliability

What's Included

• RAB SLIM22-M-100 Adjustable Throw Slim LED Wall Pack - Bronze
• Pre-installed 120-277V selectable on/off photocell
• Conduit plugs, installation hardware, and operation manual
