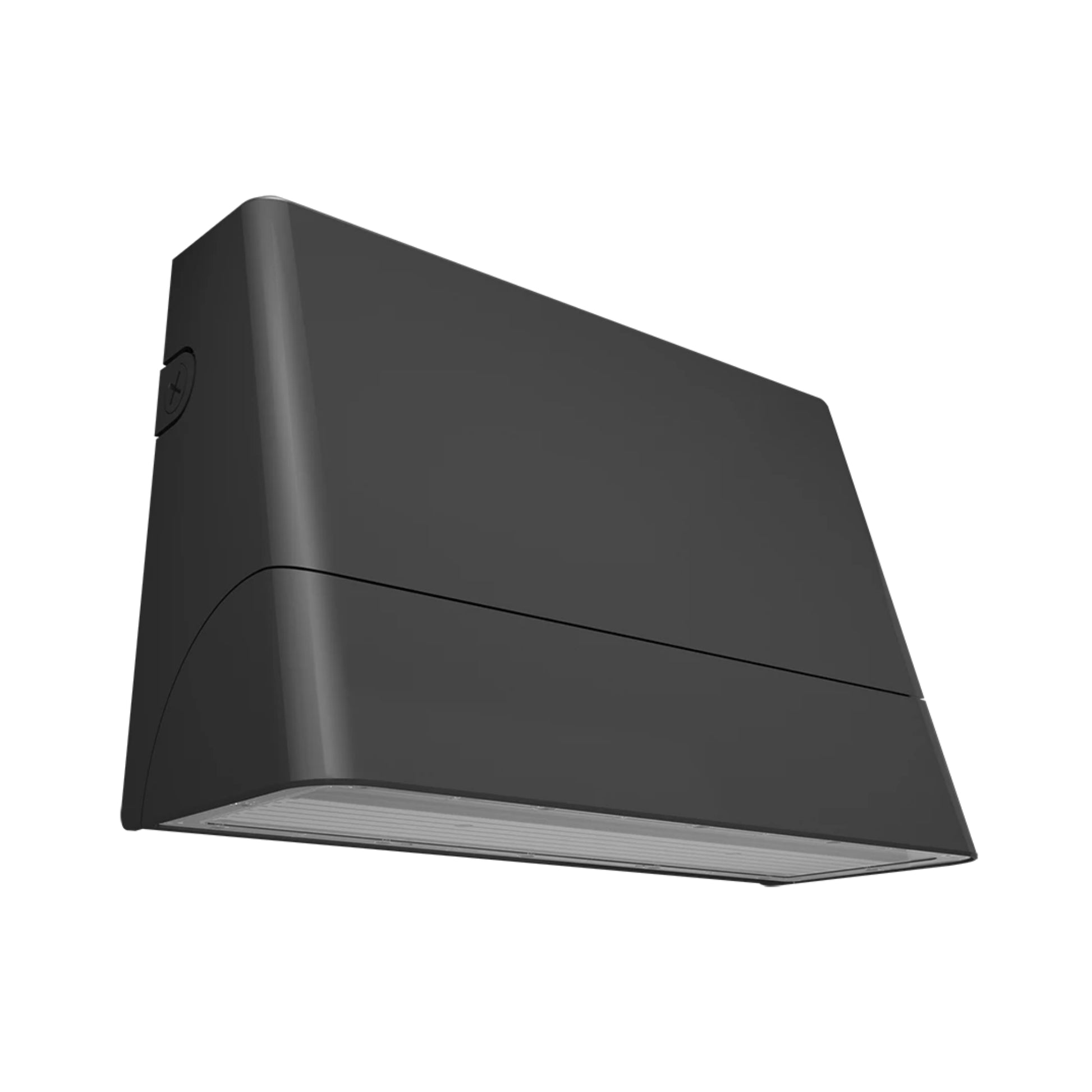

RAB SLIM22-L-150 Adjustable Throw Slim LED Wall Pack — 150/125/100/75W Selectable — 3000K/4000K/5000K — Bronze

The RAB SLIM22-L-150 (Large housing size) is a commercial field-adjustable cutoff wall pack, adjustable throw wall pack, and slim LED wall pack—engineered as a full cutoff wall pack with adjustable forward throw—delivering 11,462 to 21,727 lumens at up to 169.2 lm/W across selectable 150W (factory default), 125W, 100W, and 75W power settings and switchable 3000K, 4000K, and 5000K color temperatures (default 4000K). Operating on universal 120-277V electrical systems with 0-10V dimming down to 10%, it replaces legacy fixtures up to 750W Metal Halide (MH) or 400W High Pressure Sodium (HPS) while qualifying for DLC 5.1 Premium utility rebates. Built with a weatherproof IP65 die-cast aluminum body and UL wet-location listing, this versatile exterior luminaire features a slim 6-1/4" wall projection depth, selectable 0° (full cutoff default), 15°, 30°, and 45° forward throw angles that aim the beam without tilting the outer housing, hinged wiring access with conduit entries on the back, sides, top, and bottom, a polycarbonate lens, an integrated selectable on/off photocell, and 6kV surge protection.

Key Features

  • Selectable Wattage: Field-adjustable 150W (factory default), 125W, 100W, and 75W (Large SLIM22 housing)
  • Wattage Equivalency: 150W & 125W replace up to 750W MH or 400W HPS; 100W replaces up to 400W MH or 400W HPS; 75W replaces up to 400W MH or 310W HPS
  • Lumen Output Range: 11,462 to 21,727 lm across 48 wattage, CCT, and throw combinations
  • Peak Efficacy: Up to 169.2 lm/W
  • CRI: 83–86 CRI
  • Field-Adjustable CCT: 3000K / 4000K / 5000K selectable (factory default 4000K)
  • Color Consistency: 7-step MacAdam Ellipse binning; ANSI C78.377-2017 compliant
  • Selectable Forward Throw: Field-adjustable 0° (full cutoff default), 15°, 30°, and 45° forward throw angles
  • Lens & Gasket: UV-free polycarbonate lens with continuous silicone gasket
  • Photocell & Controls: Integrated 120-277V selectable on/off photocell included
  • Dimming: 0-10V continuous dimming down to 10% (requires separate 0-10V DC dimming circuit)
  • Voltage & Surge Protection: 120-277V AC, 50/60Hz Class 2 driver; 6kV DM (L/N) and 6kV CM (L/N-PE) surge protection
  • Location & Body Rating: UL Listed for wet locations; IP65 weatherproof rated die-cast aluminum housing
  • Operating Temperature: -40°F (-40°C) to 104°F (40°C)
  • Certifications, Lifespan & Warranty: DLC 5.1 Premium Listed, UL Listed, IP65, RoHS Compliant; L70 100,000-hour LED lifespan (IES LM-80 / TM-21); 5-year limited warranty covering light output, driver performance, and paint finish - RAB

Performance & Light Output

At 150W (Factory Default — 148.3W–156.0W Input; Replaces up to 750W MH or 400W HPS):

  • 0° Full Cutoff (Default): 19,339 lm (124.4 lm/W) at 3000K | 21,547 lm (145.3 lm/W) at 4000K | 20,869 lm (133.8 lm/W) at 5000K
  • 15° Forward Throw: 19,366 lm (124.6 lm/W) at 3000K | 21,564 lm (145.4 lm/W) at 4000K | 20,883 lm (133.9 lm/W) at 5000K
  • 30° Forward Throw: 19,485 lm (125.4 lm/W) at 3000K | 21,693 lm (146.2 lm/W) at 4000K | 20,966 lm (134.4 lm/W) at 5000K
  • 45° Forward Throw: 19,498 lm (125.5 lm/W) at 3000K | 21,727 lm (146.3 lm/W) at 4000K | 21,073 lm (135.1 lm/W) at 5000K

At 125W (124.8W–131.4W Input; Replaces up to 750W MH or 400W HPS):

  • 0° Full Cutoff: 17,113 lm (130.8 lm/W) at 3000K | 19,067 lm (152.8 lm/W) at 4000K | 18,467 lm (140.6 lm/W) at 5000K
  • 15° Forward Throw: 17,165 lm (131.2 lm/W) at 3000K | 19,113 lm (153.1 lm/W) at 4000K | 18,510 lm (141.0 lm/W) at 5000K
  • 30° Forward Throw: 17,182 lm (131.3 lm/W) at 3000K | 19,129 lm (153.0 lm/W) at 4000K | 18,488 lm (140.7 lm/W) at 5000K
  • 45° Forward Throw: 17,203 lm (131.4 lm/W) at 3000K | 19,170 lm (153.2 lm/W) at 4000K | 18,593 lm (141.5 lm/W) at 5000K

At 100W (100.2W–105.5W Input; Replaces up to 400W MH or 400W HPS):

  • 0° Full Cutoff: 14,442 lm (137.5 lm/W) at 3000K | 16,091 lm (160.6 lm/W) at 4000K | 15,585 lm (147.9 lm/W) at 5000K
  • 15° Forward Throw: 14,463 lm (137.7 lm/W) at 3000K | 16,105 lm (160.7 lm/W) at 4000K | 15,596 lm (148.0 lm/W) at 5000K
  • 30° Forward Throw: 14,533 lm (138.3 lm/W) at 3000K | 16,180 lm (161.2 lm/W) at 4000K | 15,638 lm (148.2 lm/W) at 5000K
  • 45° Forward Throw: 14,545 lm (138.4 lm/W) at 3000K | 16,208 lm (161.4 lm/W) at 4000K | 15,720 lm (149.0 lm/W) at 5000K

At 75W (75.7W–79.6W Input; Replaces up to 400W MH or 310W HPS):

  • 0° Full Cutoff: 11,462 lm (144.5 lm/W) at 3000K | 12,771 lm (168.7 lm/W) at 4000K | 12,369 lm (155.4 lm/W) at 5000K
  • 15° Forward Throw: 11,469 lm (144.6 lm/W) at 3000K | 12,771 lm (168.7 lm/W) at 4000K | 12,367 lm (155.4 lm/W) at 5000K
  • 30° Forward Throw: 11,502 lm (145.0 lm/W) at 3000K | 12,805 lm (169.2 lm/W) at 4000K | 12,376 lm (155.5 lm/W) at 5000K
  • 45° Forward Throw: 11,499 lm (145.0 lm/W) at 3000K | 12,814 lm (169.1 lm/W) at 4000K | 12,428 lm (156.1 lm/W) at 5000K

Engineered with long-life, high-efficacy, surface-mount LEDs delivering 83–86 CRI across all configurations. Rated life of 100,000 hours (L70) based on IES LM-80 results and TM-21 calculations.

Lens & Optics

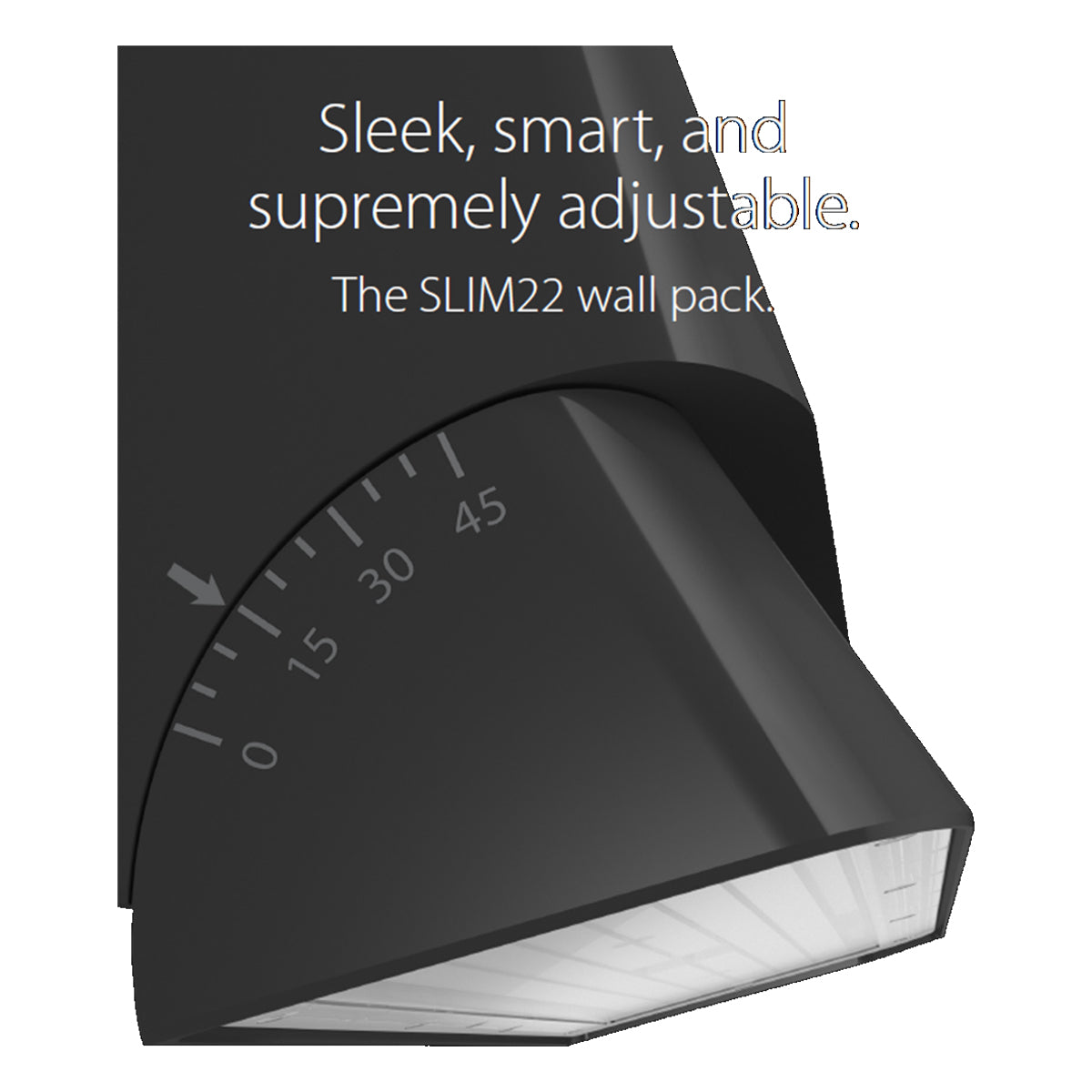

The SLIM22 adjustable-throw optical system combines a durable polycarbonate lens with an internal 4-position forward-throw selector:

  • 0° Full Cutoff Setting (Factory Default): Directs illumination straight down below the horizontal plane for zero-uplight perimeter and doorway lighting.
  • 15° & 30° Intermediate Forward Throw Settings: Projects the beam progressively further outward from the building facade to cover wider walkways, drive lanes, and loading aprons.
  • 45° Maximum Forward Throw Setting: Aims light outward at a 45-degree angle to illuminate broad parking areas and commercial yards without tilting the external architectural housing.

Onboard forward-throw adjustment lets contractors dial in the exact beam projection angle on-site while keeping the fixture's sleek, level wall profile intact.

Smart & Control Features

Engineered for 48-in-1 on-site customization, automated dusk-to-dawn operation, and commercial dimming:

  • Integrated Selectable On/Off Photocell: Built-in 120-277V dusk-to-dawn photocell can be switched on for automatic nighttime operation or turned off for wall-switch, timer, or lighting panel control.
  • 3-Axis Field Adjustability (Wattage, CCT & Throw): Internal selectors adjust wattage (150/125/100/75W), color temperature (3000K, 4000K default, 5000K), and forward throw angle (0° default, 15°, 30°, 45°).
  • 0-10V Continuous Dimming: Driver includes control wiring for 0-10V DC dimming systems (requires separate 0-10V DC dimming circuit) and dims smoothly down to 10%.

Electrical

Powered by a Class 2 driver operating on universal 120-277V AC at 50/60Hz with a Power Factor at 150W of 99.8% at 120V and 96.4% at 277V and Total Harmonic Distortion (THD) at 150W of 4.3%–4.4% at 120V and 6.3%–6.5% at 277V across all four throw angles. Integrated 6kV surge protection (DM L/N: 6kV, CM L/N-PE: 6kV) protects internal electronics against line transients and lightning surges. Includes pre-wired 0-10V dimming leads and an integrated 120-277V selectable on/off photocell. (Also available in the SLIM22 series in 480V /480 and 120-277V battery backup /E configurations rated for 32°F/0°C to 104°F/40°C).

Operating current and amp draw across input voltages and selectable wattage steps for branch circuit and breaker loading calculations:

Selectable Wattage Tier 120V Current (A) 208V Current (A) 240V Current (A) 277V Current (A)
150W (Default) 1.41A 0.84A 0.76A 0.68A
125W 1.20A 0.74A 0.64A 0.59A
100W 0.94A 0.60A 0.54A 0.50A
75W 0.69A 0.45A 0.43A 0.40A

Construction

Housing & Thermal: Precision die-cast aluminum housing (Large SLIM22 size tier) engineered for passive thermal management across all four wattage settings.

Finish: Architectural Bronze powder-coat finish formulated for high outdoor durability and long-lasting color stability (White W finish variants also available in the SLIM22 family).

Environmental Sealing: IP65 weatherproof rated for dust and water ingress and UL Listed for wet locations with continuous silicone gaskets. Ambient operating temperature: -40°F (-40°C) to 104°F (40°C).

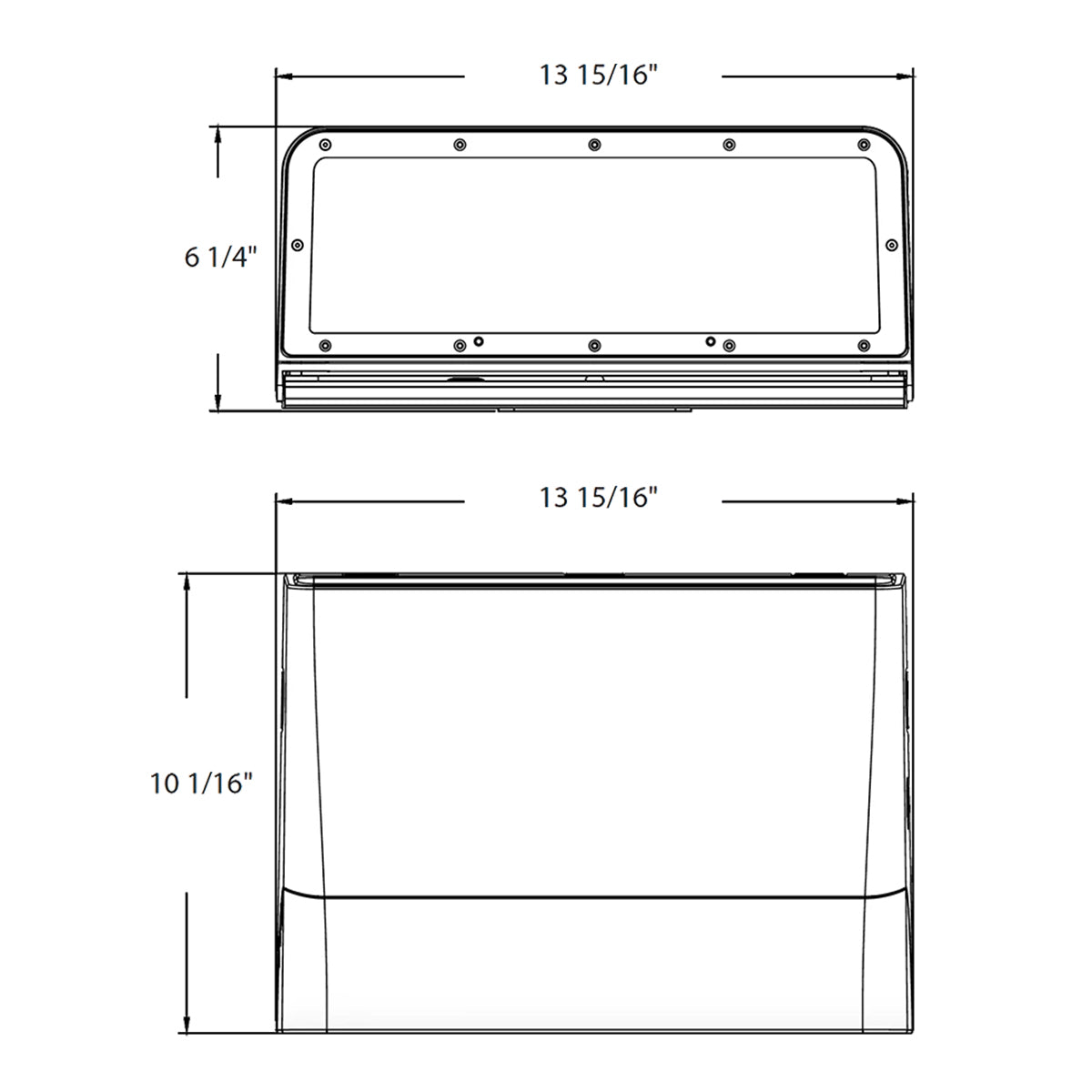

Dimensions & Weight: 13-15/16" W x 10-1/16" H x 6-1/4" D. Fixture weight: 11.7 lbs.

Installation & Mounting

Mounting Hardware: Sleek 13-15/16" W x 10-1/16" H x 6-1/4" D (11.7 lbs) die-cast aluminum wall-mount housing features hinged wiring access that makes electrical installation and on-site switch adjustment fast and hands-free while maintaining a level horizontal housing profile across all 0°, 15°, 30°, and 45° forward throw settings.

Conduit & Wiring Access: Equipped with threaded conduit entries on the back, sides, top, and bottom for recessed junction box feeds or surface conduit runs.

Certifications & Rebates

  • DLC 5.1 Premium Listed: Listed by the DesignLights Consortium as an ultra-efficient premium product qualifying for the highest tier of utility rebates (searchable on designlights.org under DLC ID S-V296F6)
  • UL Listed: Certified for wet locations
  • IP65 Rated: Ingress protection rating of IP65 for dust and water
  • ANSI C78.377-2017 Chromaticity: Follows American National Standards for Solid State Lighting color uniformity
  • IES LM-80 & TM-21 Tested: LED lumen maintenance validated per IES LM-80 results and TM-21 calculations
  • RoHS Compliant: Green technology with mercury-free and UV-free RoHS-compliant components

Typical Applications

  • Commercial Building Perimeters & Walkways - Selectable 0° full cutoff setting directs up to 21,727 lumens downward without tilting the sleek 6-1/4"-deep housing
  • Parking Lots, Drive Lanes & Loading Docks - Selectable 15°, 30°, and 45° forward throw settings project wide perimeter light to replace up to 750W Metal Halide (MH) or 400W High Pressure Sodium (HPS)
  • Schools, Retail Centers & Office Complexes - 4 selectable wattages and 3 selectable CCTs (3000K/4000K/5000K) let contractors standardize on a single fixture across multiple mounting heights
  • Surface Conduit & J-Box Retrofits - Hinged wiring access and conduit entries on the back, sides, top, and bottom speed up installation
  • All-Climate Security Lighting - Integrated selectable on/off photocell, 6kV surge protection, and -40°F (-40°C) to 104°F (40°C) rating ensure year-round outdoor reliability

What's Included

  • RAB SLIM22-L-150 Adjustable Throw Slim LED Wall Pack - Bronze
  • Pre-installed 120-277V selectable on/off photocell
  • Conduit plugs, installation hardware, and operation manual

Specifications

Dimensions

Length/Depth
13.93 in
Width/Diameter
6.25 in
Height
10.06 in
Weight
13.9 lb

Style & Materials

Material
Aluminum
Shape
Slim

Characteristics & Features

Lamp Source
led
Lamp Color
3000K, 4000K, 5000K, Selectable CCT
Color Rendering
86 CRI
Delivered Lumens
21727
Dimmable
Yes

Electrical Information

Voltage
120-277V
Total Wattage
150W

Item Details

MPN
SLIM22-L-150
Brand
RAB Lighting
Family
SLIM22 Field Adjustable Wall Pack
UPC
192552042932

Warranty & Certifications

Product Warranty
5 Years
Lamp Life
100,000 Hours
Product Rating
IP65 Rated

Shipping & Returns

Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.

Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.

See Full Shipping Policy | See Full Return Policy

Frequently Asked Questions

How does the forward throw adjust on the RAB SLIM22-L-150, and how does it mount?

The internal optical assembly adjusts across 0° (full cutoff factory default), 15°, 30°, and 45° forward throw settings without tilting the outer housing. Its 13-15/16" W x 10-1/16" H x 6-1/4" D (11.7 lbs) die-cast aluminum body includes hinged wiring access and conduit entries on the back, sides, top, and bottom.

What wattages, lumen outputs, HID equivalencies, and color temperatures does the SLIM22-L-150 offer?

An internal selector adjusts between 150W (up to 21,727 lm), 125W (up to 19,170 lm), 100W (up to 16,208 lm), and 75W (up to 12,814 lm at 169.2 lm/W) to replace 400W–750W MH or 310W–400W HPS fixtures. A second switch selects between 3000K, 4000K (factory default), and 5000K with 83–86 CRI.

Can the built-in photocell on the RAB SLIM22-L-150 be turned off, and does it support 0-10V dimming?

Yes, this luminaire includes an integrated 120-277V selectable photocell that can be switched on for automatic dusk-to-dawn operation or turned off for manual control. Its Class 2 driver (1.41A max at 120V; 0.68A max at 277V) includes 0-10V control wires that dim down to 10%.

How is the RAB SLIM22-L-150 protected against outdoor weather and electrical surges?

The bronze die-cast aluminum housing and UV-free polycarbonate lens are sealed with continuous silicone gaskets for IP65 dust and water protection and UL wet-location compliance. It includes 6kV differential and common-mode surge protection and operates in ambient temperatures from -40°F (-40°C) to 104°F (40°C).

What is the rated LED lifespan, utility rebate status, and warranty coverage for the SLIM22-L-150?

The RAB SLIM22-L-150 is rated for a 100,000-hour L70 LED lifespan based on IES LM-80 testing and TM-21 calculations and holds DLC 5.1 Premium certification for utility rebates. It is backed by RAB's 5-year limited warranty covering light output, driver performance, and paint finish.
