RAB SLIM17FAFC40 SLIM17 Full Cutoff LED Wall Pack 6,052 Lumens 40W Selectable 30K/40K/50K 120-277V Photocell Bronze
Available in stock (200)
About this item
About this item
- Efficient Output: Delivers up to 6,052 lumens at a dedicated 40W output, providing an ultra-efficient, energy-saving replacement for 200W traditional metal halide fixtures.
- Selectable CCT: Easily switch between warm 3000K, neutral 4000K, or daylight 5000K color temperatures directly on the fixture during installation to suit your site's aesthetic.
- Full Cutoff Design: Engineered with a 0° full cutoff angle to eliminate uplight, reducing light pollution and keeping illumination focused squarely on the ground.

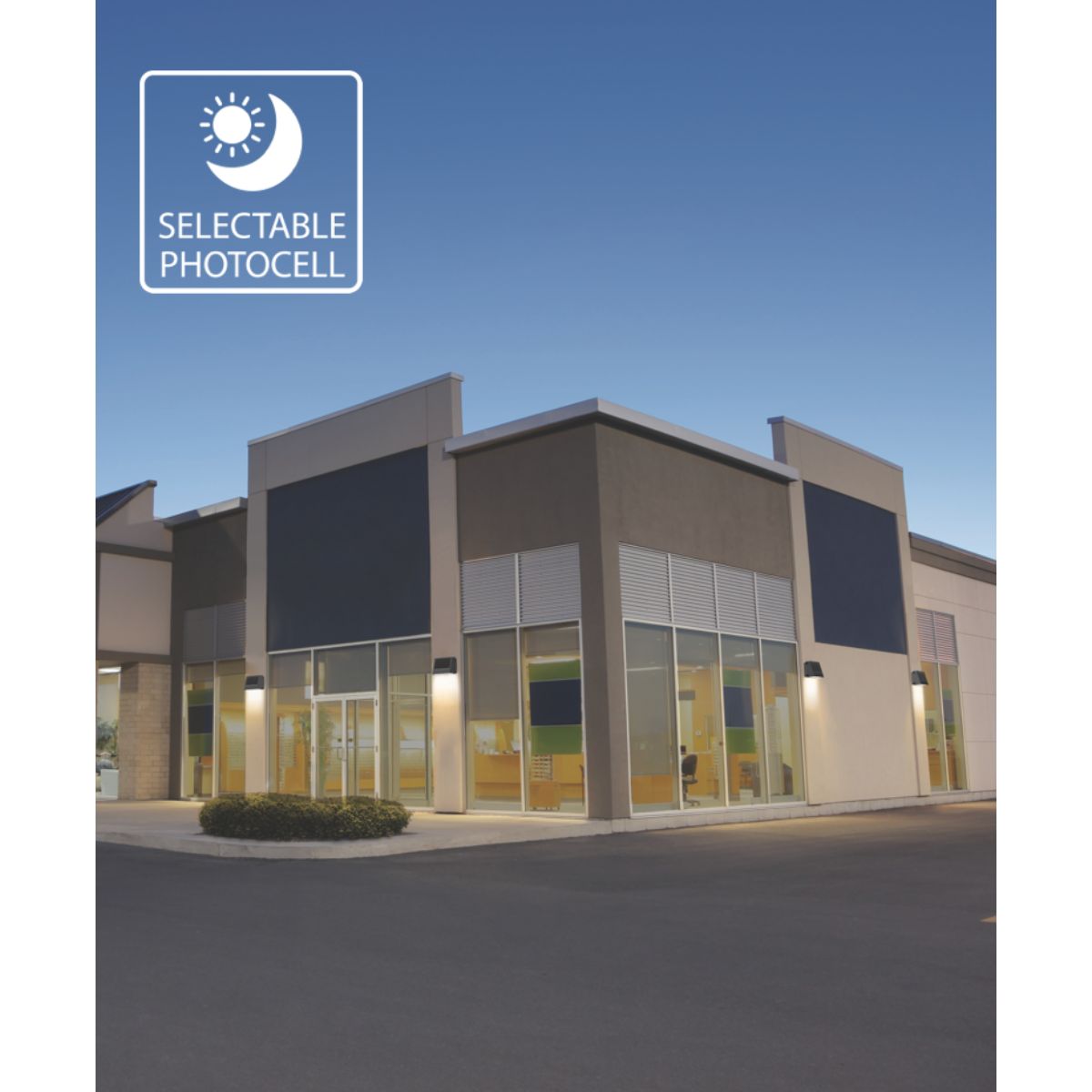

- Integrated Photocell: Comes factory-equipped with a built-in selectable on/off photocell for automated, hands-free dusk-to-dawn operation and maximum energy savings.
- Rugged Construction: Precision die-cast aluminum housing and a durable polycarbonate lens carry a sealed IP65 wet location rating and an IK08 impact protection rating.
We process payments securely and do not store credit card information.
Description
Description
RAB SLIM17 Full Cutoff LED Wall Pack — 40W, 120–277V, Bronze
The RAB SLIM17FAFC40 is a highly efficient full cutoff LED wall pack delivering up to 6,052 lumens at a dedicated 40W output, featuring field-adjustable 3000K/4000K/5000K color temperatures. Operating on a 120–277V universal driver, this luminaire comes standard with an integrated selectable on/off photocell to provide automated dusk-to-dawn security lighting out of the box. Built with an IP65 Wet Location rating and an IK08 impact rating, it provides an ultra-durable, dark-sky friendly lighting solution for building perimeters, entryways, and facade applications.
Key Features
- Wattage: 40W
- Selectable CCT: 3000K / 4000K / 5000K (4000K default)
- Delivered Lumens: 5,632 to 6,052 lumens (up to 152.9 LPW)
- Voltage: 120–277V input
- Dimming: 0–10V dimming standard (dims down to 10%)
- Cutoff Angle: Full cutoff (0°)
- Controls: Integrated 120-277V selectable on/off photocell included
- CRI: 83-86
- HID Equivalent: Replaces 200W Metal Halide
- Environmental Ratings: IP65 Wet Location rated, IK08 Impact Rated

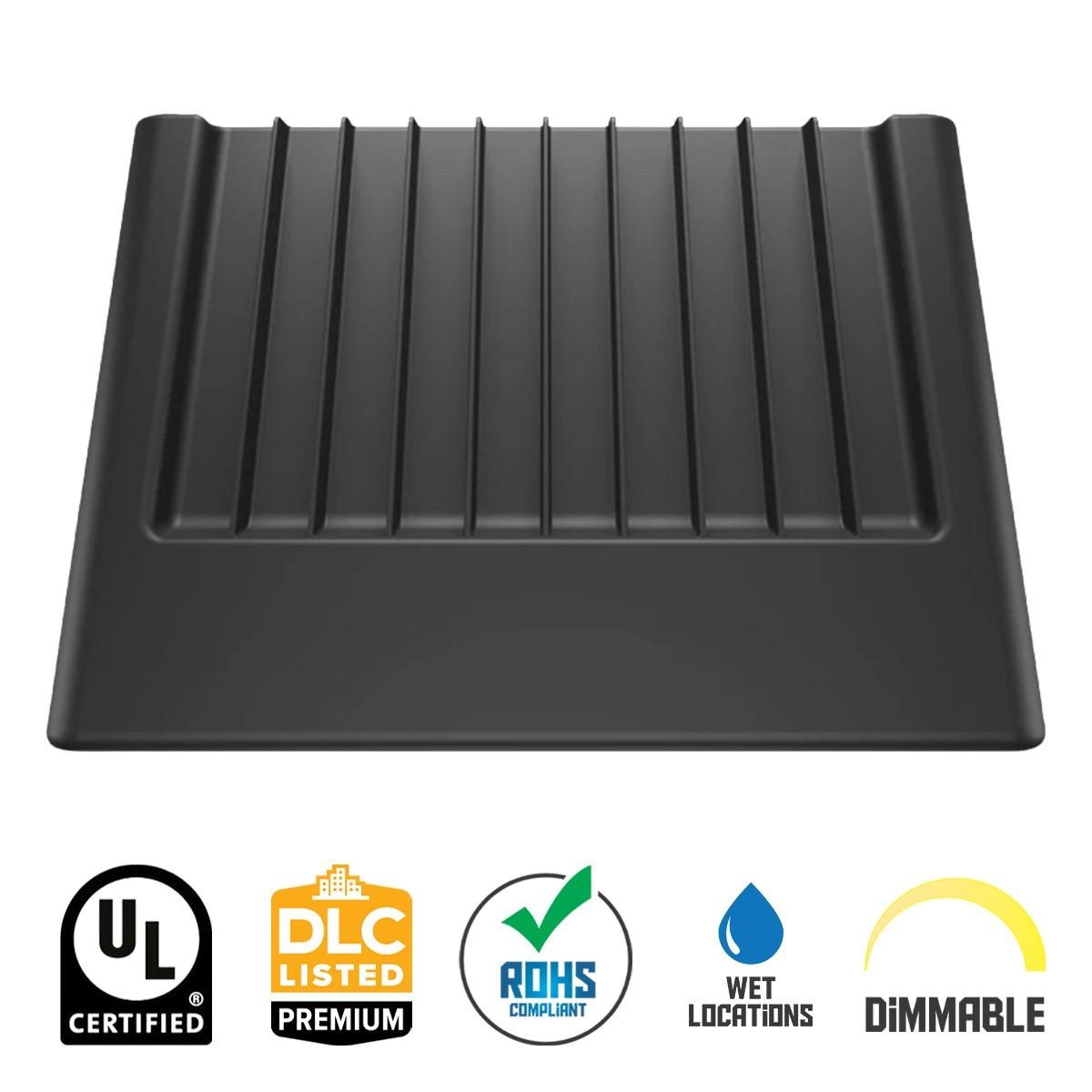

- Certifications: DLC Premium Listed, UL Listed, RoHS Compliant
- Estimated Life: 100,000 hours (L70)
Typical Applications
- Exterior wall illumination for commercial buildings
- Shipping and receiving bay lighting
- Property protection and safety illumination
- Main entrances and corporate doorways
- Distribution center exteriors
- Storefronts and retail complex perimeters
- Manufacturing plant exterior walls
Performance & Light Output
This contractor-friendly wall pack provides highly efficient downlight illumination ranging from 5,632 to 6,052 lumens depending on the selected color temperature, achieving an outstanding efficacy of up to 152.9 lumens per watt. The integrated CCT switch allows installers to easily match existing site lighting by toggling between warm white, cool white, and daylight. The fixture features a 0-degree full cutoff design, preventing light spillage into the night sky and minimizing glare. The high-performance LED light engine maintains a highly prolonged rated life of 100,000 hours, virtually eliminating maintenance over the life of the fixture.
Electrical & Controls
This fixture operates on a constant current 120–277V AC driver with standard 0–10V dimming functionality (requires a separate 0-10V DC dimming circuit to operate). The electrical components are securely protected by built-in 6kV surge protection. To maximize energy savings, the SLIM17FAFC40 includes a discreet, integrated photocell with a selectable on/off switch, enabling hands-free dusk-to-dawn operation without the need for external timers or networked controls.
Construction & Durability
Engineered for tough outdoor environments, the luminaire features a precision die-cast aluminum housing and door frame finished in a high-durability bronze color. It carries an IP65 rating for complete protection against dust and water ingress in wet locations, as well as an IK08 impact rating for robust protection against physical strikes (capable of withstanding a 5-joule impact). The fixture operates reliably in extreme temperatures, starting safely in cold environments down to -40°C (-40°F) and handling ambient heat up to 50°C (122°F).
Installation & Mounting

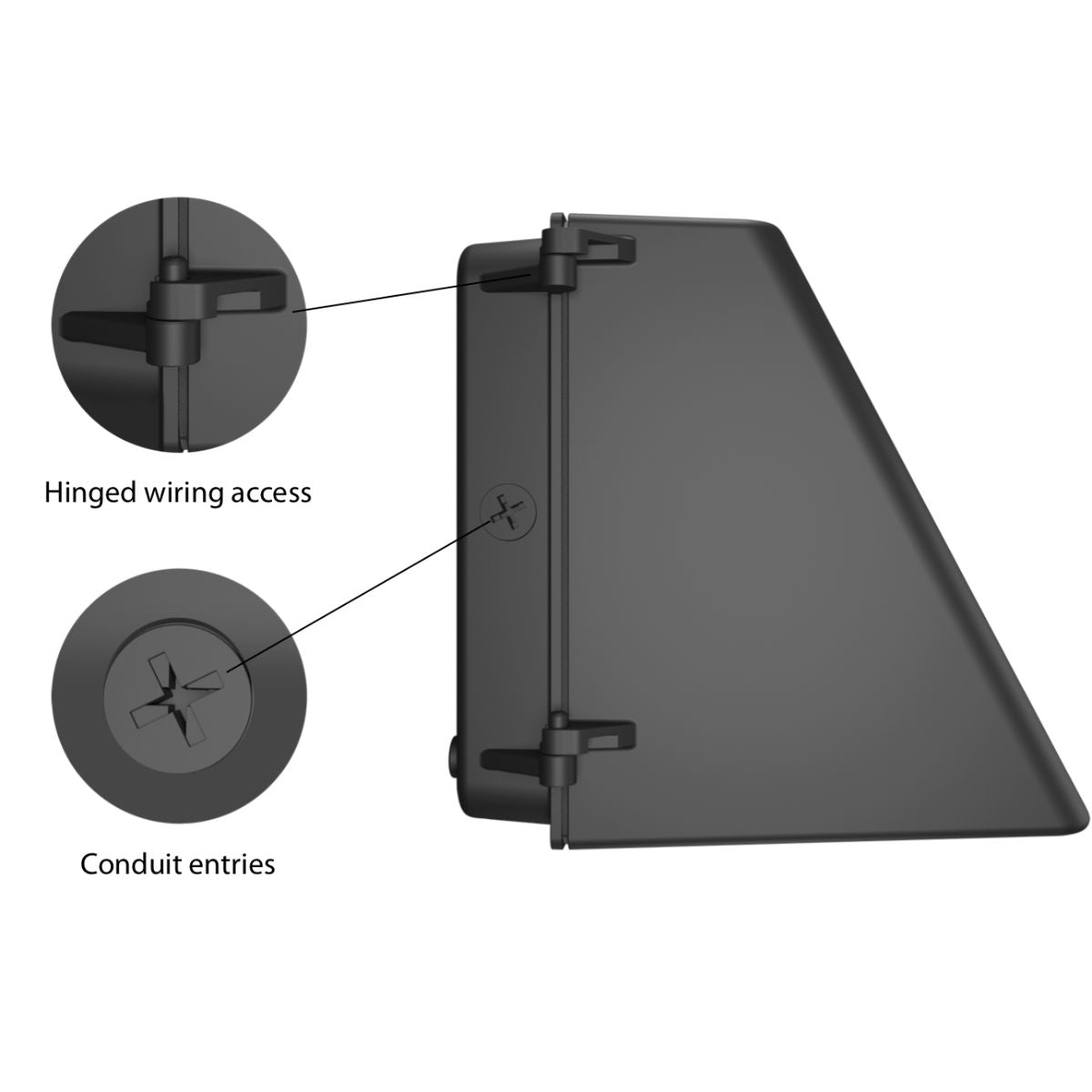

The SLIM17 series is designed for quick and straightforward installation. The backplate features hinged wiring access and conduit entries on the back, sides, top, and bottom to easily accommodate various surface wiring or recessed junction box configurations.
What's Included
- RAB SLIM17 Full Cutoff LED Wall Pack (Bronze)
- Integrated Selectable Photocell
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
This fixture operates on a universal 120–277V driver. It is also equipped with standard 0–10V dimming capabilities (dimming down to 10%).
This fixture operates on a universal 120–277V driver. It is also equipped with standard 0–10V dimming capabilities (dimming down to 10%).
Does this fixture come with a dusk-to-dawn sensor?
Does this fixture come with a dusk-to-dawn sensor?
Yes, the SLIM17FAFC40 comes standard with an integrated 120-277V photocell. It also features a selectable on/off switch so you can choose whether or not to use the automated dusk-to-dawn functionality.
Yes, the SLIM17FAFC40 comes standard with an integrated 120-277V photocell. It also features a selectable on/off switch so you can choose whether or not to use the automated dusk-to-dawn functionality.
Is the RAB SLIM17 suitable for wet and harsh environments?
Is the RAB SLIM17 suitable for wet and harsh environments?
Yes, it is UL Listed for wet locations and carries a sealed IP65 rating for complete protection against dust and water ingress. The rugged precision die-cast aluminum housing also features an IK08 impact protection rating to withstand harsh physical conditions.
Yes, it is UL Listed for wet locations and carries a sealed IP65 rating for complete protection against dust and water ingress. The rugged precision die-cast aluminum housing also features an IK08 impact protection rating to withstand harsh physical conditions.
