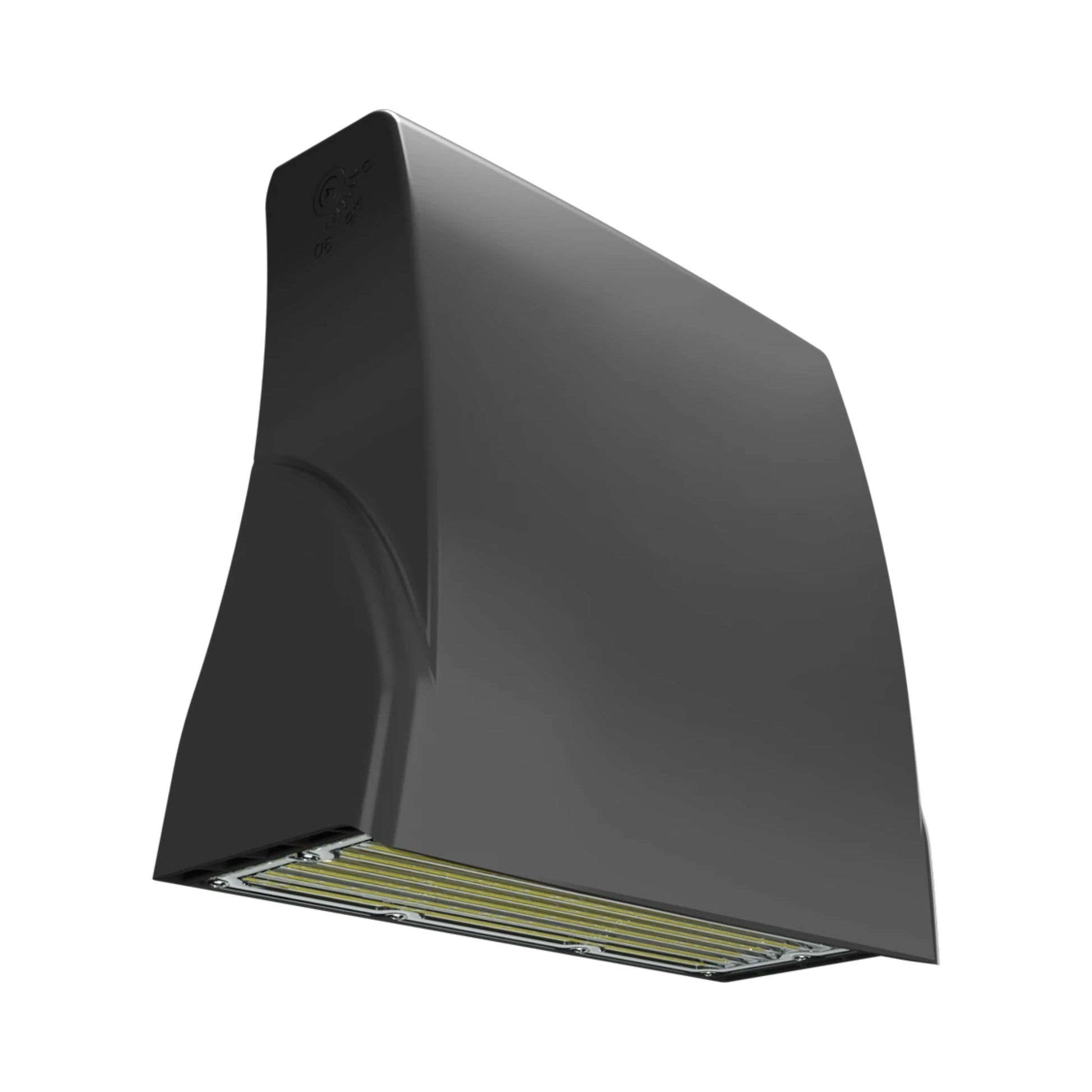

RAB SLIM17FA80ADJ Adjustable Slim LED Wall Pack — 80W — 3000K/4000K/5000K — Bronze

The RAB SLIM17FA80ADJ (Medium housing size) is a commercial field-adjustable, angle-adjustable slim LED wall pack—engineered as a CCT-adjustable wall pack with adjustable angle—delivering up to 12,364 lumens at up to 158.3 lm/W from a dedicated 80W (78.1W–80.6W input) driver across switchable 3000K, 4000K, and 5000K color temperatures (default 4000K). Operating on universal 120-277V electrical systems with 0-10V dimming down to 10%, it qualifies for DLC 5.1 Premium utility rebates. Built with a weatherproof IP65 precision die-cast aluminum body, IK07 impact protection rating, and UL wet-location listing, this architectural luminaire features an adjustable housing angle up to 90° in 15° increments, a 8-3/8" W x 9-1/8" H x 4" D profile (4.8 lbs), hinged wiring access with conduit entries on the back, sides, top, and bottom, a clear polycarbonate lens, an integrated 120-277V button photocell, and 6kV surge protection.

Key Features

• Nominal Wattage: Fixed 80W (80.6W at 3000K / 78.1W at 4000K / 80.4W at 5000K; Medium SLIM17FA housing)
• Maximum Lumen Output: Up to 12,364 lm (11,682 / 12,364 / 12,031 lm)
• Peak Efficacy: Up to 158.3 lm/W (144.9 / 158.3 / 149.6 lm/W)
• CRI: 83–84 CRI (84 at 3000K, 84 at 4000K, 83 at 5000K)
• Field-Adjustable CCT: 3000K / 4000K / 5000K selectable (factory default 4000K)
• Color Consistency: 7-step MacAdam Ellipse binning
• Lens & Aiming Optics: Clear polycarbonate lens with adjustable tilt angle up to 90° in 15° increments
• Photocell & Controls: Integrated 120-277V button photocell included
• Dimming: 0-10V continuous dimming down to 10% (requires separate 0-10V DC dimming circuit)
• Voltage & Surge Protection: 120-277V AC, 50/60Hz; 6kV L/N-PE and 6kV L-N surge protection
• Location & Body Rating: UL Listed for wet locations; IP65 weatherproof rated; IK07 impact rated
• Operating Temperature: -40°F (-40°C) to 122°F (50°C)
• Certifications: DLC 5.1 Premium Listed, UL Listed, IP65, IK07, IES LM-80 tested, RoHS Compliant
• Rated Life: L70 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
• Warranty: 5-year limited warranty covering light output, driver performance, and paint finish - RAB

Performance & Light Output

Engineered with long-life, high-efficacy, surface-mount LEDs delivering 83–84 CRI across all selectable color temperatures. Rated life of 100,000 hours (L70) based on IES LM-80 results and TM-21 calculations.

Lens & Optics

The SLIM17FA angle-adjustable optical assembly combines an impact-resistant (IK07) clear polycarbonate lens with a multi-position aiming head:

• 0° Downward Cutoff Orientation: Directs light straight down along building facades, entryways, and pedestrian walkways to minimize forward glare.

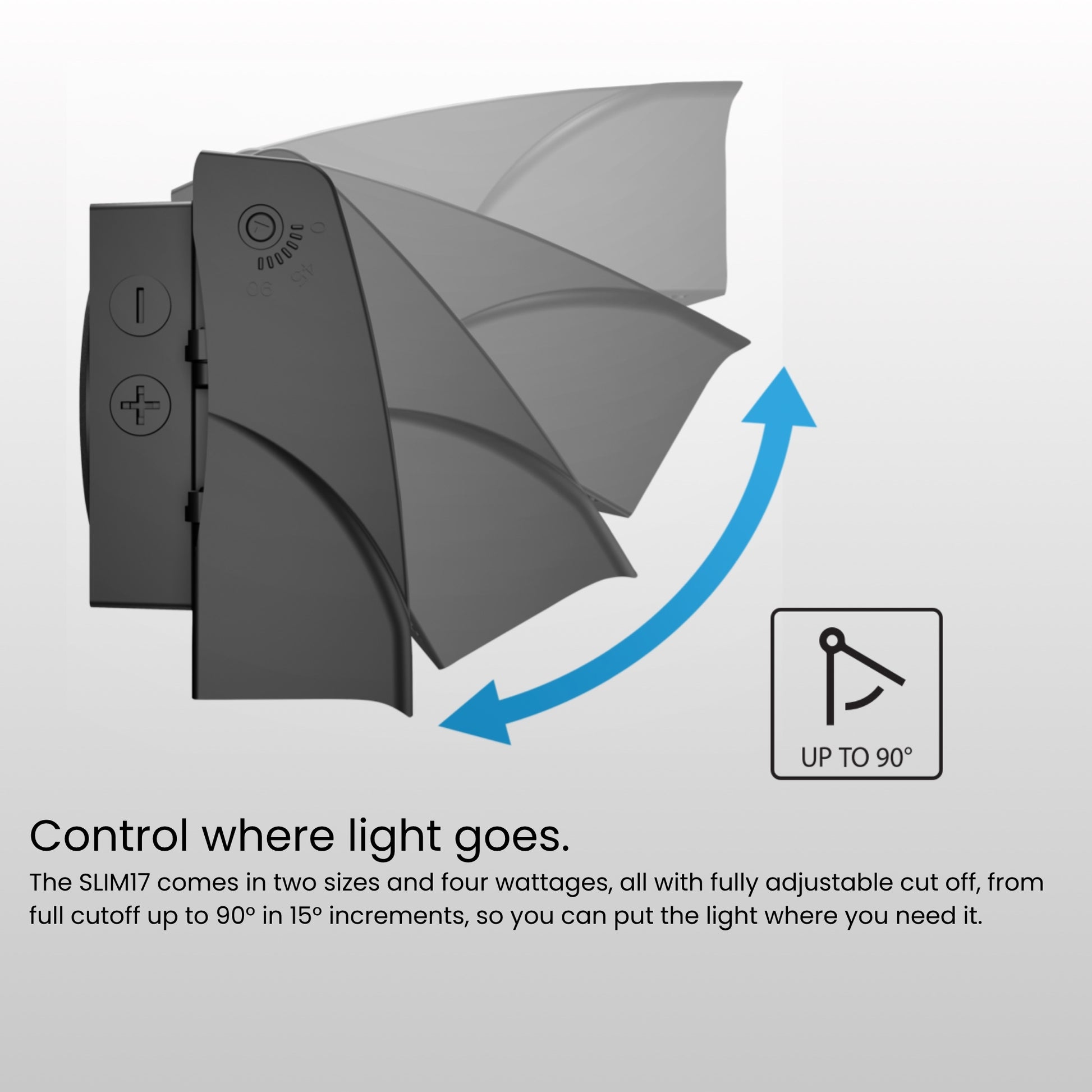

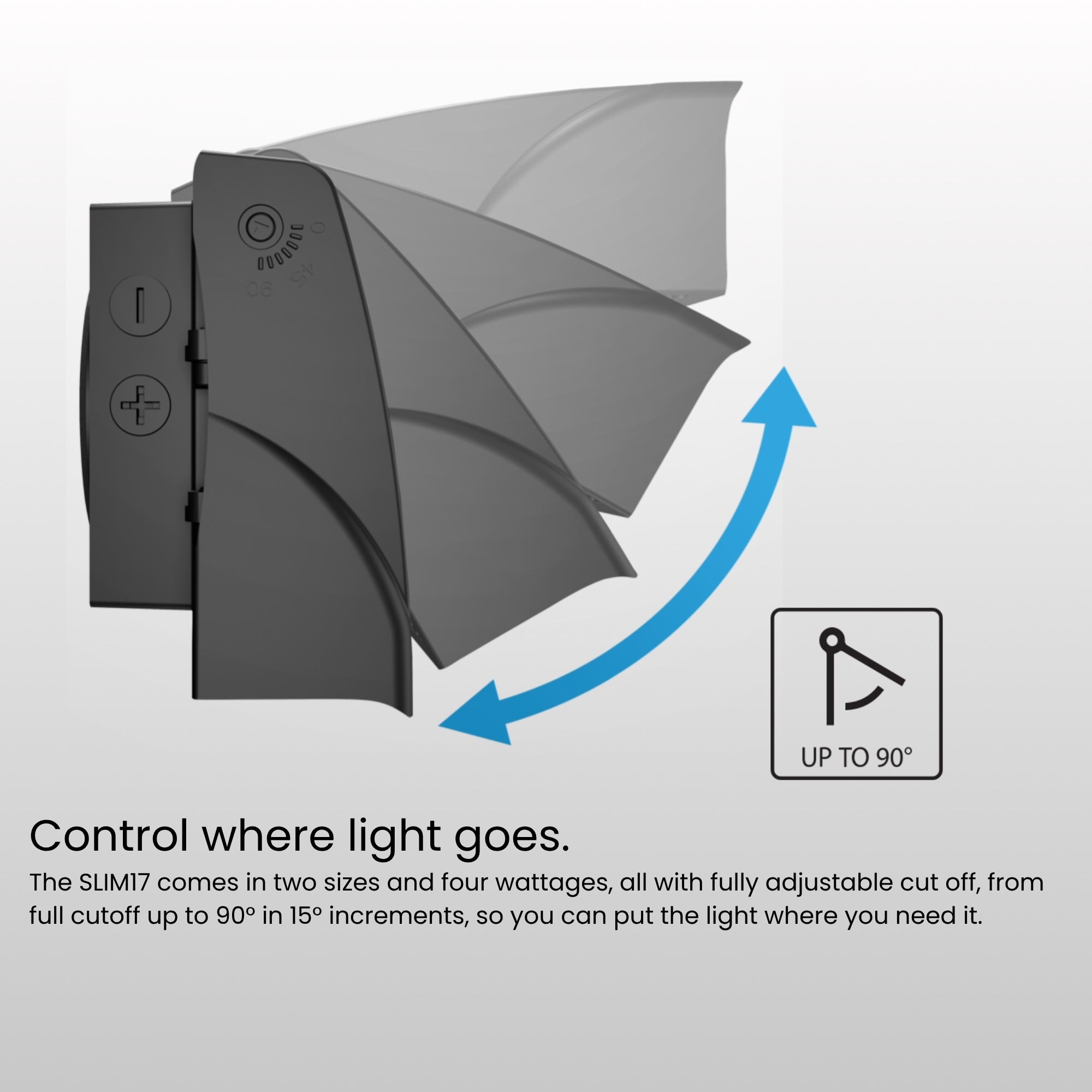

• 15° to 90° Forward-Throw Tilt Increments: Adjusts outward up to 90° in discrete 15° increments (marked on the side dial) to project illumination across wider perimeters, loading zones, drive lanes, and yards.

Mercury-free and UV-free optical construction prevents lens yellowing and ultraviolet degradation outdoors.

Smart & Control Features

Engineered for automated dusk-to-dawn operation, field-adjustable color tuning, and commercial dimming:

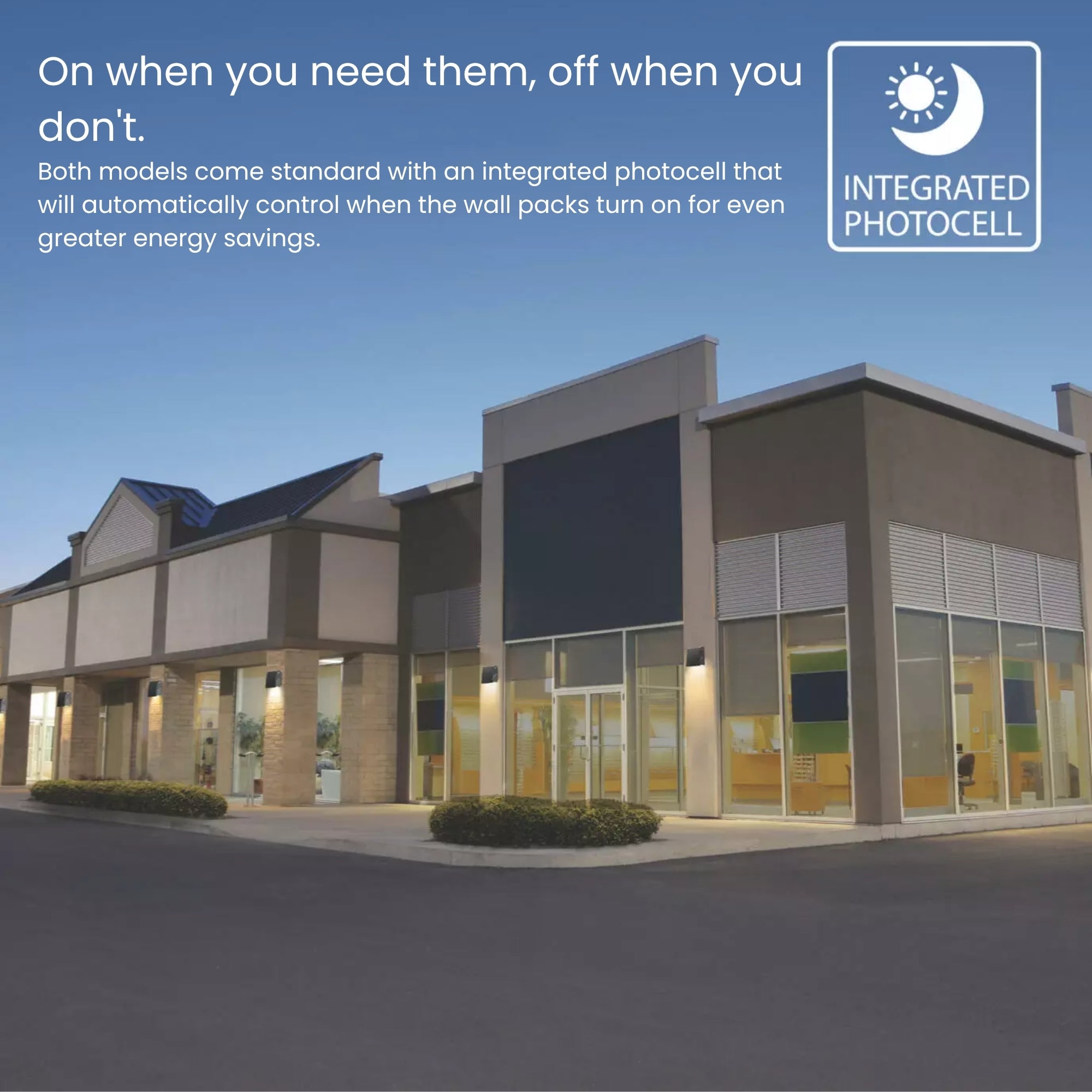

• Integrated 120-277V Button Photocell: Factory-installed button photocell compatible with 120-277V circuits provides automatic dusk-to-dawn operation.

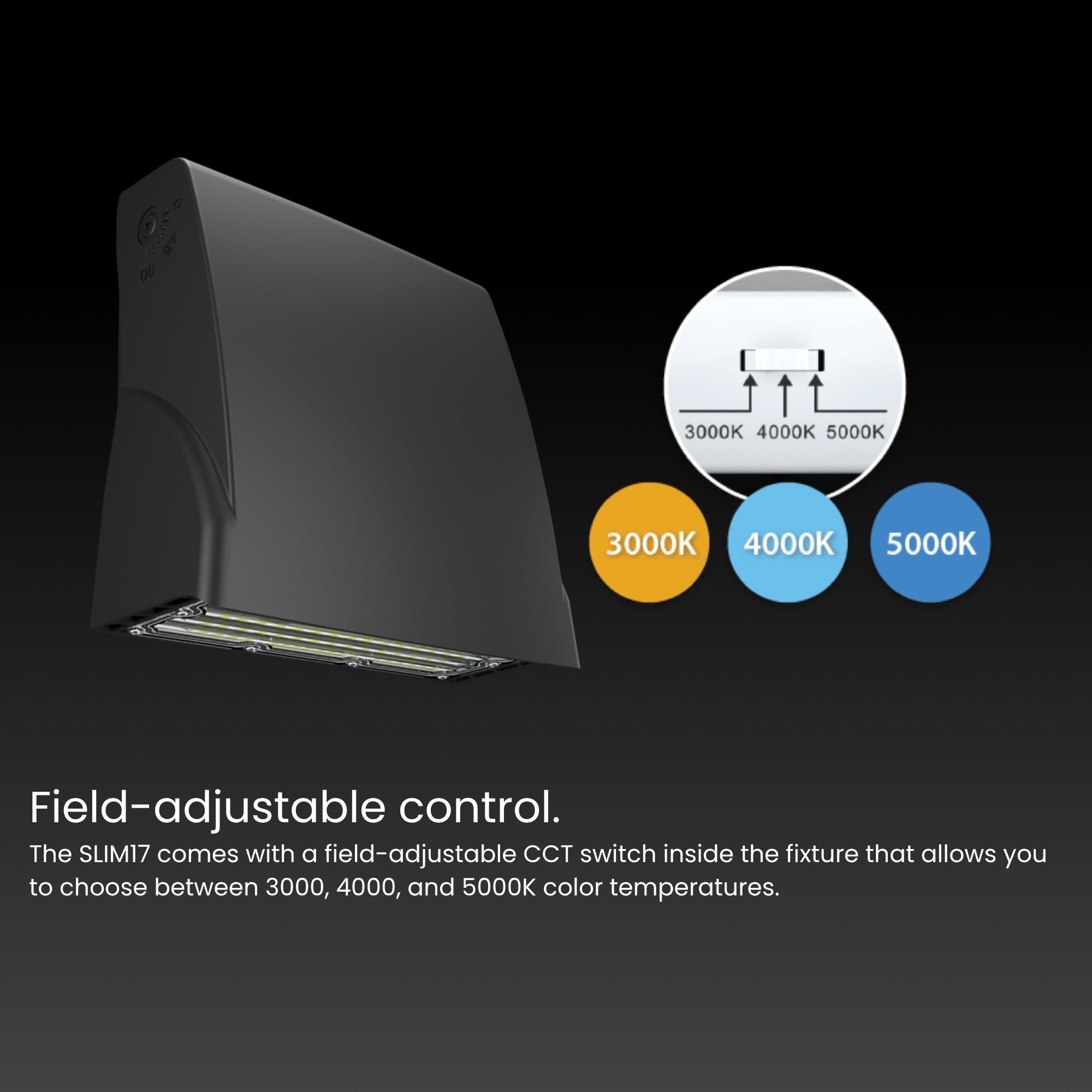

• Field-Adjustable CCT Selector: Internal selector switches between 3000K warm white, 4000K neutral white (factory default), and 5000K daylight color temperatures.
• 0-10V Continuous Dimming: Driver includes control wiring for 0-10V DC dimming systems (requires separate 0-10V DC dimming circuit) and dims smoothly down to 10%.

Electrical

Powered by a Constant Current, Class 1 driver operating on universal 120-277V AC at 50/60Hz (78.1W–80.6W input power) with a Power Factor at 4000K of 99.4% at 120V and 96.9% at 277V and Total Harmonic Distortion (THD) at 4000K of 10.9% at 120V and 10.4% at 277V. Integrated 6kV surge protection (L/N-PE: 6kV, L-N: 6kV) safeguards internal electronics against utility line transients and lightning strikes. Includes pre-wired 0-10V dimming leads and a 120-277V button photocell.

Operating current and amp draw across input voltages for branch circuit and breaker loading calculations:

Construction

Housing & Thermal: Precision die-cast aluminum housing (Medium size tier) with passive thermal management and an IK07 impact protection rating.

Finish: Architectural Bronze powder-coat finish formulated for high outdoor durability and long-lasting color stability.

Environmental Sealing: IP65 weatherproof rated for dust and water ingress and UL Listed for wet locations with continuous silicone gaskets. Ambient operating temperature: -40°F (-40°C) to 122°F (50°C).

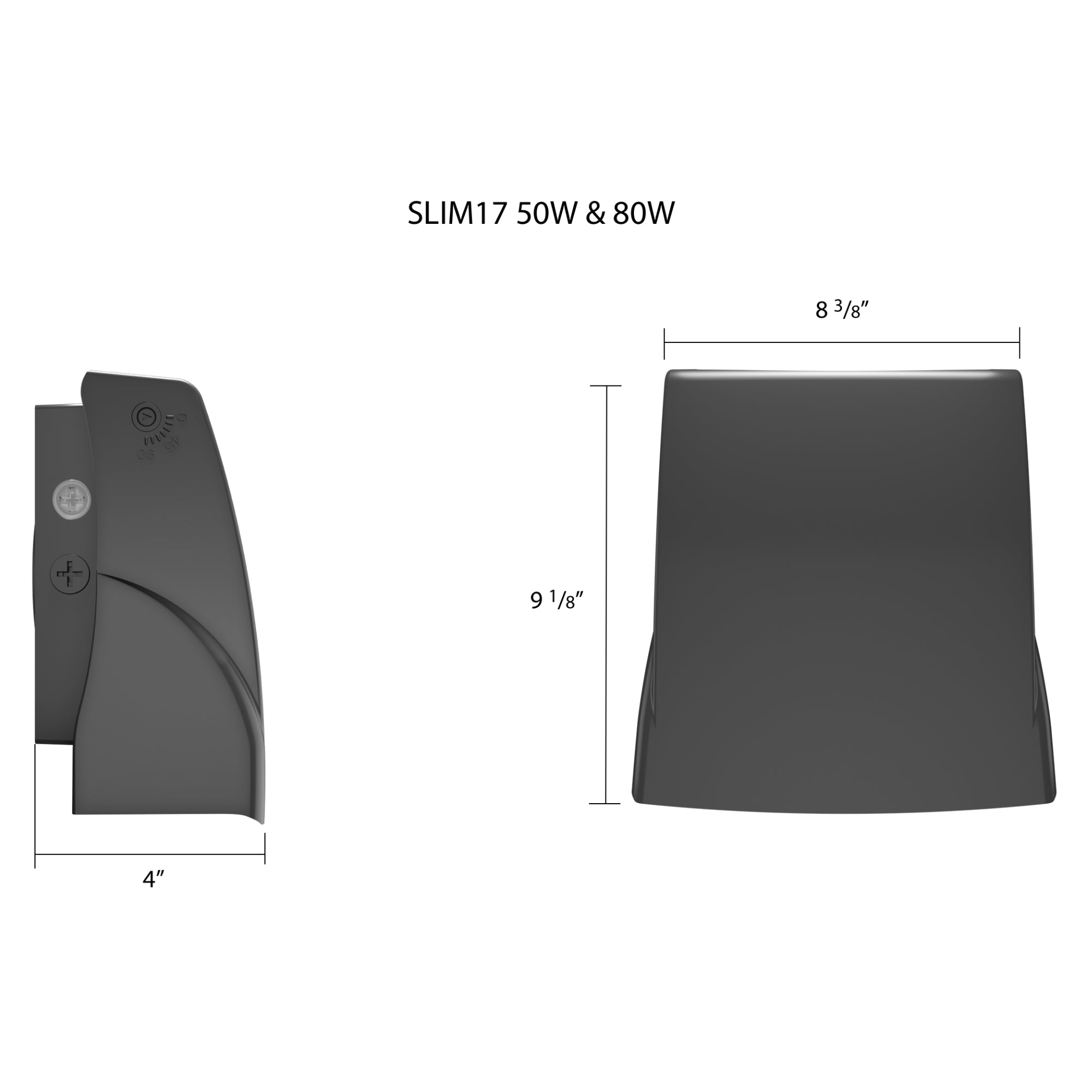

Dimensions & Weight: 8-3/8" W x 9-1/8" H x 4" D. Fixture weight: 4.8 lbs.

Installation & Mounting

Mounting Hardware: Compact 8-3/8" W x 9-1/8" H x 4" D (4.8 lbs) die-cast aluminum wall-mount housing features hinged wiring access for fast, hands-free electrical termination and an external degree-marked pivot that tilts the luminaire head up to 90° in 15° increments.

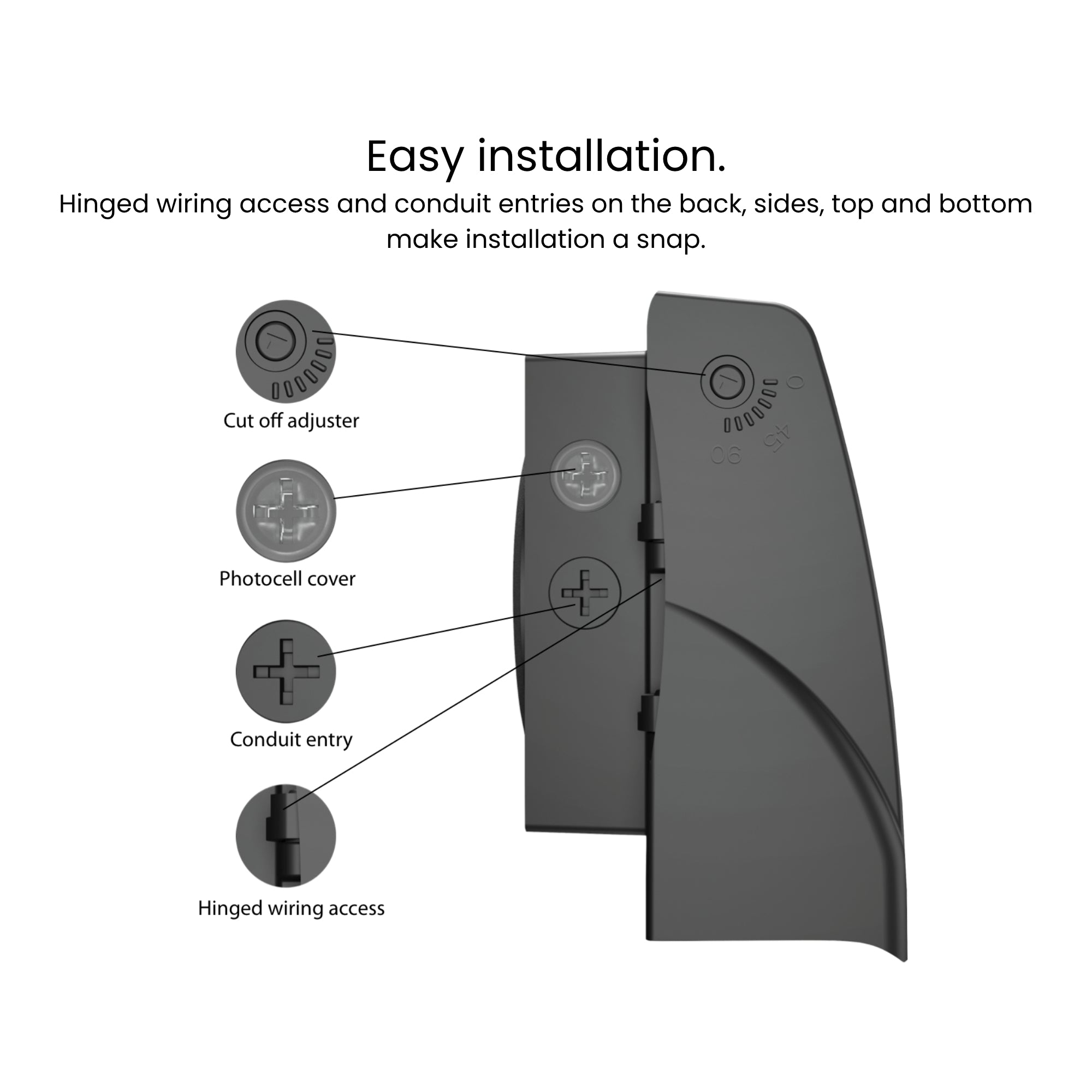

Conduit & Wiring Access: Equipped with threaded conduit entries on the back, sides, top, and bottom to accommodate both recessed junction boxes and surface conduit feeds from any direction.

Certifications & Rebates

• DLC 5.1 Premium Listed: Listed by the DesignLights Consortium as an ultra-efficient premium product qualifying for the highest tier of utility rebates (searchable on designlights.org under DLC ID S-J834W0)
• UL Listed: Certified suitable for wet locations
• IP65 & IK07 Rated: IP65 ingress protection against dust and water jets; IK07 rated for protection against mechanical impact
• IES LM-80 & TM-21 Tested: LED lumen maintenance validated per IES LM-80 testing and TM-21 calculations
• RoHS Compliant: Green technology with mercury-free and UV-free RoHS-compliant components

Typical Applications

• Building Perimeters & Facades - Adjustable 0° to 90° tilt in 15° increments aims up to 12,364 lumens downward along walls or outward across yards
• Commercial Entryways & Walkways - Slim 4" depth and selectable 3000K, 4000K, and 5000K CCT provide tailored doorway and pathway illumination
• Loading Docks & Service Areas - IK07 impact-rated clear polycarbonate lens and die-cast aluminum body withstand demanding commercial environments
• Surface Conduit & J-Box Retrofits - Hinged wiring access and conduit entries on the back, sides, top, and bottom streamline contractor installation
• All-Climate Security Lighting - Integrated 120-277V button photocell, 6kV surge protection, and -40°F (-40°C) to 122°F (50°C) rating ensure year-round reliability

What's Included

• RAB SLIM17FA80ADJ Adjustable Slim LED Wall Pack - Bronze
• Pre-installed 120-277V integrated button photocell
• Conduit plugs, installation hardware, and operation manual
