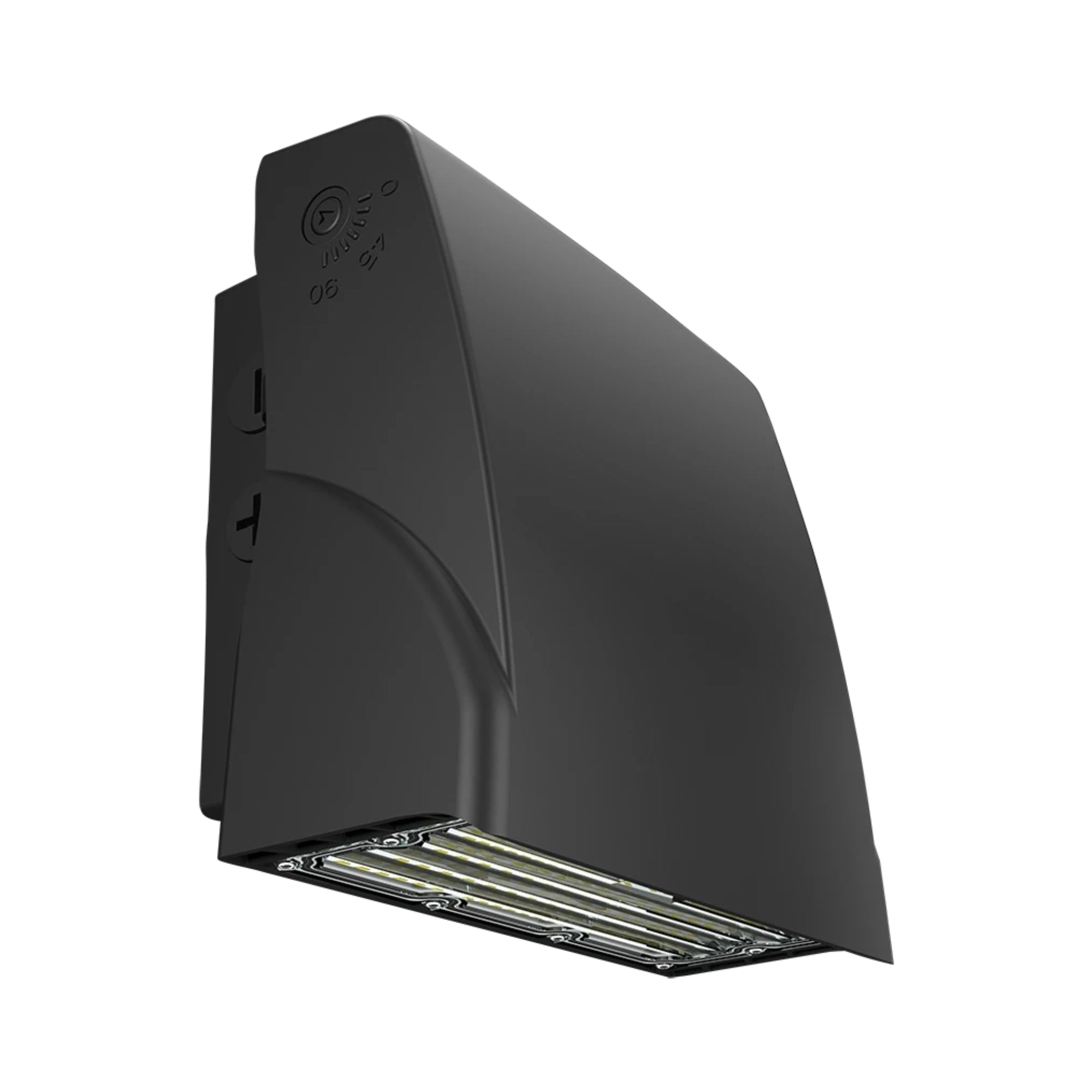

RAB SLIM17 Angle-Adjustable LED Wall Pack — 30W, 120–277V, Bronze

The RAB SLIM17FA30ADJ is a highly versatile, small-profile angle-adjustable LED wall pack delivering up to 3,813 lumens at a dedicated 30W output, featuring field-adjustable 3000K/4000K/5000K color temperatures. Operating on a 120–277V universal driver, this luminaire comes standard with an integrated button photocell and an innovative head that can be aimed up to 90 degrees. Built with an IP65 Wet Location rating and an IK07 impact rating, it provides an ultra-durable, adaptable lighting solution for building perimeters, entryways, and facade applications.

Key Features

• Wattage: 30W
• Selectable CCT: 3000K / 4000K / 5000K (4000K default)
• Delivered Lumens: 3,540 to 3,813 lumens (up to 134 LPW)
• Voltage: 120–277V input
• Dimming: 0–10V dimming standard

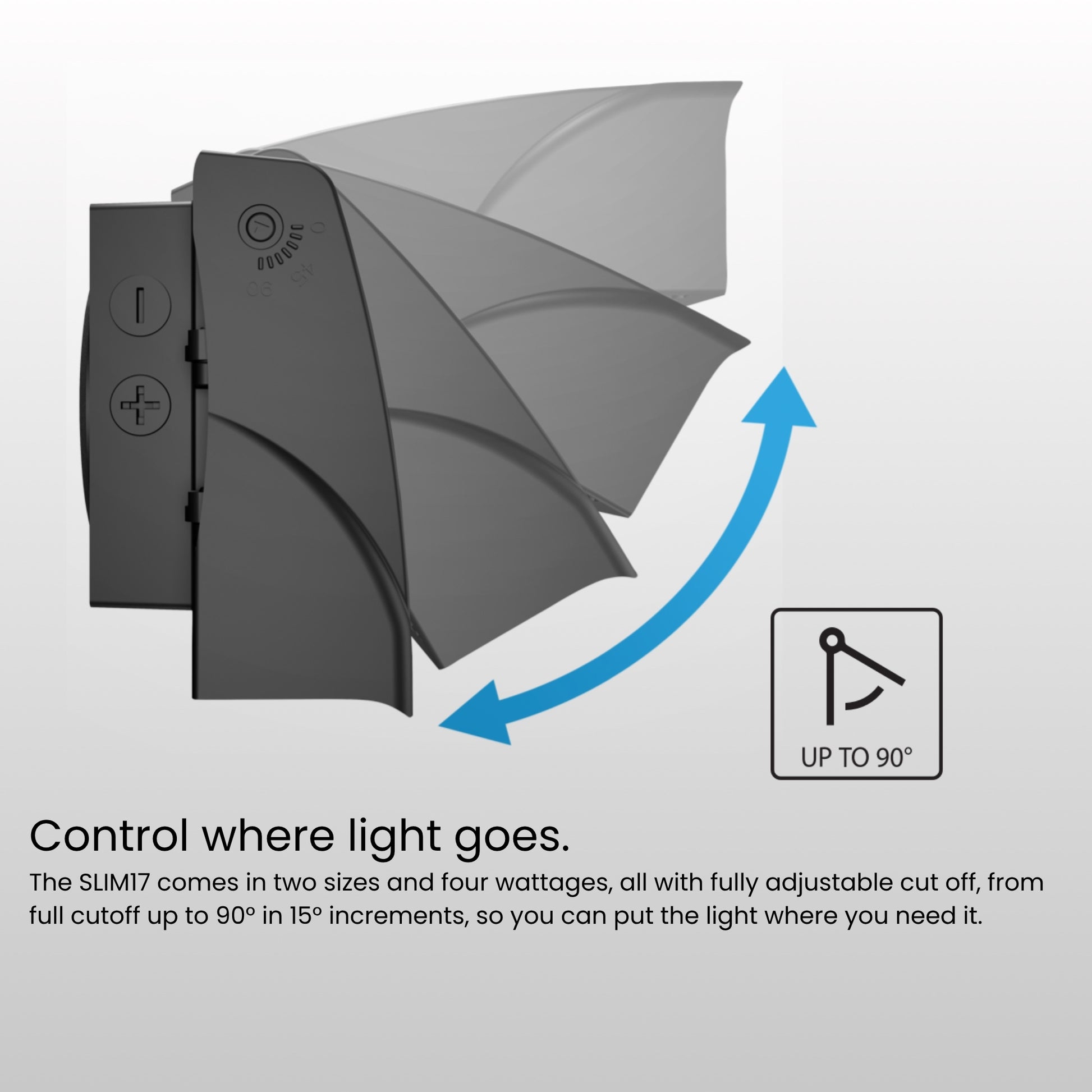

• Cutoff Angle: Adjustable from 0° (full cutoff) to 90° (in 15° increments)
• Controls: Integrated 120-277V button photocell included
• CRI: 70
• HID Equivalent: Replaces 175W Metal Halide
• Environmental Ratings: IP65 Wet Location rated, IK07 Impact Rated
• Certifications: DLC Premium Listed, UL Listed, RoHS Compliant
• Estimated Life: 100,000 hours (L70)

Typical Applications

• Building perimeters and facades
• Security and pathway lighting
• Entryways and man doors
• Adjustable forward-throw illumination
• Commercial and residential exteriors

Performance & Light Output

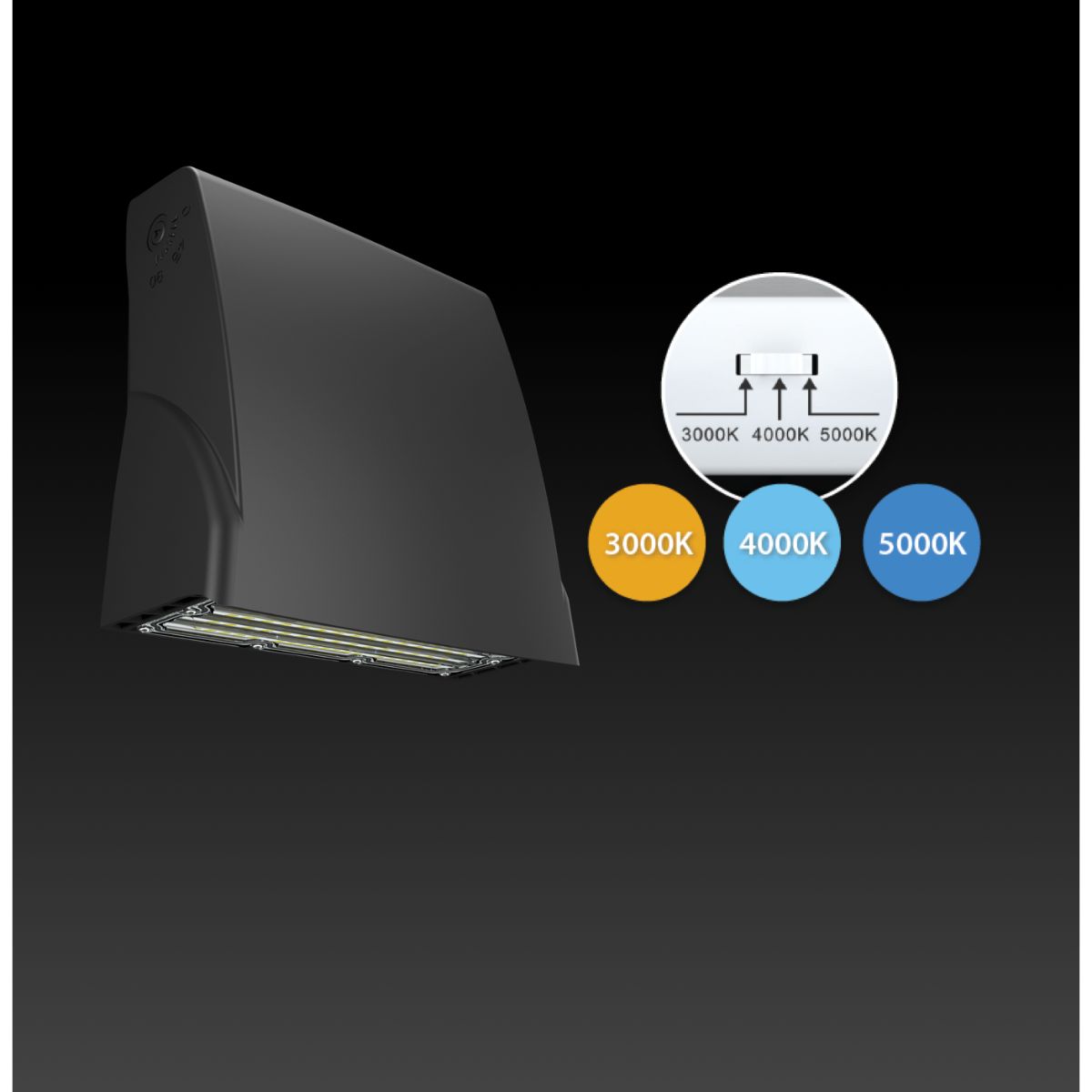

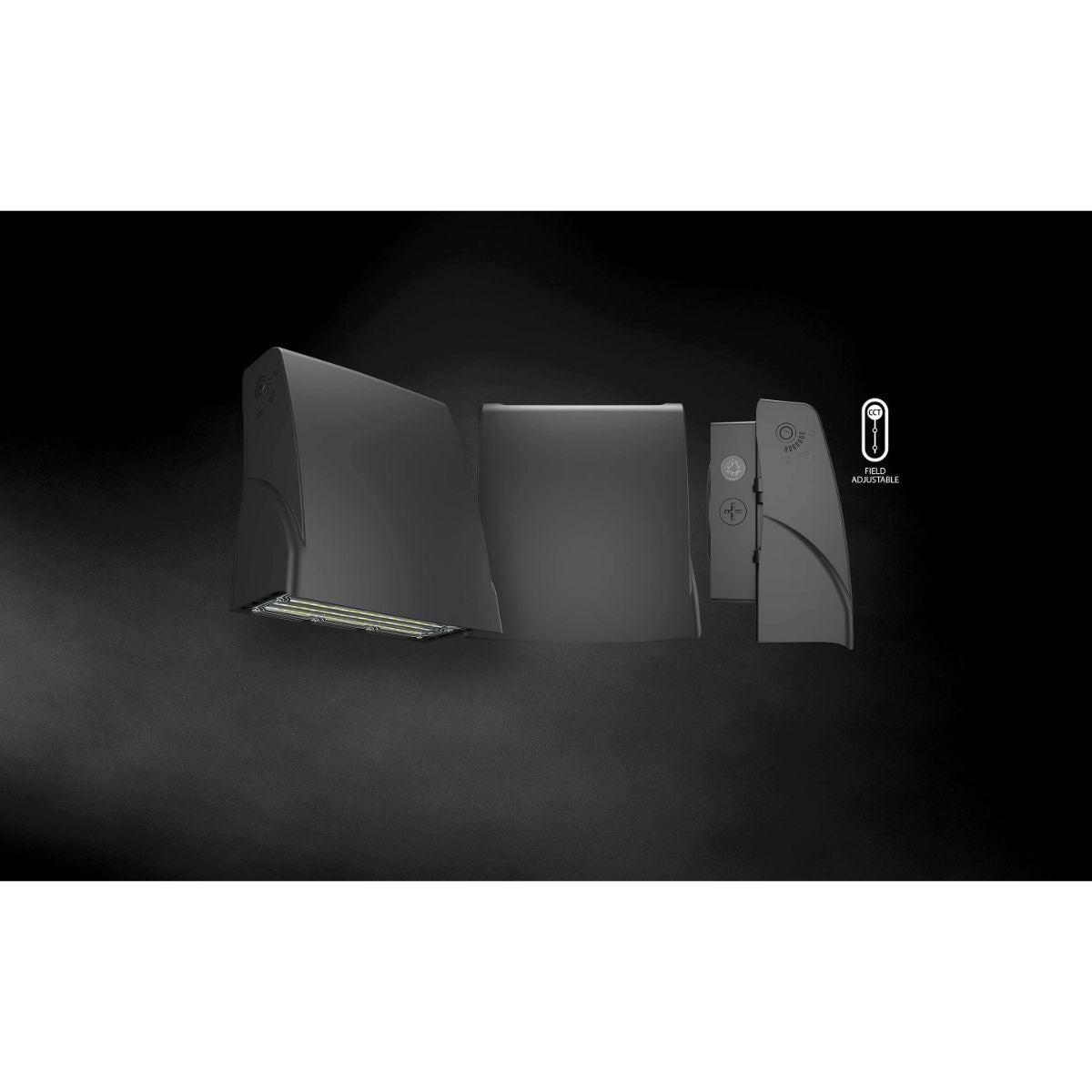

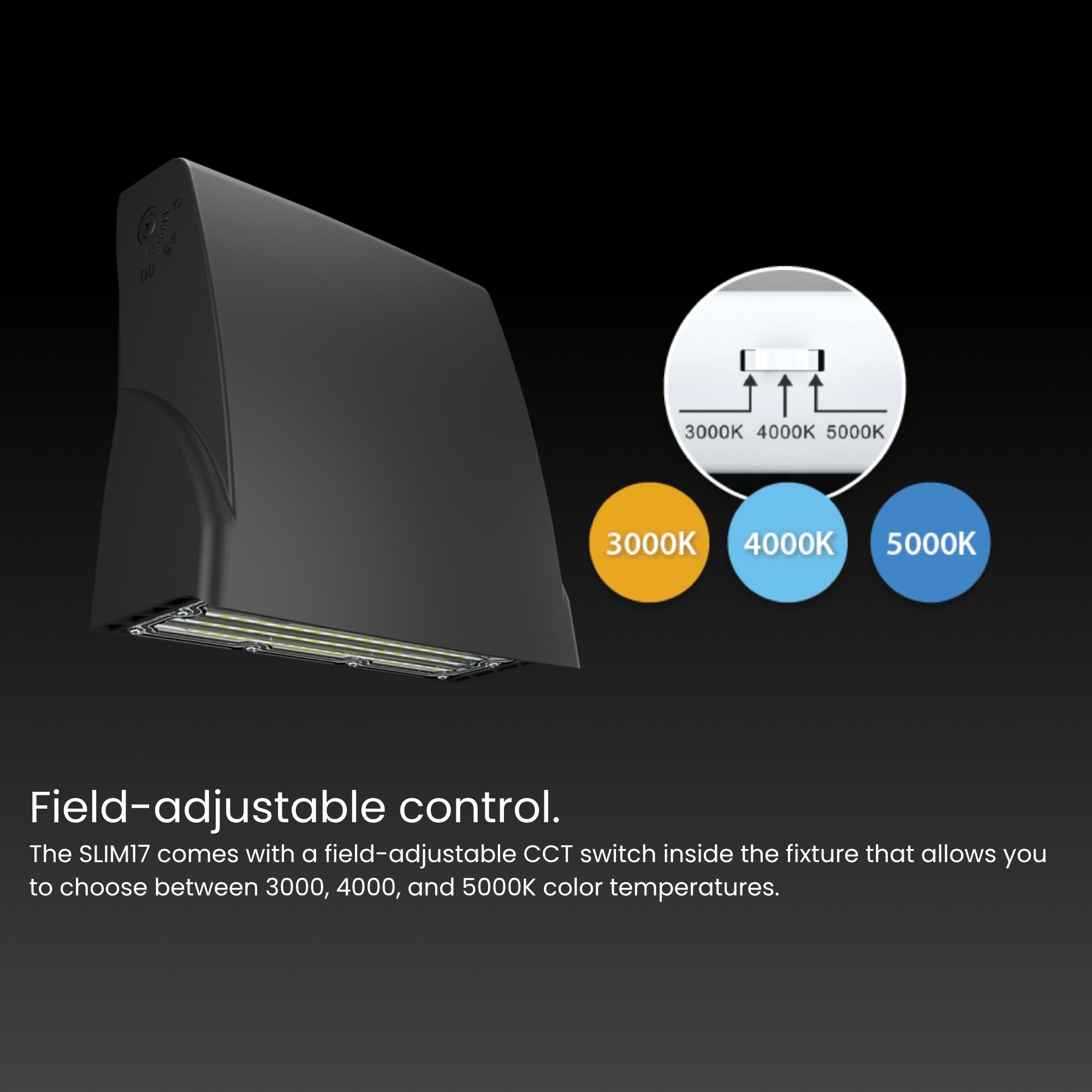

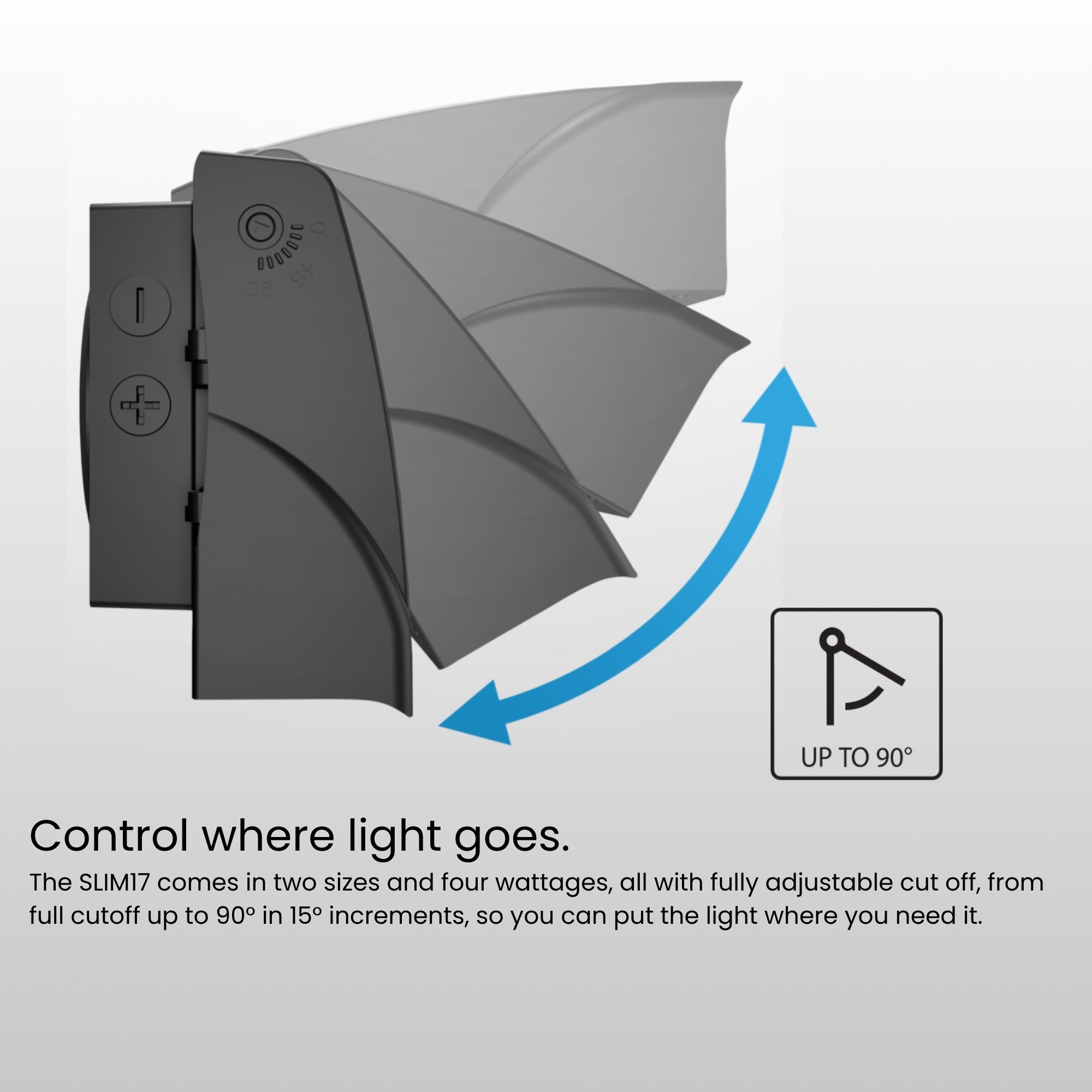

This compact wall pack provides highly efficient illumination ranging from 3,540 to 3,813 lumens depending on the selected color temperature, achieving an outstanding efficacy of up to 134 lumens per watt. The integrated CCT switch allows installers to easily match existing site lighting by toggling between warm white, cool white, and daylight. The fixture features a completely adjustable head that can be aimed from full cutoff (0°) to a 90° forward throw in 7 settings at 15-degree increments. The high-performance LED light engine maintains a highly prolonged rated life of 100,000 hours, virtually eliminating maintenance over the life of the fixture.

Electrical & Controls

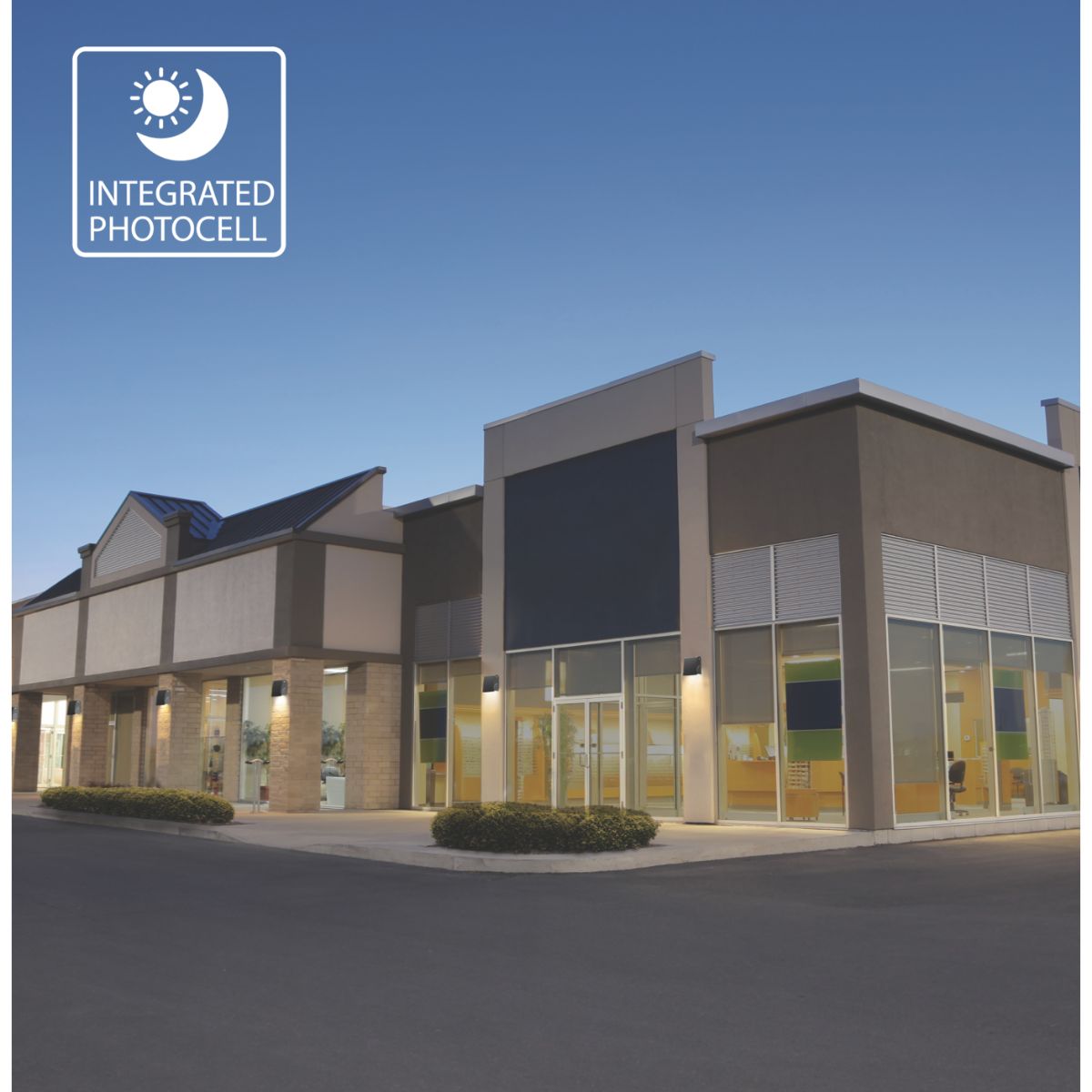

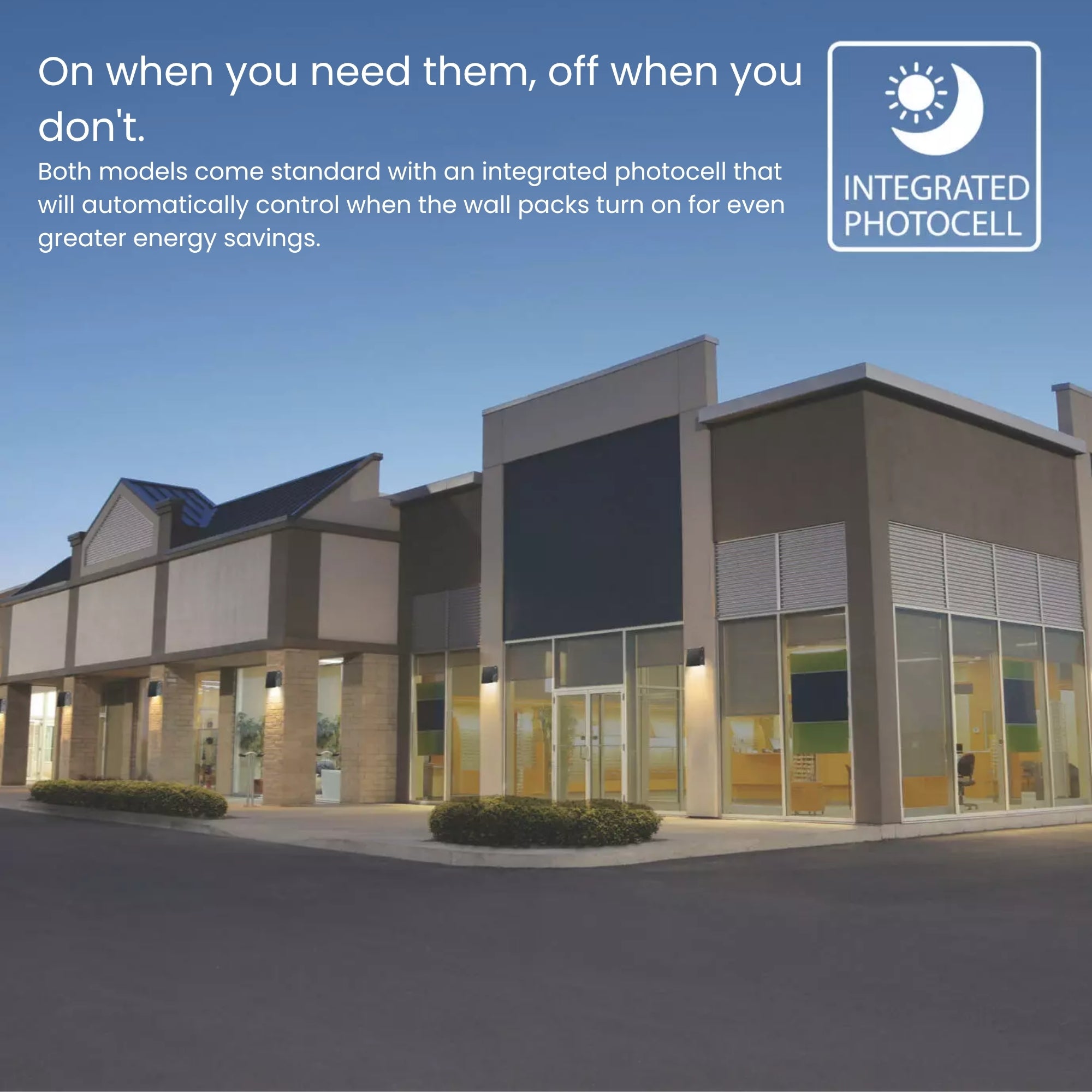

This fixture operates on a constant current 120–277V AC driver with standard 0–10V dimming functionality. The electrical components are securely protected by built-in 6kV surge protection. To maximize energy savings out of the box, the SLIM17FA30ADJ includes a discreet, integrated button photocell, enabling hands-free dusk-to-dawn operation without the need for external timers.

Construction & Durability

Engineered for tough outdoor environments, the luminaire features a precision die-cast aluminum housing and door frame finished in a high-durability bronze color. It carries an IP65 rating for complete protection against dust and water ingress in wet locations, as well as an IK07 impact rating for protection against physical strikes. The fixture operates reliably in extreme temperatures, starting safely in cold environments down to -40°C (-40°F) and handling ambient heat up to 50°C (122°F).

Installation & Mounting

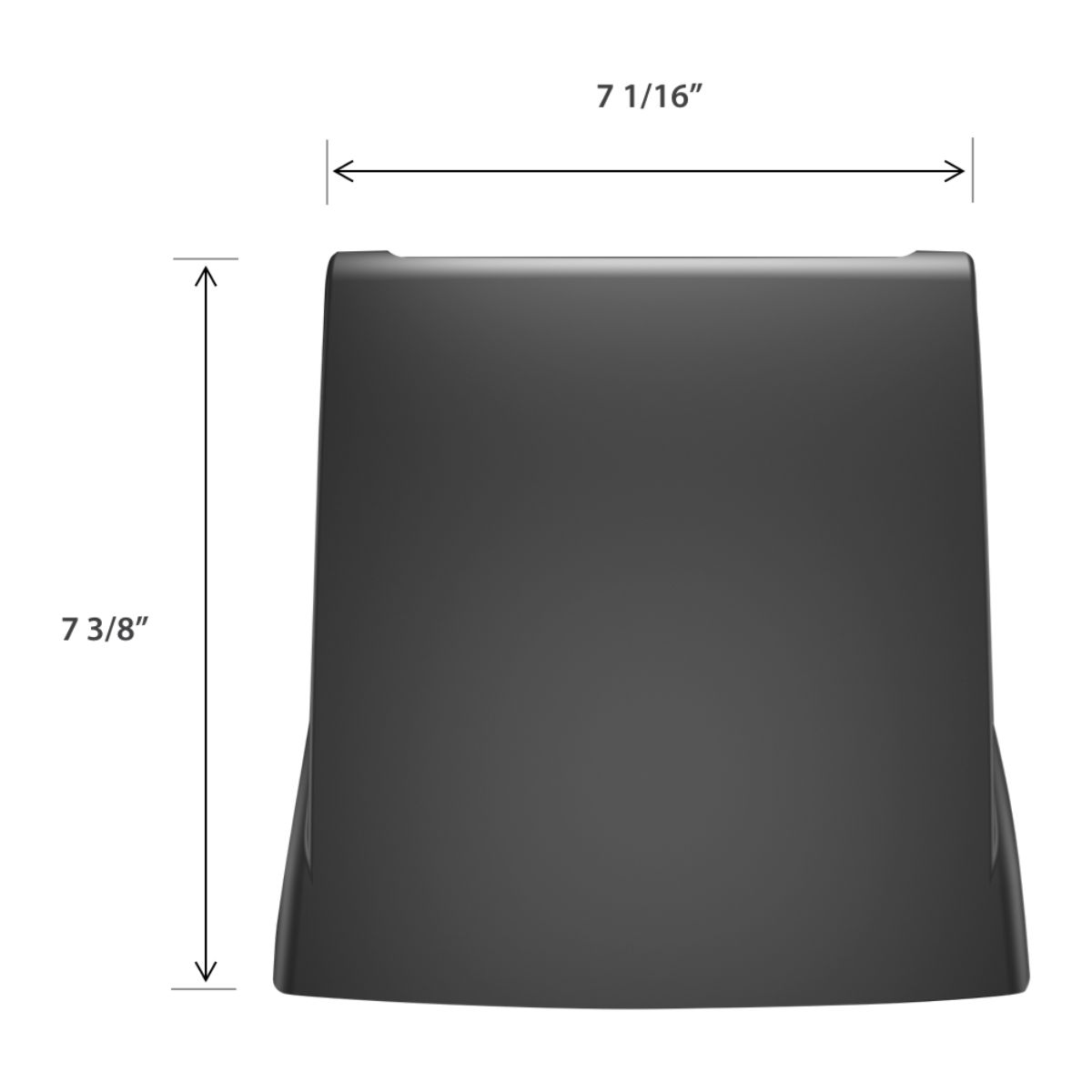

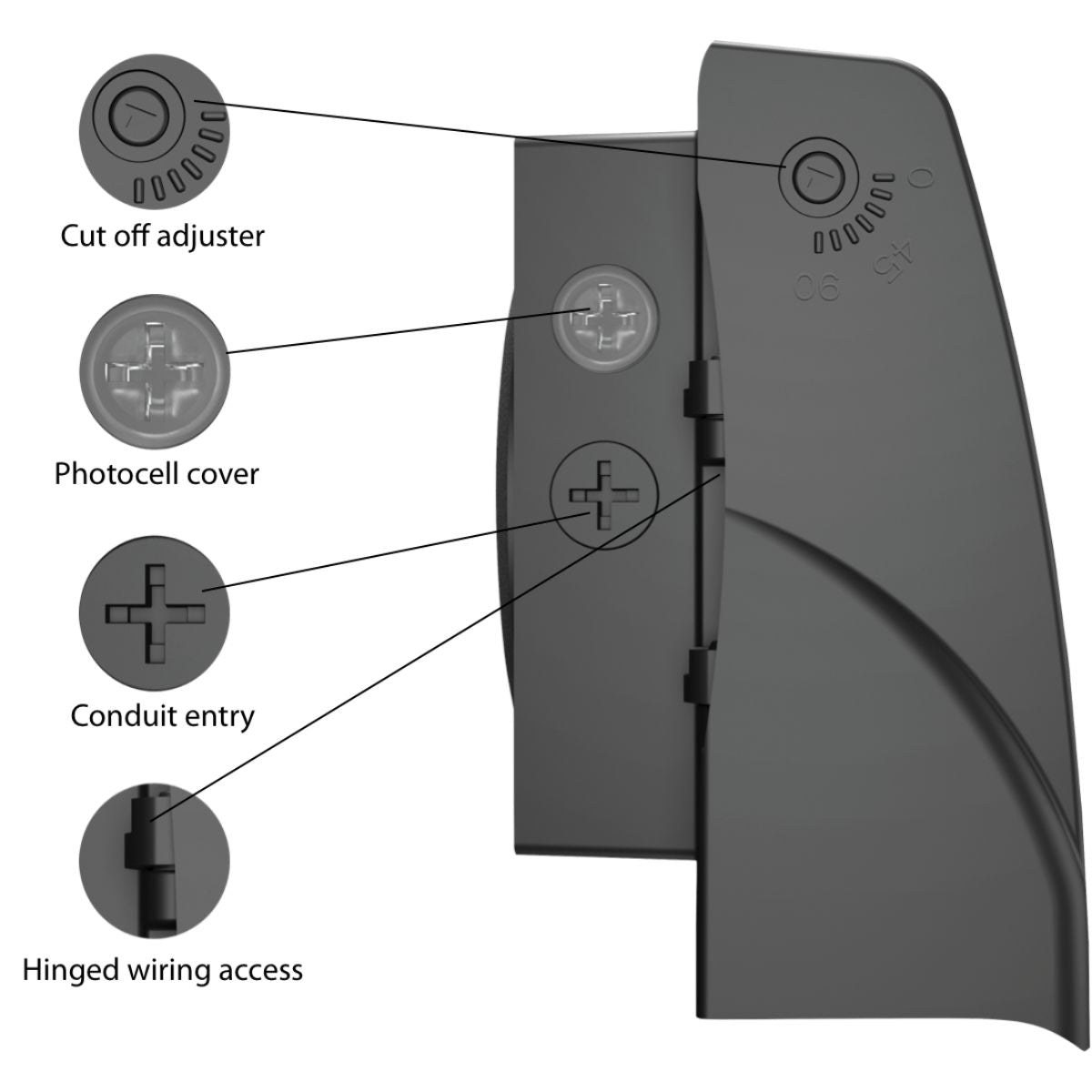

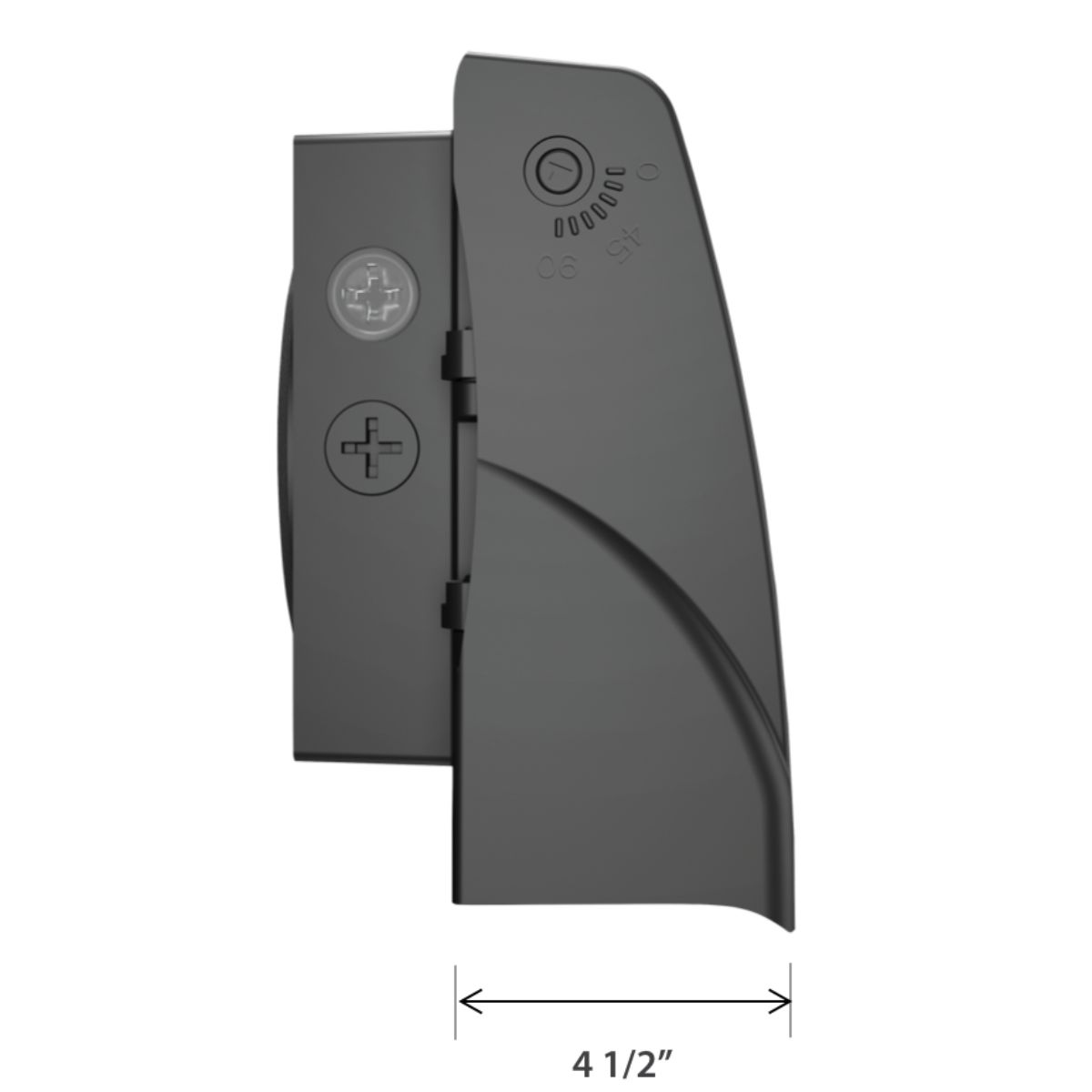

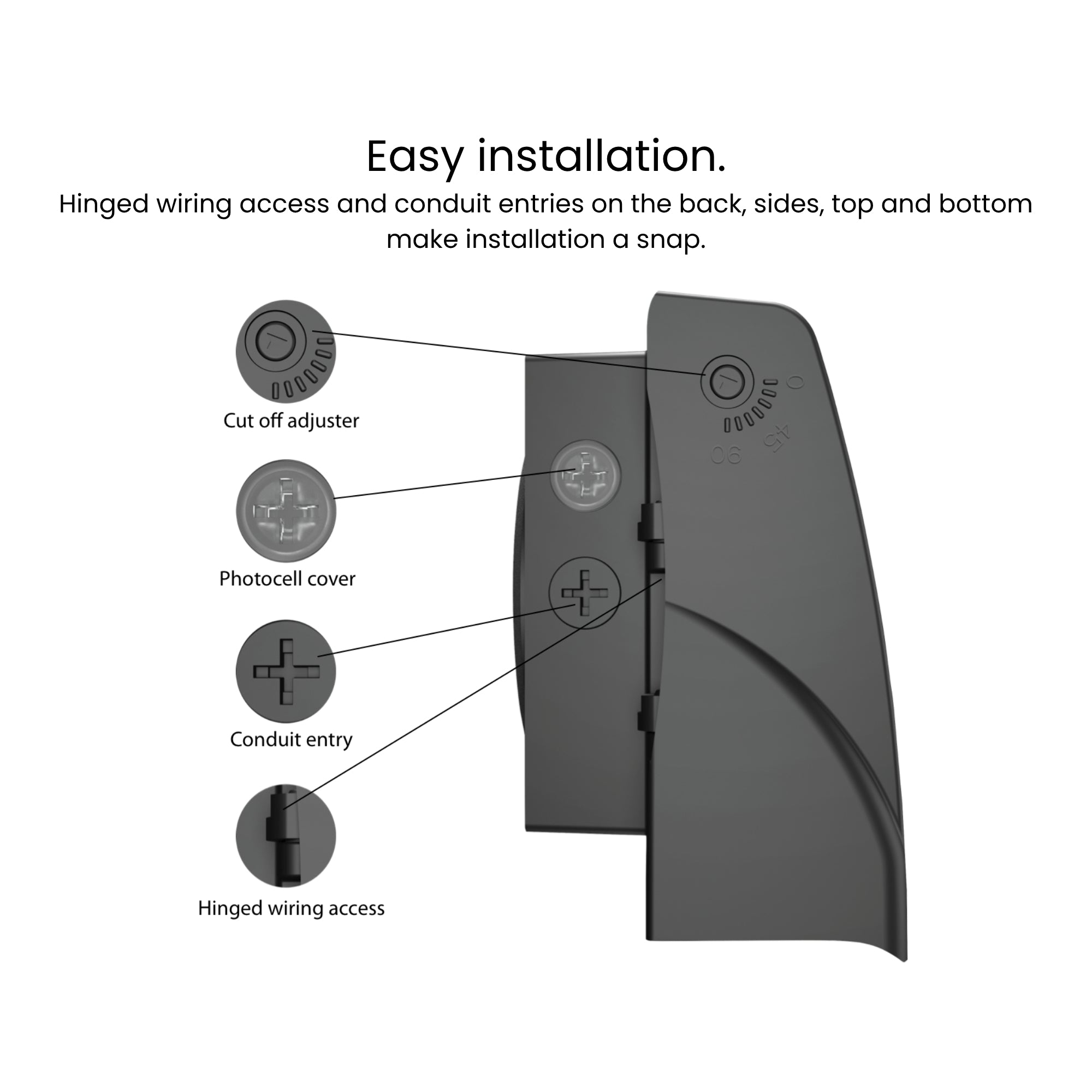

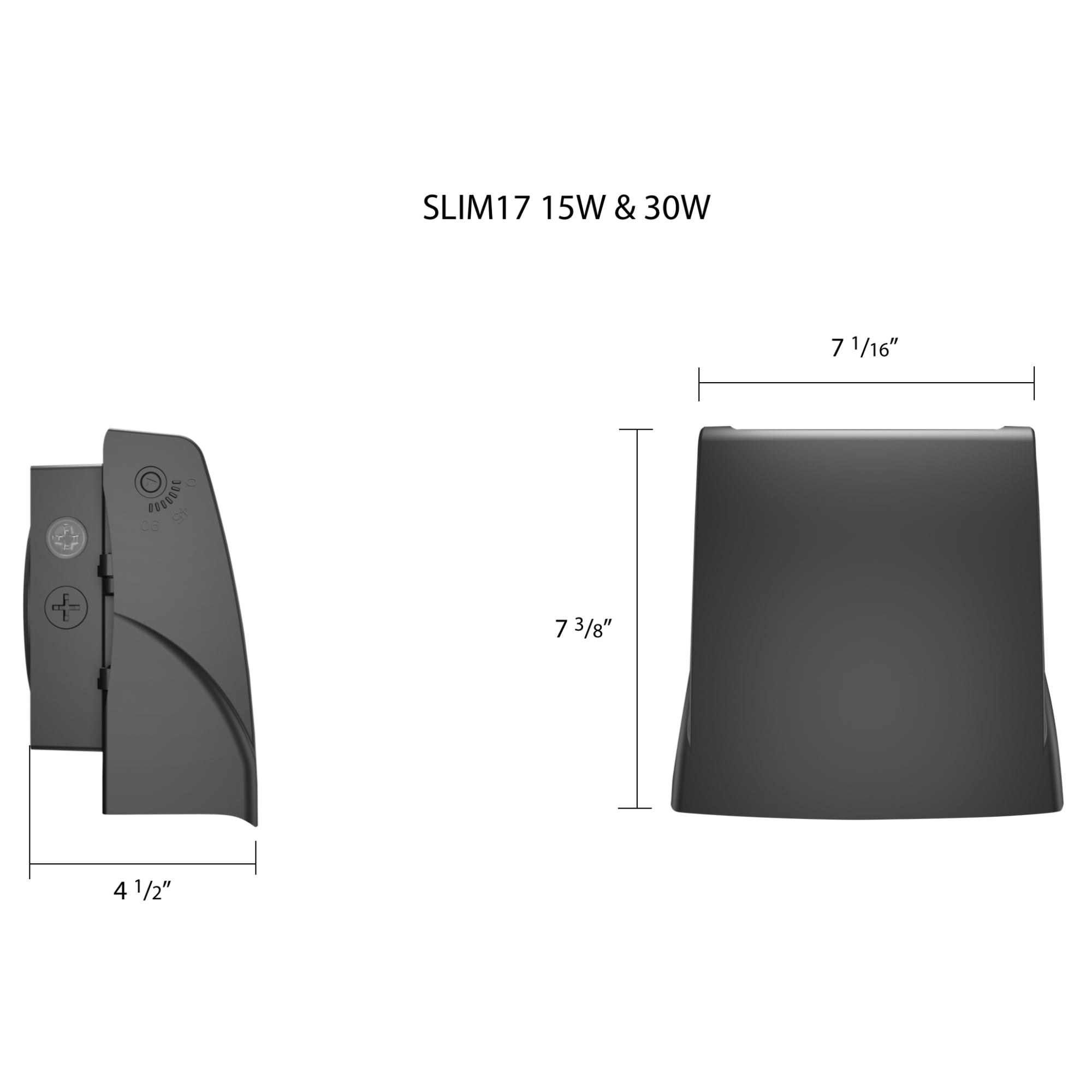

The SLIM17 series is designed for quick and straightforward installation. The backplate features hinged wiring access and conduit entries on the back, sides, top, and bottom to easily accommodate various surface wiring or recessed junction box configurations. It has a lightweight 3-pound profile.

What's Included

• RAB SLIM17 Angle-Adjustable LED Wall Pack (Bronze)
• Integrated Button Photocell
