RAB SHARK8/MVS Field-Adjustable, Linear Washdown Vapor Tight — 100/80/60W Selectable — 3500K/4000K/5000K
Available in stock (100)
About this item
About this item

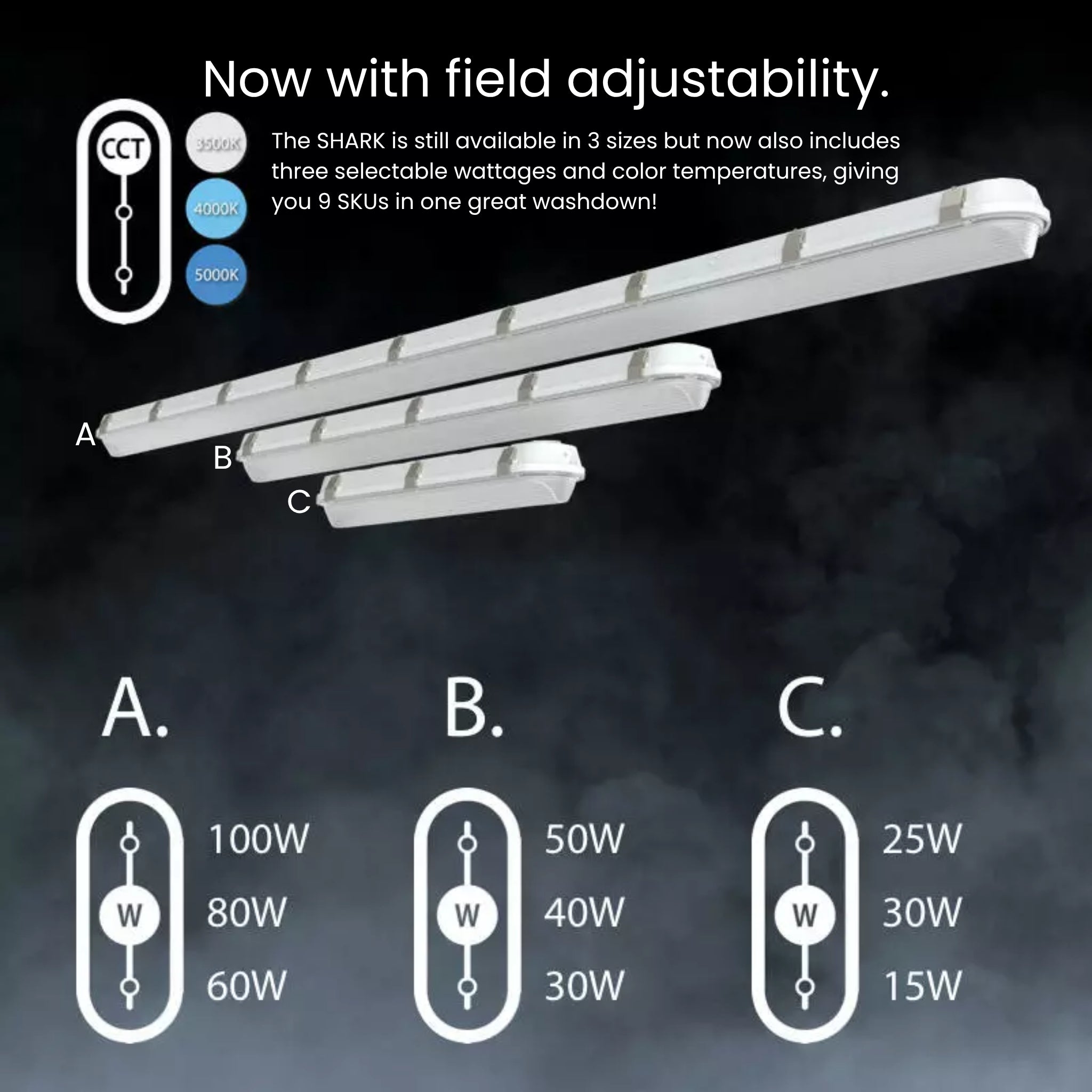

- Selectable Wattage & Output: Field-select 100W, 80W, or 60W at the fixture via onboard switch — delivers up to 14,201 lumens at up to 153 lm/W peak efficacy. No rewiring required.
- Wet Location & IP Rating: UL Listed for wet locations with IP66 ingress protection and NEMA 4X corrosion resistance — rated for direct water exposure, washdown hose-down, and outdoor or covered wet environments. Cold-start rated to −40°F (−40°C).
- Selectable CCT: Onboard switch adjusts between 3500K, 4000K, and 5000K at the fixture — no re-ordering required for different color temperature specifications.
- Integrated Microwave Occupancy Sensor: Built-in microwave (MVS) sensor — max mounting height 50 ft., detection range 50 ft. diameter. Detects motion through non-metallic partitions; ideal for high ceilings and large industrial bays.
- DLC Listed & Rebate Eligible: DLC Listed under multiple categories including High-bay Commercial & Industrial — qualifies for utility rebate programs in most U.S. markets. NSF Certified for food-safe environments.
Description
Description
RAB SHARK8/MVS Field-Adjustable, Linear Washdown Vapor Tight — 100/80/60W Selectable — 3500K/4000K/5000K — White
The RAB SHARK8/MVS is an 8-foot field-adjustable linear washdown vapor tight fixture with an integrated microwave (MVS) occupancy sensor, delivering up to 14,201 lumens with field-selectable wattage (100W / 80W / 60W) and field-selectable CCT (3500K / 4000K / 5000K) via onboard switches. Operating on 120–277V / 50–60Hz with 0–10V dimming to 10%, the SHARK8/MVS is UL Listed for Wet Locations, IP66 rated, NEMA 4X corrosion-resistant, and NSF Certified. Rated for 100,000 hours, backed by a 5-year warranty, and DLC Listed.
Key Features
- Selectable Wattage: Field-adjustable 100W / 80W / 60W via onboard switch — no tools or rewiring required.
- Maximum Lumen Output: Up to 14,201 lumens at 100W / 4000K.
- Peak Efficacy: Up to 153 lm/W at 80W / 4000K.
- CRI: 84–86 CRI (86 CRI at 80W/4000K and 60W/4000K).
- Selectable CCT: Field-adjustable 3500K / 4000K / 5000K via onboard switch.
- Microwave (MVS) Occupancy Sensor: Max mounting height 50 ft.; detection range 50 ft. diameter at 50 ft.; input voltage 12VDC; input current 30mA. Detects motion through non-metallic partitions.
- Sensor Default Settings: Motion sensitivity High · Triggered brightness 100% · Hold time 20 min · Standby dim 20% · Standby time 1 min · When vacant: Off · Daylight: Disabled.
- Adjustable Sensor Settings (via MSR1 Remote): Standby dim: 10/20/30/50% · Standby time: 0s/10s/30s/1min/5min/10min/30min/60min/+∞ · Daylight threshold: 2/10/30/50/80/120 Lux/Disable.
- Dimming Protocol: 0–10V continuous dimming to 10% — requires separate 0–10V DC dimming circuit.
- Voltage & Driver: 120–277V / 50–60Hz; constant-current driver.
- Location Rating: UL Listed for Wet Locations · IP66 · NEMA 4X · NSF Certified.
- Operating Temperature: Cold-start to −40°F (−40°C); max ambient +140°F (+60°C).
- Rated Life: 100,000 hours (L70).
- Warranty: 5-year RAB no-compromise warranty.
- Surge Protection: 2.5kV.
Performance & Light Output
At 100W: 13,287 lm / 3500K · 14,201 lm / 4000K · 13,732 lm / 5000K. At 80W: 11,467 / 11,732 / 11,452 lm. At 60W: 8,585 / 9,035 / 8,649 lm. Peak efficacy: 153 lm/W at 80W / 4000K. CRI: 84 at 3500K (100W/80W), 86 at 4000K (80W/60W), 85 at 5000K. Rated life: 100,000 hours (L70).
Smart & Control Features
The SHARK8/MVS integrates a microwave occupancy sensor (12VDC, 30mA) that detects motion through non-metallic partitions — well suited for large industrial bays, high-ceiling washdown areas, and spaces where line-of-sight PIR coverage is insufficient. Settings adjustable via MSR1 Remote (sold separately): standby dim (10/20/30/50%), standby time (0s to +∞), and daylight threshold (2–120 Lux or Disable).
Electrical
Constant-current driver · 120–277V / 50–60Hz · Surge protection: 2.5kV · 0–10V dimming to 10% · Input watts at 100W: 98.5W / 3500K · 95W / 4000K · 98.6W / 5000K · RoHS compliant.

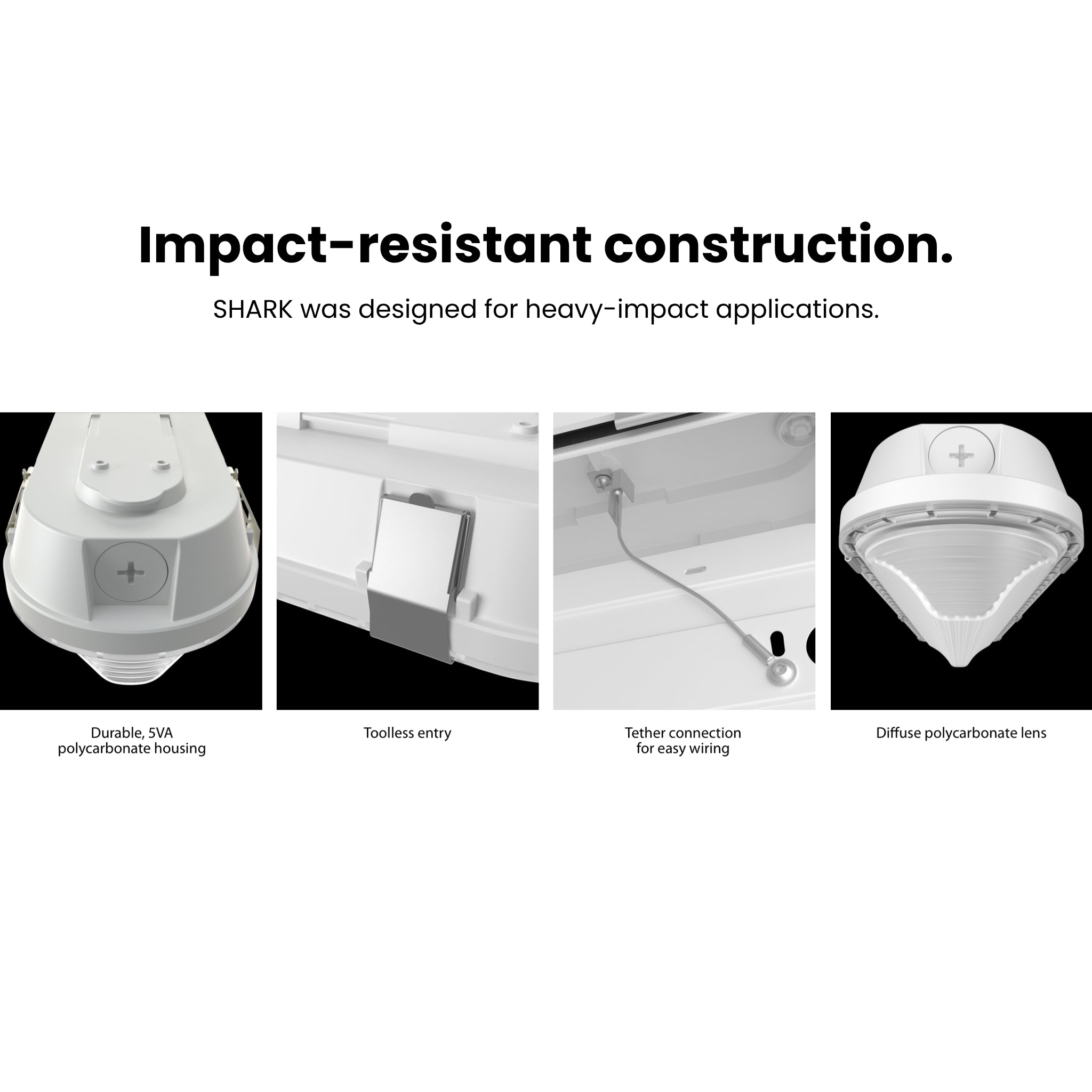

Construction

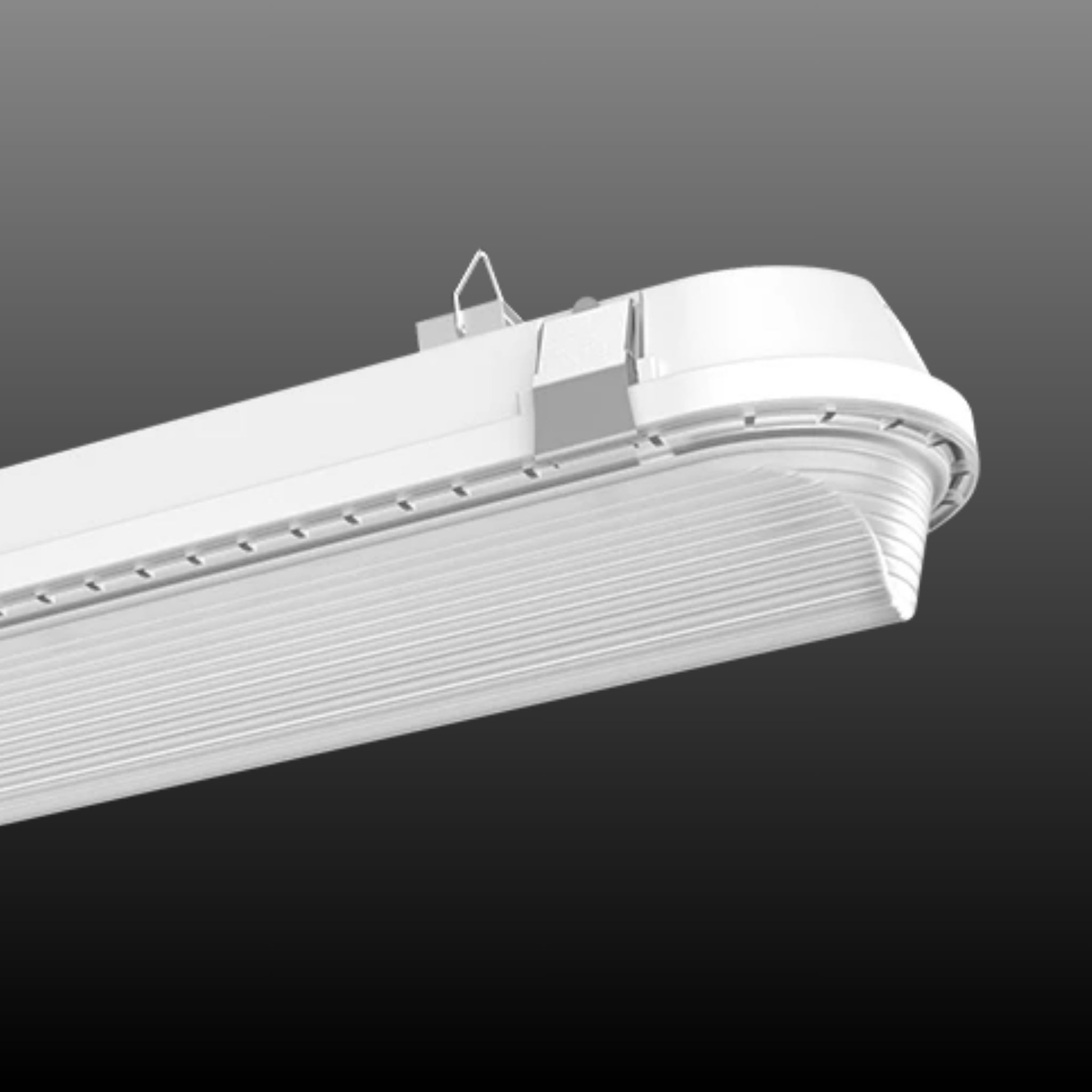

Housing: Impact-resistant polycarbonate with stainless steel hardware and high-temperature silicone gaskets.
Lens: Diffuse polycarbonate for broad, even light distribution.
Finish: White.
Environmental: IP66 · NEMA 4X · UL Listed Wet · NSF Certified · −40°F to +140°F.

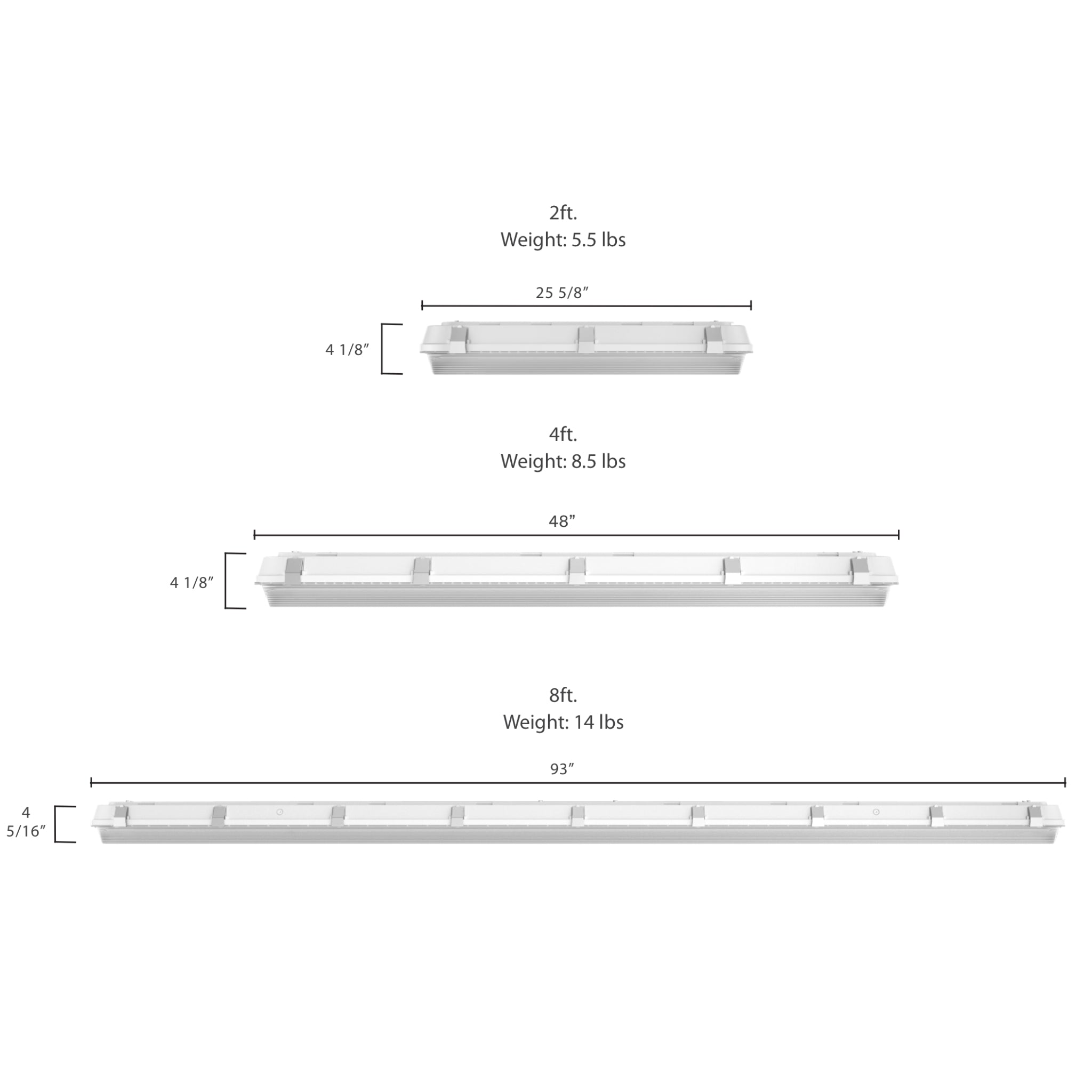

Dimensions & Weight: 93″ L × 4 1/8″ W × 5 1/2″ H · 25.57 lbs.
Installation & Mounting

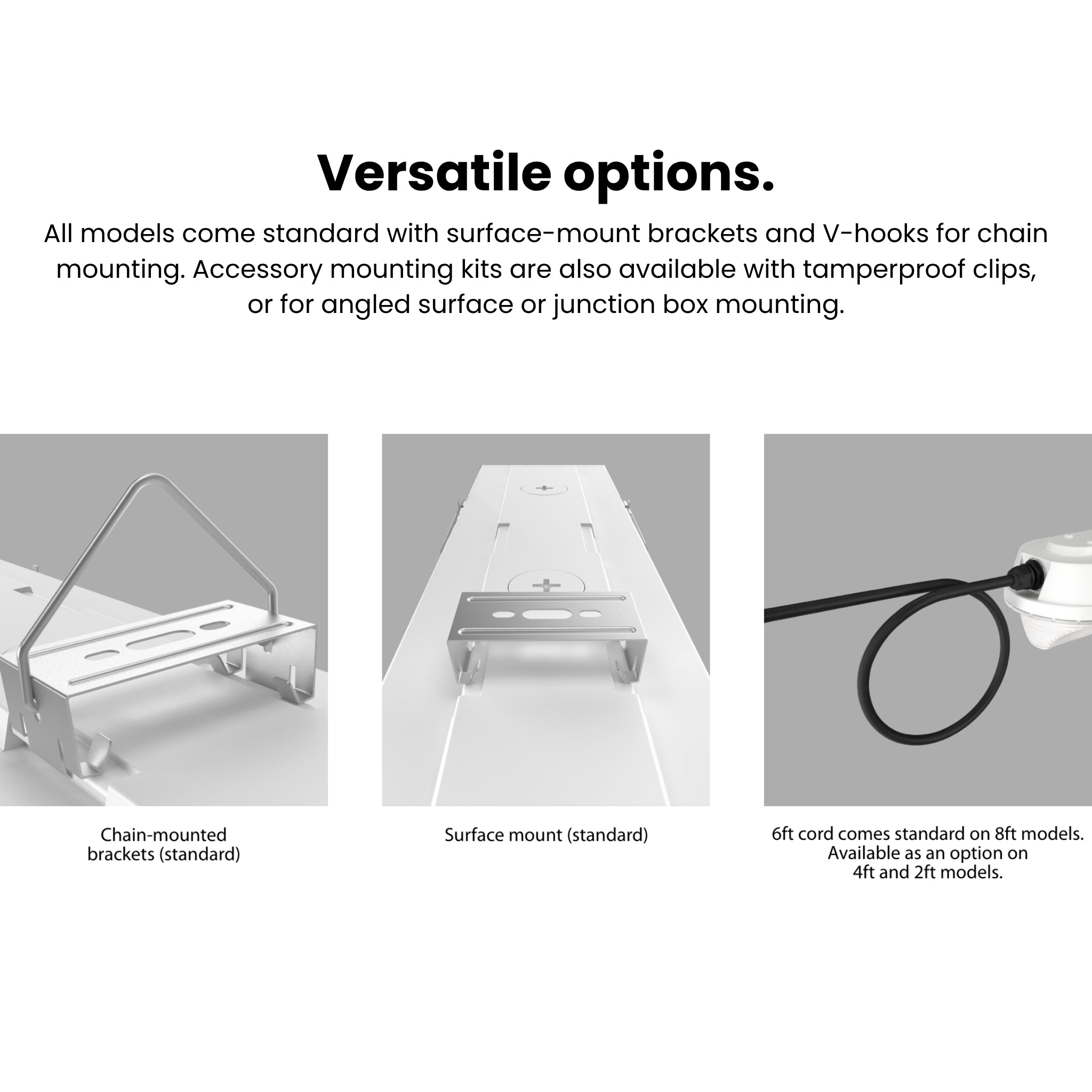

Metal bracket with hooks included. 0–10V dimming requires a separate 0–10V DC circuit. Sensor settings adjusted via MSR1 Remote (sold separately).
Accessories (sold separately):
- ANGSHARK8-G2 — Angular stainless steel corner bracket screws for 8ft fixtures
- JBSHARK8-G2 — Junction box mounting plate gasket screws for 8ft fixtures
- TPKSHARK8-GE — Tamperproof kit bracket screws for 8ft fixtures
- MSR1 Remote — Multi-sensor remote control (required for sensor adjustments)
Certifications & Rebates
- UL Listed: Wet Location.
- NSF Certified.
- NEMA 4X · IP66.
- DLC Listed: Stairwell/Passageway — S-IBLSR8 · Direct Linear Ambient — S-SRVU3Q · High-bay Commercial & Industrial — S-LQTB85. Search at designlights.org.
- RoHS Compliant.
Typical Applications
- Large Industrial Washdown Areas: 8-foot format with 50 ft. microwave detection covers wide bays; penetrates non-metallic partitions.
- Food Processing & Commercial Kitchens: NSF Certified, IP66 rated, with microwave occupancy sensing for energy savings.
- High-bay Commercial & Industrial: DLC Listed for high-bay; microwave sensor covers large volumes at up to 50 ft. mounting height.
- Cold Storage & Freezer Rooms: −40°F cold-start with microwave occupancy sensing for energy savings in refrigerated facilities.
What’s Included

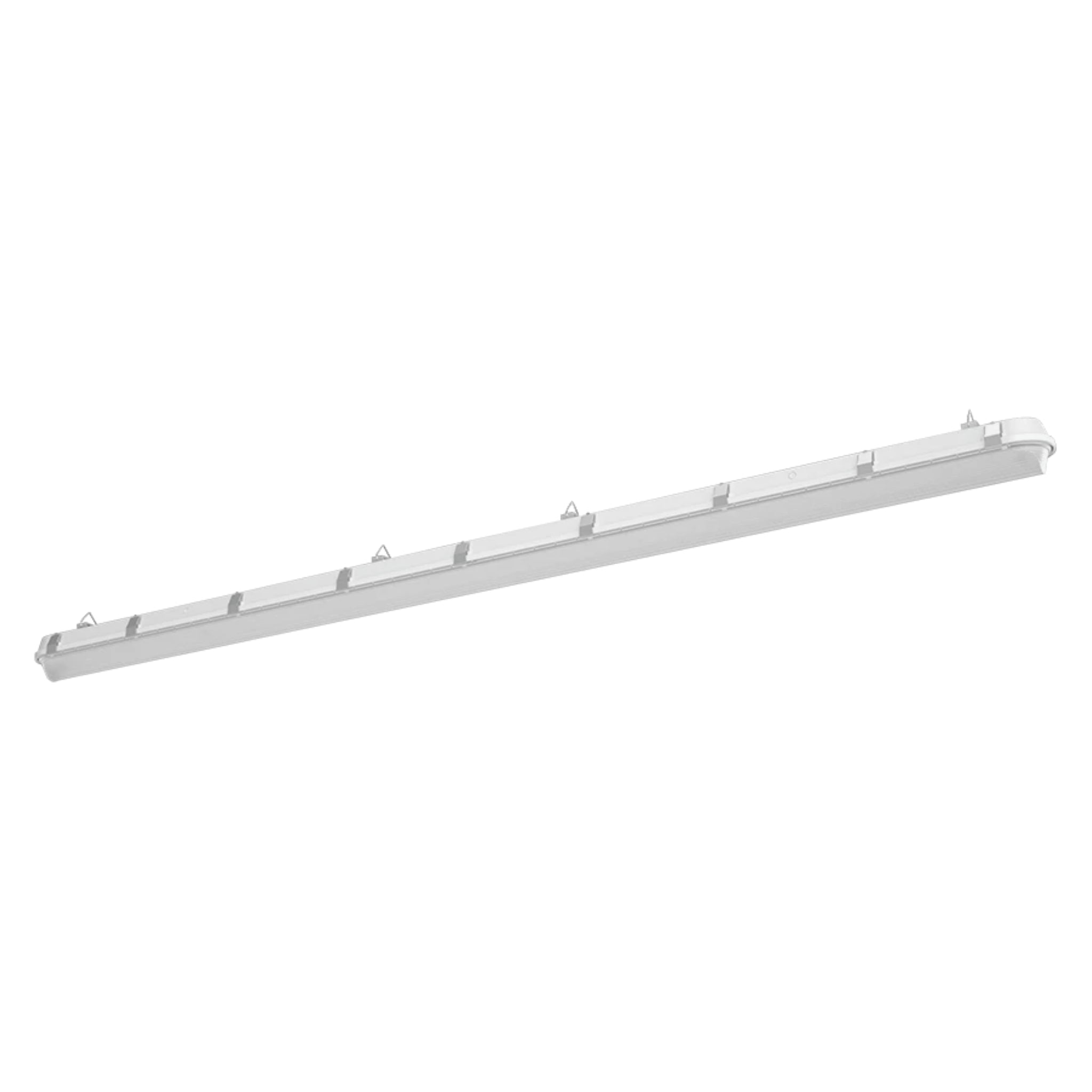

- RAB SHARK8/MVS 8-foot Field-Adjustable, Linear Washdown Vapor Tight fixture with microwave sensor — White
- Metal bracket with hooks
