RAB SHARK4 4ft LED Vapor Tight / Washdown Fixture 7,323 Lumens 50W Selectable 35K/40K/50K 120–277V White
Available in stock (200)
About this item
About this item
- Field-Adjustable Output: 30W/40W/50W selectable up to 7,323 lumens
- Voltage: 120–277V universal input
- Certifications: IP66, NEMA 4X, NSF certified
- Dimming: 0–10V dimmer compatible
- Installation: Surface brackets and V-hooks included
We process payments securely and do not store credit card information.
Description
Description

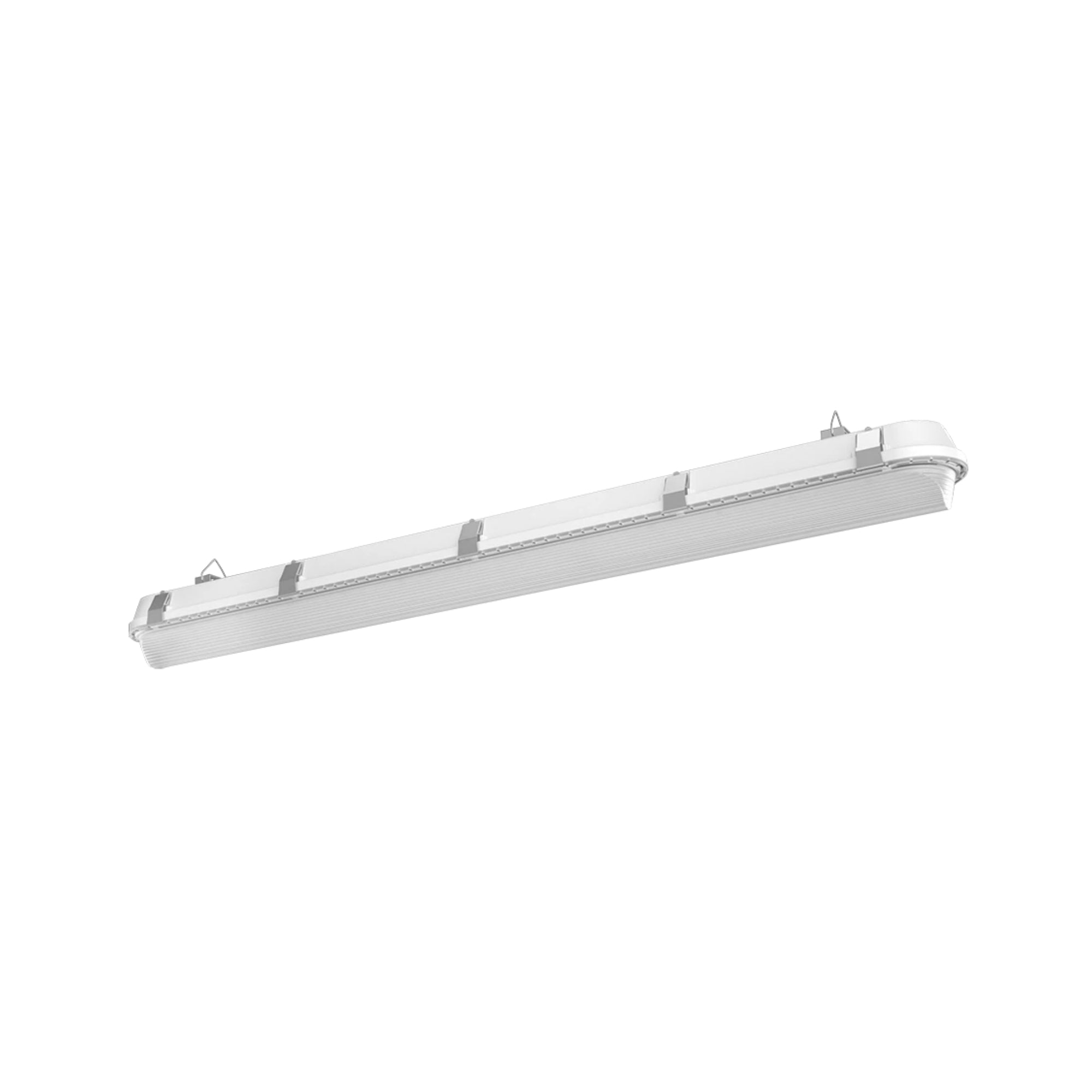

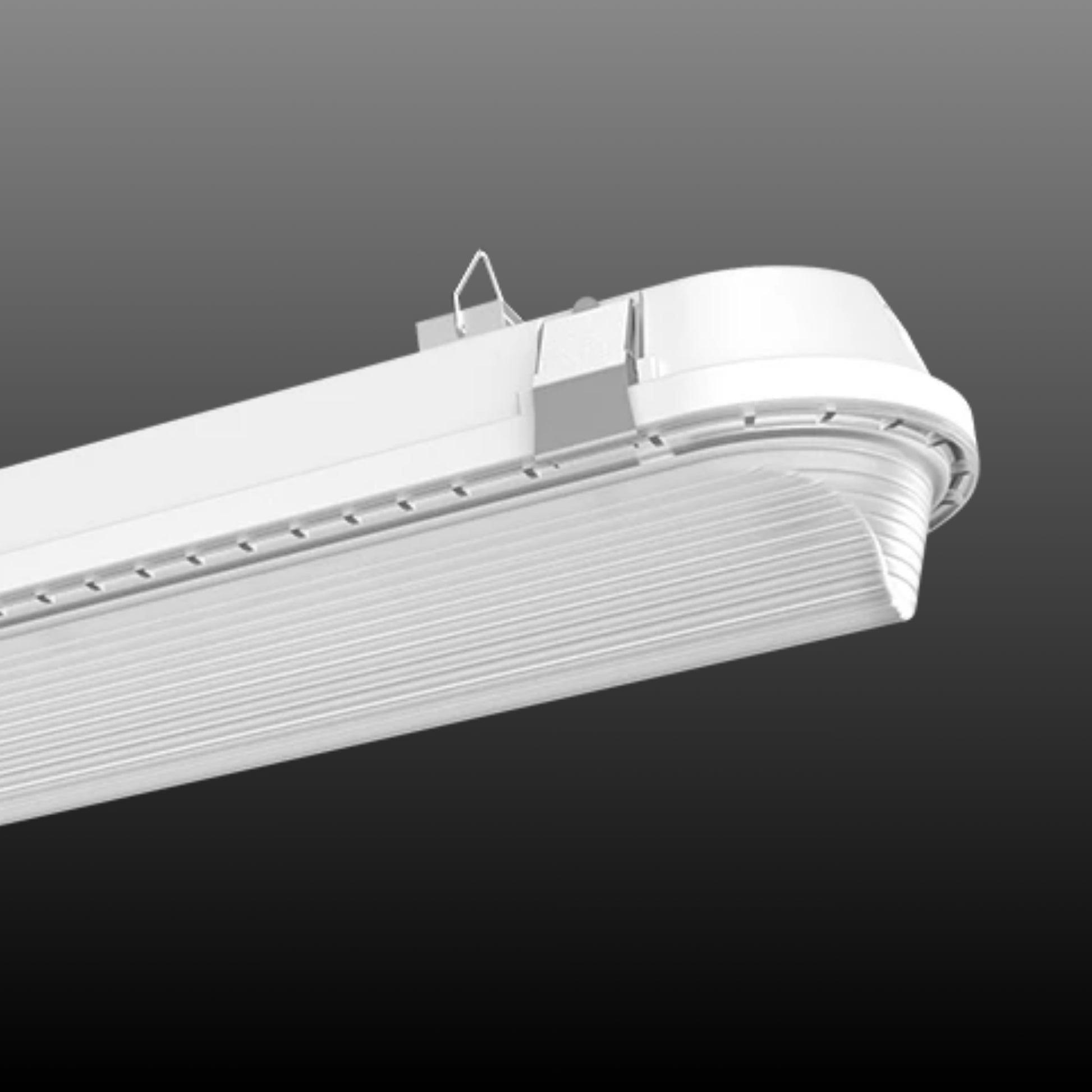

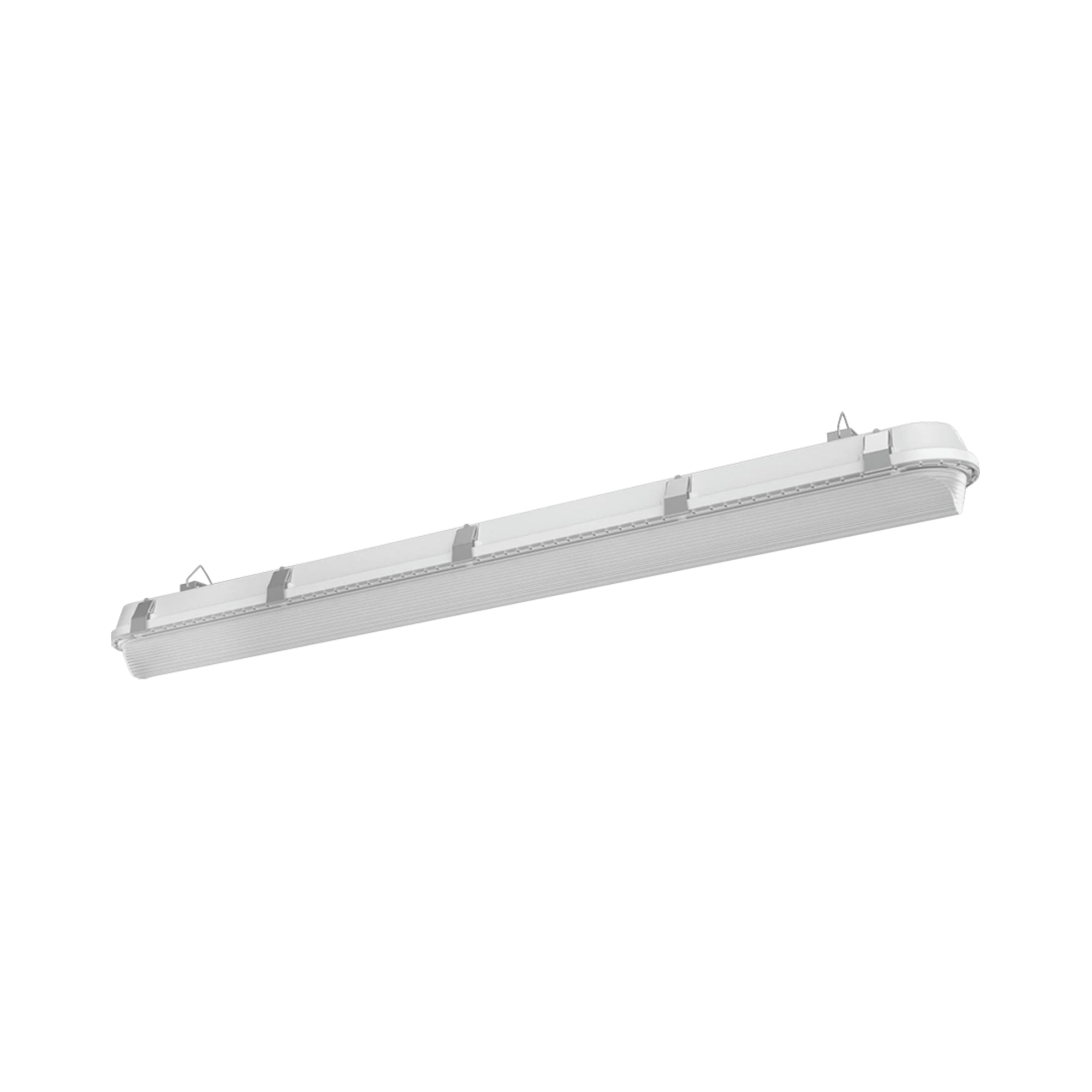

RAB SHARK4 4ft LED Vapor Tight / Washdown Fixture — Field-Adjustable Linear
The RAB SHARK4 is a robust 4-foot LED vapor tight fixture designed for wet, damp, and washdown environments. It offers field-selectable wattage (30W / 40W / 50W) and color temperature options (3500K / 4000K / 5000K) to tailor light output up to 7,323 lumens. The fixture operates on 120–277V with 0–10V dimming capability for modern control systems.
Key Features

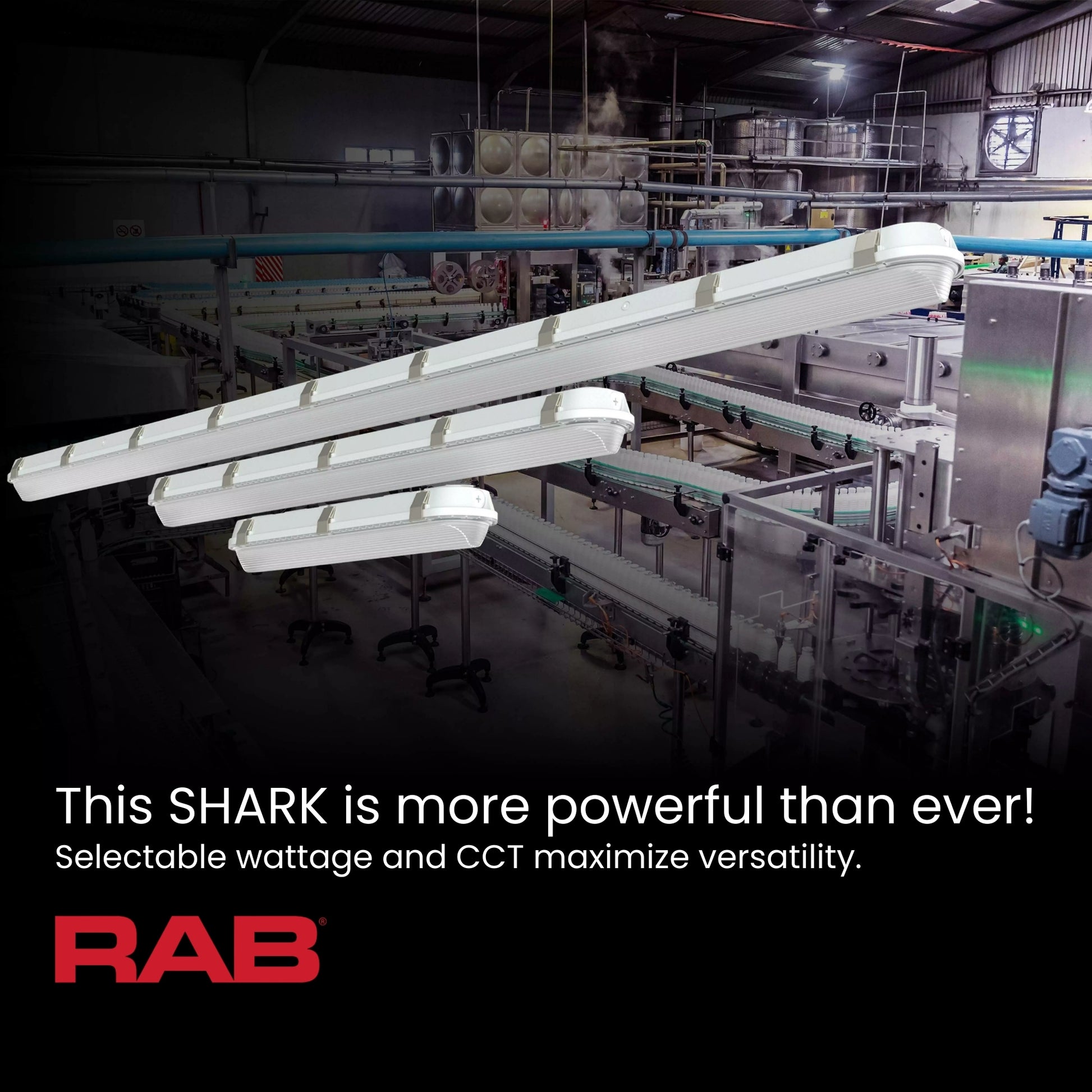

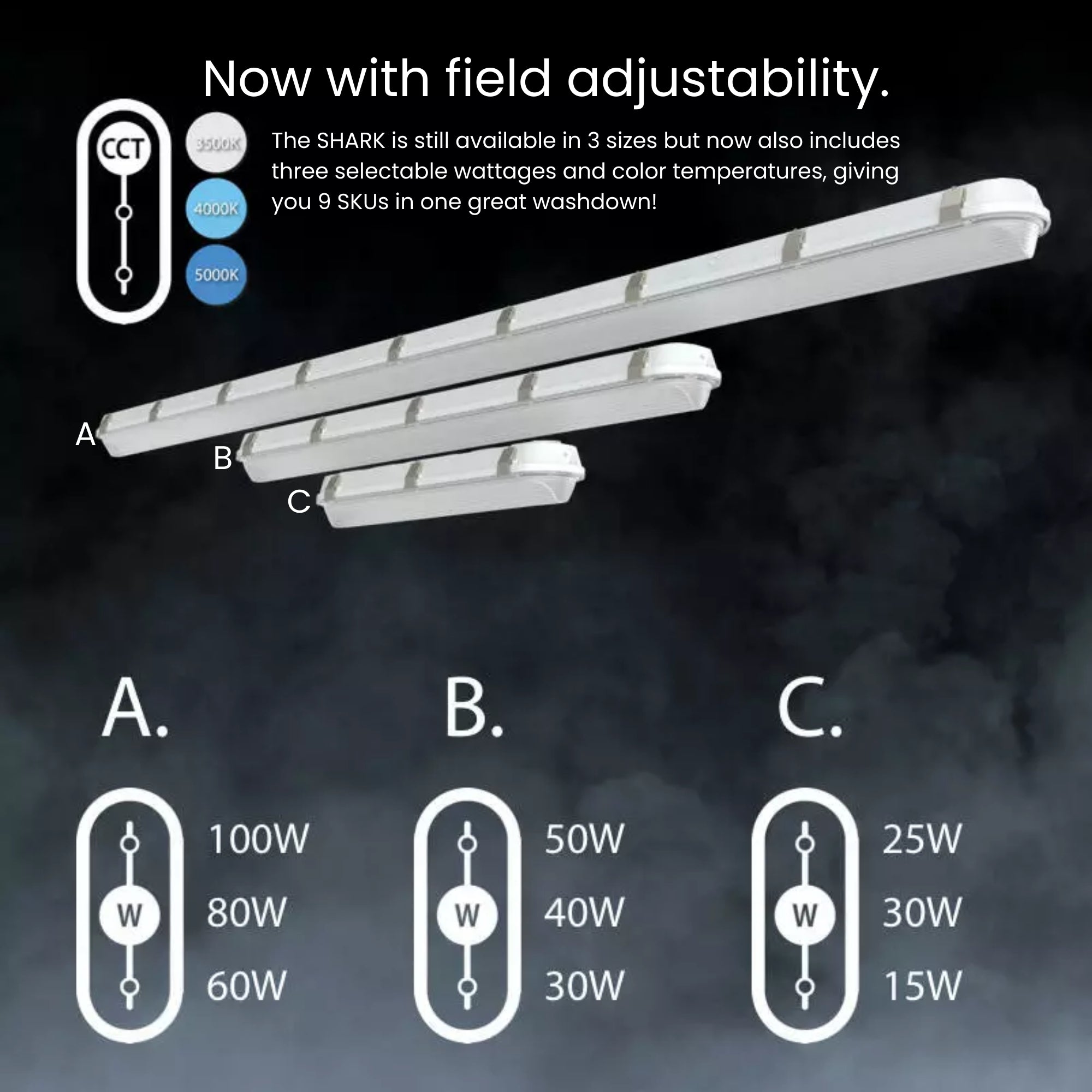

- Selectable Wattage: 30W / 40W / 50W
- Selectable CCT: 3500K / 4000K / 5000K
- Maximum Output: Up to 7,323 lumens
- Voltage: 120–277V input
- Dimming: 0–10V dimmable to 10%
- Environmental Ratings: IP66, NEMA 4X, NSF certified
- Rated Life: 100,000 hours (L70)
- Surge Protection: 2.5 kV standard
- Construction: IK09 impact-resistant polycarbonate
- Mounting Included: Surface brackets and V-hooks
Typical Applications
- Industrial washdown areas
- Parking garages

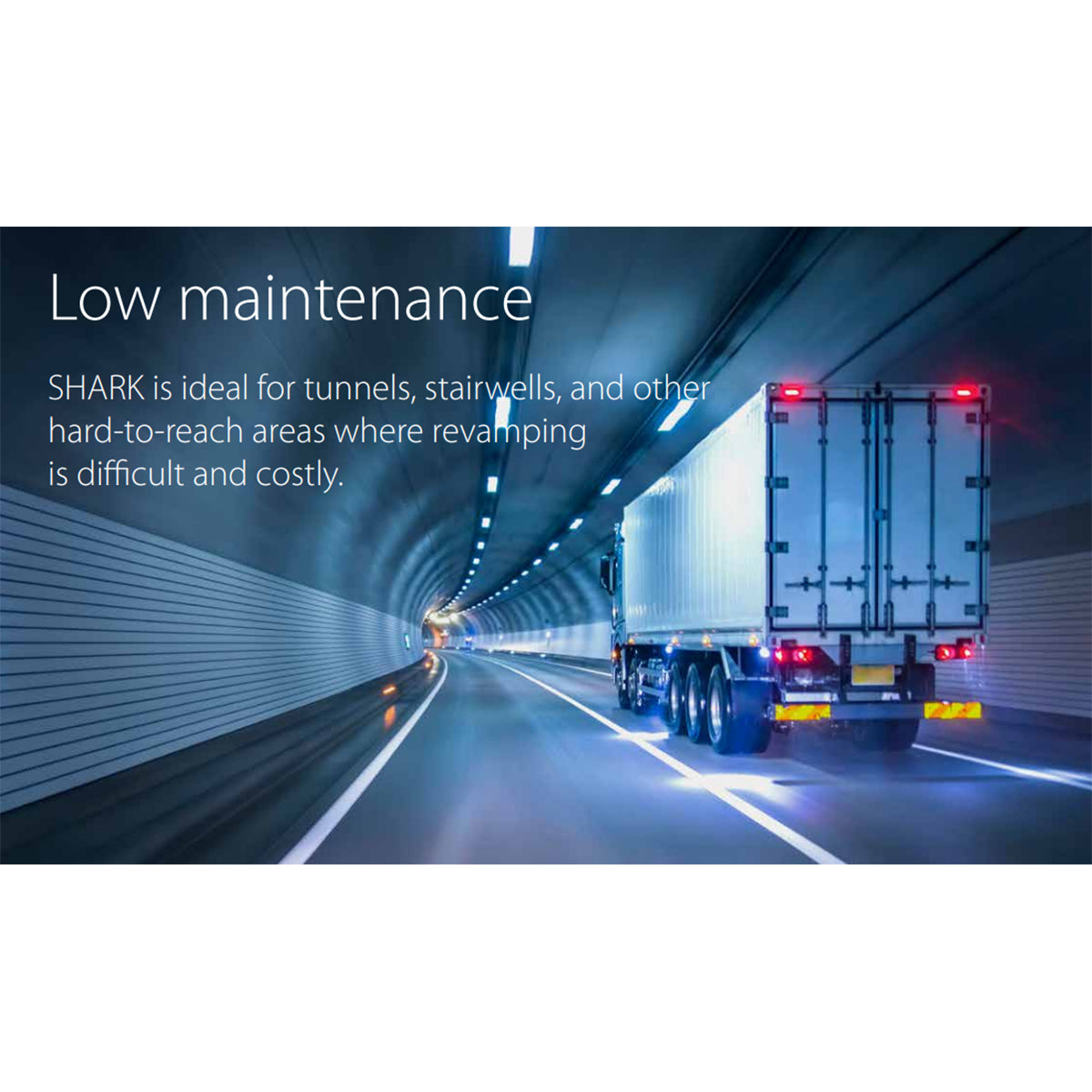

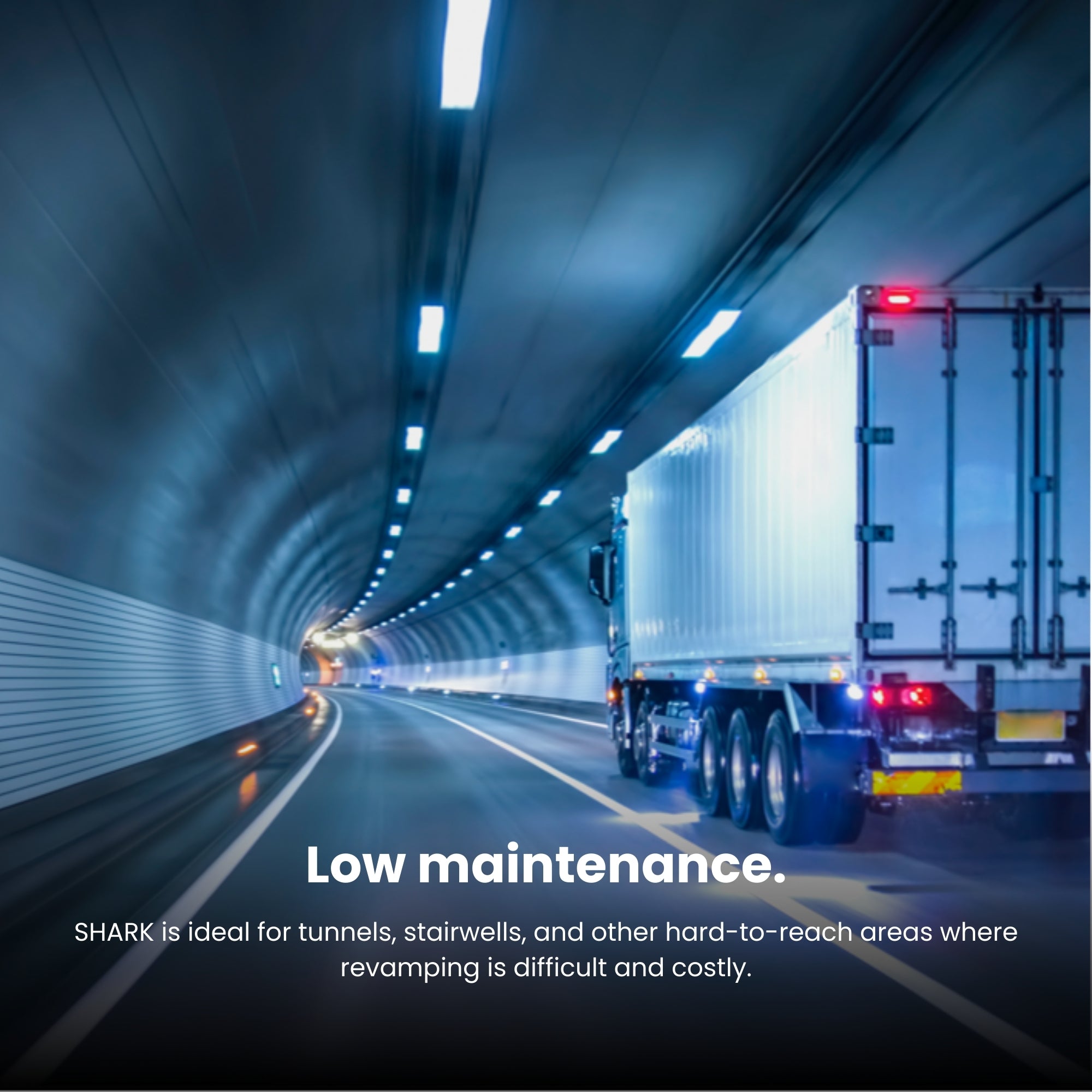

- Tunnels and stairwells
- Cold storage corridors
- Food processing facilities
- Utility and maintenance spaces
Performance & Light Output
The SHARK4 delivers field-adjustable light levels with high efficacy for energy-efficient performance. Standard color rendering supports consistent light quality across selectable CCTs. LEDs are rated for 100,000 hours (L70).
Electrical & Controls
Operates on 120–277V, 50/60 Hz with integrated 0–10V dimming leads. Driver is Class 2 constant current with high power factor. Standard surge protection helps safeguard the fixture in demanding electrical environments.

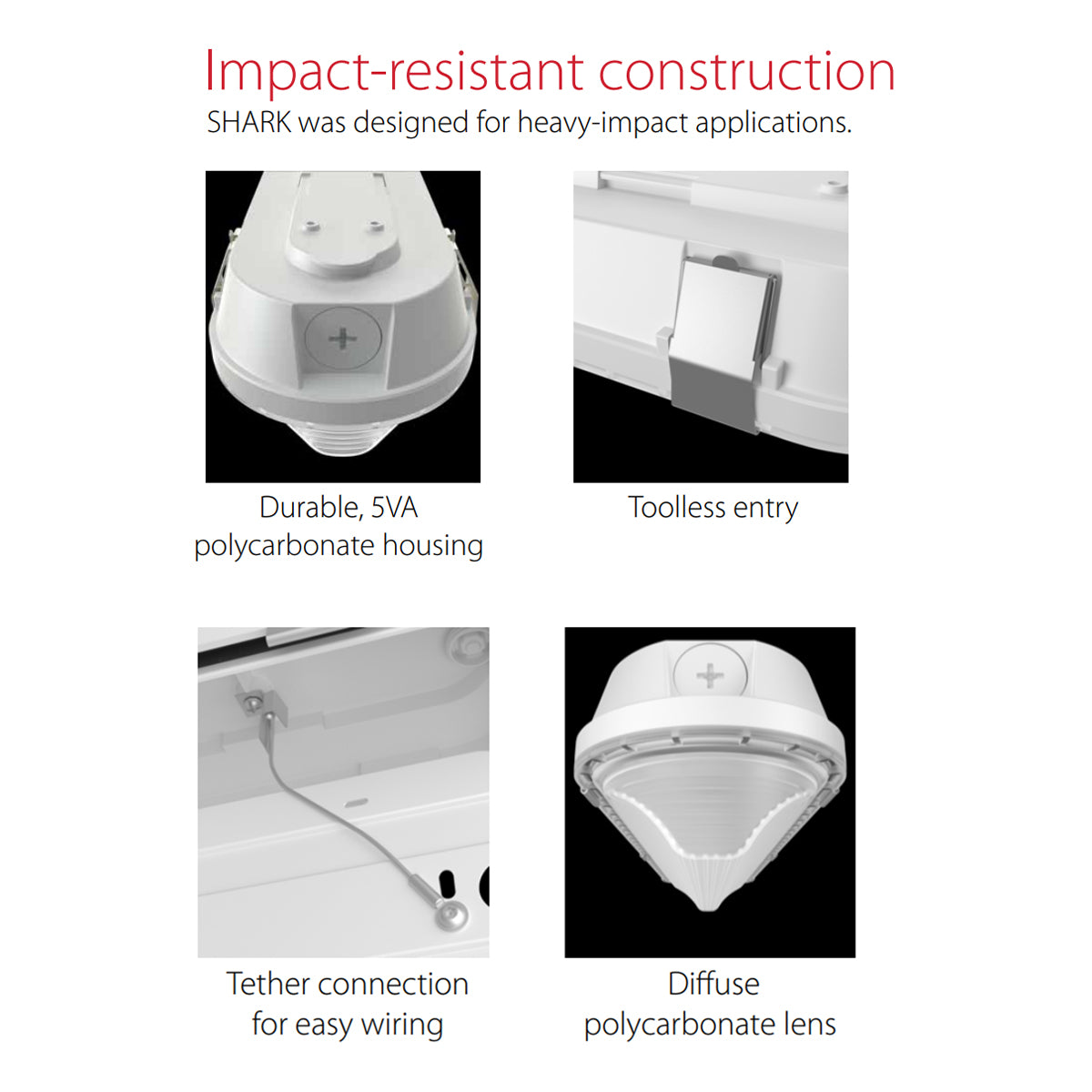

Construction & Durability

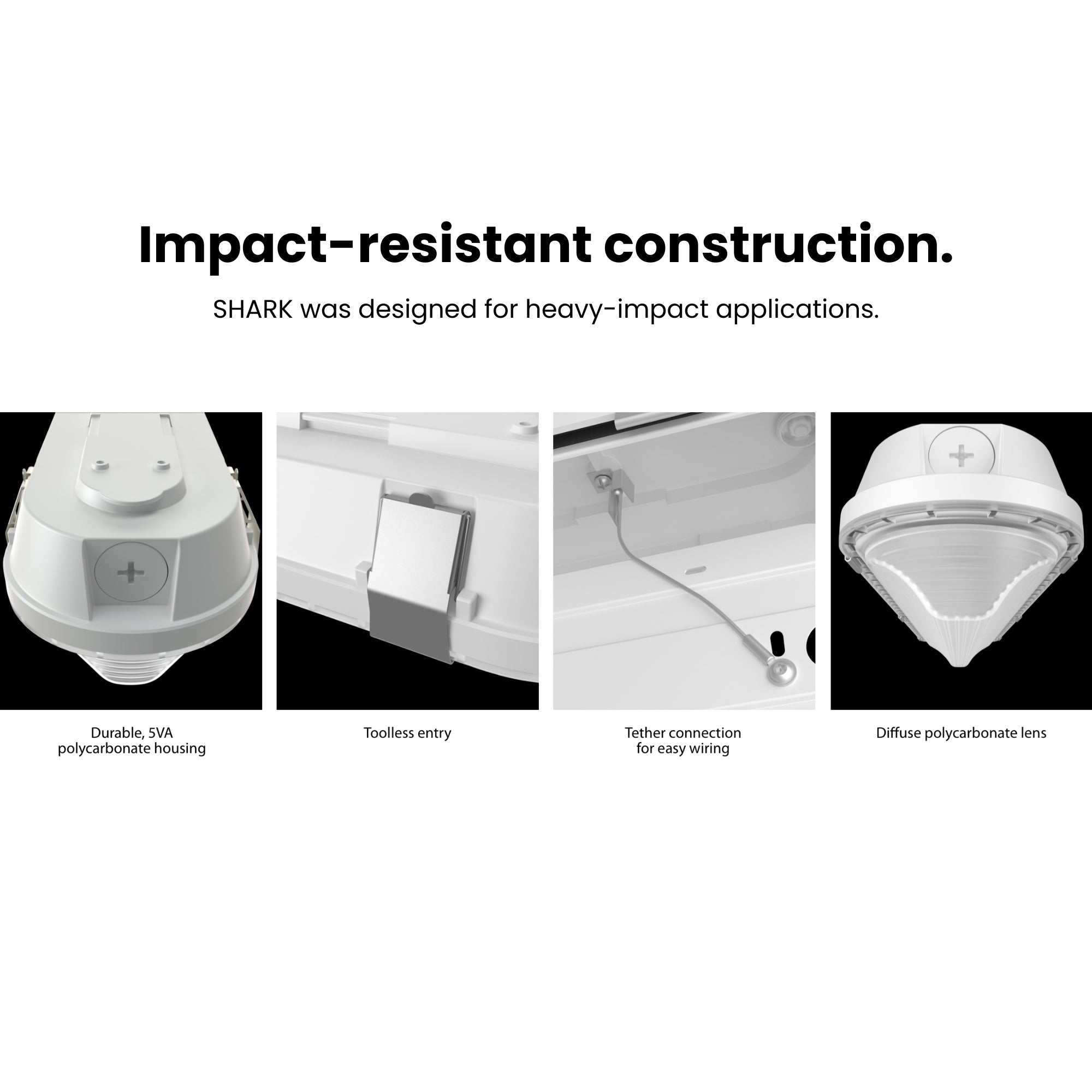

Durable IK09 impact-resistant polycarbonate housing with 5VA flame rating and gasketed sealing system. Rated IP66 for dust and water resistance, NEMA 4X corrosion protection, and NSF certification for washdown suitability.
Installation & Mounting

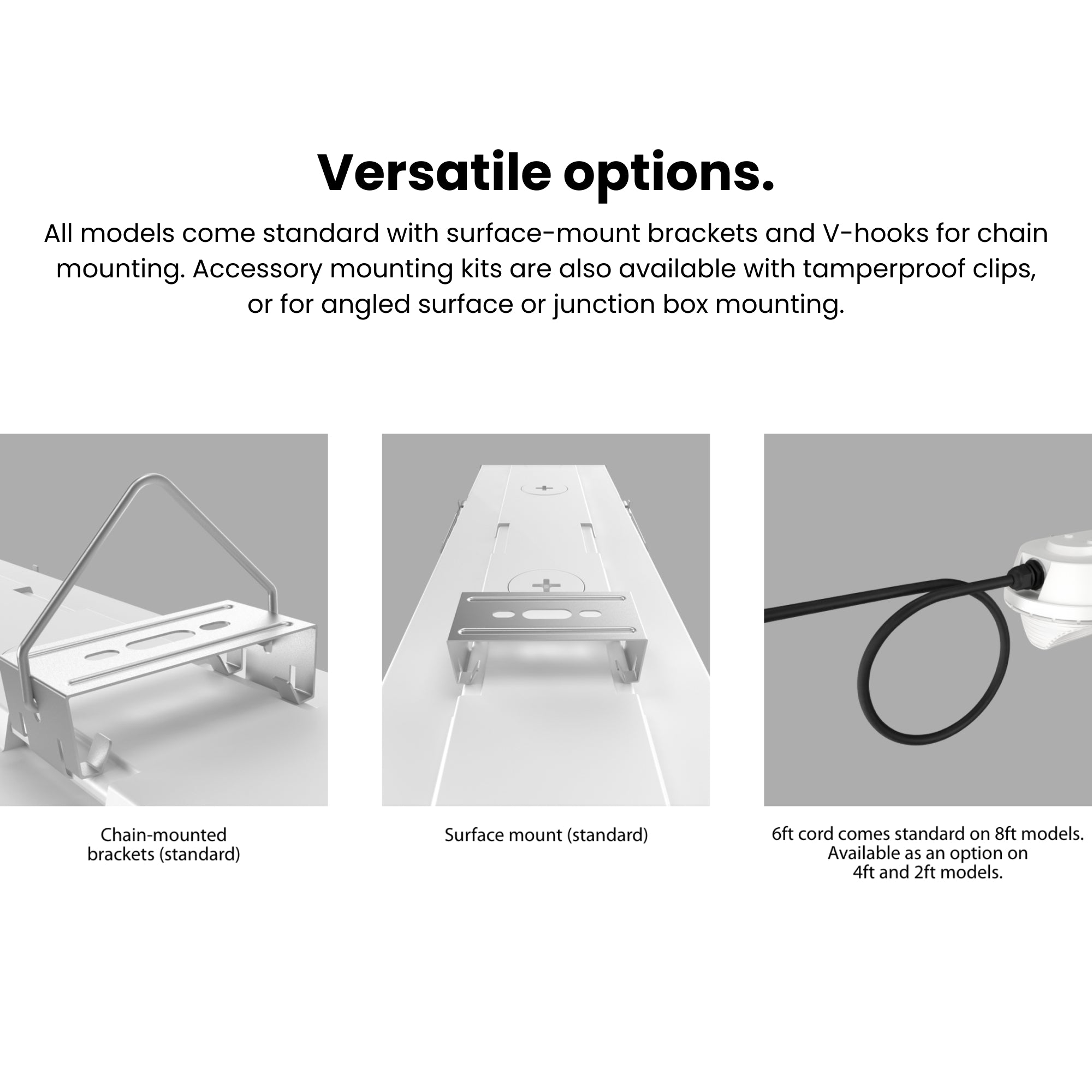

Included stainless steel surface mounting brackets and V-hooks for chain suspension. Conduit access provisions support sealed connections. Optional accessory kits available for junction box, angled surface, or vandal-resistant installations.
Included
- Surface mounting brackets
- V-hooks for chain suspension
Specifications
Specifications

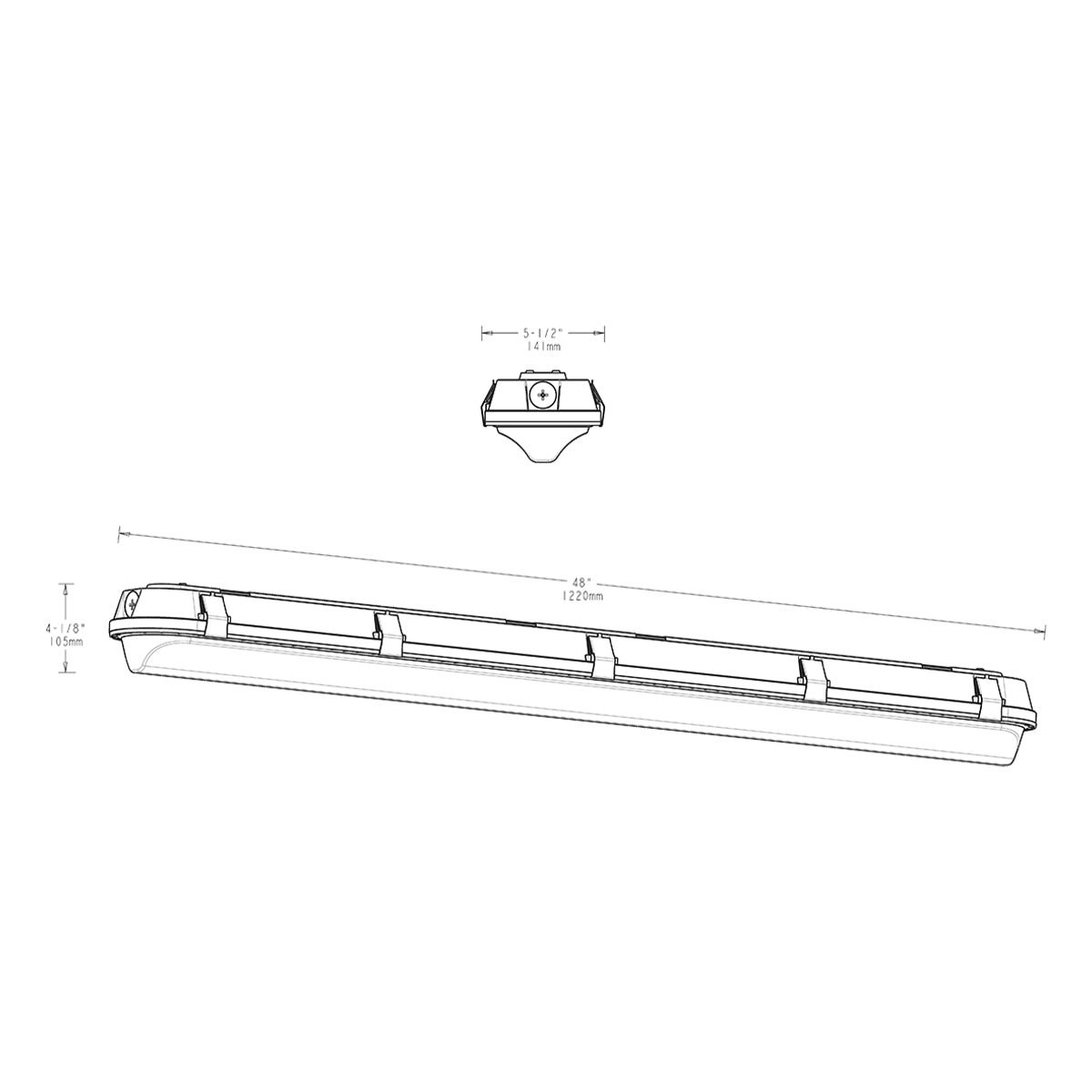

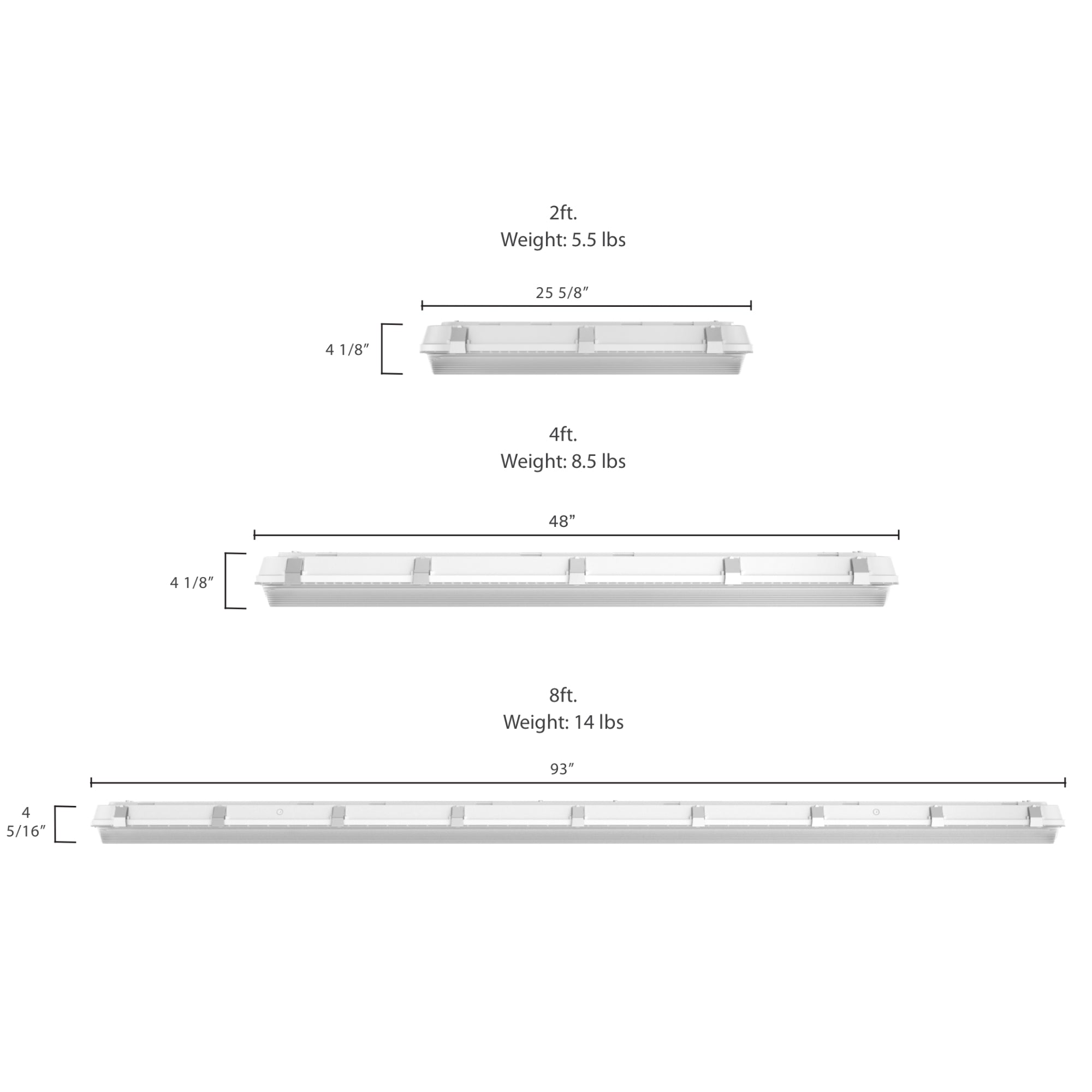

Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
