RAB SHARK2/PIR Field-Adjustable, Linear Washdown Vapor Tight — 25/20/15W Selectable — 3500K/4000K/5000K
Available in stock (30)
About this item
About this item
- Selectable Wattage & Output: Field-select 25W, 20W, or 15W at the fixture via onboard switch — delivers up to 3,683 lumens at up to 148 lm/W peak efficacy. No rewiring required.
- Wet Location & IP Rating: UL Listed for wet locations with IP66 ingress protection and NEMA 4X corrosion resistance — rated for direct water exposure, washdown hose-down, and outdoor or covered wet environments. Cold-start rated to −40°F (−40°C).
- Selectable CCT: Onboard switch adjusts between 3500K, 4000K, and 5000K at the fixture — no re-ordering required for different color temperature specifications.
- Integrated PIR Occupancy Sensor: Built-in passive infrared sensor — max mounting height 40 ft., detection range 40 ft. diameter. Automatically dims to standby when area is vacant, then returns to full output on motion detection.
- DLC Listed & Rebate Eligible: DLC Listed under multiple application categories — qualifies for utility rebate programs in most U.S. markets. NSF Certified for food-safe environments.
Description
Description
RAB SHARK2/PIR Field-Adjustable, Linear Washdown Vapor Tight — 25/20/15W Selectable — 3500K/4000K/5000K — White

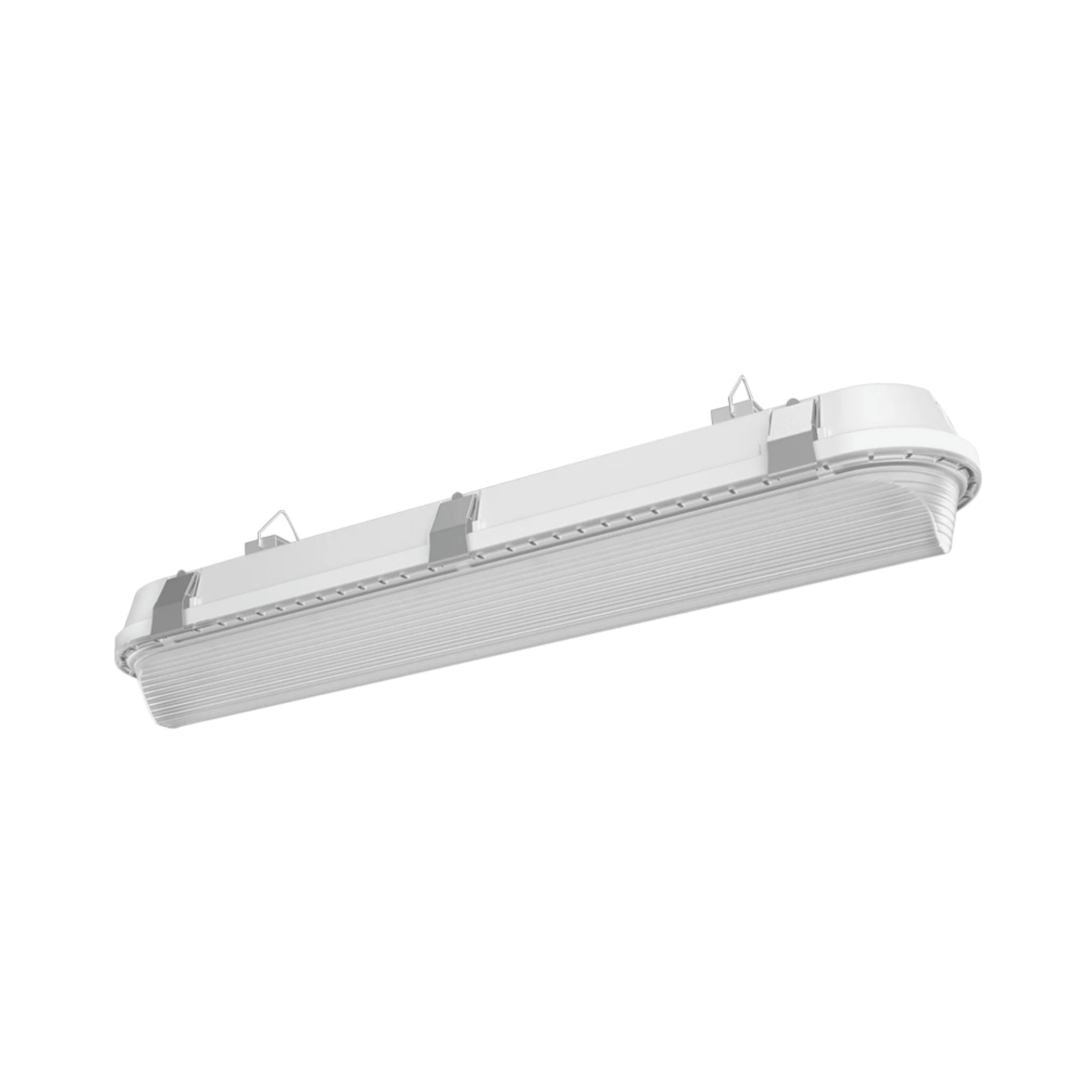

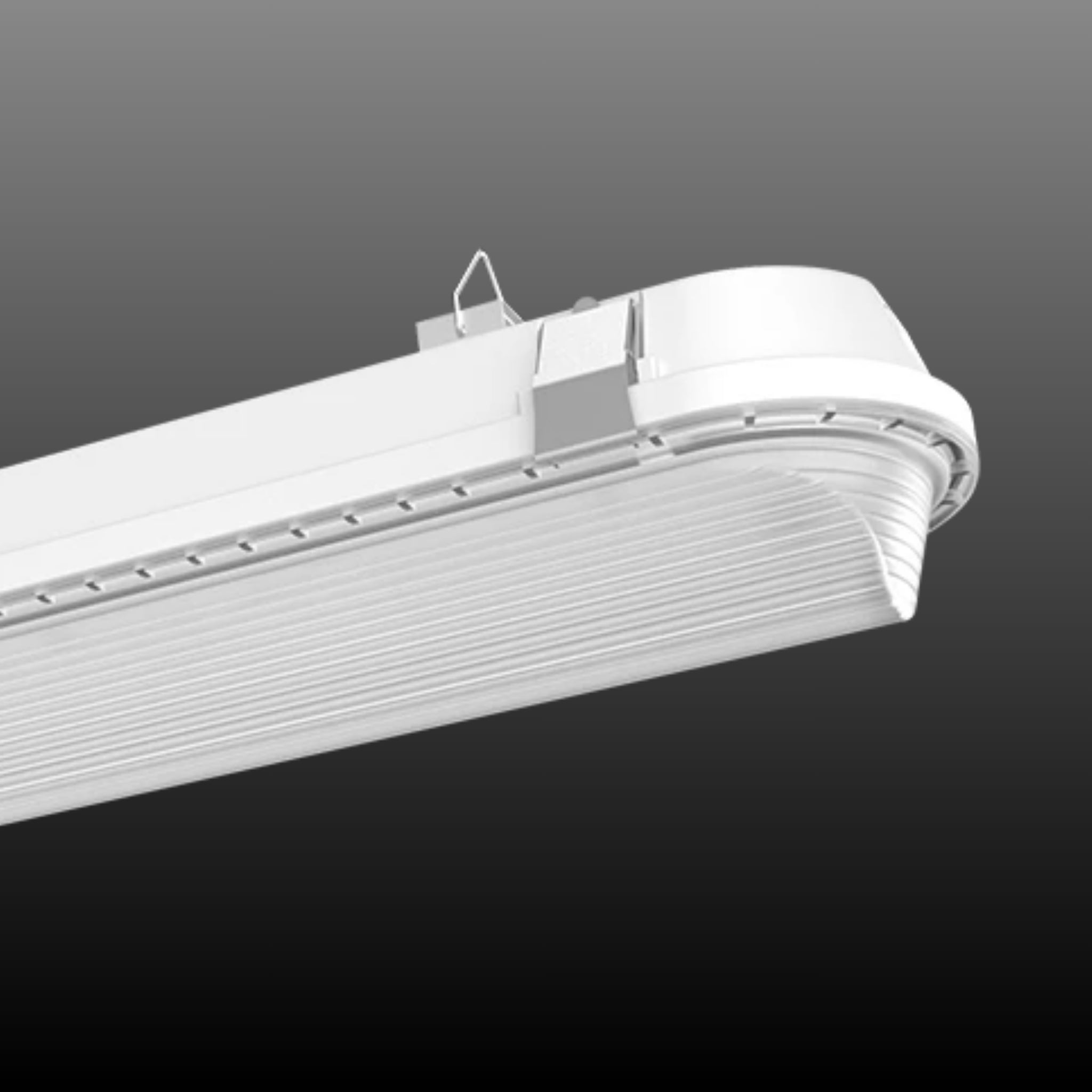

The RAB SHARK2/PIR is a 2-foot field-adjustable linear washdown vapor tight fixture with an integrated passive infrared (PIR) occupancy sensor, delivering up to 3,683 lumens with field-selectable wattage (25W / 20W / 15W) and field-selectable CCT (3500K / 4000K / 5000K) via onboard switches. Operating on 120–277V / 50–60Hz with 0–10V dimming to 10%, the SHARK2/PIR is UL Listed for Wet Locations, IP66 rated, NEMA 4X corrosion-resistant, and NSF Certified. Rated for 100,000 hours, backed by a 5-year warranty, and DLC Listed.
Key Features

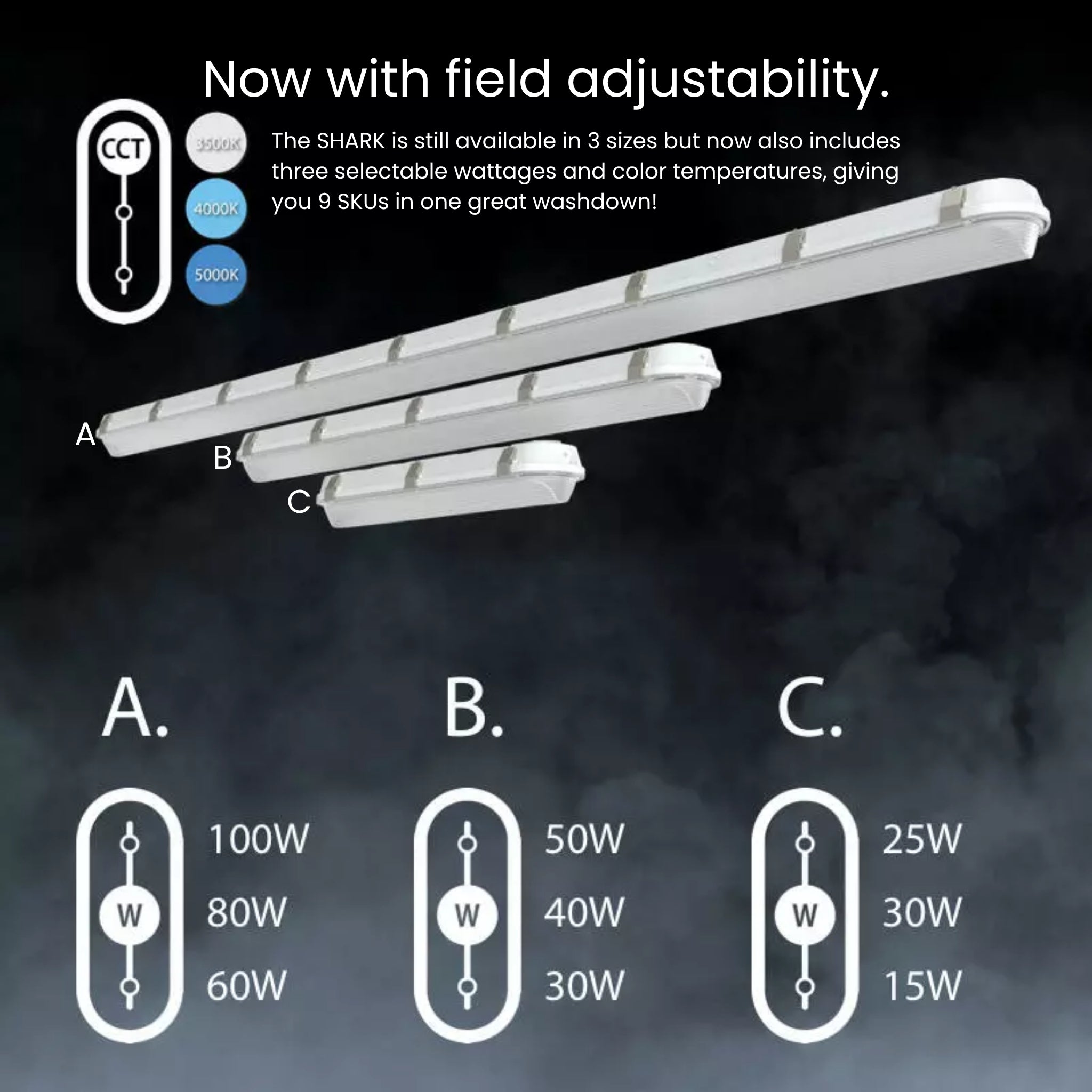

- Selectable Wattage: Field-adjustable 25W / 20W / 15W via onboard switch — no tools or rewiring required.
- Maximum Lumen Output: Up to 3,683 lumens at 25W / 4000K.
- Peak Efficacy: Up to 148 lm/W at 25W / 4000K.
- CRI: 83–85 CRI (85 CRI at 4000K and 5000K).
- Selectable CCT: Field-adjustable 3500K / 4000K / 5000K via onboard switch.
- PIR Occupancy Sensor: Passive infrared sensor — max mounting height 40 ft.; detection range 40 ft. diameter at 40 ft.; input voltage 12VDC; input current 30mA.
- Sensor Default Settings: Motion sensitivity High · Triggered brightness 100% · Hold time 20 min · Standby dim 20% · Standby time 1 min · When vacant: Off · Daylight: Disabled.
- Adjustable Sensor Settings (via MSR1 Remote): Standby dim: 10/20/30/50% · Standby time: 0s/10s/30s/1min/5min/10min/30min/60min/+∞ · Daylight threshold: 2/10/30/50/80/120 Lux/Disable.
- Dimming Protocol: 0–10V continuous dimming to 10% — requires separate 0–10V DC dimming circuit.
- Voltage & Driver: 120–277V / 50–60Hz; constant-current driver.
- Location Rating: UL Listed for Wet Locations · IP66 · NEMA 4X · NSF Certified.
- Operating Temperature: Cold-start to −40°F (−40°C); max ambient +140°F (+60°C).
- Rated Life: 100,000 hours (L70).
- Warranty: 5-year RAB no-compromise warranty.
- Surge Protection: 2.5kV.
Performance & Light Output
At 25W: 3,509 lm / 3500K · 3,683 lm / 4000K · 3,565 lm / 5000K. At 20W: 2,843 / 2,964 / 2,892 lm. At 15W: 2,270 / 2,346 / 2,314 lm. Peak efficacy: 148 lm/W at 25W / 4000K. CRI: 83 at 3500K, 85 at 4000K and 5000K. Voltage: 120–277V. Rated life: 100,000 hours (L70).
Smart & Control Features
The SHARK2/PIR integrates a passive infrared occupancy sensor (12VDC, 30mA) that automatically dims the fixture to standby level when no motion is detected and restores full output on motion detection. Sensor settings are adjustable via the MSR1 Remote (sold separately): standby dim (10/20/30/50%), standby time (0s to +∞), and daylight threshold (2–120 Lux or Disable). Daylight sensing triggers the fixture based on ambient light level set.
Electrical
Constant-current driver · 120–277V / 50–60Hz · Surge protection: 2.5kV · 0–10V dimming to 10% · RoHS compliant.

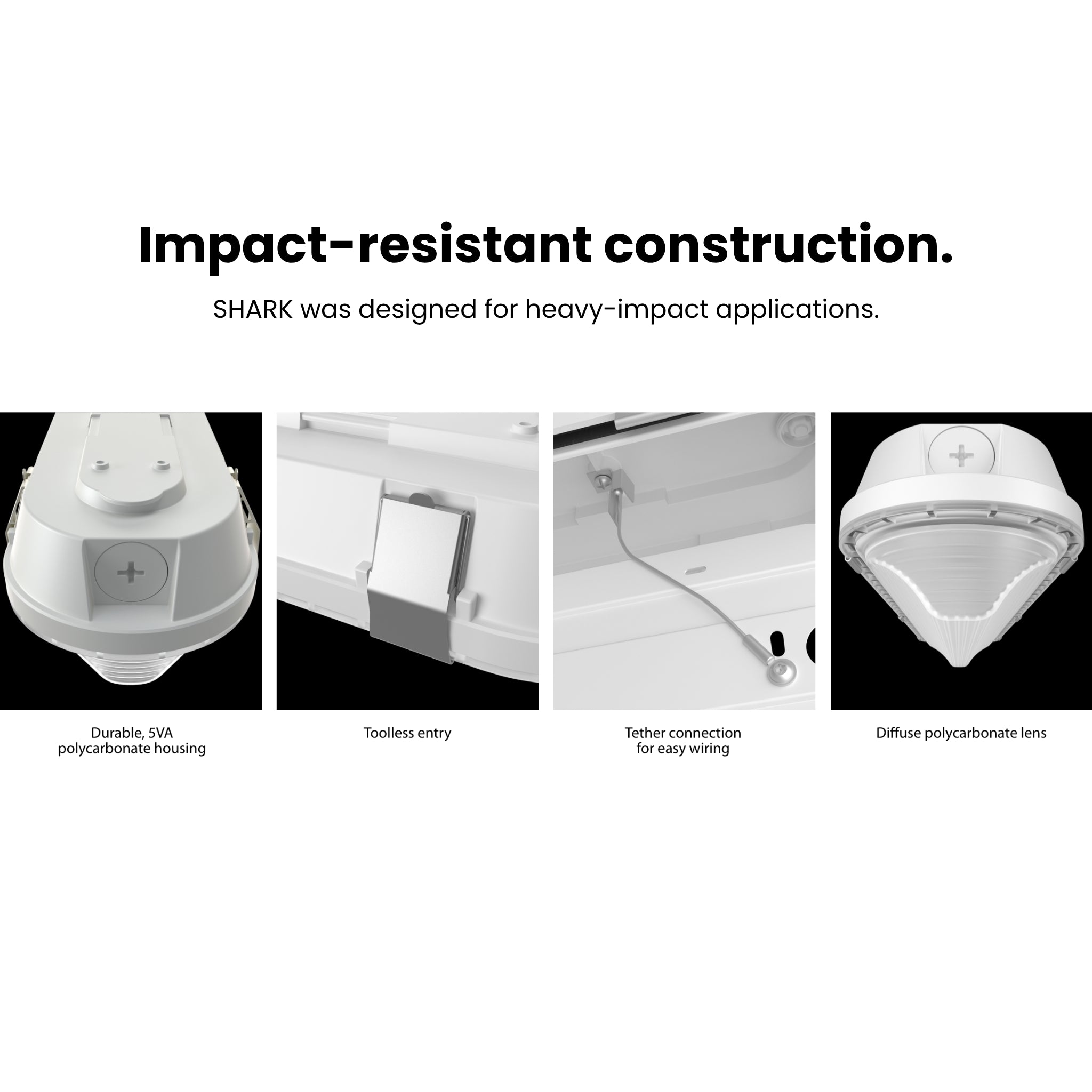

Construction
Housing: Impact-resistant polycarbonate housing with stainless steel hardware and high-temperature silicone gaskets.
Lens: Diffuse polycarbonate for broad, even light distribution.
Finish: White.
Environmental: IP66 · NEMA 4X · UL Listed Wet · NSF Certified · −40°F to +140°F.
Dimensions & Weight: 25 5/8″ L × 4 1/8″ W × 5 1/2″ H · 6.94 lbs.
Installation & Mounting

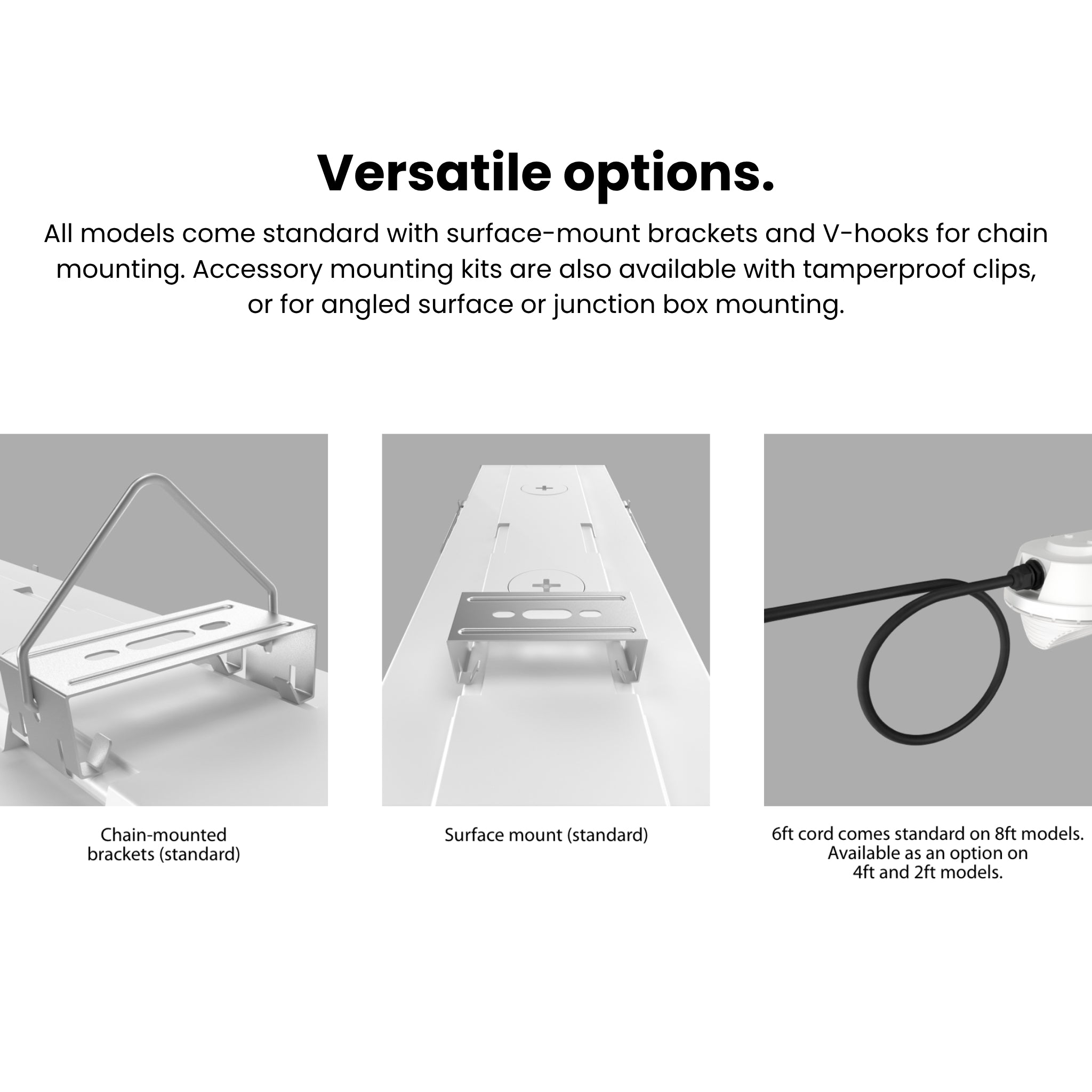

Metal bracket with hooks included for surface or suspended mounting. 0–10V dimming requires a separate 0–10V DC circuit. Sensor settings adjusted via MSR1 Remote (sold separately).
Accessories (sold separately):
- ANGSHARK-G2 — Angular stainless steel corner bracket screws for 2–4ft fixtures
- JBSHARK-G2 — Junction box mounting plate gasket screws for 2–4ft fixtures
- TPKSHARK-G2 — Tamperproof kit bracket screws for 2–4ft fixtures
- MSR1 Remote — Multi-sensor remote control (required for sensor adjustments)
Certifications & Rebates
- UL Listed: Wet Location.
- NSF Certified.
- NEMA 4X · IP66.
- DLC Listed: Stairwell/Passageway — S-W04BEC · Direct Linear Ambient — S-V3CE02. Search at designlights.org.
- RoHS Compliant.
Typical Applications

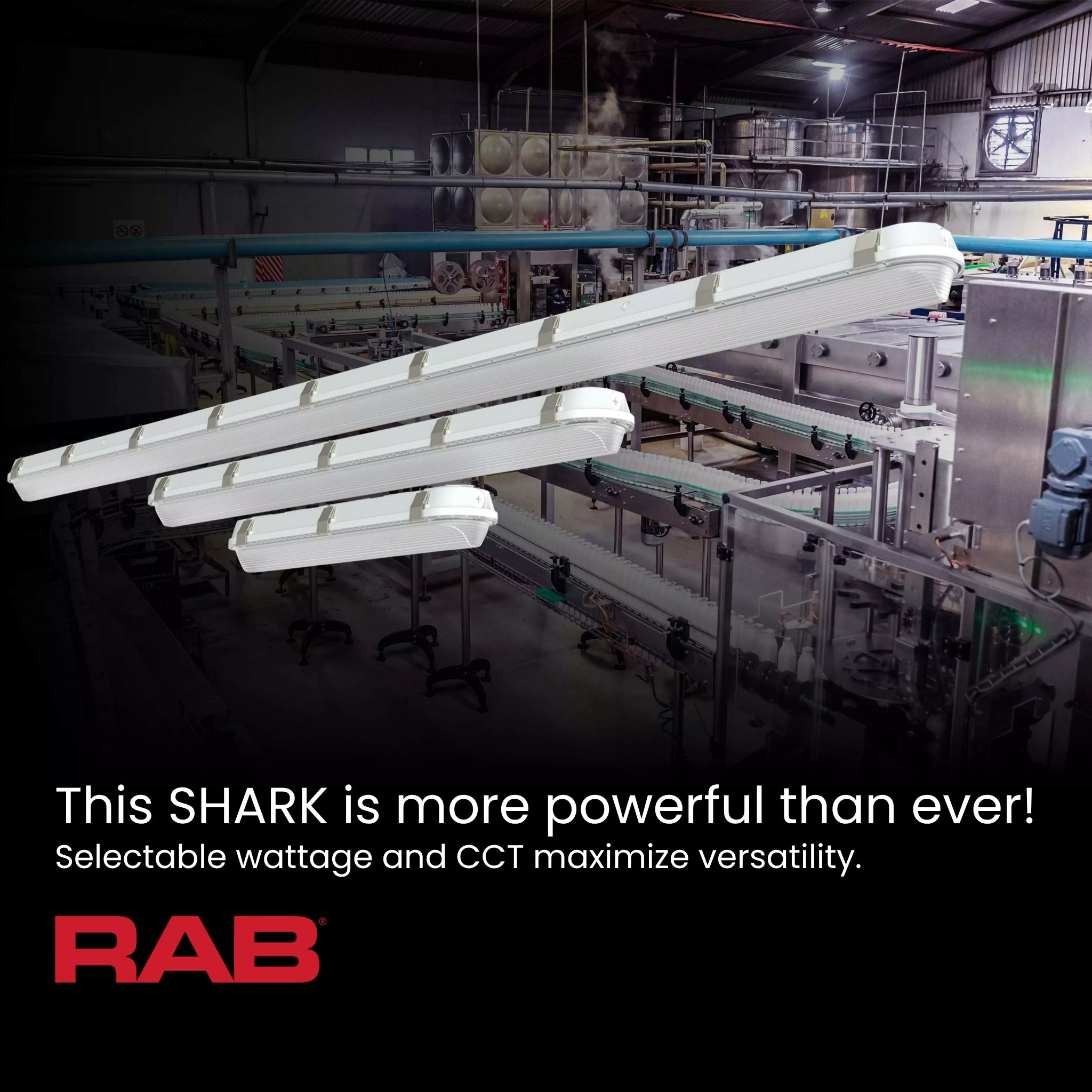

- Food Processing & Washdown Areas: NSF Certified, IP66 rated, with PIR sensor for automatic occupancy control — reduces energy use during off-hours.
- Stairwells & Passageways: DLC Listed for stairwell/passageway applications; PIR sensor dims automatically when unoccupied.
- Cold Storage & Freezer Rooms: −40°F cold-start with occupancy control for energy savings in refrigerated spaces.
- Parking Garages & Covered Structures: Automatic dimming when unoccupied reduces energy consumption in continuously illuminated facilities.
What’s Included
- RAB SHARK2/PIR 2-foot Field-Adjustable, Linear Washdown Vapor Tight fixture with PIR sensor — White
- Metal bracket with hooks
