RAB SHARK2/MVS Field-Adjustable, Linear Washdown Vapor Tight — 25/20/15W Selectable — 3500K/4000K/5000K
Available in stock (100)
About this item
About this item
- Selectable Wattage & Output: Field-select 25W, 20W, or 15W at the fixture via onboard switch — delivers up to 3,683 lumens at up to 148 lm/W peak efficacy. No rewiring required.
- Wet Location & IP Rating: UL Listed for wet locations with IP66 ingress protection and NEMA 4X corrosion resistance — rated for direct water exposure, washdown hose-down, and outdoor or covered wet environments. Cold-start rated to −40°F (−40°C).
- Selectable CCT: Onboard switch adjusts between 3500K, 4000K, and 5000K at the fixture — no re-ordering required for different color temperature specifications.
- Integrated Microwave Occupancy Sensor: Built-in microwave (MVS) sensor — max mounting height 50 ft., detection range 50 ft. diameter. Detects motion through non-metallic partitions; ideal for higher ceilings and irregular spaces.
- DLC Listed & Rebate Eligible: DLC Listed under multiple application categories — qualifies for utility rebate programs in most U.S. markets. NSF Certified for food-safe environments.
Description
Description

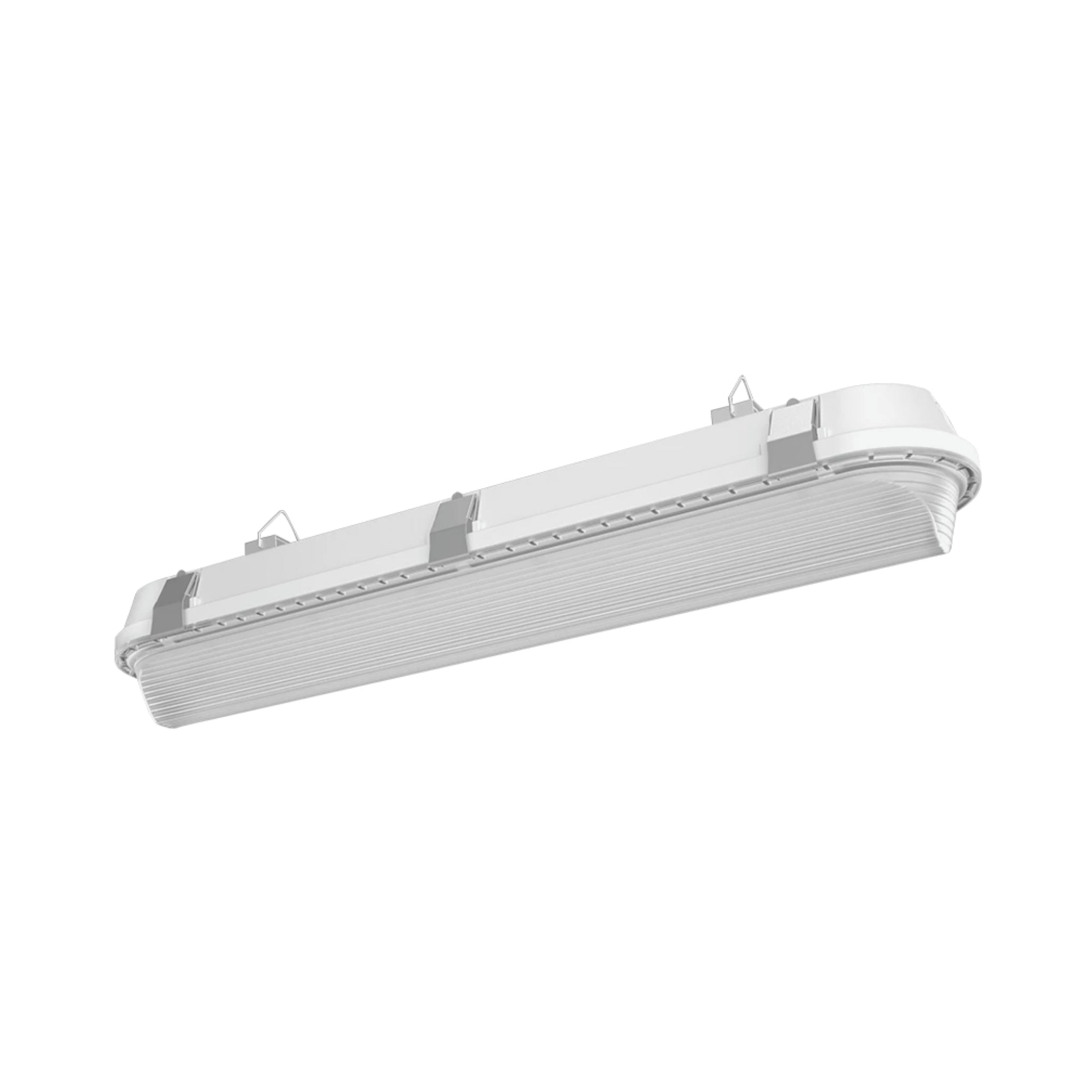

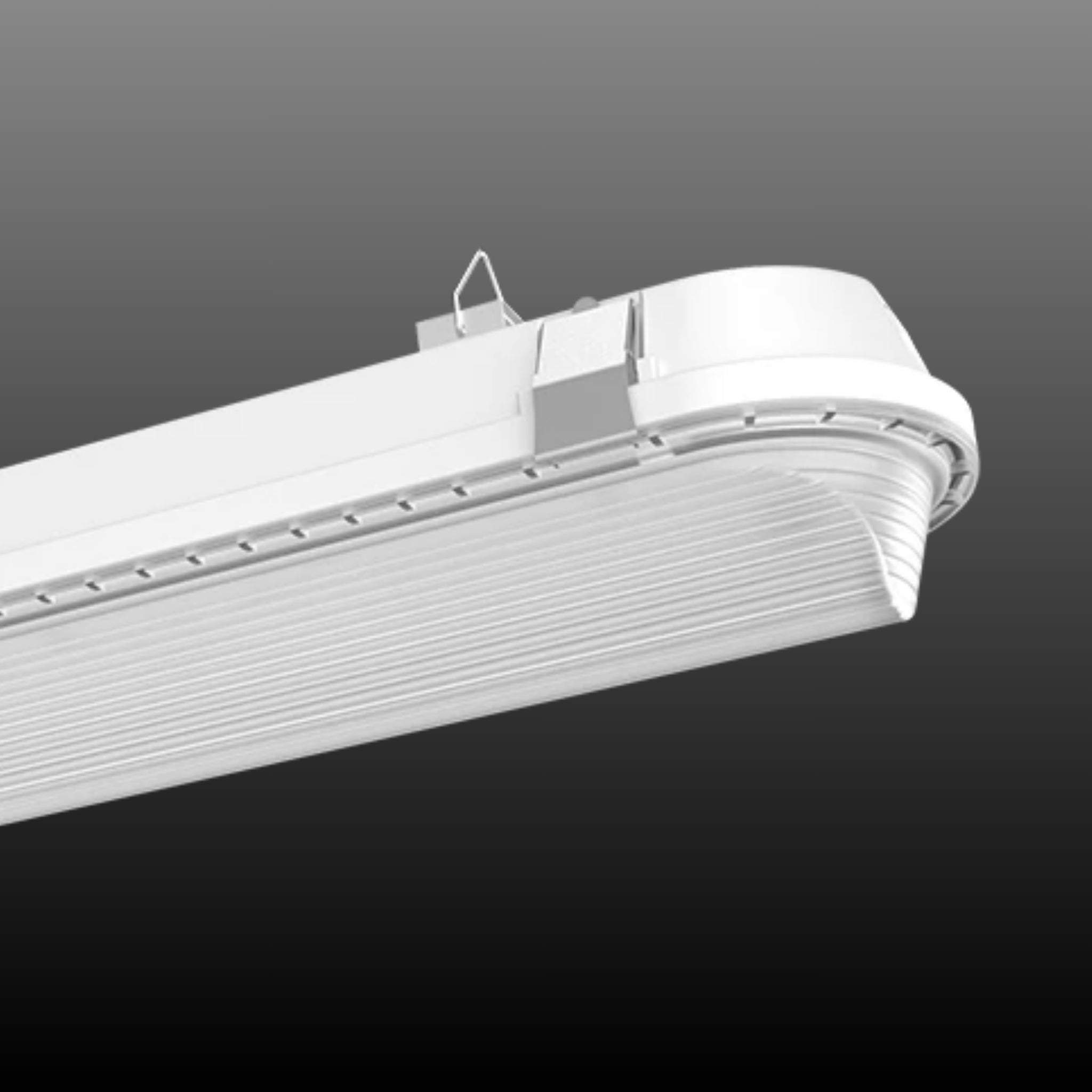

RAB SHARK2/MVS Field-Adjustable, Linear Washdown Vapor Tight — 25/20/15W Selectable — 3500K/4000K/5000K — White
The RAB SHARK2/MVS is a 2-foot field-adjustable linear washdown vapor tight fixture with an integrated microwave (MVS) occupancy sensor, delivering up to 3,683 lumens with field-selectable wattage (25W / 20W / 15W) and field-selectable CCT (3500K / 4000K / 5000K) via onboard switches. Operating on 120–277V / 50–60Hz with 0–10V dimming to 10%, the SHARK2/MVS is UL Listed for Wet Locations, IP66 rated, NEMA 4X corrosion-resistant, and NSF Certified. Rated for 100,000 hours, backed by a 5-year warranty, and DLC Listed.
Key Features
- Selectable Wattage: Field-adjustable 25W / 20W / 15W via onboard switch — no tools or rewiring required.
- Maximum Lumen Output: Up to 3,683 lumens at 25W / 4000K.
- Peak Efficacy: Up to 148 lm/W at 25W / 4000K.
- CRI: 83–85 CRI (85 CRI at 4000K and 5000K).
- Selectable CCT: Field-adjustable 3500K / 4000K / 5000K via onboard switch.
- Microwave (MVS) Occupancy Sensor: Max mounting height 50 ft.; detection range 50 ft. diameter at 50 ft.; input voltage 12VDC; input current 30mA. Detects motion through non-metallic partitions.
- Sensor Default Settings: Motion sensitivity High · Triggered brightness 100% · Hold time 20 min · Standby dim 20% · Standby time 1 min · When vacant: Off · Daylight: Disabled.
- Adjustable Sensor Settings (via MSR1 Remote): Standby dim: 10/20/30/50% · Standby time: 0s/10s/30s/1min/5min/10min/30min/60min/+∞ · Daylight threshold: 2/10/30/50/80/120 Lux/Disable.
- Dimming Protocol: 0–10V continuous dimming to 10% — requires separate 0–10V DC dimming circuit.
- Voltage & Driver: 120–277V / 50–60Hz; constant-current driver.
- Location Rating: UL Listed for Wet Locations · IP66 · NEMA 4X · NSF Certified.
- Operating Temperature: Cold-start to −40°F (−40°C); max ambient +140°F (+60°C).
- Rated Life: 100,000 hours (L70).
- Warranty: 5-year RAB no-compromise warranty.
- Surge Protection: 2.5kV.
Performance & Light Output
At 25W: 3,509 lm / 3500K · 3,683 lm / 4000K · 3,565 lm / 5000K. At 20W: 2,843 / 2,964 / 2,892 lm. At 15W: 2,270 / 2,346 / 2,314 lm. Peak efficacy: 148 lm/W at 25W / 4000K. CRI: 83 at 3500K, 85 at 4000K and 5000K. Rated life: 100,000 hours (L70).
Smart & Control Features
The SHARK2/MVS integrates a microwave occupancy sensor (12VDC, 30mA) that detects motion through non-metallic partitions — ideal for irregular spaces, high ceilings, and areas where line-of-sight PIR coverage is insufficient. The fixture dims to standby when vacant and restores full output on detection. Sensor settings adjustable via MSR1 Remote (sold separately): standby dim (10/20/30/50%), standby time (0s to +∞), and daylight threshold (2–120 Lux or Disable).
Electrical
Constant-current driver · 120–277V / 50–60Hz · Surge protection: 2.5kV · 0–10V dimming to 10% · RoHS compliant.

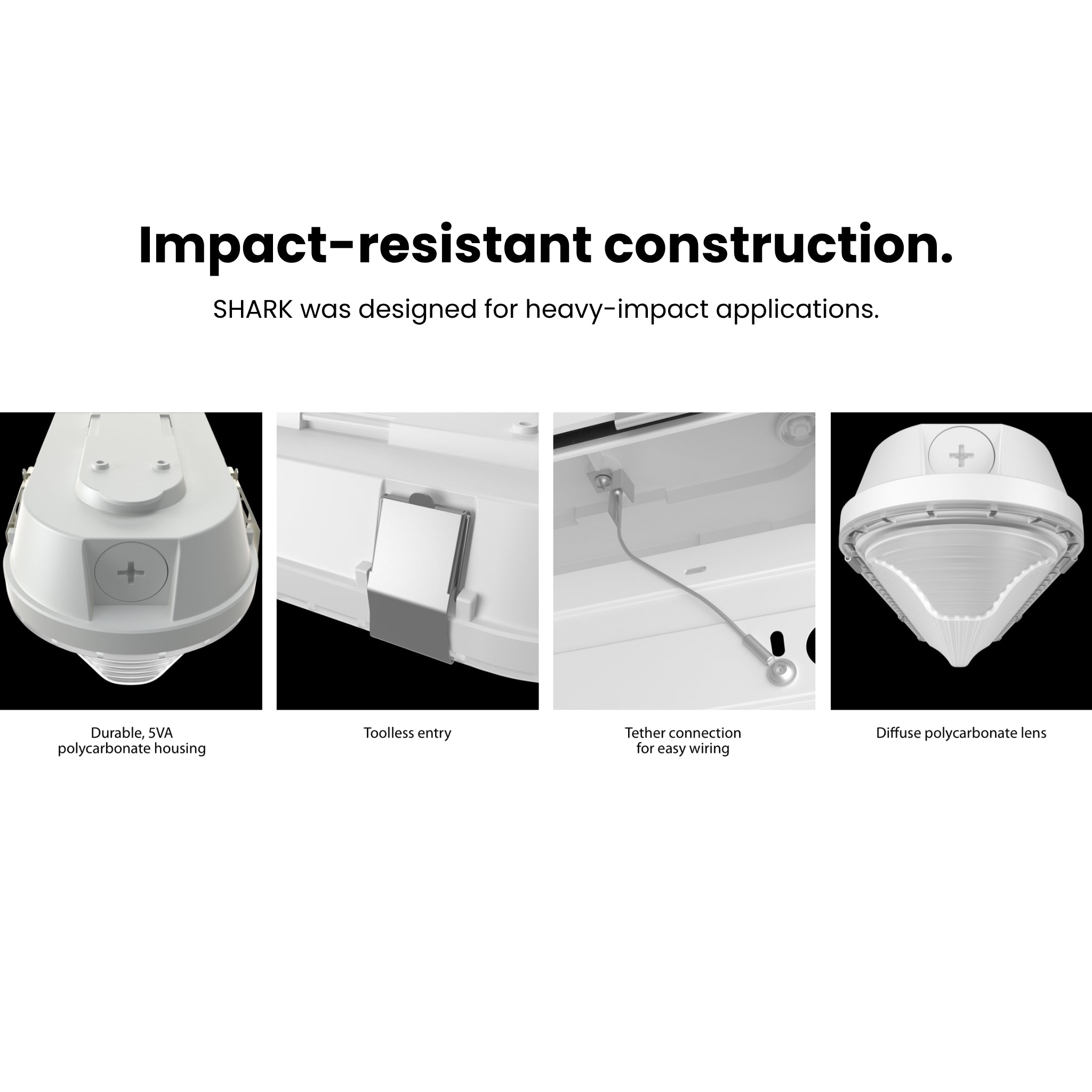

Construction
Housing: Impact-resistant polycarbonate with stainless steel hardware and high-temperature silicone gaskets.
Lens: Diffuse polycarbonate for broad, even light distribution.
Finish: White.
Environmental: IP66 · NEMA 4X · UL Listed Wet · NSF Certified · −40°F to +140°F.

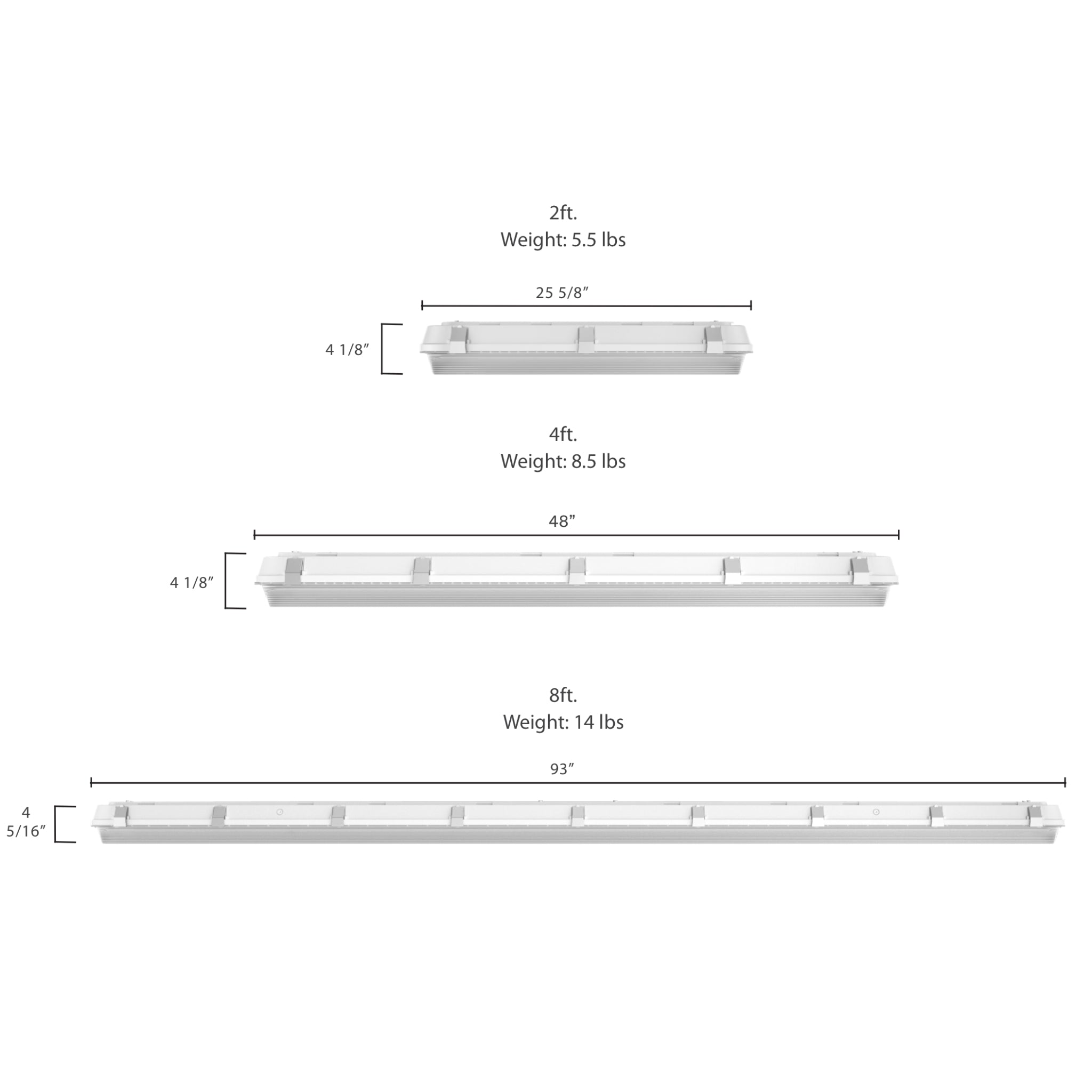

Dimensions & Weight: 25 5/8″ L × 4 1/8″ W × 5 1/2″ H · 6.94 lbs.
Installation & Mounting

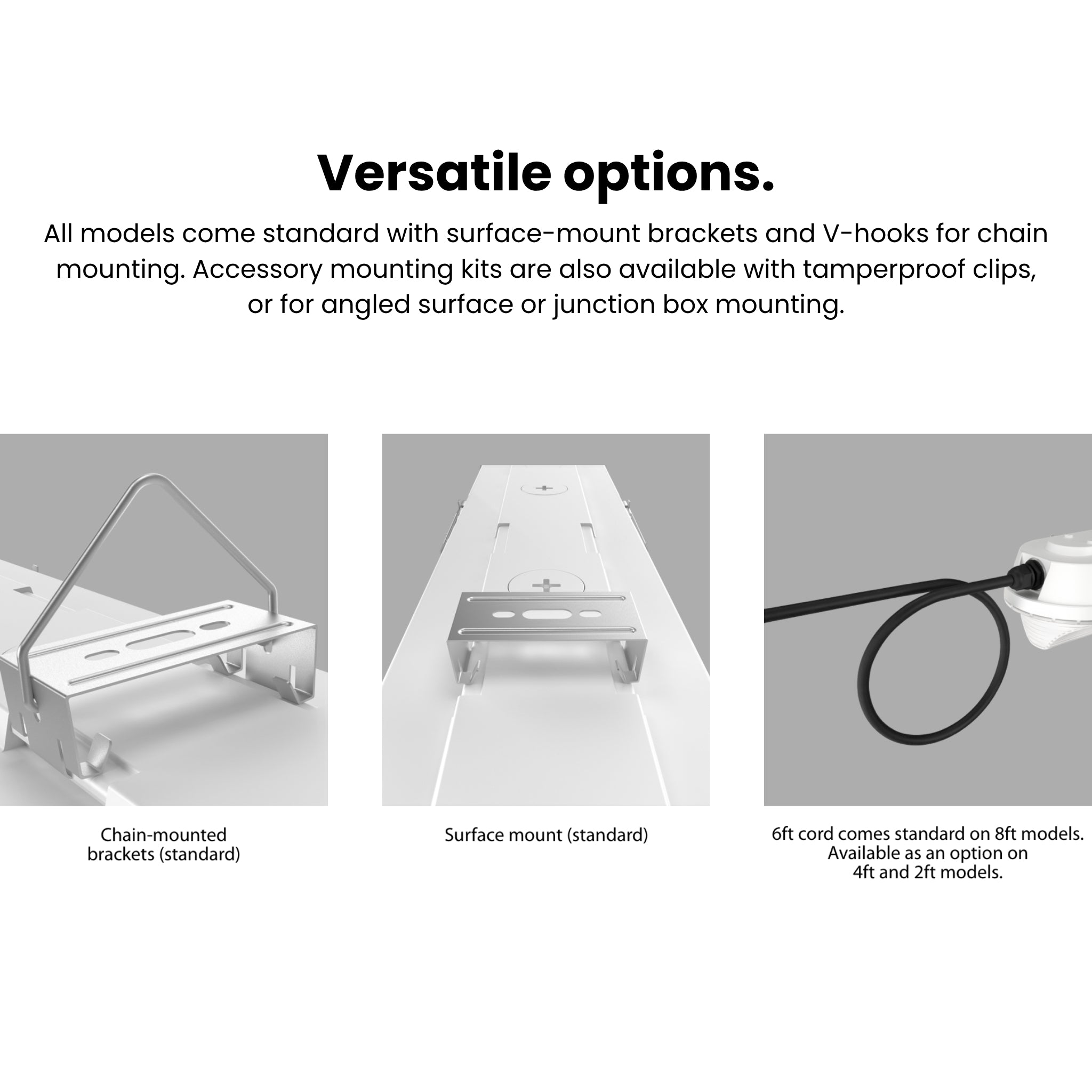

Metal bracket with hooks included. 0–10V dimming requires a separate 0–10V DC circuit. Sensor settings adjusted via MSR1 Remote (sold separately).
Accessories (sold separately):
- ANGSHARK-G2 — Angular stainless steel corner bracket screws for 2–4ft fixtures
- JBSHARK-G2 — Junction box mounting plate gasket screws for 2–4ft fixtures
- TPKSHARK-G2 — Tamperproof kit bracket screws for 2–4ft fixtures
- MSR1 Remote — Multi-sensor remote control (required for sensor adjustments)
Certifications & Rebates
- UL Listed: Wet Location.
- NSF Certified.
- NEMA 4X · IP66.
- DLC Listed: Stairwell/Passageway — S-W04BEC · Direct Linear Ambient — S-V3CE02. Search at designlights.org.
- RoHS Compliant.
Typical Applications

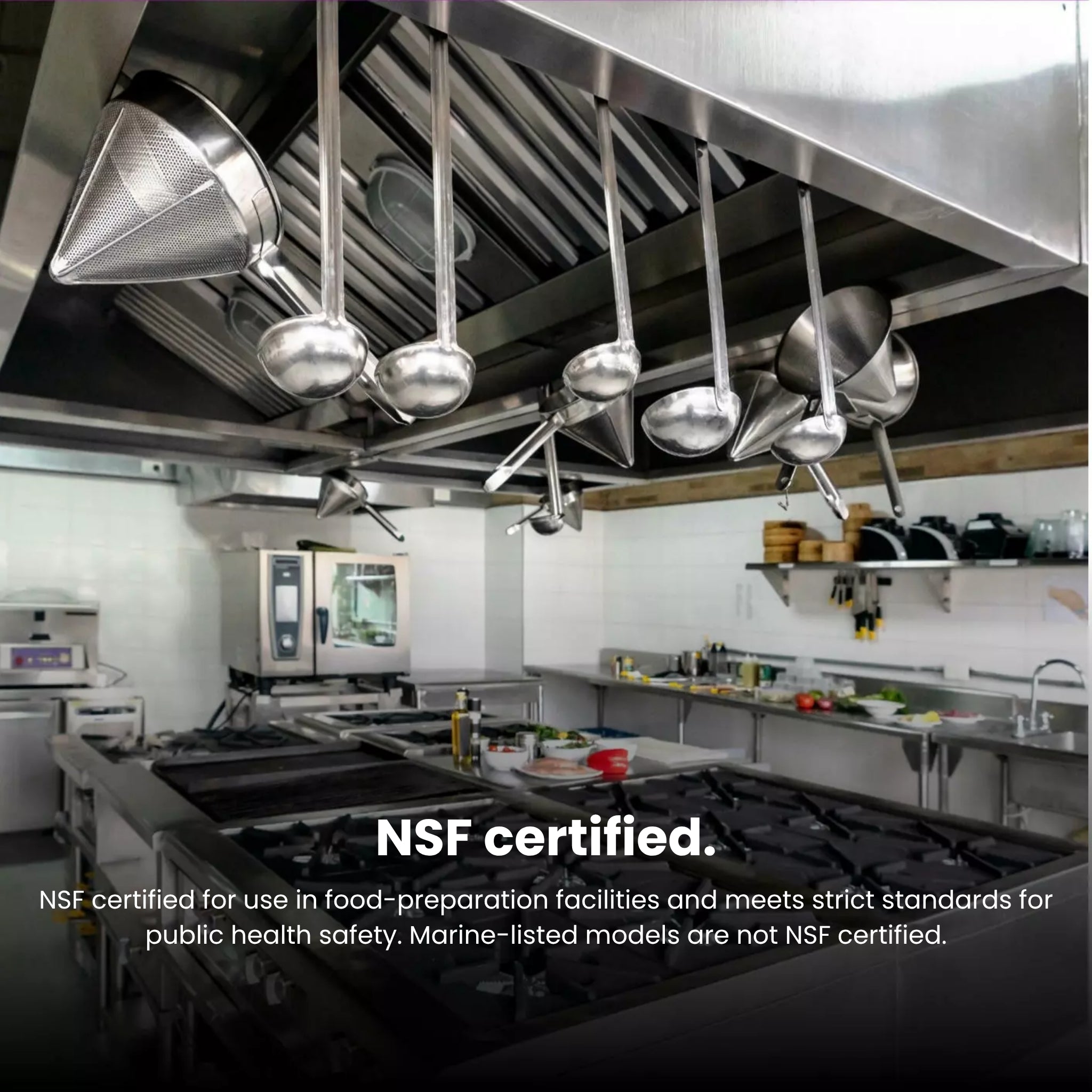

- Food Processing & Washdown Areas: NSF Certified, IP66 rated, with microwave sensor for occupancy control through non-metallic partitions.
- Cold Storage & Freezer Rooms: −40°F cold-start with microwave occupancy sensing for energy savings.
- Stairwells & Passageways: DLC Listed; microwave sensor covers irregular stairwell geometry without line-of-sight constraints.
- Parking Garages & Covered Structures: 50 ft. detection range covers wide bays; dims automatically when unoccupied.
What’s Included
- RAB SHARK2/MVS 2-foot Field-Adjustable, Linear Washdown Vapor Tight fixture with microwave sensor — White
- Metal bracket with hooks
