RAB SHARK2 2ft LED Vapor Tight / Washdown Fixture 3,683 Lumens 25W Selectable 35K/40K/50K 120–277V White
Available in stock (200)
About this item
About this item
- Selectable Output: 15W / 20W / 25W with up to 3,683 lumens
- Voltage: 120–277V universal input
- Washdown Rated: IP66, NEMA 4X, NSF certified
- Dimming: 0–10V control compatibility
- Mounting: Surface brackets and V-hooks included
We process payments securely and do not store credit card information.
Description
Description

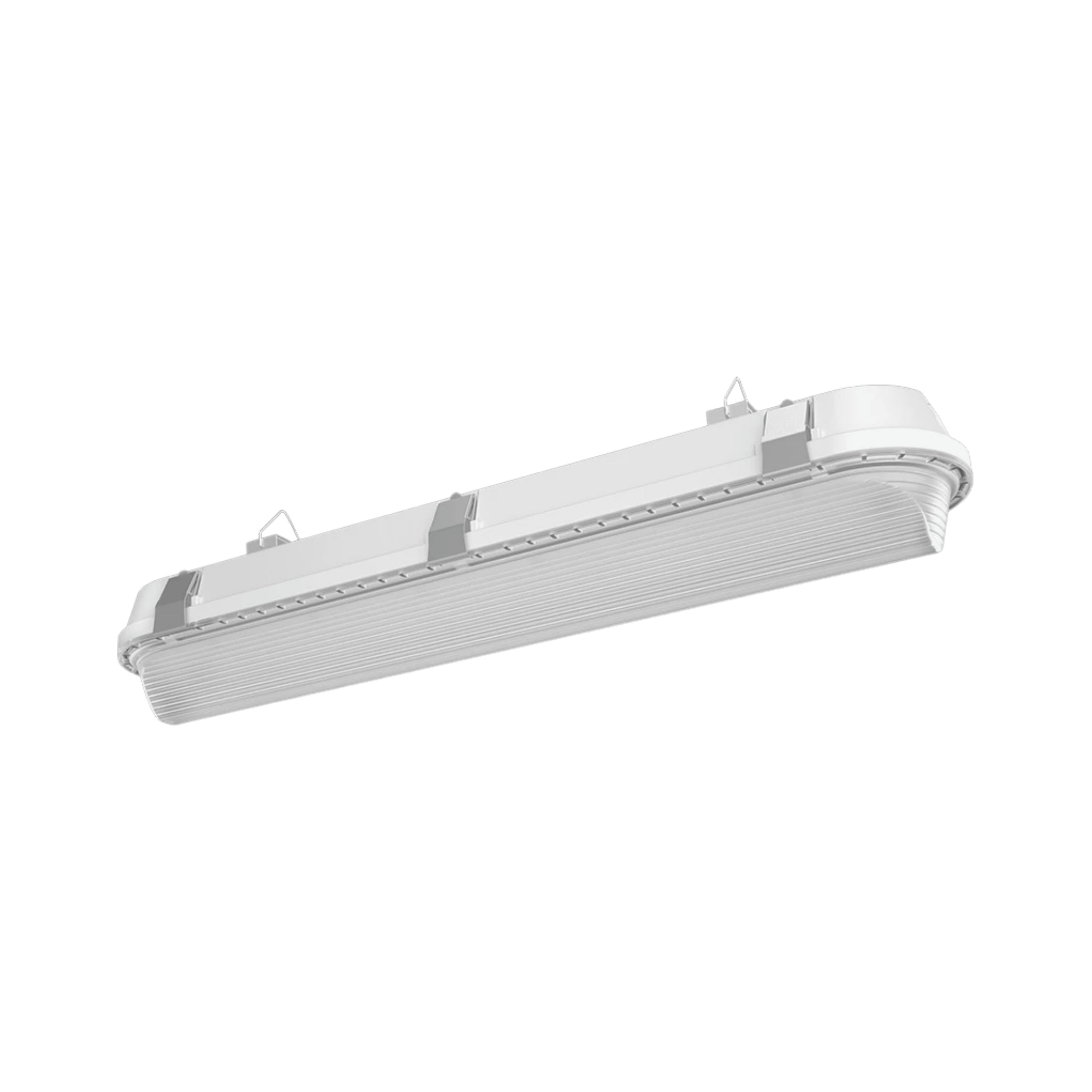

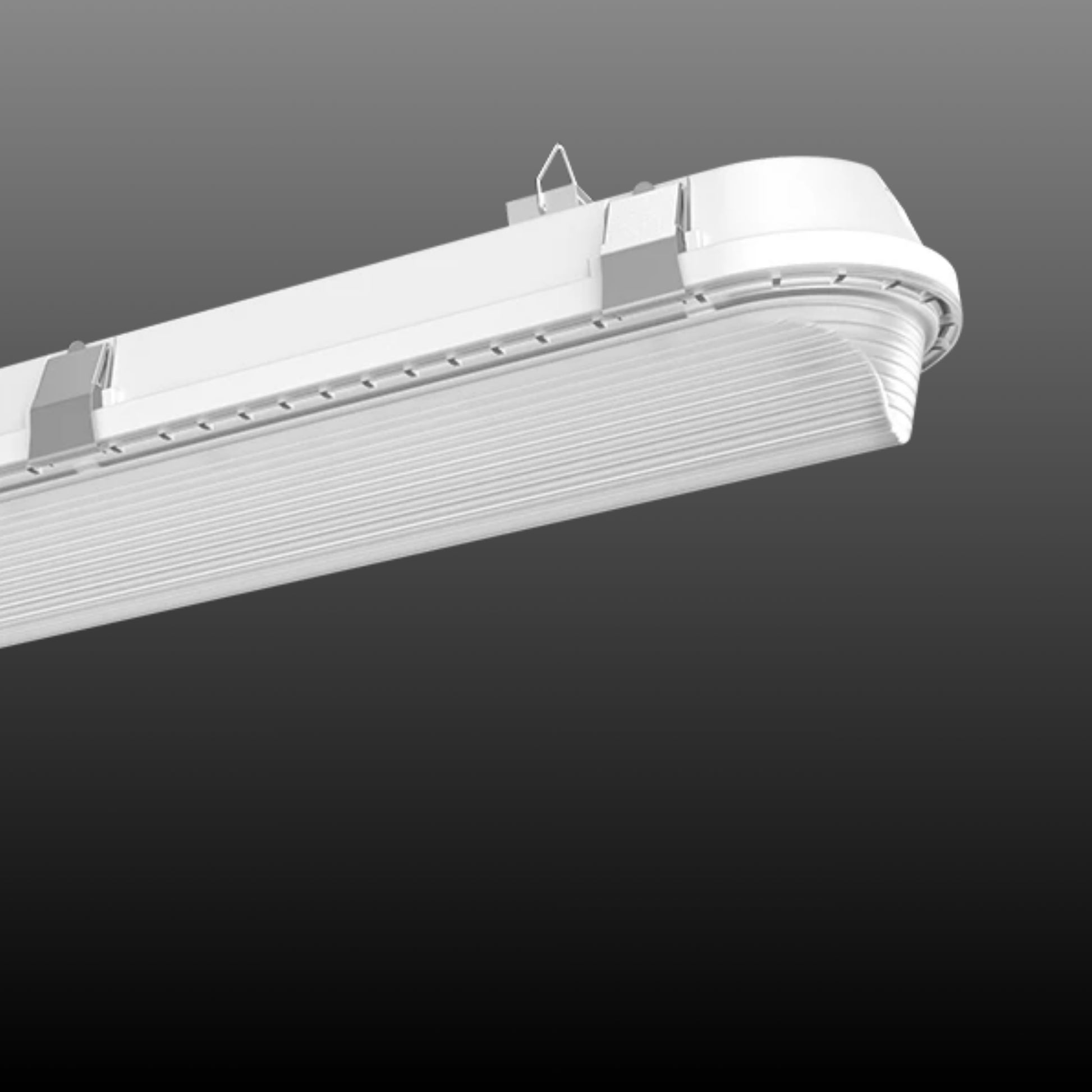

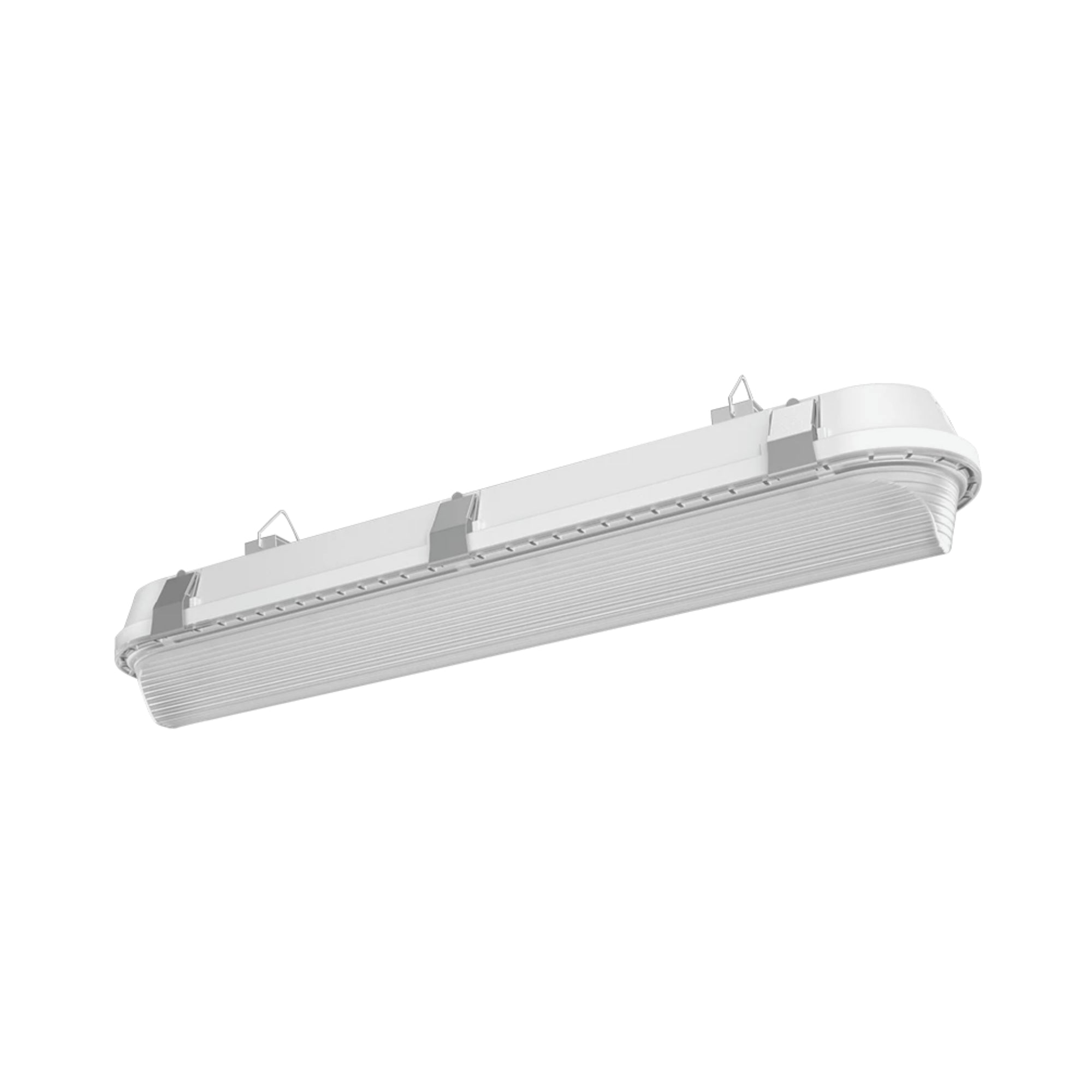

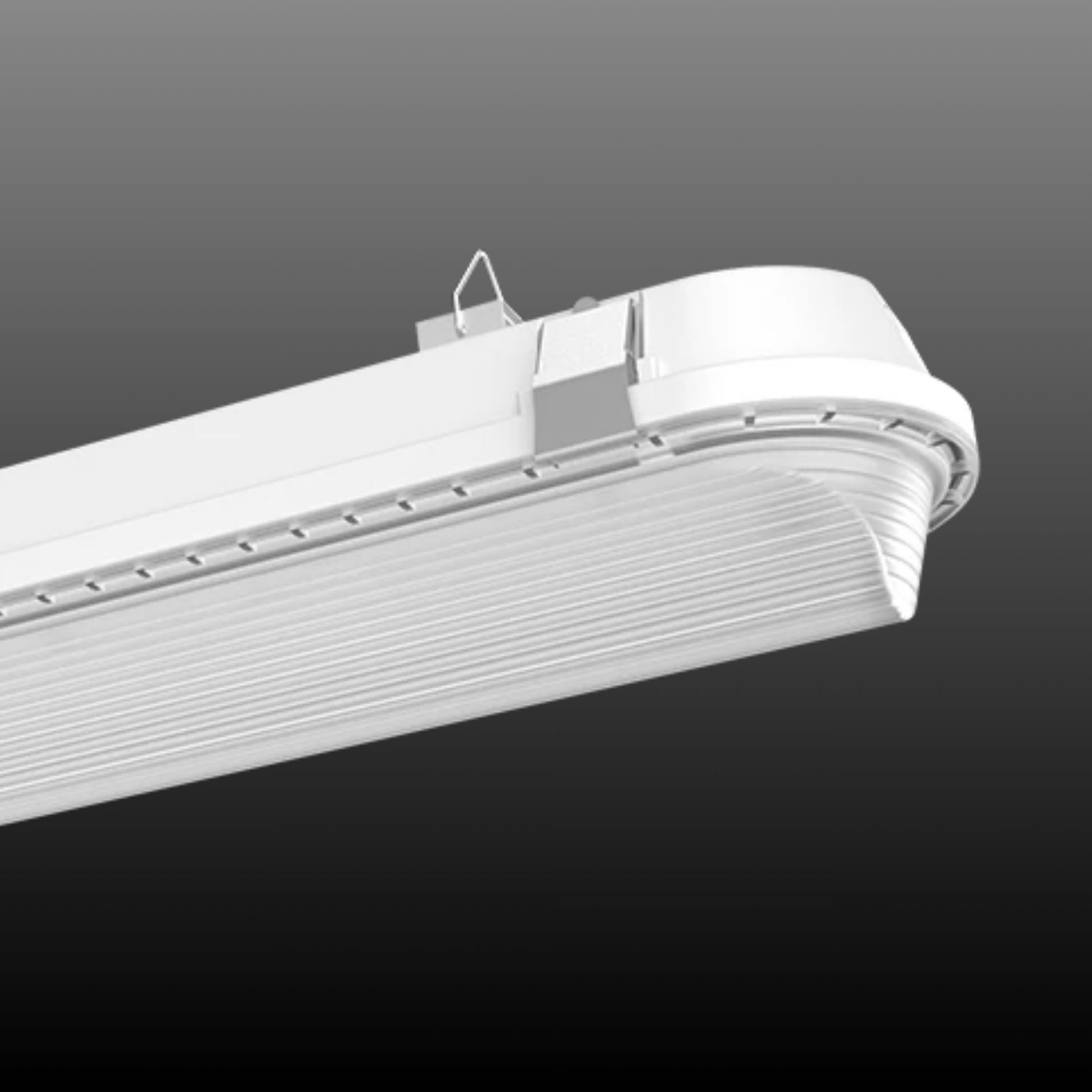

RAB SHARK2 2ft LED Vapor Tight / Washdown Fixture — Field Adjustable
The RAB SHARK2 is a 2ft LED vapor tight fixture engineered for wet and washdown environments. It delivers up to 3,683 lumens with field-selectable wattage (15W / 20W / 25W) and selectable color temperature (3500K / 4000K / 5000K). The fixture operates on 120–277V and includes IP66, NEMA 4X, and NSF ratings for demanding commercial and industrial applications.
Key Features

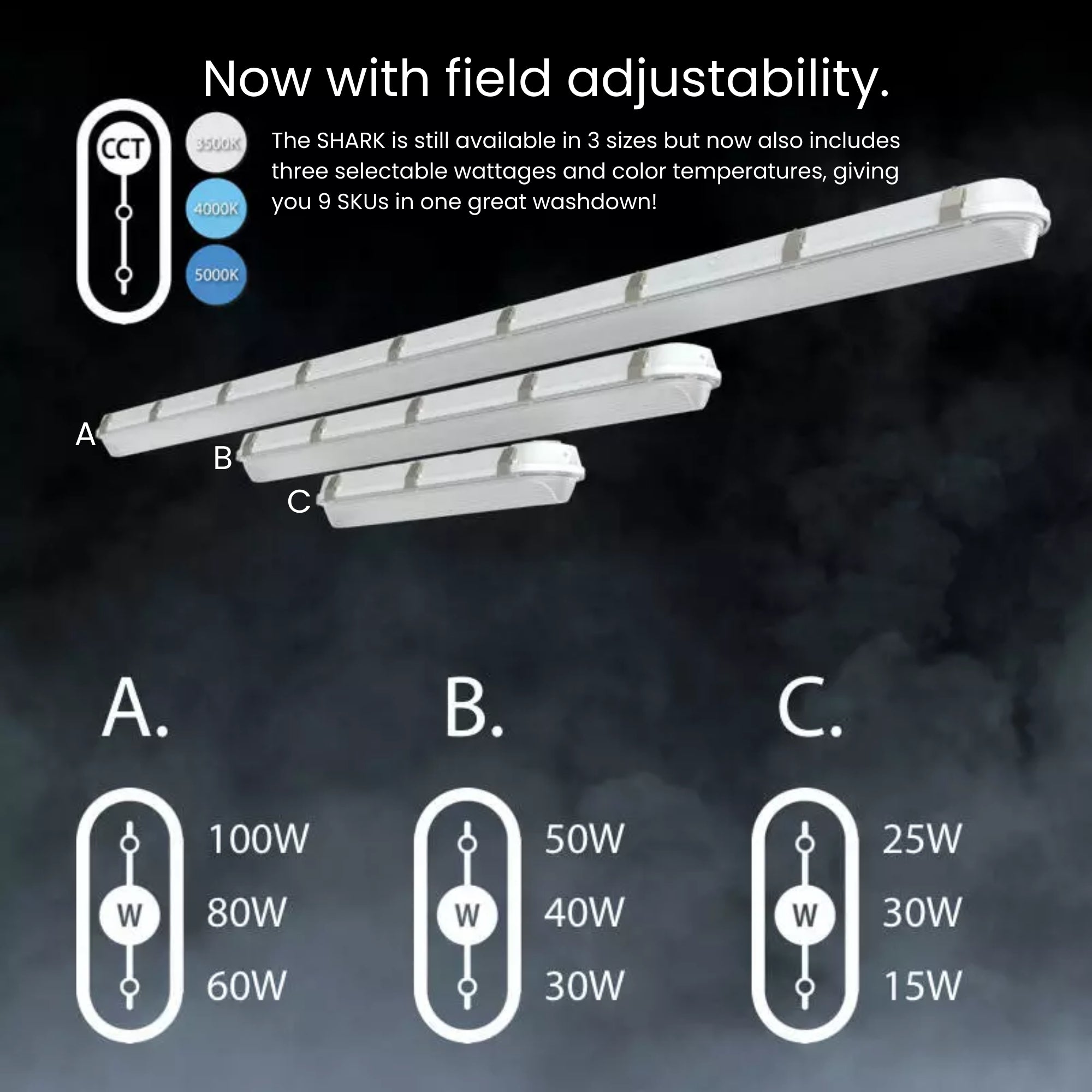

- Selectable Wattage: 15W / 20W / 25W
- Selectable CCT: 3500K / 4000K / 5000K
- Maximum Output: Up to 3,683 lumens
- Voltage: 120–277V
- Dimming: 0–10V dimmable to 10%
- Environmental Ratings: IP66, NEMA 4X, NSF
- Rated Life: 100,000 hours
- Surge Protection: 4kV
- Mounting Included: Surface brackets and V-hooks
- Emergency Compatibility: Battery backup options available
Typical Applications
- Food processing facilities
- Commercial kitchens
- Cold storage rooms
- Car washes
- Parking garages
- Industrial washdown areas
- Agricultural buildings
- Utility corridors
Performance & Light Output
The SHARK2 delivers up to 3,683 lumens with efficacy up to 148 lm/W depending on configuration. Color rendering index is 80 CRI. LEDs are rated for 100,000 hours (L70). LM-80 and TM-21 data available per RAB documentation.
Electrical & Controls
Operates on 120–277V, 50/60Hz. Class 2 constant current driver with 0–10V dimming down to 10%. 4kV surge protection standard. Power factor >0.95. Compatible with RAB motion sensors and emergency battery backup configurations.
Construction & Durability

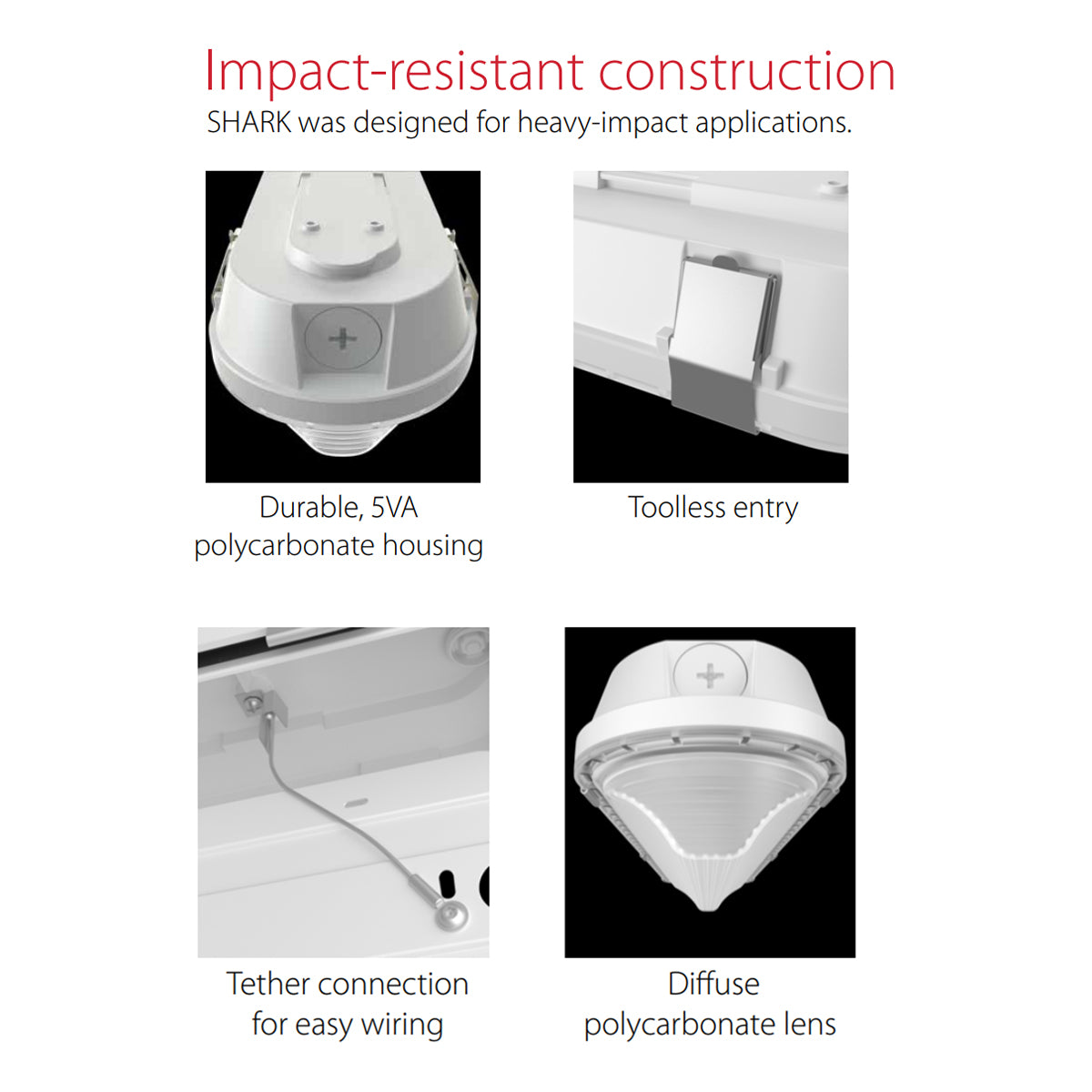

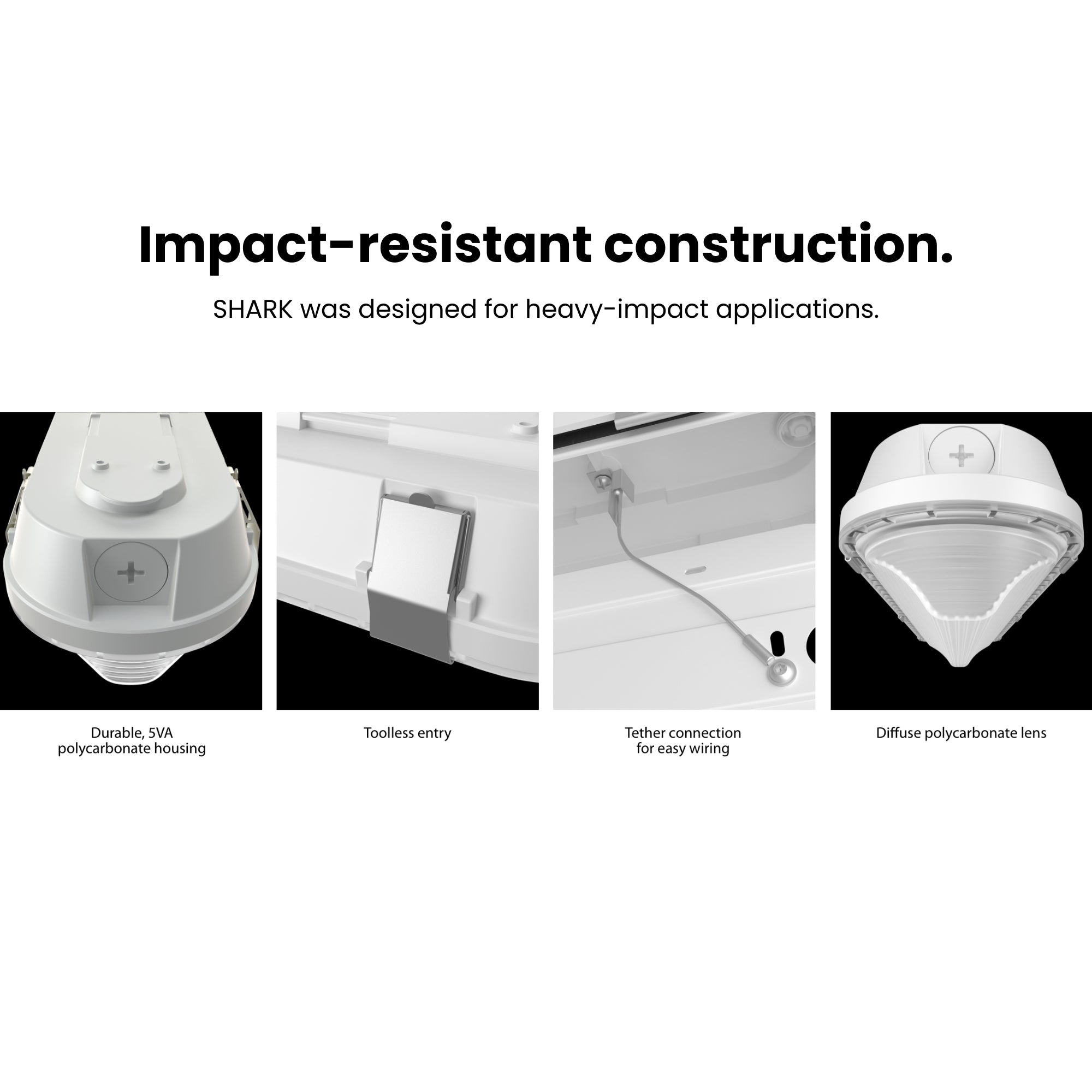

Polycarbonate housing with IK09 impact resistance and 5VA flame rating. Diffused polycarbonate lens with gasketed sealing system. Rated IP66 for water and dust ingress. NEMA 4X corrosion resistant and NSF certified. Suitable for wet locations. Operating temperature range -20°C to 40°C.
Installation & Mounting

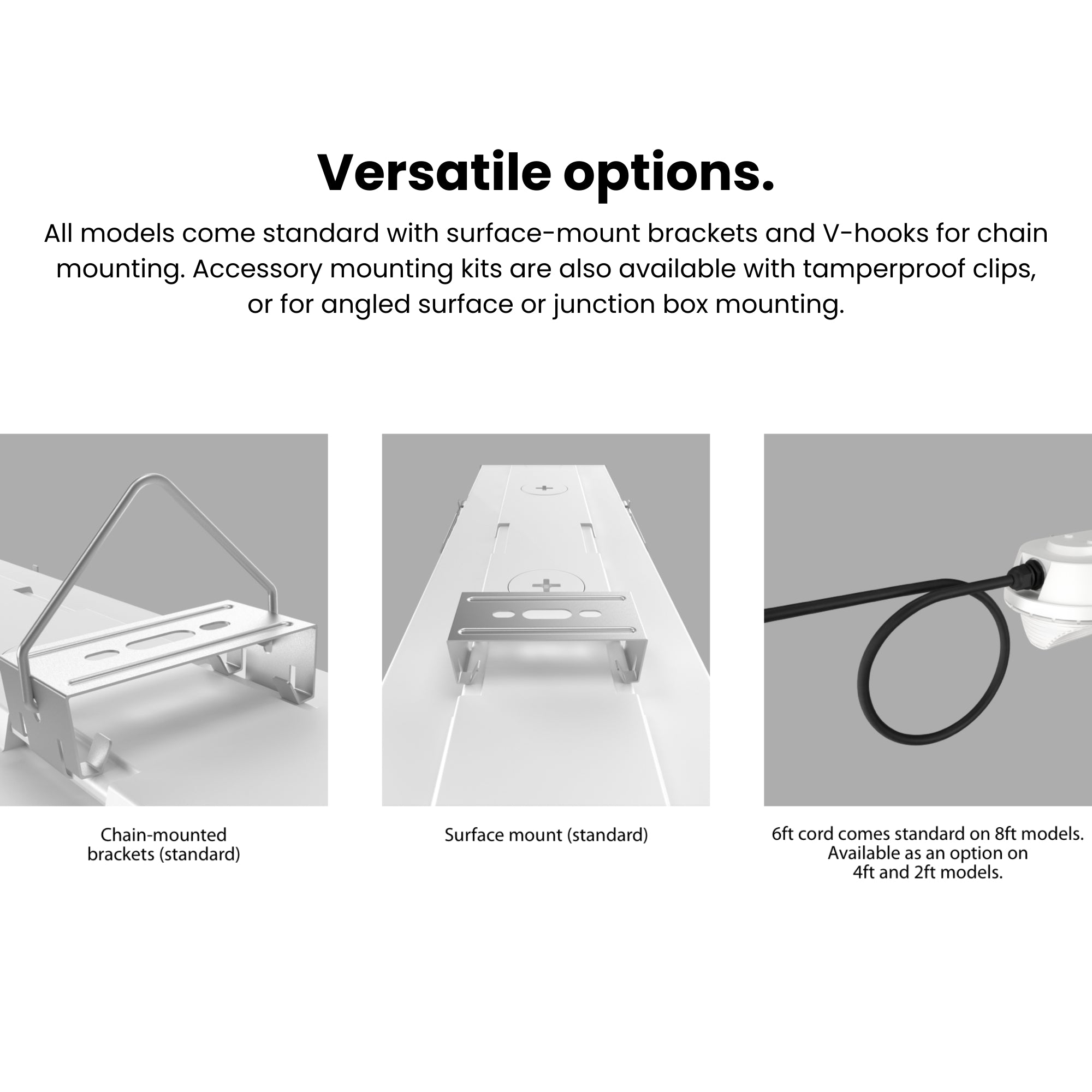

Includes stainless steel surface mounting brackets and V-hooks for suspended chain mounting. Conduit entry provided for sealed connections. Optional junction box and angled mounting kits available.
Included
- Stainless steel mounting brackets
- V-hooks for chain mounting
Specifications
Specifications

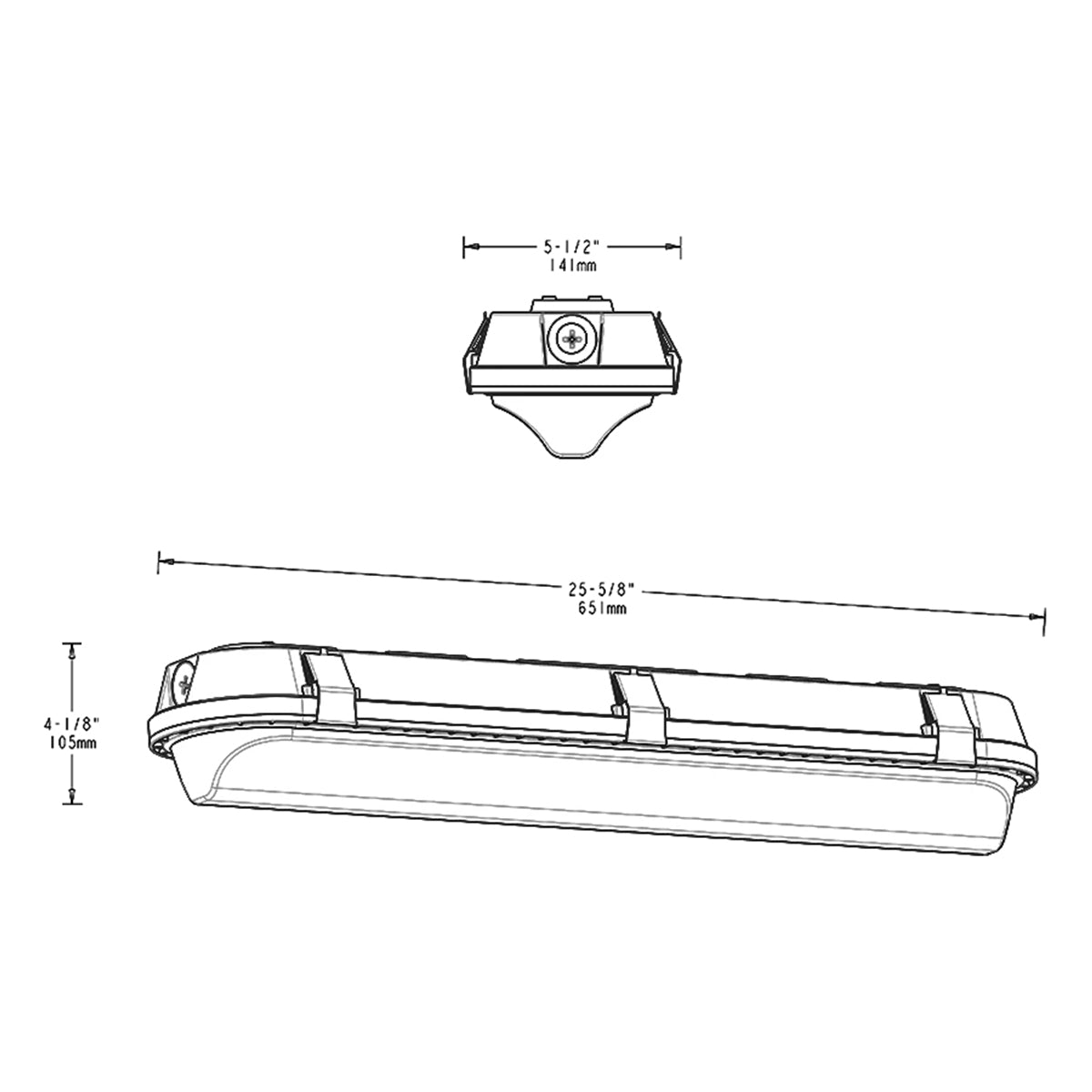

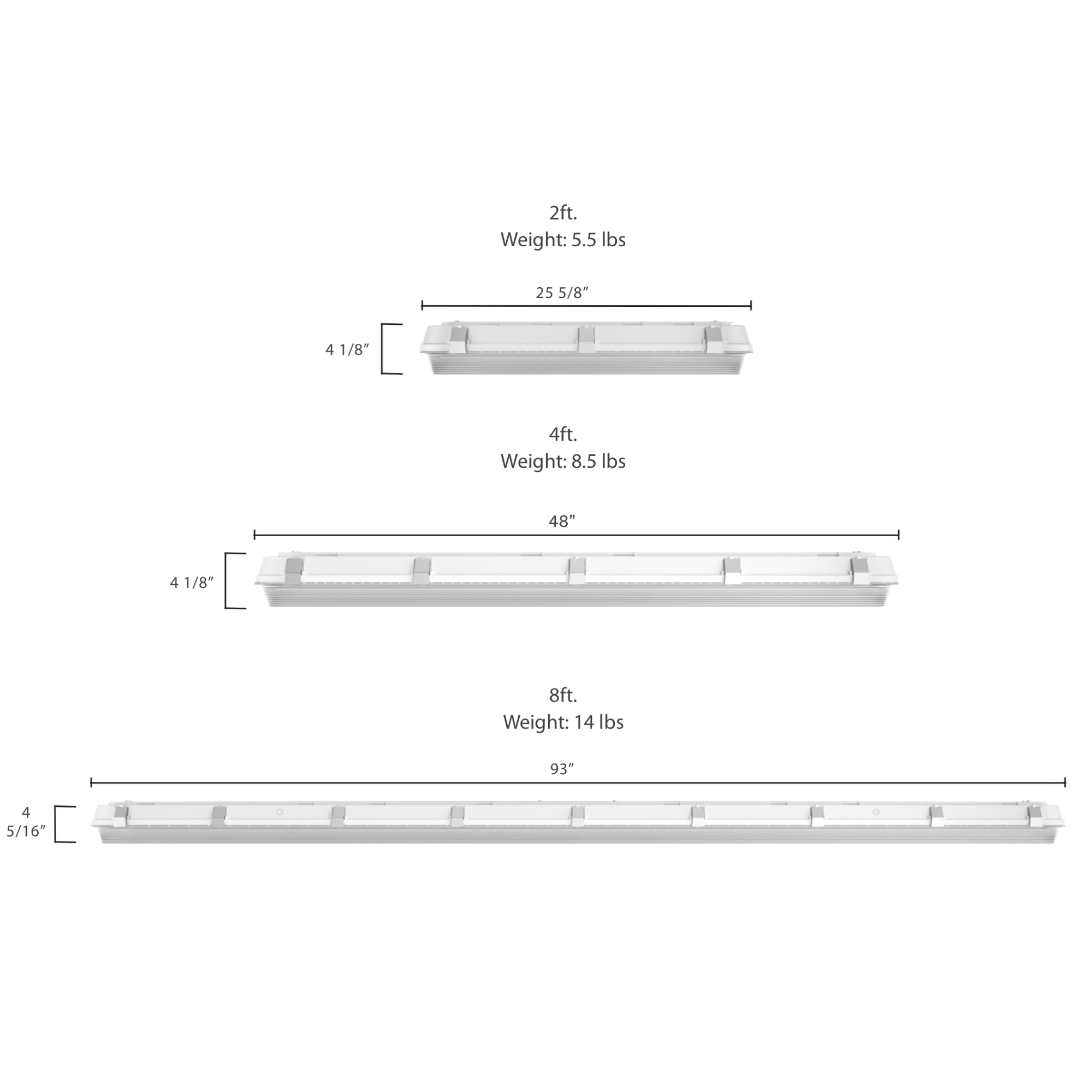

Dimensions
