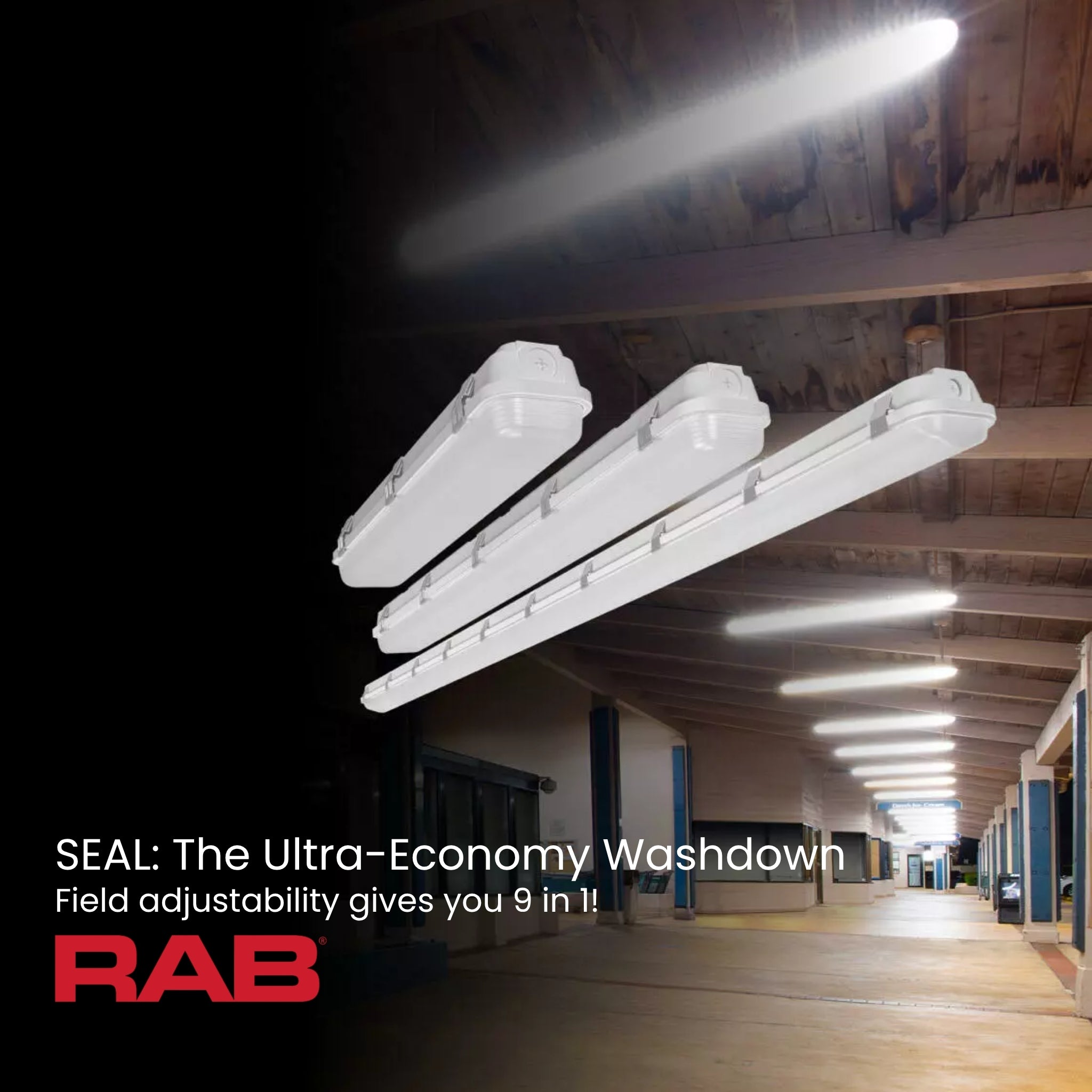

RAB SEAL8/E Field-Adjustable, Linear Washdown Vapor Tight — 100/80/60W Selectable — 3500K/4000K/5000K
Available in stock (48)
About this item
About this item
- Selectable Wattage & Output: Field-select 100W, 80W, or 60W at the fixture via onboard switch — delivers up to 13,700 lumens at up to 137 lm/W peak efficacy. No rewiring required.
- Wet Location & IP Rating: UL Listed for wet locations with IP66 ingress protection and NEMA 4X corrosion resistance — rated for direct water exposure, washdown hose-down, and outdoor or covered wet environments. Cold-start rated to −40°C (−40°F).
- Selectable CCT: Onboard switch adjusts between 3500K, 4000K, and 5000K at the fixture — no re-ordering required for different color temperature specifications.
- Emergency Battery Backup: Integrated 90-minute battery backup maintains egress illumination during power failures — supports NFPA 101 and IBC emergency lighting requirements without a separate emergency fixture.
- DLC Listed & Rebate Eligible: DLC Listed — qualifies for utility rebate programs in most U.S. markets. NSF Certified for food-safe environments.
Description
Description
RAB SEAL8/E Field-Adjustable, Linear Washdown Vapor Tight — 100/80/60W Selectable — 3500K/4000K/5000K — Gray

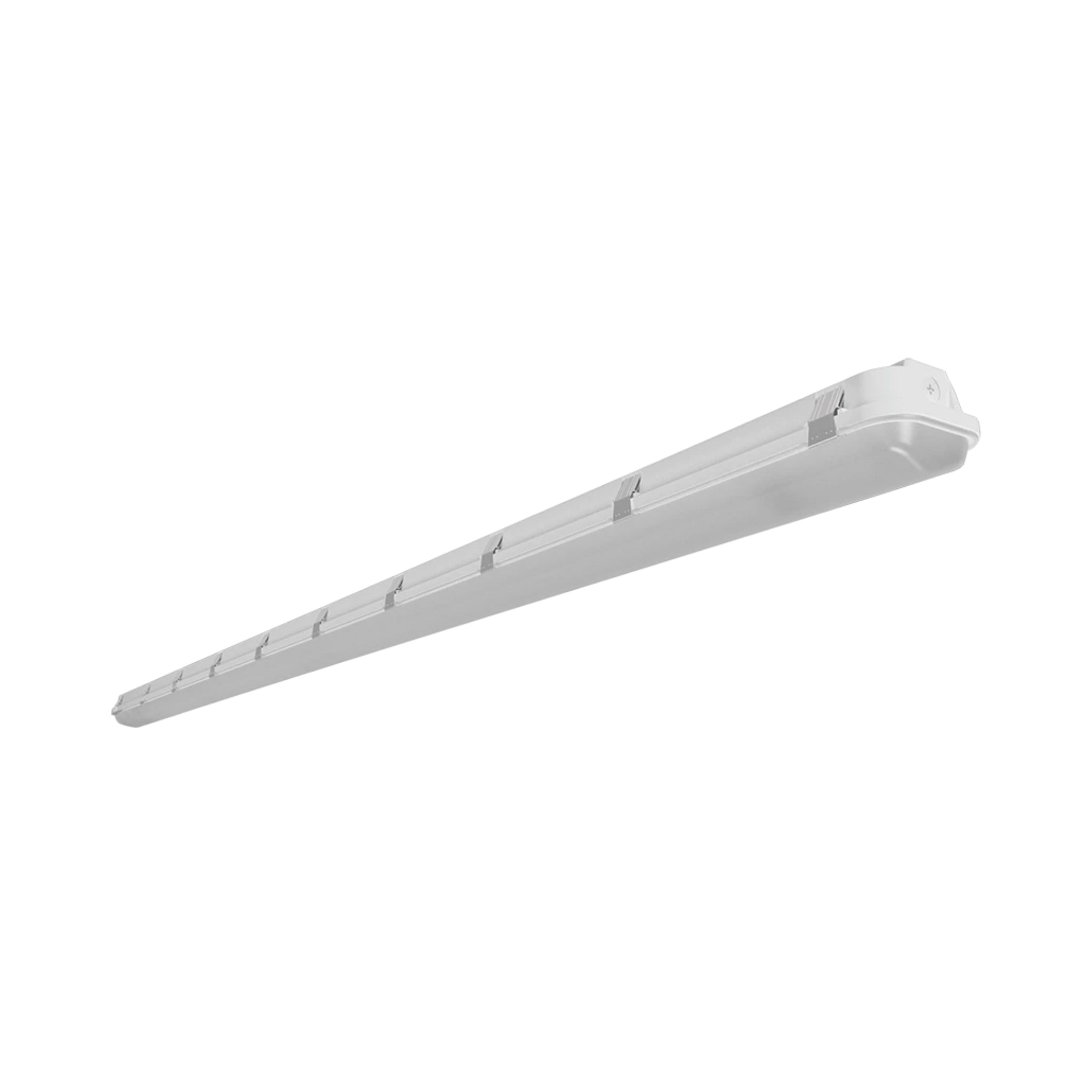

The RAB SEAL8/E is an 8-foot field-adjustable linear washdown vapor tight fixture with integrated 90-minute emergency battery backup, delivering up to 13,700 lumens with field-selectable wattage (100W / 80W / 60W) and field-selectable CCT (3500K / 4000K / 5000K) via onboard switches. Operating on 120–277V / 50–60Hz with 0–10V dimming to 10%, the SEAL8/E is UL Listed for Wet Locations, IP66 rated, NEMA 4X corrosion-resistant, and NSF Certified for food-safe environments. Surge protection rated at 2.5kV. Rated for 100,000 hours and backed by a 5-year warranty. DLC Listed.
Key Features

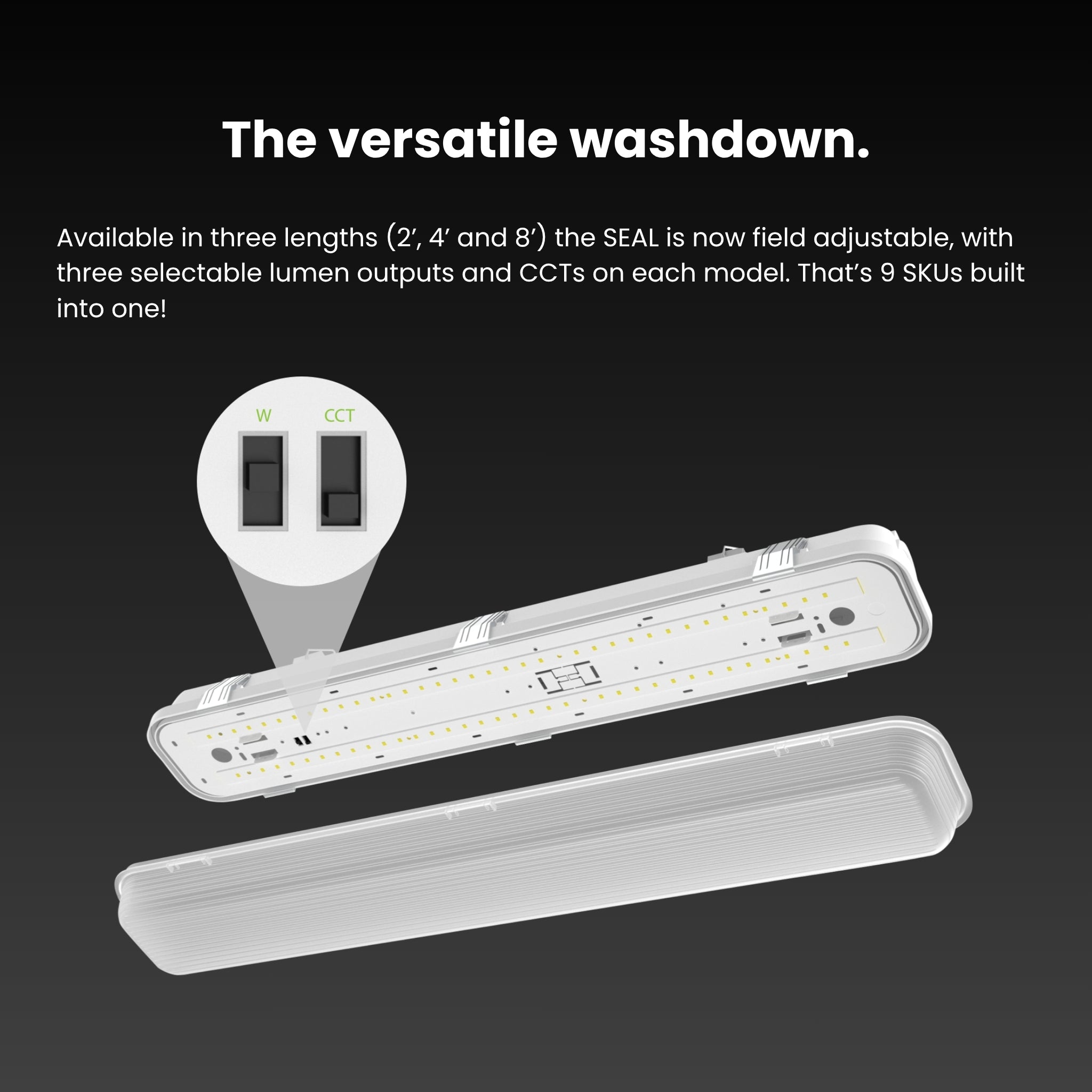

- Selectable Wattage: Field-adjustable 100W / 80W / 60W via onboard switch — no tools or rewiring required.
- Wattage Equivalency: Replaces legacy fluorescent vapor tight fixtures — 100W delivers up to 13,700 lm, equivalent to a 4-lamp T8 or T5HO fluorescent vapor tight at a fraction of the energy.
- Maximum Lumen Output: Up to 13,700 lumens at 100W / 4000K.
- Peak Efficacy: Up to 137 lm/W at 100W / 4000K.
- CRI: 80 CRI across all wattage and CCT settings.
- Selectable CCT: Field-adjustable 3500K / 4000K / 5000K via onboard switch — no re-ordering required.
- Lens & Optics: Diffuse polycarbonate lens for low-glare, even light distribution in sensitive environments.
- Dimming Protocol: 0–10V continuous dimming down to 10% — requires separate 0–10V DC dimming circuit.
- Voltage & Driver: 120–277V / 50–60Hz; constant-current Class 2 driver. Power factor >0.99 at 120V. THD: 4.87% at 120V / 11.74% at 277V (100W).
- Location Rating: UL Listed for Wet Locations · IP66 ingress protection · NEMA 4X corrosion resistance · NSF Certified — suitable for food processing, washdown, outdoor, and submerged-spray environments.
- Emergency Battery Backup: Integrated 90-minute battery backup maintains egress-level illumination during power failures — supports NFPA 101 and IBC emergency lighting requirements.
- Operating Temperature: Cold-start rated to −40°C (−40°F); maximum ambient +40°C (+104°F).
- Certifications: UL Listed (Wet) · UL 94 5VA flame classification · IP66 · NEMA 4X · NSF · FCC Part 15 · IES LM-79 & LM-80 · DLC Listed · RoHS Compliant.
- Rated Life: 100,000 hours (L70) based on IES LM-80 and TM-21 calculations.
- Warranty: 5-year RAB limited warranty covering light output, driver performance, and paint finish.
- Surge Protection: 2.5kV surge protection.
Performance & Light Output
Lumen output varies by both wattage and CCT. At 100W, the SEAL8/E delivers 13,300 lm at 5000K, 13,700 lm at 4000K, and 13,100 lm at 3500K. At 80W: 10,800 lm at 5000K, 11,120 lm at 4000K, 10,640 lm at 3500K. At 60W: 8,340 lm at 5000K, 8,580 lm at 4000K, 8,770 lm at 3500K. Peak efficacy is 137 lm/W at 100W / 4000K. All settings deliver 80 CRI. Rated life: 100,000 hours (L70).
Smart & Control Features
The SEAL8/E includes built-in 0–10V dimming compatible with standard building automation and lighting control systems. The /E suffix integrates a 90-minute emergency battery backup unit — the fixture automatically switches to battery power during an outage and maintains egress-level illumination for a minimum of 90 minutes in compliance with NFPA 101 and IBC requirements. For combined sensor + emergency backup configurations, refer to the /PIR/E, /MVS/E, /LCBS/E, or /LCBS/MVS/E suffix models.
Electrical
Constant-current Class 2 driver. Voltage: 120–277V / 50–60Hz. Power factor: >0.99 at 120V / 95.36% at 277V (100W). THD: 4.87% at 120V / 11.74% at 277V (100W). Surge protection: 2.5kV. Dimming: 0–10V to 10% (requires separate 0–10V DC circuit). Mercury-free, UV-free, RoHS compliant.
| Wattage | 120V | 208V | 240V | 277V |
|---|---|---|---|---|
| 100W | 0.92A | 0.53A | 0.46A | 0.40A |
Construction

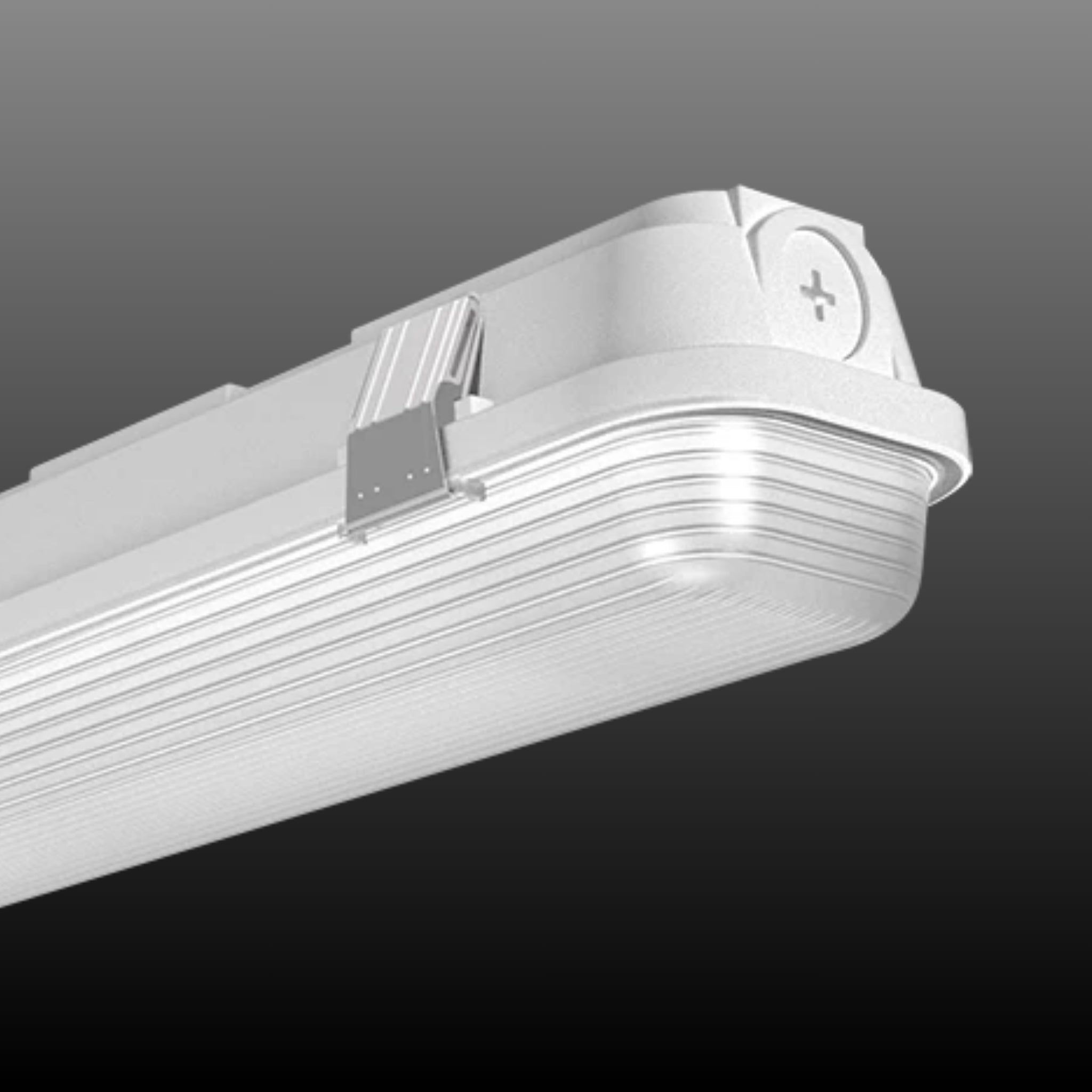

Housing & Thermal: Impact-resistant polycarbonate housing with stainless steel door clips. 1/2″ NPS opening for conduit and bushing/cord entry. Note: polycarbonate is affected by cleaning agents or liquids containing partial solvents such as low molecular weight aldehydes, ethers, ketones, esters, aromatic hydrocarbons, and perchlorinated hydrocarbons.
Lens & Optics: Diffuse polycarbonate lens for low-glare, broad, even light distribution. Cold-rolled steel reflector.
Finish: Gray — formulated for high durability and long-lasting color.
Environmental & Safety: IP66 rated. NEMA 4X corrosion resistance. UL Listed for Wet Locations. UL 94 5VA flame classification. NSF Certified. High-temperature silicone gaskets. Operating temperature: −40°C (−40°F) to +40°C (+104°F) ambient. Mercury-free, UV-free, RoHS compliant.

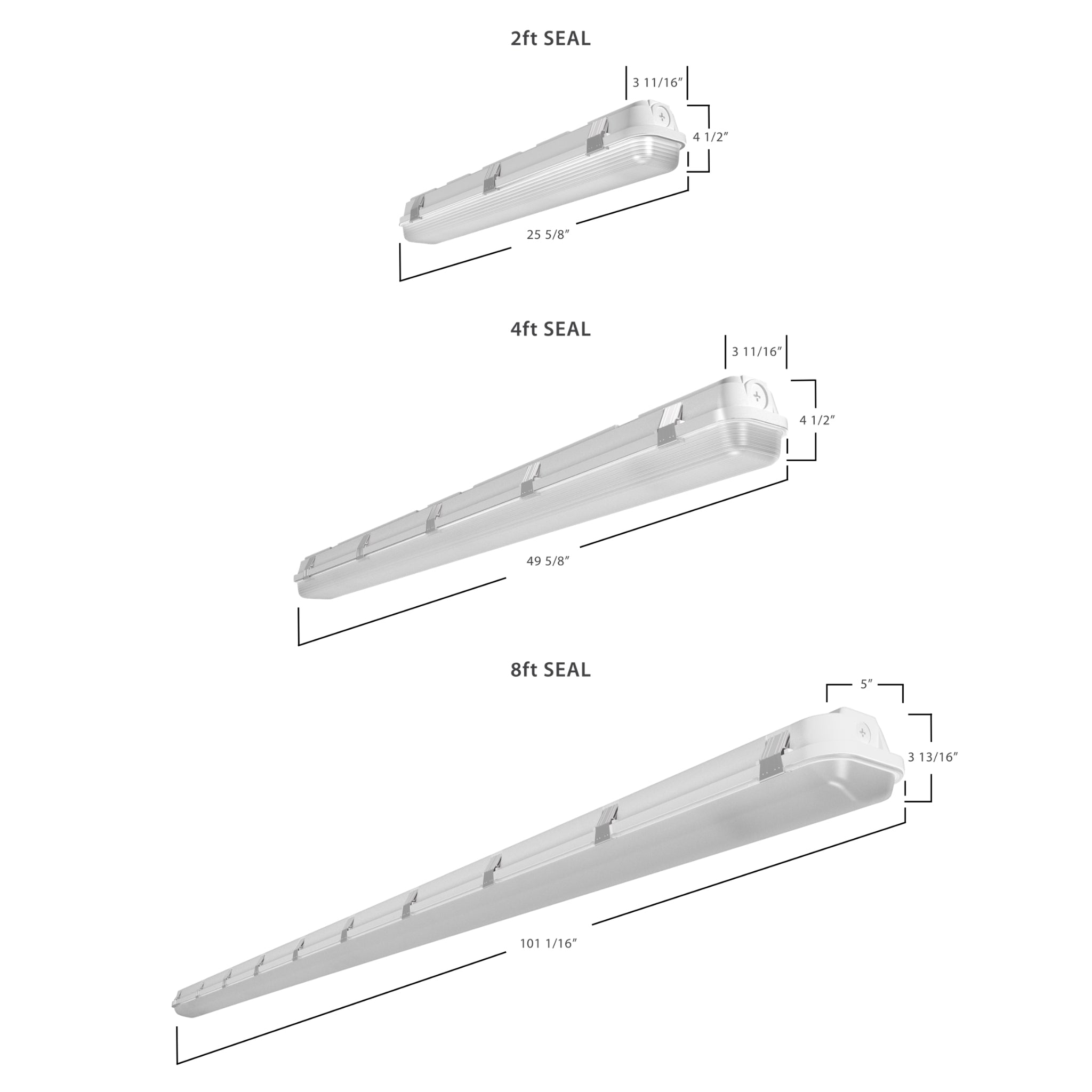

Dimensions & Weight: 101 3/4″ L × 5 1/8″ W × 3 13/16″ H. Weight: 14.9 lbs (fixture only; battery unit adds weight).
Installation & Mounting

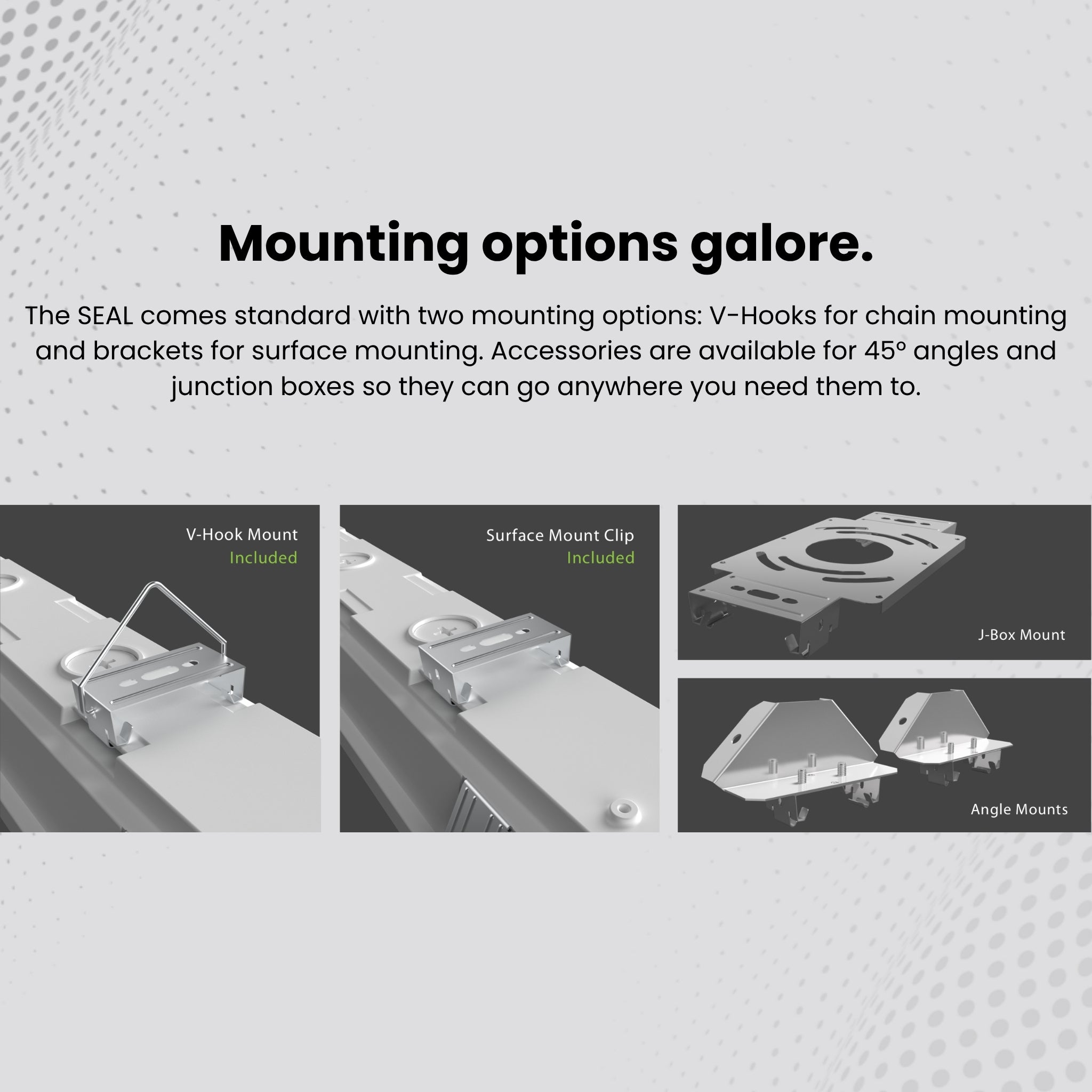

Standard Hardware: Quick-mount stainless steel snap brackets supplied for surface mounting. V-Hook brackets supplied for suspended mounting. Tether cables provided for easy installation. Quick connector available for simplified wiring.
Mounting Options: Surface mount (snap brackets) or suspended (V-Hook).
Wiring: 1/2″ NPS opening for conduit or bushing/cord entry. 0–10V dimming requires a separate 0–10V DC dimming circuit. Emergency battery backup unit connects inline with fixture wiring.
Certifications & Rebates
- UL Listed: Wet Location — suitable for direct water exposure, outdoor, and washdown environments.
- UL 94: 5VA flame classification.
- NSF Certified: Certified by Public Health and Safety — suitable for food preparation areas.
- FCC: Complies with Part 15 of the FCC Rules.
- NEMA Rating: 4X — protected against corrosion.
- IESNA LM-79 & LM-80: Tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
- DLC Listed — Product Code: S-PEIZB4 — qualifies for utility rebate programs in most U.S. markets. Search S-PEIZB4 at designlights.org to verify eligibility.
- RoHS Compliant.
Typical Applications

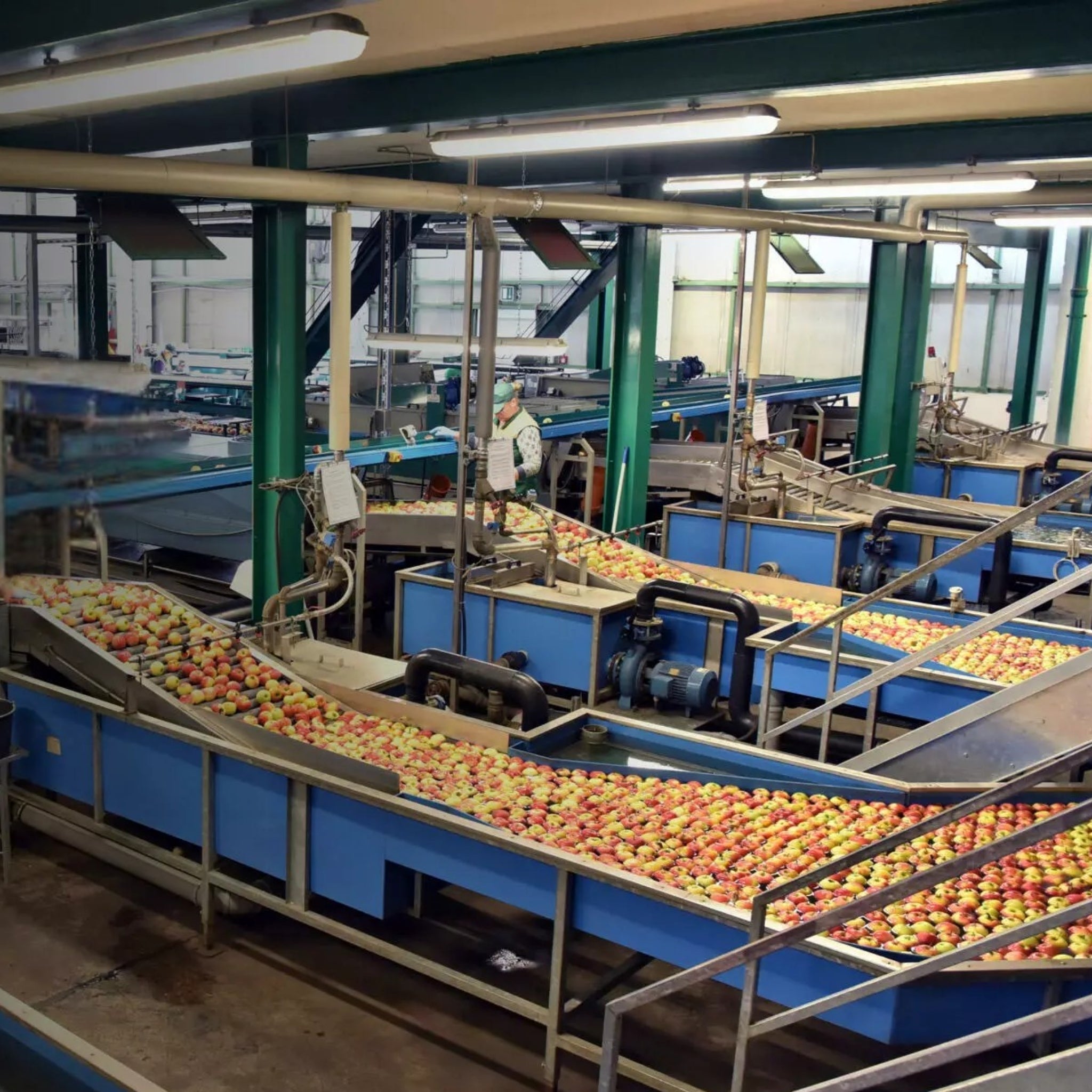

- Food Processing & Commercial Kitchens: NSF Certified and IP66 rated for direct washdown; emergency backup maintains illumination during power loss in food safety-critical areas.
- Cold Storage & Freezer Rooms: −40°C (−40°F) cold-start rating with integrated emergency backup for egress compliance in sub-freezing environments.
- Car Washes & Wash Bays: IP66 and NEMA 4X rated for sustained water spray; emergency backup supports continuous operation during outages.
- Egress Corridors & Exit Paths: 90-minute battery backup satisfies NFPA 101 and IBC emergency lighting requirements for life-safety egress illumination without a dedicated emergency fixture.
- Large Industrial & Warehouse Washdown Areas: The 8-foot format covers wide aisles and bays with fewer fixtures, reducing installation labor and fixture count while providing emergency backup coverage.
What’s Included
- RAB SEAL8/E 8-foot Field-Adjustable, Linear Washdown Vapor Tight fixture with battery backup — Gray
- Stainless steel snap brackets (surface mount)
- V-Hook brackets (suspended mount)
- Tether cables
Specifications
Specifications
Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Is the RAB SEAL8/E rated for wet locations, and what environments is it suitable for?
Is the RAB SEAL8/E rated for wet locations, and what environments is it suitable for?
How do I adjust the wattage and CCT on the RAB SEAL8/E?
How do I adjust the wattage and CCT on the RAB SEAL8/E?
What control and sensor options are available on the SEAL8/E?
What control and sensor options are available on the SEAL8/E?
Does the SEAL8/E meet emergency lighting code requirements for egress illumination?
Does the SEAL8/E meet emergency lighting code requirements for egress illumination?
Is the RAB SEAL8/E DLC certified, and does it qualify for utility rebates?
Is the RAB SEAL8/E DLC certified, and does it qualify for utility rebates?
Highly recommended fixture!
One of the leading brands for these types of fixtures. You will not regret buying this for sure.
Website was easy to navigate and find what I needed. Item arrived on time.
It's way brighter than I thought which is a good thing.

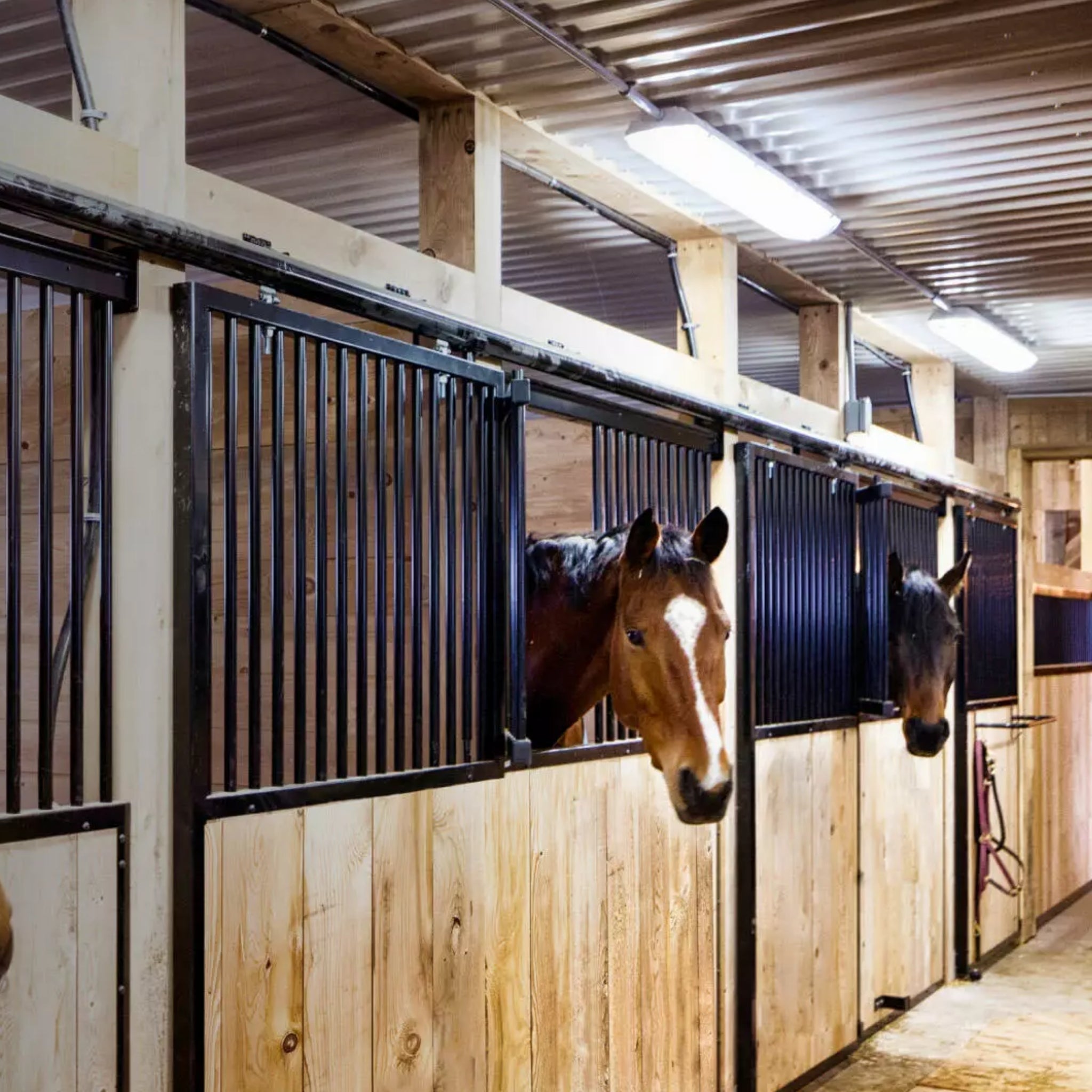

Really nice sturdy lights! They are put in my barn and so far they are great!
