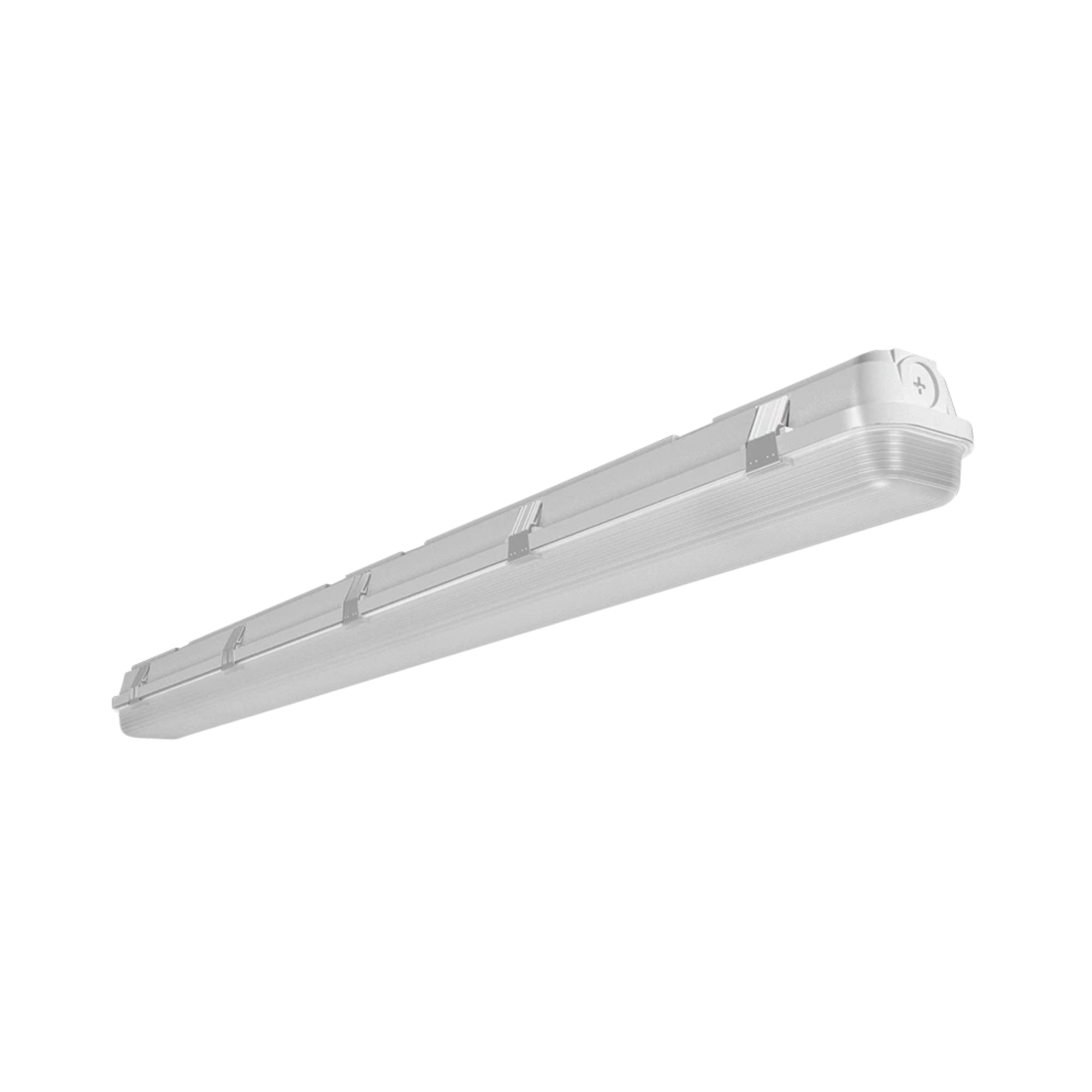

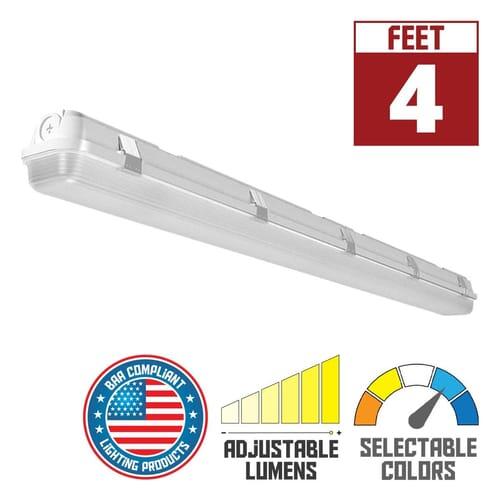

RAB SEAL4 Field-Adjustable 4ft Vapor Tight — 50W/40W/30W Selectable — 5000K/4000K/3500K — Gray/Diffuse Polycarbonate Lens

The RAB SEAL4 is a commercial 4ft Vapor Tight field-adjustable linear washdown luminaire engineered to deliver up to 6,800 lumens with field-adjustable 50W/40W/30W power settings and switchable 5000K/4000K/3500K color temperatures. Operating on 120–277V electrical systems with 0–10V (down to 10%) continuous dimming, this luminaire provides an energy-efficient replacement for legacy (3) F32T8 fluorescent fixtures. Built with a UL Listed for wet locations rating, it is qualified for commercial utility rebates under DLC 5.1 Premium standards and features an impact-resistant, IP66-sealed, NEMA 4X, NSF-certified, and IK08-rated polycarbonate washdown enclosure.

Key Features

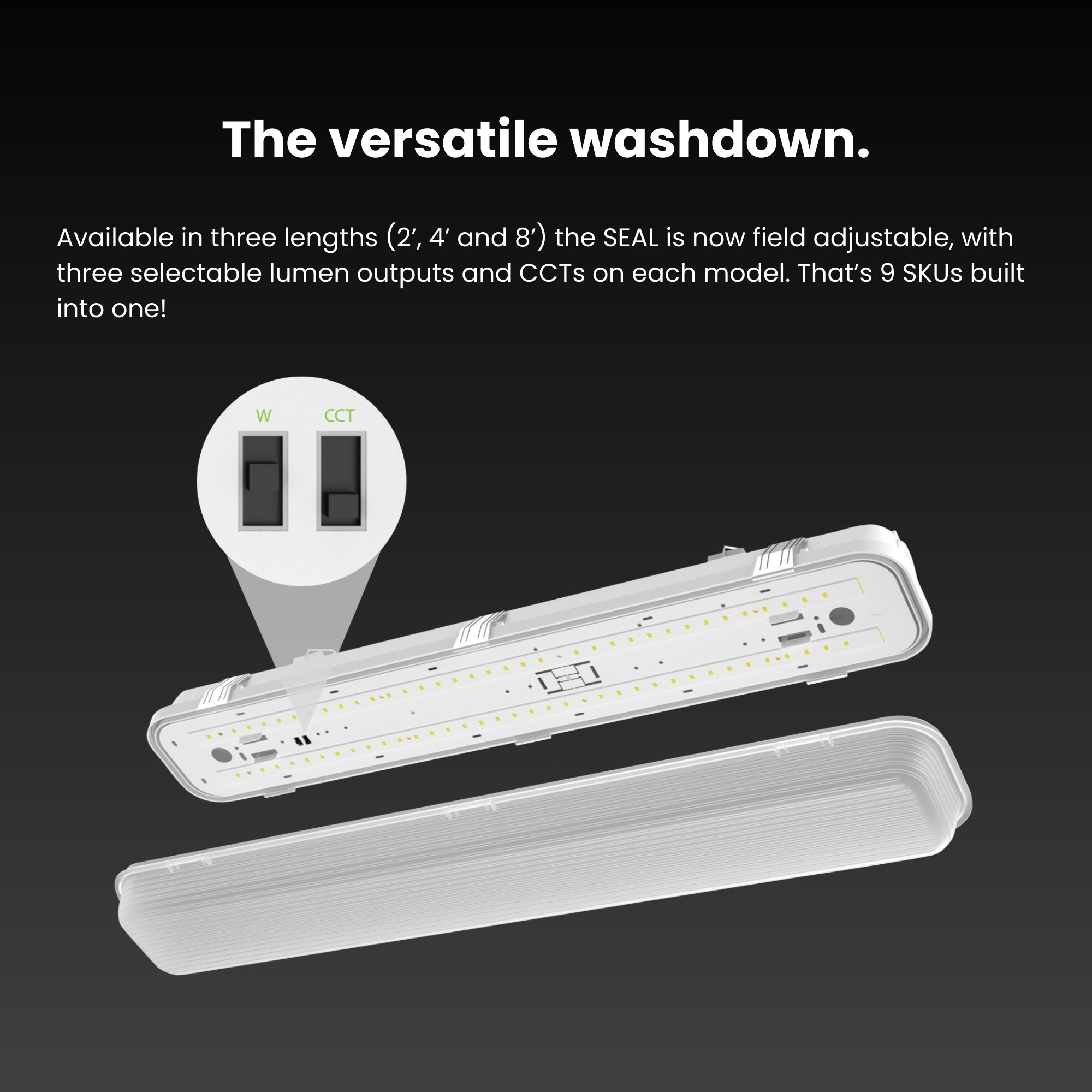

• Selectable Wattage: 50W / 40W / 30W — field-adjustable multi-wattage selectable driver for variable power settings
• Wattage Equivalency: Equivalent to (3) F32T8 fluorescent fixtures
• Maximum Lumen Output: 6,800 lm at 50W (4000K)
• Peak Efficacy: 142 lm/W for high-efficiency commercial operation
• CRI: 80 color rendering across all settings (7-step MacAdam Ellipse binning per ANSI C78.377-2017)
• Selectable CCT: 5000K / 4000K / 3500K — field-adjustable CCT for tunable white and switchable Kelvin control
• Lens & Optics: Diffuse polycarbonate lens with cold-rolled steel reflector for low glare and maximum protection
• Dimming: 0–10V continuous dimming down to 10% standard
• Voltage: Universal 120–277V AC, 50/60Hz Class 2 constant current driver
• Operating Temperature: -40°F (-40°C) to 104°F (40°C) ambient operating range
• Certifications: DLC 5.1 Premium, UL Listed, UL 94 5VA, NEMA 4X, NSF Certified, IP66, IK08, FCC Part 15B, RoHS
• Rated Life: 100,000 hours (L70) per IES LM-80 and TM-21 standards
• Warranty: 5-year limited warranty — RAB

Performance & Light Output

At 50W: 6,500 lm (3500K / 130 lm/W), 6,800 lm (4000K / 136 lm/W), 6,600 lm (5000K / 132 lm/W). At 40W: 5,320 lm (3500K / 133 lm/W), 5,560 lm (4000K / 139 lm/W), 5,400 lm (5000K / 135 lm/W). At 30W: 4,080 lm (3500K / 136 lm/W), 4,260 lm (4000K / 142 lm/W), 4,140 lm (5000K / 138 lm/W).

CRI 80 across all configurations. Rated life 100,000 hours (L70) per IES TM-21 testing. Delivers high-efficiency illumination resulting in significant energy reduction compared to traditional (3) F32T8 fluorescent systems.

Smart & Control Features

The SEAL4 linear washdown vapor tight supports standard wired dimming and optional factory-configured or field-programmable sensing and wireless automation:

• 0–10V Continuous Dimming (Standard): Dims smoothly down to 10% on standard 0–10V DC low-voltage control circuits. Compatible with commercial dimmers and centralized building automation systems (BAS).
• Lightcloud Blue Wireless Mesh (Optional Configuration): Available in Lightcloud Blue-enabled Bluetooth Mesh configurations (/LCBS, /LCBS/MVS) for gateway-free wireless commissioning, dimming, and scheduling via the Lightcloud Blue mobile app.

Compatible occupancy sensor options in the SEAL family include Passive Infrared (/PIR & /LCBS, max 40 ft mounting height, 40 ft detection diameter at 40 ft) and Microwave (/MVS & /LCBS/MVS, max 50 ft mounting height, 50 ft detection diameter at 50 ft), as well as PIR20[B][/LCB] and MVS20[B][/LCB] sensors (20 ft detection diameter mounted at 9 ft, sold separately). Field adjustments for non-Lightcloud sensors require the handheld multi-sensor remote control (catalog # MSR1, sold separately).

Electrical

Powered by a Class 2 constant current driver operating on 120–277V AC at 50/60Hz. Delivers high electrical efficiency with a Power Factor of 99.90% at 120V (96.98% at 277V) and Total Harmonic Distortion (THD) of 3.53% at 120V (4.35% at 277V). Integrated 2.5kV surge protection protects internal electronics against transient voltage spikes. Includes pre-wired 0–10V dimming leads and a quick connector for fast wiring.

Emergency Battery Backup: Available in `/E` battery backup configurations (`SEAL4/E`, sold separately) wired for 120–277V to operate the fixture for 90 minutes if power fails (Battery Backup Light Loss Factor: 0.207).

Operating current and amp draw across input voltages for branch circuit and breaker loading calculations:

Construction

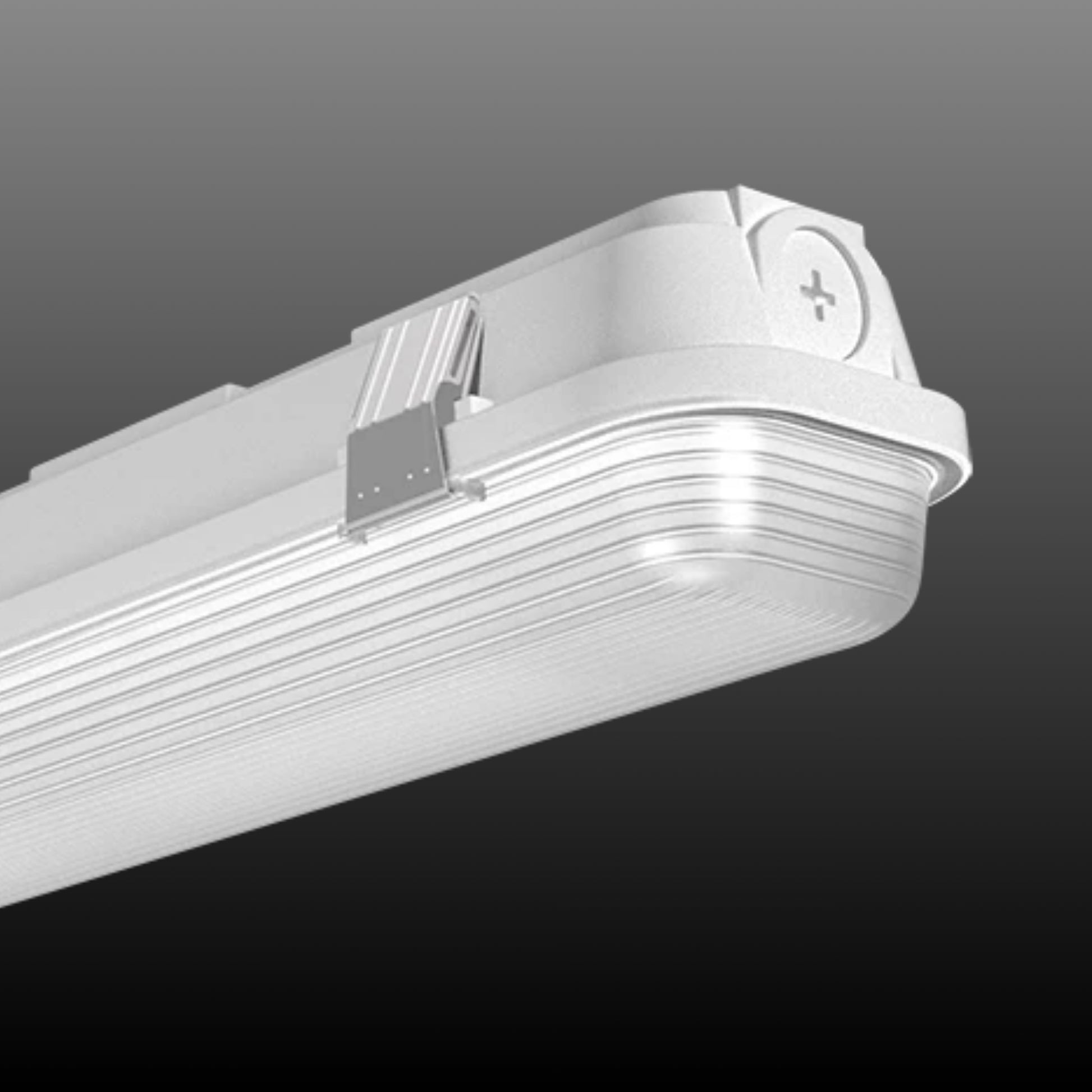

Durability & Impact Protection: Impact-resistant polycarbonate housing with stainless steel door clips, internal cold-rolled steel reflector, and high-temperature silicone gaskets engineered for thermal dissipation. IK08 rated for protection against 5 joules of mechanical impact (equivalent to a 3.75 lbs / 1.7kg mass dropped from 11.8" / 300mm), paired with a NEMA 4X corrosion-resistant enclosure, UL 94 5VA flame classification, and NSF certification for public health and safety food preparation facilities.

Ingress Protection: IP66 rated for complete protection against windblown dust, rain, splashing water, and hose-directed washdown sprays. Includes a 1/2" NPS opening for conduit and bushing/cord entry.

Operating Temperature: Cold weather starting at -40°F (-40°C); operating ambient temperature range of -40°F (-40°C) to 104°F (40°C).

Lens & Optics: Diffuse polycarbonate lens for low glare and maximum optical protection.

Finish: Gray finish formulated for high durability and long-lasting color resistance against corrosion and surface wear.

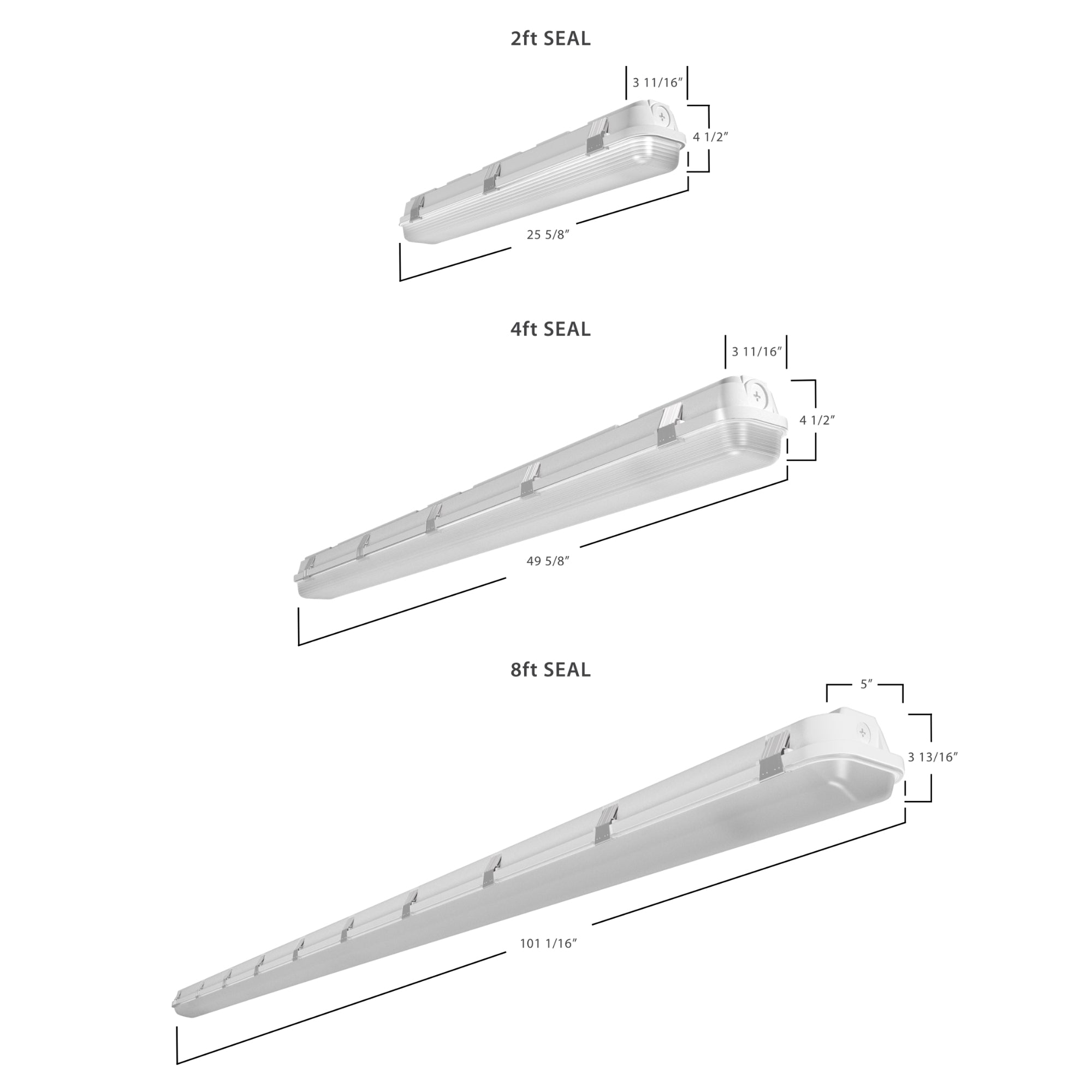

Dimensions & Weight: 49.63" L × 4.50" W × 3.75" H (49 5/8" L × 4 1/2" W × 3 3/4" H). Fixture weight: 6.5 lbs.

Installation & Mounting

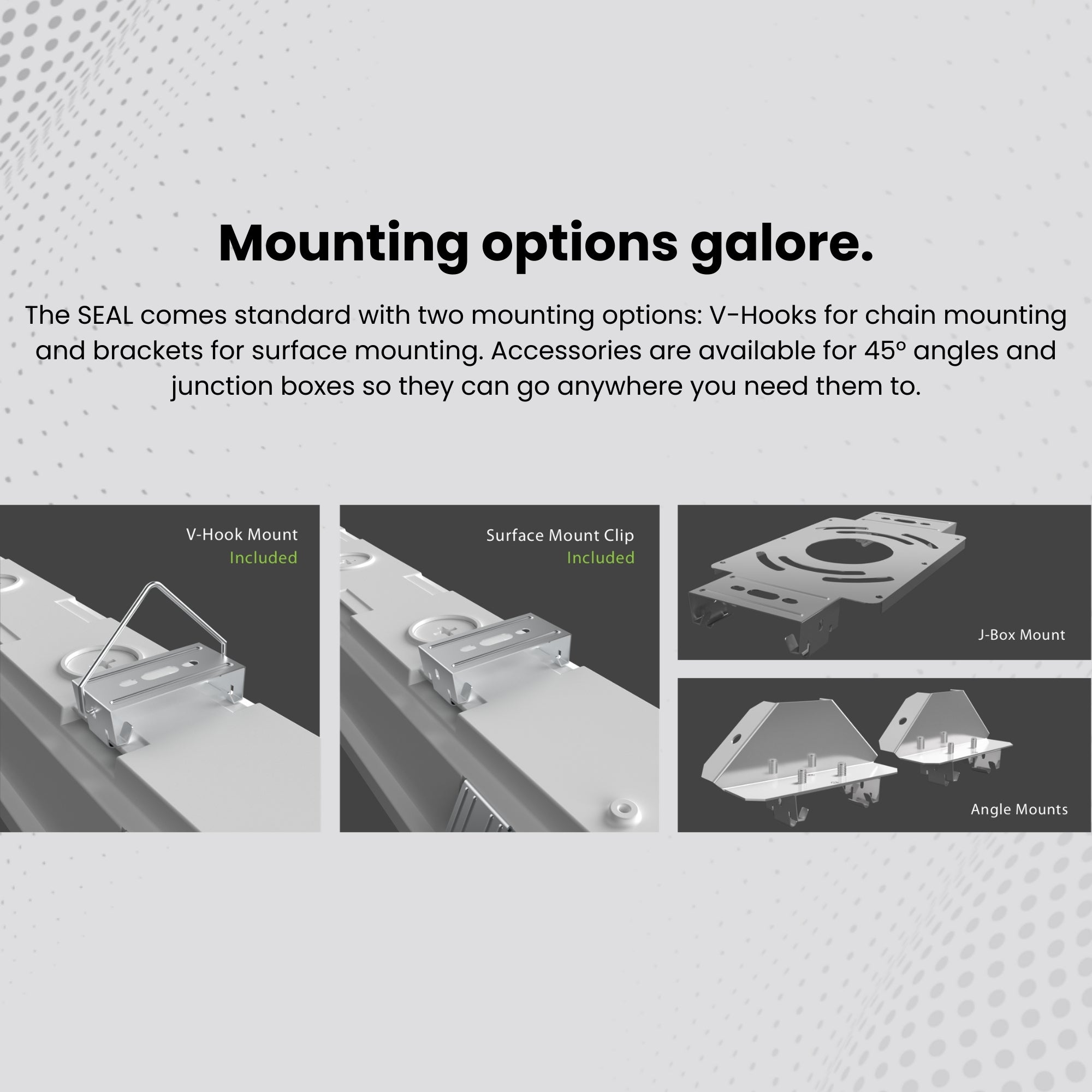

Standard Mounting: Supplied standard with quick-mount stainless steel snap-on brackets for surface mounting, V-hook brackets for suspended mounting, tether cables for hands-free wiring, and a quick connector.

Accessories (Sold Separately):

• Mounts: Optional mounting accessories for corners or junction boxes (sold separately)
• Sensors & Controls: MSR1 (Multi-Sensor Remote Control, sold separately); PIR20[B][/LCB] and MVS20[B][/LCB] sensors (sold separately); factory-configured sensor SKUs (/PIR, /MVS, /LCBS, /LCBS/MVS, sold separately)
• Emergency Battery Backup: Available in `/E` 90-minute emergency battery backup models (120–277V, sold separately for non-emergency SKUs)

Certifications & Rebates

• DLC 5.1 Premium: Listed by the DesignLights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of utility rebates. To confirm rebate eligibility with your local utility provider, visit designlights.org and search DLC Product Code S-5HVM30 (or model SEAL4).
• UL Listed: Certified for wet locations; UL 94 5VA flame classification.
• BAA Compliant (Upon Request): Available to be manufactured compliant with the Buy American Act (BAA) upon request.
• NSF: NSF Certified by Public Health and Safety for use in food preparation facilities.
• NEMA & IK Ratings: NEMA 4X rated for windblown dust, rain, hose-directed water, and corrosion protection; IK08 impact certified (5 joules).
• FCC Part 15: Complies with Part 15B of the FCC Rules.
• RoHS Compliant: Mercury and UV free; engineered with RoHS-compliant components free of hazardous substances.

Typical Applications

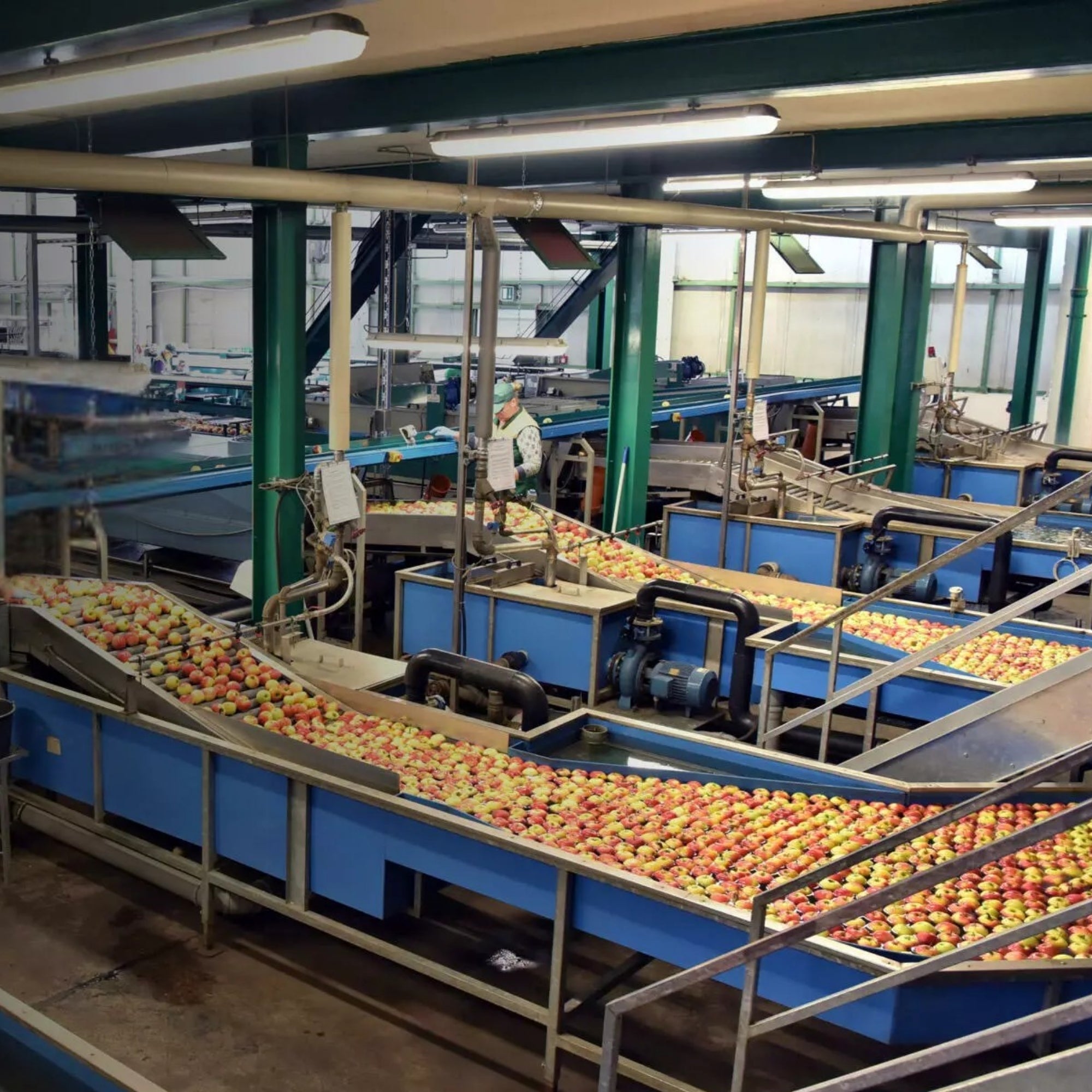

• Food Preparation & Processing Facilities — NSF certification, NEMA 4X corrosion protection, and IP66 sealing withstand sanitation washdowns.
• Commercial Kitchens & Walk-In Freezers — Reliable -40°F (-40°C) cold weather starting and wet location rating ensure dependable operation in cold storage.
• Car Washes & Maintenance Bays — Impact-resistant polycarbonate housing with stainless steel door clips and high-temperature silicone gaskets block hose-directed water spray.
• Industrial Manufacturing & Warehouses — IK08 5-joule impact protection and field-adjustable output replace legacy (3) F32T8 fluorescent fixtures.
• Parking Garages & Covered Canopies — Sealed NEMA 4X enclosure and stainless steel mounting hardware resist outdoor moisture, dust, and corrosion.

What's Included

• RAB SEAL4 4ft Field-Adjustable Linear Washdown Vapor Tight — Gray
• Quick-mount stainless steel snap-on surface brackets and V-hook suspension brackets
• Tether cables and quick wiring connector
• Installation and operation manual
