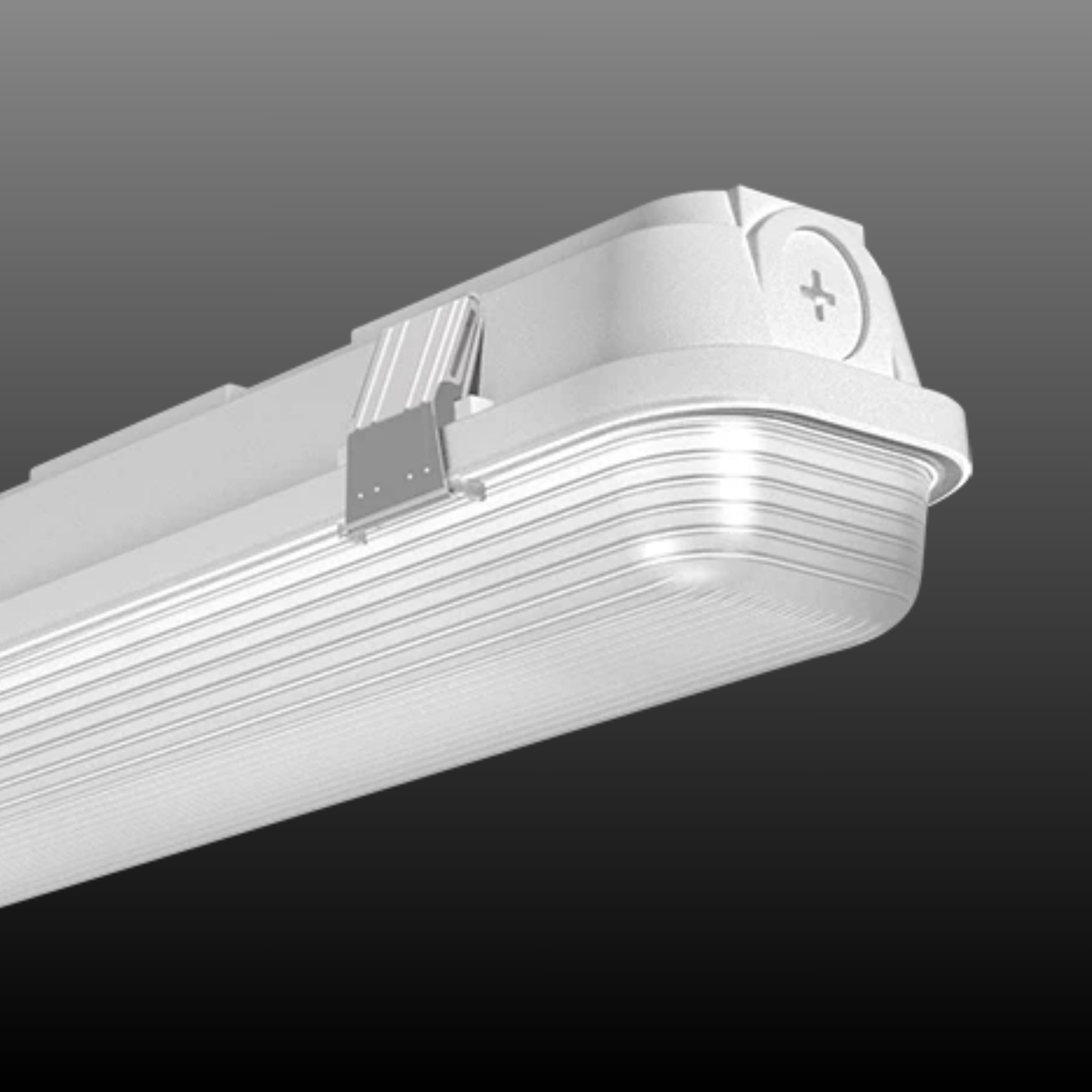

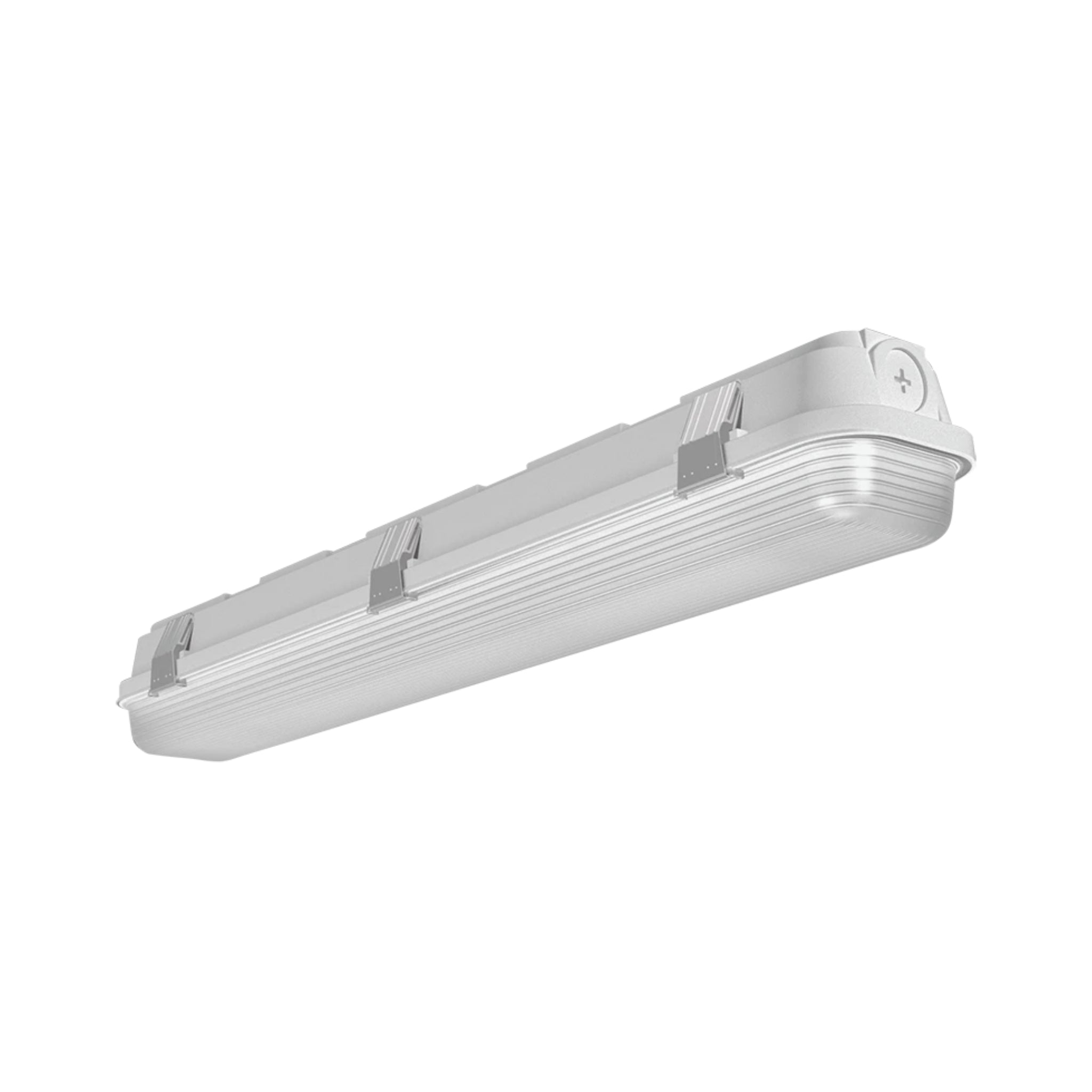

RAB SEAL2/E Field-Adjustable, Linear Washdown Vapor Tight — 25/20/15W Selectable — 3500K/4000K/5000K — Gray

The RAB SEAL2/E is a 2-foot field-adjustable linear washdown vapor tight fixture with integrated 90-minute emergency battery backup, delivering up to 3,400 lumens with field-selectable wattage (25W / 20W / 15W) and field-selectable CCT (3500K / 4000K / 5000K) via onboard switches. Operating on 120–277V / 50–60Hz with 0–10V dimming to 10%, the SEAL2/E is UL Listed for Wet Locations, IP66 rated, NEMA 4X corrosion-resistant, and NSF Certified for food-safe environments. Surge protection rated at 2.5kV. Rated for 100,000 hours and backed by a 5-year warranty. DLC Listed.

Key Features

• Selectable Wattage: Field-adjustable 25W / 20W / 15W via onboard switch — no tools or rewiring required.
• Wattage Equivalency: Replaces legacy fluorescent vapor tight fixtures — 25W delivers up to 3,400 lm, equivalent to a 2-lamp T8 fluorescent vapor tight at a fraction of the energy.
• Maximum Lumen Output: Up to 3,400 lumens at 25W / 4000K.
• Peak Efficacy: Up to 142 lm/W at 25W / 4000K.
• CRI: 80 CRI across all wattage and CCT settings.

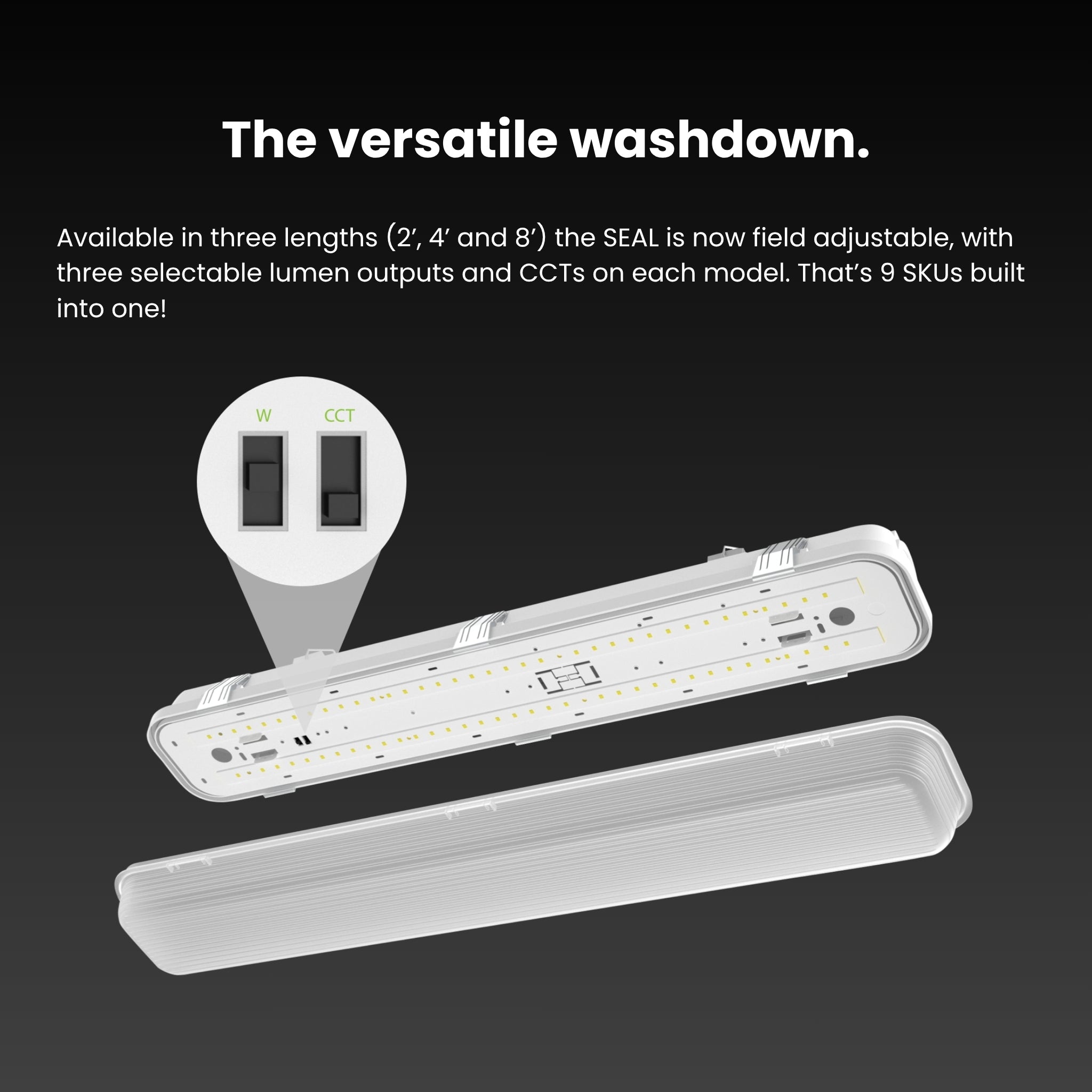

• Selectable CCT: Field-adjustable 3500K / 4000K / 5000K via onboard switch — no re-ordering required.
• Lens & Optics: Diffuse polycarbonate lens for low-glare, even light distribution in sensitive environments.
• Dimming Protocol: 0–10V continuous dimming down to 10% — requires separate 0–10V DC dimming circuit.
• Voltage & Driver: 120–277V / 50–60Hz; constant-current Class 2 driver. Power factor >0.99 at 120V. THD: 3.55% at 120V / 4.59% at 277V (25W).
• Location Rating: UL Listed for Wet Locations · IP66 ingress protection · NEMA 4X corrosion resistance · NSF Certified — suitable for food processing, washdown, outdoor, and submerged-spray environments.
• Emergency Battery Backup: Integrated 90-minute battery backup maintains egress-level illumination during power failures — supports NFPA 101 and IBC emergency lighting requirements.
• Operating Temperature: Cold-start rated to −40°C (−40°F); maximum ambient +40°C (+104°F).
• Certifications: UL Listed (Wet) · UL 94 5VA flame classification · IP66 · NEMA 4X · NSF · FCC Part 15 · IES LM-79 & LM-80 · DLC Listed · RoHS Compliant.
• Rated Life: 100,000 hours (L70) based on IES LM-80 and TM-21 calculations.
• Warranty: 5-year RAB limited warranty covering light output, driver performance, and paint finish.
• Surge Protection: 2.5kV surge protection.

Performance & Light Output

Lumen output varies by both wattage and CCT. At 25W, the SEAL2/E delivers 3,300 lm at 5000K, 3,400 lm at 4000K, and 3,250 lm at 3500K. At 20W: 2,700 lm at 5000K, 2,780 lm at 4000K, 2,660 lm at 3500K. At 15W: 2,070 lm at 5000K, 2,130 lm at 4000K, 2,040 lm at 3500K. Peak efficacy is 142 lm/W at 25W / 4000K. All settings deliver 80 CRI. Rated life: 100,000 hours (L70).

Smart & Control Features

The SEAL2/E includes built-in 0–10V dimming compatible with standard building automation and lighting control systems. The /E suffix integrates a 90-minute emergency battery backup unit — the fixture automatically switches to battery power during an outage and maintains egress-level illumination for a minimum of 90 minutes in compliance with NFPA 101 and IBC requirements. Optional occupancy sensor suffixes are also available on other SEAL2 configurations.

Electrical

Constant-current Class 2 driver. Voltage: 120–277V / 50–60Hz. Power factor: >0.99 at 120V / 97.74% at 277V (25W). THD: 3.55% at 120V / 4.59% at 277V (25W). Surge protection: 2.5kV. Dimming: 0–10V to 10% (requires separate 0–10V DC circuit). Mercury-free, UV-free, RoHS compliant.

Construction

Housing & Thermal: Impact-resistant polycarbonate housing with stainless steel door clips. 1/2″ NPS opening for conduit and bushing/cord entry. Note: polycarbonate is affected by cleaning agents or liquids containing partial solvents such as low molecular weight aldehydes, ethers, ketones, esters, aromatic hydrocarbons, and perchlorinated hydrocarbons.

Lens & Optics: Diffuse polycarbonate lens for low-glare, broad, even light distribution. Cold-rolled steel reflector.

Finish: Gray — formulated for high durability and long-lasting color.

Environmental & Safety: IP66 rated. NEMA 4X corrosion resistance. UL Listed for Wet Locations. UL 94 5VA flame classification. NSF Certified. High-temperature silicone gaskets. Operating temperature: −40°C (−40°F) to +40°C (+104°F) ambient. Mercury-free, UV-free, RoHS compliant.

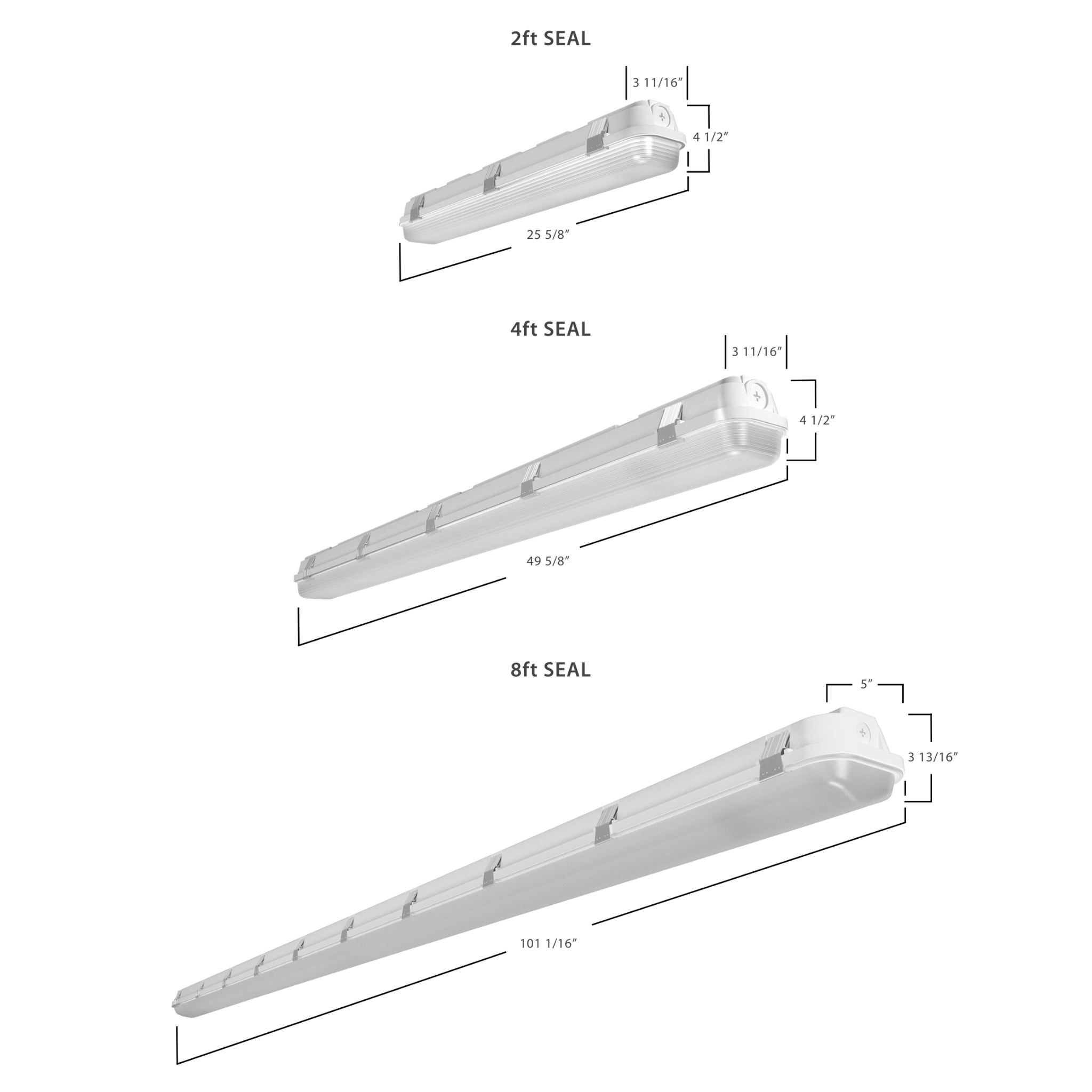

Dimensions & Weight: 25 5/8″ L × 4 1/2″ W × 3 3/4″ H. Weight: 4.0 lbs (fixture only; battery unit adds weight).

Installation & Mounting

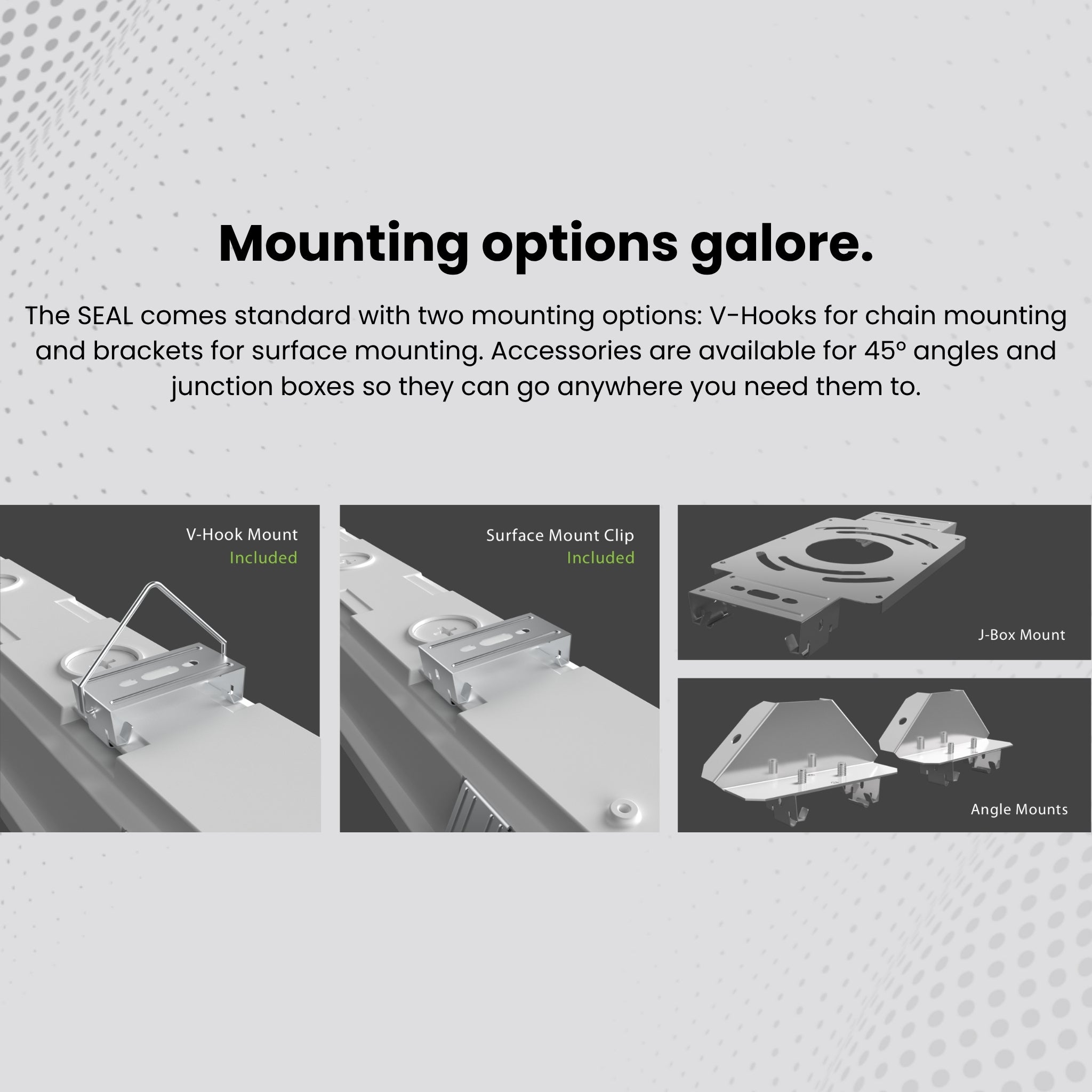

Standard Hardware: Quick-mount stainless steel snap brackets supplied for surface mounting. V-Hook brackets supplied for suspended mounting. Tether cables provided for easy installation. Quick connector available for simplified wiring.

Mounting Options: Surface mount (snap brackets) or suspended (V-Hook).

Wiring: 1/2″ NPS opening for conduit or bushing/cord entry. 0–10V dimming requires a separate 0–10V DC dimming circuit. Emergency battery backup unit connects inline with fixture wiring.

Certifications & Rebates

• UL Listed: Wet Location — suitable for direct water exposure, outdoor, and washdown environments.
• UL 94: 5VA flame classification.
• NSF Certified: Certified by Public Health and Safety — suitable for food preparation areas.
• FCC: Complies with Part 15 of the FCC Rules.
• NEMA Rating: 4X — protected against corrosion.
• IESNA LM-79 & LM-80: Tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
• DLC Listed — Product Code: S-2WR1TU — qualifies for utility rebate programs in most U.S. markets. Search S-2WR1TU at designlights.org to verify eligibility.
• RoHS Compliant.

Typical Applications

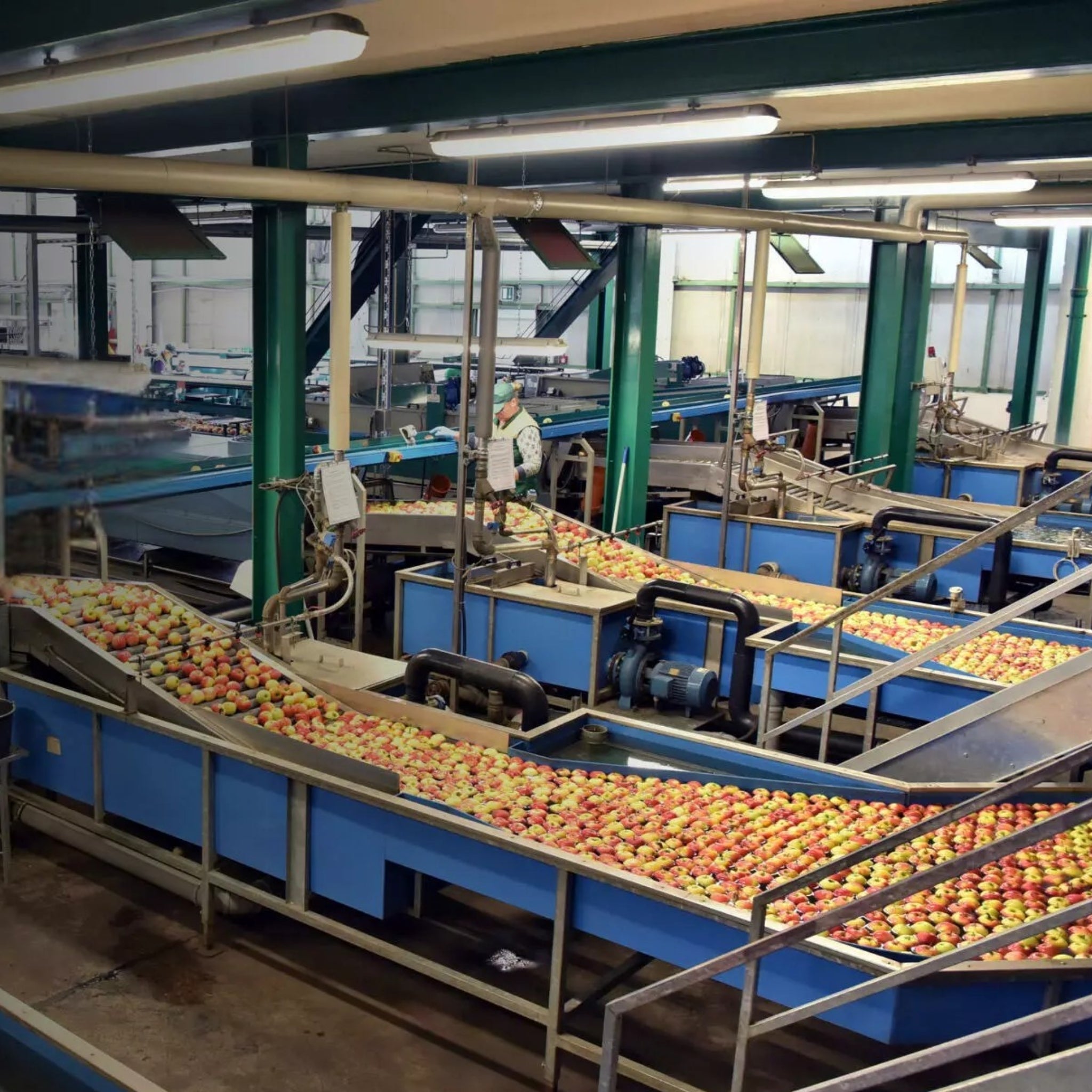

• Food Processing & Commercial Kitchens: NSF Certified and IP66 rated for direct washdown; emergency backup maintains illumination during power loss in food safety-critical areas.
• Cold Storage & Freezer Rooms: −40°C (−40°F) cold-start rating with integrated emergency backup for egress compliance in sub-freezing environments.
• Car Washes & Wash Bays: IP66 and NEMA 4X rated for sustained water spray; emergency backup supports continuous operation during outages.
• Egress Corridors & Exit Paths: 90-minute battery backup satisfies NFPA 101 and IBC emergency lighting requirements for life-safety egress illumination without a dedicated emergency fixture.
• Parking Garages & Covered Structures: UL Wet Location listing with emergency backup for code-compliant egress lighting in hard-to-access mounting locations.

What’s Included

• RAB SEAL2/E 2-foot Field-Adjustable, Linear Washdown Vapor Tight fixture with battery backup — Gray
• Stainless steel snap brackets (surface mount)
• V-Hook brackets (suspended mount)
• Tether cables
