RAB SEAL2 2ft LED Vapor Tight / Washdown Fixture 3,400 Lumens 25W Selectable 35K/40K/50K 120–277V Gray
RAB SEAL2 2ft LED Vapor Tight / Washdown Fixture 3,400 Lumens 25W Selectable 35K/40K/50K 120–277V Gray
Available in stock (100)
Choose your location
enter a US zip code
Couldn't load pickup availability
About this item
About this item
- Field Adjustable: 25W / 20W / 15W selectable output
- Light Output: Up to 3,400 lumens
- Protection Rating: IP66 & NEMA 4X
- Certifications: NSF Listed & UL Wet Location
- Electrical: 120–277V with 0–10V dimming
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Description
Description
RAB SEAL2 2ft Field-Adjustable LED Vapor Tight — IP66 NSF Washdown Fixture
The RAB SEAL2 is a 2-foot field-adjustable LED vapor tight fixture engineered for wet, washdown, and corrosive environments. Designed for food processing, parking garages, cold storage, and industrial facilities, it delivers up to 3,400 lumens with selectable wattage (25W / 20W / 15W) and selectable color temperature (3500K / 4000K / 5000K) on a universal 120–277V driver. Featuring an IP66 rating, NEMA 4X protection, and NSF certification, this fixture is built for demanding commercial washdown applications.
Key Features
- Field-Adjustable Wattage: 25W / 20W / 15W selectable output
- Selectable CCT: 5000K / 4000K / 3500K
- Maximum Output: Up to 3,400 lumens
- Ingress Protection: IP66 rated for dust and water resistance
- Corrosion Protection: NEMA 4X rated
- NSF Certified: Approved for food preparation areas
- Wet Location Listed: UL Listed for wet locations
- 0–10V Dimming: Standard dimming down to 10%
- Cold Weather Rated: Starts at -40°C (-40°F)
- Long Life: 100,000-hour rated LED lifespan
Typical Applications

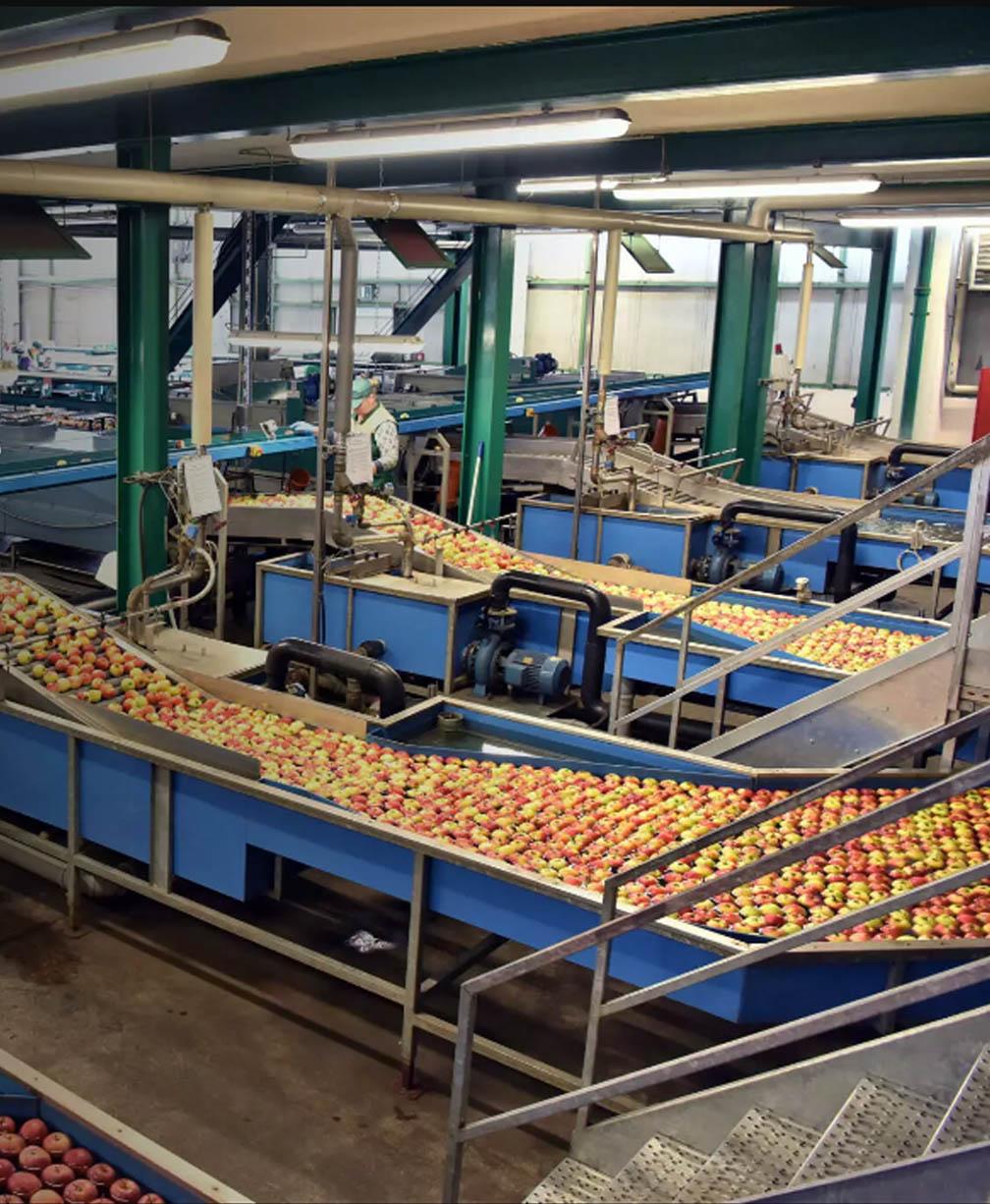

- Food processing facilities
- Commercial kitchens
- Cold storage and freezers
- Car washes

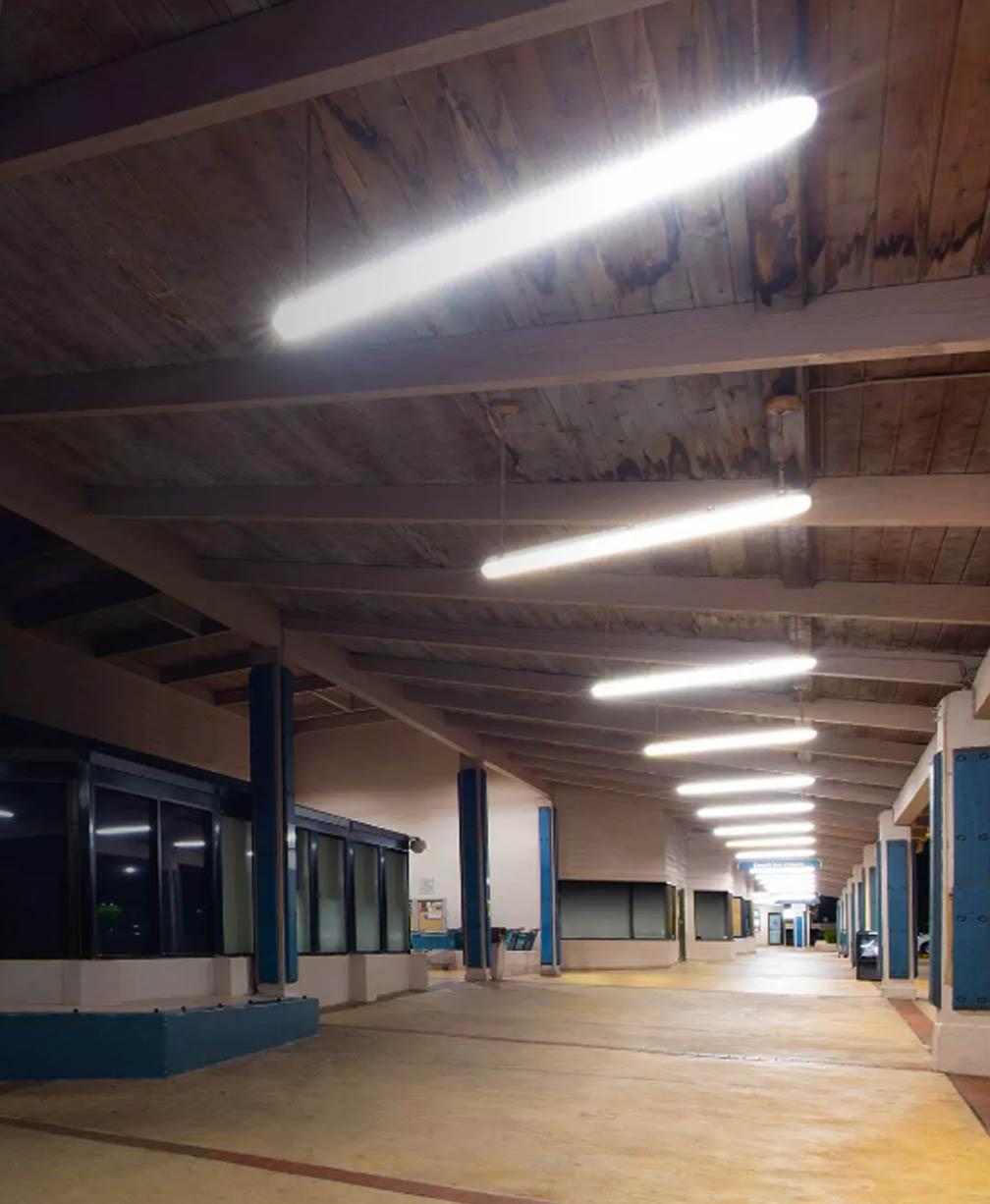

- Parking garages
- Agricultural buildings
- Industrial washdown areas
Performance & Light Output
The SEAL2 delivers approximately 2,040 to 3,400 lumens depending on selected wattage and CCT. Efficacy reaches up to 136 lm/W. CRI is 80. Rated lifespan is 100,000 hours (L70) based on LM-80 and TM-21 calculations.
Electrical & Controls
Operates on 120–277V, 50/60Hz constant current Class 2 driver. Includes 0–10V dimming control wiring (separate dimming circuit required). Surge protection rated at 2.5kV. Compatible with PIR or microwave occupancy sensors and optional Lightcloud Blue wireless controls. Battery backup options available for 90-minute emergency illumination.
Construction & Durability
Impact-resistant polycarbonate housing with stainless steel door clips and high-temperature silicone gaskets. Diffuse polycarbonate lens for glare reduction. Corrosion-resistant construction suitable for harsh environments. Maximum ambient temperature 40°C (104°F).
Installation & Mounting
Includes stainless steel surface-mount snap brackets and V-hook brackets for suspended mounting. Tether cables provided for simplified installation. 1/2" NPS opening for conduit or cord entry. Accessories available for corner mounting or junction box installation.
Included
- Stainless steel mounting brackets
- V-hooks for suspension
- Tether cables
Specifications
Specifications
Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Frequently Asked Questions
Is the RAB SEAL2 rated for wet and washdown locations?
Is the RAB SEAL2 rated for wet and washdown locations?
What wattage options does the SEAL2 offer?
What wattage options does the SEAL2 offer?
Does the SEAL2 support dimming controls?
Does the SEAL2 support dimming controls?
What mounting hardware is included with this fixture?
What mounting hardware is included with this fixture?
What is the expected LED lifespan and warranty?
What is the expected LED lifespan and warranty?
