RAB SEAL2 2ft LED Vapor Tight / Washdown Fixture 3,400 Lumens 25W Selectable 35K/40K/50K 120–277V Gray
Available in stock (200)
About this item
About this item

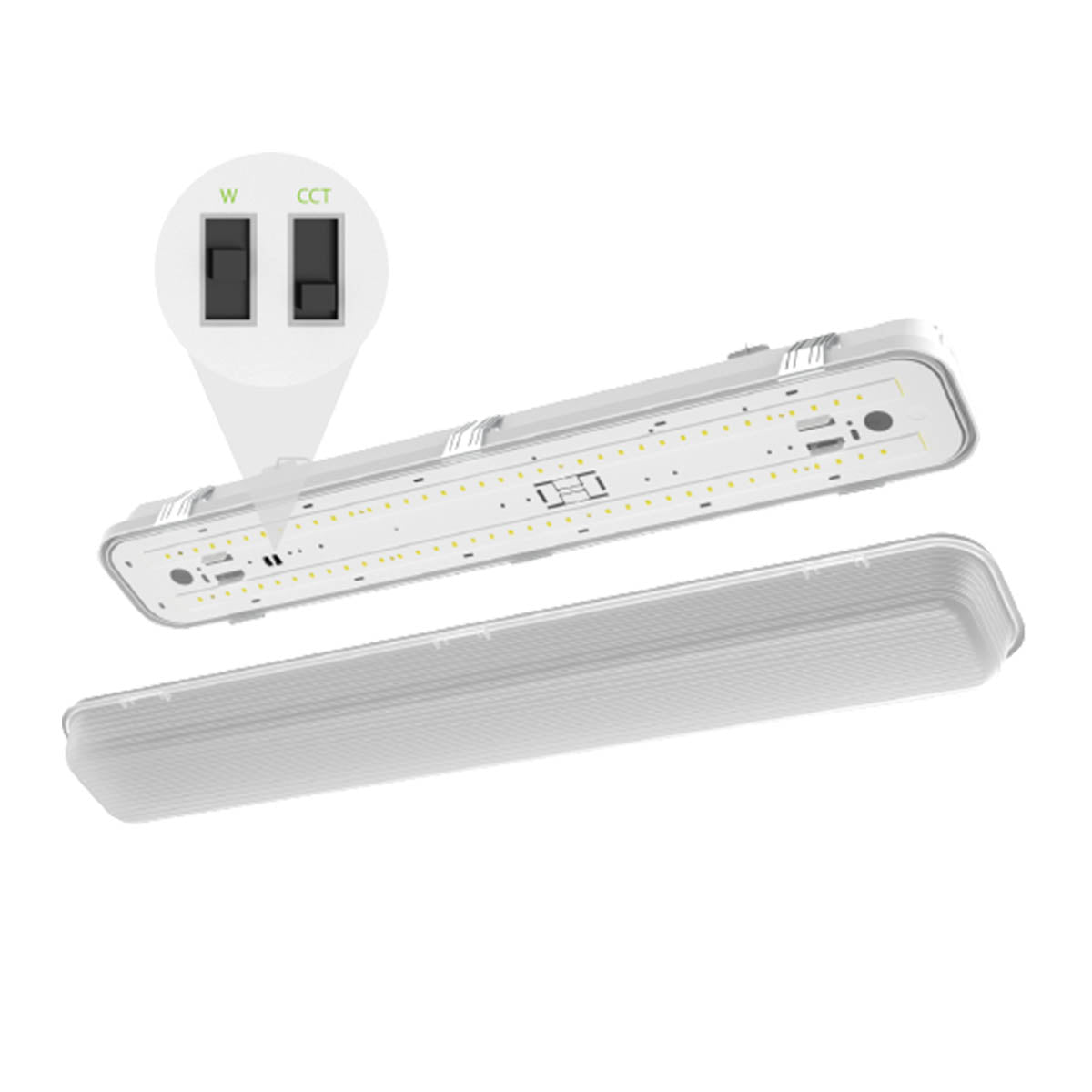

- Selectable Output: Field-adjustable 15W / 20W / 25W and 3500K / 4000K / 5000K settings
- Universal Voltage: 120–277V commercial driver with 0–10V dimming capability
- Environmental Rating: IP66 and NSF certified for food safety and wet locations
- Industrial Construction: NEMA 4X corrosion-resistant housing with stainless steel clips
- Mounting Hardware Included: Provided with surface mount brackets and V-hooks
We process payments securely and do not store credit card information.
Description
Description

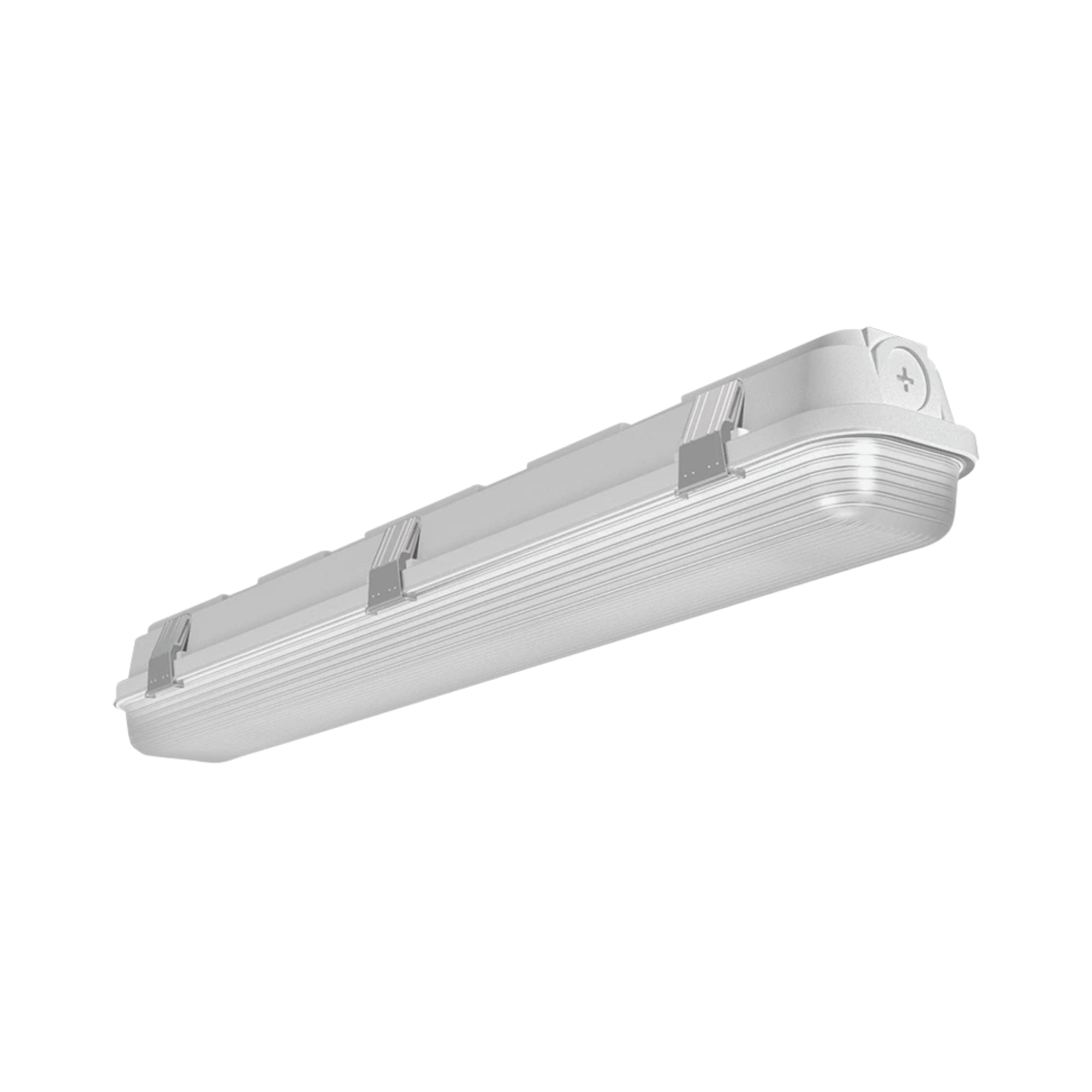

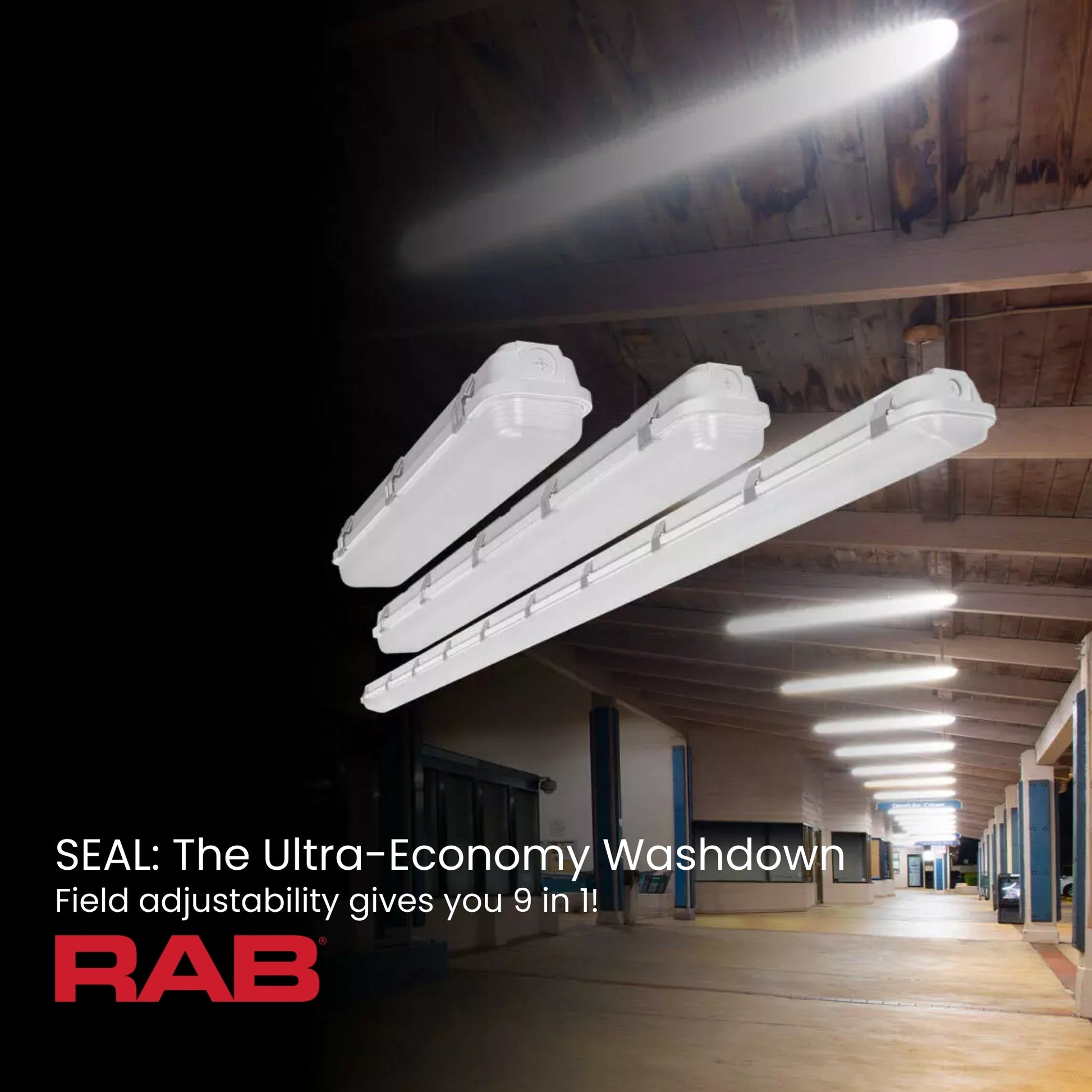

RAB SEAL2 2ft Field-Adjustable LED Vapor Tight — IP66 NSF Washdown Fixture
The RAB SEAL2 is a 2-foot field-adjustable LED vapor tight fixture engineered for wet, washdown, and corrosive environments. Designed for food processing, parking garages, cold storage, and industrial facilities, it delivers up to 3,400 lumens with selectable wattage (25W / 20W / 15W) and selectable color temperature (3500K / 4000K / 5000K) on a universal 120–277V driver. Featuring an IP66 rating, NEMA 4X protection, and NSF certification, this fixture is built for demanding commercial washdown applications.
Key Features

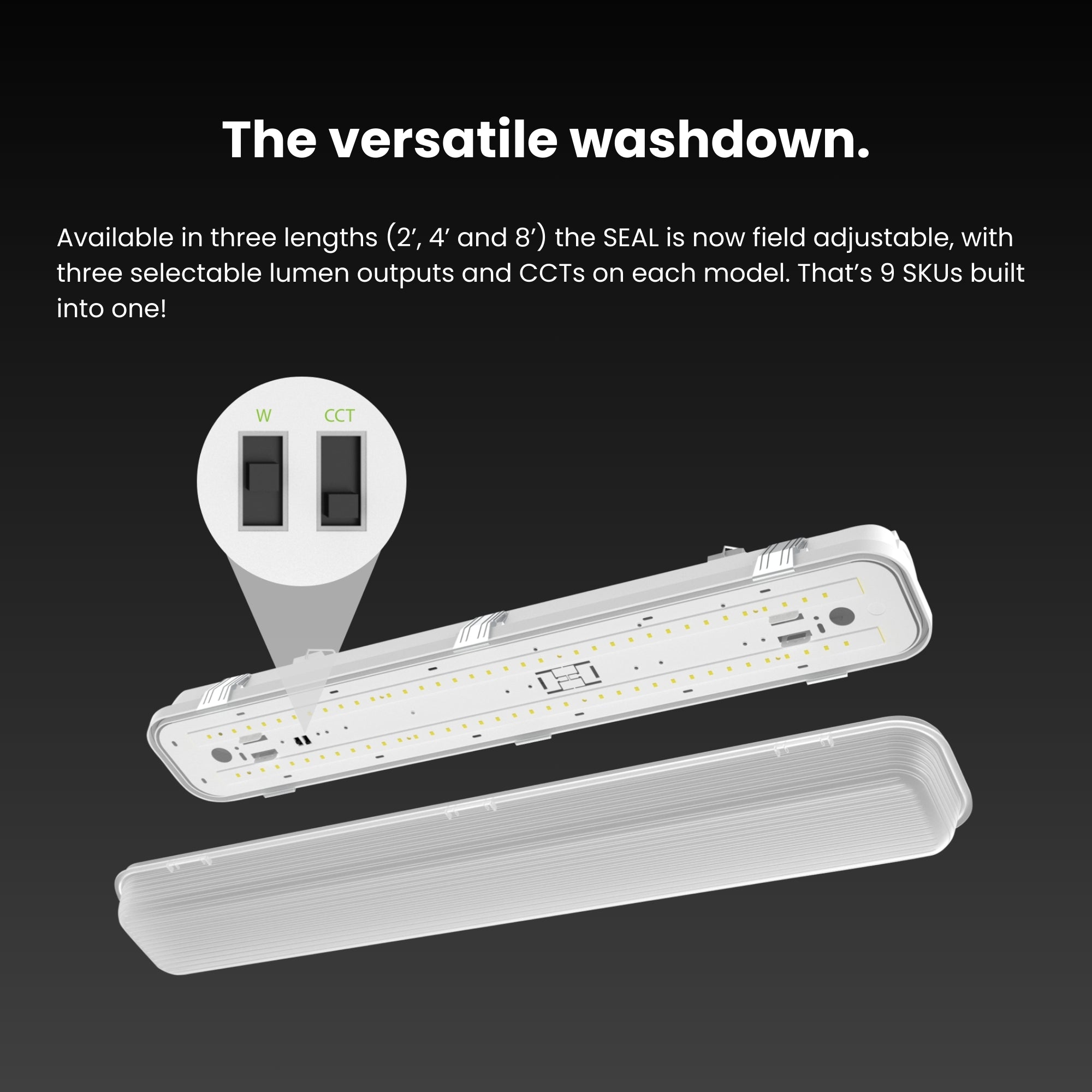

- Field-Adjustable Wattage: 25W / 20W / 15W selectable output
- Selectable CCT: 5000K / 4000K / 3500K
- Maximum Output: Up to 3,400 lumens
- Ingress Protection: IP66 rated for dust and water resistance
- Corrosion Protection: NEMA 4X rated
- NSF Certified: Approved for food preparation areas
- Wet Location Listed: UL Listed for wet locations
- 0–10V Dimming: Standard dimming down to 10%
- Cold Weather Rated: Starts at -40°C (-40°F)
- Long Life: 100,000-hour rated LED lifespan
Typical Applications

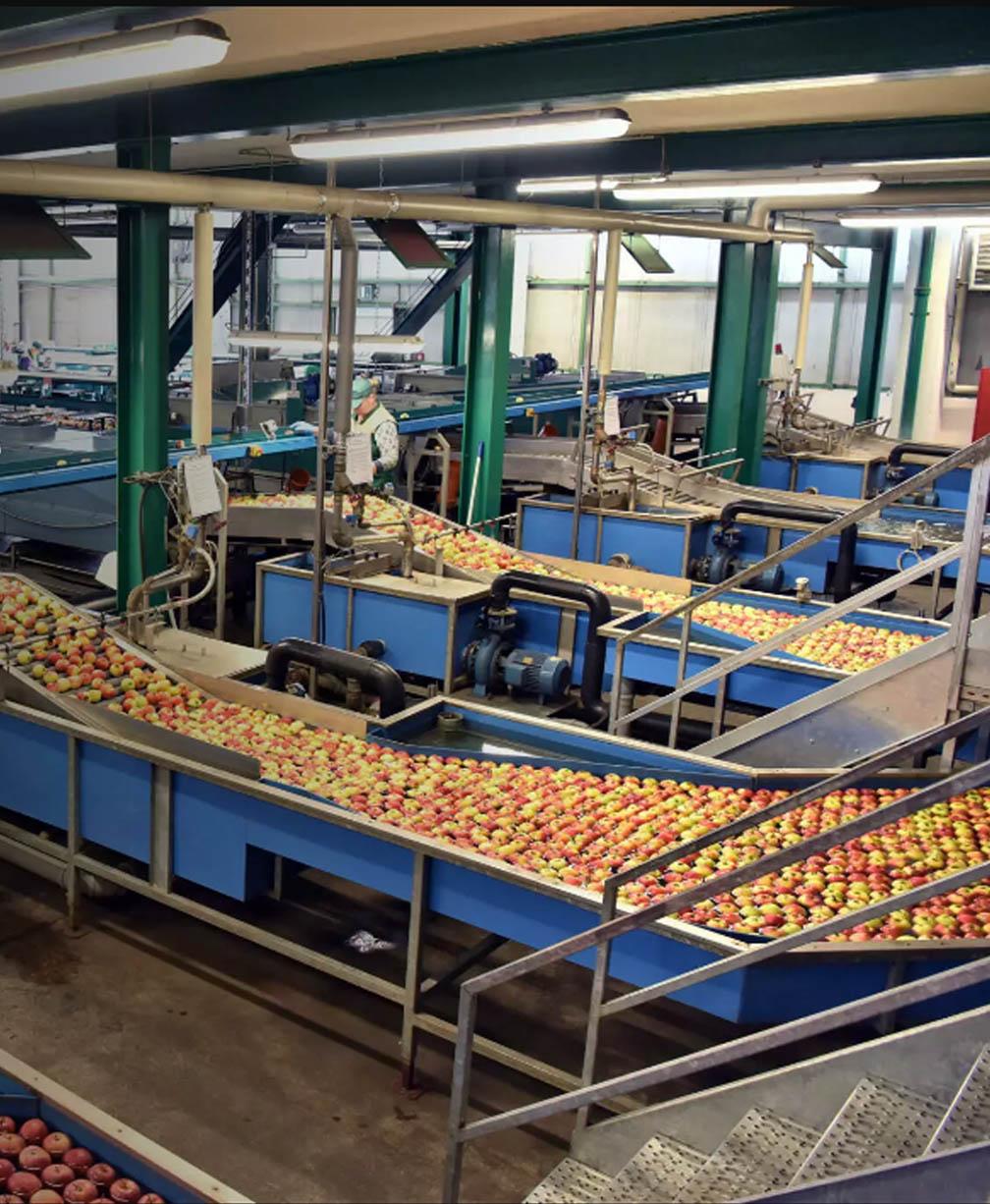

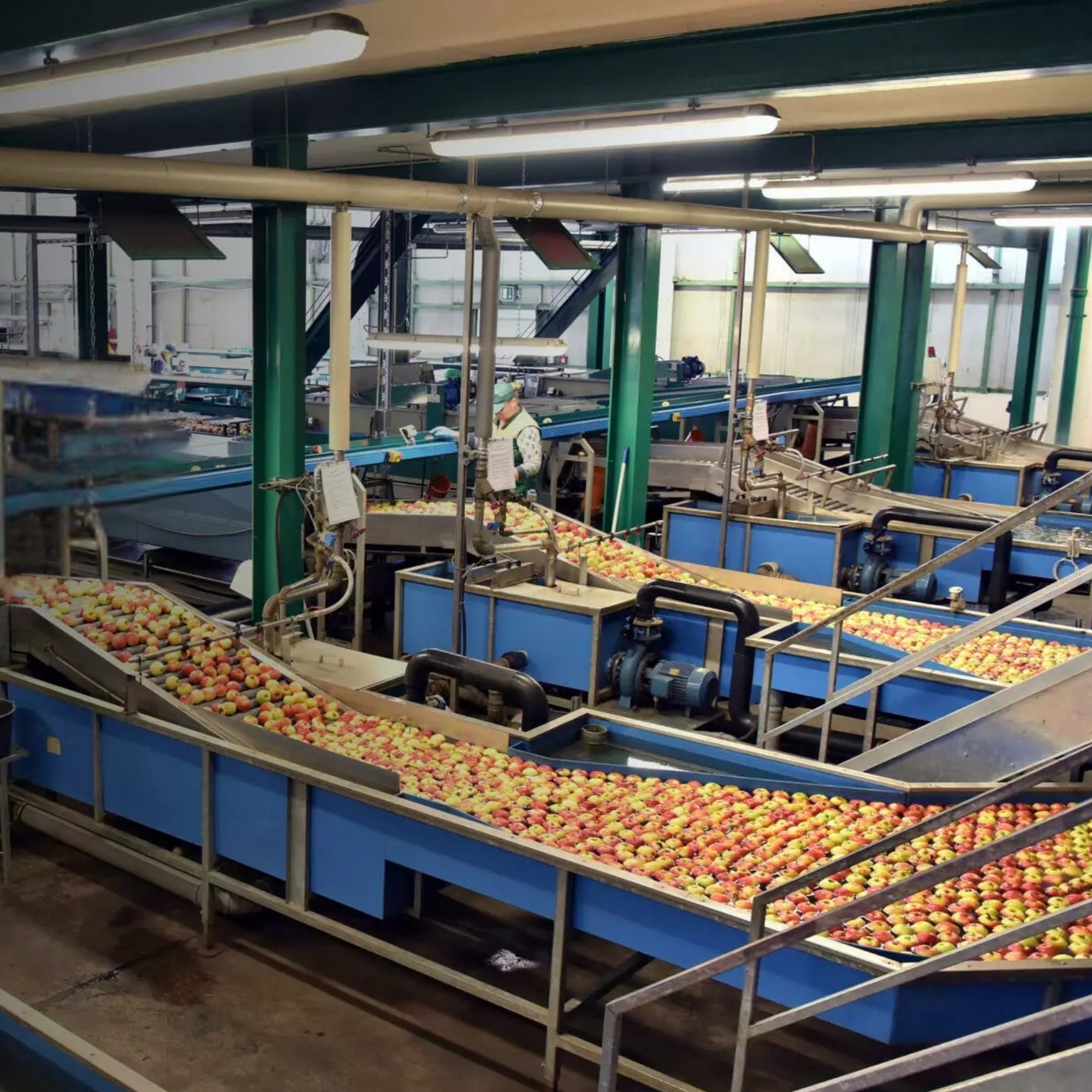

- Food processing facilities
- Commercial kitchens
- Cold storage and freezers
- Car washes

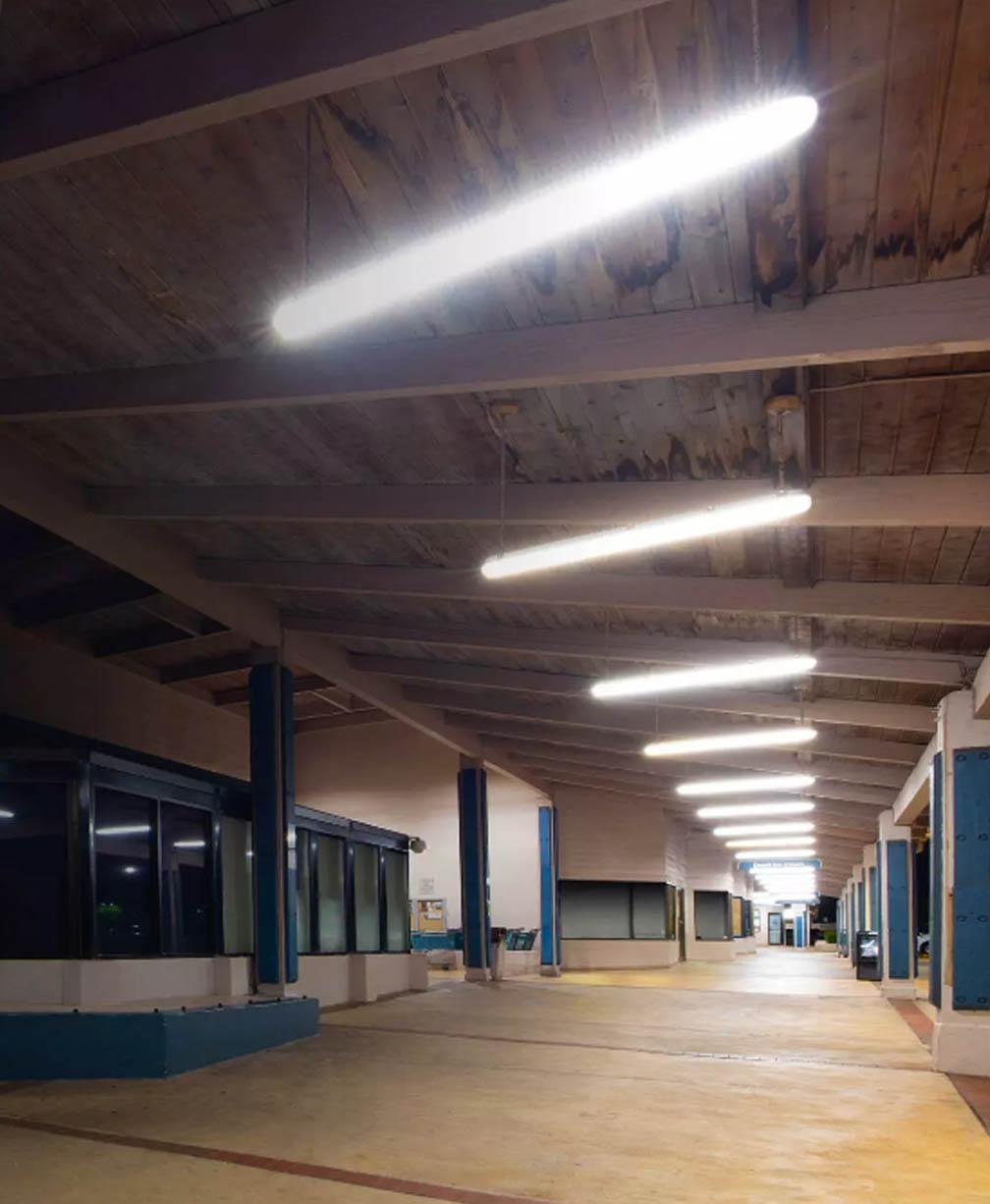

- Parking garages

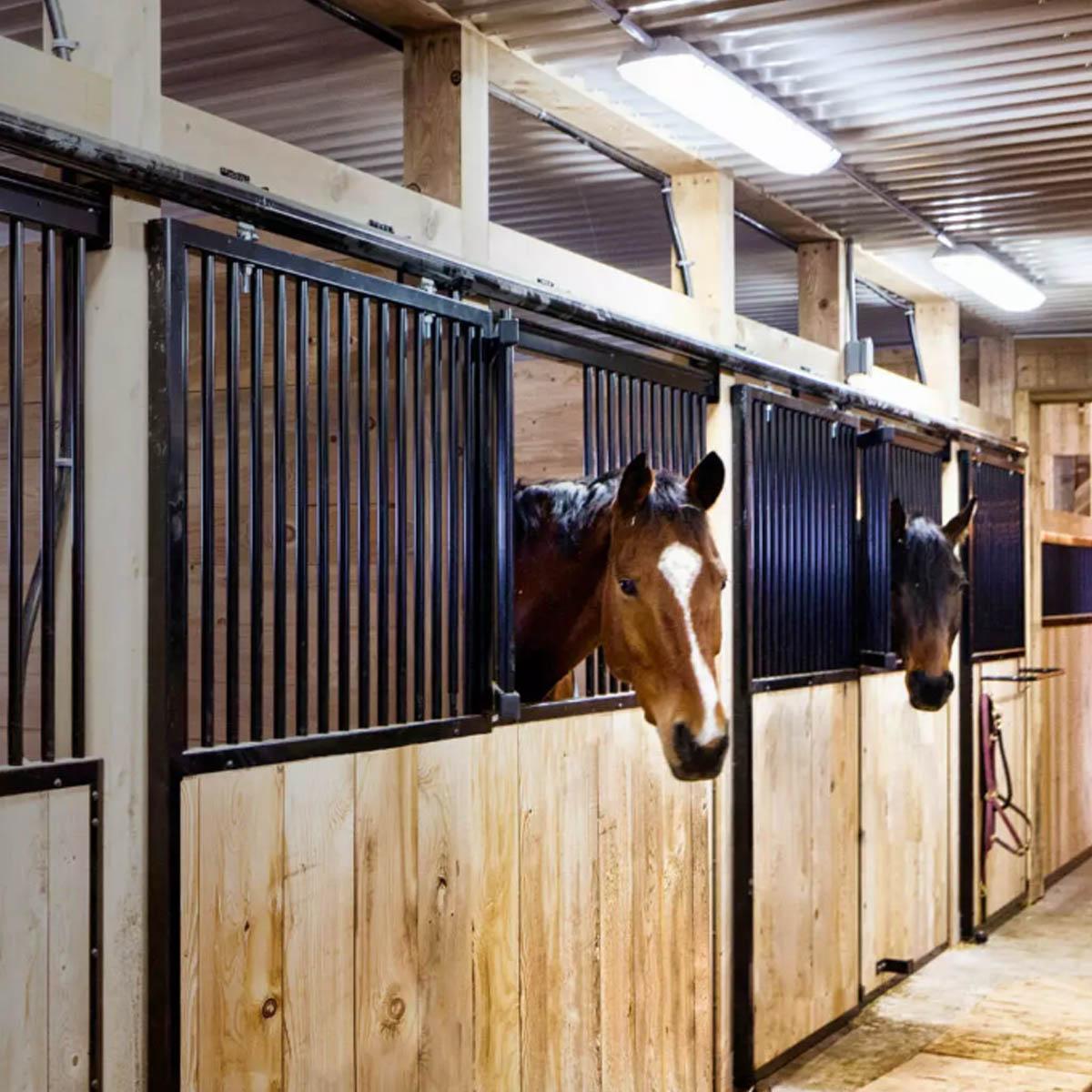

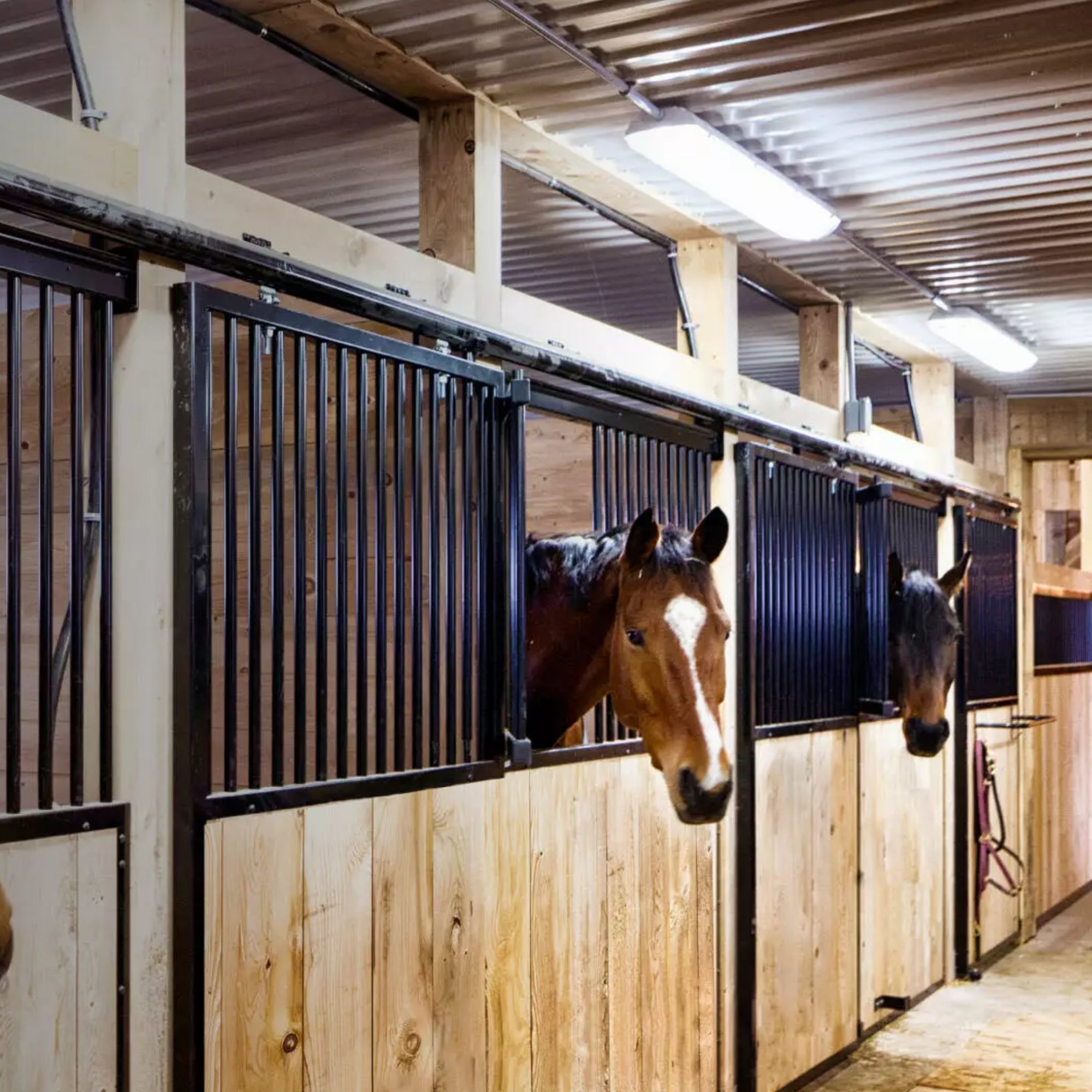

- Agricultural buildings
- Industrial washdown areas
Performance & Light Output
The SEAL2 delivers approximately 2,040 to 3,400 lumens depending on selected wattage and CCT. Efficacy reaches up to 136 lm/W. CRI is 80. Rated lifespan is 100,000 hours (L70) based on LM-80 and TM-21 calculations.
Electrical & Controls
Operates on 120–277V, 50/60Hz constant current Class 2 driver. Includes 0–10V dimming control wiring (separate dimming circuit required). Surge protection rated at 2.5kV. Compatible with PIR or microwave occupancy sensors and optional Lightcloud Blue wireless controls. Battery backup options available for 90-minute emergency illumination.
Construction & Durability

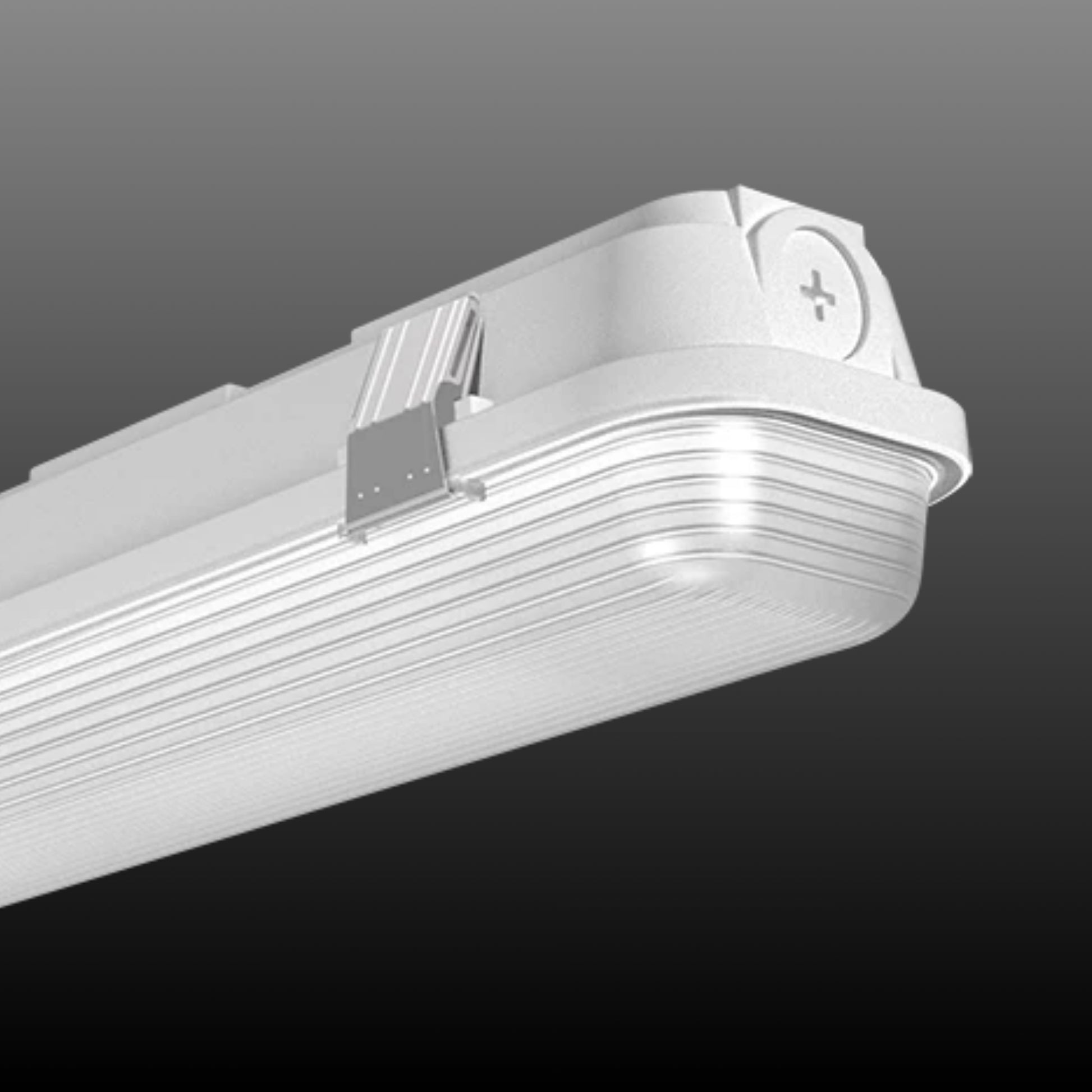

Impact-resistant polycarbonate housing with stainless steel door clips and high-temperature silicone gaskets. Diffuse polycarbonate lens for glare reduction. Corrosion-resistant construction suitable for harsh environments. Maximum ambient temperature 40°C (104°F).
Installation & Mounting

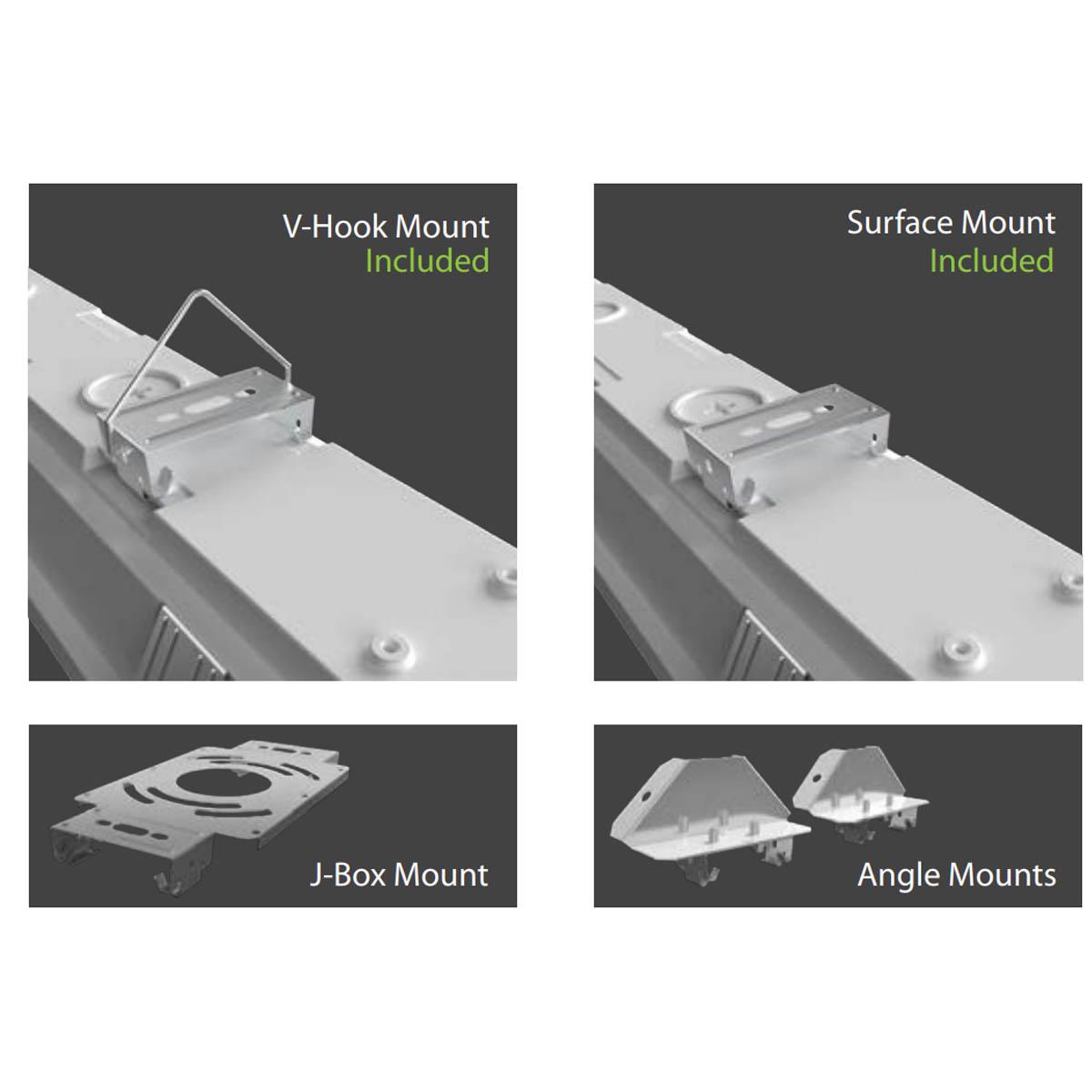

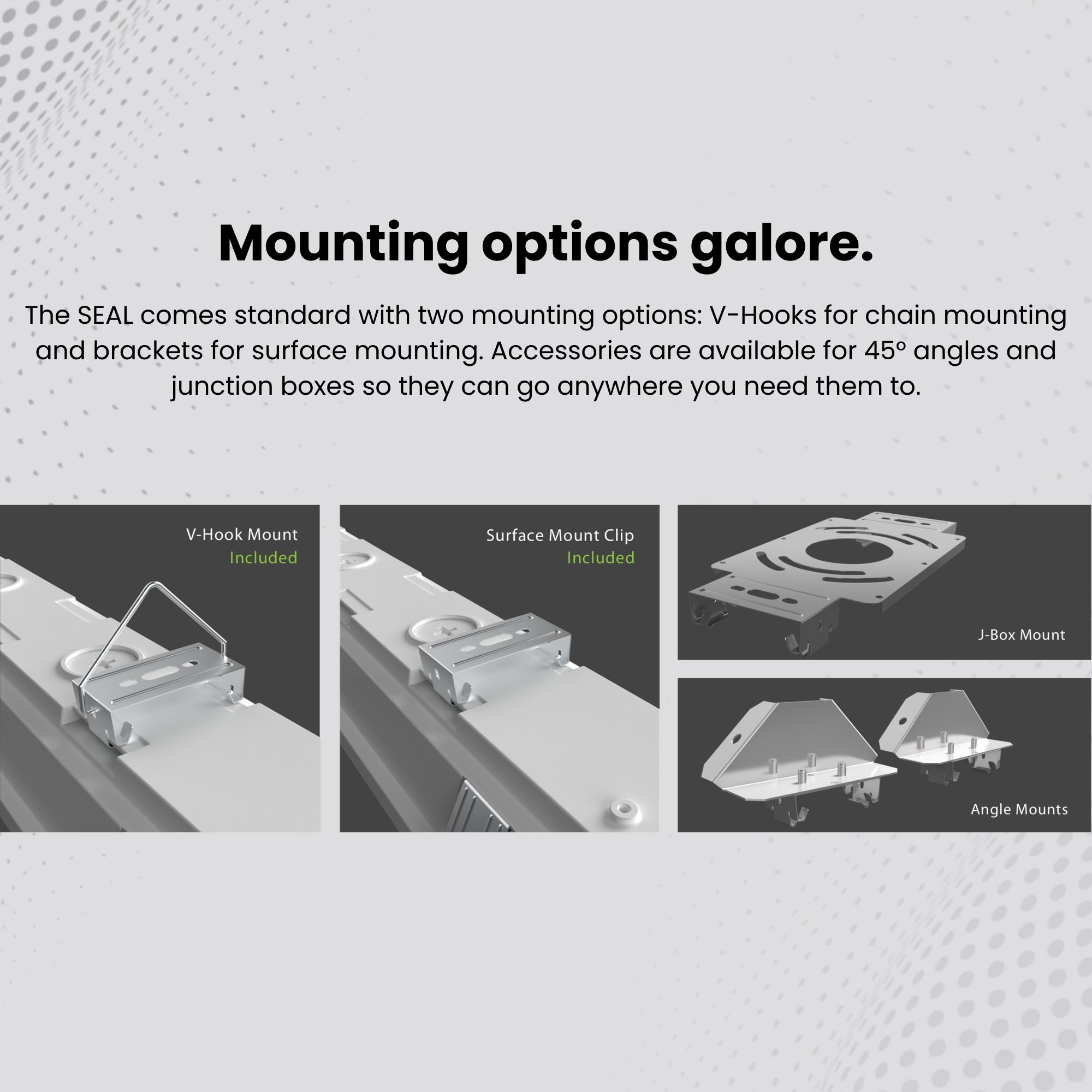

Includes stainless steel surface-mount snap brackets and V-hook brackets for suspended mounting. Tether cables provided for simplified installation. 1/2" NPS opening for conduit or cord entry. Accessories available for corner mounting or junction box installation.
Included
- Stainless steel mounting brackets
- V-hooks for suspension
- Tether cables
