RAB SAGE CLIP Bollard Light 168 Lumens 5W 3000K 120-277V Bronze
Available in stock (100)
About this item
About this item
- Lumens: Delivers 168 lumens for effective landscape illumination.
- Wattage: Operates at 5 watts for energy-efficient performance.
- Voltage: Compatible with 120-277V input for versatile installation.
- IP Rating: IP65 rated for protection against dust and water ingress.
- Construction: Features a durable die-cast aluminum housing with a polycarbonate lens.
We process payments securely and do not store credit card information.
Description
Description
RAB SAGE - CLIP Bollard — 5W Configuration
The RAB SA-CLBT is a bollard light designed for landscape applications, offering 168 lumens of illumination at 5 watts. It operates on a 120-277V input and is IP65 rated, making it suitable for wet locations. The fixture is finished in bronze, ensuring durability and aesthetic appeal.
Key Features
- LED Lifespan: Provides a long-lasting 100,000-hour LED lifespan for reduced maintenance.
- Color Temperature: Emits a warm 3000K light for pleasant outdoor ambiance.
- Power Factor: High power factor of 99.4% at 120V ensures efficient energy use.
- Driver: Equipped with a constant current, Class 2 driver for reliable operation.
- Construction: Built with a die-cast aluminum housing and a polycarbonate lens for durability.
- Cold Weather Starting: Operates in temperatures as low as -40°F (-40°C).
- Warranty: Backed by a 5-year limited warranty covering light output and driver performance.
- Compliance: UL listed for wet locations and compliant with the Trade Agreements Act.
- Color Consistency: Achieves consistent color with 7-step MacAdam Ellipse binning.
- Green Technology: Mercury and UV free, with RoHS-compliant components.
Typical Applications
- Pathway Lighting
- Garden Illumination
- Park Walkways
- Commercial Landscapes
- Residential Outdoor Spaces
Performance & Light Output
This bollard delivers 168 lumens with an efficacy of 31.3 lm/W. It features a CRI of 86 and a BUG rating of B0 U3 G1, ensuring quality light distribution.
Electrical & Controls
The fixture operates on a 120-277V input with a constant current driver. It has a power factor of 99.4% at 120V and 94.0% at 277V, with a THD of 6.7% at 120V.
Construction & Durability
Constructed with a die-cast aluminum housing and a polycarbonate lens, this bollard is IP65 rated for dust and water protection. It is suitable for ambient temperatures up to 113°F (45°C).
Installation & Mounting
The bollard includes four anchor bolts for secure mounting, ensuring stability in various outdoor settings.
What's Included
- Bollard Fixture
- 4 Anchor Bolts
Specifications
Specifications

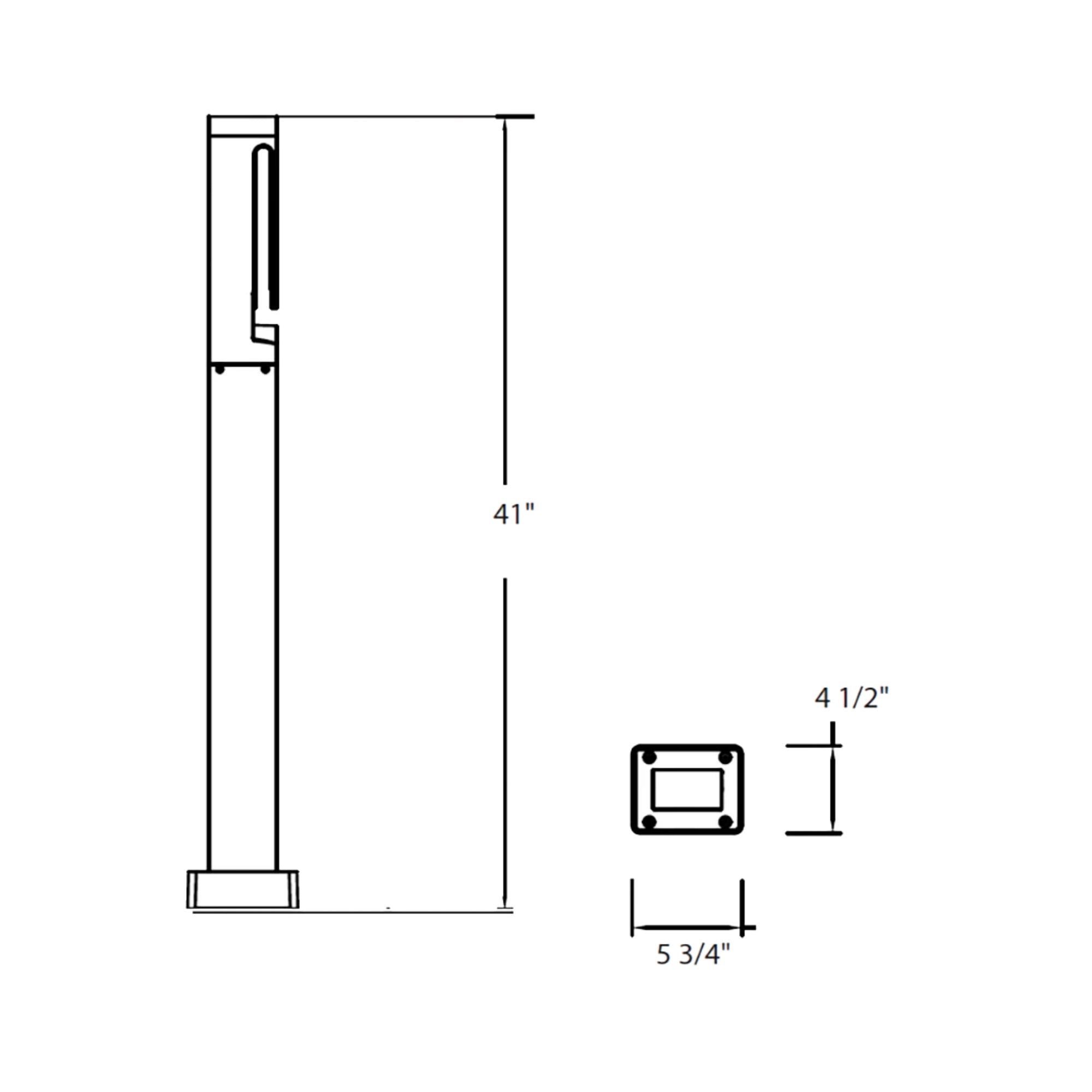

Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the wattage of the RAB SA-CLBT bollard?
What is the wattage of the RAB SA-CLBT bollard?
Is the RAB SA-CLBT bollard suitable for wet locations?
Is the RAB SA-CLBT bollard suitable for wet locations?
What is the color temperature of the RAB SA-CLBT bollard?
What is the color temperature of the RAB SA-CLBT bollard?
How is the RAB SA-CLBT bollard mounted?
How is the RAB SA-CLBT bollard mounted?
What is the expected lifespan of the RAB SA-CLBT bollard's LED?
What is the expected lifespan of the RAB SA-CLBT bollard's LED?
