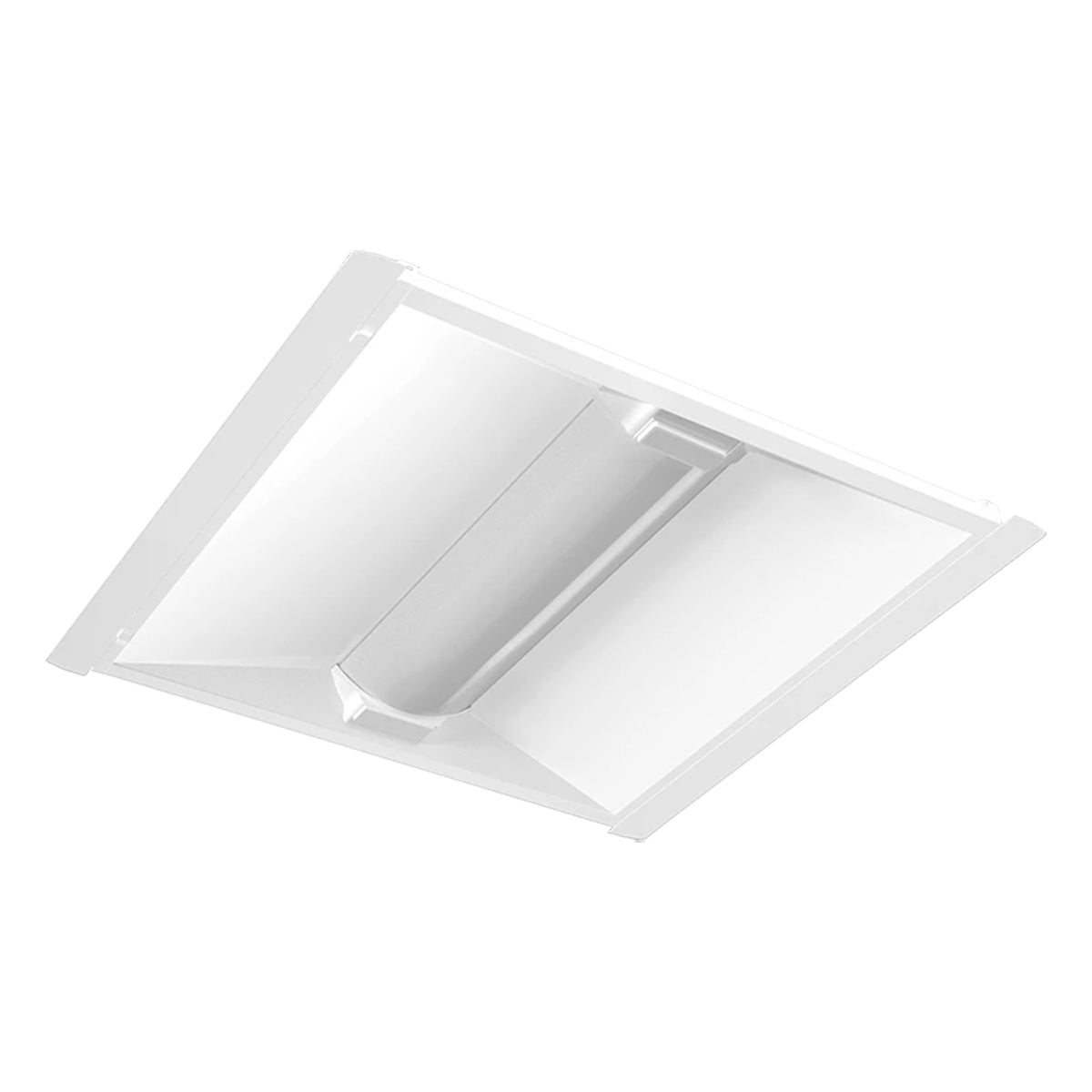

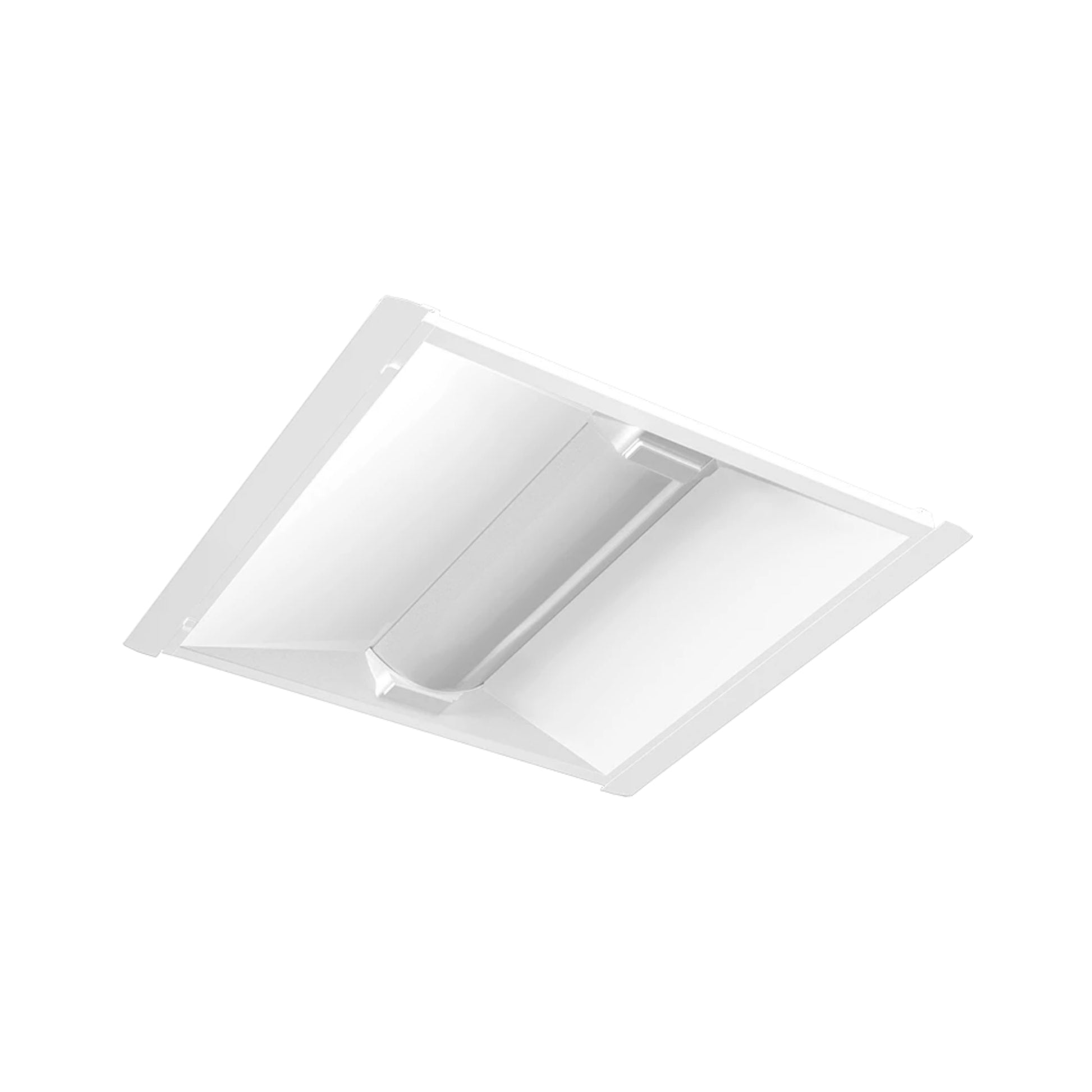

RAB RTLED2X2 Field-Adjustable 2x2 LED Retrofit Troffer — 30W/25W/18W Selectable — 3500K/4000K/5000K — White

The RAB RTLED2X2 is a commercial 2x2 Field-Adjustable LED Troffer engineered to deliver up to 3,814 lumens with field-adjustable 30W/25W/18W power settings and switchable 3500K/4000K/5000K color temperatures. Operating on universal 120–277V electrical systems with 0–10V continuous dimming down to 10%, this luminaire provides an energy-efficient retrofit replacement for legacy 2-lamp F32T8, 4-lamp F17T8, or 4-lamp F14T5 linear fluorescent fixtures. Built with a UL Listed damp location and IC-Rated construction, it is qualified for maximum commercial utility rebates under DLC 5.1 Premium standards and retrofits directly into existing ceiling housings with optional ventilated air-return mounting frames available separately.

Key Features

  • Selectable Wattage: 30W / 25W / 18W — field-adjustable via onboard switch (factory default 30W)
  • Wattage Equivalency: 30W replaces up to (2) F32T8, (4) F17T8, or (4) F14T5; 25W replaces up to (2) F32T8, (4) F17T8, or (3) F14T5; 18W replaces up to (1) F32T8, (2) F17T8, or (2) F14T5
  • Maximum Lumen Output: 3,814 lm at 30W (4000K)
  • Peak Efficacy: 138.1 lm/W for ultra-efficient commercial operation
  • CRI: 84–85 CRI color rendering across all wattage and CCT settings
  • Color Consistency & Stability: 7-step MacAdam Ellipse binning; LED color temperature is warrantied to shift no more than 200K over a 5-year period
  • Selectable CCT: 3500K / 4000K / 5000K — field-adjustable via onboard switch (factory default 4000K)
  • Lens & Optics: Polycarbonate lens for uniform, glare-free architectural illumination
  • Dimming: 0–10V continuous dimming standard down to 10%
  • Voltage: Universal 120–277V AC, 50/60Hz constant current Class 2 driver
  • Location & Ceiling Rating: UL Listed for damp locations; IC-Rated for direct contact with ceiling insulation
  • Operating Temperature: -4°F (-20°C) to 104°F (40°C) ambient range
  • Certifications: DLC 5.1 Premium Listed, UL Listed, IC-Rated, RoHS Compliant
  • Rated Life: 100,000 hours (L70) per IES LM-80 results and TM-21 calculations
  • Warranty: 5-year limited warranty covering light output, driver performance, paint finish, and labor — RAB
  • Form Factor & Design: Ultra-shallow 1.5" height retrofits into existing 2x2 troffer housings; compatible with ventilated air-return mounting frames (RTAH2)

Performance & Light Output

At 30W (Replaces up to (2) F32T8, (4) F17T8, or (4) F14T5): 3,583 lm (3,584 lm web / 3500K / 125.7 lm/W / 84 CRI / 28.5W input), 3,814 lm (4000K / 138.1 lm/W / 85 CRI / 27.6W input), 3,635 lm (5000K / 127.2 lm/W / 85 CRI / 28.6W input).

At 25W (Replaces up to (2) F32T8, (4) F17T8, or (3) F14T5): 3,193 lm (3500K / 127.2 lm/W / 84–85 CRI / 25.1W input), 3,357 lm (4000K / 138.1 lm/W / 84–85 CRI / 24.1W input), 3,257 lm (5000K / 129.8 lm/W / 84–85 CRI / 25.1W input).

At 18W (Replaces up to (1) F32T8, (2) F17T8, or (2) F14T5): 2,293 lm (3500K / 129.5 lm/W / 84–85 CRI / 17.7W input), 2,343 lm (4000K / 137.6 lm/W / 84–85 CRI / 17.0W input), 2,311 lm (5000K / 130.6 lm/W / 84–85 CRI / 17.7W input).

CRI 84–85 across all configurations. Rated life 100,000 hours (L70) per IES LM-80 and TM-21 calculations.

Smart & Control Features

The RTLED2X2 includes factory-wired 0–10V dimming control leads for smooth continuous dimming down to 10% on a separate 0–10V DC dimming circuit. Within the RTLED family, factory-configured models with integrated Passive Infrared (PIR) or Microwave (/MVS) occupancy sensors (13 ft max mounting height, 18 ft to 44 ft detection diameter at 13 ft) and RAB Lightcloud Blue (/LCB, /LCBS, /LCBS/MVS; controller LCBAUX/[W/B]) Bluetooth Mesh wireless network lighting controls are available, along with the optional MSR1 commissioning remote — sold separately.

Electrical

Powered by a Class 2 constant current driver operating on universal 120–277V AC at 50/60Hz. Delivers high electrical efficiency with a Power Factor of 99.7% at 120V (96.4% at 277V) and Total Harmonic Distortion (THD) of 3.41% at 120V (4.37% at 277V) at factory default settings. Integrated 2.5kV surge protection safeguards internal electronics against transient voltage spikes. Includes pre-wired 0–10V dimming leads.

Emergency Battery Backup Options: Factory-configured emergency battery backup models (RTLED2X2/E) operate the LED luminaire for 90 minutes during a power outage on 120–277V circuits (32°F / 0°C to 104°F / 40°C ambient range) with a Battery Backup Light Loss Factor (LLF) of 0.32 (delivering ~1,220 emergency lumens at 30W, ~1,074 lm at 25W, and ~750 lm at 18W).

Operating current and amp draw across input voltages for branch circuit and breaker loading calculations:

Wattage 120V Current (A) 208V Current (A) 240V Current (A) 277V Current (A)
30W 0.25A 0.15A 0.13A 0.12A
25W 0.21A 0.12A 0.10A 0.10A
18W 0.15A 0.09A 0.08A 0.07A

Construction

Housing & Build: Durable steel sheet metal housing engineered to retrofit into existing ceiling troffer housings.

Location & Environmental Rating: UL Listed for indoor damp locations and IC-Rated for direct contact with building insulation. Mercury and UV free with RoHS-compliant components.

Operating Temperature: Minimum starting temperature of -4°F (-20°C) (32°F / 0°C for /E battery models); operating ambient temperature range of -4°F (-20°C) to 104°F (40°C).

Lens & Optics: Polycarbonate lens engineered for smooth, even architectural light distribution.

Finish: High-durability white finish formulated for long-lasting color stability.

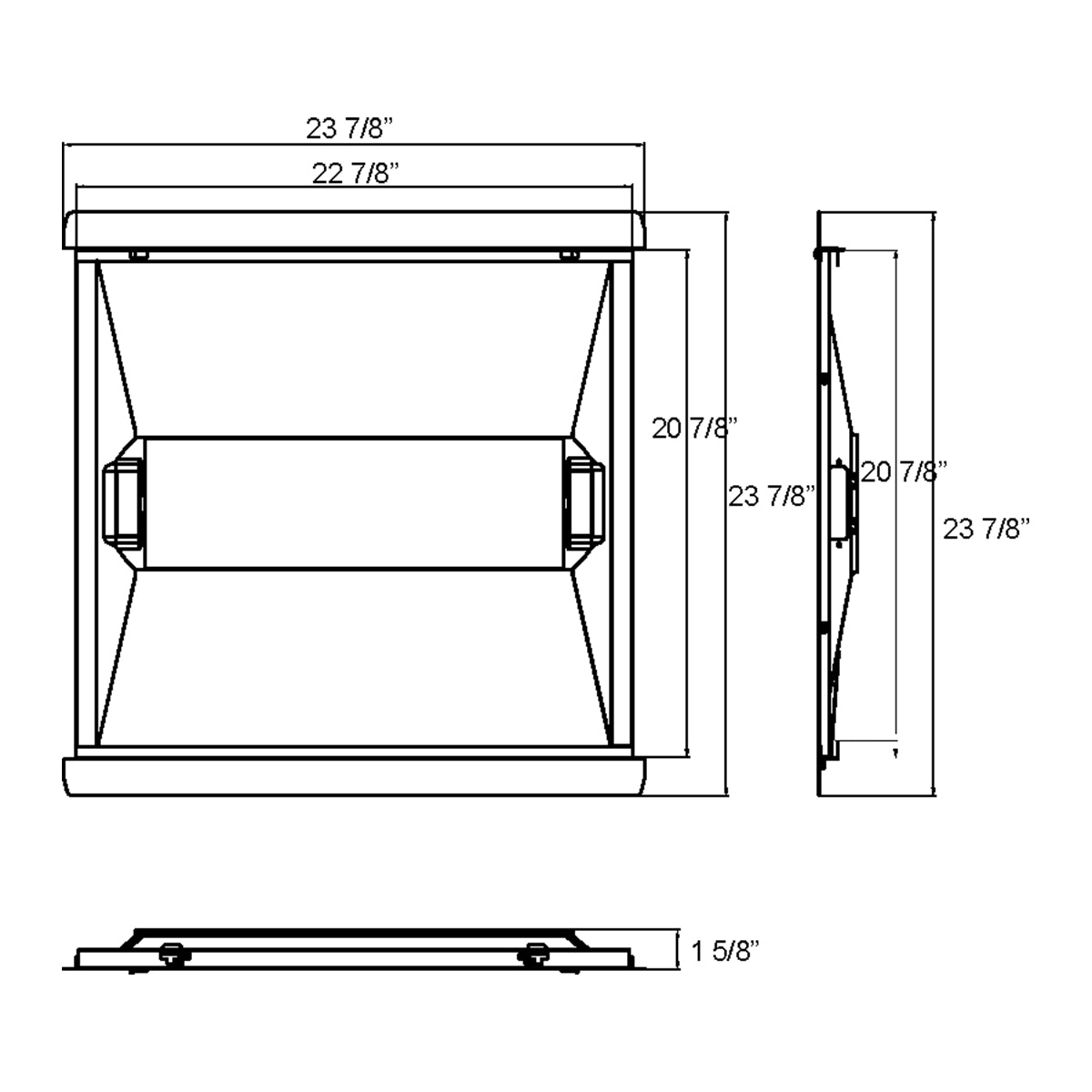

Dimensions & Weight: 24.00" L × 24.00" W × 1.50" H (24" × 24" × 1 1/2"). Fixture weight: 7.3 lbs.

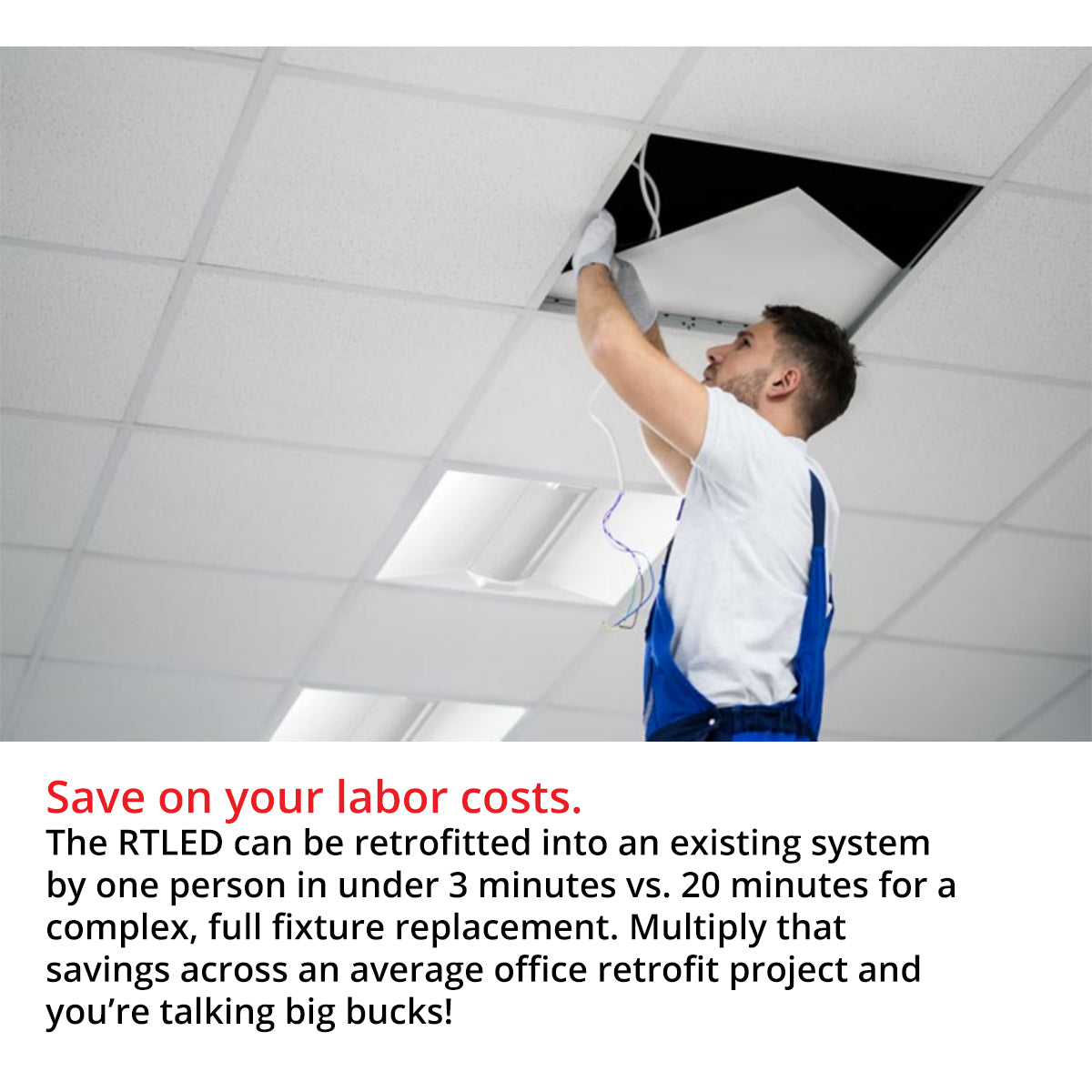

Installation & Mounting

Standard Mounting: Retrofits directly into existing 2x2 recessed ceiling troffer housings with an ultra-shallow 1.5-inch profile.

Ventilated Air-Return Mounting: Compatible with optional ventilated air-return mounting frames that reduce the number of required ceiling vents for a cleaner ceiling appearance.

Accessories (Sold Separately):

  • Ventilated Air-Return Frame: RTAH2 (RTLED2X2 Frame White Air Hole, 2 pcs 2ft, UPC: 192552018364 — sold separately)
  • Sensors & Controls: MSR1 (Multi Sensor Remote Control IP20, UPC: 192552026055 — required to adjust settings on non-LCB sensor models, sold separately)

Certifications & Rebates

  • DLC 5.1 Premium Listed: Qualifies for the highest tier of utility rebate incentives across regional commercial energy programs. To confirm rebate eligibility with your local utility provider, visit designlights.org and search DLC Product ID S-R1IK8K.
  • UL Listed: Certified for indoor damp locations per UL standards.
  • IC-Rated: Approved for direct contact with ceiling insulation.
  • RoHS Compliant: Mercury and UV free with RoHS-compliant components.

Typical Applications

  • Commercial Offices & Conference Rooms — High-efficacy up to 138.1 lm/W output and polycarbonate lens deliver low-glare desktop illumination.
  • Schools, Universities & Classrooms — Field-adjustable 30W/25W/18W power and 3500K/4000K/5000K CCT adapt light levels to classroom layouts.
  • Healthcare & Medical Facilities — Optional ventilated air-return mounting frames reduce ceiling vent clutter for a clean architectural appearance.
  • Retail & Institutional Corridors — 100,000-hour L70 lifespan and 5-year warranty with labor coverage minimize maintenance expenses.
  • Shallow-Plenum T-Grid Retrofits — Ultra-slim 1.5-inch depth and IC-Rated housing fit restricted ceiling plenums and insulated drop ceilings.

What's Included

  • RAB RTLED2X2 Field-Adjustable 2x2 LED Retrofit Troffer — White
  • Installation instructions

Specifications

Dimensions

Length/Depth
24 in
Width/Diameter
24 in
Height
1.5 in
Weight
7.3 lb

Style & Materials

Material
Steel

Characteristics & Features

Lamp Source
led
Lamp Color
3500K, 4000K, 5000K, Selectable CCT
Color Rendering
85 CRI
Delivered Lumens
3800
Dimmable
Yes

Electrical Information

Voltage
120-277V
Total Wattage
30W

Item Details

MPN
RTLED2X2
Brand
RAB Lighting
Family
RTLED Field-Adjustable Troffer
UPC
192552029537

Warranty & Certifications

Product Warranty
5 Years
Lamp Life
100,000 Hours
Product Rating
Damp Rated

Shipping & Returns

Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.

Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.

See Full Shipping Policy | See Full Return Policy

Frequently Asked Questions

How do you adjust the wattage, lumen output, and color temperature on the RAB RTLED2X2?

The RAB RTLED2X2 features integrated onboard selector switches for field customization during installation. Installers can switch between 30W (up to 3,814 lumens), 25W (up to 3,357 lumens), and 18W (up to 2,343 lumens) (factory default 30W) with 84–85 CRI, and toggle between 3500K, 4000K, and 5000K color temperatures (factory default 4000K).

Is the RAB RTLED2X2 dimmable, and what input voltage does it require?

Yes, the RAB RTLED2X2 includes a Class 2 constant current driver pre-wired for smooth 0–10V continuous dimming down to 10% via a separate 0–10V DC dimming circuit. It operates on universal 120–277V AC (50/60Hz) electrical systems, drawing 0.25A at 120V and 0.12A at 277V (at 30W) with 2.5kV surge protection.

Is the RAB RTLED2X2 IC-rated for insulated ceilings and approved for damp locations?

Yes, the RAB RTLED2X2 is IC-Rated for direct contact with building insulation and is UL Listed for indoor damp locations. It is engineered for reliable commercial operation across ambient temperatures from -4°F (-20°C) to 104°F (40°C) with mercury-free and RoHS-compliant components.

How is the RAB RTLED2X2 mounted into existing troffers, and does it support air-return ceilings?

The RAB RTLED2X2 features an ultra-shallow 1.5-inch (1 1/2") steel housing that retrofits directly into existing 2x2 recessed ceiling troffer housings. For ceilings requiring HVAC air return, the 2-piece white ventilated air-return mounting frame (RTAH2) is sold separately to reduce required ceiling vents.

What is the rated lifespan, warranty, and DLC rebate status of the RAB RTLED2X2?

The RAB RTLED2X2 is rated for a 100,000-hour L70 LED lifespan and is backed by RAB's 5-year limited warranty covering light output, driver performance, paint finish, and labor. It is DLC 5.1 Premium Listed under DLC Product ID S-R1IK8K when replacing up to (2) F32T8, (4) F17T8, or (4) F14T5 linear fluorescent troffers.
