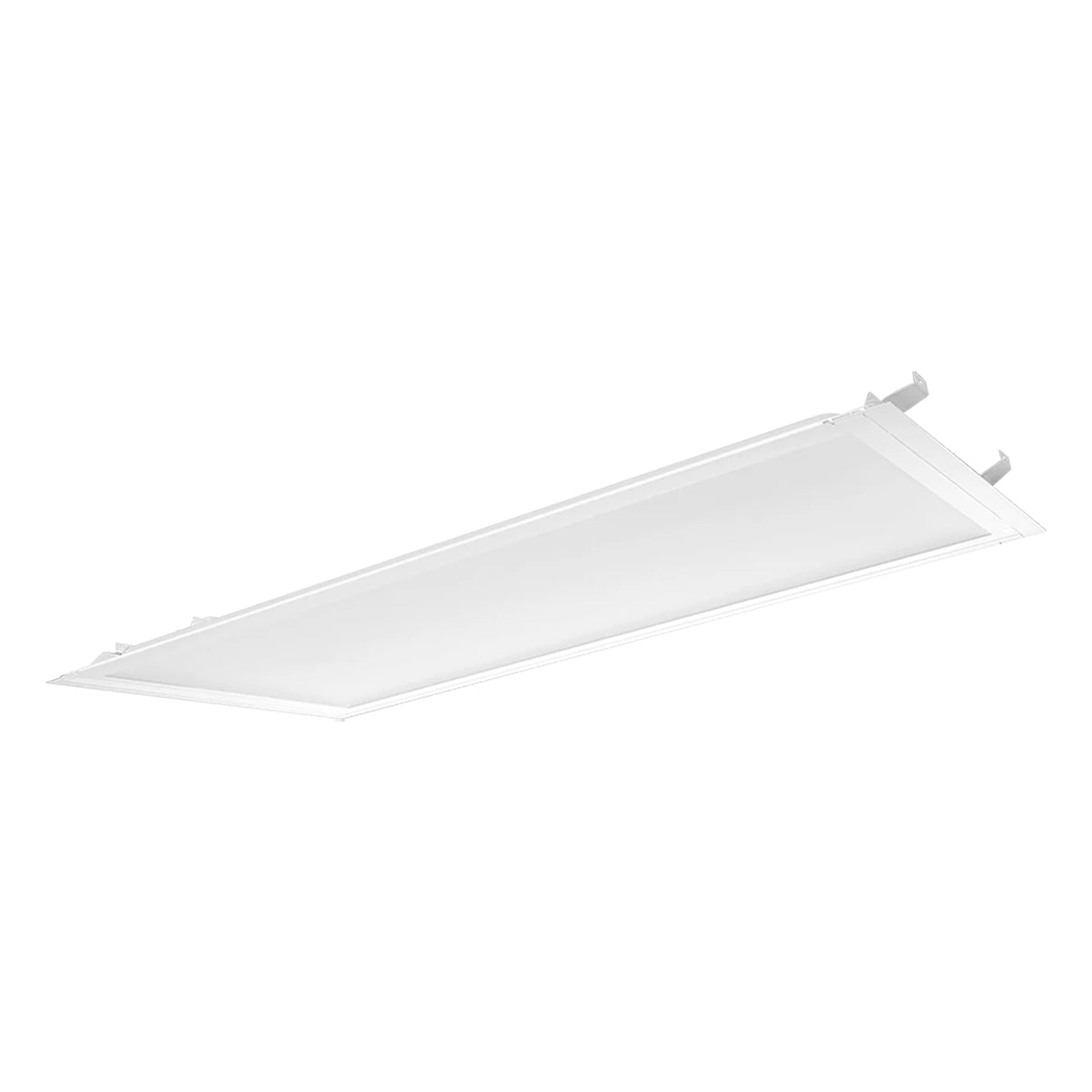

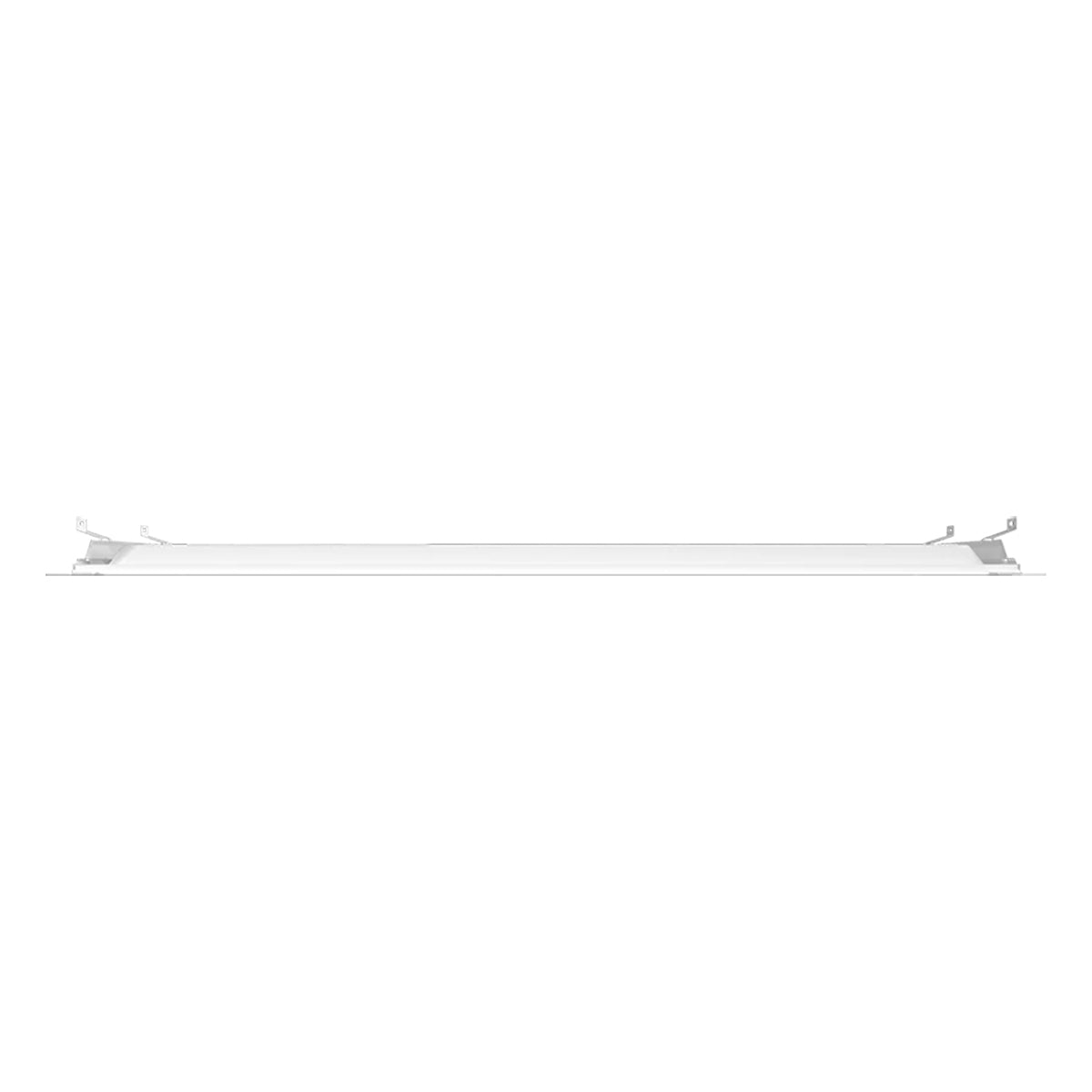

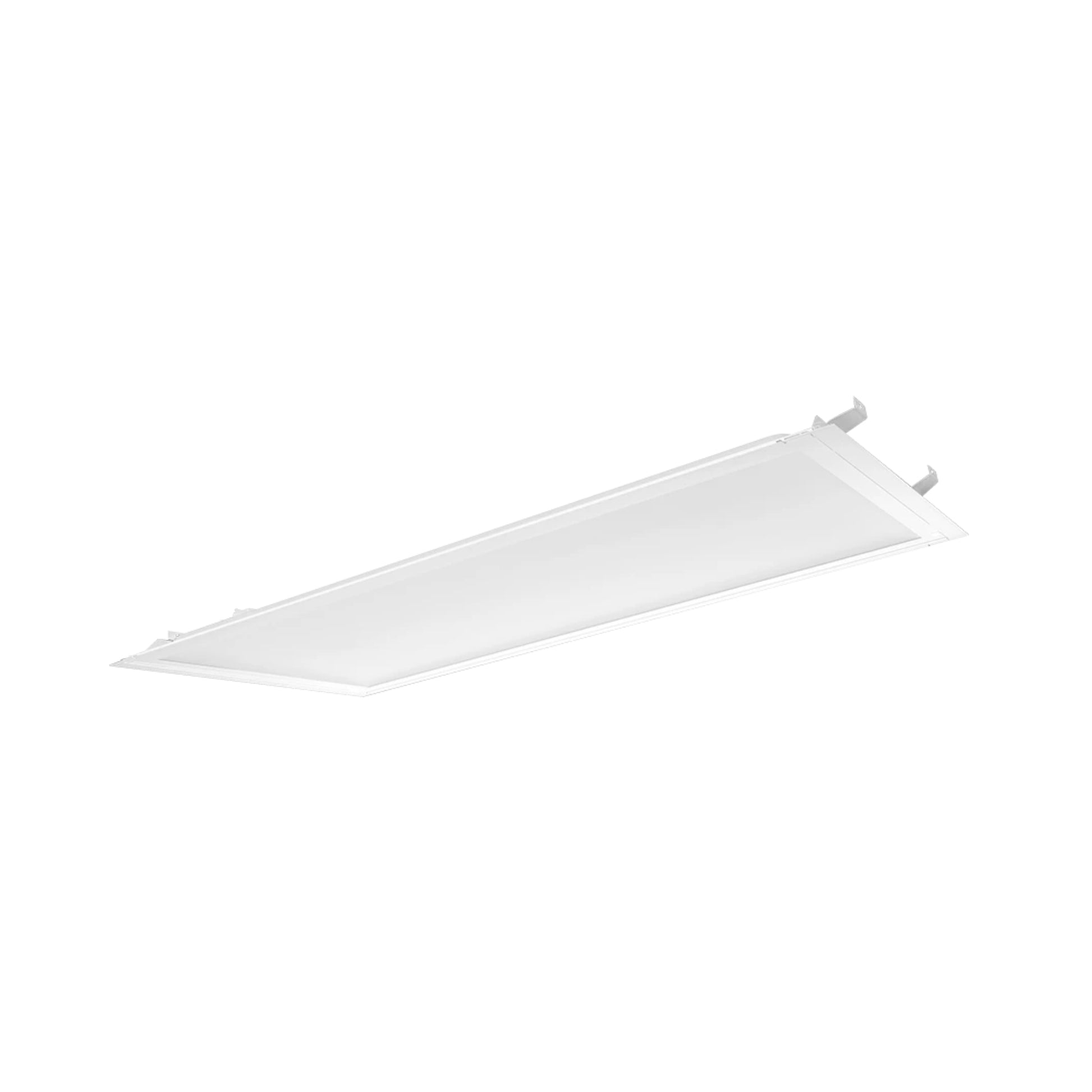

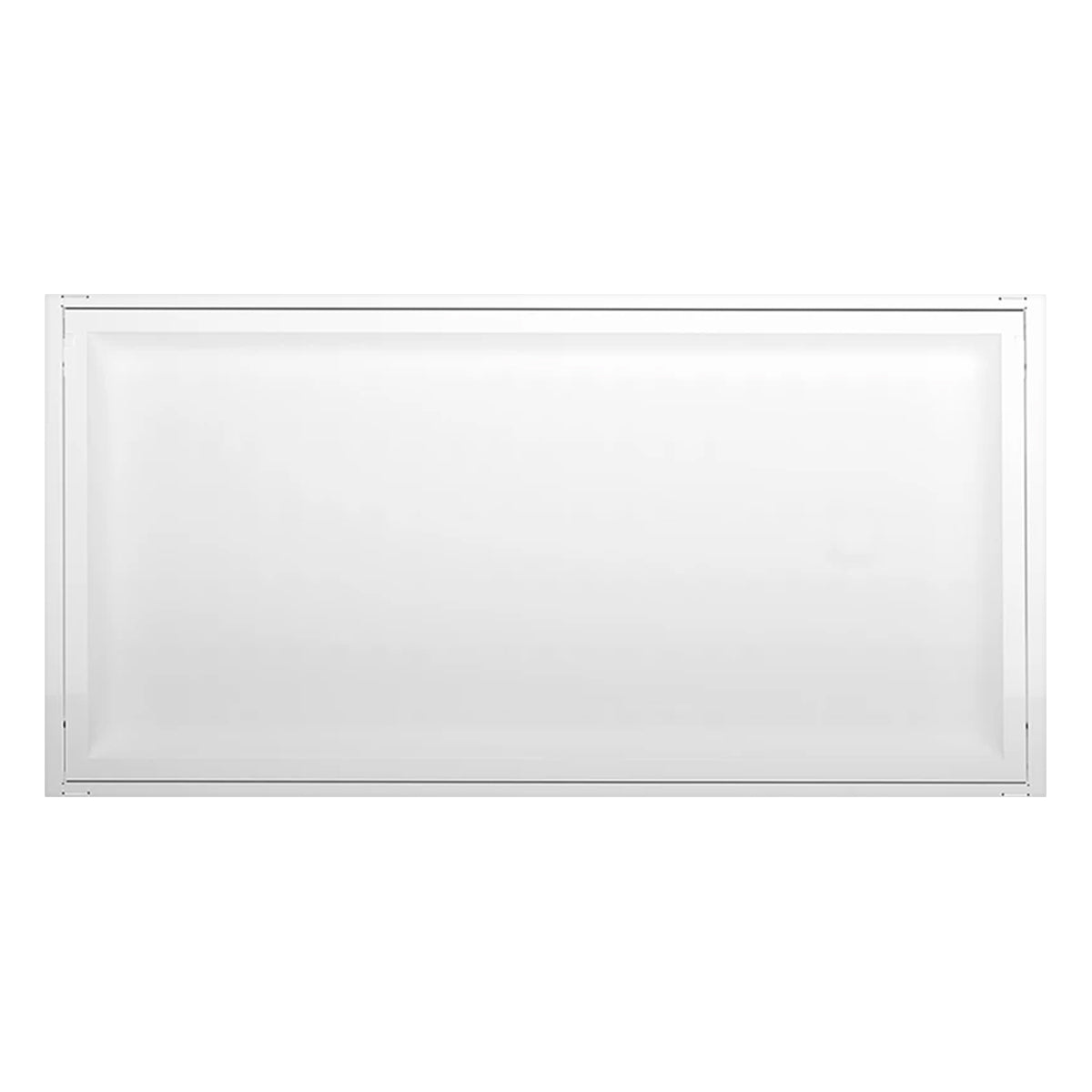

RAB RPLED2X4 Field-Adjustable 2x4 LED Retrofit Panel — 35W/30W/25W Selectable — 3500K/4000K/5000K — Battery Backup — White

The RAB RPLED2X4/E is a commercial 2x4 Field-Adjustable LED Retrofit Panel with a factory-installed emergency battery backup, engineered to deliver up to 4,749 lumens with field-adjustable 35W/30W/25W power settings and switchable 3500K/4000K/5000K color temperatures. Operating on universal 120–277V electrical systems with 0–10V continuous dimming, this luminaire provides an energy-efficient retrofit replacement for legacy 3-lamp or 2-lamp F32T8 and 2-lamp or 1-lamp F28T5 linear fluorescent fixtures. Built with a UL Listed damp location and IC-Rated construction, it is qualified for maximum commercial utility rebates under DLC 5.1 Premium standards, complies with the Trade Agreements Act (TAA), and features a galvanized steel housing with an aluminum frame and frosted polystyrene lens.

Key Features

  • Selectable Wattage: 35W / 30W / 25W — field-adjustable via onboard switch (factory default 35W)
  • Wattage Equivalency: 35W replaces up to (3) F32T8 or (2) F28T5; 30W replaces up to (2) F32T8 or (2) F28T5; 25W replaces up to (2) F32T8 or (1) F28T5
  • Maximum Lumen Output: 4,749 lm at 35W (4000K)
  • Peak Efficacy: 148.4 lm/W for ultra-efficient commercial operation
  • CRI: 83–85 CRI color rendering across all settings
  • Color Consistency: 7-step MacAdam Ellipse binning following ANSI C78.377-2017 standards
  • Selectable CCT: 3500K / 4000K / 5000K — field-adjustable via onboard switch (factory default 4000K)
  • Lens & Optics: Frosted Polystyrene (PS) lens for uniform, glare-free distribution
  • Dimming: 0–10V continuous dimming standard
  • Voltage: Universal 120–277V AC, 50/60Hz constant current Class 2, Class P driver
  • Location & Ceiling Rating: UL Listed for damp locations; IC-Rated for direct contact with ceiling insulation
  • Operating Temperature: 41°F (5°C) to 122°F (50°C) ambient range for emergency battery operation (-4°F / -20°C to 104°F / 40°C standard panel rating)
  • Certifications: DLC 5.1 Premium Listed, UL Listed, IC-Rated, IESNA LM-79 & LM-80 Tested, TAA Compliant, RoHS Compliant
  • Rated Life: 100,000 hours (L70) per IES LM-80 results and TM-21 calculations
  • Warranty: 5-year limited warranty covering light output, driver performance, and paint finish — RAB
  • Form Factor & Design: Galvanized sheet housing with aluminum frame and two secured steel mounting clips; compatible with ventilated air-return mounting frames (RPAH4)
  • Emergency Backup: Factory-installed emergency battery backup with 12% (0.12) Emergency Light Loss Factor (delivering ~570 emergency lumens at 35W, ~515 lm at 30W, and ~437 lm at 25W)

Performance & Light Output

At 35W (Replaces up to (3) F32T8 or (2) F28T5): 4,554 lm (3500K / 134.7 lm/W / 83 CRI / 33.8W input), 4,749 lm (4000K / 144.8 lm/W / 85 CRI / 32.8W input), 4,689 lm (5000K / 139.6 lm/W / 84 CRI / 33.6W input).

At 30W (Replaces up to (2) F32T8 or (2) F28T5): 4,155 lm (3500K / 137.6 lm/W / 84 CRI / 30.2W input), 4,291 lm (4000K / 147.5 lm/W / 85 CRI / 29.1W input), 4,274 lm (5000K / 142.5 lm/W / 84 CRI / 30.0W input).

At 25W (Replaces up to (2) F32T8 or (1) F28T5): 3,543 lm (3500K / 139.5 lm/W / 84 CRI / 25.4W input), 3,643 lm (4000K / 148.4 lm/W / 85 CRI / 24.6W input), 3,646 lm (5000K / 144.1 lm/W / 84 CRI / 25.3W input).

CRI 83–85 across all configurations. Rated life 100,000 hours (L70) per IES LM-80 results and TM-21 calculations.

Smart & Control Features

The RPLED2X4/E includes factory-wired 0–10V dimming control leads for smooth continuous dimming on a separate 0–10V DC dimming circuit. Within the RPLED family, factory-configured models with integrated Passive Infrared (PIR) or Microwave (/MVS) occupancy sensors (13 ft max mounting height, 18 ft to 44 ft detection diameter at 13 ft) and RAB Lightcloud Blue (/LCB, /LCBS, /LCBS/MVS; controller LCBAUX/[W/B]) Bluetooth Mesh wireless network lighting controls are available, along with the optional MSR1 commissioning remote — sold separately.

Electrical

Powered by a Class 2, Class P constant current driver operating on universal 120–277V AC at 50/60Hz. Delivers high electrical efficiency with a Power Factor of 99.5% at 120V (98.3% at 277V) and Total Harmonic Distortion (THD) of 8.42% at 120V (8.39% at 277V). Includes pre-wired 0–10V dimming leads.

Emergency Battery Backup: Includes a factory-installed emergency battery backup system for standby egress illumination during a primary power outage. Emergency Light Loss Factor (LLF) for RPLED2X4/E is 12% / 0.12 (delivering ~570 emergency lumens at 35W, ~515 lm at 30W, and ~437 lm at 25W based on 4000K nominal lumen ratings). Rated for emergency battery operation in ambient temperatures from 41°F (5°C) to 122°F (50°C).

Operating current and amp draw across input voltages for branch circuit and breaker loading calculations:

Wattage 120V Current (A) 208V Current (A) 240V Current (A) 277V Current (A)
35W 0.28A 0.17A 0.15A 0.12A
30W 0.25A 0.15A 0.13A 0.11A
25W 0.21A 0.12A 0.11A 0.10A

Construction

Housing & Build: Galvanized sheet metal housing paired with a durable aluminum frame and two factory-secured steel clips for mounting bracket retention.

Location & Environmental Rating: UL Listed for indoor damp locations and IC-Rated for direct contact with building insulation. Mercury and UV free with RoHS-compliant components.

Operating Temperature: Minimum starting temperature of 41°F (5°C) for emergency battery operation (-4°F / -20°C standard panel rating); operating ambient temperature range of 41°F (5°C) to 122°F (50°C) (up to 104°F / 40°C standard panel rating).

Lens & Optics: Frosted Polystyrene (PS) diffuser engineered for smooth, glare-free architectural illumination.

Finish: High-durability white finish formulated for long-lasting color stability.

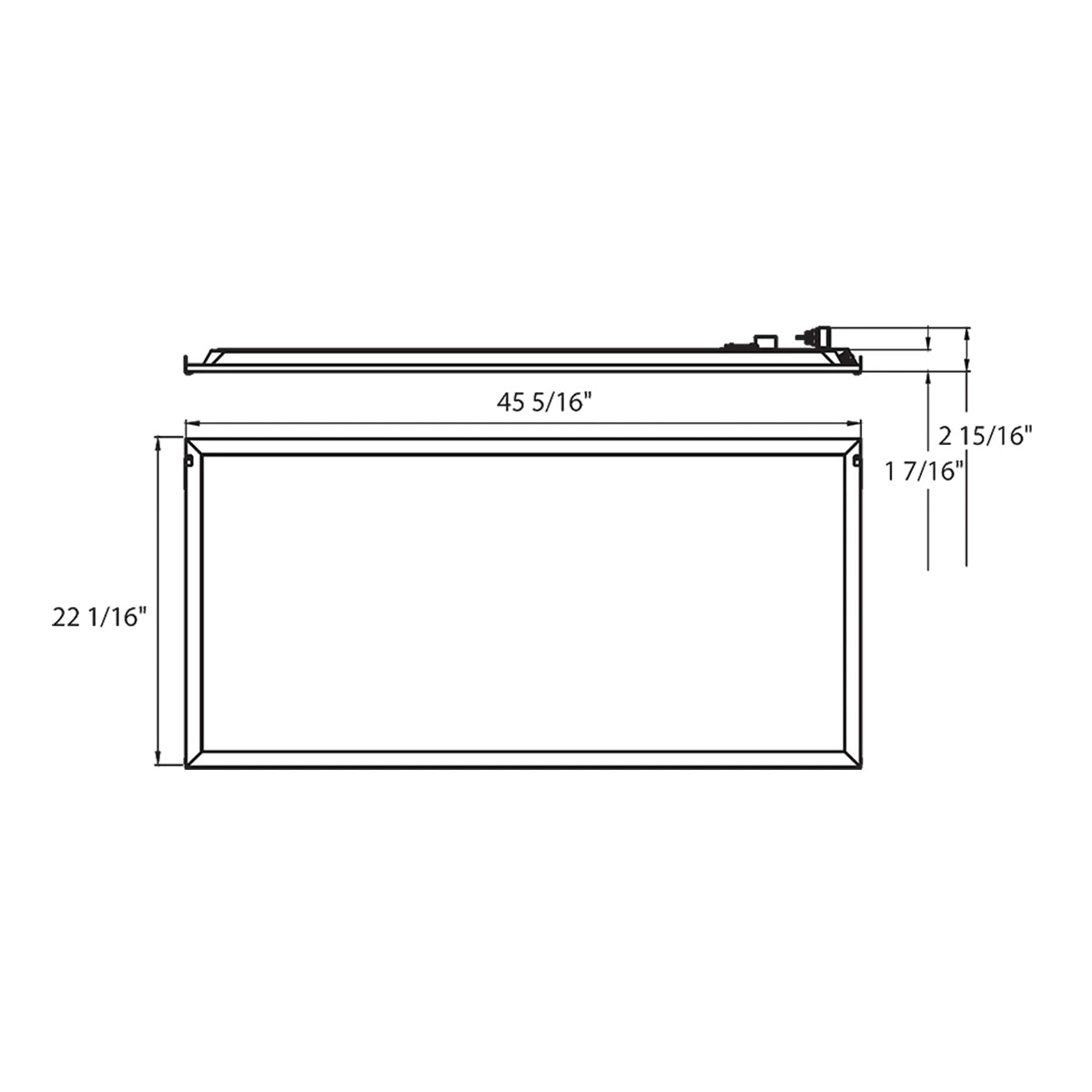

Dimensions & Weight: 45.31" L × 22.06" W × 1.44" H (45 5/16" × 22 1/16" × 1 7/16"; 2.94" / 2 15/16" overall depth with driver box). Base fixture weight: 6.4 lbs.

Installation & Mounting

Standard Mounting: Retrofits existing 2x4 ceiling housings using two mounting brackets, two optional decorative bars, and two steel clips secured to the housing.

Ventilated Air-Return Mounting: Compatible with optional ventilated air-return mounting frames (sold separately) to reduce the number of required ceiling vents for a cleaner ceiling appearance.

Accessories (Sold Separately):

  • Ventilated Air-Return Frame: RPAH4 (RPLED1X4 & 2X4 Frame White Air Hole, 2 pcs 4ft, UPC: 192552052313 — sold separately)
  • Sensors & Controls: MSR1 (Multi-Sensor Remote Control IP20, UPC: 192552026055 — required to adjust settings on non-LCB sensor models, sold separately)

Certifications & Rebates

  • DLC 5.1 Premium Listed: Qualifies for the highest tier of utility rebate incentives across regional commercial energy programs. To confirm rebate eligibility with your local utility provider, visit designlights.org and search DLC Product ID S-CSN5NZ.
  • UL Listed: Certified for indoor damp locations per UL standards.
  • IC-Rated: Approved for direct contact with building insulation.
  • TAA Compliant: Product of Cambodia and a designated-country end product that complies with the Trade Agreements Act (TAA) for federal, municipal, and GSA schedule procurement.
  • IESNA LM-79 & LM-80 Tested: Luminaire and LED components tested by an independent laboratory per IESNA LM-79 and LM-80 standards.
  • RoHS Compliant: Mercury and UV free with RoHS-compliant components.

Typical Applications

  • Egress Corridors & Commercial Pathways — Factory-installed emergency battery backup provides standby illumination during power outages.
  • Federal, Military & Municipal Buildings — Trade Agreements Act (TAA) compliance and DLC 5.1 Premium qualification satisfy government procurement mandates.
  • Schools, Universities & Classrooms — Field-adjustable 35W/30W/25W power and 3500K/4000K/5000K CCT customize light levels for educational spaces.
  • Healthcare & Medical Clinics — Optional ventilated air-return frames reduce ceiling vent clutter for a clean architectural ceiling grid.
  • Insulated T-Grid Ceiling Retrofits — IC-Rated housing, steel retention clips, and mounting brackets streamline 2x4 fluorescent troffer upgrades.

What's Included

  • RAB RPLED2X4/E Field-Adjustable 2x4 LED Retrofit Panel with Factory-Installed Emergency Battery Backup — White
  • Two mounting brackets, two optional decorative bars, and two secured steel housing clips
  • Installation instructions

Specifications

Dimensions

Length/Depth
45.31 in
Width/Diameter
22.06 in
Height
2.94 in
Weight
8.9 lb

Style & Materials

Material
Aluminum

Characteristics & Features

Lamp Source
led
Lamp Color
3500K, 4000K, 5000K, Selectable CCT
Color Rendering
85 CRI
Delivered Lumens
4750
Dimmable
Yes

Electrical Information

Voltage
120-277V
Total Wattage
35W

Item Details

MPN
RPLED2X4/E
Brand
RAB Lighting
Family
RPLED Field-Adjustable Retrofit Panels
UPC
192552037952

Warranty & Certifications

Product Warranty
5 Years
Lamp Life
100,000 Hours
Product Rating
Damp Rated

Shipping & Returns

Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.

Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.

See Full Shipping Policy | See Full Return Policy

Frequently Asked Questions

How do you adjust the wattage, lumen output, and color temperature on the RAB RPLED2X4/E?

The RAB RPLED2X4/E includes onboard selector switches for field customization during installation. Installers can switch between 35W (up to 4,749 lumens), 30W (up to 4,291 lumens), and 25W (up to 3,646 lumens) (factory default 35W) with 83–85 CRI, and toggle between 3500K, 4000K, and 5000K color temperatures (factory default 4000K).

Is the RAB RPLED2X4/E dimmable, and what input voltage does it require?

Yes, the RAB RPLED2X4/E includes a Class 2, Class P constant current driver pre-wired for smooth 0–10V continuous dimming on a separate 0–10V DC dimming circuit. It operates on universal 120–277V AC (50/60Hz) electrical systems, drawing 0.28A at 120V and 0.12A at 277V (at 35W) with a Power Factor of 99.5% at 120V (98.3% at 277V).

Is the RAB RPLED2X4/E IC-rated for insulated ceilings and approved for damp locations?

Yes, the RAB RPLED2X4/E is IC-Rated for direct contact with ceiling insulation and is UL Listed for indoor damp locations. With the factory-installed emergency battery backup, it is rated for ambient operating temperatures from 41°F (5°C) to 122°F (50°C) (-4°F to 104°F standard panel rating).

What emergency battery backup and retrofit mounting features are included with the RAB RPLED2X4/E?

The RAB RPLED2X4/E includes a factory-installed emergency battery backup with a 12% (0.12) Light Loss Factor, delivering approximately 437 to 570 emergency lumens across wattage settings during power outages. It retrofits existing 2x4 troffer housings using two included mounting brackets, two decorative bars, and two steel clips, while the ventilated air-return frame (RPAH4) is sold separately.

What is the rated lifespan, warranty, and DLC rebate status of the RAB RPLED2X4/E?

The RAB RPLED2X4/E is rated for a 100,000-hour L70 LED lifespan, is Trade Agreements Act (TAA) compliant, and is backed by RAB's 5-year limited warranty. It is DLC 5.1 Premium Listed under DLC ID S-CSN5NZ when replacing up to (3) F32T8 or (2) F28T5 linear fluorescent troffers.
