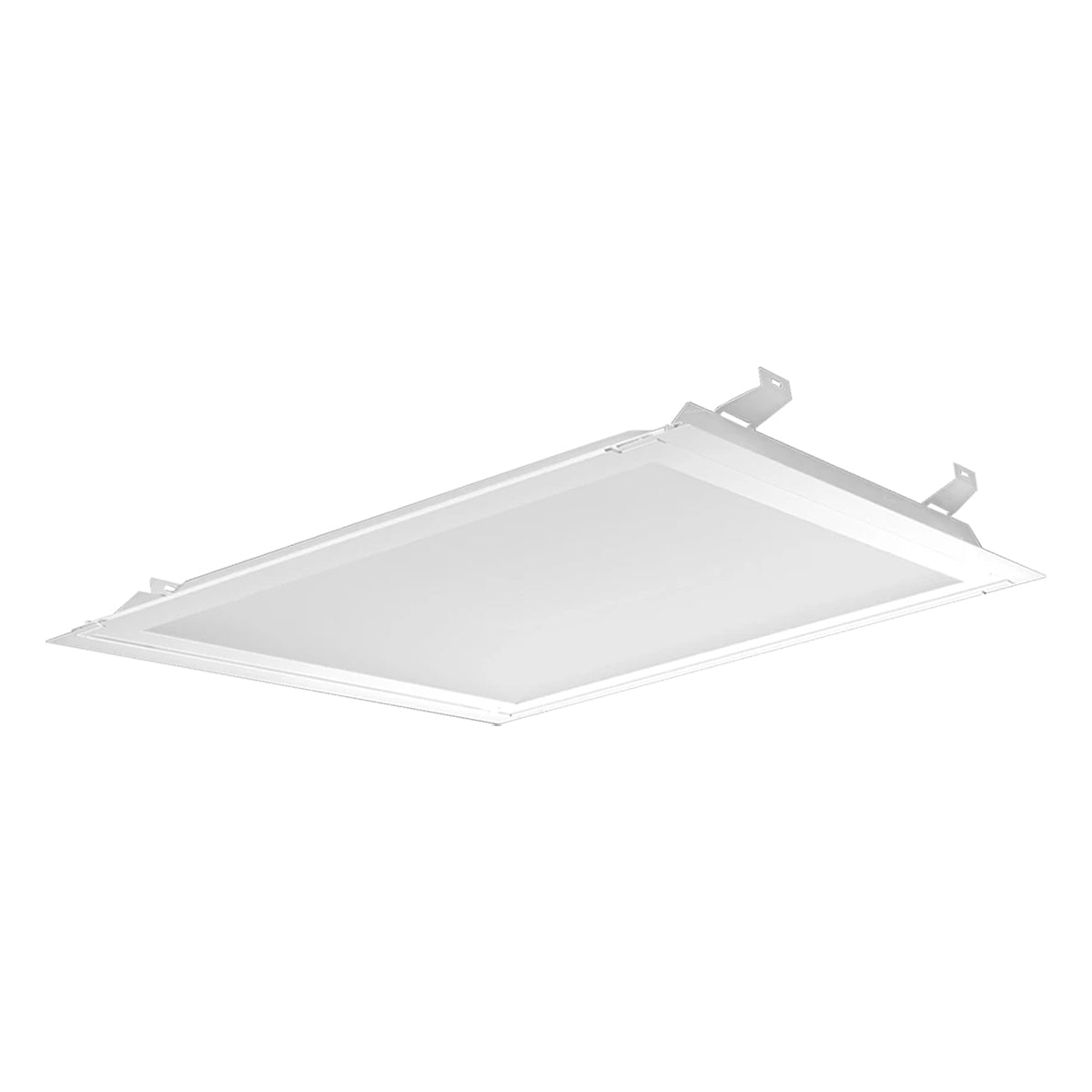

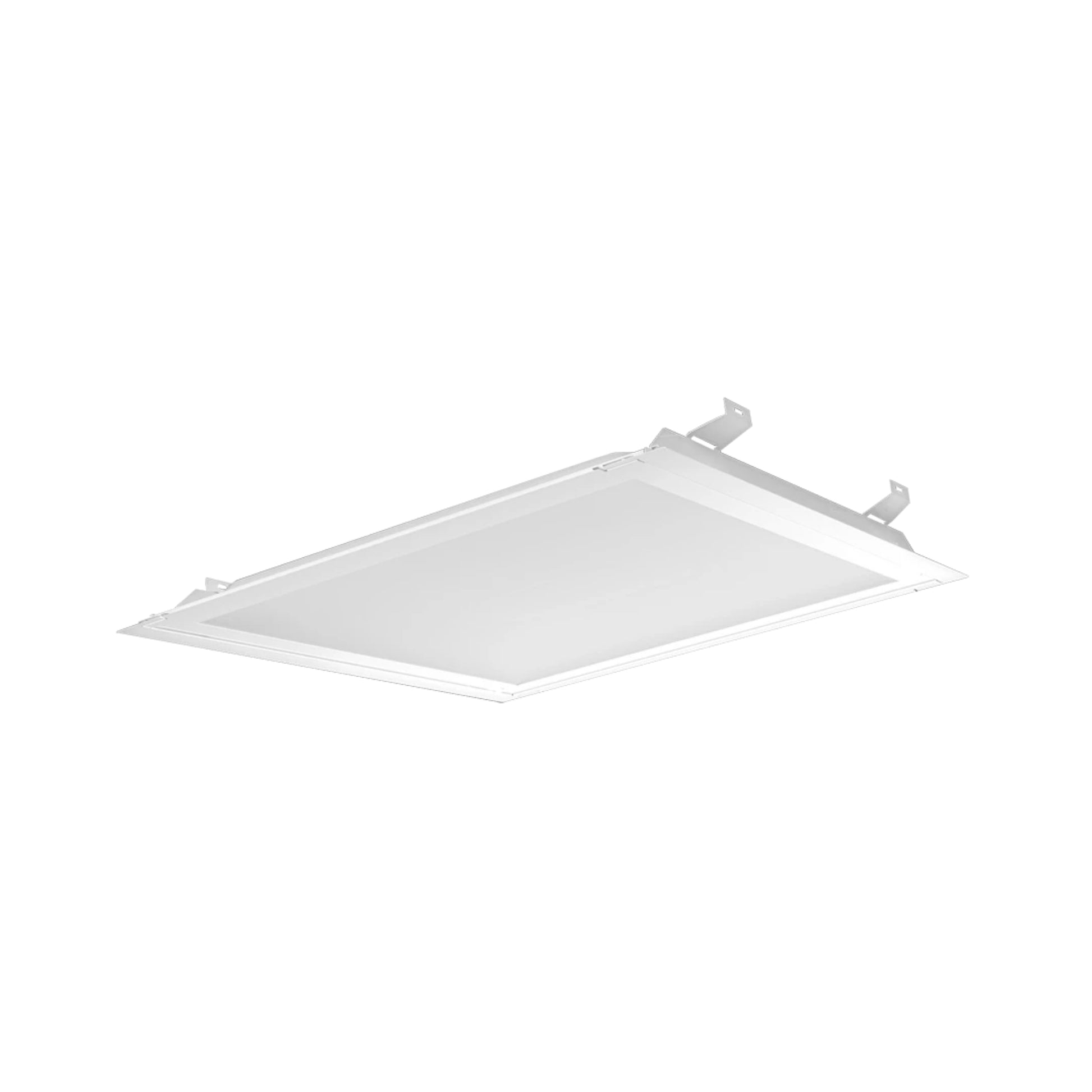

RAB RPLED2X2 Field-Adjustable 2x2 LED Retrofit Panel — 30W/25W/18W Selectable — 3500K/4000K/5000K — White

The RAB RPLED2X2 is a commercial 2x2 Field-Adjustable LED Retrofit Panel engineered to deliver up to 3,862 lumens with field-adjustable 30W/25W/18W power settings and switchable 3500K/4000K/5000K color temperatures. Operating on universal 120–277V electrical systems with 0–10V continuous dimming, this luminaire provides an energy-efficient retrofit replacement for legacy 2-lamp F32T8, 4-lamp F17T8, or 4-lamp F14T5 linear fluorescent fixtures. Built with a UL Listed damp location and IC-Rated construction, it is qualified for maximum commercial utility rebates under DLC 5.1 Premium standards, complies with the Trade Agreements Act (TAA), and features a galvanized steel housing with an aluminum frame and frosted polystyrene lens.

Key Features

  • Selectable Wattage: 30W / 25W / 18W — field-adjustable via onboard switch (factory default 30W)
  • Wattage Equivalency: 30W replaces up to (2) F32T8, (4) F17T8, or (4) F14T5; 25W replaces up to (2) F32T8, (4) F17T8, or (3) F14T5; 18W replaces up to (1) F32T8, (2) F17T8, or (2) F14T5
  • Maximum Lumen Output: 3,862 lm at 30W (4000K)
  • Peak Efficacy: 140.6 lm/W for ultra-efficient commercial operation
  • CRI: 83–85 CRI color rendering across all settings
  • Color Consistency: 7-step MacAdam Ellipse binning following ANSI C78.377-2017 standards
  • Selectable CCT: 3500K / 4000K / 5000K — field-adjustable via onboard switch (factory default 4000K)
  • Lens & Optics: Frosted Polystyrene (PS) lens for uniform, glare-free distribution
  • Dimming: 0–10V continuous dimming standard (separate 0–10V circuit not required on Lightcloud Blue models)
  • Voltage: Universal 120–277V AC, 50/60Hz constant current Class 2, Class P driver
  • Location & Ceiling Rating: UL Listed for damp locations; IC-Rated for direct contact with ceiling insulation
  • Operating Temperature: -4°F (-20°C) to 104°F (40°C) ambient range
  • Certifications: DLC 5.1 Premium Listed, UL Listed, IC-Rated, IESNA LM-79 & LM-80 Tested, TAA Compliant, RoHS Compliant
  • Rated Life: 100,000 hours (L70) per IES LM-80 results and TM-21 calculations
  • Warranty: 5-year limited warranty covering light output, driver performance, and paint finish — RAB
  • Form Factor & Design: Galvanized sheet housing with aluminum frame and two secured steel mounting clips; compatible with ventilated air-return mounting frames (RPAH2)

Performance & Light Output

At 30W (Replaces up to (2) F32T8, (4) F17T8, or (4) F14T5): 3,697 lm (3500K / 127.0 lm/W / 83 CRI / 29.1W input), 3,862 lm (4000K / 138.4 lm/W / 85 CRI / 27.9W input), 3,798 lm (5000K / 131.0 lm/W / 84 CRI / 29.0W input).

At 25W (Replaces up to (2) F32T8, (4) F17T8, or (3) F14T5): 3,303 lm (3500K / 130.6 lm/W / 83 CRI / 25.3W input), 3,431 lm (4000K / 140.6 lm/W / 85 CRI / 24.4W [printed 34.4W] input), 3,395 lm (5000K / 134.7 lm/W / 84 CRI / 25.2W input).

At 18W (Replaces up to (1) F32T8, (2) F17T8, or (2) F14T5): 2,505 lm (3500K / 131.8 lm/W / 84 CRI / 19.0W input), 2,578 lm (4000K / 140.1 lm/W / 85 CRI / 18.4W input), 2,571 lm (5000K / 136.0 lm/W / 84 CRI / 18.9W input).

CRI 83–85 across all configurations. Rated life 100,000 hours (L70) per IES LM-80 results and TM-21 calculations.

Smart & Control Features

The RPLED2X2 includes factory-wired 0–10V dimming control leads for smooth continuous dimming on a separate 0–10V DC dimming circuit. Within the RPLED family, factory-configured models with integrated Passive Infrared (PIR) or Microwave (/MVS) occupancy sensors (13 ft max mounting height, 18 ft to 44 ft detection diameter at 13 ft) and RAB Lightcloud Blue (/LCB, /LCBS, /LCBS/MVS; controller LCBAUX/[W/B], no separate 0–10V circuit required) Bluetooth Mesh wireless network lighting controls are available, along with the optional MSR1 commissioning remote — sold separately.

Electrical

Powered by a Class 2, Class P constant current driver operating on universal 120–277V AC at 50/60Hz. Delivers high electrical efficiency with a Power Factor of 99.5% at 120V (98.1% at 277V) and Total Harmonic Distortion (THD) of 10.41% at 120V (9.15% at 277V). Includes pre-wired 0–10V dimming leads.

Emergency Battery Backup Options: Factory-configured emergency battery backup models (RPLED2X2/E) operate in ambient temperatures from 41°F (5°C) to 122°F (50°C) with an Emergency Light Loss Factor (LLF) of 13% / 0.13 (delivering ~502 emergency lumens at 30W, ~446 lm at 25W, and ~335 lm at 18W).

Operating current and amp draw across input voltages for branch circuit and breaker loading calculations:

Wattage 120V Current (A) 208V Current (A) 240V Current (A) 277V Current (A)
30W 0.25A 0.15A 0.13A 0.11A
25W 0.21A 0.12A 0.11A 0.10A
18W 0.16A 0.09A 0.08A 0.07A

Construction

Housing & Build: Galvanized sheet metal housing paired with a durable aluminum frame and two factory-secured steel clips for mounting bracket retention.

Location & Environmental Rating: UL Listed for indoor damp locations and IC-Rated for direct contact with building insulation. Mercury and UV free with RoHS-compliant components.

Operating Temperature: Minimum starting temperature of -4°F (-20°C) (41°F / 5°C for /E emergency battery models); operating ambient temperature range of -4°F (-20°C) to 104°F (40°C) (up to 122°F / 50°C for emergency battery models).

Lens & Optics: Frosted Polystyrene (PS) diffuser engineered for smooth, glare-free architectural illumination.

Finish: High-durability white finish formulated for long-lasting color stability.

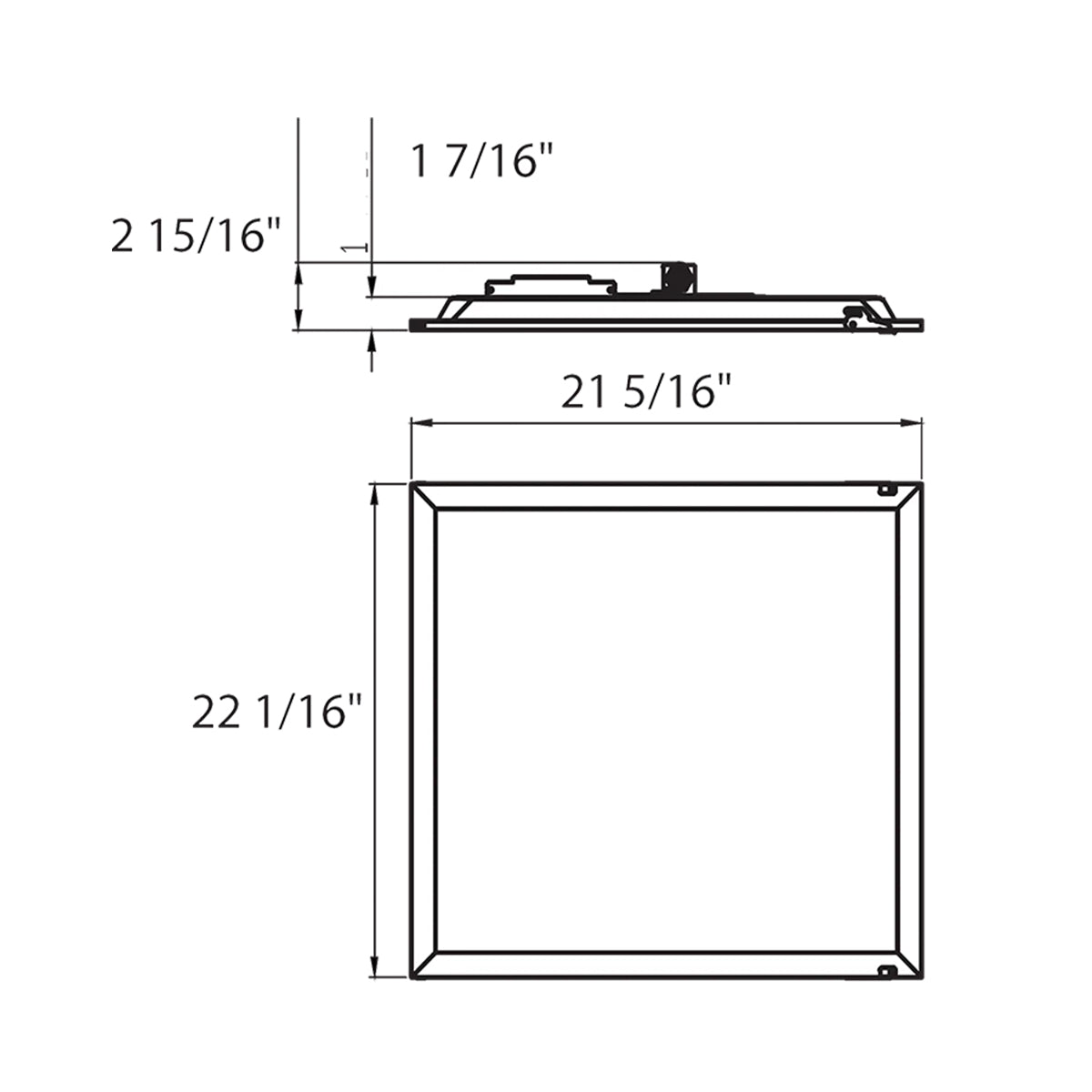

Dimensions & Weight: 22.06" L × 21.31" W × 1.44" H (22 1/16" × 21 5/16" × 1 7/16"). Fixture weight: 3.48 lbs.

Installation & Mounting

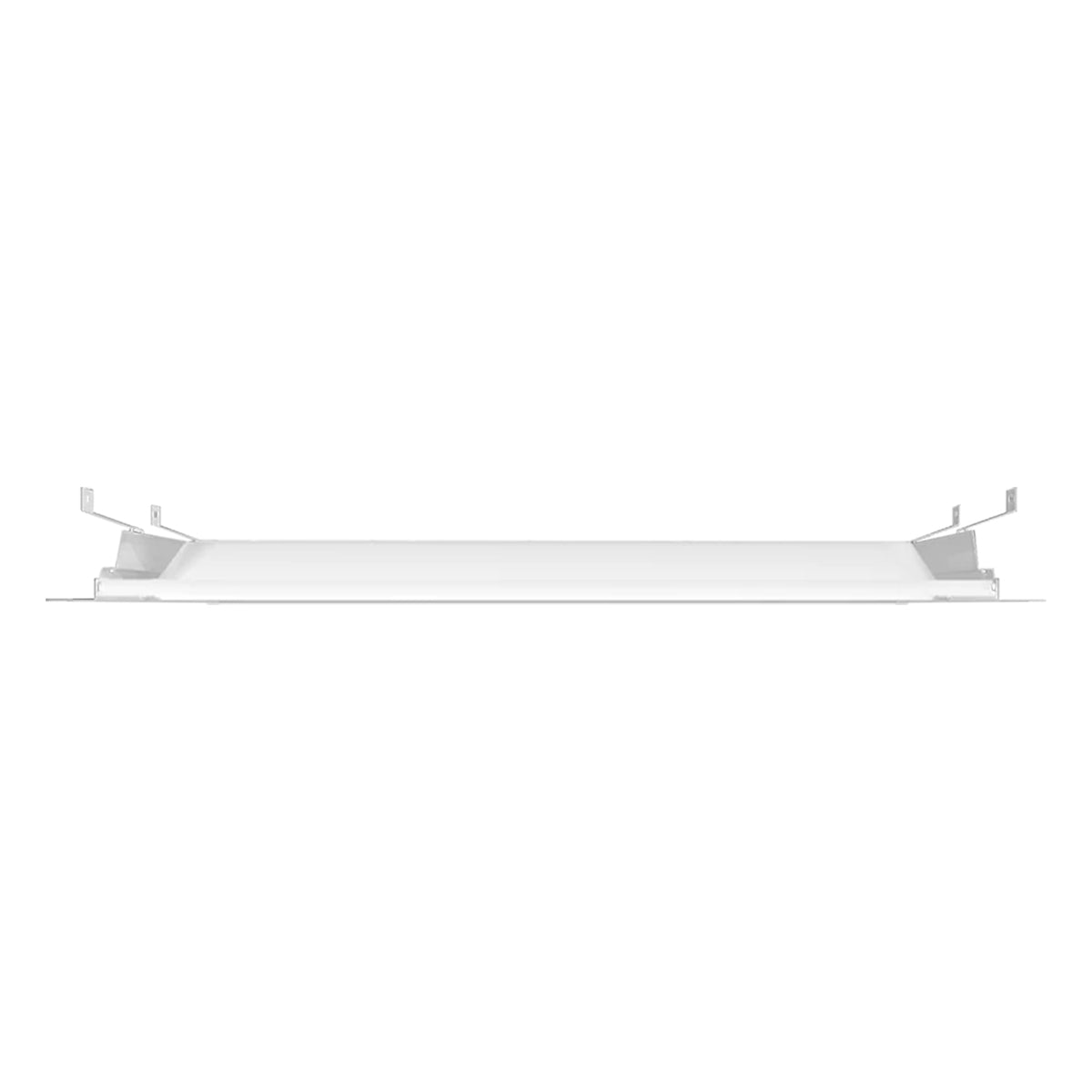

Standard Mounting: Retrofits existing 2x2 ceiling housings using two mounting brackets, two optional decorative bars, and two steel clips secured to the housing.

Ventilated Air-Return Mounting: Compatible with optional ventilated air-return mounting frames (sold separately) to reduce the number of required ceiling vents for a cleaner ceiling appearance.

Accessories (Sold Separately):

  • Ventilated Air-Return Frame: RPAH2 (RPLED2X2 Frame White Air Hole, 2 pcs 2ft, UPC: 192552052306 — sold separately)
  • Sensors & Controls: MSR1 (Multi-Sensor Remote Control IP20, UPC: 192552026055 — required to adjust settings on non-LCB sensor models, sold separately)

Certifications & Rebates

  • DLC 5.1 Premium Listed: Qualifies for the highest tier of utility rebate incentives across regional commercial energy programs. To confirm rebate eligibility with your local utility provider, visit designlights.org and search DLC Product ID S-D67WRC.
  • UL Listed: Certified for indoor damp locations per UL standards.
  • IC-Rated: Approved for direct contact with building insulation.
  • TAA Compliant: Product of Cambodia and a designated-country end product that complies with the Trade Agreements Act (TAA) for federal, municipal, and GSA schedule procurement.
  • IESNA LM-79 & LM-80 Tested: Luminaire and LED components tested by an independent laboratory per IESNA LM-79 and LM-80 standards.
  • RoHS Compliant: Mercury and UV free with RoHS-compliant components.

Typical Applications

  • Commercial Offices & Conference Rooms — Frosted polystyrene lens and up to 140.6 lm/W efficacy deliver uniform, glare-free workspace illumination.
  • Federal, Military & Municipal Buildings — Trade Agreements Act (TAA) compliance and DLC 5.1 Premium qualification satisfy government procurement mandates.
  • Schools, Universities & Classrooms — Field-adjustable 30W/25W/18W power and 3500K/4000K/5000K CCT customize light levels for educational spaces.
  • Healthcare & Medical Clinics — Optional ventilated air-return frames reduce ceiling vent clutter for a clean architectural ceiling grid.
  • Insulated T-Grid Ceiling Retrofits — IC-Rated housing, steel retention clips, and mounting brackets streamline 2x2 fluorescent troffer upgrades.

What's Included

  • RAB RPLED2X2 Field-Adjustable 2x2 LED Retrofit Panel — White
  • Two mounting brackets, two optional decorative bars, and two secured steel housing clips
  • Installation instructions

Specifications

Dimensions

Length/Depth
22.06 in
Width/Diameter
21.31 in
Height
2.94 in
Weight
4.84 lb

Style & Materials

Material
Aluminum

Characteristics & Features

Lamp Source
led
Lamp Color
3500K, 4000K, 5000K, Selectable CCT
Color Rendering
85 CRI
Delivered Lumens
3850
Dimmable
Yes

Electrical Information

Voltage
120-277V
Total Wattage
30W

Item Details

MPN
RPLED2X2
Brand
RAB Lighting
Family
RPLED Field-Adjustable Retrofit Panels
UPC
192552037907

Warranty & Certifications

Product Warranty
5 Years
Lamp Life
100,000 Hours
Product Rating
Damp Rated

Shipping & Returns

Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.

Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.

See Full Shipping Policy | See Full Return Policy

Frequently Asked Questions

How do you adjust the wattage, lumen output, and color temperature on the RAB RPLED2X2?

The RAB RPLED2X2 includes onboard selector switches for field customization during installation. Installers can switch between 30W (up to 3,862 lumens), 25W (up to 3,431 lumens), and 18W (up to 2,578 lumens) (factory default 30W) with 83–85 CRI, and toggle between 3500K, 4000K, and 5000K color temperatures (factory default 4000K).

Is the RAB RPLED2X2 dimmable, and what input voltage does it require?

Yes, the RAB RPLED2X2 includes a Class 2, Class P constant current driver pre-wired for smooth 0–10V continuous dimming on a separate 0–10V DC dimming circuit. It operates on universal 120–277V AC (50/60Hz) electrical systems, drawing 0.25A at 120V and 0.11A at 277V (at 30W) with a Power Factor of 99.5% at 120V (98.1% at 277V).

Is the RAB RPLED2X2 IC-rated for insulated ceilings and approved for damp locations?

Yes, the RAB RPLED2X2 is IC-Rated for direct contact with ceiling insulation and is UL Listed for indoor damp locations. It operates reliably across an ambient temperature range of -4°F (-20°C) to 104°F (40°C) with mercury-free and RoHS-compliant components.

How is the RAB RPLED2X2 retrofit panel mounted, and are air-return frames available?

The RAB RPLED2X2 retrofits directly into existing 2x2 ceiling troffer housings using two mounting brackets, two optional decorative bars, and two steel clips secured to the galvanized housing. For ceilings requiring HVAC air return, the 2-piece white ventilated air-return mounting frame (RPAH2) is sold separately.

What is the rated lifespan, warranty, and DLC rebate status of the RAB RPLED2X2?

The RAB RPLED2X2 is rated for a 100,000-hour L70 LED lifespan, is Trade Agreements Act (TAA) compliant, and is backed by RAB's 5-year limited warranty. It is DLC 5.1 Premium Listed under DLC ID S-D67WRC when replacing up to (2) F32T8, (4) F17T8, or (4) F14T5 linear fluorescent troffers.
