RAB RPLED1X4 Field-Adjustable LED Retrofit Panel — 30W — 3500K/4000K/5000K — Battery Backup — White
Available in stock (100)
About this item
About this item
- Field-Adjustable Output: Switch between 30W / 25W / 18W settings delivering up to 3,894 lumens to replace up to (2) F32T8 or (2) F28T5 linear fluorescent ceiling troffers.
- Architectural 1x4 Retrofit Panel: Galvanized sheet housing with aluminum frame, frosted polystyrene lens, and steel mounting clips retrofits existing 1x4 T-grid ceilings.
- Selectable White CCT: Onboard selector switch enables field adjustment between 3500K warm/neutral white, 4000K cool white, and 5000K daylight (default 4000K).
- Emergency Battery & 0–10V Dimming: Factory-installed emergency battery backup (13% (0.13) LLF) for egress illumination during power loss plus standard 0–10V dimming.
- DLC Premium, IC & TAA Compliant: DLC 5.1 Premium Listed for maximum utility rebates, UL Listed for damp locations, IC-Rated for insulated ceilings, and TAA compliant.
Description
Description
RAB RPLED1X4 Field-Adjustable 1x4 LED Retrofit Panel — 30W/25W/18W Selectable — 3500K/4000K/5000K — Battery Backup — White

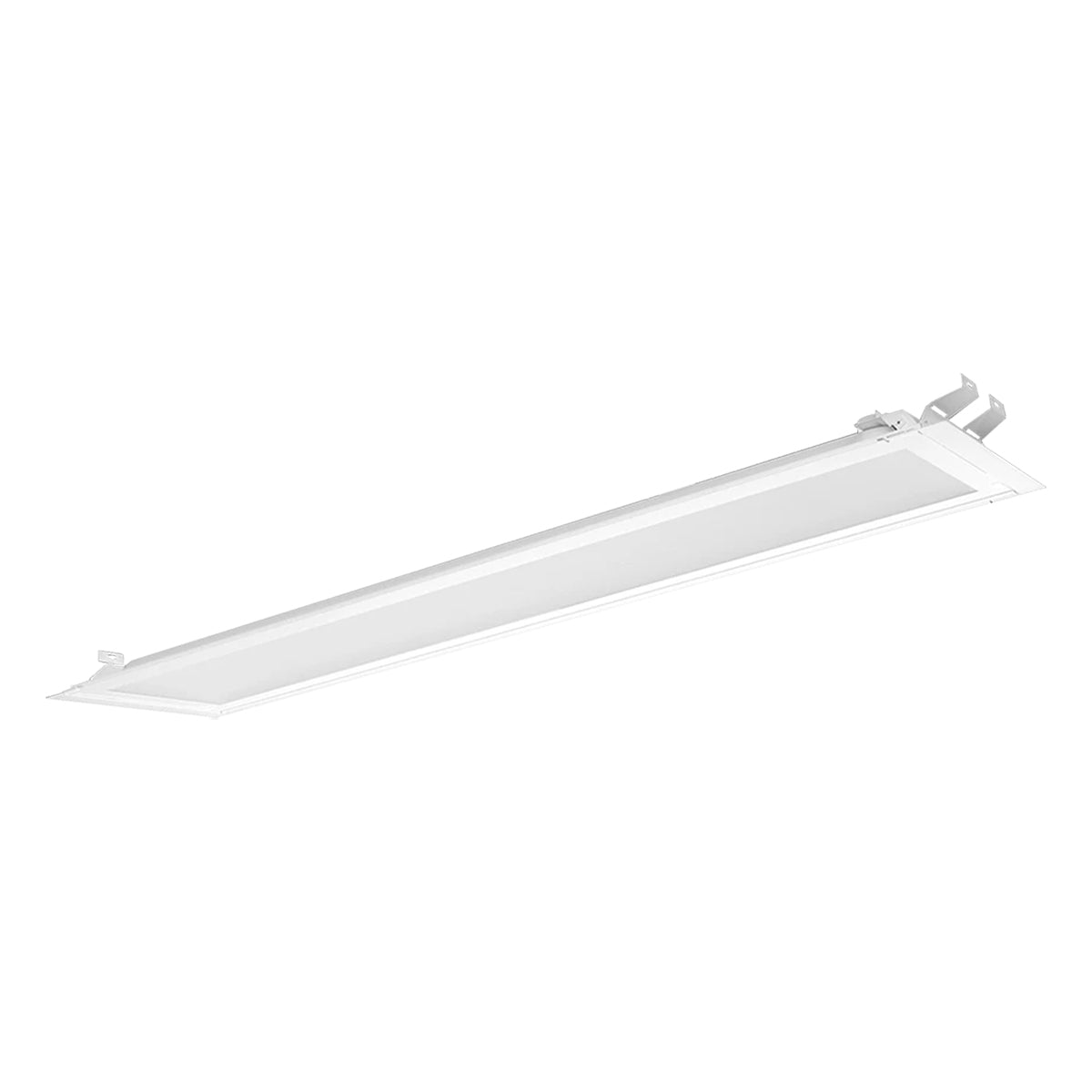

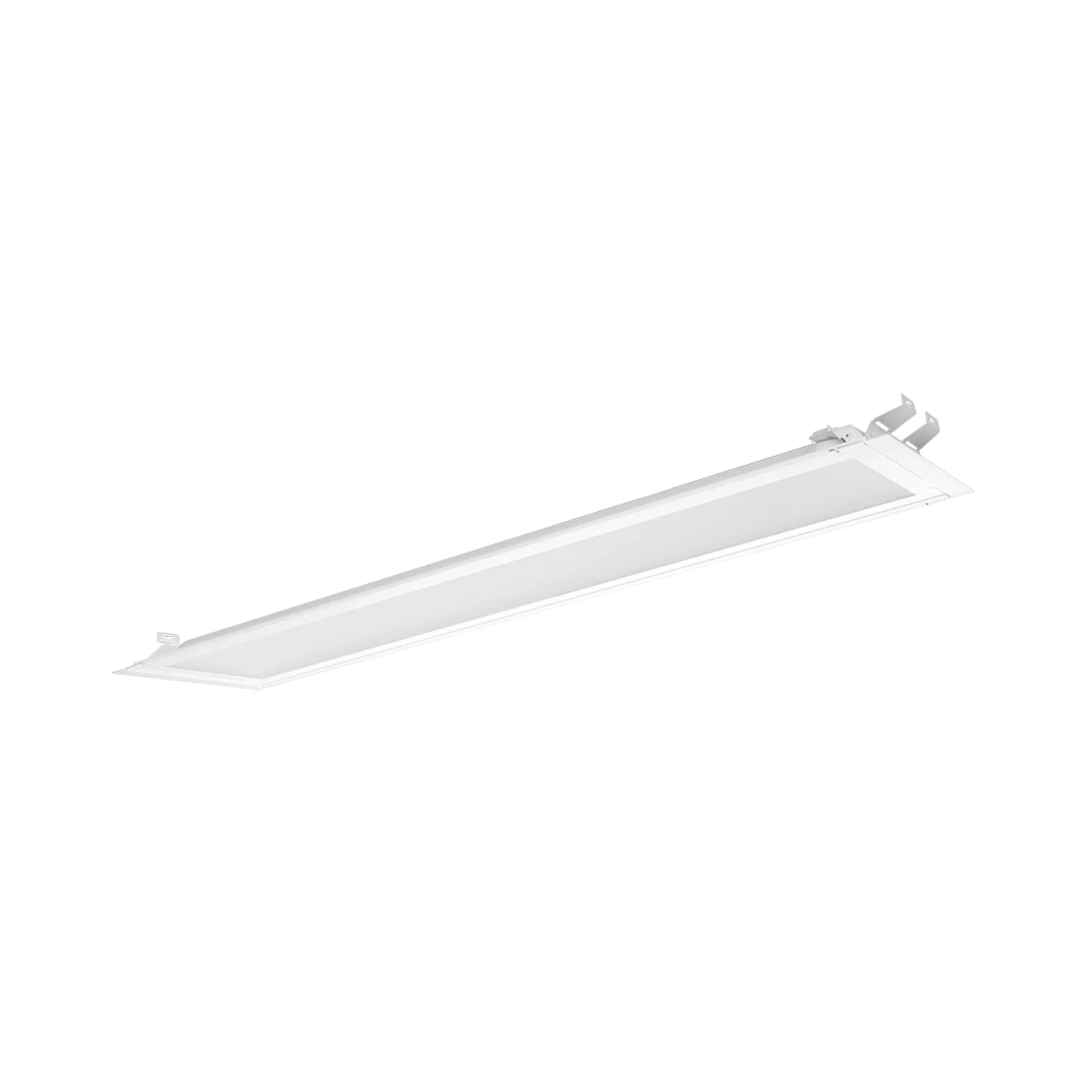

The RAB RPLED1X4/E is a commercial 1x4 Field-Adjustable LED Retrofit Panel with a factory-installed emergency battery backup, engineered to deliver up to 3,894 lumens with field-adjustable 30W/25W/18W power settings and switchable 3500K/4000K/5000K color temperatures. Operating on universal 120–277V electrical systems with 0–10V continuous dimming, this luminaire provides an energy-efficient retrofit replacement for legacy 2-lamp or 1-lamp F32T8 and F28T5 linear fluorescent fixtures. Built with a UL Listed damp location and IC-Rated construction, it is qualified for maximum commercial utility rebates under DLC 5.1 Premium standards, complies with the Trade Agreements Act (TAA), and features a galvanized steel housing with an aluminum frame and frosted polystyrene lens.
Key Features
- Selectable Wattage: 30W / 25W / 18W — field-adjustable via onboard switch (factory default 30W)
- Wattage Equivalency: 30W replaces up to (2) F32T8 or (2) F28T5; 25W replaces up to (2) F32T8 or (1) F28T5; 18W replaces up to (1) F32T8 or (1) F28T5
- Maximum Lumen Output: 3,894 lm at 30W (4000K)
- Peak Efficacy: 142.0 lm/W for ultra-efficient commercial operation
- CRI: 83–85 CRI color rendering across all settings
- Color Consistency: 7-step MacAdam Ellipse binning following ANSI C78.377-2017 standards
- Selectable CCT: 3500K / 4000K / 5000K — field-adjustable via onboard switch (factory default 4000K)
- Lens & Optics: Frosted Polystyrene (PS) lens for uniform, glare-free distribution
- Dimming: 0–10V continuous dimming standard
- Voltage: Universal 120–277V AC, 50/60Hz constant current Class 2, Class P driver
- Location & Ceiling Rating: UL Listed for damp locations; IC-Rated for direct contact with ceiling insulation
- Operating Temperature: 41°F (5°C) to 122°F (50°C) ambient range for emergency battery operation (-4°F / -20°C to 104°F / 40°C standard panel rating)
- Certifications: DLC 5.1 Premium Listed, UL Listed, IC-Rated, IESNA LM-79 & LM-80 Tested, TAA Compliant, RoHS Compliant
- Rated Life: 100,000 hours (L70) per IES LM-80 results and TM-21 calculations
- Warranty: 5-year limited warranty covering light output, driver performance, and paint finish — RAB
- Form Factor & Design: Galvanized sheet housing with aluminum frame and two secured steel mounting clips; compatible with ventilated air-return mounting frames (RPAH4)
- Emergency Backup: Factory-installed emergency battery backup with 13% (0.13) Emergency Light Loss Factor (delivering ~506 emergency lumens at 30W, ~450 lm at 25W, and ~339 lm at 18W)
Performance & Light Output
At 30W (Replaces up to (2) F32T8 or (2) F28T5): 3,722 lm (3500K / 127.5 lm/W / 83 CRI / 29.2W input), 3,894 lm (4000K / 140.1 lm/W / 85 CRI / 27.8W input), 3,825 lm (5000K / 132.4 lm/W / 84 CRI / 28.9W input).
At 25W (Replaces up to (2) F32T8 or (1) F28T5): 3,327 lm (3500K / 130.5 lm/W / 83 CRI / 25.5W input), 3,464 lm (4000K / 142.0 lm/W / 85 CRI / 24.4W input), 3,421 lm (5000K / 135.2 lm/W / 84 CRI / 25.3W input).
At 18W (Replaces up to (1) F32T8 or (1) F28T5): 2,529 lm (3500K / 133.1 lm/W / 84 CRI / 19.0W input), 2,611 lm (4000K / 141.9 lm/W / 85 CRI / 18.4W input), 2,601 lm (5000K / 137.6 lm/W / 84 CRI / 18.9W input).
CRI 83–85 across all configurations. Rated life 100,000 hours (L70) per IES LM-80 results and TM-21 calculations.
Smart & Control Features
The RPLED1X4/E includes factory-wired 0–10V dimming control leads for smooth continuous dimming on a separate 0–10V DC dimming circuit. Within the RPLED family, factory-configured models with integrated Passive Infrared (PIR) or Microwave (/MVS) occupancy sensors (13 ft max mounting height, 18 ft to 44 ft detection diameter at 13 ft) and RAB Lightcloud Blue (/LCB, /LCBS, /LCBS/MVS; controller LCBAUX/[W/B]) Bluetooth Mesh wireless network lighting controls are available, along with the optional MSR1 commissioning remote — sold separately.
Electrical
Powered by a Class 2, Class P constant current driver operating on universal 120–277V AC at 50/60Hz. Delivers high electrical efficiency with a Power Factor of 99.5% at 120V (89.2% at 277V) and Total Harmonic Distortion (THD) of 17.07% at 120V (10.35% at 277V). Includes pre-wired 0–10V dimming leads.
Emergency Battery Backup: Includes a factory-installed emergency battery backup system for standby egress illumination during a primary power outage. Emergency Light Loss Factor (LLF) for RPLED1X4/E is 13% / 0.13 (delivering ~506 emergency lumens at 30W, ~450 lm at 25W, and ~339 lm at 18W based on 4000K nominal lumen ratings). Rated for emergency battery operation in ambient temperatures from 41°F (5°C) to 122°F (50°C).
Operating current and amp draw across input voltages for branch circuit and breaker loading calculations:
| Wattage | 120V Current (A) | 208V Current (A) | 240V Current (A) | 277V Current (A) |
|---|---|---|---|---|
| 30W | 0.25A | 0.15A | 0.13A | 0.11A |
| 25W | 0.21A | 0.12A | 0.11A | 0.10A |
| 18W | 0.16A | 0.09A | 0.08A | 0.07A |
Construction
Housing & Build: Galvanized sheet metal housing paired with a durable aluminum frame and two factory-secured steel clips for mounting bracket retention.
Location & Environmental Rating: UL Listed for indoor damp locations and IC-Rated for direct contact with building insulation. Mercury and UV free with RoHS-compliant components.
Operating Temperature: Minimum starting temperature of 41°F (5°C) for emergency battery operation (-4°F / -20°C standard panel rating); operating ambient temperature range of 41°F (5°C) to 122°F (50°C) (up to 104°F / 40°C standard panel rating).
Lens & Optics: Frosted Polystyrene (PS) diffuser engineered for smooth, glare-free architectural illumination.
Finish: High-durability white finish formulated for long-lasting color stability.

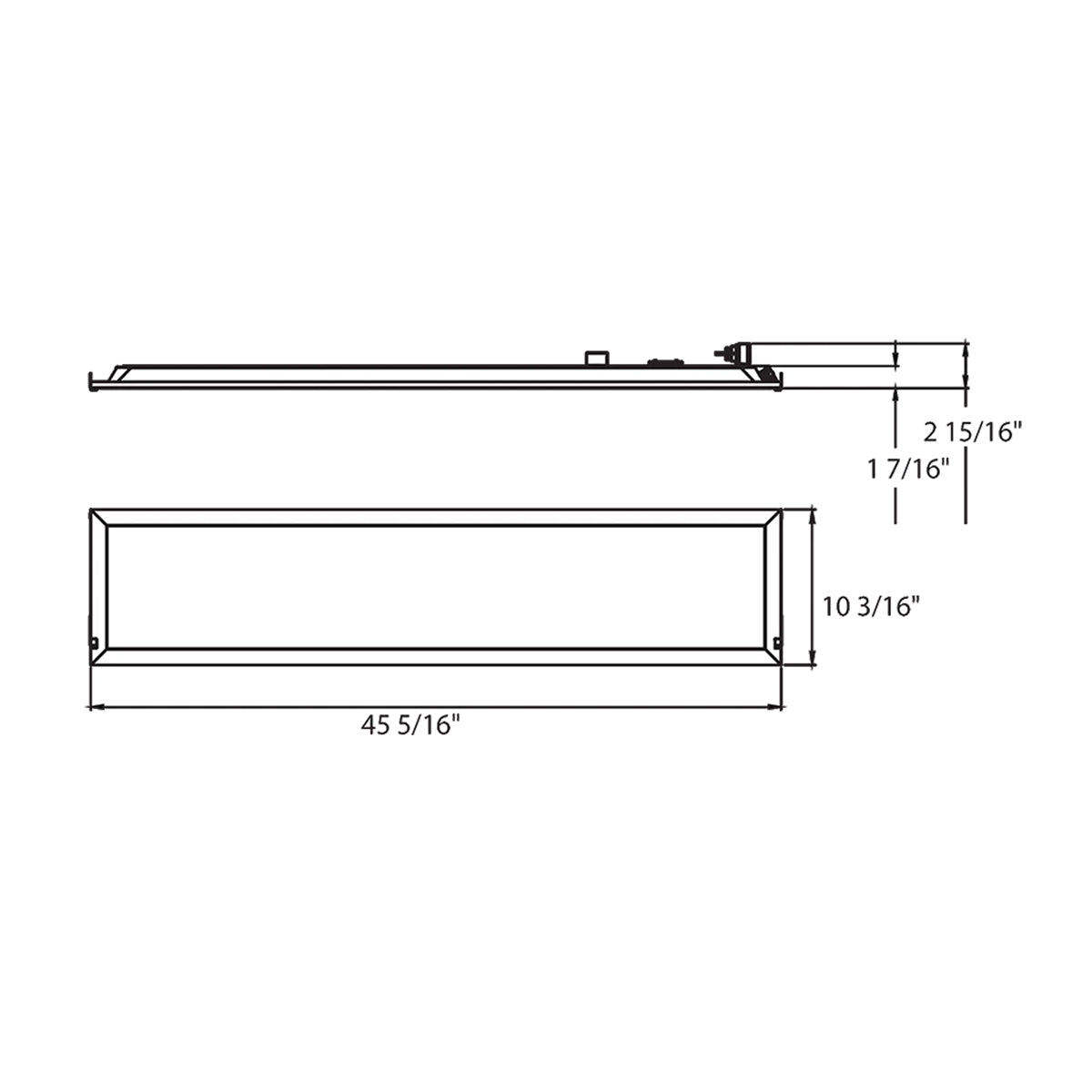

Dimensions & Weight: 45.31" L × 10.19" W × 1.44" H (45 5/16" × 10 3/16" × 1 7/16"; 2.94" / 2 15/16" overall depth with driver box). Base fixture weight: 3.2 lbs.
Installation & Mounting
Standard Mounting: Retrofits existing 1x4 ceiling housings using two mounting brackets, two optional decorative bars, and two steel clips secured to the housing.
Ventilated Air-Return Mounting: Compatible with optional ventilated air-return mounting frames (sold separately) to reduce the number of required ceiling vents for a cleaner ceiling appearance.
Accessories (Sold Separately):
- Ventilated Air-Return Frame: RPAH4 (RPLED1X4 & 2X4 Frame White Air Hole, 2 pcs 4ft, UPC: 192552052313 — sold separately)
- Sensors & Controls: MSR1 (Multi-Sensor Remote Control IP20, UPC: 192552026055 — required to adjust settings on non-LCB sensor models, sold separately)
Certifications & Rebates
- DLC 5.1 Premium Listed: Qualifies for the highest tier of utility rebate incentives across regional commercial energy programs. To confirm rebate eligibility with your local utility provider, visit designlights.org and search DLC Product ID S-FNOSOW.
- UL Listed: Certified for indoor damp locations per UL standards.
- IC-Rated: Approved for direct contact with building insulation.
- TAA Compliant: Product of Cambodia and a designated-country end product that complies with the Trade Agreements Act (TAA) for federal, municipal, and GSA schedule procurement.
- IESNA LM-79 & LM-80 Tested: Luminaire and LED components tested by an independent laboratory per IESNA LM-79 and LM-80 standards.
- RoHS Compliant: Mercury and UV free with RoHS-compliant components.
Typical Applications
- Egress Corridors & Commercial Pathways — Factory-installed emergency battery backup provides standby illumination during power outages.
- Federal, Military & Municipal Buildings — Trade Agreements Act (TAA) compliance and DLC 5.1 Premium qualification satisfy government procurement mandates.
- Schools, Universities & Classrooms — Field-adjustable 30W/25W/18W power and 3500K/4000K/5000K CCT customize light levels for educational spaces.
- Healthcare & Medical Clinics — Optional ventilated air-return frames reduce ceiling vent clutter for a clean architectural ceiling grid.
- Insulated T-Grid Ceiling Retrofits — IC-Rated housing, steel retention clips, and mounting brackets streamline 1x4 fluorescent troffer upgrades.
What's Included
- RAB RPLED1X4/E Field-Adjustable 1x4 LED Retrofit Panel with Factory-Installed Emergency Battery Backup — White
- Two mounting brackets, two optional decorative bars, and two secured steel housing clips
- Installation instructions
