The RAB RBAY22S is a compact field-adjustable linear LED high bay delivering up to 23,224 lumens at 160W. Wattage (160W / 130W / 100W), CCT (3500K / 4000K / 5000K), and beam angle (55° / 85° / 105°) are all field-selectable on-site. Operating on 120–277V with 0–10V dimming (dims to 10%) and 6kV+6kV surge protection, this fixture is UL Listed for Wet Locations, rated IP66 and IP69K for dust and water, NSF certified, and IK10 impact-rated. Certified DLC Premium (120–277V code: S-BKXYSB). Rated 100,000 hours per IES LM-80 / TM-21. 5-year RAB warranty. Replaces 400W+ MH/HPS/fluorescent high bays.

Key Features

• Selectable Wattage: Field-adjustable 160W (default) / 130W / 100W via onboard switch — no tools required.
• Selectable CCT: Field-adjustable 3500K / 4000K / 5000K (default 4000K) via onboard switch for job-site flexibility.
• Selectable Beam Angle: 55° / 85° (default) / 105° — field-adjustable optics for precise photometric control.
• Maximum Lumen Output: 23,224 lm at 160W; 17,706 lm at 130W; 14,085 lm at 100W (120–277V).
• Peak Efficacy: Up to 145.2 lm/W — exceptional efficiency for industrial high-bay applications.
• CRI & Color Uniformity: 80+ CRI; color uniformity per ANSI C78.377-2017 for consistent output across installations.
• Dimming Protocol & Range: 0–10V continuous dimming, dims to 10%; requires separate 0–10V DC dimming circuit.
• Voltage & Driver: 120–277V / 50–60Hz; Constant Current, Class 1 driver.
• Location Rating: UL Listed for Wet Locations · IP66 and IP69K (dust and water ingress protection).
• Impact Rating: IK10 rated for protection against physical impact.
• Cold Weather Start: Starts at −20°C (−4°F); max ambient 50°C (122°F). With battery backup: starts at 0°C (32°F), max ambient 45°C (113°F).
• Surge Protection: 6kV+6kV for reliable performance in demanding industrial environments.
• Certifications: UL Listed (Wet) · IP66 / IP69K · IK10 · NSF · DLC Premium (S-BKXYSB) · RoHS Compliant.
• Rated Life & Standard: 100,000 hours per IES LM-80 / TM-21.
• Warranty: 5-year RAB limited warranty covering light output, driver performance, and paint finish.
• Green Technology: Mercury-free, UV-free, RoHS-compliant components.

Performance & Light Output

At 160W: 23,224 lm (3500K / 4000K / 5000K selectable).
At 130W: 17,706 lm.
At 100W: 14,085 lm.
All output levels available across all three CCT selections. CRI: 80+. Beam angle: 55° / 85° / 105° — field-selectable. Rated life: 100,000 hours per IES LM-80 / TM-21 (L70). Color uniformity per ANSI C78.377-2017.

Lens & Optics

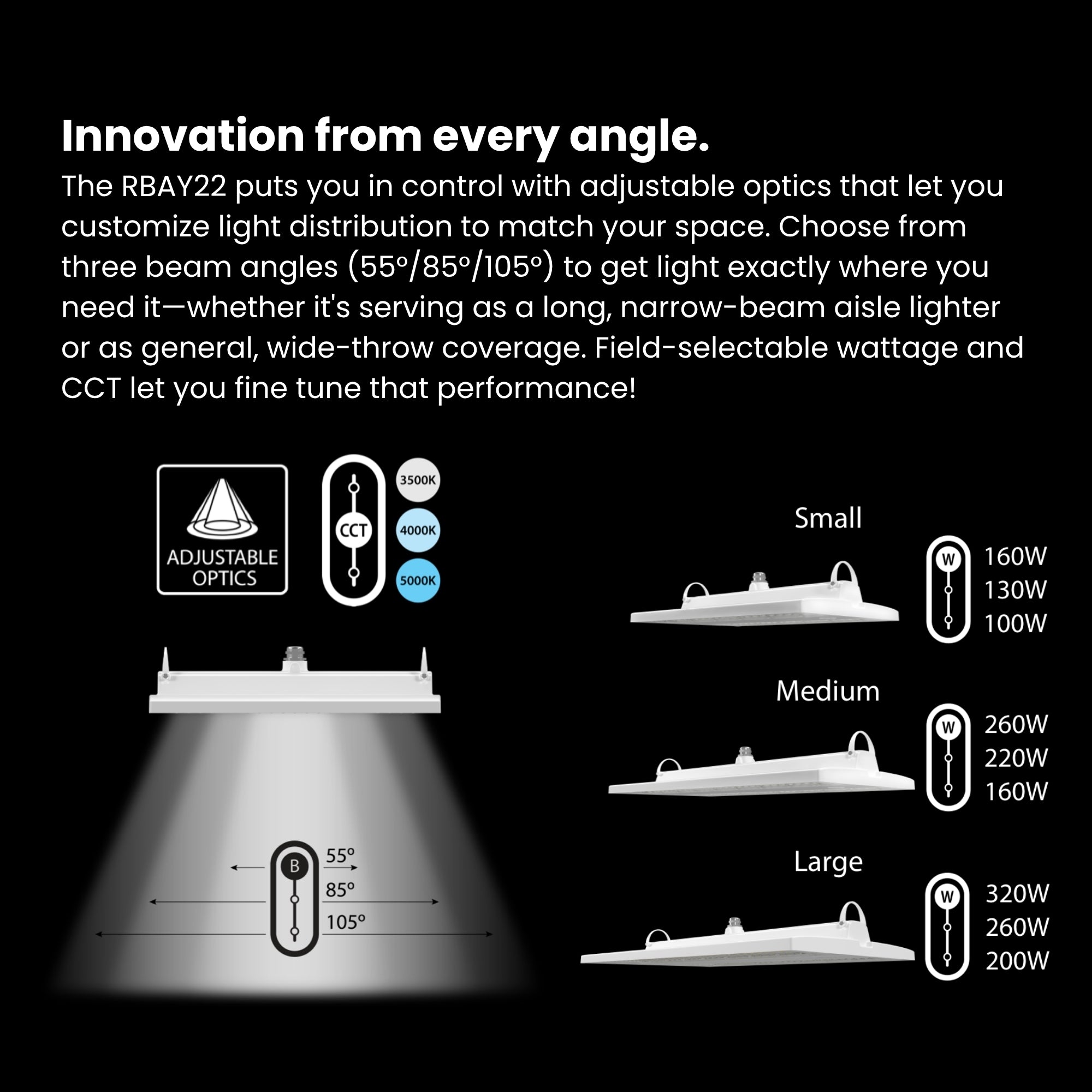

The RBAY22S features a field-selectable beam angle system with three settings: 55° (narrow, for high mounting heights), 85° (default, general industrial), and 105° (wide, for lower mounting or broader coverage). Lens material: polycarbonate. Optic selection is made on-site without additional accessories. The selectable beam angle differentiates the RBAY22 platform from fixed-optic competitors and enables precise IES photometric matching for lighting design submittals.

Smart & Control Features

Standard 0–10V dimming (dims to 10%) is built in for integration with lighting control and building automation systems. Optional accessories extend functionality:

• PIR40 — High Ceiling Low Voltage PIR Sensor, White
• PIR40/LCB — LC Blue High Ceiling Low Volt Luminaire Controller with PIR, White
• MVS50 — High Ceiling Low Voltage MVS Sensor, White
• MVS50/LCB — LC Blue High Ceiling Low Volt Luminaire Controller with MVS, White
• MSR1 — Multi Sensor Remote Control, IP20

Electrical

Input voltage: 120–277V / 50–60Hz. Constant Current, Class 1 driver. Power factor (default 4000K): 99.8% at 120V, 96.6% at 277V, 95.9% at 480V. THD (default): 4.98% at 120V, 7.9% at 277V, 4.4% at 480V. Input current — 160W: 1.4A (120V) / 0.8A (208V) / 0.7A (240V) / 0.65A (277V); 130W: 1.2A (120V) / 0.7A (208V) / 0.6A (240V) / 0.55A (277V); 100W: 0.95A (120V) / 0.55A (208V) / 0.50A (240V) / 0.5A (277V). Surge protection: 6kV+6kV. Dimming: 0–10V, dims to 10%, requires separate 0–10V DC circuit. Emergency battery backup compatible (EMHB30 for 160W & 260W; EMHB60 for 320W). Mercury-free, UV-free, RoHS compliant.

Construction

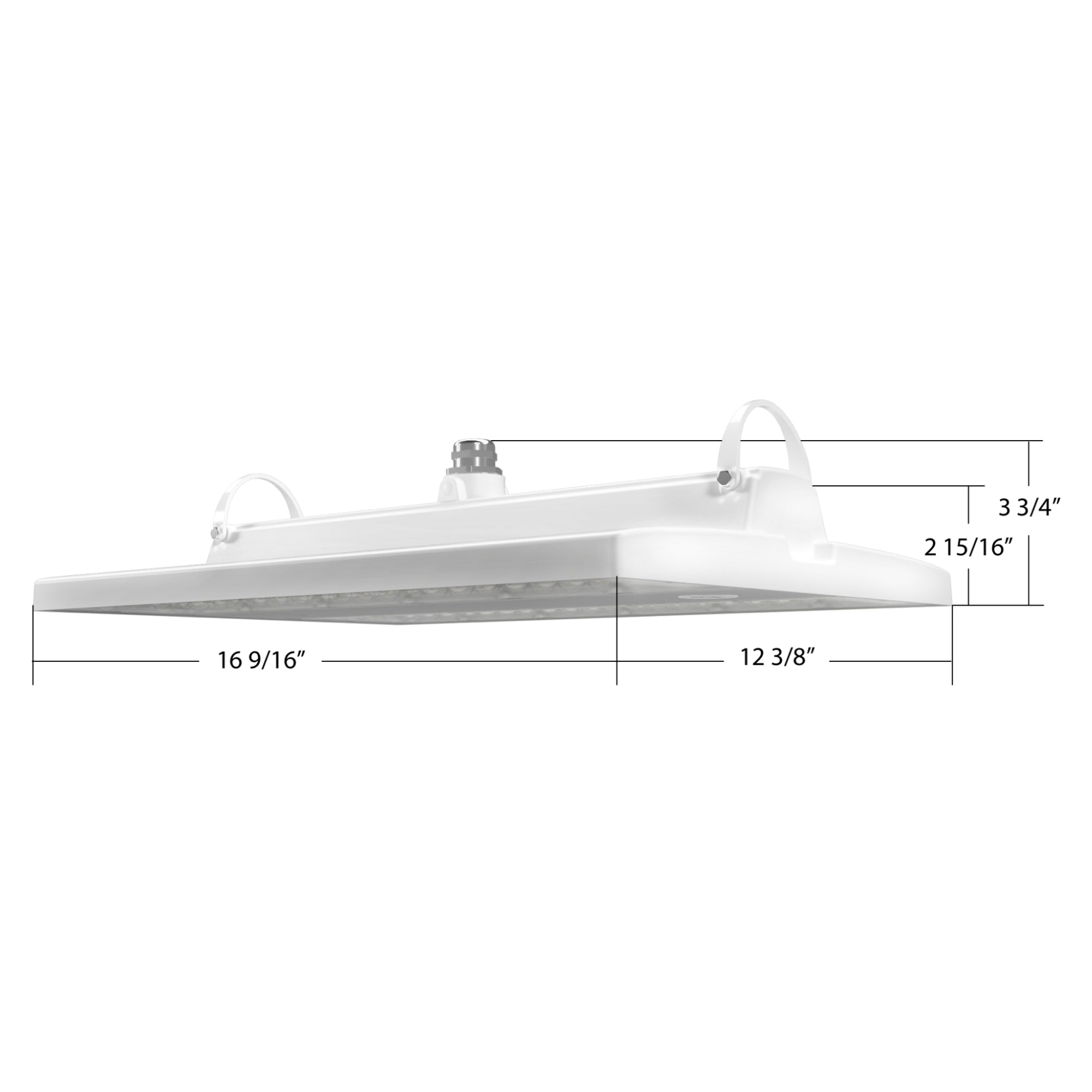

Housing: Die-cast aluminum for maximum thermal management and durability. Lens: Polycarbonate. Finish: High-durability, long-lasting powder-coat paint — White. IP66 & IP69K — dust-tight and high-pressure washdown rated. IK10 impact protection. NSF certified by public health and safety standards. Weight (120–277V): 8.84 lbs. Dimensions: 16⅝″ L × 12¾″ W × 3¾″ H.

Installation & Mounting

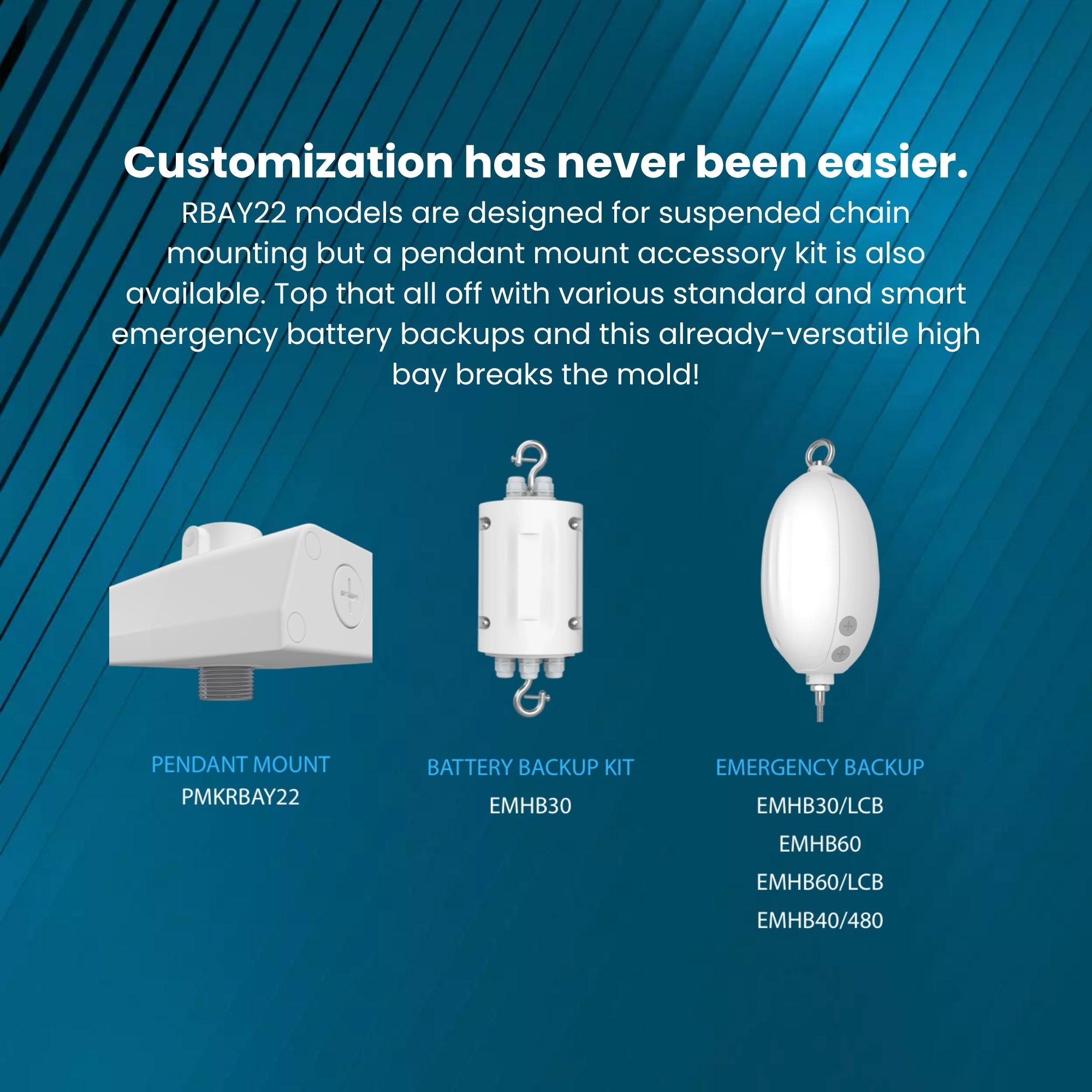

Comes standard with V-hooks for chain mounting. Optional accessories for pendant and surface mounting (purchased separately):

• PMKRBAY22 — RBAY22 Pendant Mount Kit, White
• EMHB30 — Emergency Battery Backup 30W (for 160W & 260W models), White
• EMHB60 — Emergency Battery Backup 60W (for 320W models), White
• EMHB30/LCB — Emergency Battery Backup 30W with LCB, White
• EMHB60/LCB — Emergency Battery Backup 60W with LCB, White

Ceiling height guidance: 100W setting recommended for 10–15 ft; 130W for 15–20 ft; 160W for 20–30 ft.

Certifications & Rebates

UL Listed (Wet Location) · IP66 / IP69K · IK10 · NSF Certified · DLC Premium — Product Code: S-BKXYSB — eligible for utility rebate programs. To verify rebate eligibility, search product code S-BKXYSB at designlights.org. RoHS Compliant. Meets DLC 5.1 requirements — qualifies for highest tier of rebates from DLC Member Utilities.

Typical Applications

• Food Processing & Wash-Down Environments: IP69K and NSF certification make the RBAY22S suitable for facilities requiring high-pressure cleaning.
• Cold Storage & Refrigerated Warehouses: −20°C cold weather start rating ensures reliable operation in freezer and cold-storage applications.
• Manufacturing & Industrial Facilities: IK10 impact rating and die-cast aluminum housing handle demanding mechanical environments.

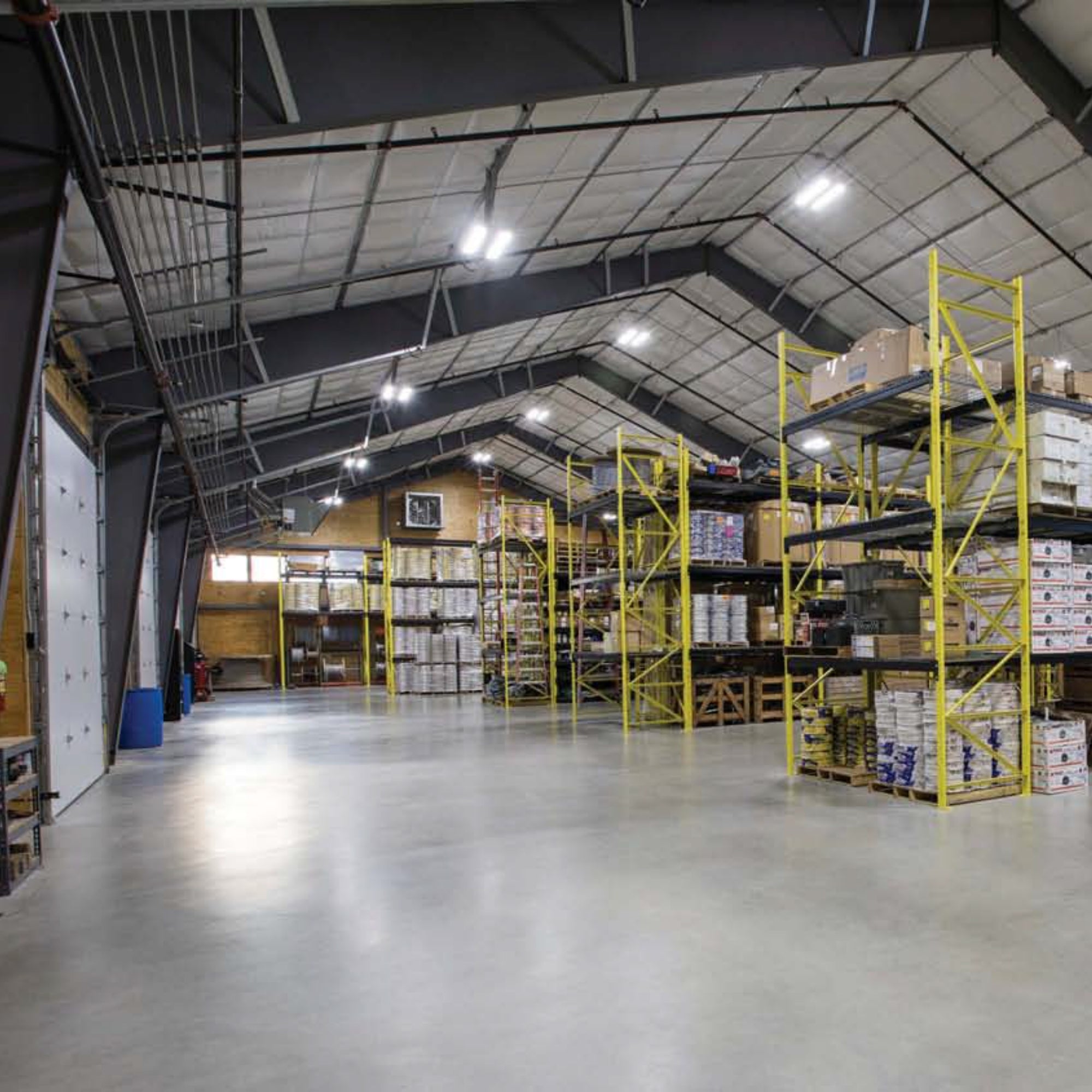

• Distribution Centers & Warehouses: Selectable beam angles and wattage allow lighting to be precisely matched to aisle width and mounting height.
• Gymnasiums & Recreation Centers: High lumen output and broad beam options support safe, evenly distributed activity lighting.

What's Included

• RAB RBAY22S LED Linear High Bay Fixture
• V-Hooks for Chain Mounting
