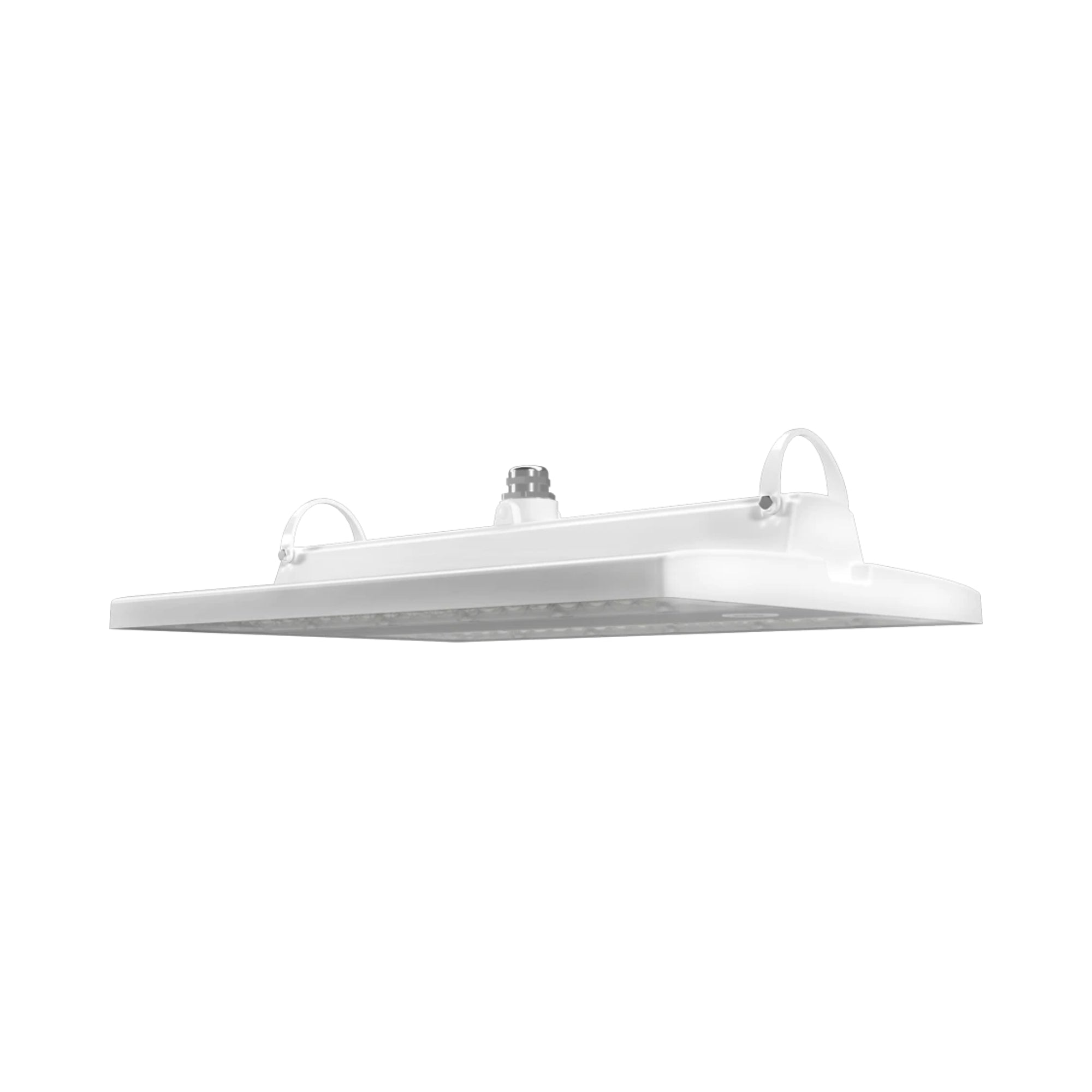

RAB RBAY22S/480 Field-Adjustable Linear LED High Bay — 160W / 130W / 100W Selectable

The RAB RBAY22S/480 is a field-adjustable linear LED high bay delivering up to 23,844 lumens with selectable wattage options of 160W, 130W, and 100W and selectable CCT of 3500K / 4000K / 5000K. It operates on dedicated 480V with integrated 0–10V dimming to 10%. UL Listed for wet locations with IP66/IP69K ingress protection and DLC Premium Listed for rebate eligibility. Designed for high-voltage industrial and commercial applications like warehouses and manufacturing facilities.

Key Features

• Selectable Wattage: 160W / 130W / 100W
• Selectable CCT: 3500K / 4000K / 5000K
• Maximum Output: Up to 23,844 lumens
• Voltage: 480V
• Dimming: 0–10V dimming to 10%

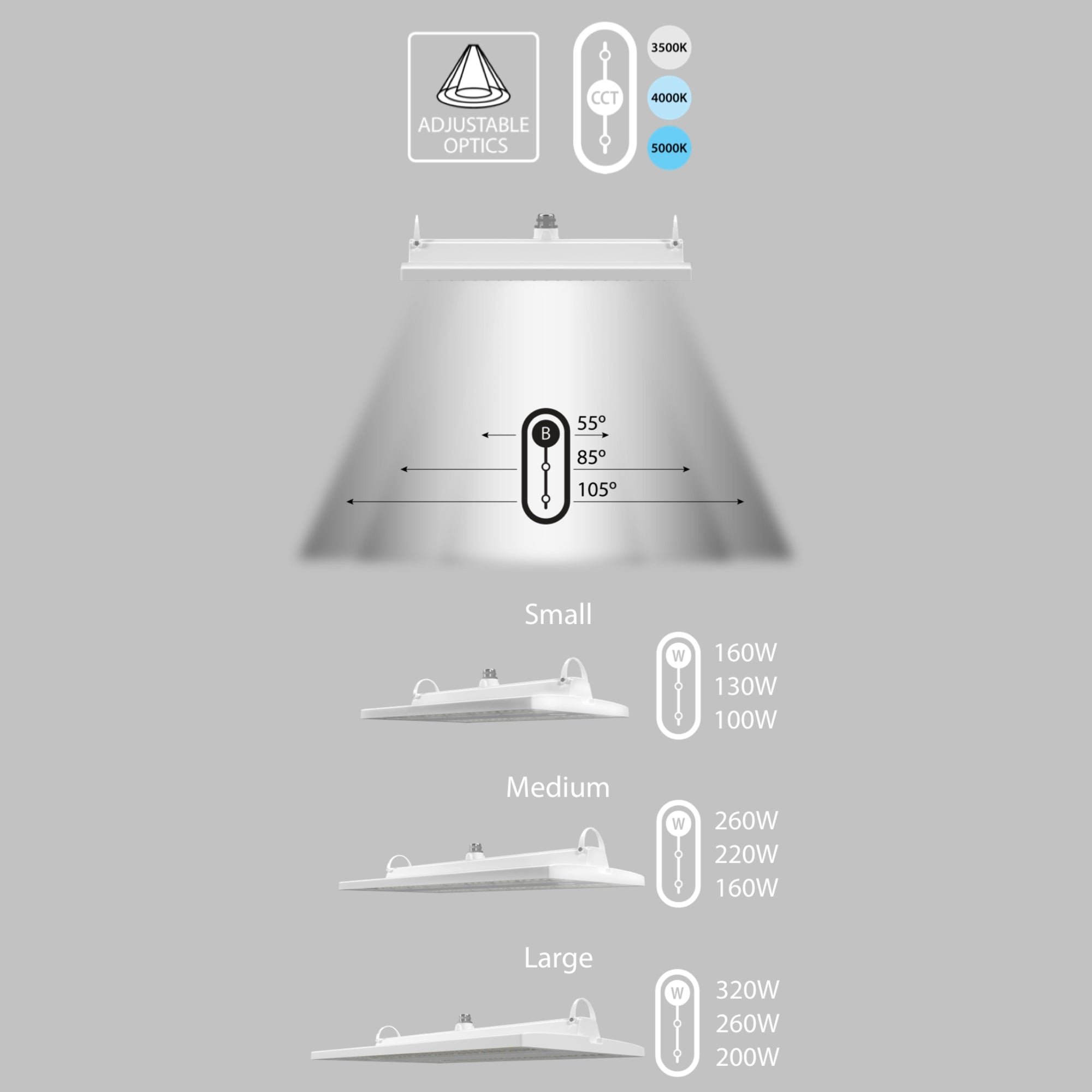

• Beam Angles: 55° / 85° / 105° selectable
• Environmental Rating: Wet location rated, IP66/IP69K
• Certifications: DLC Premium, UL Listed
• LED Lifespan: 100,000 hours (L70)

Typical Applications

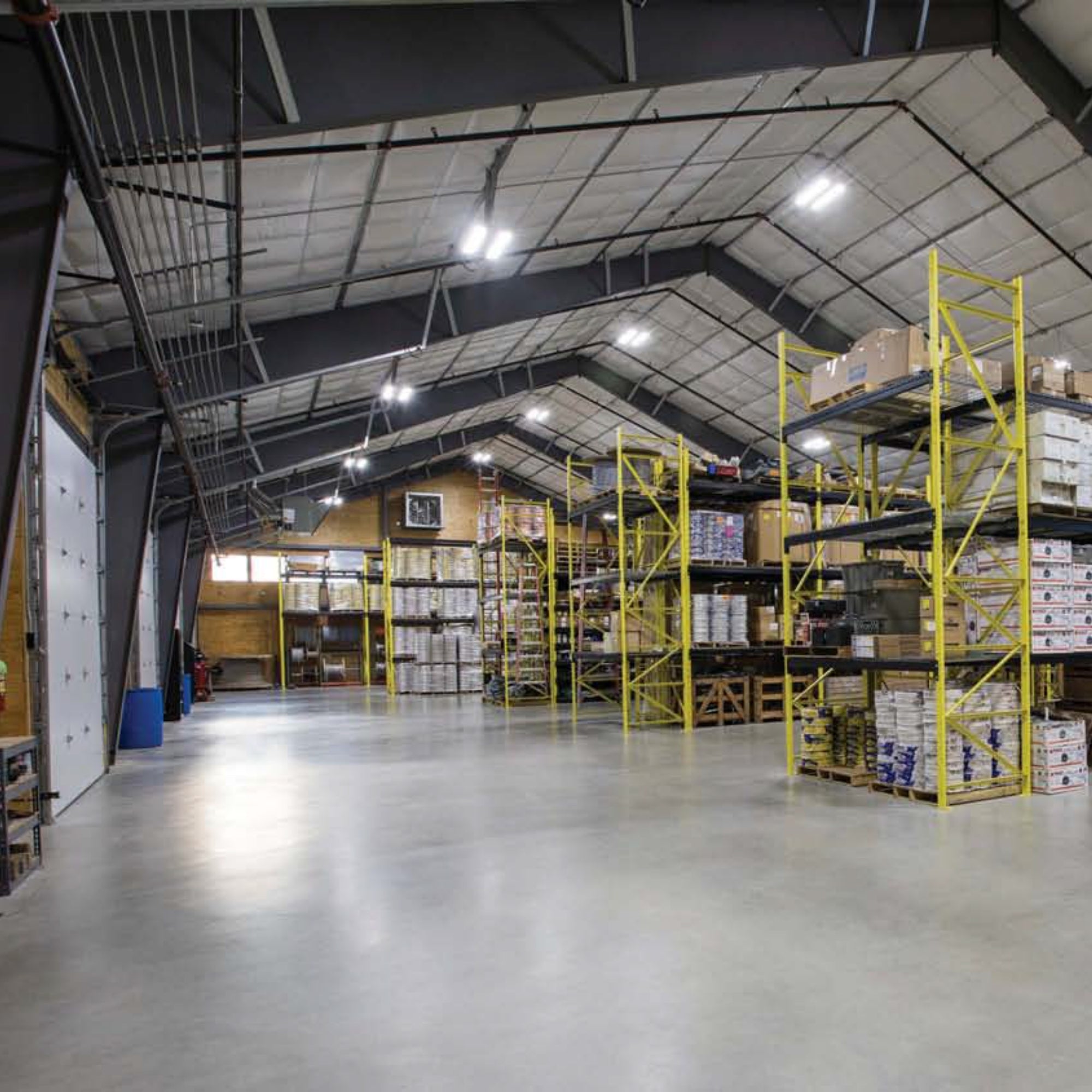

• Industrial warehouses with 480V service
• Distribution centers
• Manufacturing facilities
• Gymnasiums
• Retail stockrooms

Performance & Light Output:

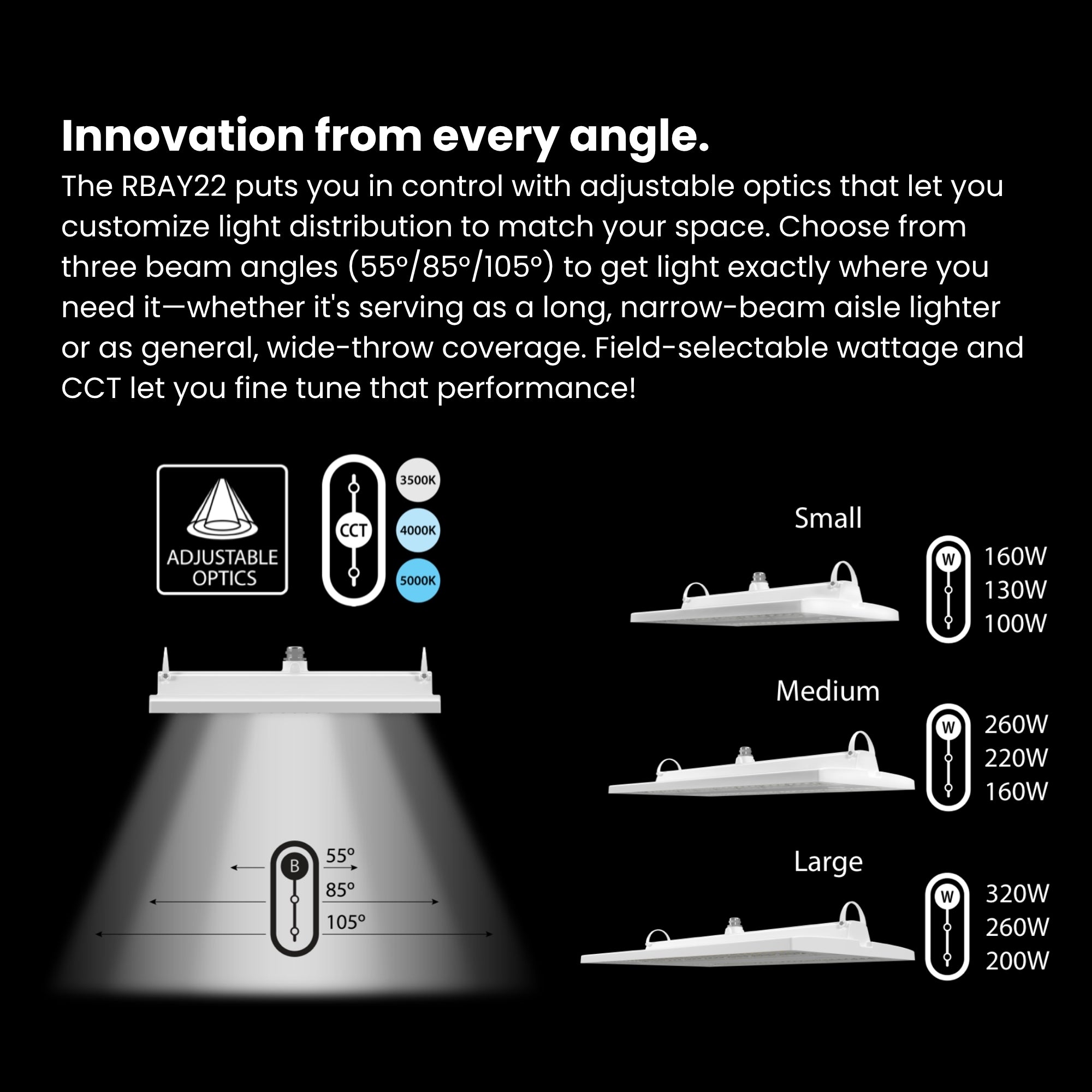

Delivered lumen output ranges up to 23,844 lumens depending on selected wattage and CCT. Adjustable optics allow custom distribution for aisle or wide coverage.

Electrical & Controls:
Operates on dedicated 480V, 50/60Hz. Includes constant current driver with integrated 0–10V dimming to 10% and surge protection. Sensor-ready port for optional controls.

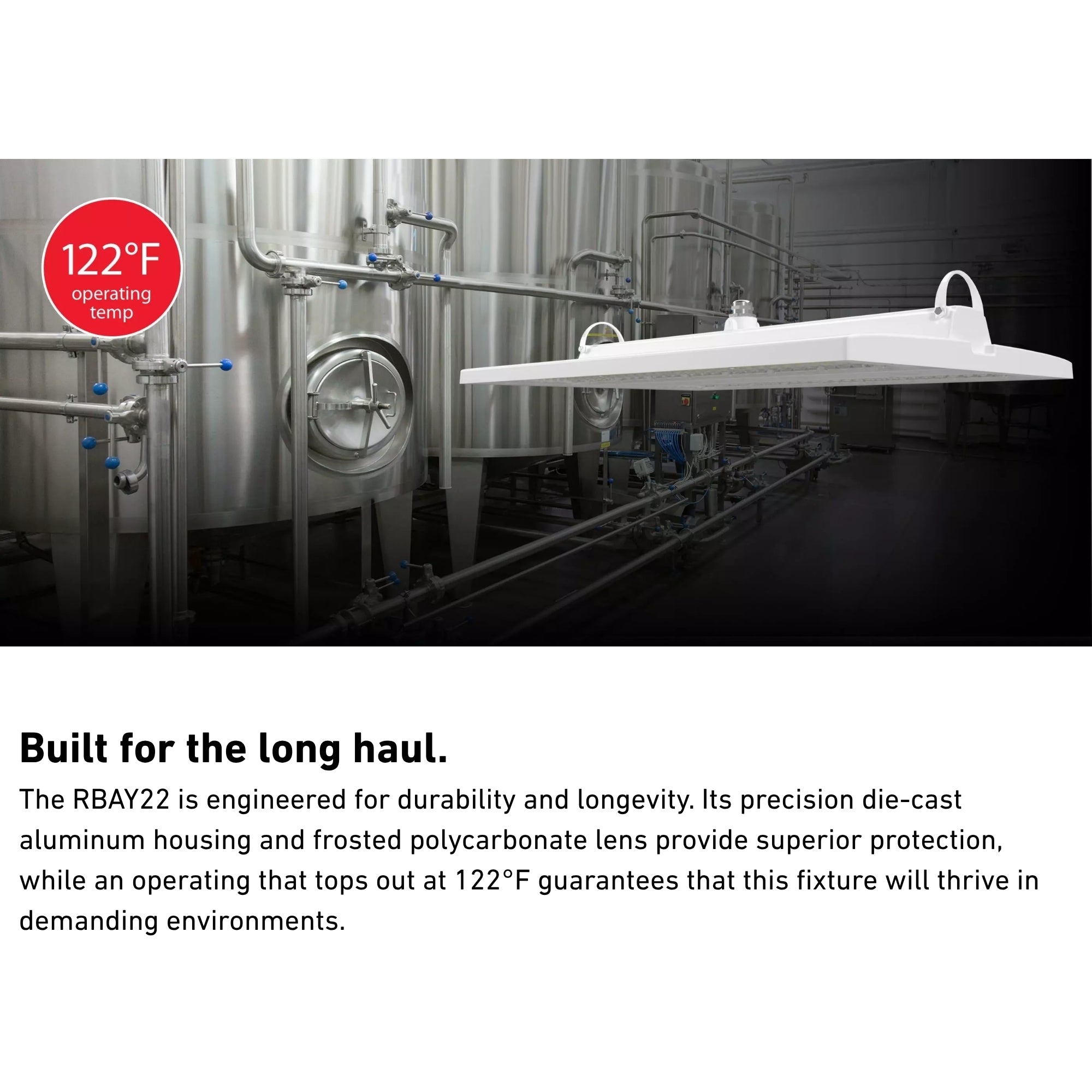

Construction & Durability:

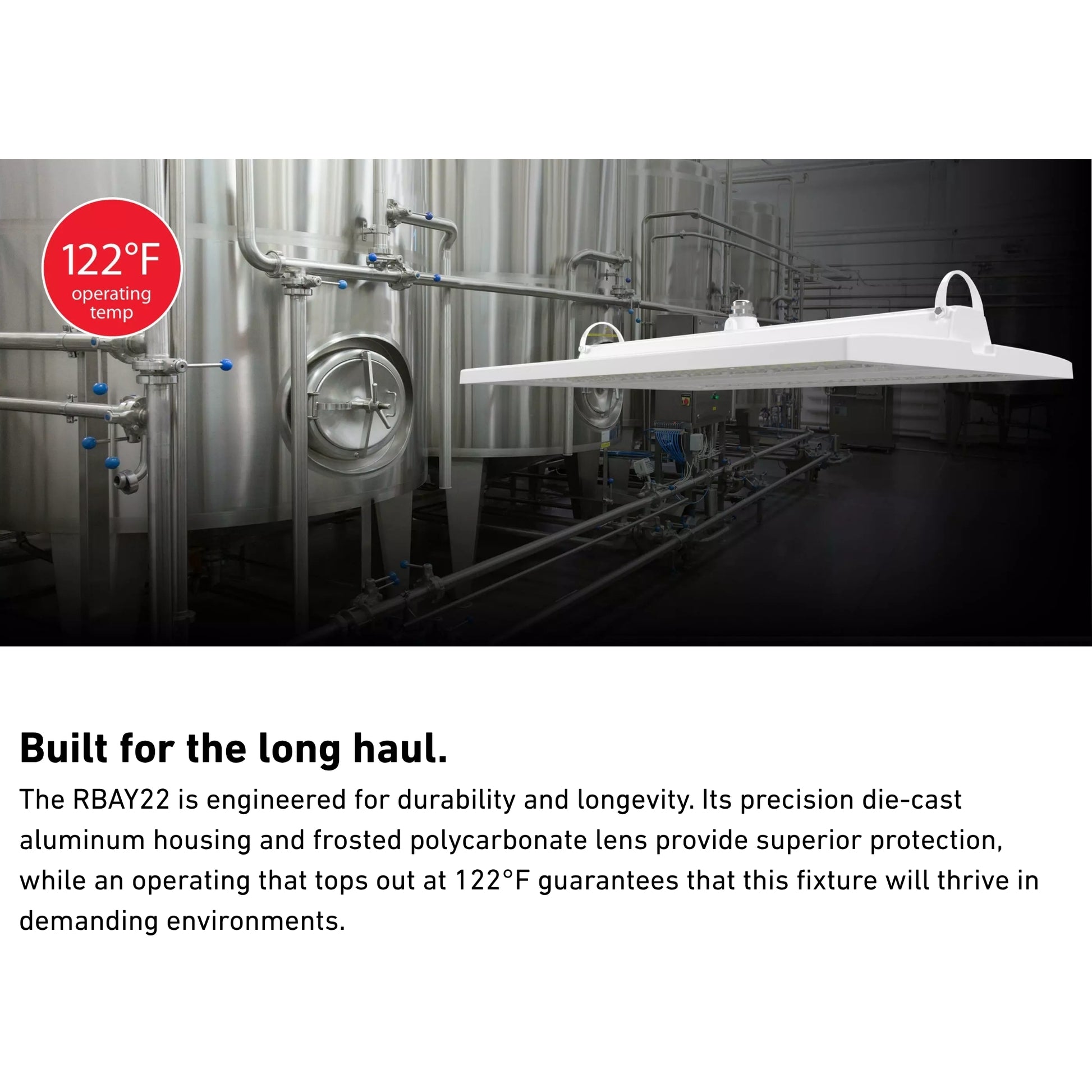

Die-cast aluminum housing with polycarbonate lens. IP66/IP69K rated for wet and washdown environments. Mercury-free and RoHS compliant.

Installation & Mounting:

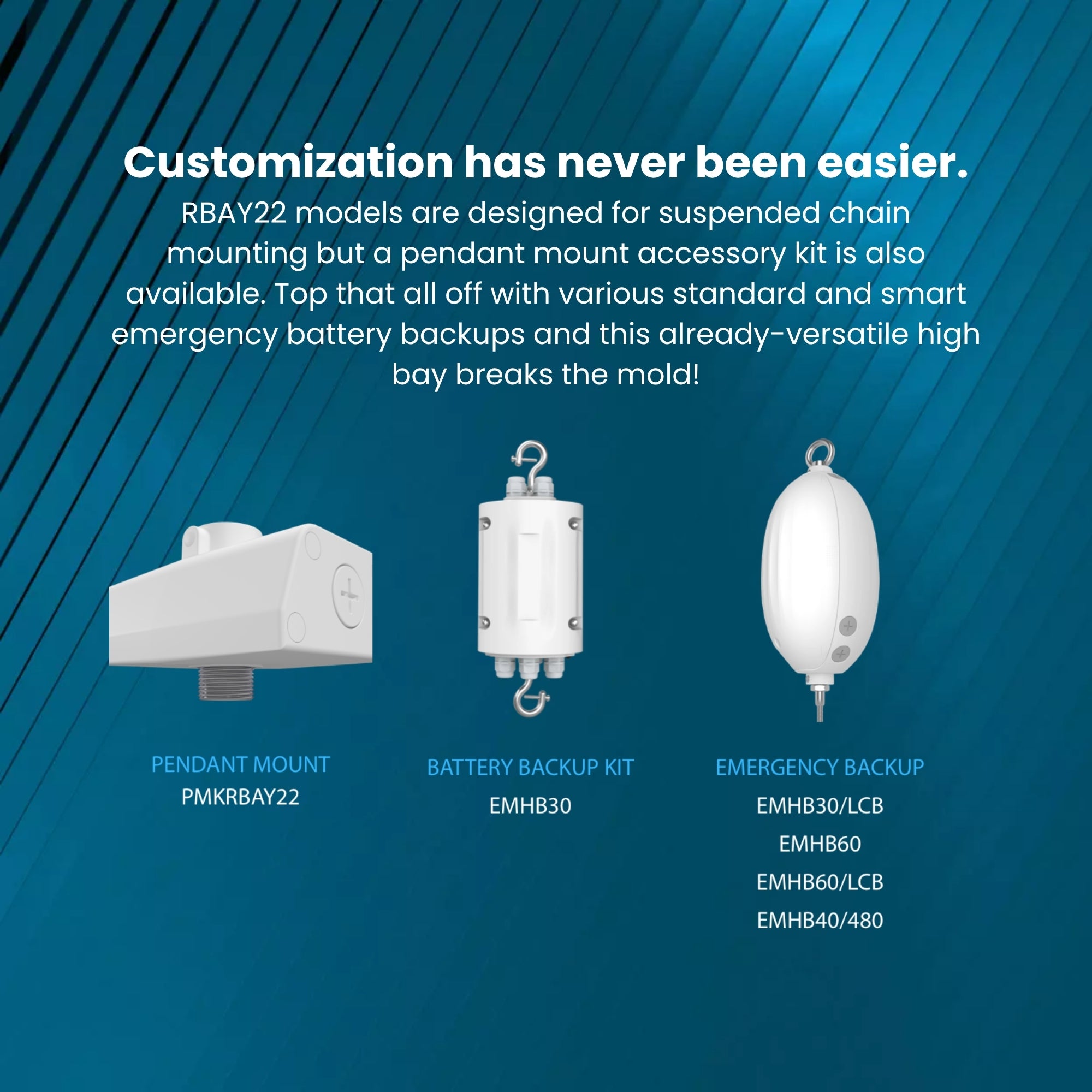

Included V-hooks and chain for suspension mounting. Optional pendant and surface kits available separately.

Included
LED high bay fixture, V-hooks, and chain.

Accessories
Optional reflectors, refractors, wire guards, occupancy sensors, Lightcloud control options, and emergency backup solutions.
