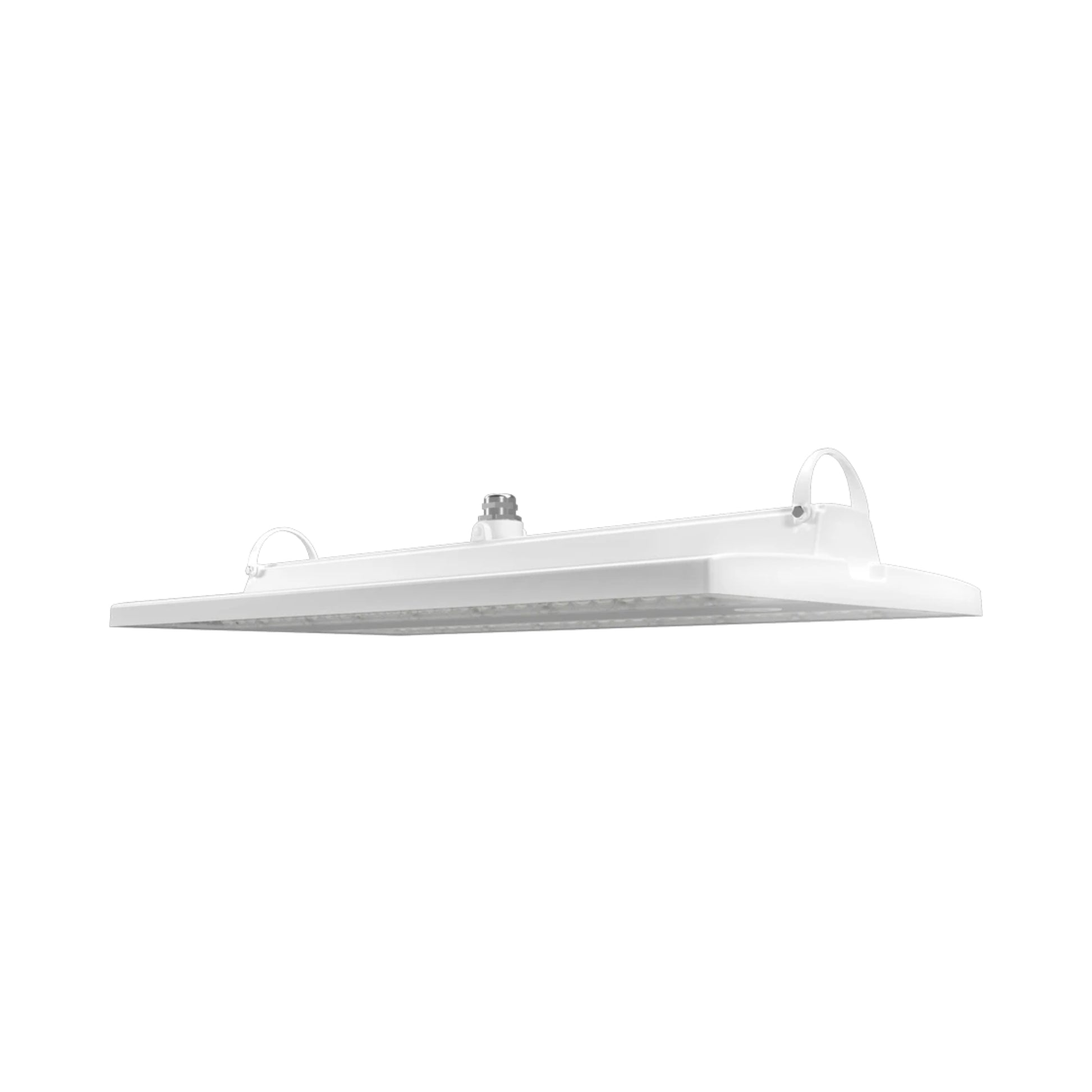

RAB RBAY22M/480 Field-Adjustable Linear High Bay — 260/220/160W Selectable — 3500K/4000K/5000K — 480V — White

The RAB RBAY22M/480 is a commercial linear high bay engineered to deliver up to 37,658 lumens with field-adjustable 260W / 220W / 160W power settings and switchable 3500K / 4000K / 5000K color temperatures. Operating on 480V electrical systems with 0–10V continuous dimming, this luminaire provides energy-efficient replacement for conventional high-intensity discharge and fluorescent fixtures. Built with an IP69K wet location and NSF rating alongside a UL Listing, it is qualified for commercial utility rebates under DLC Premium standards and features an innovative 3-axis selectability including an onboard beam angle adjustment switch.

Key Features

• Selectable Wattage: 260W / 220W / 160W — field-adjustable via onboard switch
• Wattage Equivalency: Replaces conventional HID and fluorescent fixtures for direct energy savings
• Maximum Lumen Output: 37,658 lm at 260W
• Peak Efficacy: Up to 164.7 lm/W for high-efficiency commercial operation
• CRI: >84 color rendering across all settings
• Color Consistency: Meets ANSI C78.377-2017 specifications for consistent fixture-to-fixture color
• Selectable CCT: 3500K / 4000K / 5000K — field-adjustable via onboard switch
• Lens & Optics: Adjustable beam angle selection of 55°, 85°, and 105°
• Dimming: 0–10V continuous dimming standard (dims down to 10%)
• Voltage: 480V AC, 50/60Hz constant current driver
• Location Rating: UL Listed for wet locations; IP69K rated for high-pressure and high-temperature cleaning
• Operating Temperature: −4°F (−20°C) to 122°F (50°C) ambient range
• Certifications: DLC Premium, UL Listed, NSF Certified, IK10 Impact Rated, RoHS Compliant
• Rated Life: L70 100,000 hours per IES TM-21 standards
• Warranty: 5-year limited warranty — RAB
• Sensor Compatibility: Includes a sensor port to easily install plug-and-play controls without internal wiring

Performance & Light Output (at default 85° beam angle)

At 260W: 35,387 lm (3500K / 139.3 lm/W), 37,658 lm (4000K / 151.8 lm/W), 36,486 lm (5000K / 143.6 lm/W).

At 220W: 31,285 lm (3500K / 143.4 lm/W), 33,293 lm (4000K / 156.3 lm/W), 32,257 lm (5000K / 147.8 lm/W).

At 160W: 24,196 lm (3500K / 151.1 lm/W), 25,749 lm (4000K / 164.7 lm/W), 24,947 lm (5000K / 155.8 lm/W).

CRI >84 across all configurations. Rated life 100,000 hours (L70) per IES TM-21 testing. Delivers direct energy reduction compared to traditional high-intensity discharge systems.

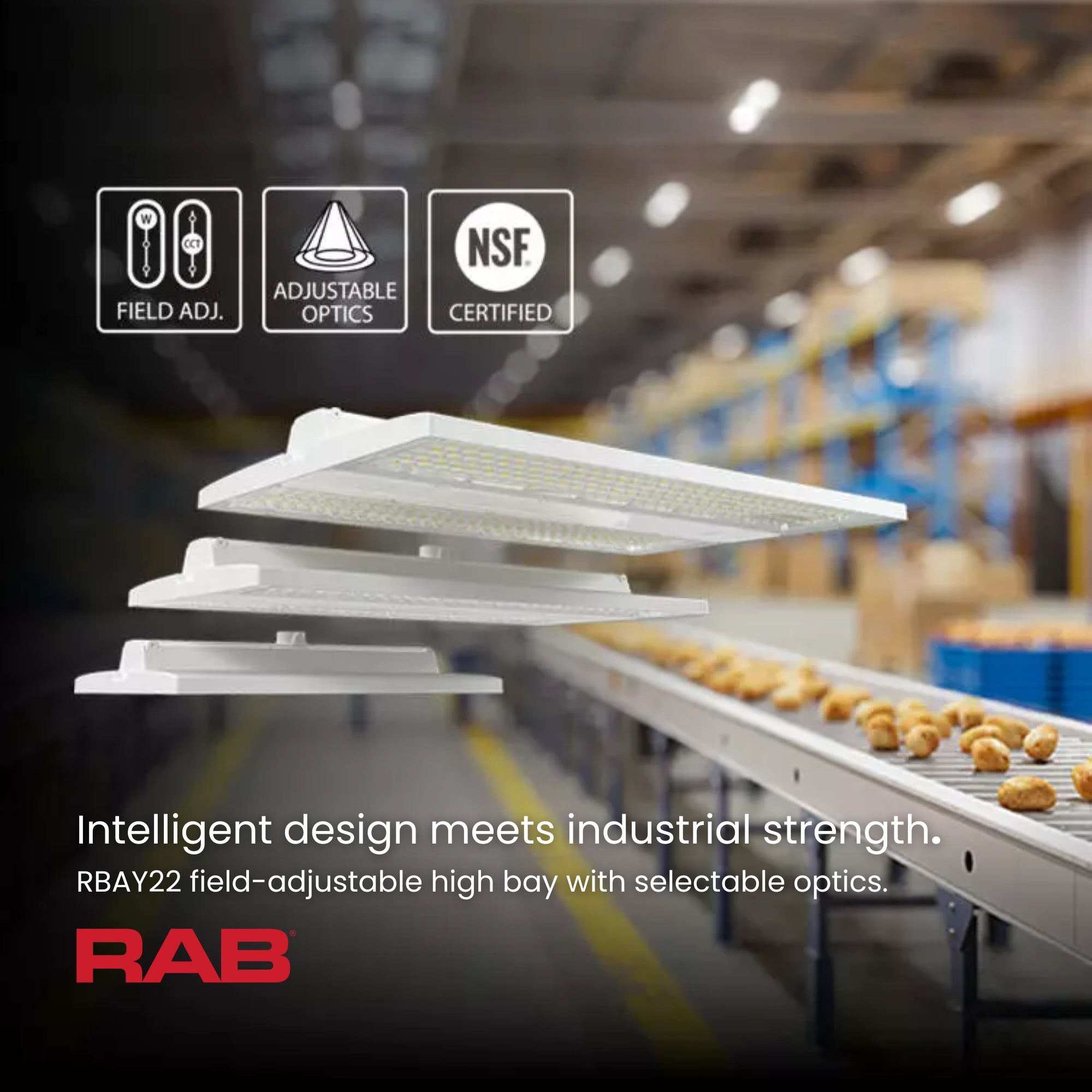

Lens & Optics

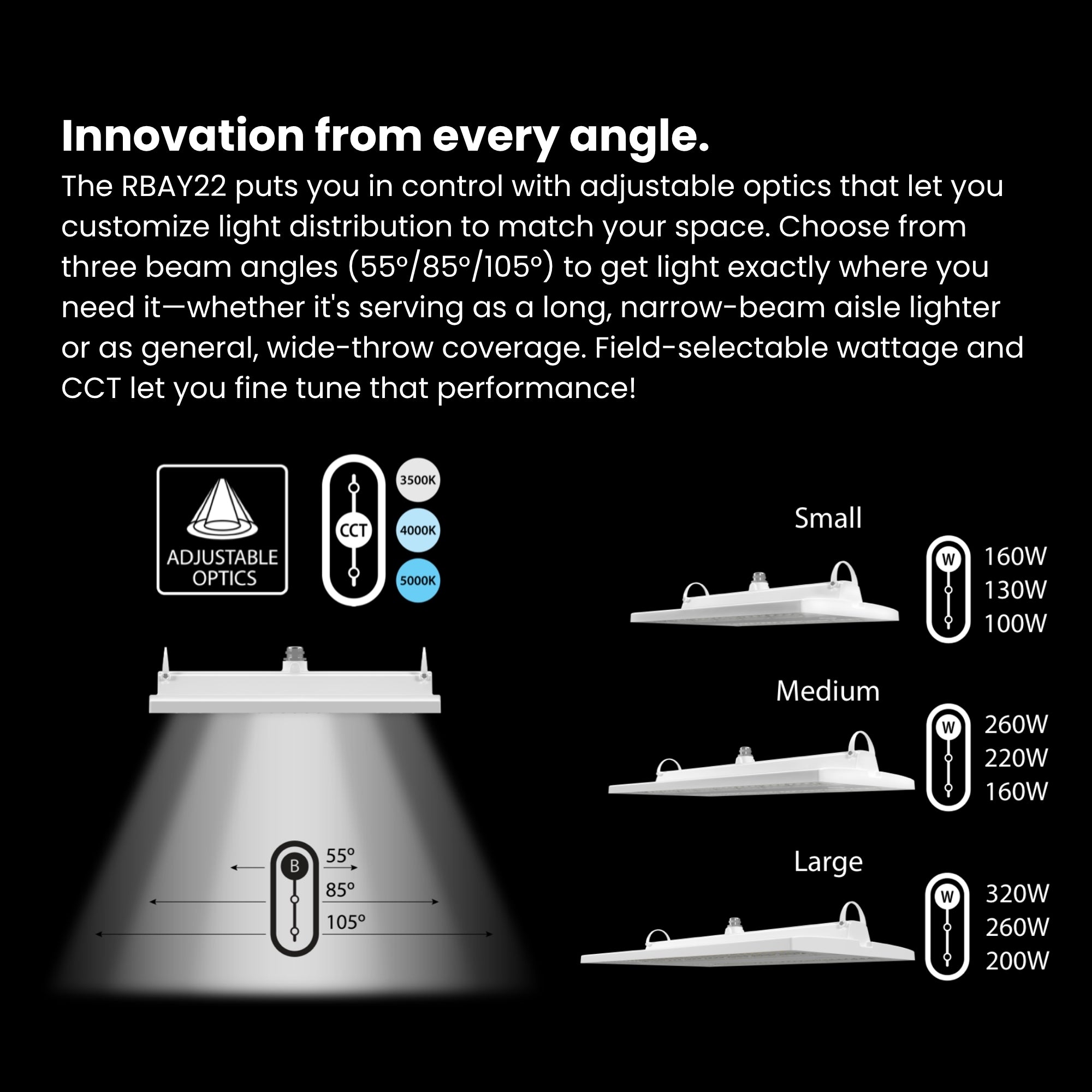

The field-adjustable optical system provides interchangeable aisle and open-area optics on the job site without tools or rewiring. The built-in beam selection switch allows installers to instantly toggle between three distinct distributions:

• 55° Narrow Optic: Concentrates beam distribution for narrow racking aisles, focused task areas, and elevated mounting heights.
• 85° Standard Optic (Pre-Installed): Delivers balanced distribution for standard warehouse floors.
• 105° Wide Optic: Delivers broad, uniform beam distribution for open warehouse floors, staging areas, and general open-ceiling commercial layouts.

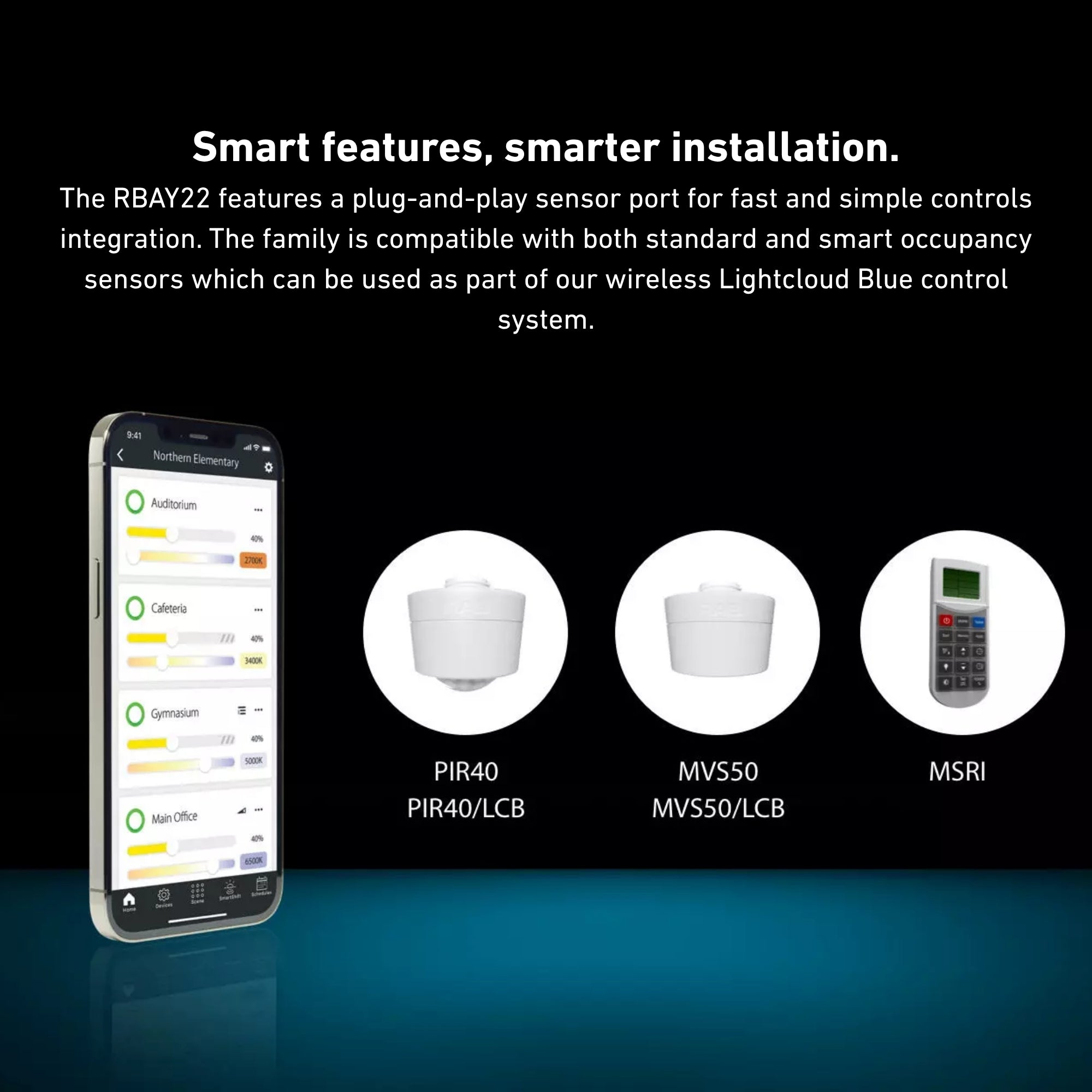

Smart & Control Features

The RBAY22M/480 features an integrated sensor port supporting modular sensing and automated facility lighting control:

• 0–10V Continuous Dimming (Standard): Standard dimming control compatible with commercial 0–10V dimmers.
• Sensor Compatibility (Accessory): Accepts field-installable PIR and microwave occupancy sensors via the integrated sensor port.
• Lightcloud Blue (Accessory): Compatible with Bluetooth mesh controllers for wireless group control, automated scheduling, and occupancy sensing.

Compatible plug-and-play sensors include the PIR40, MVS50, PIR40/LCB, and MVS50/LCB — sold separately. Field sensor adjustments can also be managed using an optional handheld wireless remote (catalog # MSR1, sold separately).

Electrical

Powered by a Class 1 constant current driver operating on 480V AC at 50/60Hz. Delivers high electrical efficiency with a Power Factor >0.90 and Total Harmonic Distortion (THD) <20%. Integrated 6kV + 6kV surge protection protects internal electronics against line-to-line and line-to-ground transient voltage spikes. Includes pre-wired 0–10V dimming leads. RoHS compliant.

Operating current and amp draw across input voltages for branch circuit and breaker loading calculations:

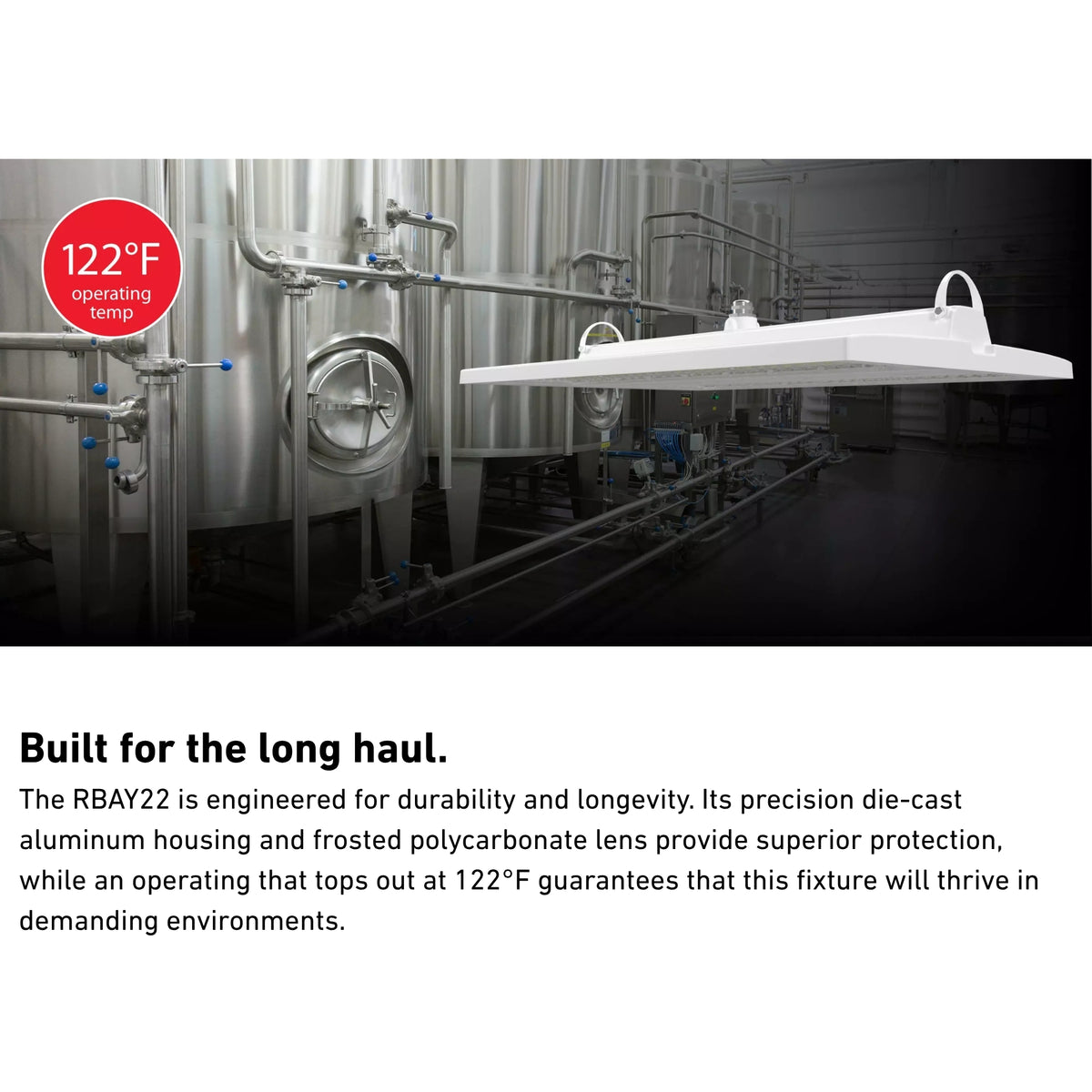

Construction

Housing & Thermal: Die-cast aluminum housing engineered with heat-dissipating fins. The housing functions as a high-efficiency passive heatsink, dissipating heat away from LED arrays and internal driver circuits to preserve lumen maintenance across the 100,000-hour rated lifespan.

Lens & Optics: Features a durable IK10 impact-resistant polycarbonate lens.

Finish: Commercial finish in White formulated for high durability and long lasting color.

Environmental Sealing: IP66 and IP69K rated and UL Listed for wet locations, providing a sealed barrier resistant to high-pressure washdown, dust, and moisture ingress. Ambient operating temperature range: −4°F (−20°C) to 122°F (50°C).

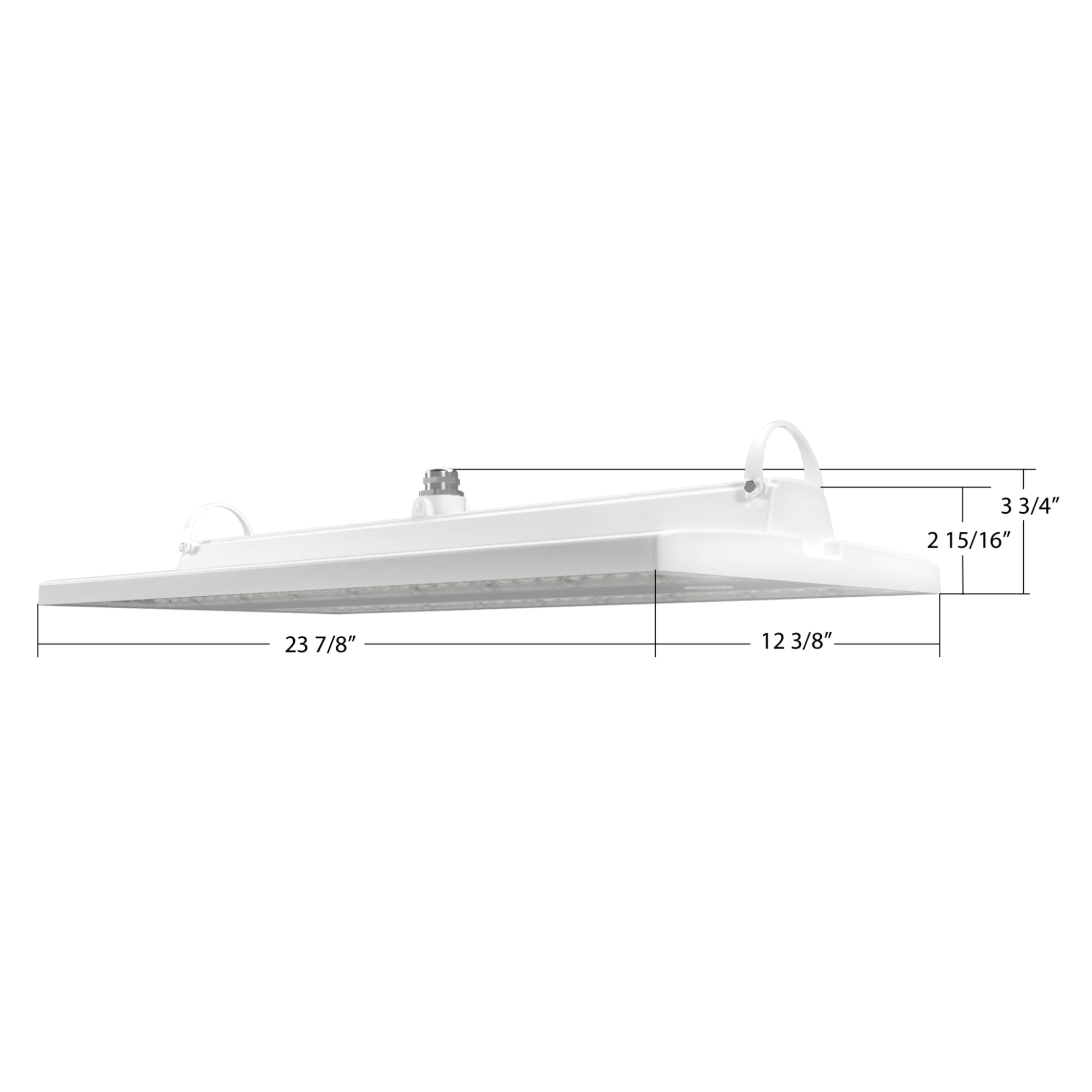

Dimensions & Weight: 23.88" L × 12.38" W × 3.75" H. Fixture weight: 12.43 lbs.

Installation & Mounting

Standard Hardware: Ships standard with V-hooks for chain mounting installation.

Mounting Options: Compatible with rigid pendant mounting via the PMKRBAY22 Pendant Mount Kit (sold separately).

Accessories (Sold Separately):

• Mounting Brackets: PMKRBAY22 (Pendant Mount Kit, White)
• Sensors & Controls: PIR40 (PIR Sensor) | MVS50 (Microwave Sensor) | PIR40/LCB (Lightcloud Blue PIR) | MVS50/LCB (Lightcloud Blue MVS) | MSR1 (Programming Remote)
• Emergency Battery Backup: EMHB40/480 (40W Emergency Backup for 480V)

Certifications & Rebates

• IP69K Washdown & NSF Certified: Certified to withstand high-pressure, high-temperature cleaning, and safe for use in food processing environments
• DLC Premium: Qualifies for commercial lighting utility rebate programs nationwide (DLC ID: S-7S2RW7)
• UL Listed: Certified for wet locations per UL standards for commercial luminaires
• RoHS Compliant: Manufactured free of lead, mercury, and hazardous heavy metals

Typical Applications

• Food Processing & Commercial Washdown — NSF approval and IP69K sealing allow for rigorous high-pressure, high-temperature sanitation
• Covered Loading Docks & Canopies — UL Wet Location listing and IP69K rating provide an impenetrable barrier against moisture and dust
• Aisle Racking & Logistics Corridors — 55° narrow beam setting concentrates illumination along storage rows to eliminate wasted vertical spill
• Gymnasiums & Athletic Facilities — IK10 impact-resistant polycarbonate lens delivers maximum durability against severe mechanical impacts
• Precision Assembly & Inspection Areas — Field-adjustable 3500K/4000K/5000K CCT allows illumination tuning for visual task accuracy

What's Included

• RAB RBAY22M/480 Linear LED High Bay — White
• V-hooks for chain mounting
• Installation and operation instructions
