The RAB RBAY22L/480 is the 480V large model of the field-adjustable RBAY22 linear LED high bay series, delivering up to 48,594 lumens at 320W — the highest lumen output in the entire RBAY22 family. Wattage (320W / 260W / 200W), CCT (3500K / 4000K / 5000K), and beam angle (55° / 85° / 105°) are all field-selectable on-site. Designed for 480V / 50–60Hz heavy industrial installations with 0–10V dimming (dims to 10%) and 6kV+6kV surge protection. UL Listed for Wet Locations, rated IP66 and IP69K, NSF certified, and IK10 impact-rated. Certified DLC Premium (480V code: S-VBRWPZ). Rated 100,000 hours per IES LM-80 / TM-21. 5-year RAB warranty. Replaces 750W–1000W MH/HPS/fluorescent high bays in 480V facilities.

Key Features

• Selectable Wattage: Field-adjustable 320W (default) / 260W / 200W via onboard switch — no tools required.
• Selectable CCT: Field-adjustable 3500K / 4000K / 5000K (default 4000K).
• Selectable Beam Angle: 55° / 85° (default) / 105° — field-adjustable for precise photometric control.
• Maximum Lumen Output: 48,594 lm at 320W (480V) — highest in the RBAY22 platform.
• Peak Efficacy: Up to 151.9 lm/W at 320W (480V driver).
• CRI & Color Uniformity: 80+ CRI; per ANSI C78.377-2017.
• Dimming Protocol & Range: 0–10V continuous dimming, dims to 10%.
• Voltage & Driver: 480V / 50–60Hz; Constant Current, Class 1 driver.
• Location Rating: UL Listed for Wet Locations · IP66 / IP69K.
• Impact Rating: IK10.
• Cold Weather Start: −20°C (−4°F); max ambient 50°C (122°F). With battery backup: 0°C (32°F) / 45°C (113°F).
• Surge Protection: 6kV+6kV.
• Certifications: UL Listed (Wet) · IP66 / IP69K · IK10 · NSF · DLC Premium (S-VBRWPZ) · RoHS Compliant.
• Rated Life: 100,000 hours per IES LM-80 / TM-21.
• Warranty: 5-year RAB limited warranty covering light output, driver performance, and paint finish.
• Green Technology: Mercury-free, UV-free, RoHS-compliant components.

Performance & Light Output

At 320W: 48,594 lm (3500K / 4000K / 5000K selectable).
At 260W: proportional output across all CCT selections.
At 200W: proportional output across all CCT selections.
CRI: 80+. Beam angle: 55° / 85° / 105°. Rated life: 100,000 hours per IES LM-80 / TM-21 (L70). Color uniformity per ANSI C78.377-2017.

Lens & Optics

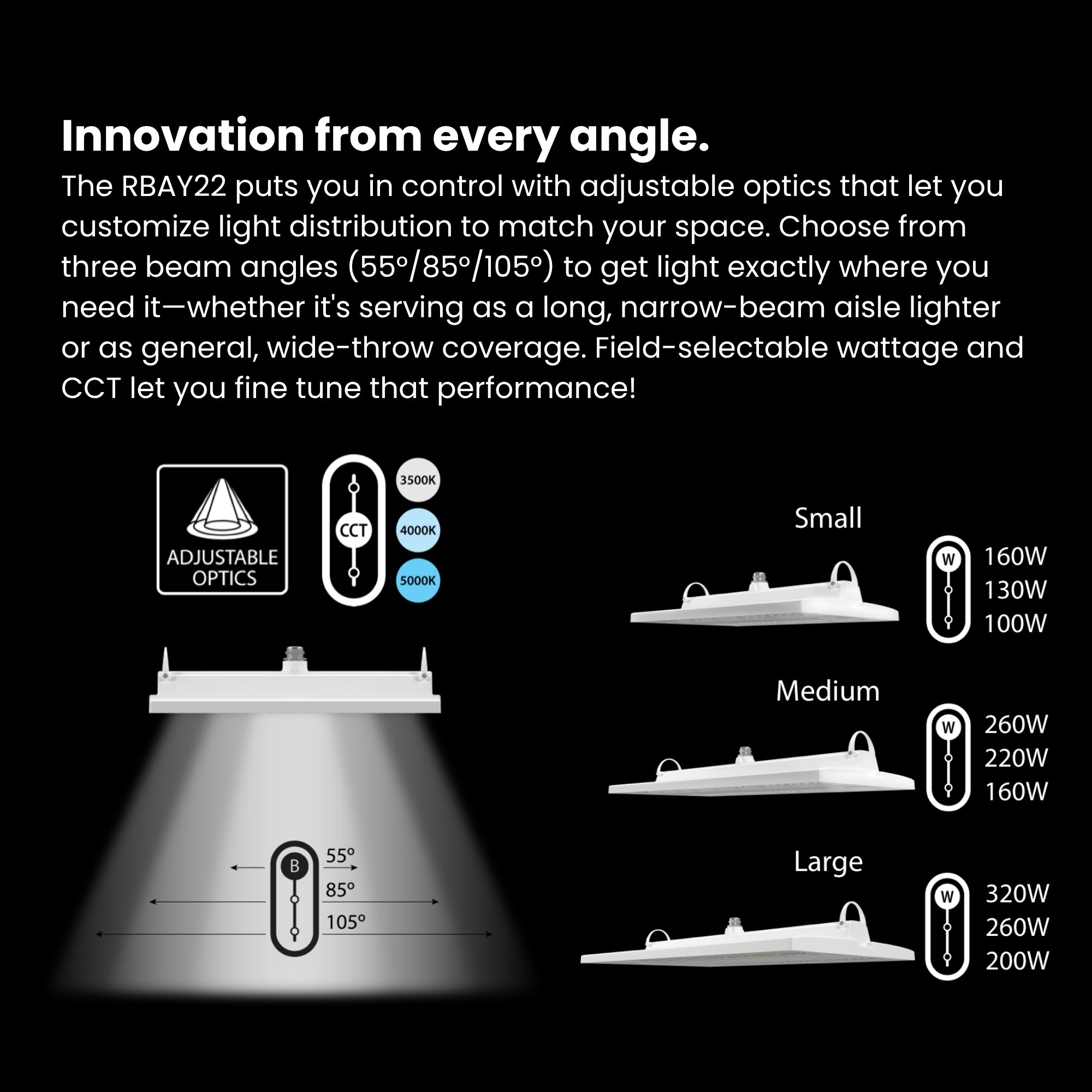

Field-selectable beam angle: 55° (narrow, for extreme mounting heights ≥40 ft), 85° (default, general industrial), 105° (wide, for broad coverage). Polycarbonate lens. Optic selection requires no additional accessories.

Smart & Control Features

Standard 0–10V dimming built in (dims to 10%). Optional sensor accessories:

• PIR40 — High Ceiling Low Voltage PIR Sensor, White
• PIR40/LCB — LC Blue High Ceiling Luminaire Controller with PIR, White
• MVS50 — High Ceiling Low Voltage MVS Sensor, White
• MVS50/LCB — LC Blue High Ceiling Luminaire Controller with MVS, White
• MSR1 — Multi Sensor Remote Control, IP20

Electrical

Input voltage: 480V / 50–60Hz. Constant Current, Class 1 driver. Input current (480V) — 320W: 0.7A; 260W: 0.6A; 200W: 0.5A. THD (default): 7.5% at 480V. Power factor (default): 96.5% at 480V. Surge protection: 6kV+6kV. Dimming: 0–10V, dims to 10%. Emergency battery backup: EMHB40/480 (40W, all 480V models). Mercury-free, UV-free, RoHS compliant.

Construction

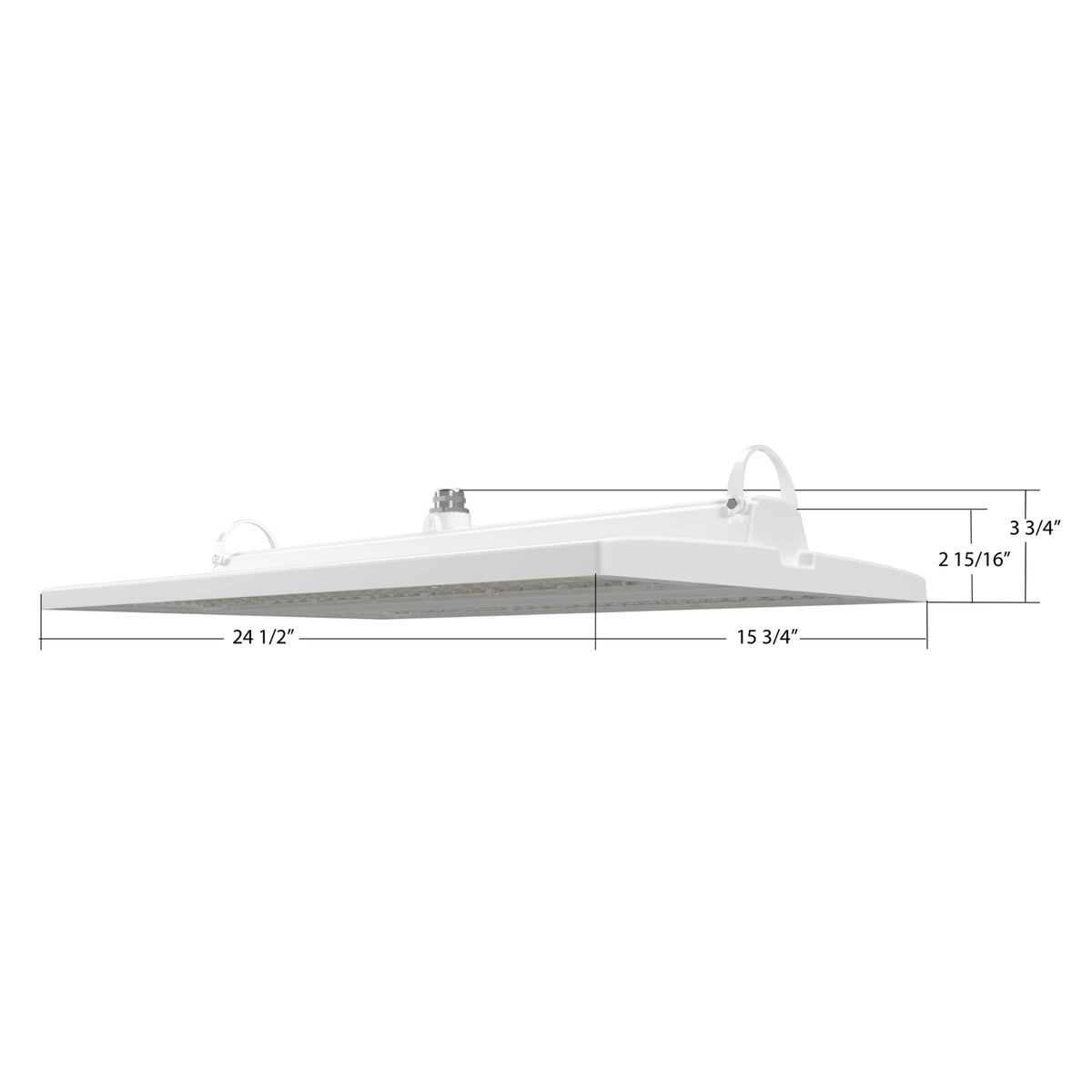

Housing: Die-cast aluminum. Lens: Polycarbonate. Finish: High-durability powder-coat — White. IP66 & IP69K. IK10. NSF certified. Weight (480V): 14.95 lbs. Dimensions: 24½″ L × 15¾″ W × 3¾″ H.

Installation & Mounting

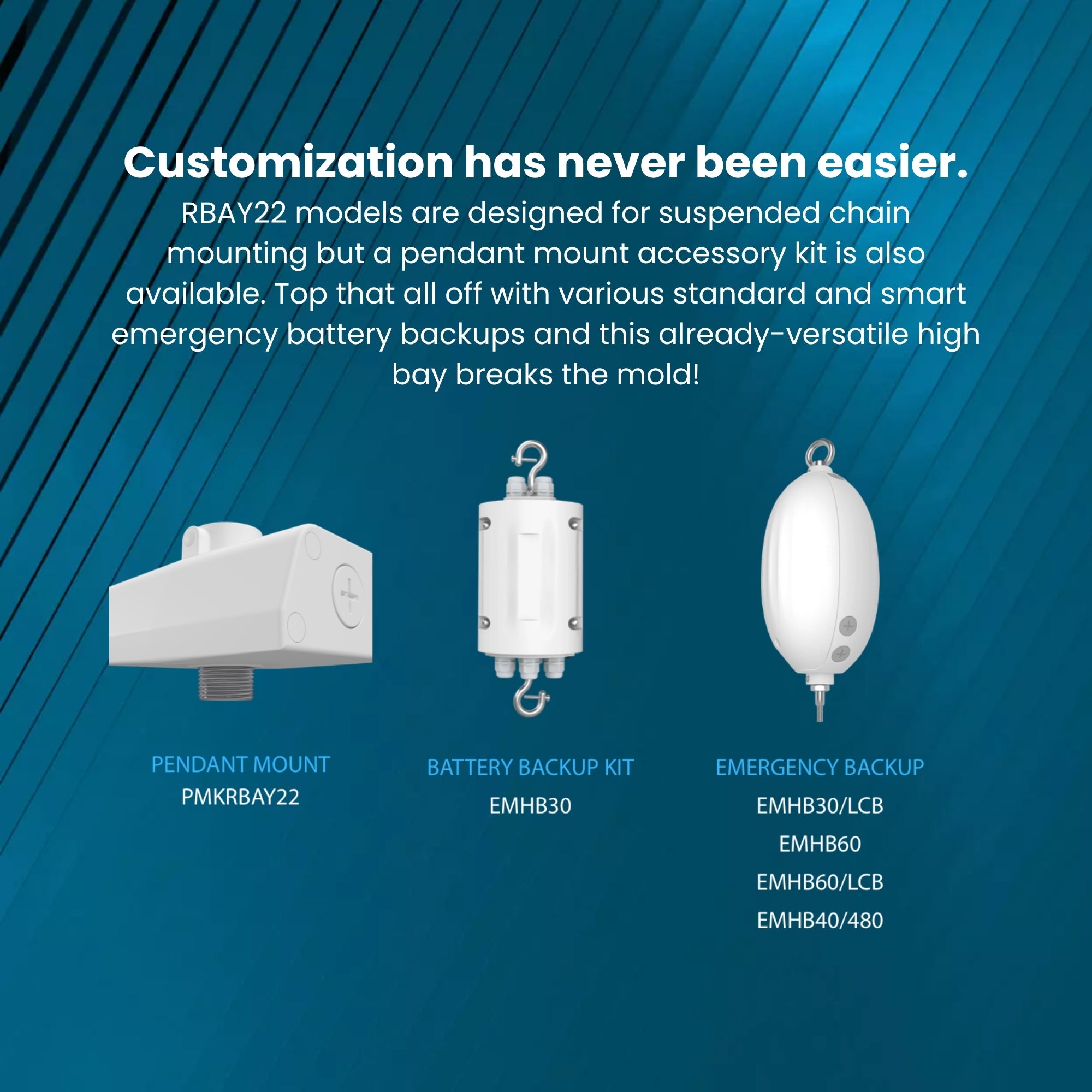

Comes standard with V-hooks for chain mounting. Optional accessories:

• PMKRBAY22 — Pendant Mount Kit, White
• EMHB40/480 — Emergency Battery Backup 40W for all 480V models, White

Ceiling height guidance: 200W for 25–35 ft; 260W for 30–40 ft; 320W for 35–50 ft.

Certifications & Rebates

UL Listed (Wet Location) · IP66 / IP69K · IK10 · NSF Certified · DLC Premium — Product Code: S-VBRWPZ. Search S-VBRWPZ at designlights.org to verify utility rebate eligibility. Meets DLC 5.1 requirements. RoHS Compliant.

Typical Applications

• 480V High-Ceiling Industrial Facilities: Engineered for heavy manufacturing, steel plants, and large industrial buildings wired at 480V — delivering maximum lumens without step-down transformers.

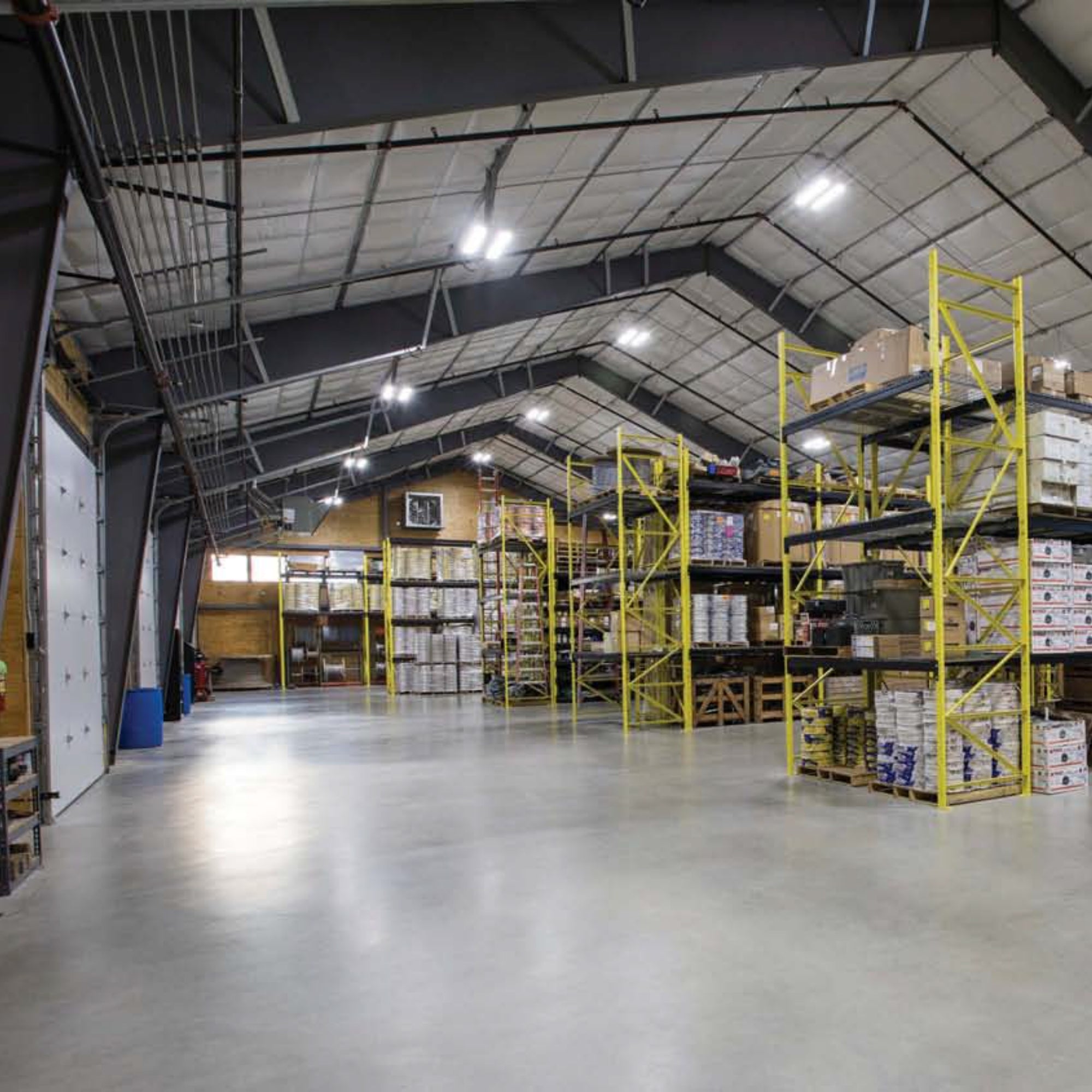

• High-Bay Warehouses & Distribution Centers: 48,594-lm output at 320W handles the tallest mounting heights with selectable beam angles.

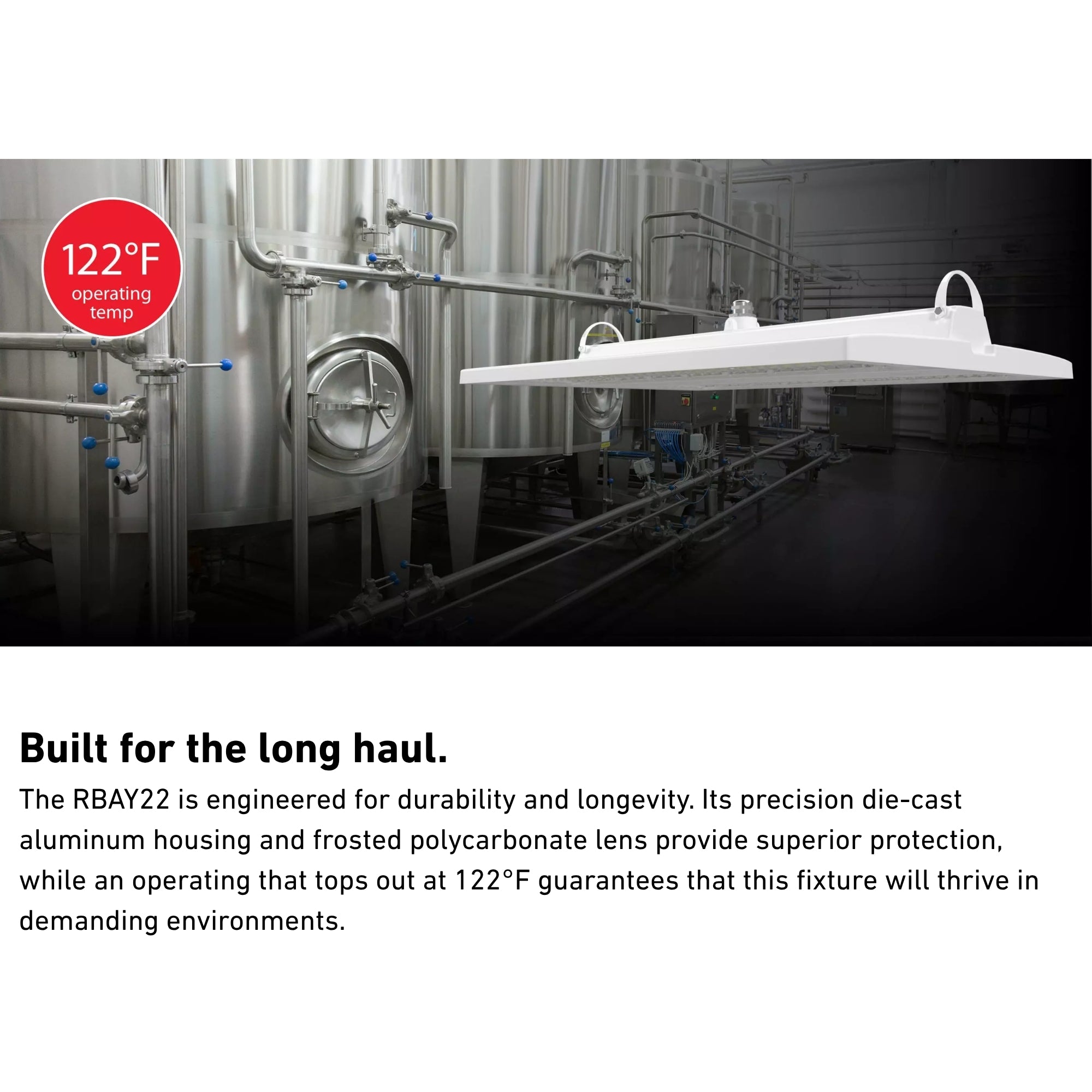

• Food Processing & Wash-Down Environments: IP69K and NSF certification for high-pressure cleaning environments at 480V.
• Cold Storage & Refrigerated Warehouses: −20°C cold-start rating for deep-freeze and cold-storage applications.
• Aircraft Hangars & Large Covered Venues: Maximum lumen output and narrow 55° beam support effective lighting at extreme mounting heights in 480V facilities.

What's Included

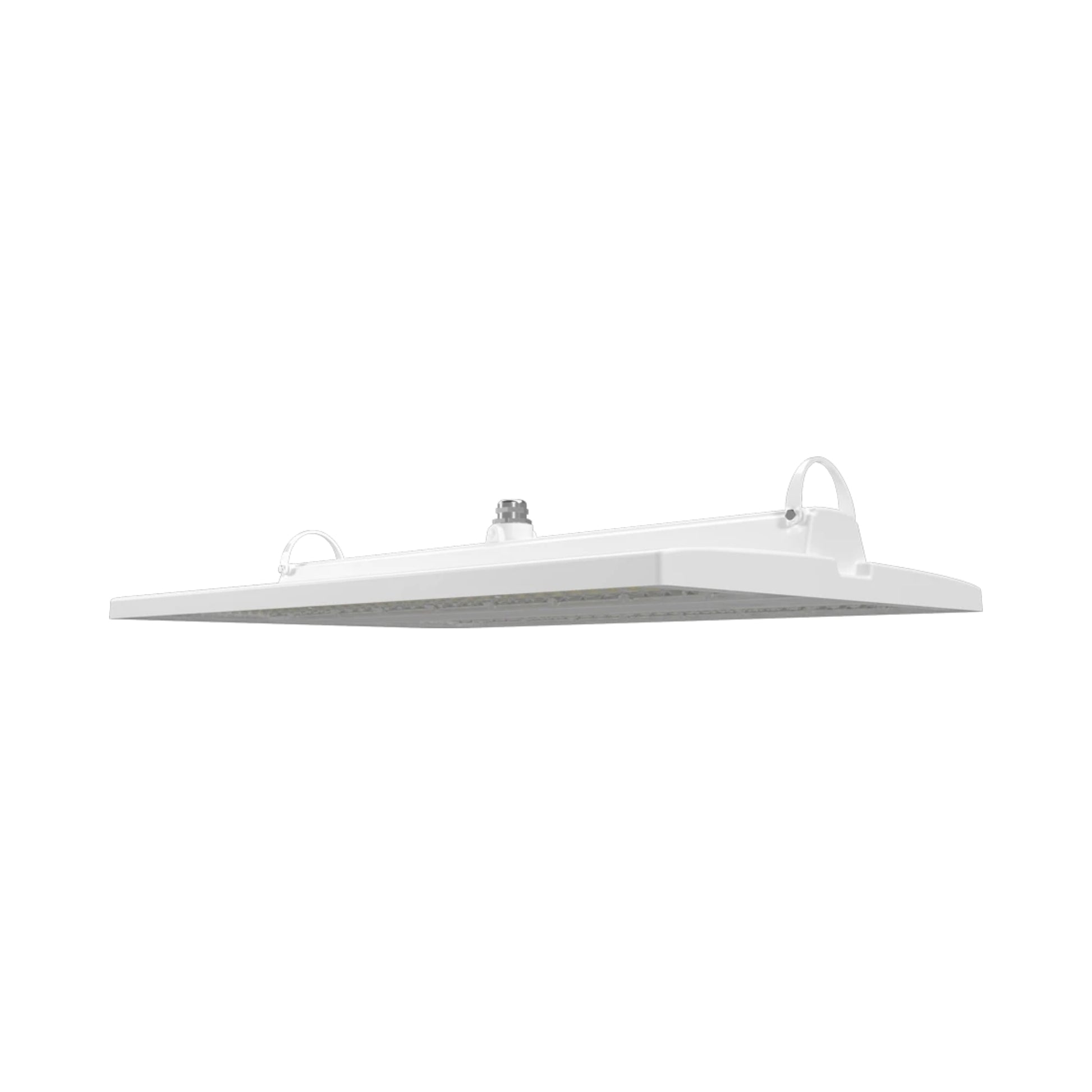

• RAB RBAY22L/480 LED Linear High Bay Fixture
• V-Hooks for Chain Mounting
