RAB RBAY17SHO High Output Linear LED High Bay 20,799 Lumens 130W/100W/80W Selectable 4000K/5000K 120–277V White

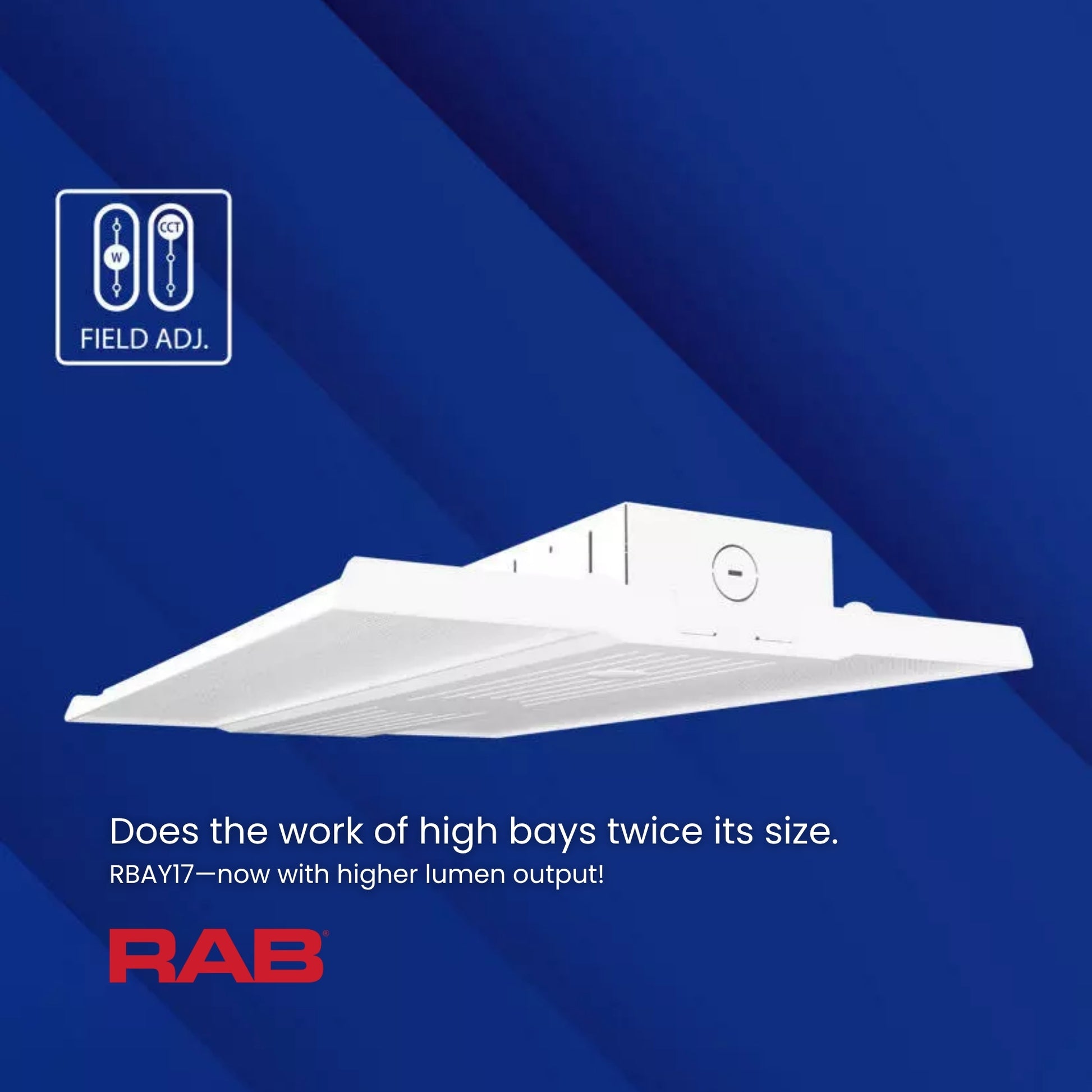

RAB RBAY17SHO Field-Adjustable High Output Linear LED High Bay — 130W / 100W / 80W Selectable

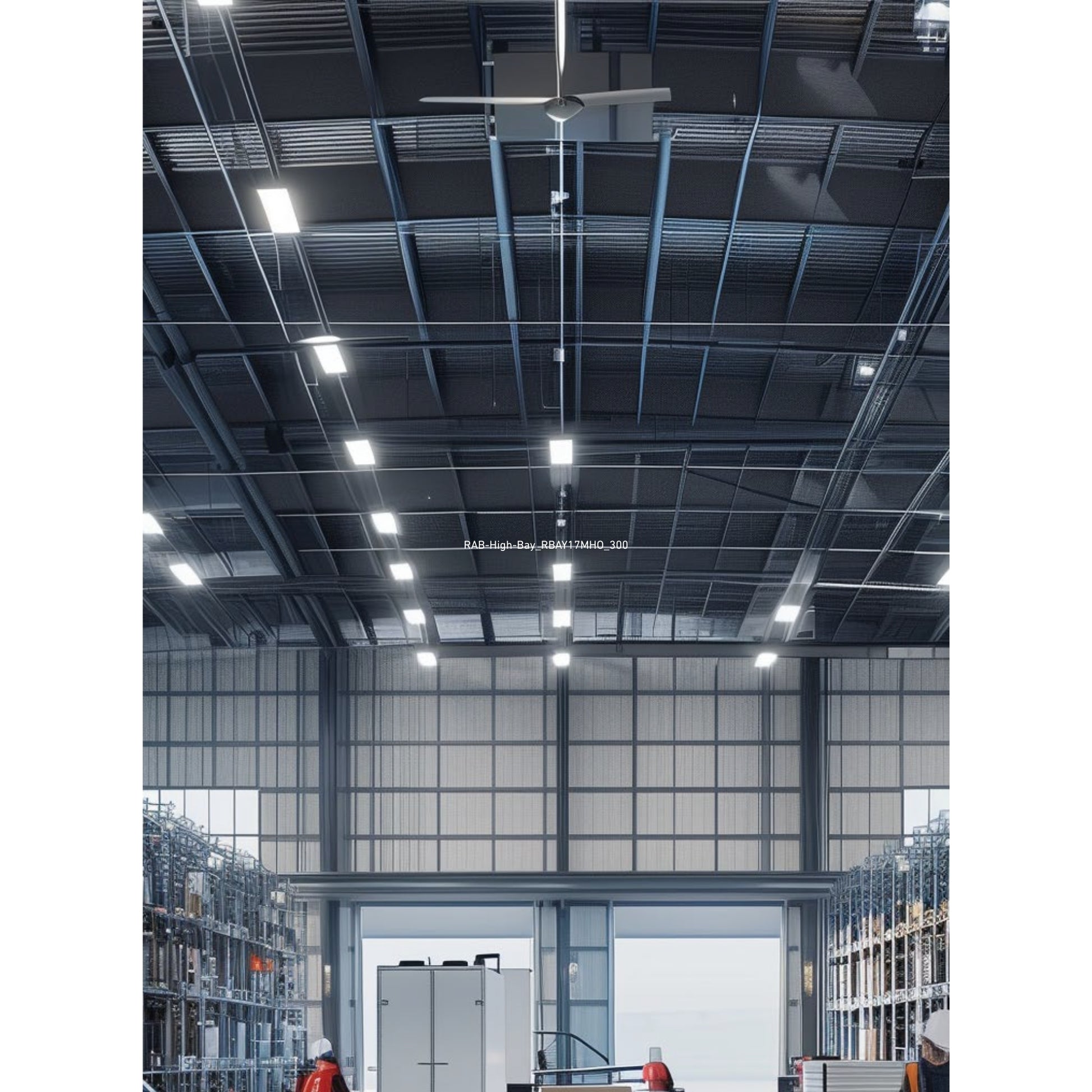

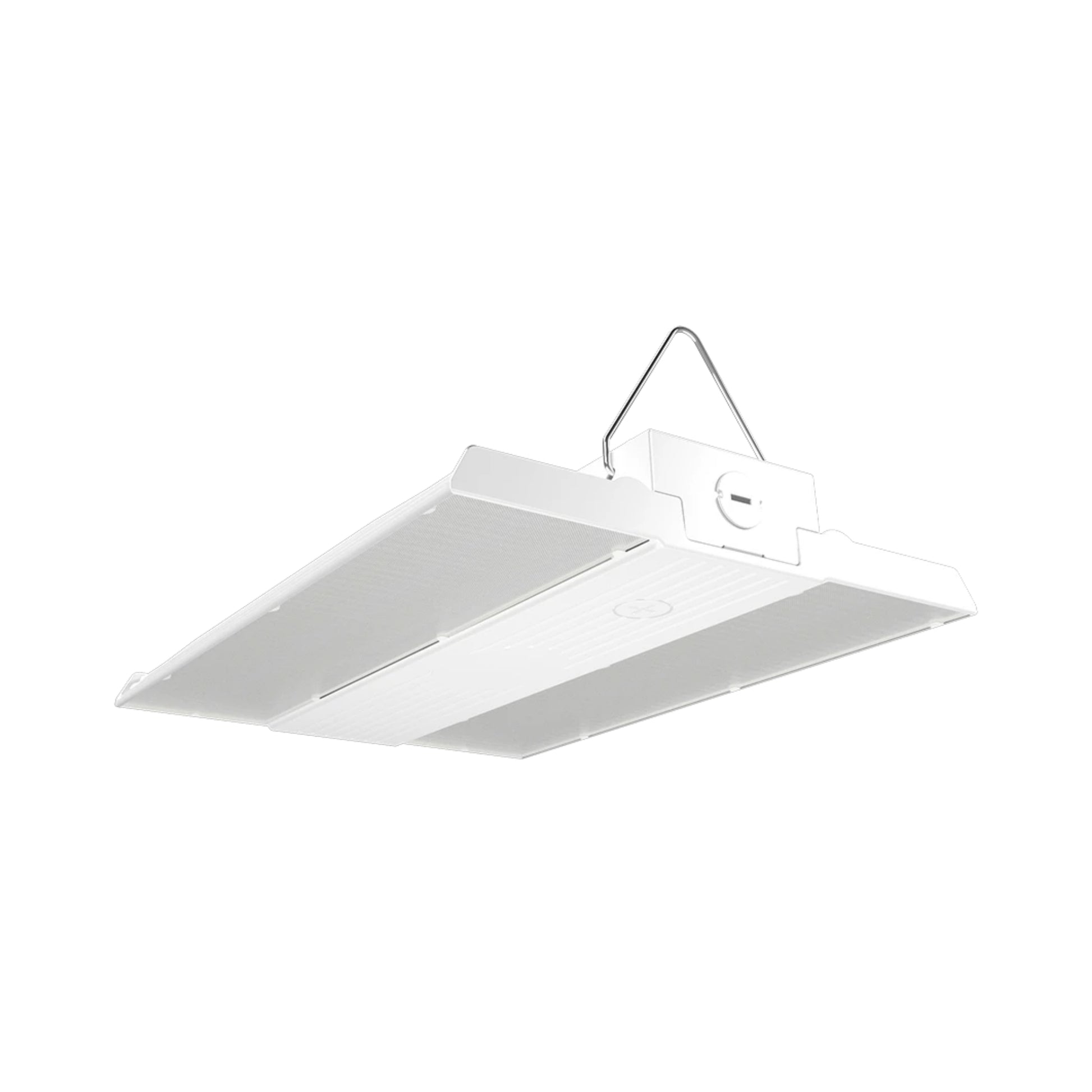

The RAB RBAY17SHO is a field-adjustable high output linear LED high bay delivering up to 20,799 lumens with selectable wattage options of 130W, 100W, and 80W and selectable CCT of 4000K / 5000K. The fixture operates on 120–277V with integrated 0–10V dimming to 10%. It is UL Listed for damp locations and DLC Premium Listed for rebate eligibility. Designed for warehouses, retail spaces, gymnasiums, industrial workshops, and other commercial or industrial environments requiring higher output illumination in a compact linear profile.

Key Features

• Selectable Wattage: 130W / 100W / 80W
• Selectable CCT: 4000K / 5000K
• Maximum Output: Up to 20,799 lumens
• Dimming: 0–10V dimming to 10%
• Environmental Rating: UL Listed for damp locations
• Certifications: UL Listed; DLC Premium Listed
• LED Lifespan: 100,000 hours (L70)

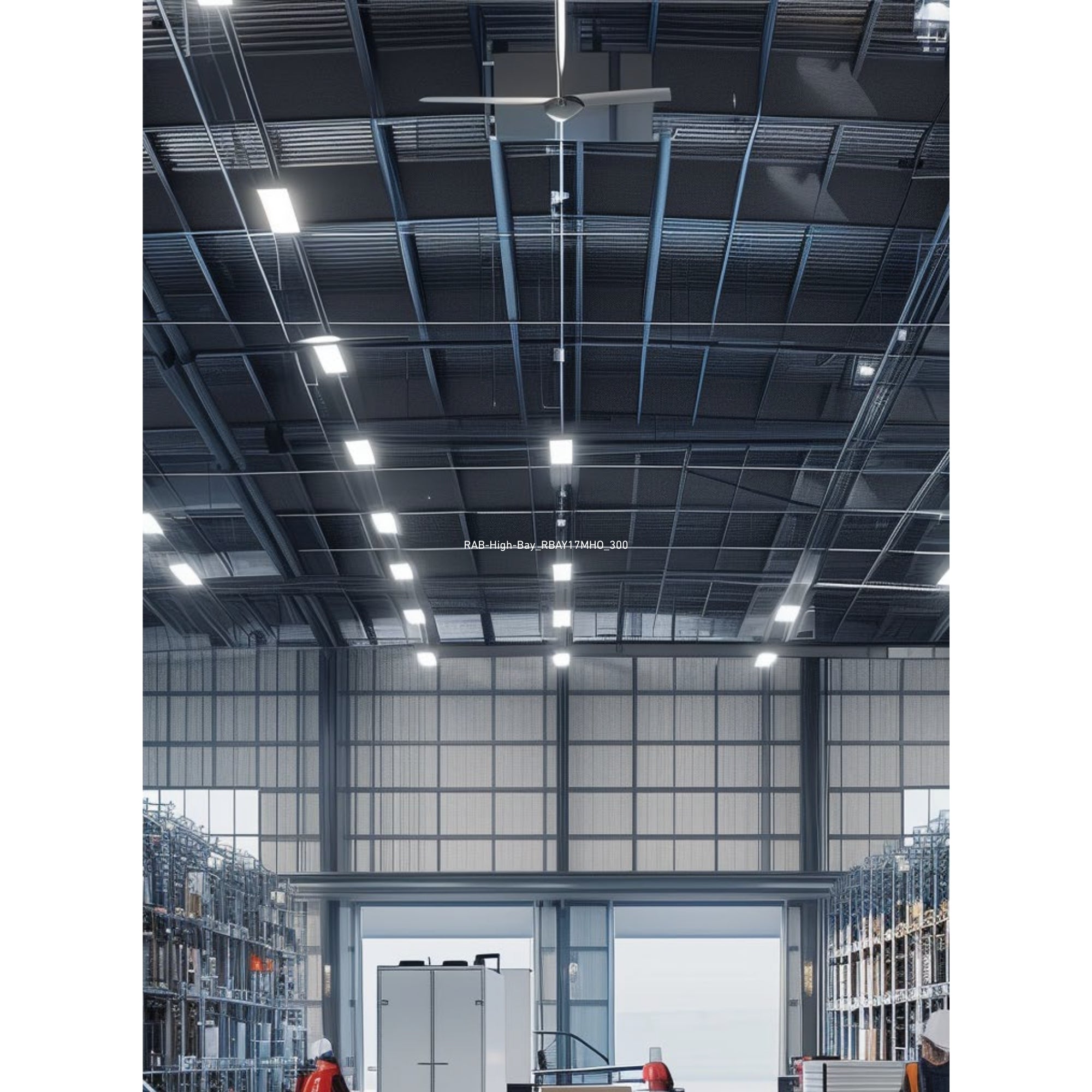

Typical Applications

• Warehouses
• Distribution centers
• Retail spaces
• Gymnasiums
• Industrial workshops
• Service bays
• Assembly areas

Performance & Light Output:
Delivered lumen output varies with selected wattage and CCT. The LED system delivers high efficacy with CRI in the mid-80s and a rated 100,000-hour L70 lifespan.

Electrical & Controls:
Operates on 120–277V, 50/60 Hz with a constant current Class 1 driver. Integrated 0–10V dimming supports dim-to-10% control systems and sensor-ready wiring for compatible occupancy and control devices.

Construction & Durability:
Die-cast aluminum housing with polycarbonate lens. Rated for damp locations with robust construction suitable for commercial and industrial environments. Mercury-free and RoHS-compliant.

Installation & Mounting:

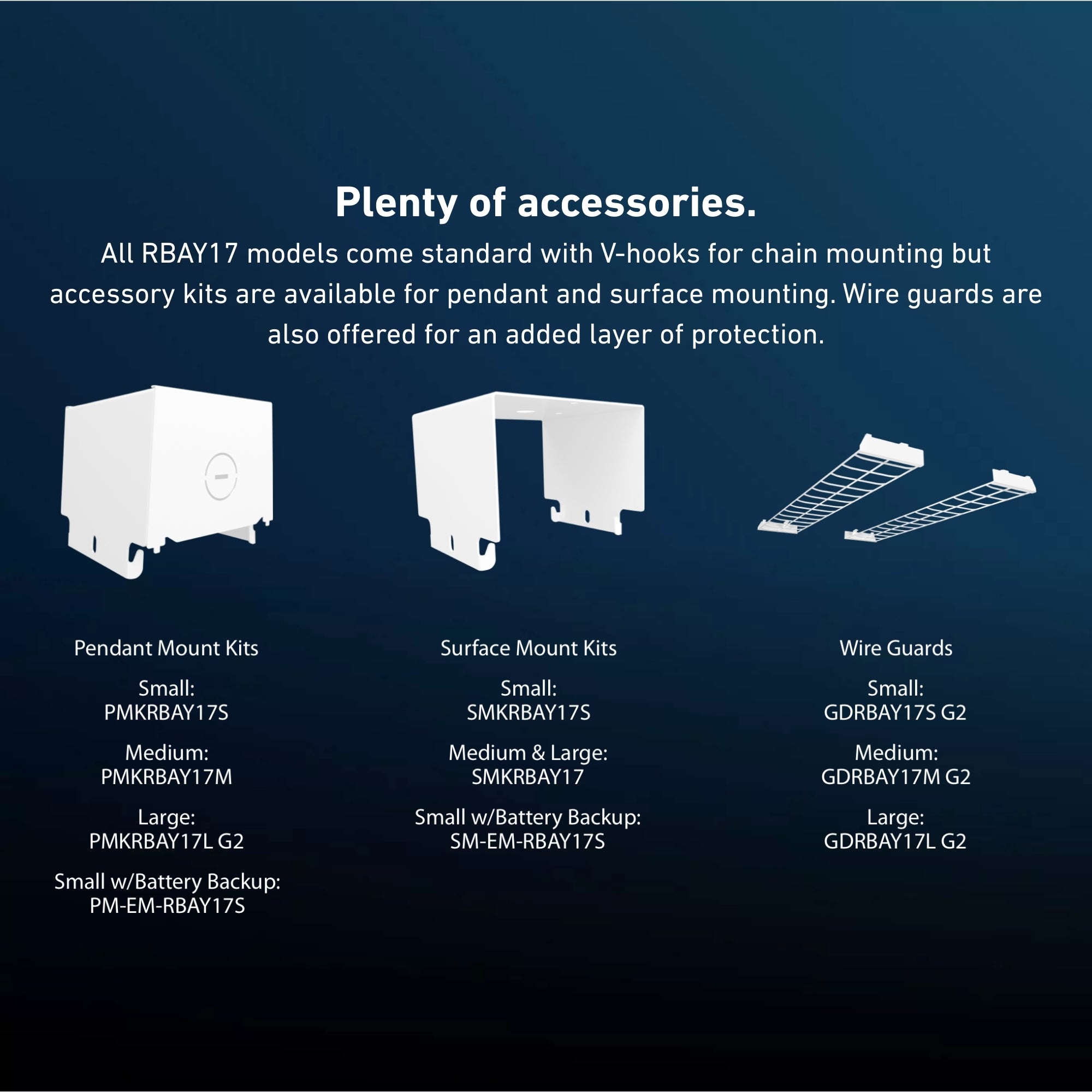

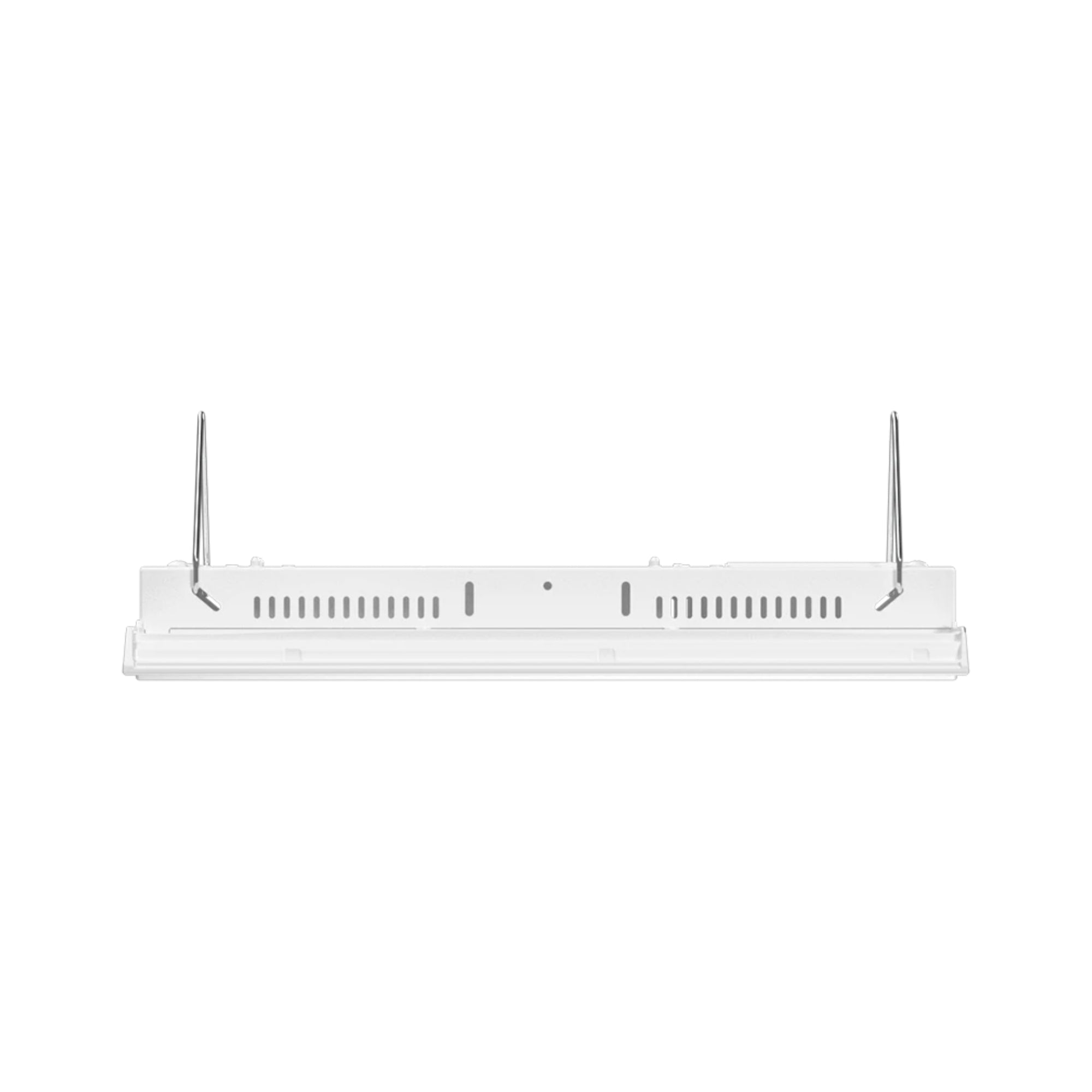

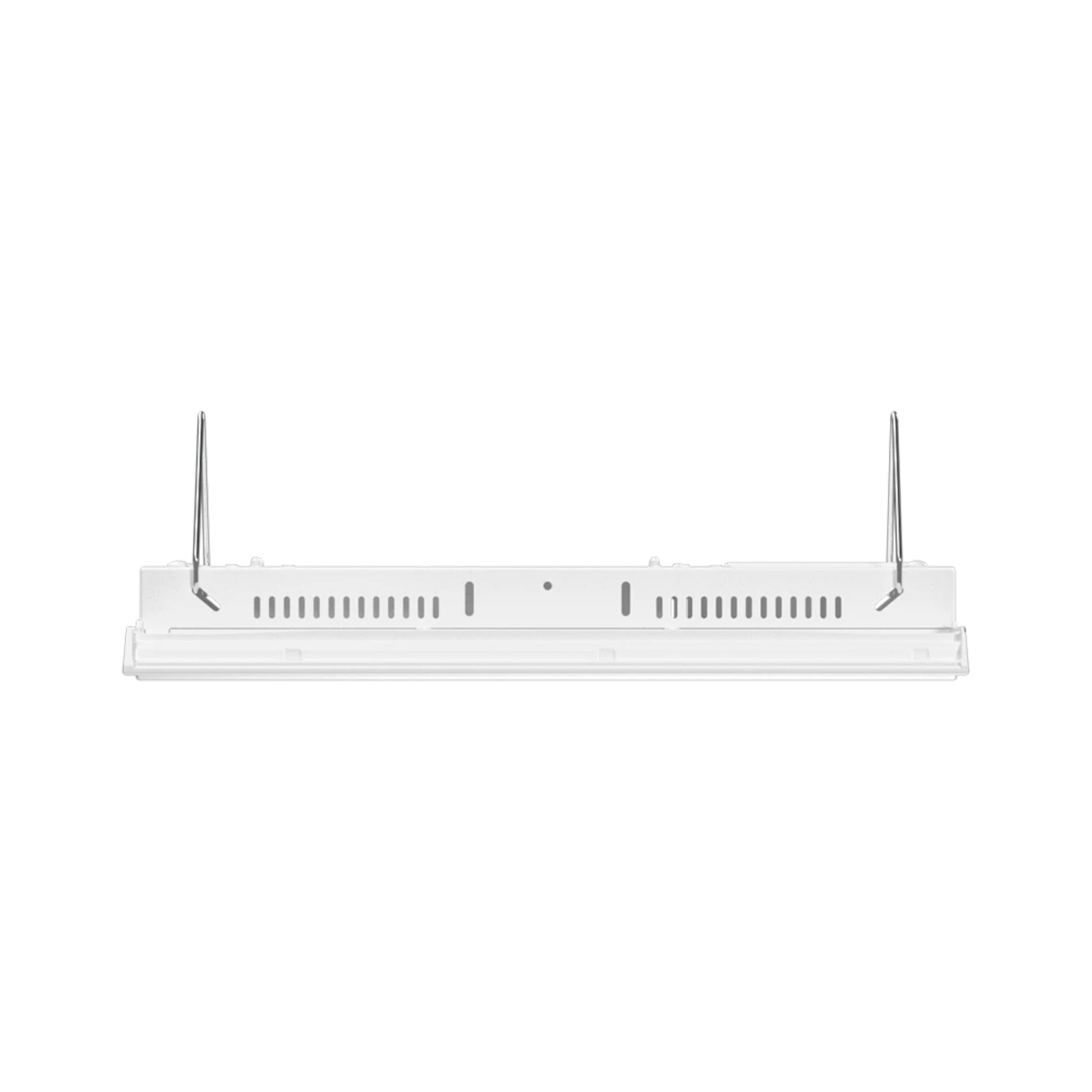

Includes V-hooks and chain for suspension mounting. Optional surface and pendant mounting kits available separately.

Included
LED linear high bay fixture, V-hooks, and chain.
