RAB RBAY17SHO/480 Field-Adjustable High Output Linear LED High Bay — 130W / 100W / 80W Selectable

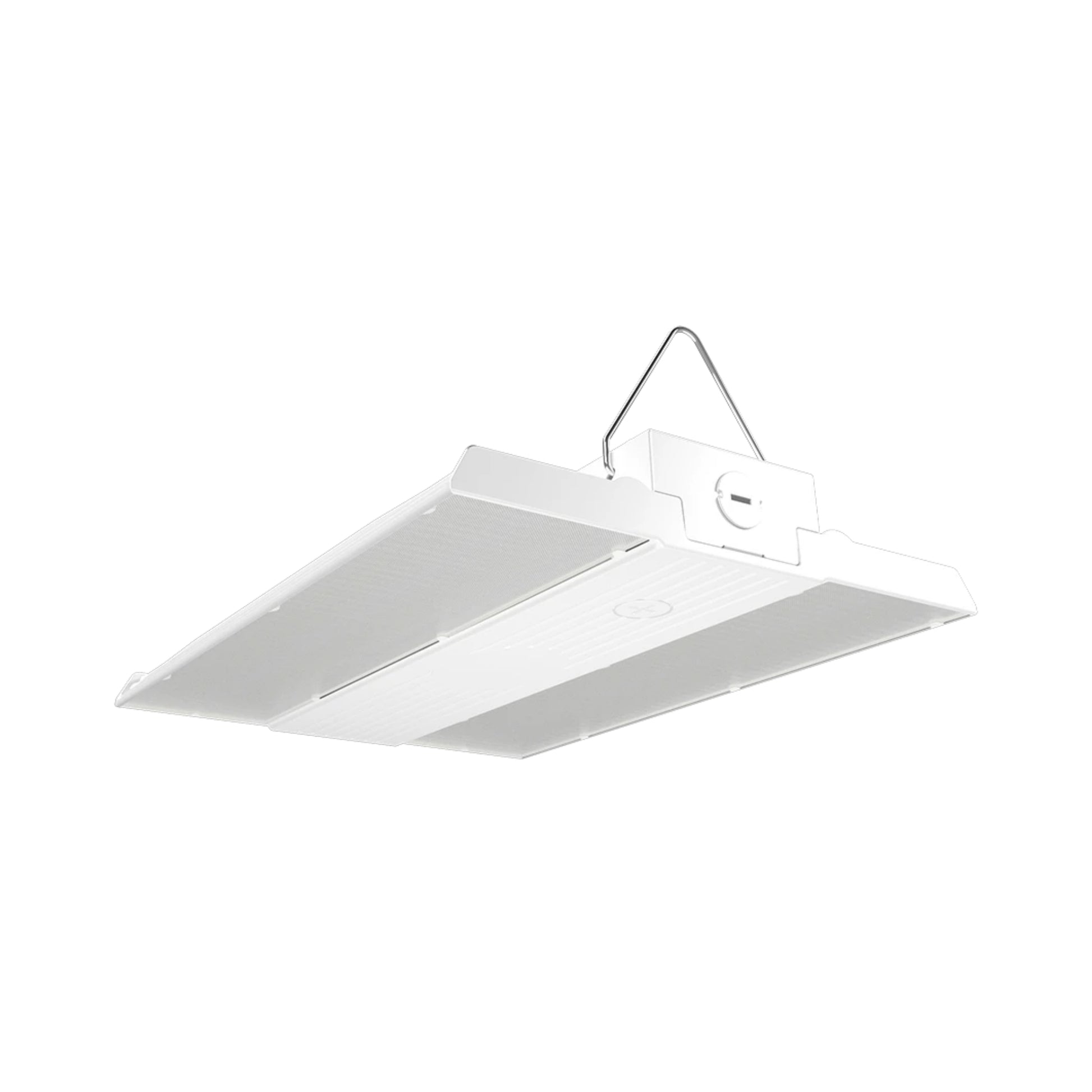

The RAB RBAY17SHO/480 is a field-adjustable high output linear LED high bay delivering up to 20,965 lumens with selectable wattage options of 130W, 100W, and 80W and selectable CCT of 4000K / 5000K. The fixture operates on 480V with integrated 0–10V dimming to 10%. It is UL Listed for damp locations and is DLC Premium Listed for rebate eligibility. Designed for warehouses, distribution centers, industrial facilities, retail areas, and other high-ceiling commercial or industrial spaces requiring robust 480V illumination.

Key Features

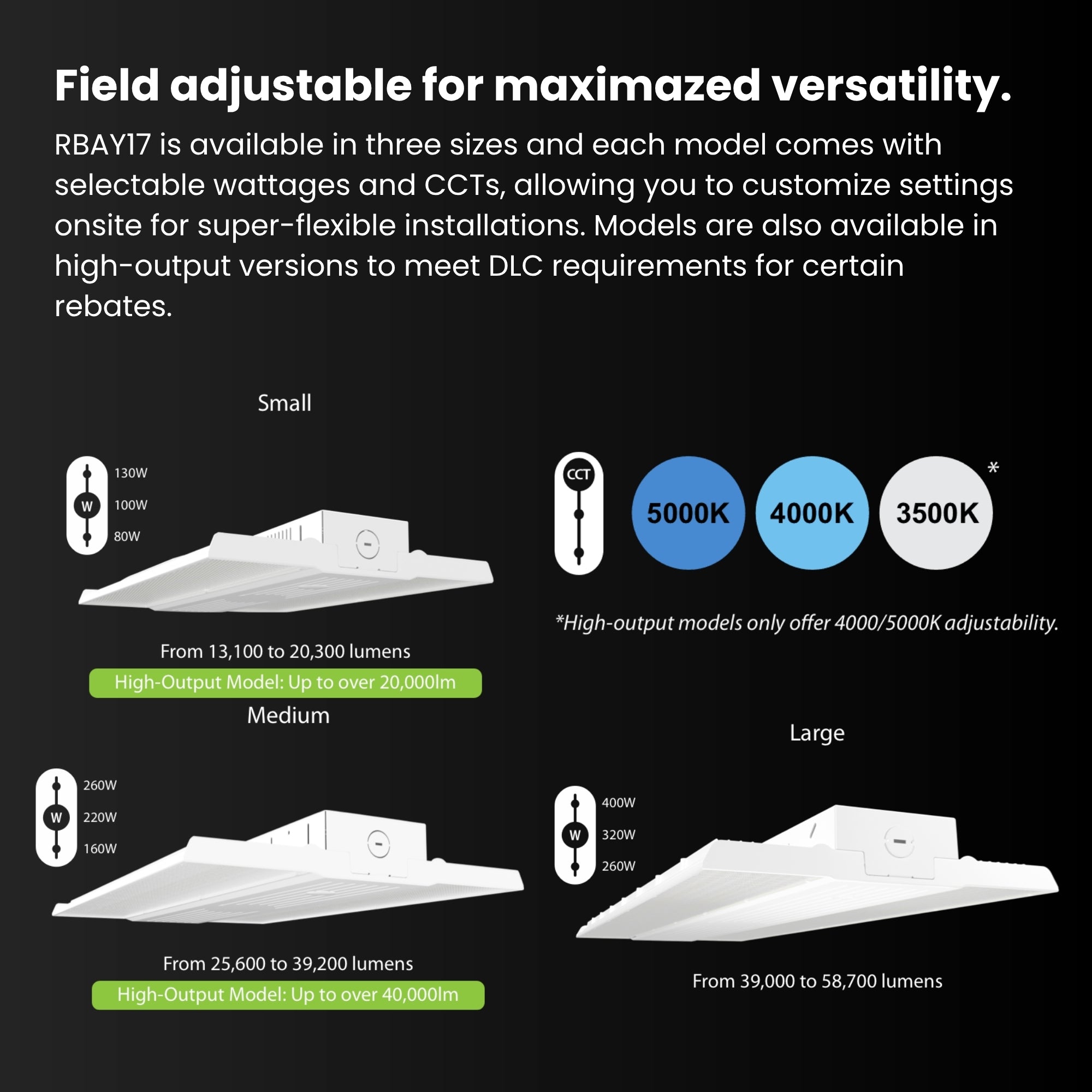

• Selectable Wattage: 130W / 100W / 80W
• Selectable CCT: 4000K / 5000K
• Maximum Output: Up to 20,965 lumens
• Dimming: 0–10V dimming to 10%
• Environmental Rating: UL Listed for damp locations
• Certifications: UL Listed; DLC Premium Listed
• Rated Life: 100,000 hours (L70)

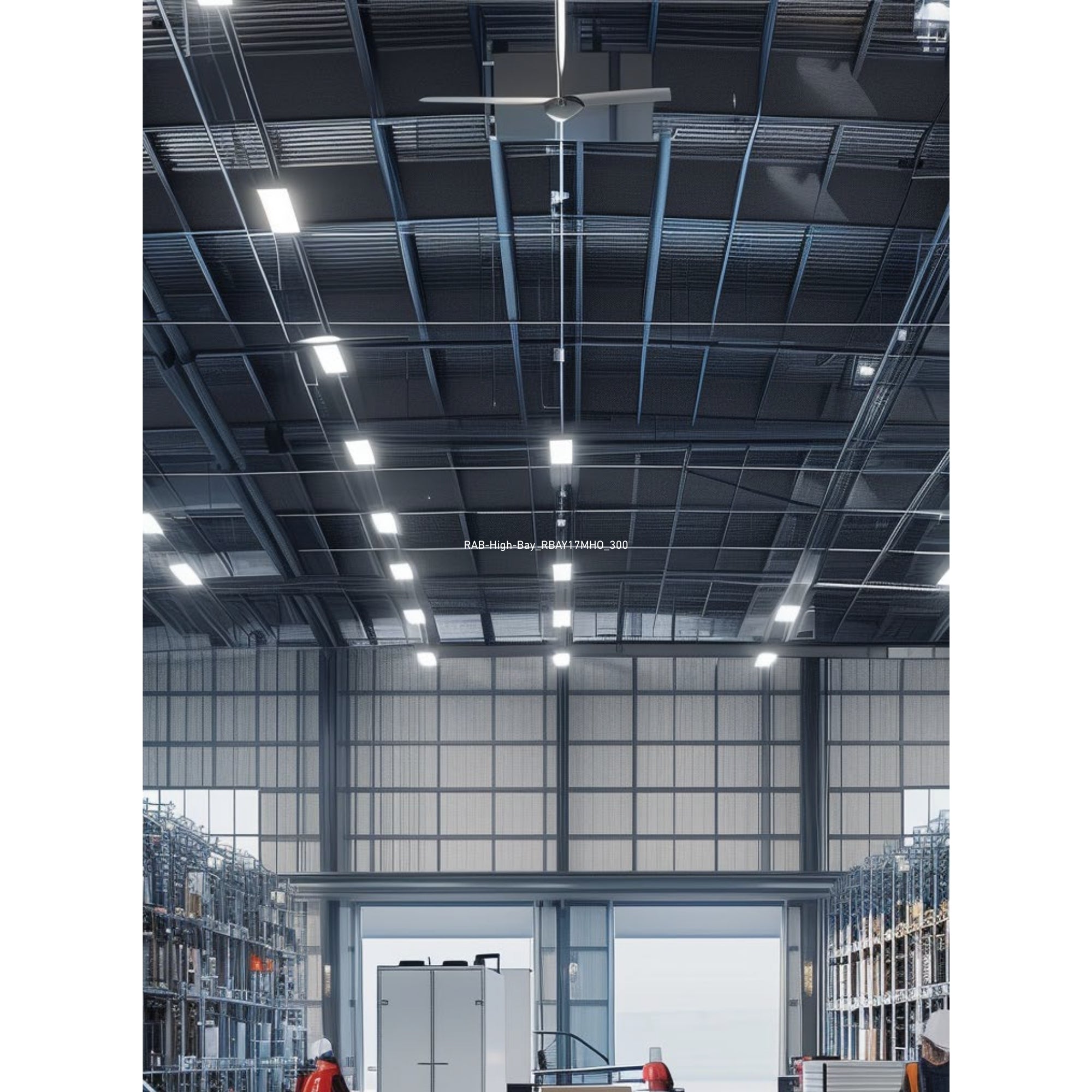

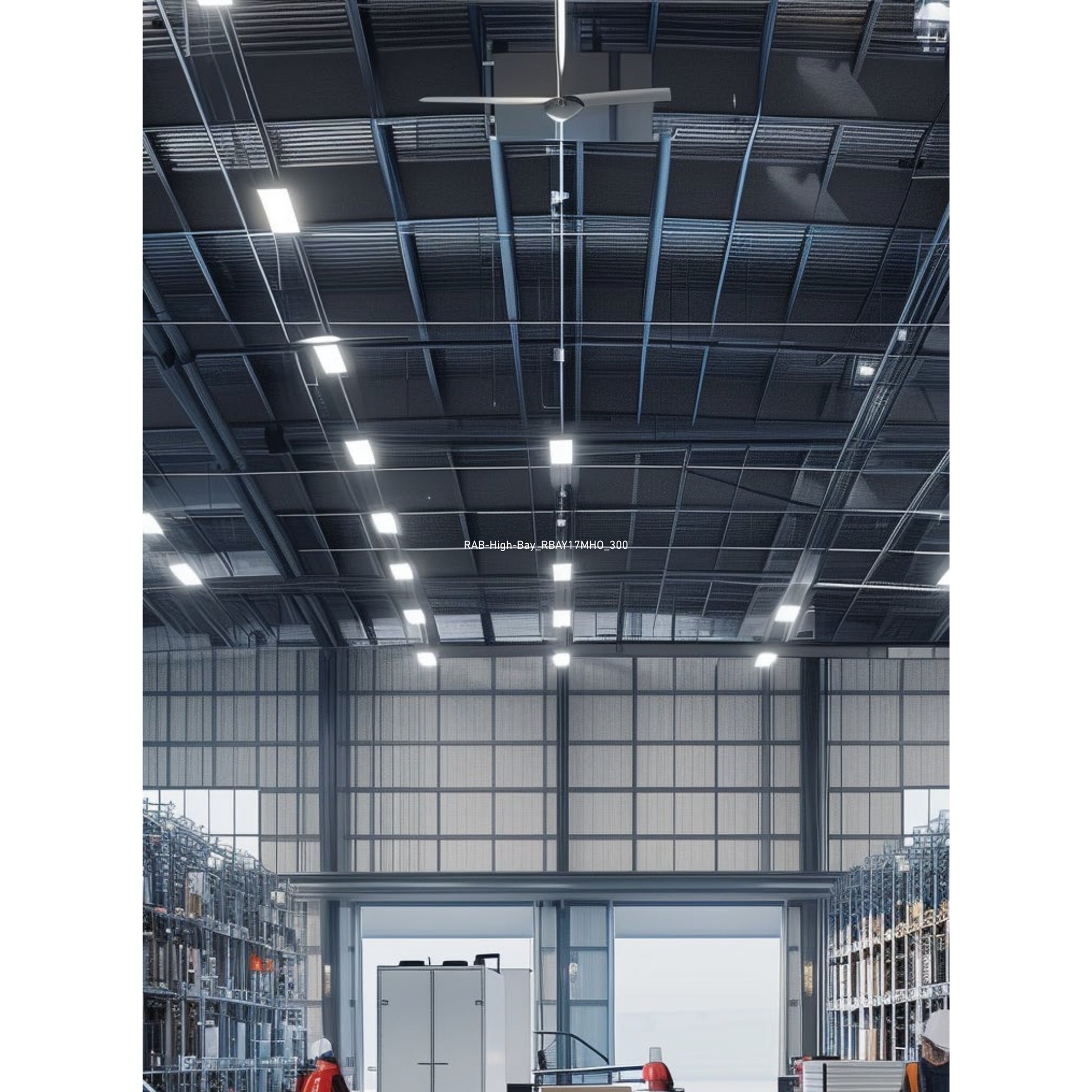

Typical Applications

• Warehouses
• Distribution centers
• Industrial workshops
• Retail stockrooms
• Gymnasiums
• Manufacturing facilities
• High-bay commercial spaces

Performance & Light Output:
Delivered lumen output depends on selected wattage and CCT. The LED system is engineered for high efficacy performance with CRI typically in the mid-80s and a 100,000-hour L70 rated life.

Electrical & Controls:
Operates on 480V, 50/60 Hz with a constant current Class 1 driver. Integrated 0–10V dimming supports dim-to-10% control systems for energy management and flexible lighting control.

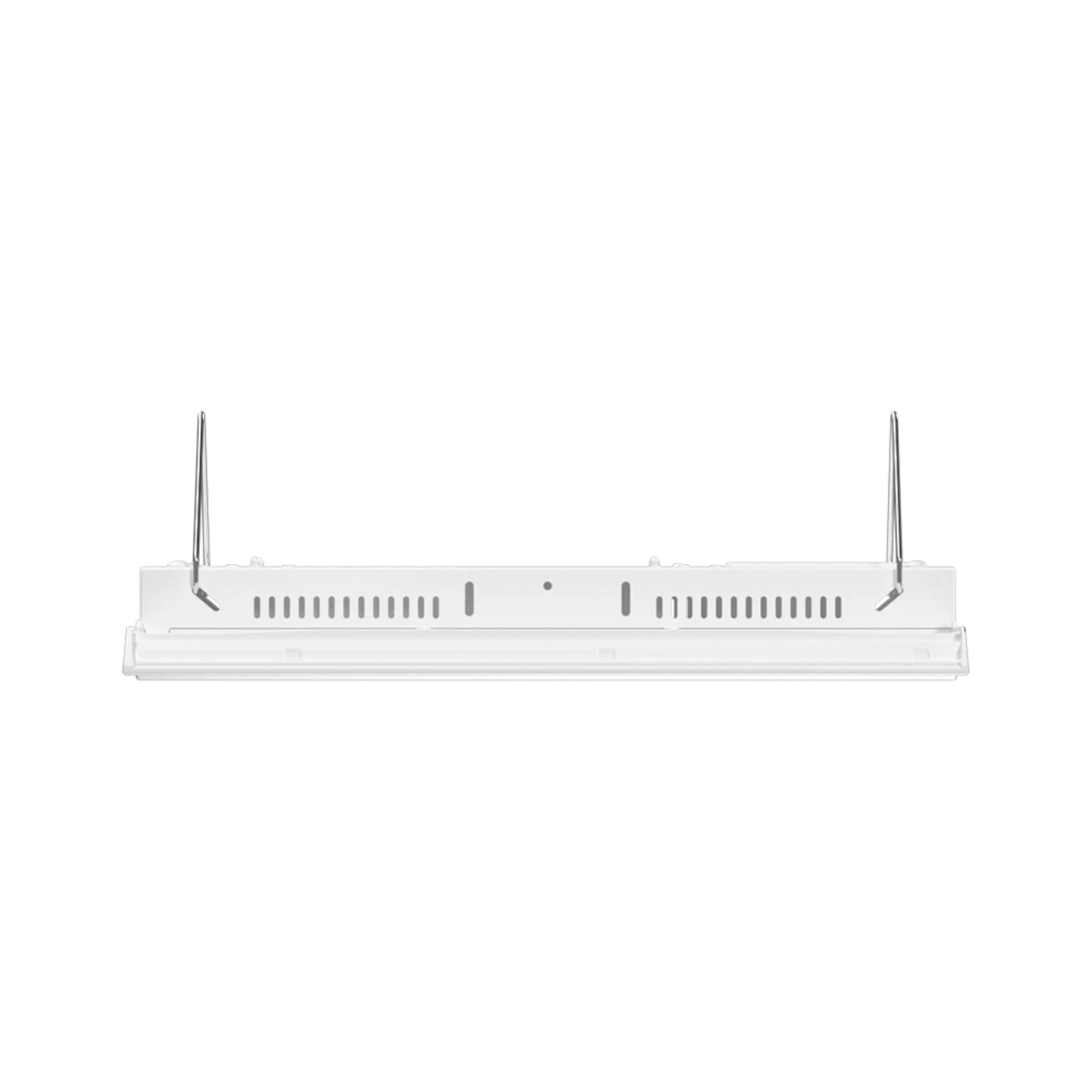

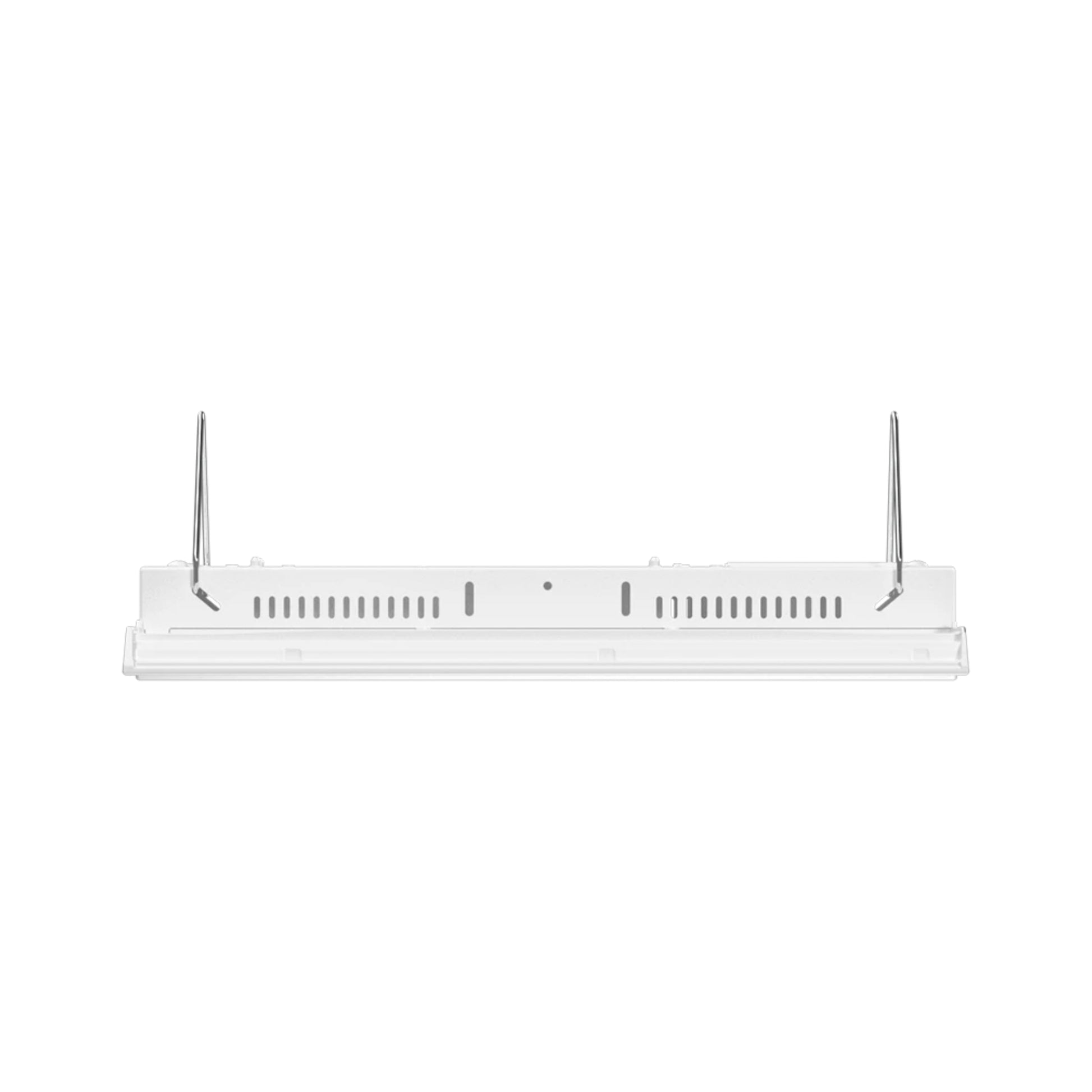

Construction & Durability:
Die-cast aluminum housing with polycarbonate lens. Rated for damp locations with rugged construction suitable for commercial and industrial environments. Mercury-free and RoHS-compliant components provide long life and environmental safety.

Installation & Mounting:

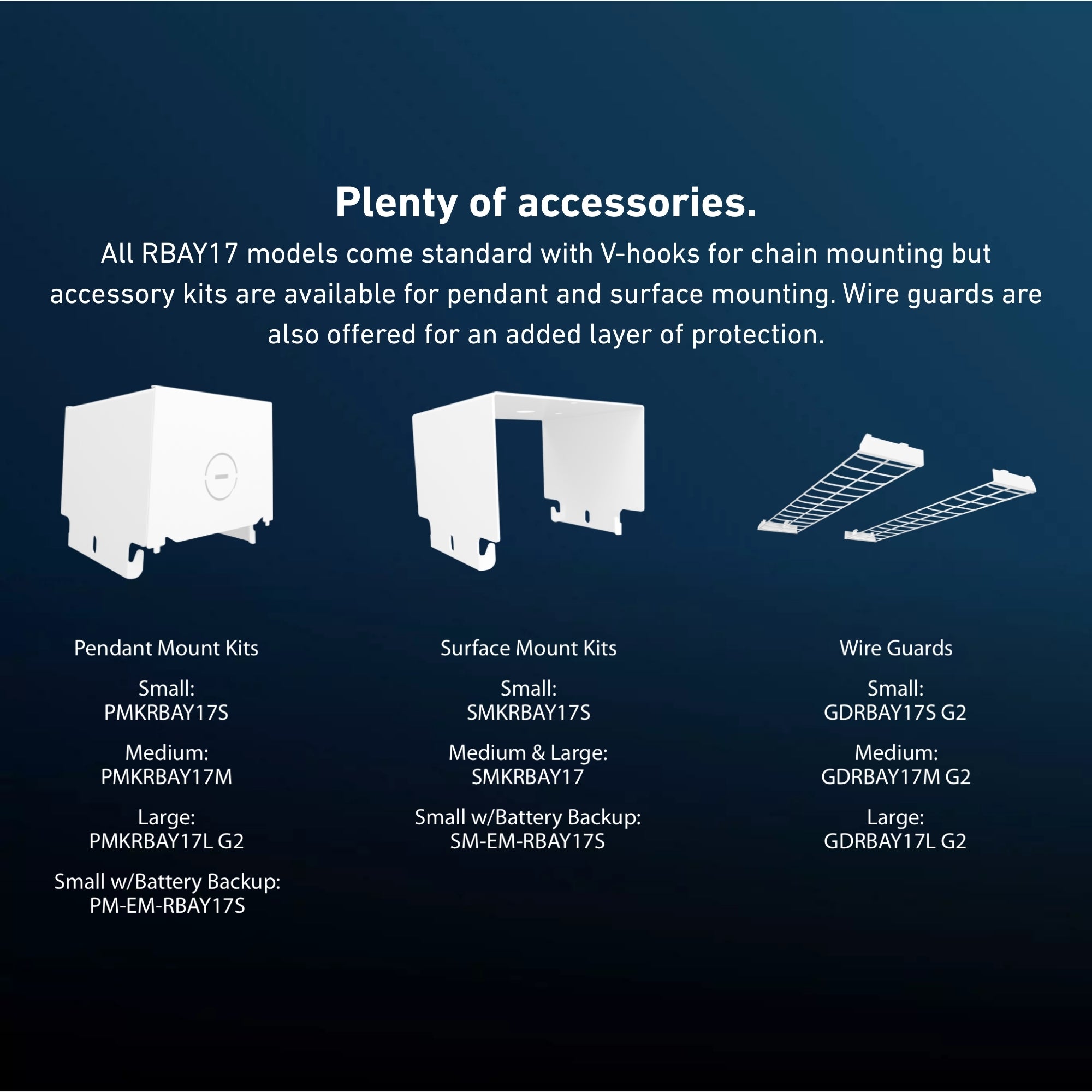

Includes V-hooks and chain for suspension mounting. Optional surface and pendant mounting kits are available separately to support varied installation needs.

Included
LED linear high bay fixture, V-hooks, and chain.
