RAB RBAY17S/480 LED Linear High Bay — 135/100/80W — Selectable CCT — 480V
Available in stock (300)
About this item
About this item
- 135/100/80W Selectable Output: 12,301–20,502 lumens at up to 160 lm/W — replaces 400W metal halide fixtures on 480V systems at a fraction of the energy cost.
- Field-Selectable CCT: Switch between 3500K, 4000K, and 5000K on the job site — no rewiring, no returns.
- 0–10V Dimming to 10%: Compatible with standard 480V dimming control systems for energy management and occupancy integration.
- DLC Premium Listed: Qualifies for utility rebate programs in most markets (DLC Code: GXb4HJ) — maximizes ROI on commercial lighting upgrades.
- Damp Location Rated: UL Listed for damp environments — suitable for warehouses, loading docks, gymnasiums, and covered 480V facilities.
We process payments securely and do not store credit card information.
Description
Description

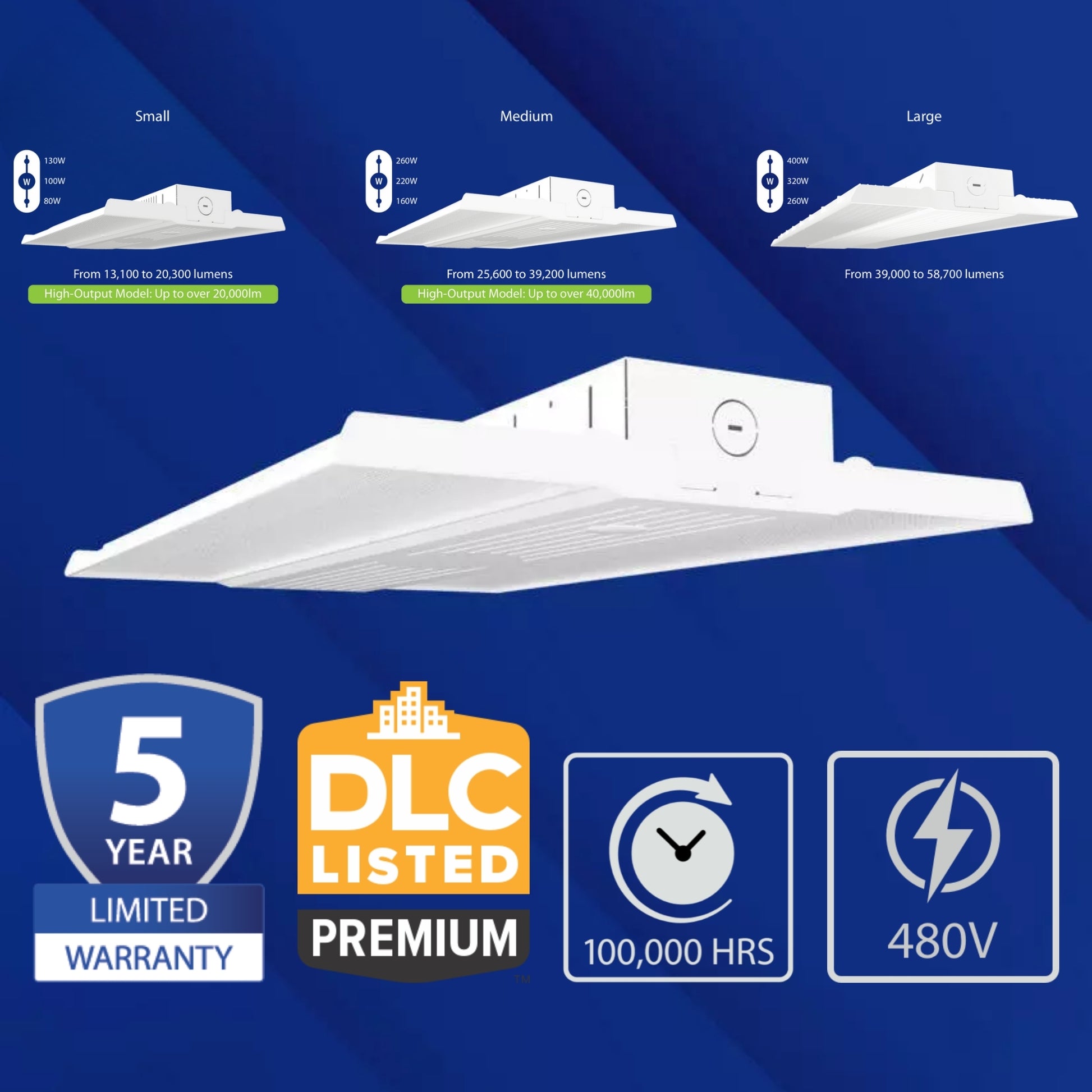

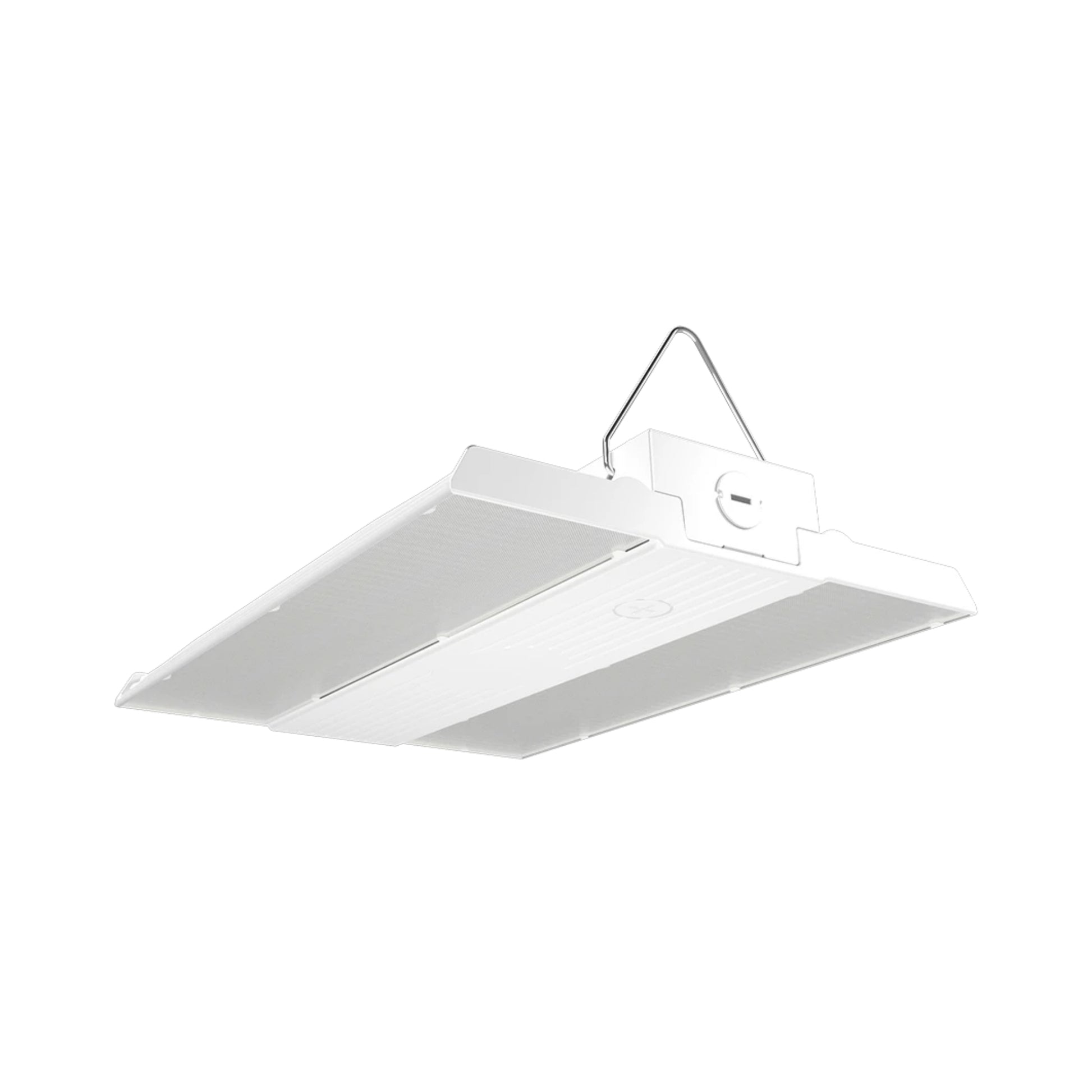

RAB RBAY17S/480 Field-Adjustable Linear LED High Bay — 135W / 100W / 80W Selectable
The RAB RBAY17S/480 is a compact, field-adjustable linear LED high bay delivering 12,301 to 20,502 lumens with selectable wattage options of 135W, 100W, and 80W and selectable CCT of 3500K / 4000K / 5000K. Designed specifically for 480V electrical systems, it integrates 0–10V dimming to 10% and is equivalent to a 400W metal halide fixture. UL Listed for damp locations and DLC Premium Listed (Product Code: GXb4HJ) for utility rebate eligibility.
Key Features

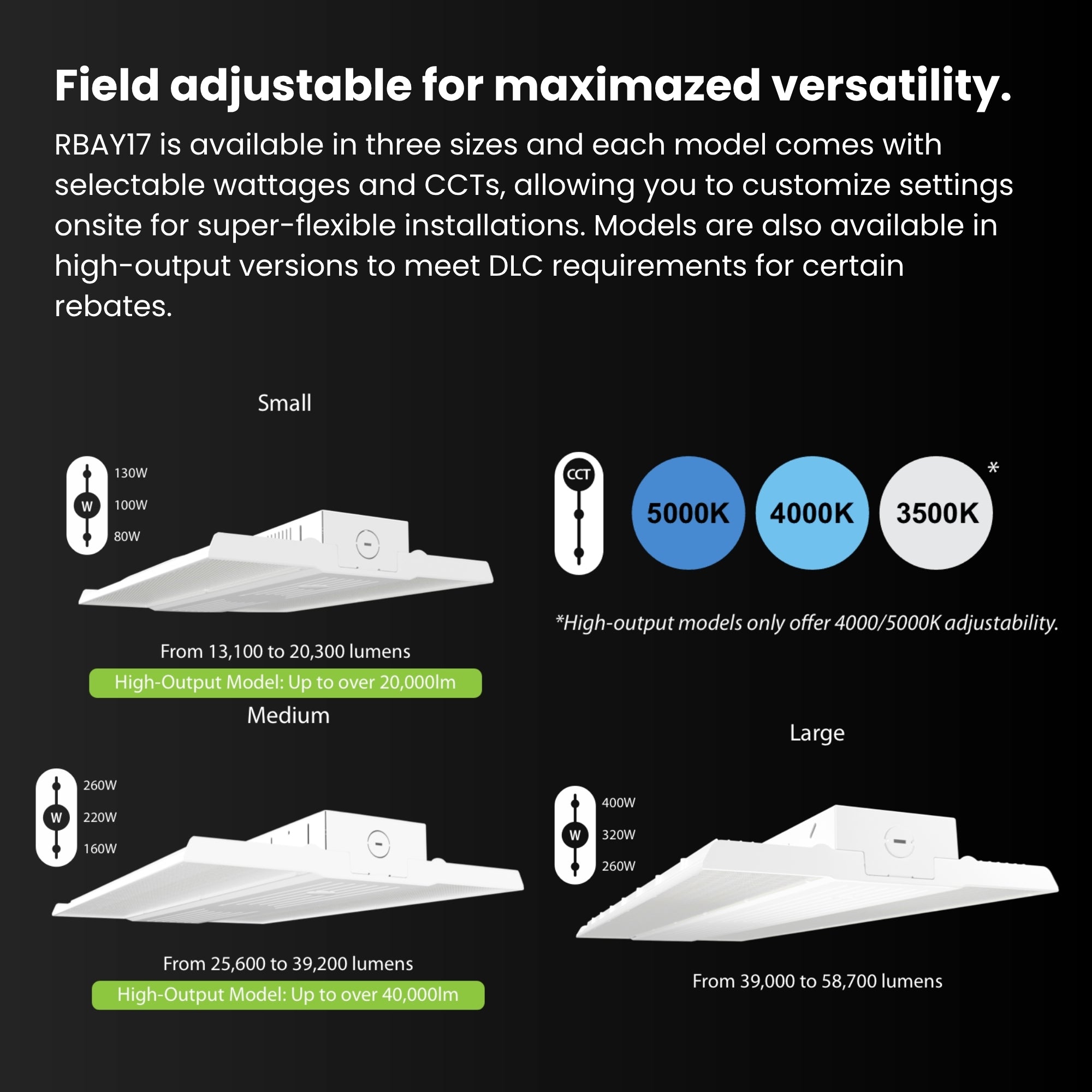

- Selectable Wattage: 135W / 100W / 80W (factory default: 135W)
- Selectable CCT: 3500K / 4000K / 5000K (factory default: 4000K)
- Lumen Output: 12,301–20,502 lm depending on wattage selection
- Efficacy: Up to 160 lm/W
- CRI: 82–85
- Dimming: 0–10V dimming to 10%
- Voltage: 480V, 50/60Hz (Constant Current, Class 1)
- Location Rating: UL Listed for damp locations | IP20
- Certifications: UL Listed; DLC Premium Listed (Code: GXb4HJ)
- Rated Life: 100,000 hours (L70, per IES LM-80)
- Warranty: 5-Year Limited (covers light output, driver, and paint finish)
- Operating Temperature: 20°C (4°F) min / 50°C (122°F) max
- Wattage Equivalency: Replaces up to 400W Metal Halide
💡 Rebate Eligible: The RBAY17S/480 is DLC Premium Listed (Code: GXb4HJ) and qualifies for utility rebate programs in most U.S. markets. Visit designlights.org to confirm available incentives with your local utility.

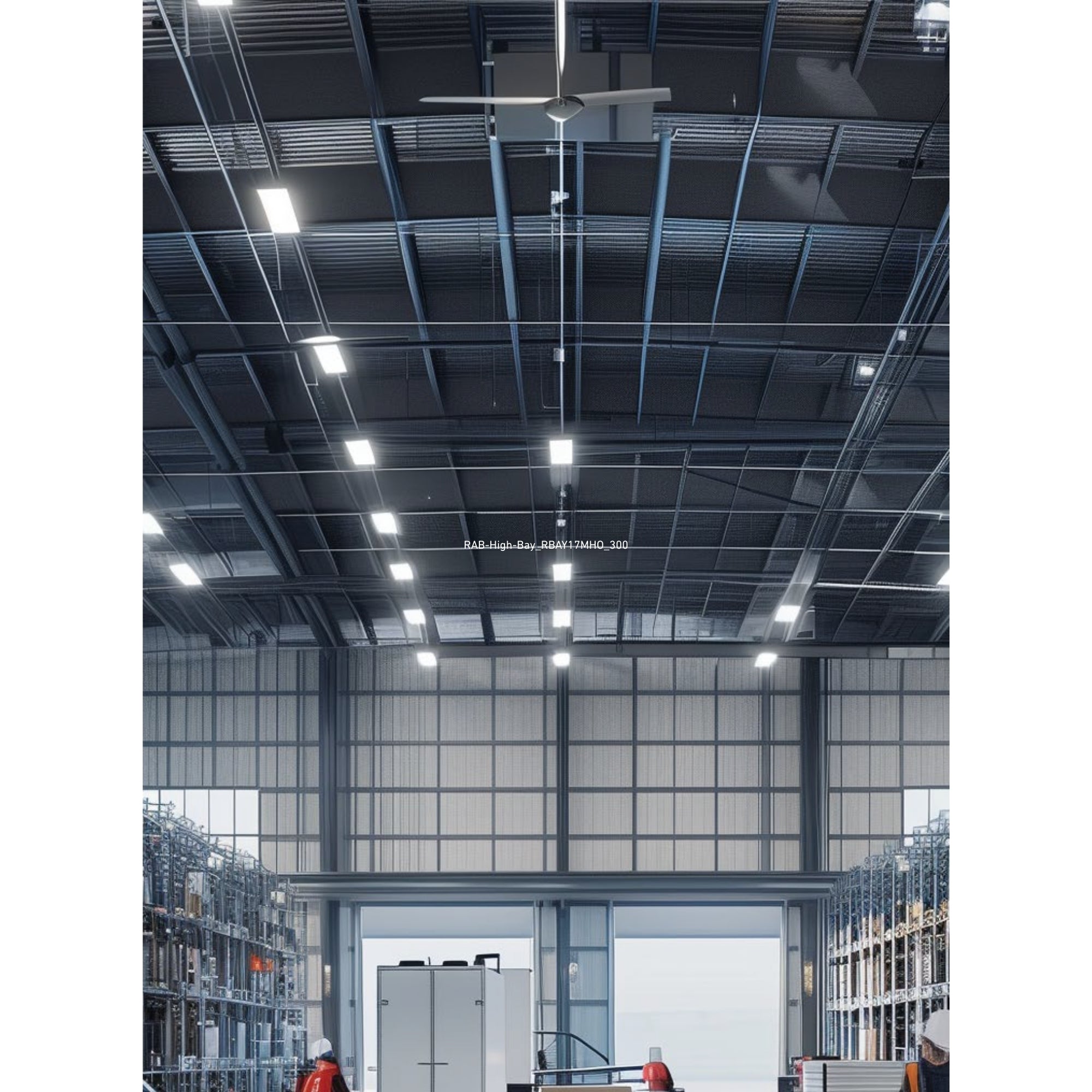

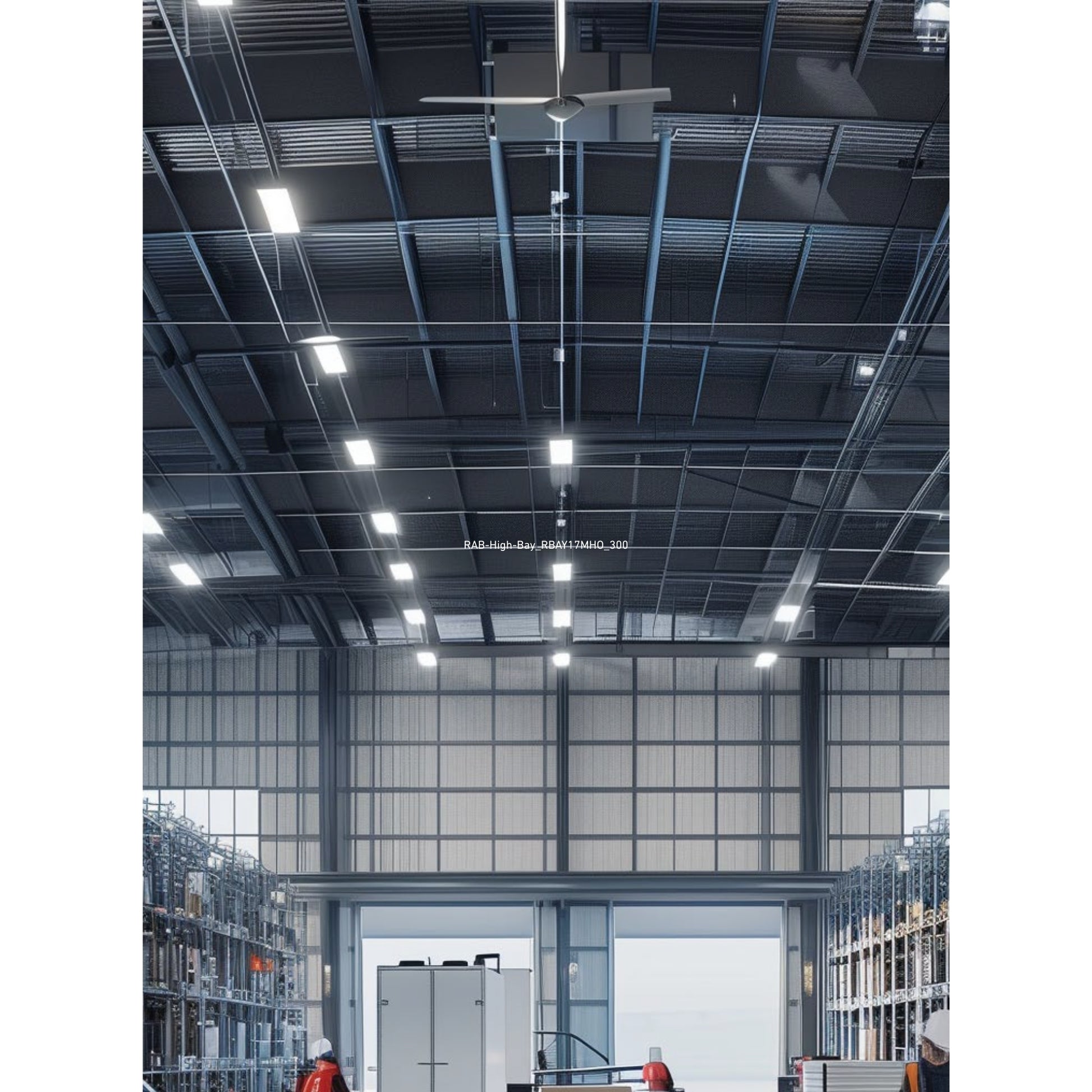

Typical Applications
- Warehouses and distribution centers with 480V systems
- Retail stockrooms and big box retail
- Gymnasiums and recreation centers
- Assembly, packing, and industrial workshop areas
- Loading docks and covered facilities
- Manufacturing and service bays
Performance & Light Output
Delivers 12,301 to 20,502 lumens at up to 160 lm/W efficacy with a CRI of 82–85 and a 100,000-hour L70 rated lifespan based on IES LM-80 testing. Replaces 400W metal halide fixtures — reducing energy consumption by up to 73%.
Smart & Control Features
Two control configurations available:
- 0–10V Dimming (standard): Dims to 10% via standard 0–10V DC dimming circuit. Compatible with most 480V building control and energy management systems.
- Lightcloud Blue (/LCBS suffix): Factory-installed wireless Bluetooth mesh control system for networked group control without additional wiring.
Remote control accessory (catalog# MSR1) available for field adjustment of wattage and CCT settings on 0–10V dimming models.
Electrical & Installation
Operates on 480V, 50/60Hz with a Constant Current, Class 1 driver. Input watts: 80.4–131.3W. THD: 4.51% at 480V. Surge protection: L-N 10kV / L&N-GND 6kV. Mercury-free, UV-free, RoHS-compliant. Note: emergency battery backup (/E suffix) is not available on 480V models.
Construction

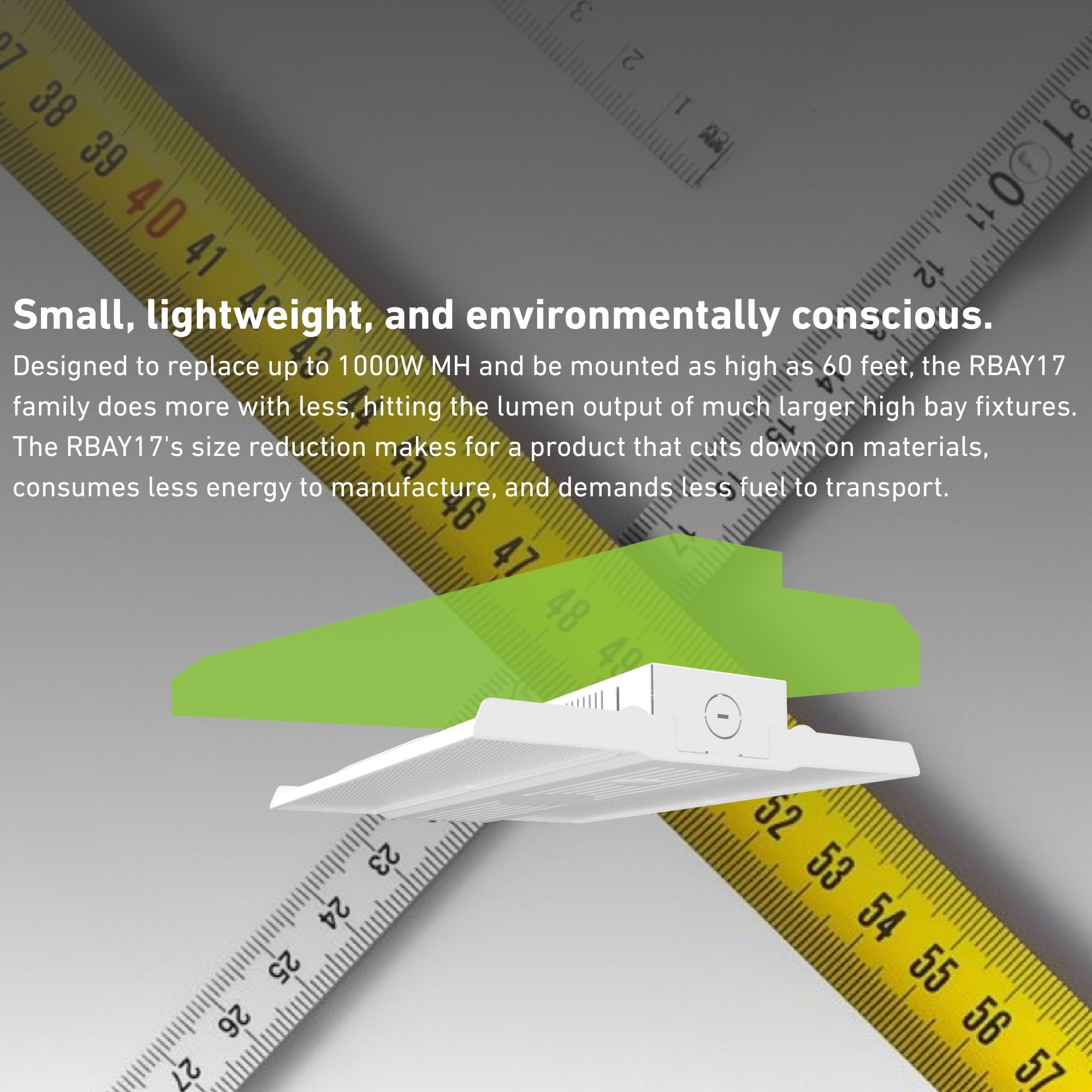

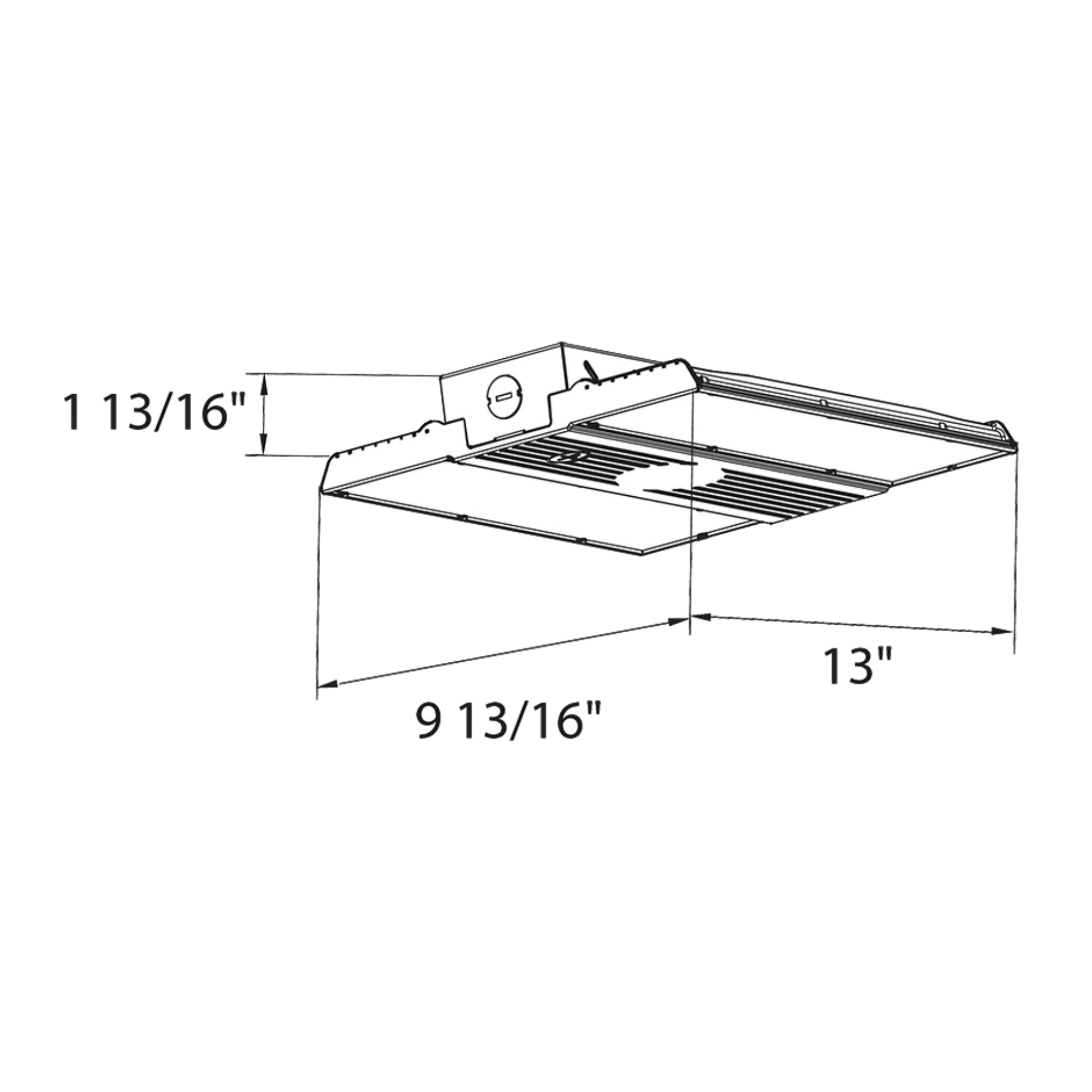

Die-cast aluminum housing with polycarbonate lens and reflector. White finish formulated for high durability and long-lasting color. Weight: 5.8 lbs. Dimensions: 13 in L x 9 13/16 in W x 1 13/16 in H.
Installation & Mounting

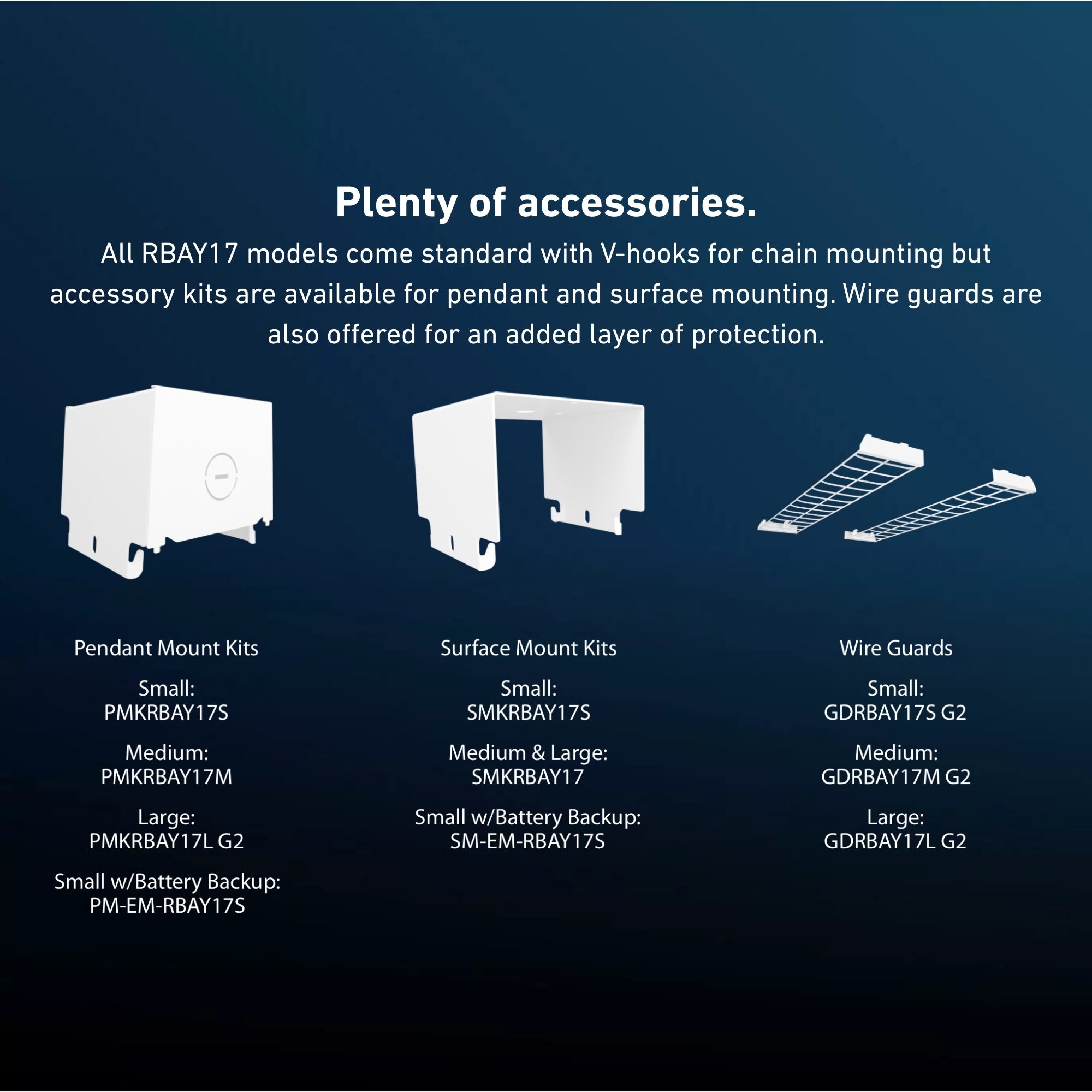

Includes V-hooks and chain for suspension mounting. Optional accessories (sold separately):
- Pendant Mount Kit: PMKRBAY17S
- Surface Mount Kit: SMKRBAY17S
- Wire Guard: GDRBAY17S G2
What's Included
- RAB RBAY17S/480 LED linear high bay fixture

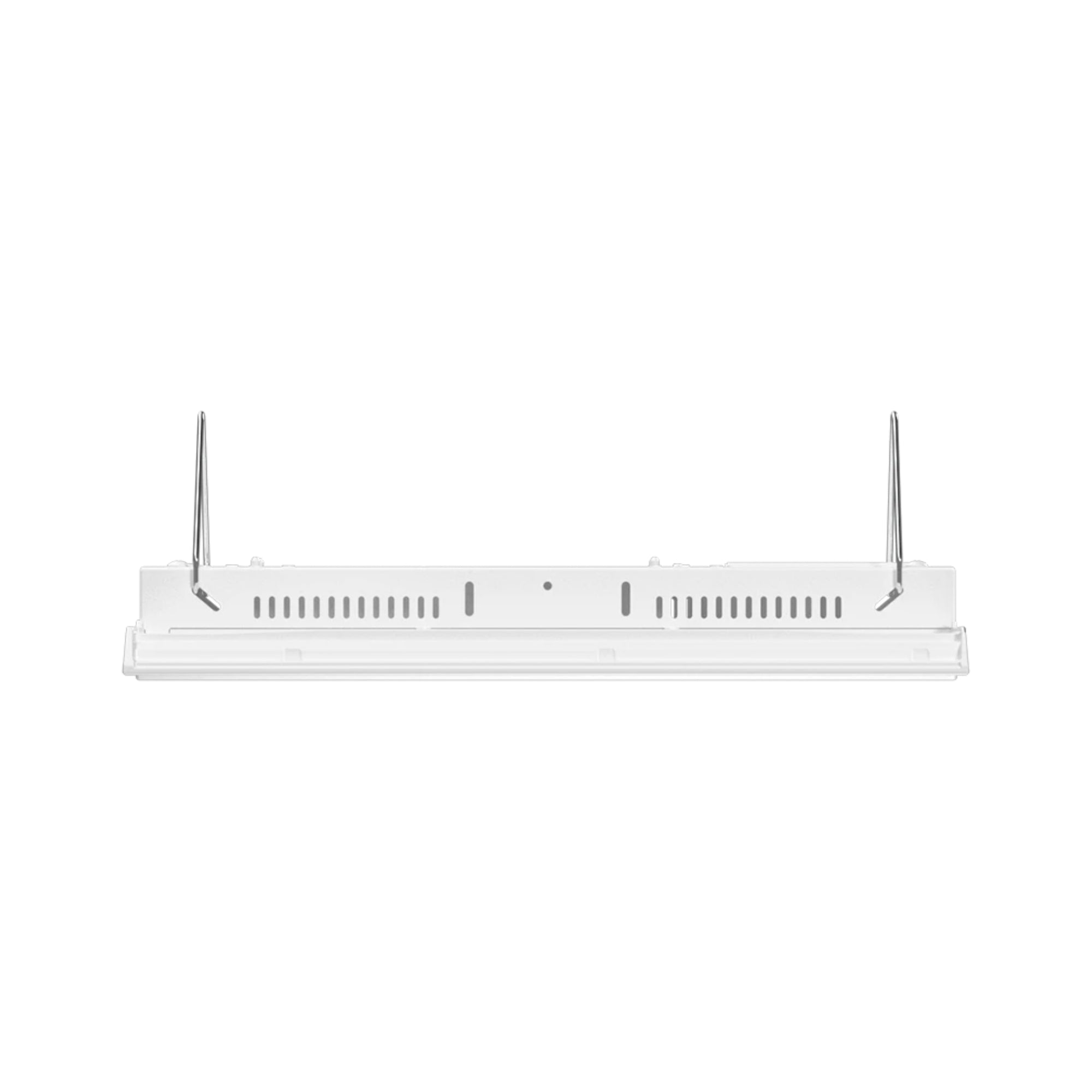

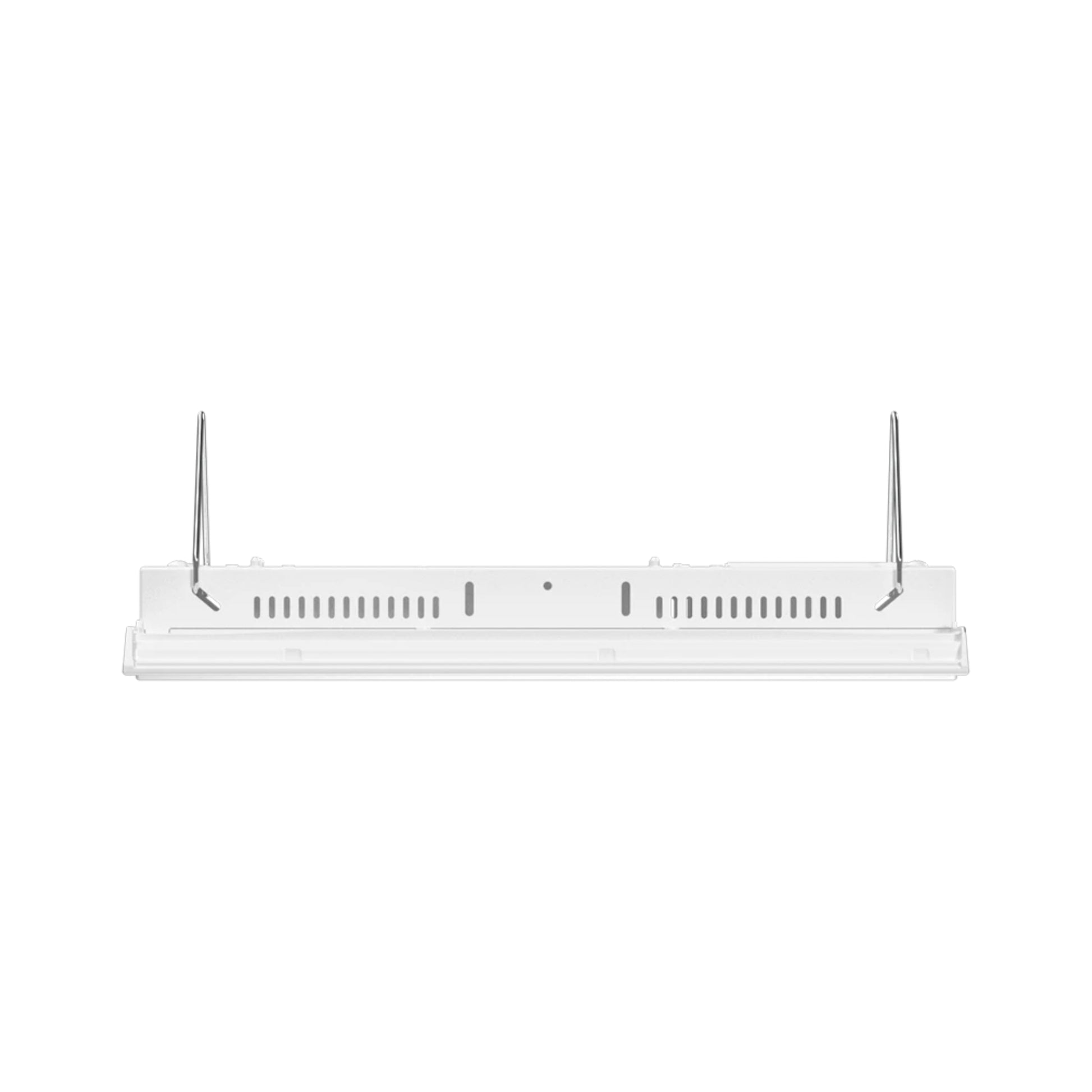

- V-hooks and chain for suspension mounting
