RAB RBAY17S LED Linear High Bay — 130/100/80W — Selectable CCT — 120-277V
Available in stock (300)
About this item
About this item
- 130/100/80W Selectable Output: 12,758–20,350 lumens at up to 167 lm/W — replaces 400W metal halide fixtures at a fraction of the energy cost.
- Field-Selectable CCT: Switch between 3500K, 4000K, and 5000K on the job site — no rewiring, no returns.
- 0–10V Dimming to 10%: Compatible with standard dimming control systems for energy management and occupancy integration.

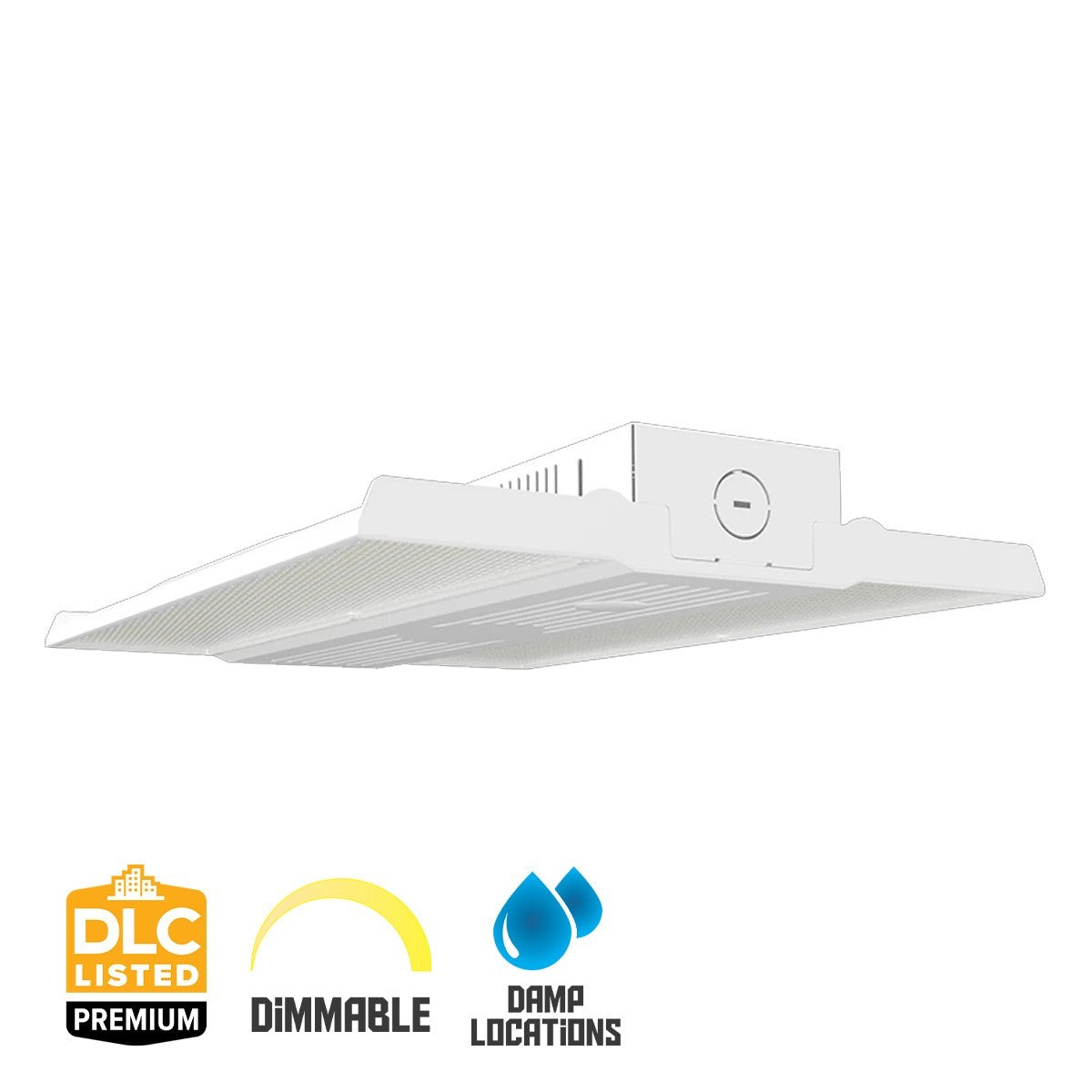

- DLC Premium Listed: Qualifies for utility rebate programs in most markets (DLC Code: 2U7Y5J) — maximizes ROI on commercial lighting upgrades.
- Damp Location Rated: UL Listed for damp environments — suitable for warehouses, loading docks, gymnasiums, and covered facilities.
We process payments securely and do not store credit card information.
Description
Description

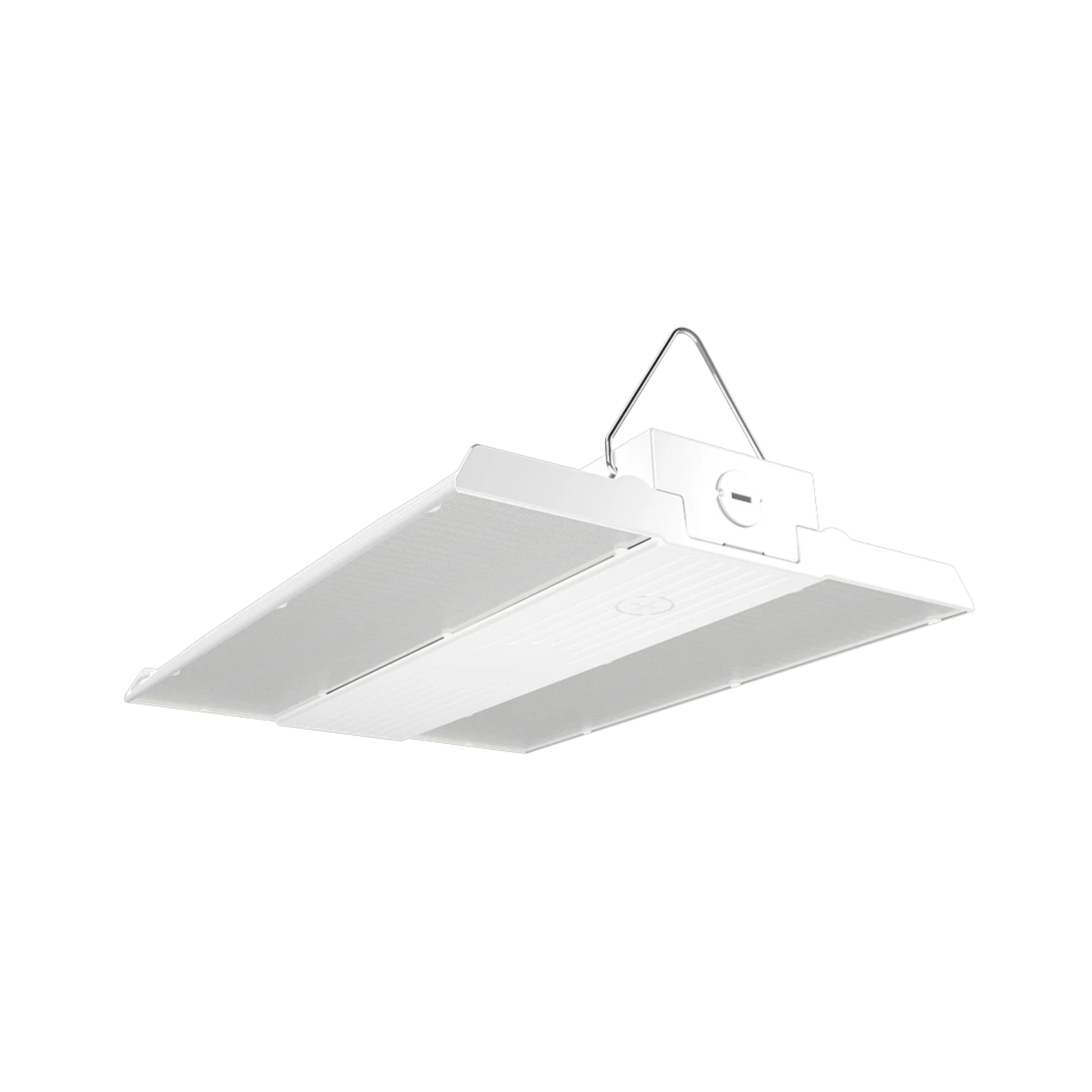

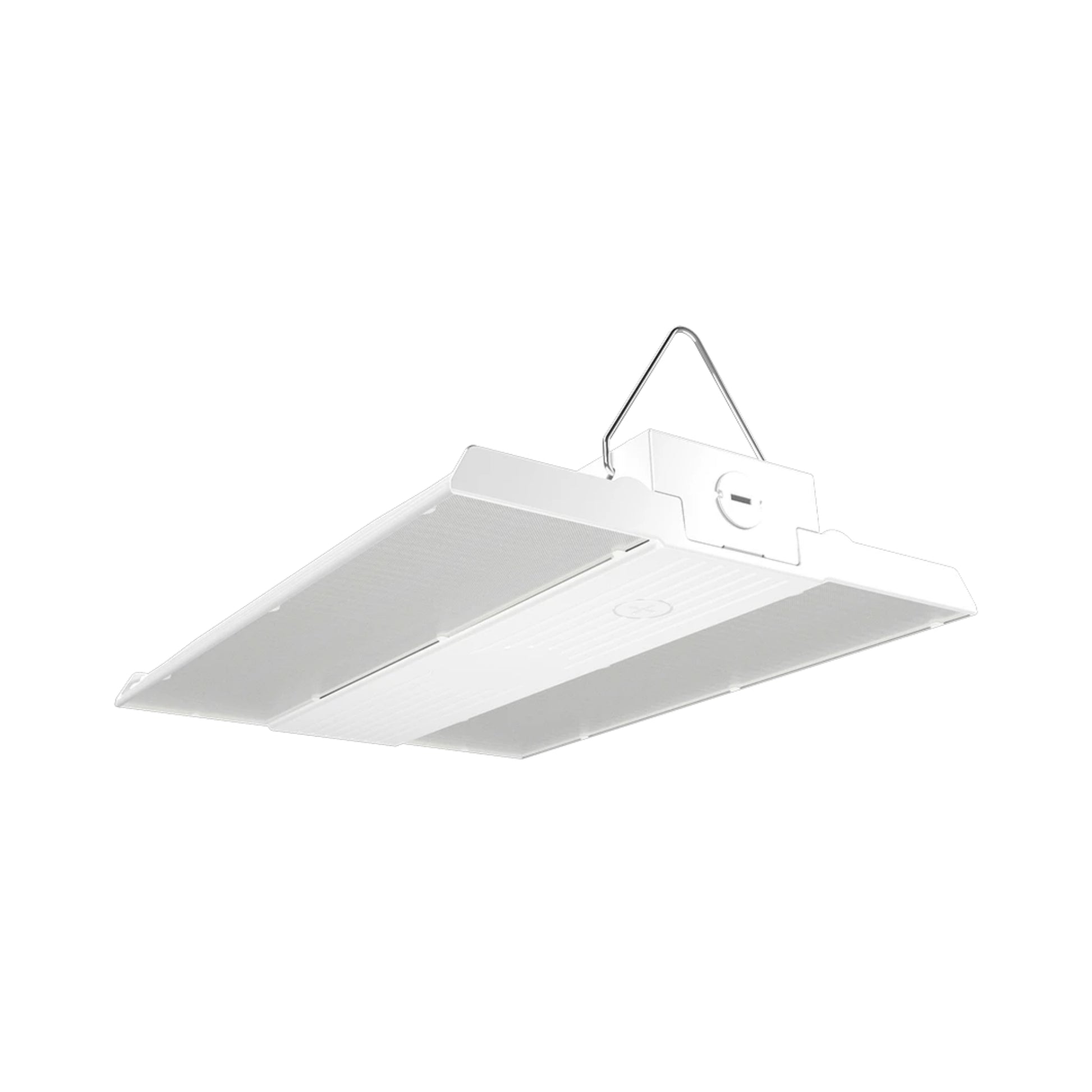

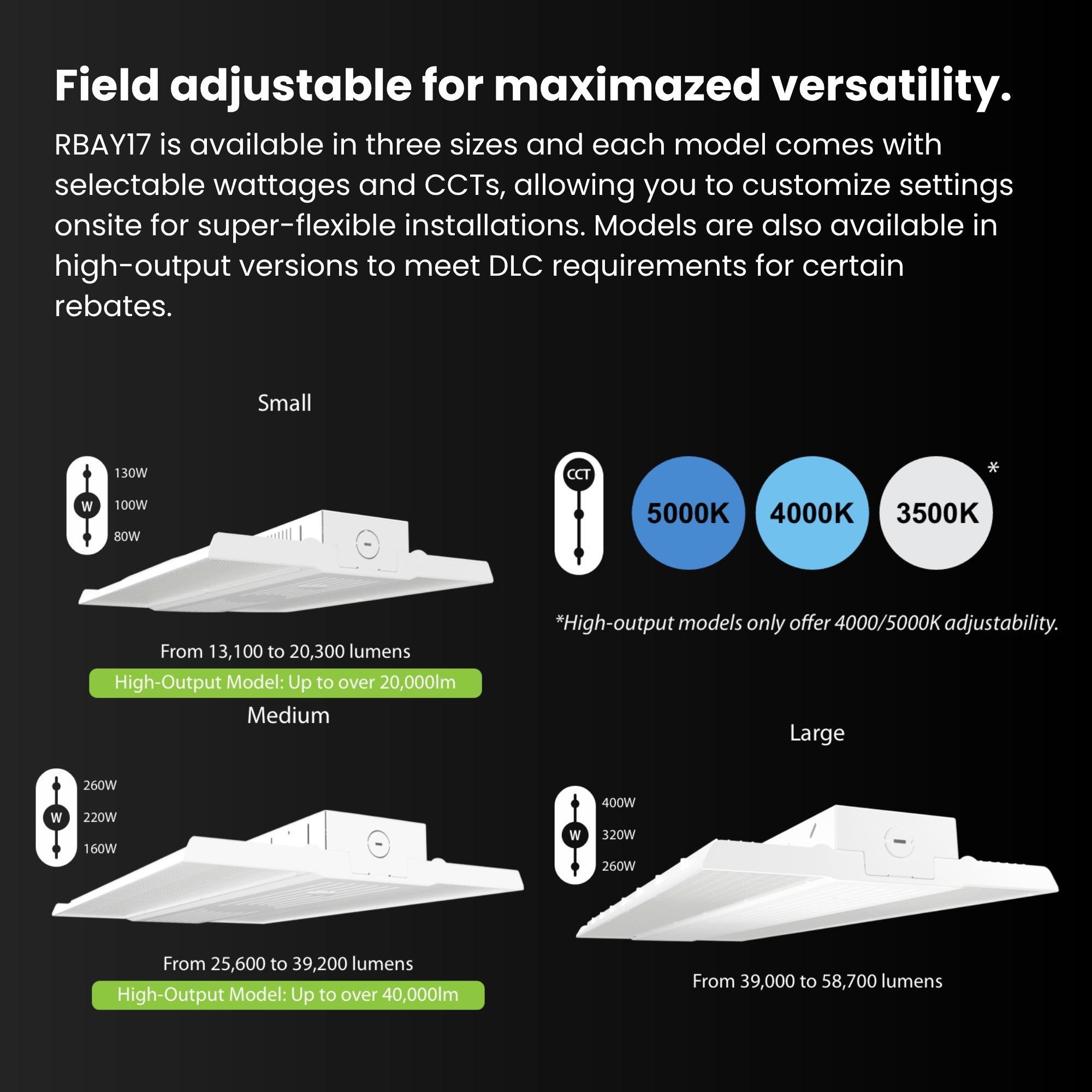

RAB RBAY17S Field-Adjustable Linear LED High Bay — 130W / 100W / 80W Selectable
The RAB RBAY17S is a compact, field-adjustable linear LED high bay delivering 12,758 to 20,350 lumens with selectable wattage options of 130W, 100W, and 80W and selectable CCT of 3500K / 4000K / 5000K. Equivalent to a 400W metal halide fixture, it operates on 120–277V with integrated 0–10V dimming to 10%. UL Listed for damp locations and DLC Premium Listed (Product Code: 2U7Y5J) for utility rebate eligibility.
Key Features

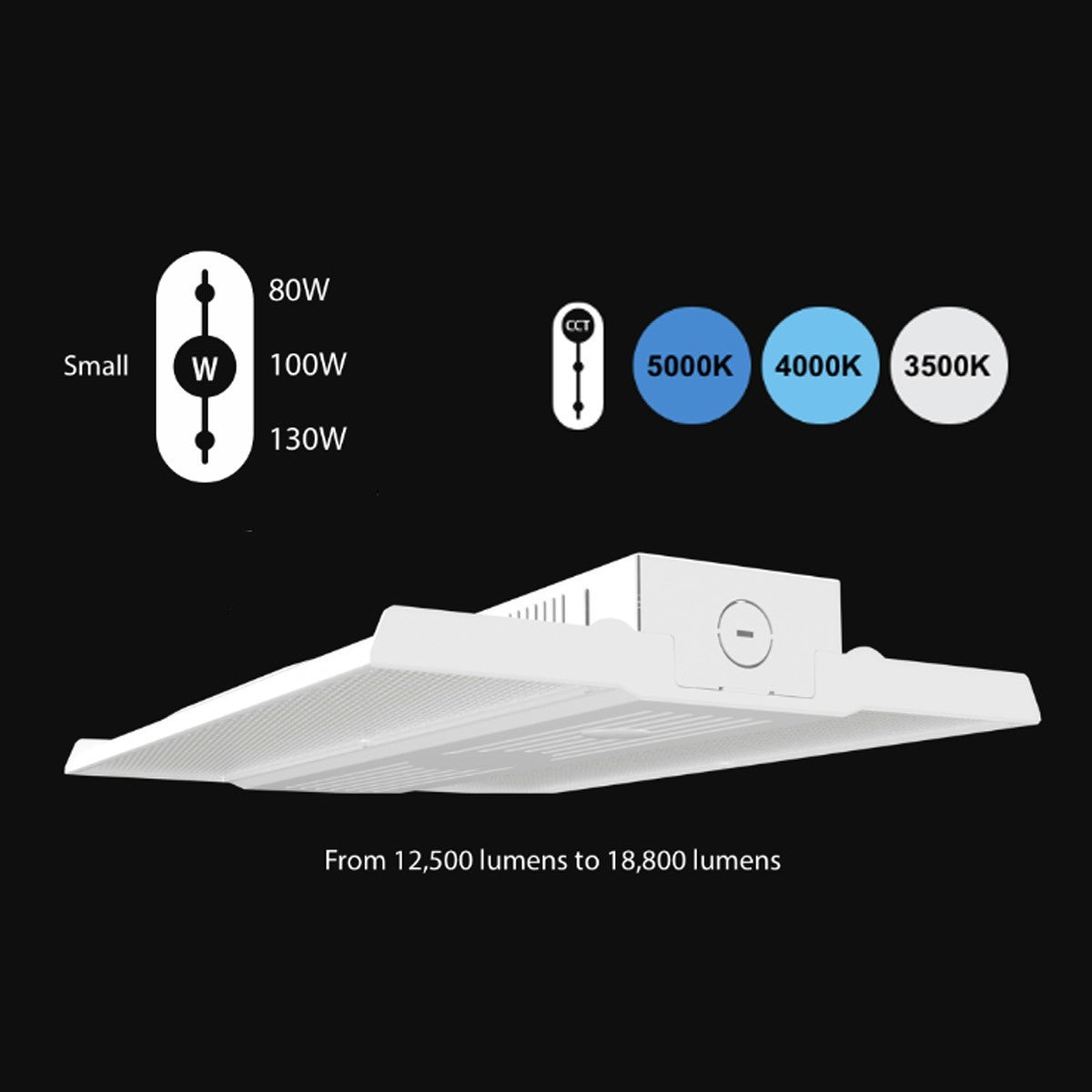

- Selectable Wattage: 130W / 100W / 80W (factory default: 130W)
- Selectable CCT: 3500K / 4000K / 5000K (factory default: 4000K)
- Lumen Output: 12,758–20,350 lm depending on wattage selection
- Efficacy: Up to 167 lm/W
- CRI: 82–85
- Dimming: 0–10V dimming to 10% (standard)
- Location Rating: UL Listed for damp locations | IP20
- Certifications: UL Listed; DLC Premium Listed (Code: 2U7Y5J)
- Rated Life: 100,000 hours (L70, per IES LM-80)
- Warranty: 5-Year Limited (covers light output, driver, and paint finish)
- Operating Temperature: 20°C (4°F) min / 50°C (122°F) max
- Wattage Equivalency: Replaces up to 400W Metal Halide
💡 Rebate Eligible: The RBAY17S is DLC Premium Listed (Code: 2U7Y5J) and qualifies for utility rebate programs in most U.S. markets. Contact your local utility provider or visit the DLC QPL database to confirm available incentives.

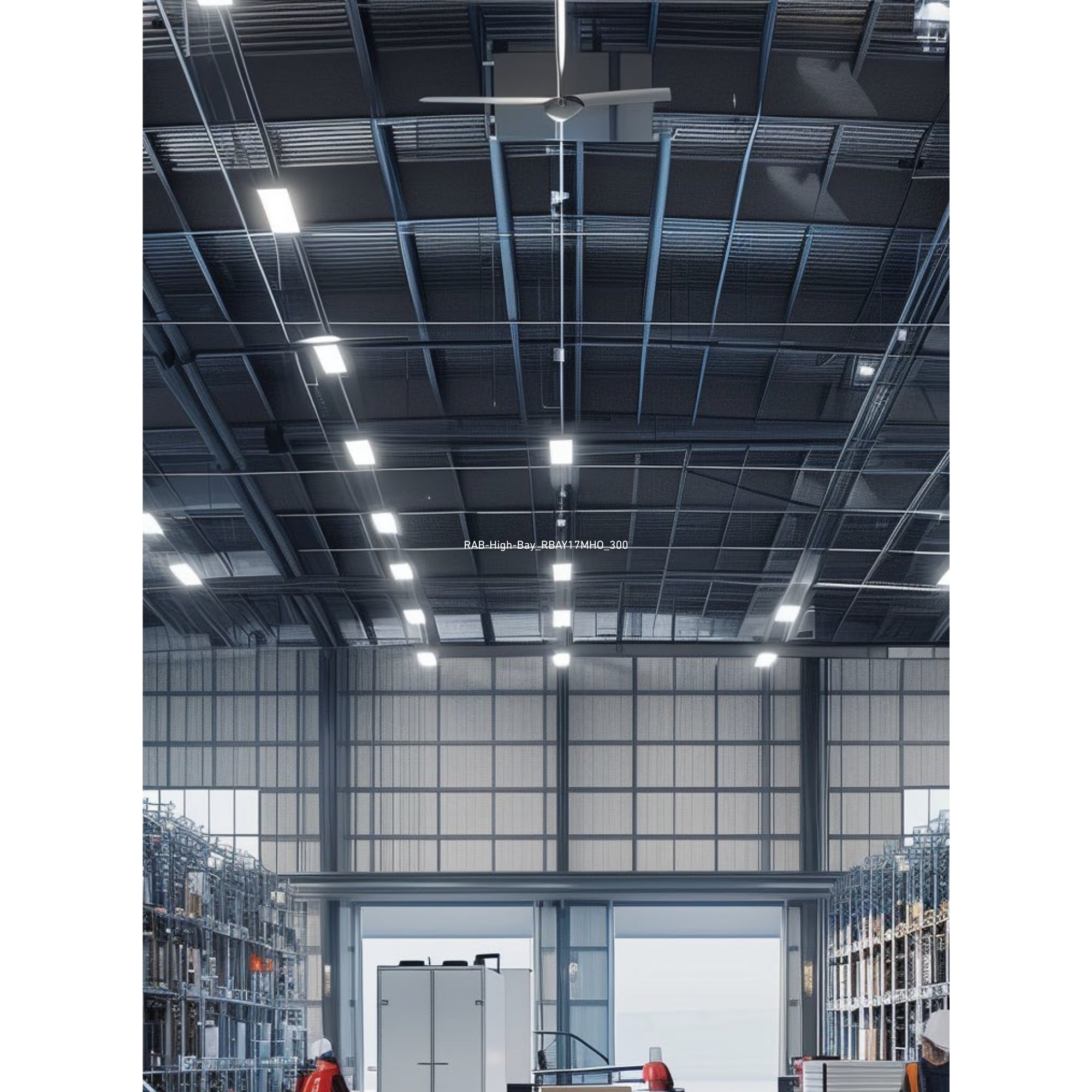

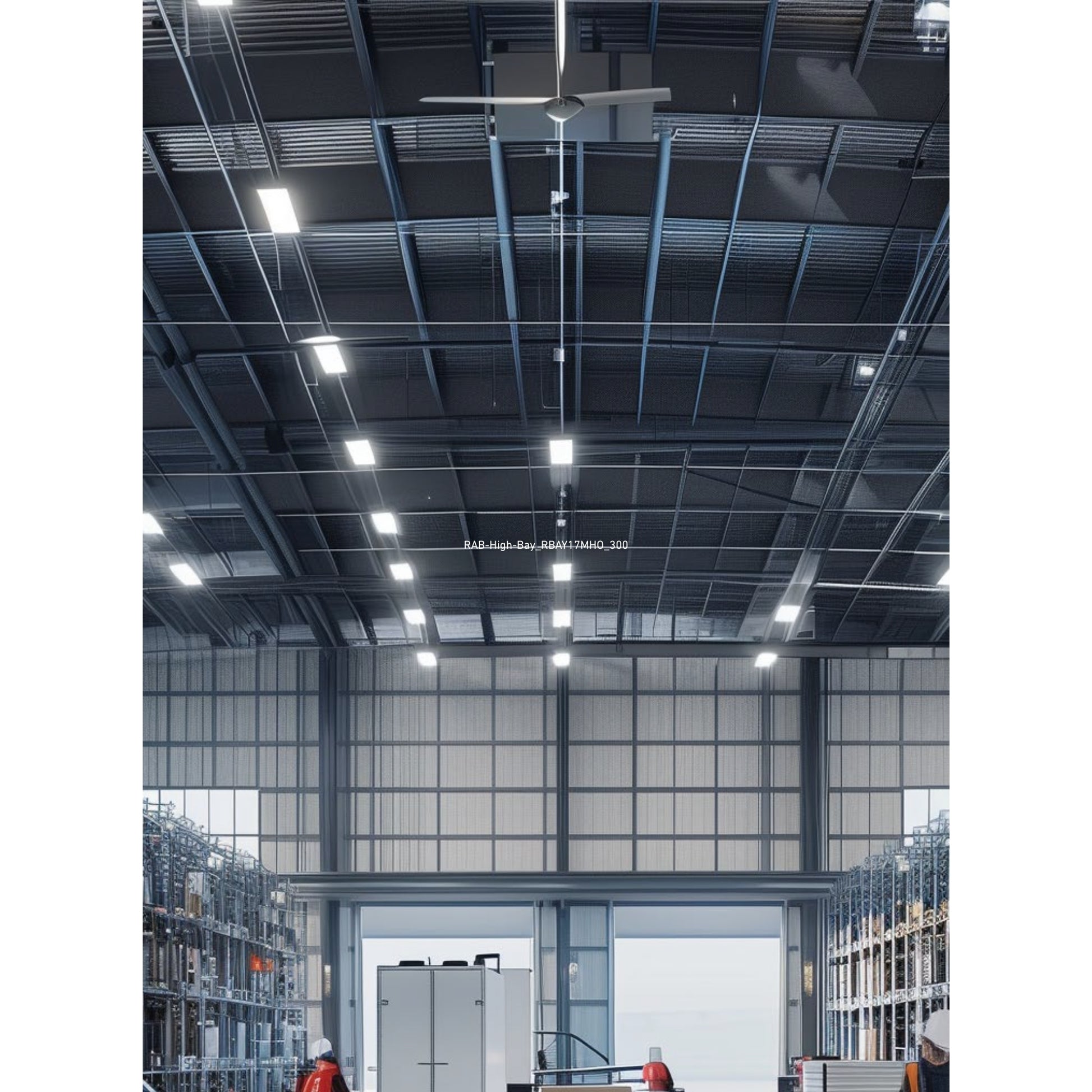

Typical Applications
- Warehouses and distribution centers
- Retail stockrooms and big box retail
- Gymnasiums and recreation centers
- Assembly, packing, and industrial workshop areas
- Loading docks and covered facilities
- Service bays
Performance & Light Output
Delivers 12,758 to 20,350 lumens at up to 167 lm/W efficacy with a CRI of 82–85 and a 100,000-hour L70 rated lifespan based on IES LM-80 testing. Replaces 400W metal halide fixtures — reducing energy consumption by up to 73%.
Smart & Control Features
Two control options are available as factory-installed configurations:
- 0–10V Dimming (standard): Dims to 10% via standard 0–10V DC dimming circuit. Compatible with most building control and energy management systems.

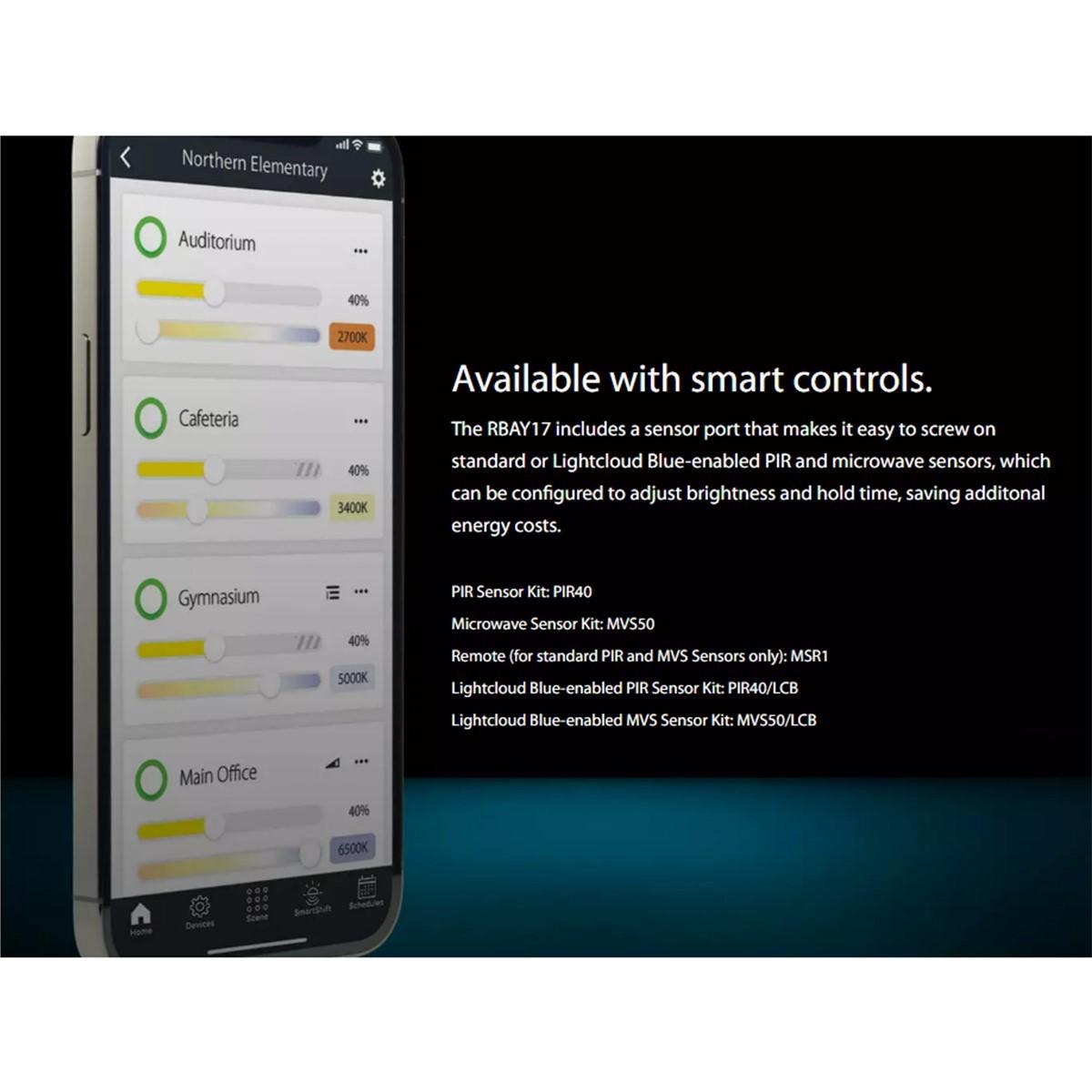

- Lightcloud Blue (/LCBS suffix): Factory-installed wireless Bluetooth mesh control system for networked group control without wiring. Order the /LCBS or /LCBS/E suffix model for this option.
Remote control accessory (catalog# MSR1) also available for field adjustment of wattage and CCT settings on 0–10V dimming models.
Electrical & Installation
Operates on 120–277V, 50/60Hz with a Constant Current, Class 1 driver. Power factor: 99.83% at 120V / 95.82% at 277V. THD: 4.41% at 120V / 7.64% at 277V. Surge protection: L-N 6kV / L&N-GND 6kV. Mercury-free, UV-free, RoHS-compliant components.

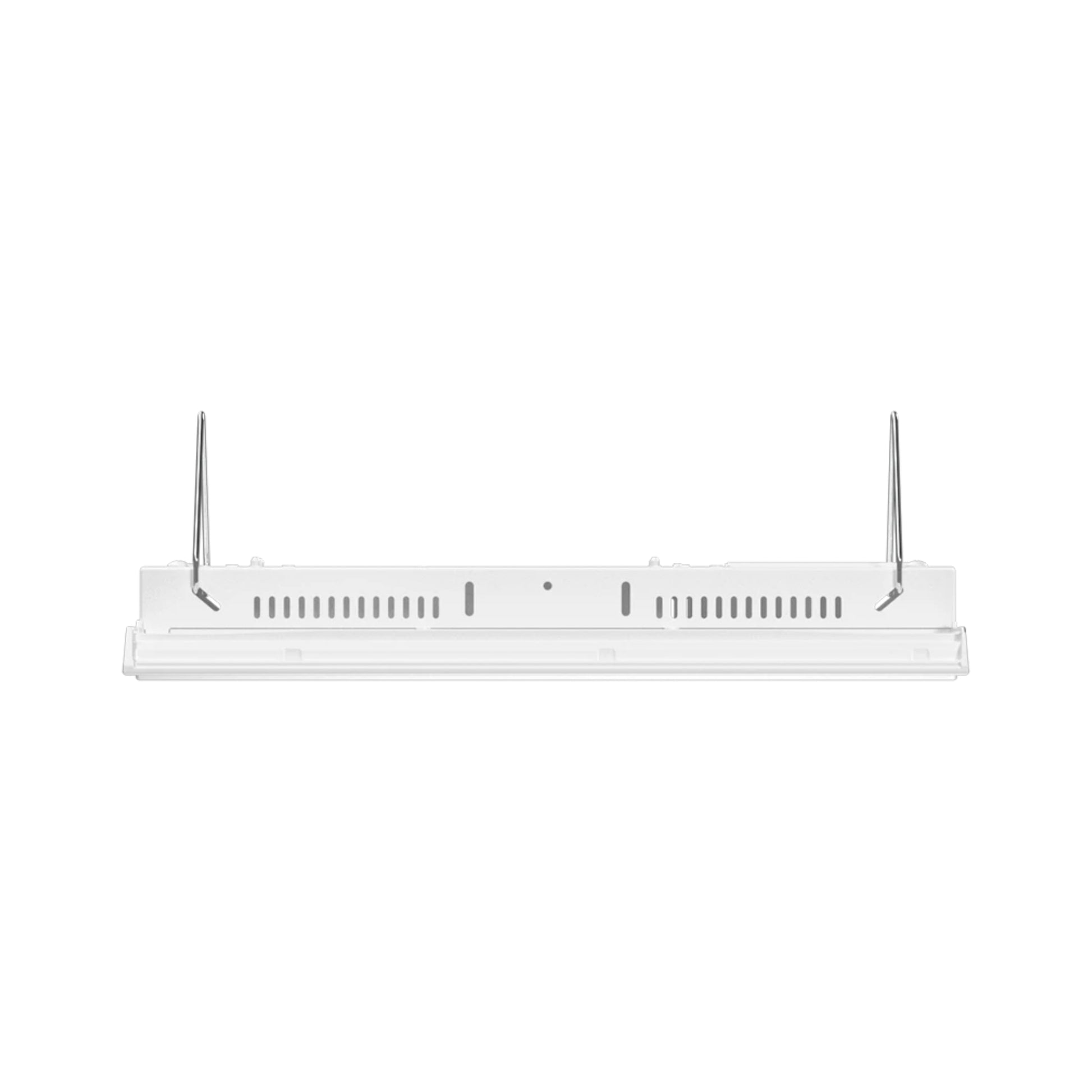

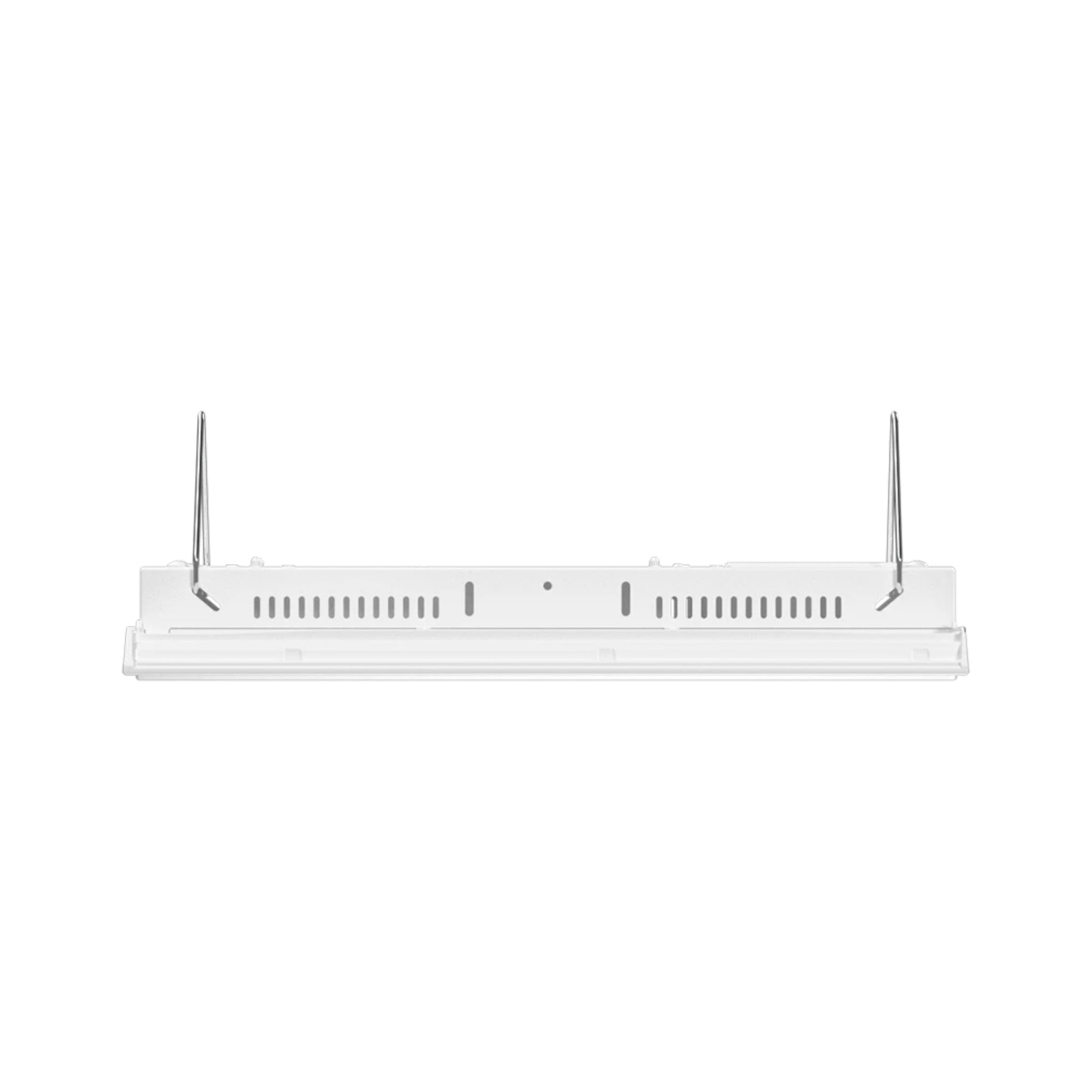

Construction

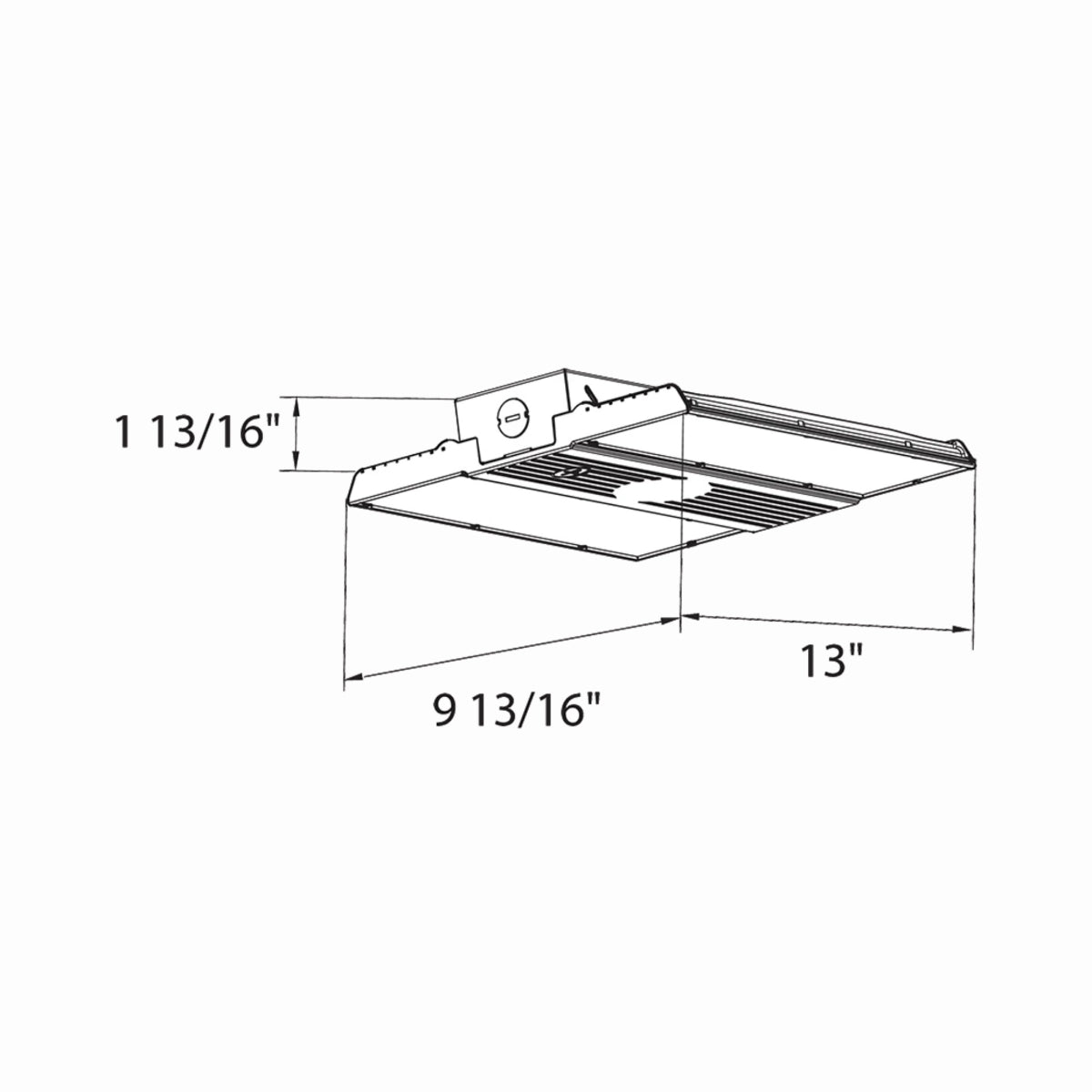

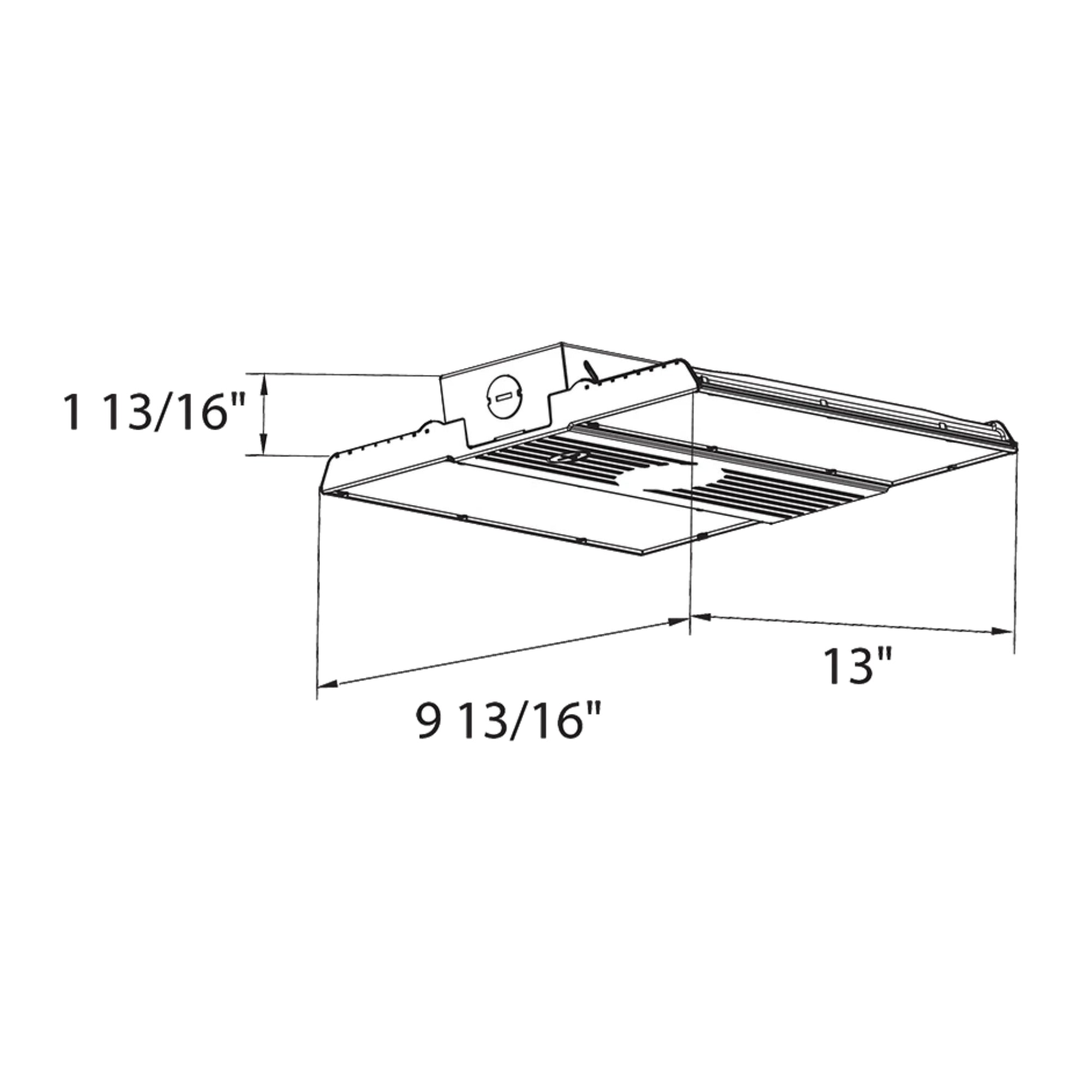

Die-cast aluminum housing with polycarbonate lens and reflector. Finish formulated for high durability and long-lasting color. Weight: 5.8 lbs. Dimensions: 13 in L x 9 13/16 in W x 1 13/16 in H.
Installation & Mounting

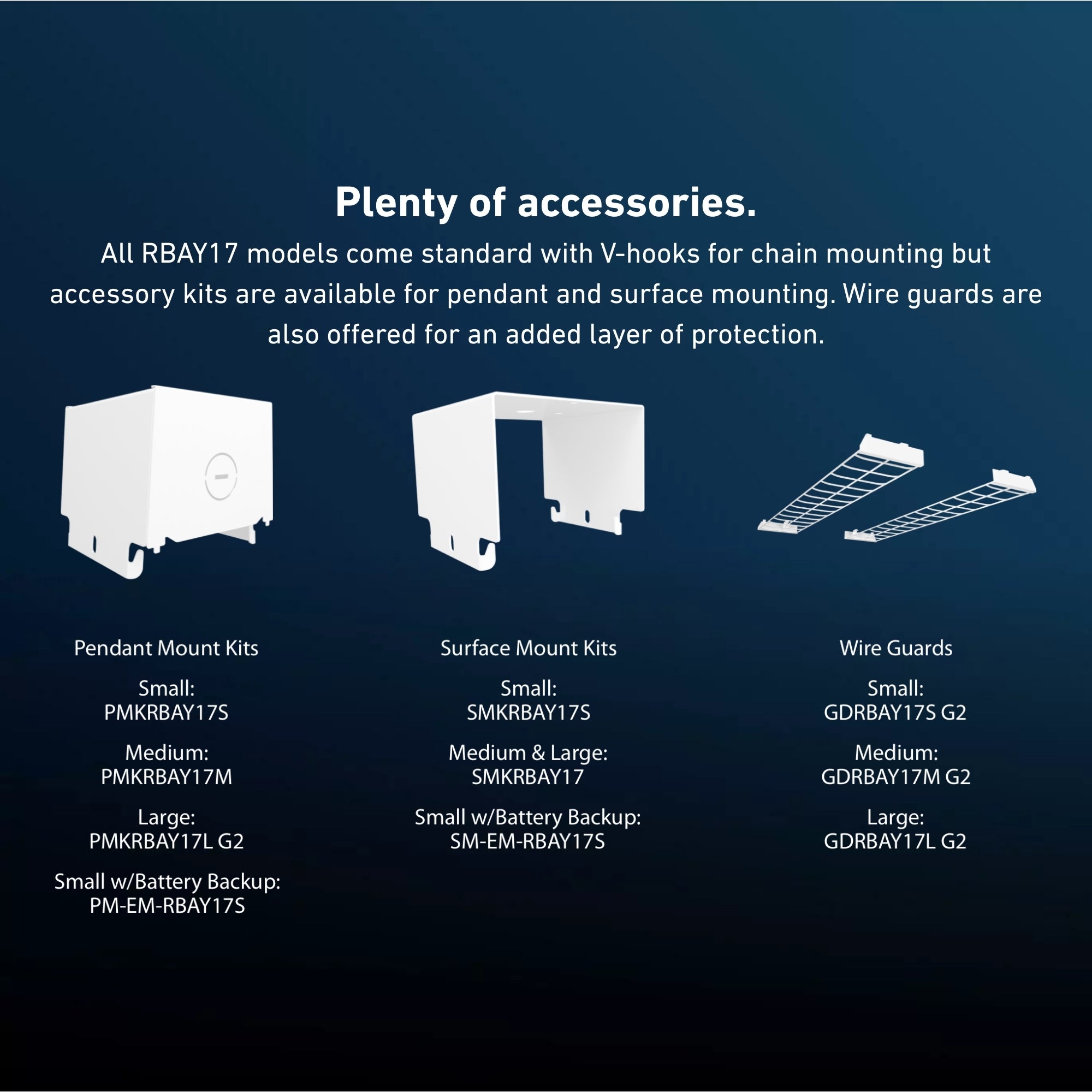

Includes V-hooks and chain for suspension mounting. Optional accessories (sold separately):
- Pendant Mount Kit: PMKRBAY17S
- Surface Mount Kit: SMKRBAY17S
- Wire Guard: GDRBAY17S G2
- Battery Backup models available (/E suffix, 120–277V only)
What's Included
- RAB RBAY17S LED linear high bay fixture
- V-hooks and chain for suspension mounting
Specifications
Specifications
Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
