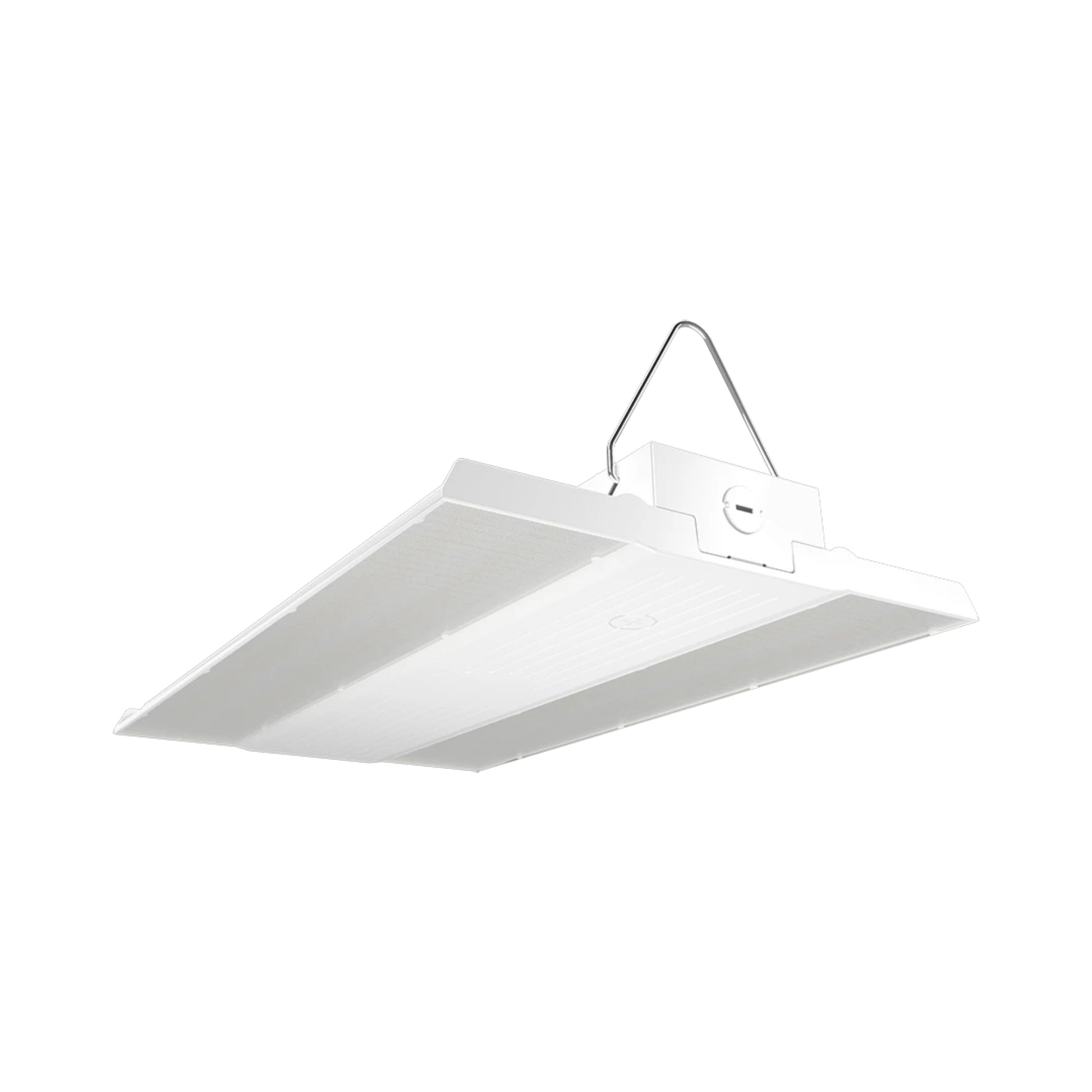

RAB RBAY17MHO/480 Linear High Output LED High Bay 41,541 Lumens 260W/220W/160W Selectable 4000K/5000K 480V White

RAB RBAY17MHO/480 Field-Adjustable High Output Linear LED High Bay — 260W / 220W / 160W Selectable

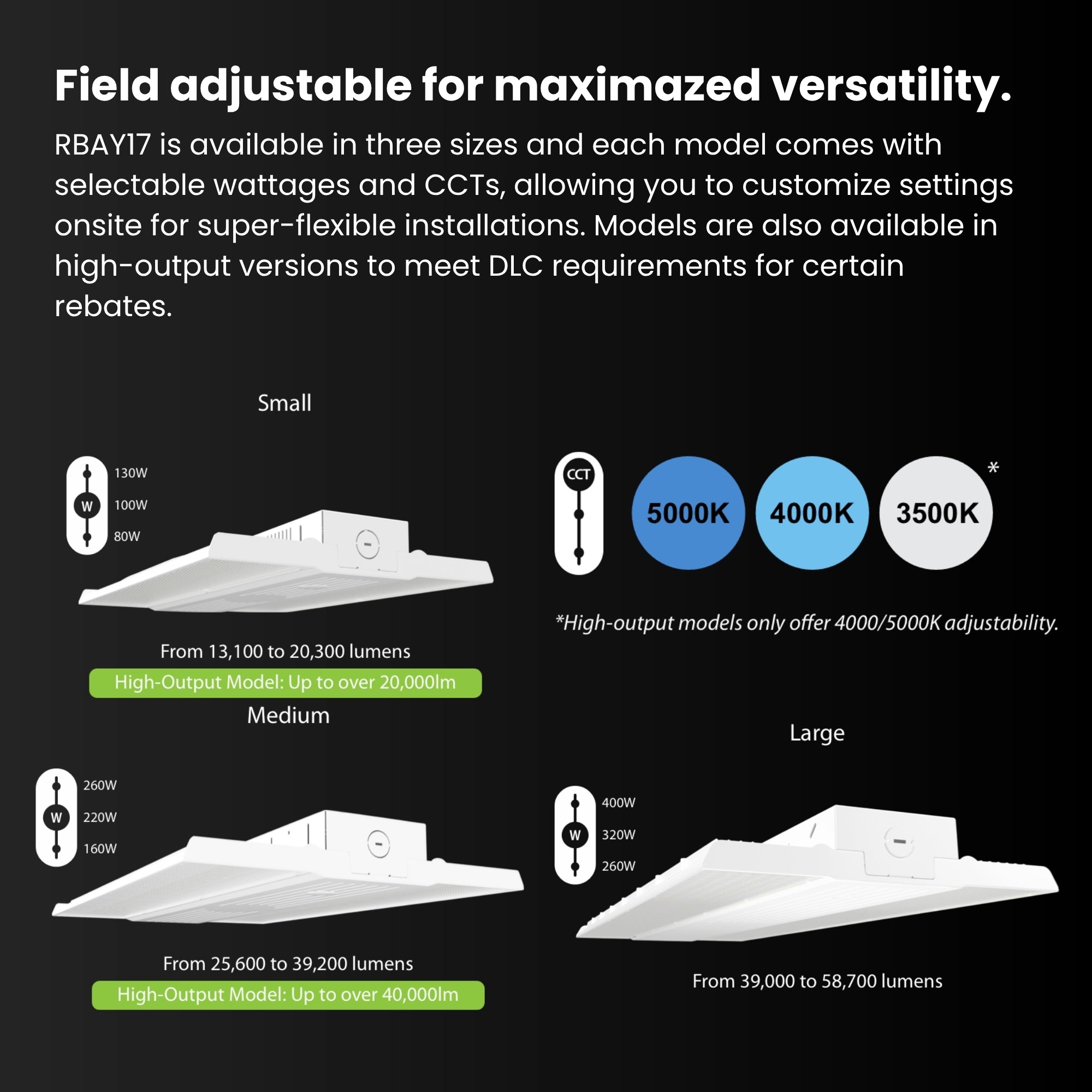

The RAB RBAY17MHO/480 is a field-adjustable high output linear LED high bay delivering up to 41,541 lumens with selectable wattage options of 260W, 220W, and 160W and selectable CCT of 4000K / 5000K. The fixture operates on 480V with integrated 0–10V dimming to 10%. It is UL Listed for damp locations and is DLC Premium Listed for rebate eligibility. Designed for warehouses, distribution centers, manufacturing facilities, and other industrial environments requiring versatile high-output illumination.

Key Features

• Selectable Wattage: 260W / 220W / 160W
• Selectable CCT: 4000K / 5000K
• Maximum Output: Up to 41,541 lumens
• Dimming: 0–10V dimming to 10%
• Environmental Rating: UL Listed for damp locations
• Certifications: UL Listed; DLC Premium Listed
• LED Lifespan: 100,000 hours (L70)

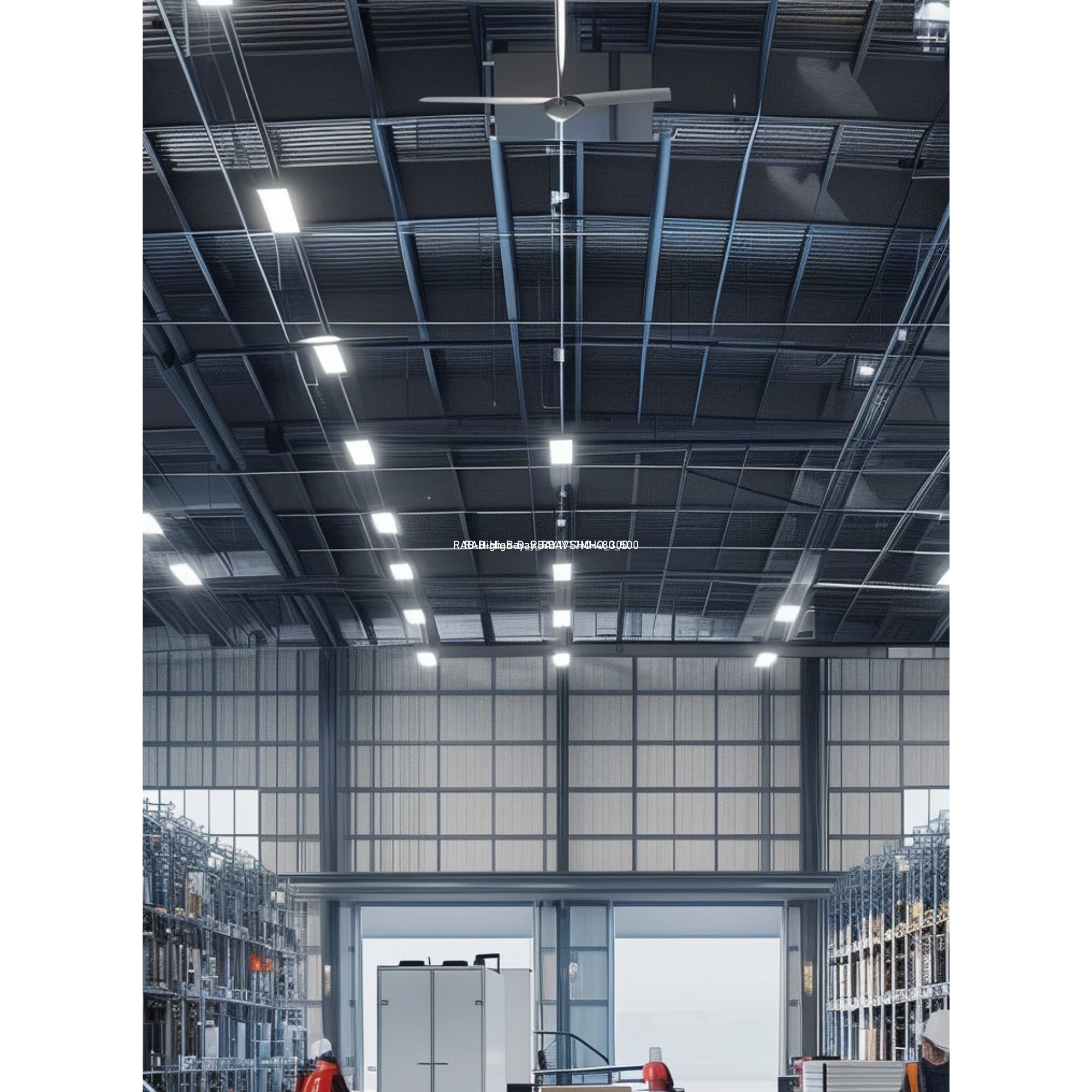

Typical Applications

• Warehouses
• Distribution centers
• Manufacturing facilities
• Industrial workshops
• Retail stockrooms
• Storage facilities
• High-bay commercial areas

Performance & Light Output:
Delivered lumen output varies with selected wattage and CCT. The LED system is designed for high-efficacy performance and long life, with CRI typically in the mid-80s and a rated 100,000-hour L70 lifespan. :contentReference[oaicite:1]{index=1}

Electrical & Controls:
Operates on dedicated 480V, 50/60Hz with a constant current Class 1 driver. Integrated 0–10V dimming supports control down to 10%. Power factor and THD values are optimized for industrial supply conditions. :contentReference[oaicite:2]{index=2}

Construction & Durability:
Die-cast aluminum housing with polycarbonate lens. Rated for damp locations with components designed for rugged commercial environments. Mercury-free and RoHS-compliant. :contentReference[oaicite:3]{index=3}

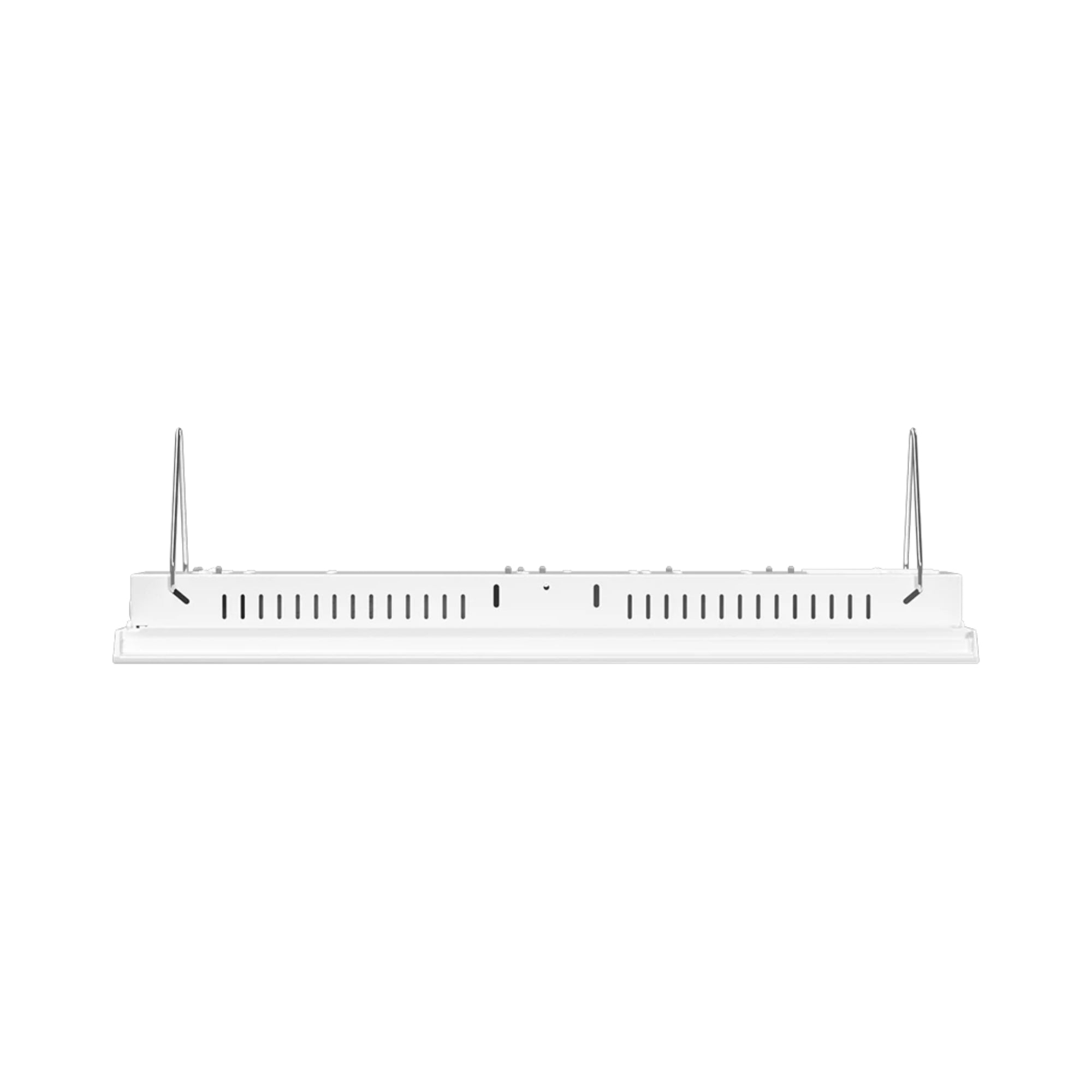

Installation & Mounting:

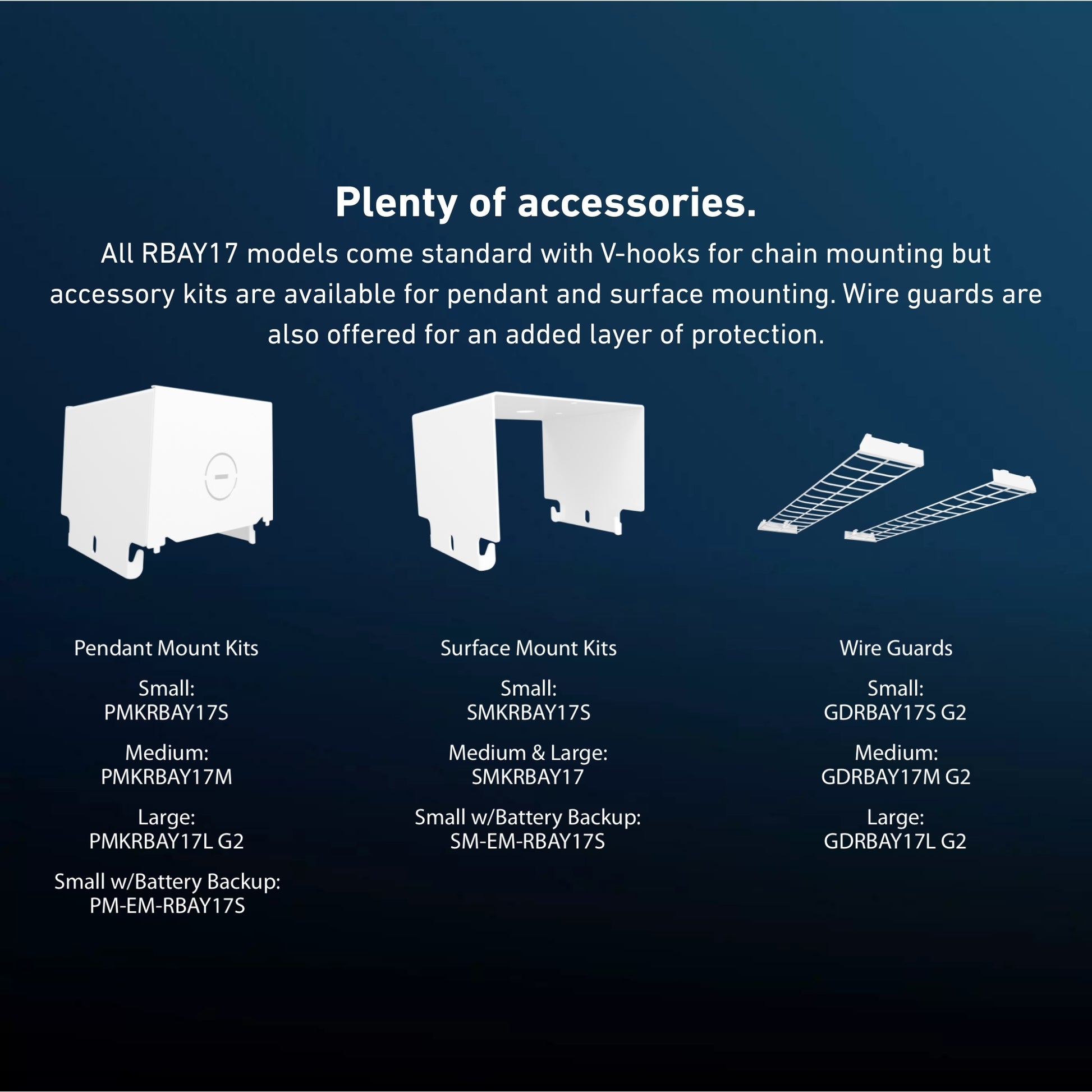

Includes V-hooks and chain for suspension mounting. Optional pendant and surface mounting kits are available separately. :contentReference[oaicite:4]{index=4}

Included
LED linear high bay fixture, V-hooks, and chain.
