RAB RBAY17M/E Field-Adjustable Linear High Bay — 260/220/160W Selectable — 3500K/4000K/5000K — White

The RAB RBAY17M/E is a commercial linear high bay engineered to deliver up to 39,200 lumens with field-adjustable 260W / 220W / 160W power settings and switchable 3500K / 4000K / 5000K color temperatures. Operating on 120-277V electrical systems with 0–10V continuous dimming, this luminaire provides energy-efficient replacement for conventional high-intensity discharge and fluorescent fixtures. Built with an IP20 damp location rating and UL Listing, it is qualified for commercial utility rebates under DLC Premium standards.

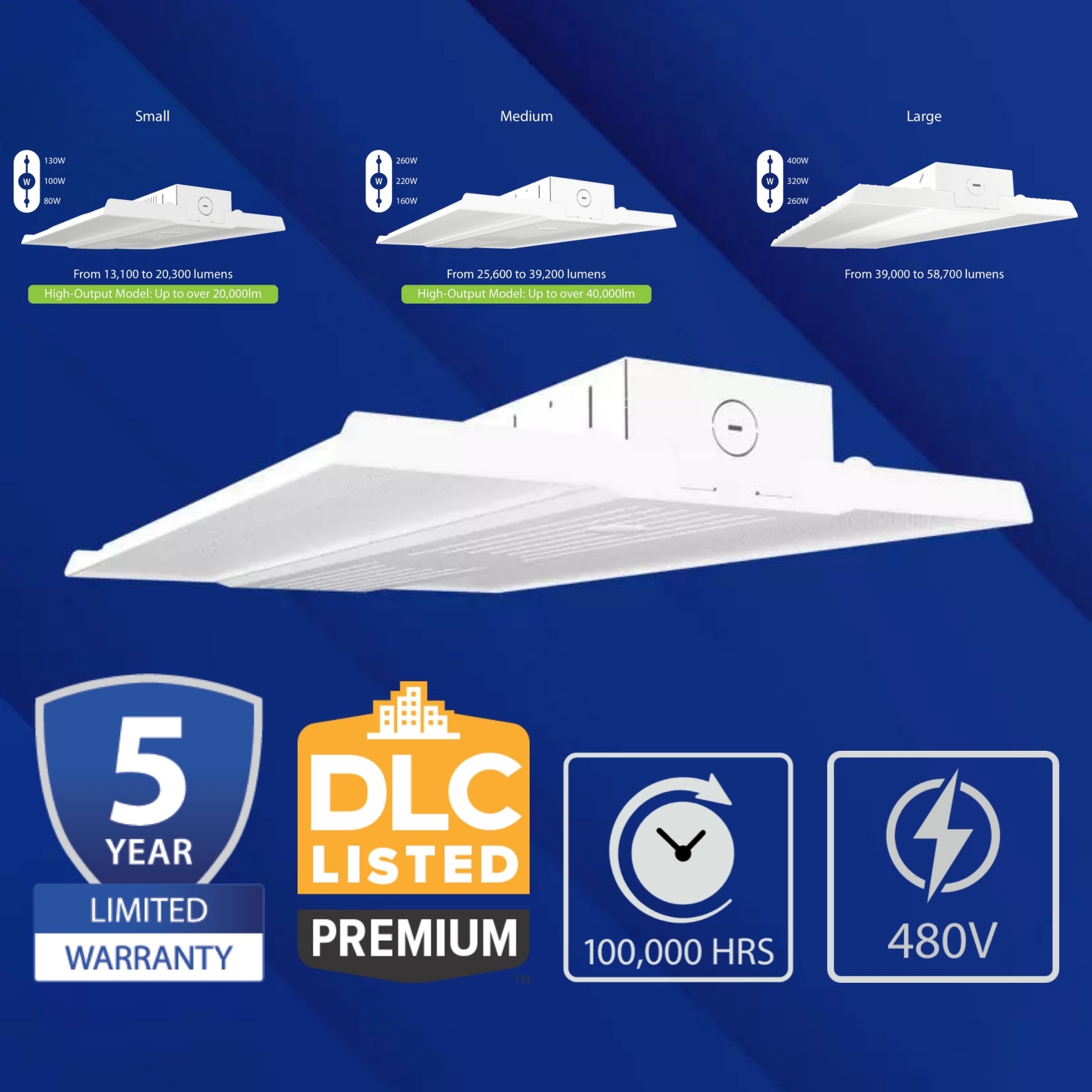

Key Features

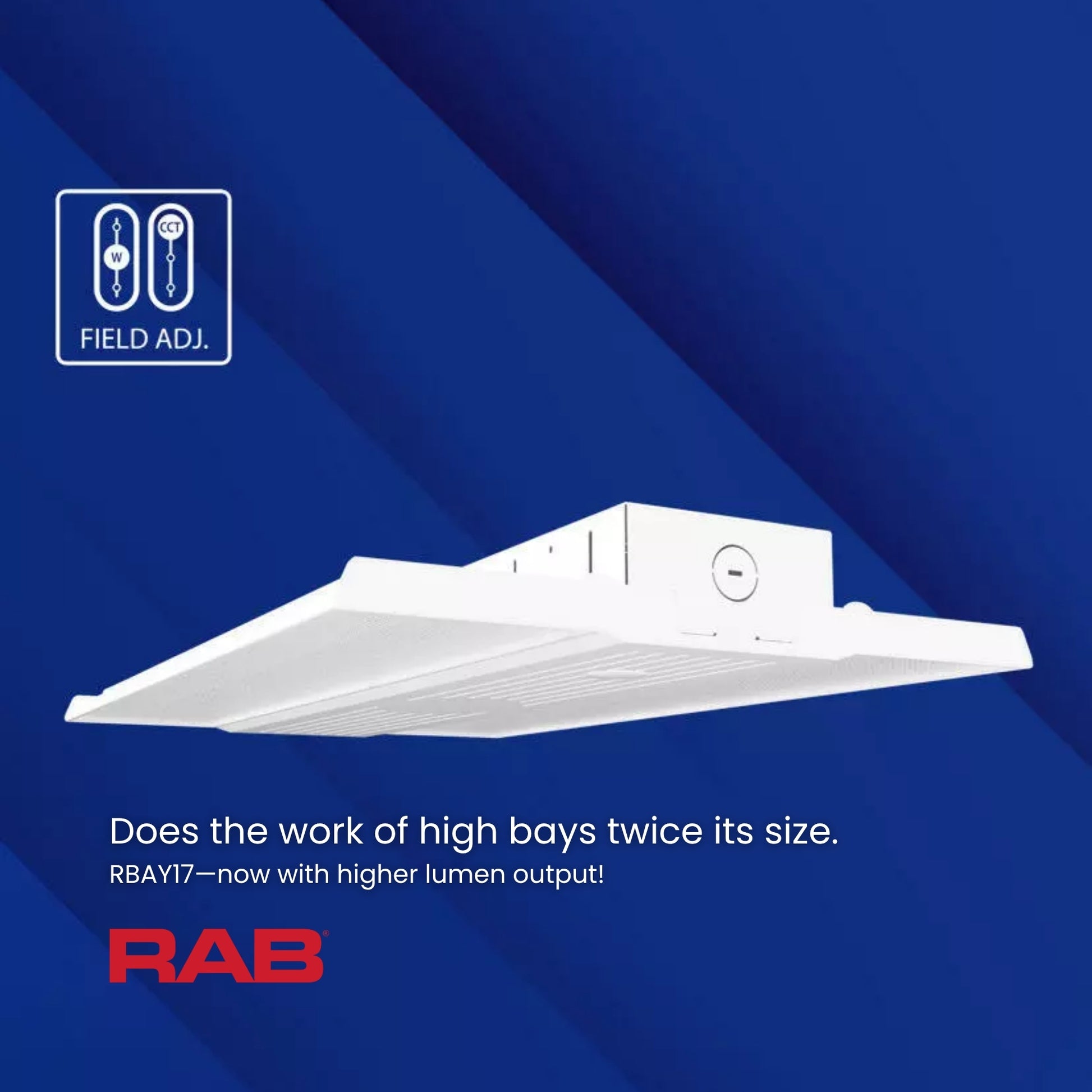

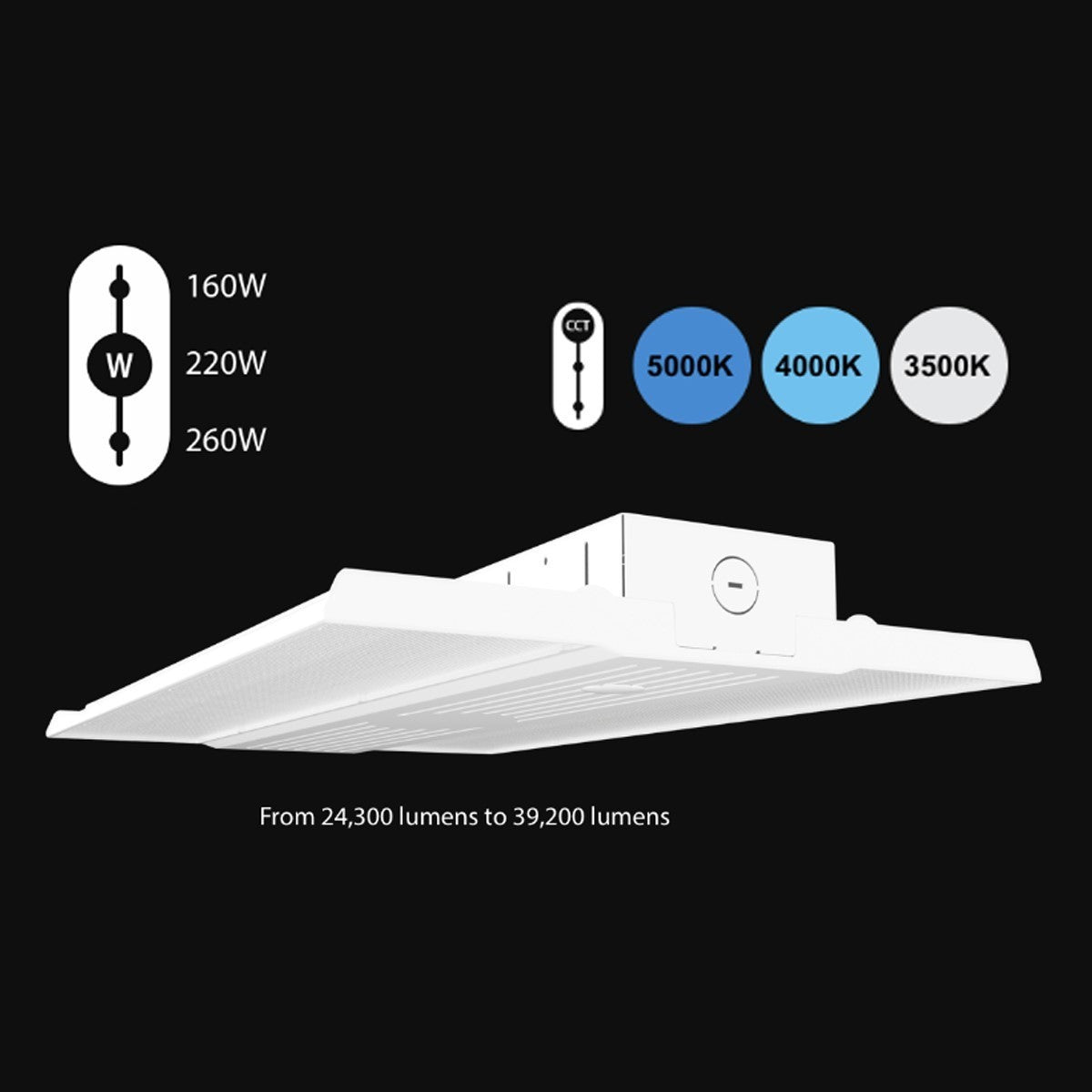

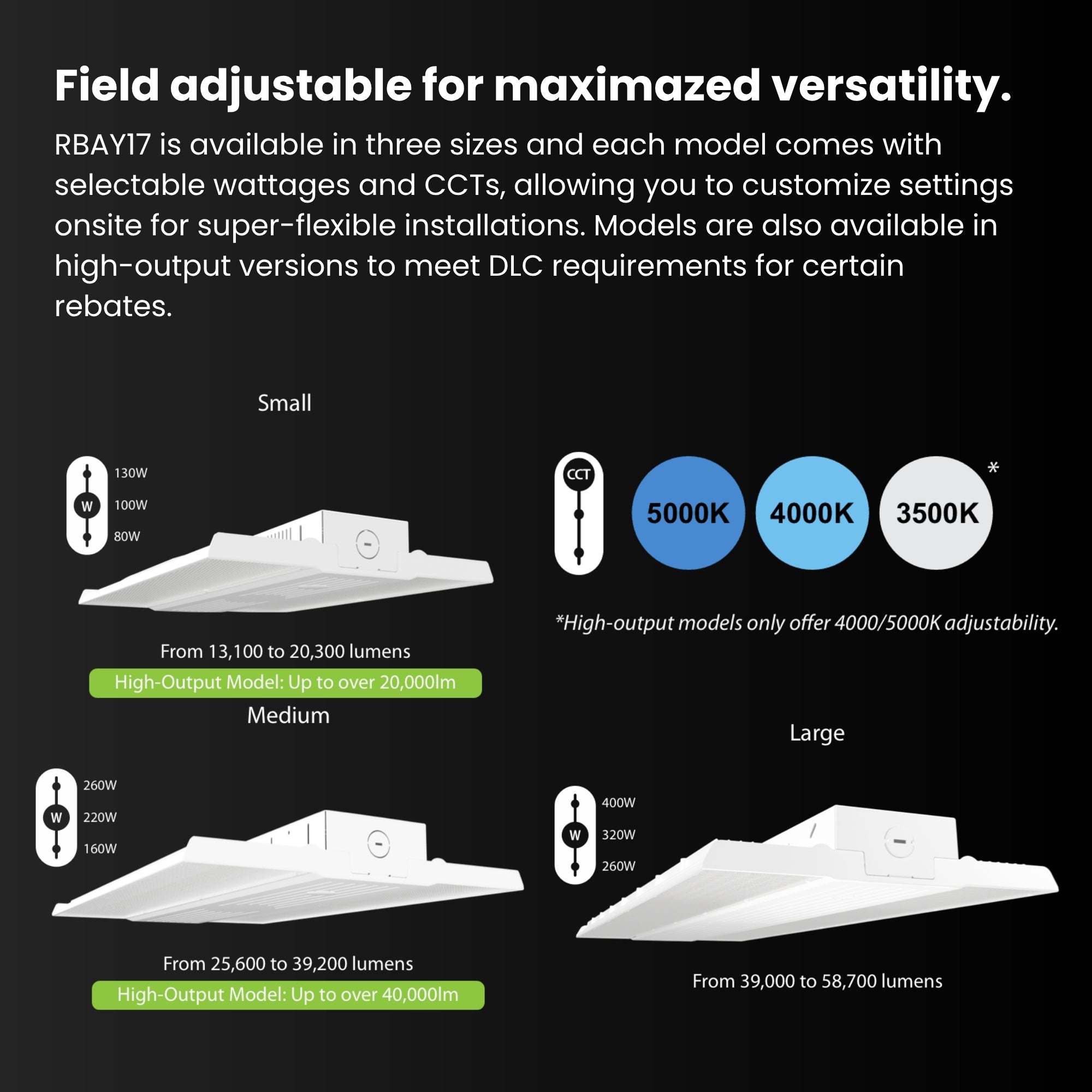

• Selectable Wattage: 260W / 220W / 160W — field-adjustable via onboard switch
• Wattage Equivalency: Replaces conventional HID and fluorescent fixtures for direct energy savings
• Maximum Lumen Output: 39,200 lm at 260W
• Peak Efficacy: 166.4 lm/W for high-efficiency commercial operation
• CRI: >82 color rendering across all settings
• Color Consistency: 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
• Selectable CCT: 3500K / 4000K / 5000K — field-adjustable via onboard switch
• Dimming: 0–10V continuous dimming standard (dims down to 10%)
• Voltage: Universal 120-277V AC, 50/60Hz constant current driver
• Location Rating: UL Listed for damp locations; IP20 ingress rated
• Operating Temperature: 32°F (0°C) to 113°F (45°C) ambient range
• Certifications: DLC Premium, UL Listed, RoHS Compliant
• Rated Life: L70 100,000 hours per IES TM-21 standards
• Warranty: 5-year limited warranty — RAB
• Sensor Compatibility: Includes a sensor port to easily install plug-and-play controls without internal wiring

Performance & Light Output

At 260W: 36,939 lm (3500K / 144.2 lm/W), 39,200 lm (4000K / 157.1 lm/W), 37,829 lm (5000K / 147.4 lm/W).

At 220W: 32,726 lm (3500K / 149.4 lm/W), 34,430 lm (4000K / 161.9 lm/W), 33,604 lm (5000K / 152.7 lm/W).

At 160W: 25,587 lm (3500K / 156.7 lm/W), 26,434 lm (4000K / 166.4 lm/W), 25,950 lm (5000K / 158.8 lm/W).

CRI >82 across all configurations. Rated life 100,000 hours (L70) per IES TM-21 testing. Delivers direct energy reduction compared to traditional high-intensity discharge systems.

Smart & Control Features

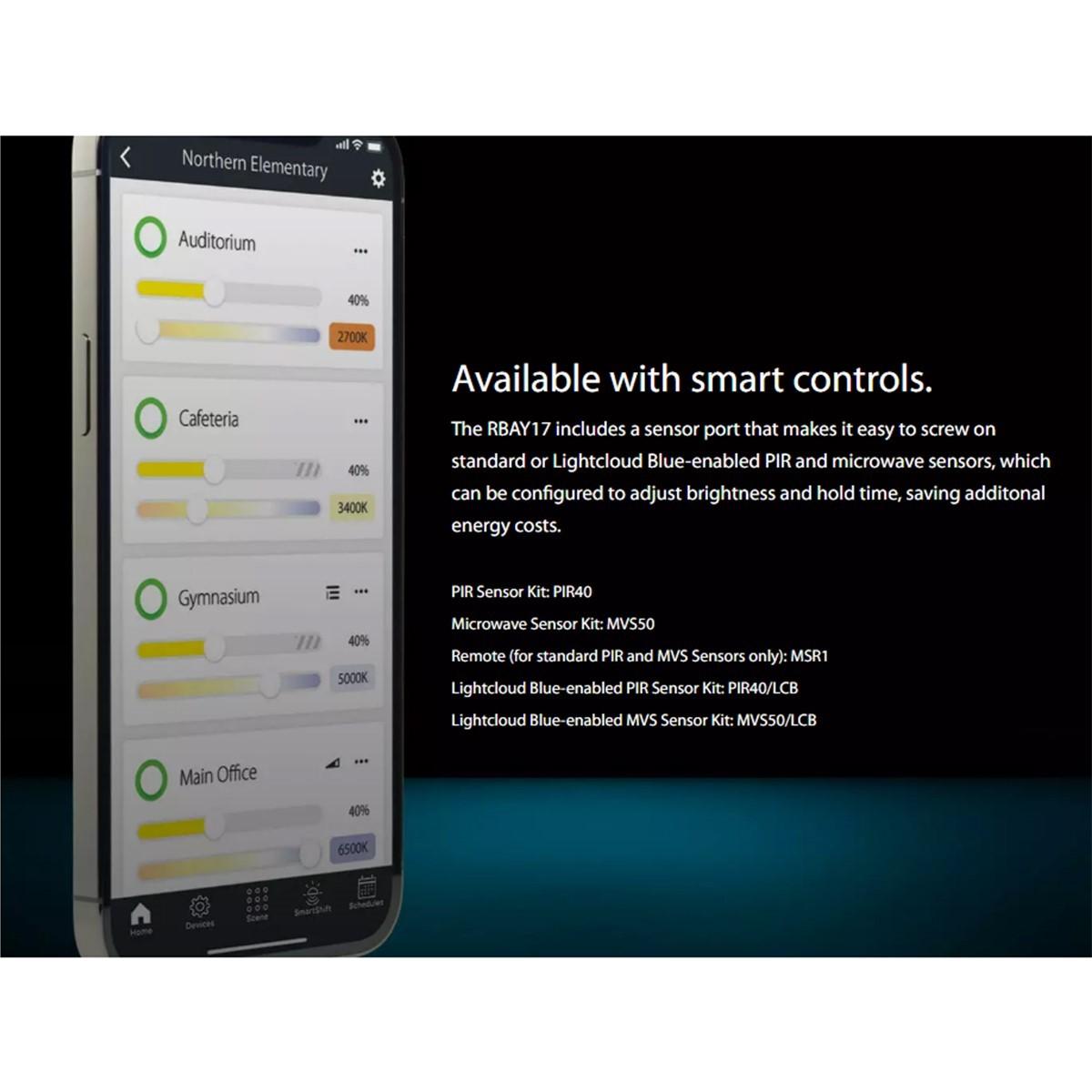

The RBAY17M/E features an integrated sensor port supporting modular sensing and automated facility lighting control:

• 0–10V Continuous Dimming (Standard): Standard dimming control compatible with commercial 0–10V dimmers.
• Sensor Compatibility (Accessory): Accepts field-installable PIR and microwave occupancy sensors via the integrated sensor port.
• Lightcloud Blue (Accessory): Compatible with Bluetooth mesh controllers for wireless group control, automated scheduling, and occupancy sensing.

Compatible plug-and-play sensors include the PIR40, MVS50, PIR40/LCB, and MVS50/LCB — sold separately. Field sensor adjustments can also be managed using an optional handheld wireless remote (catalog # MSR1, sold separately).

Electrical

Powered by a Class 1 constant current driver operating on 120-277V AC at 50/60Hz. Delivers high electrical efficiency with a Power Factor >0.90 and Total Harmonic Distortion (THD) <20%. Integrated 6kV + 6kV surge protection protects internal electronics against line-to-line and line-to-ground transient voltage spikes. Includes pre-wired 0–10V dimming leads. RoHS compliant.

Operating current and amp draw across input voltages for branch circuit and breaker loading calculations:

Construction

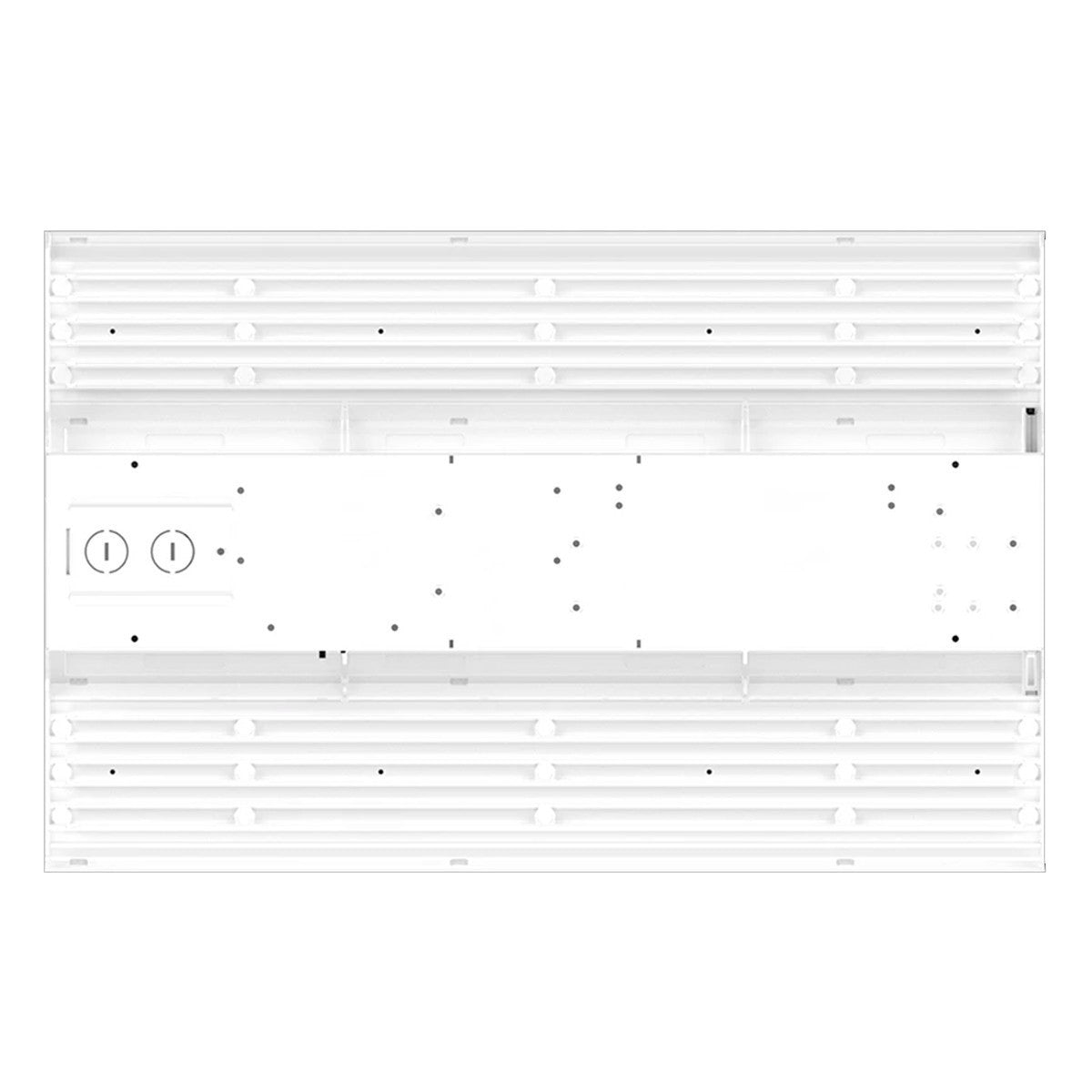

Housing & Thermal: Low-profile, lightweight die-cast aluminum engineered with heat-dissipating fins. The housing functions as a high-efficiency passive heatsink, dissipating heat away from LED arrays and internal driver circuits to preserve lumen maintenance across the 100,000-hour rated lifespan.

Lens & Optics: Features a durable polycarbonate lens and polycarbonate reflector engineered to guarantee light intensity and uniformity.

Finish: Commercial finish in White formulated for high durability and long lasting color.

Environmental Sealing: IP20 rated and UL Listed for damp locations, providing a sealed barrier resistant to dust ingress. Ambient operating temperature range: 32°F (0°C) to 113°F (45°C).

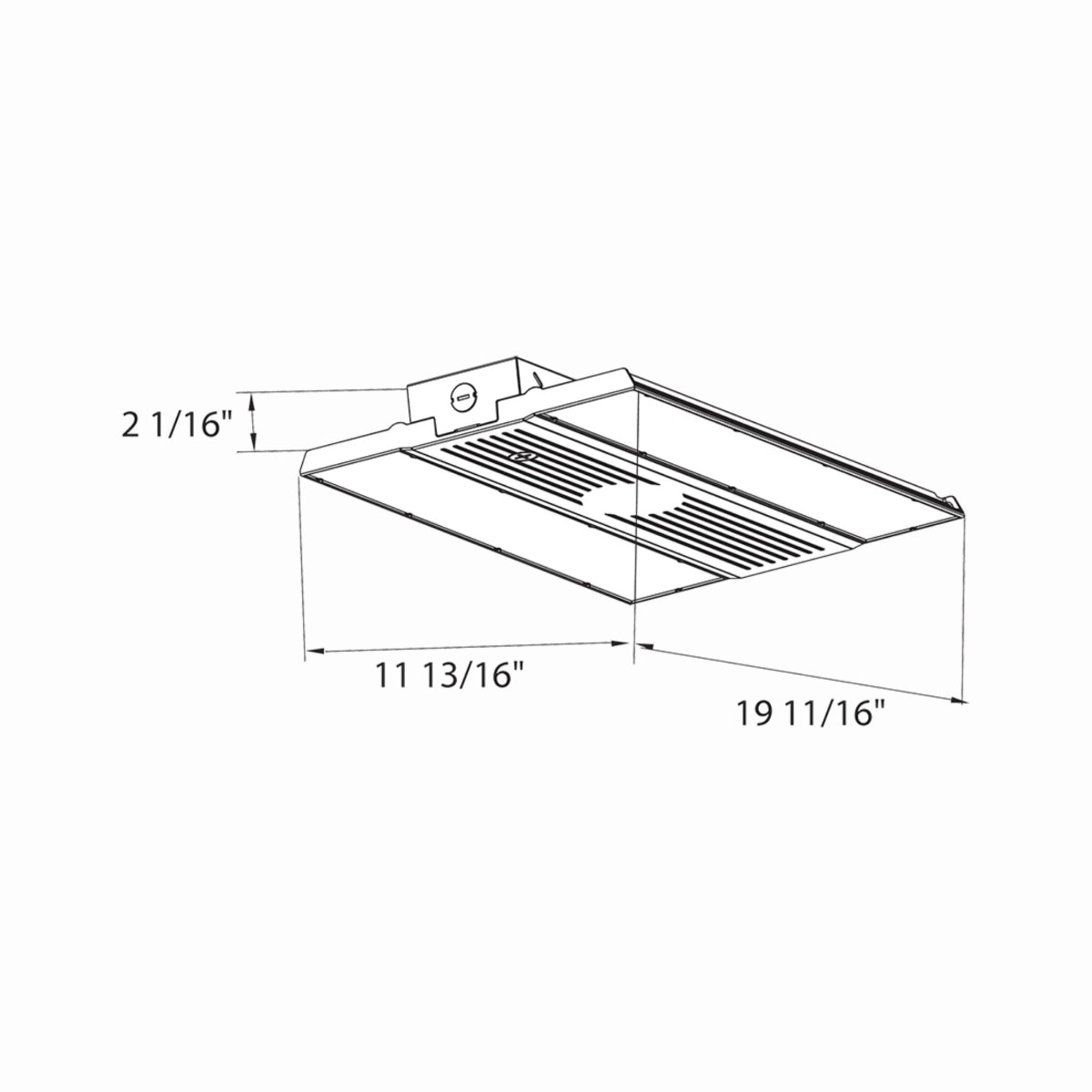

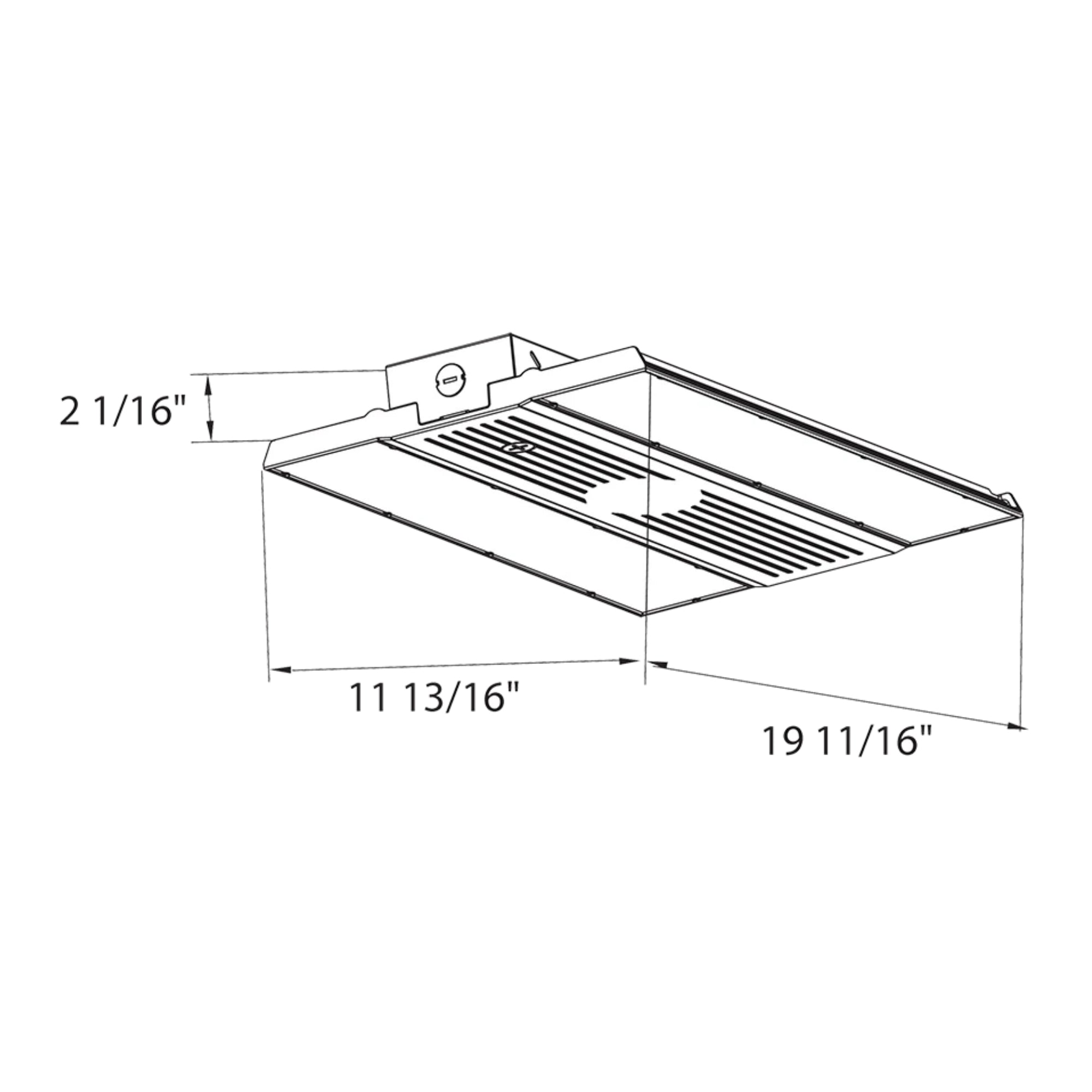

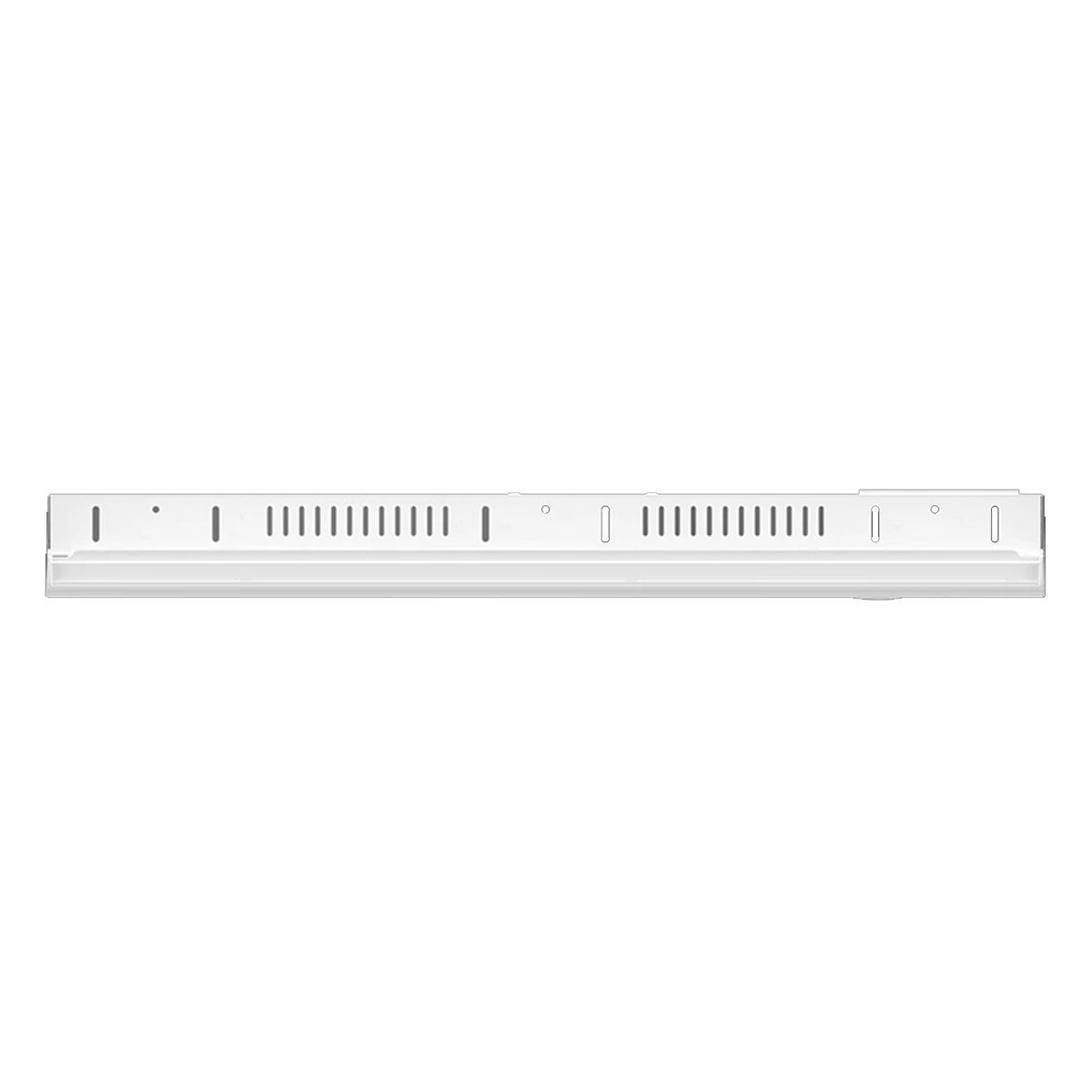

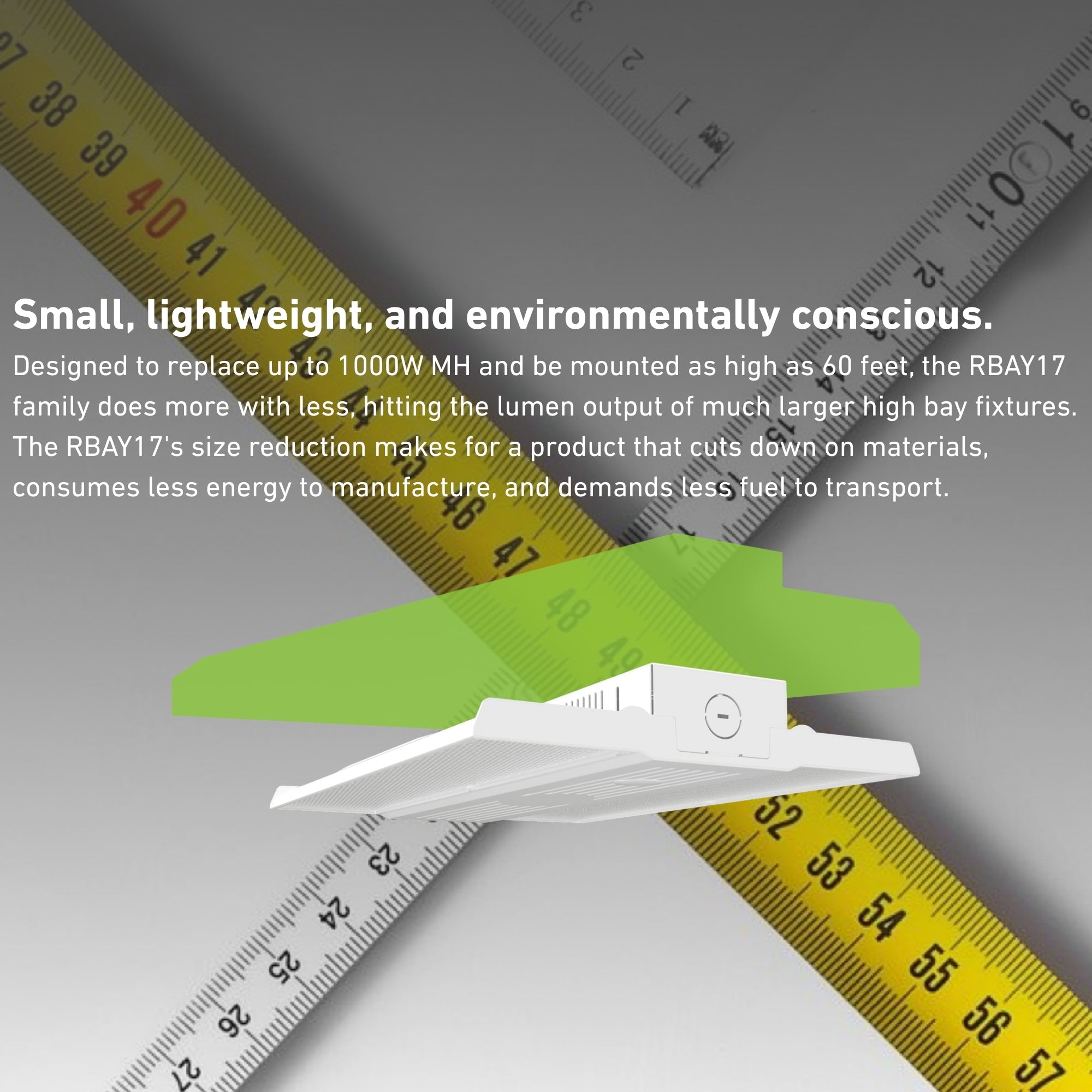

Dimensions & Weight: 19.69" L × 11.81" W × 2.06" H. Fixture weight: 6.53 lbs.

Installation & Mounting

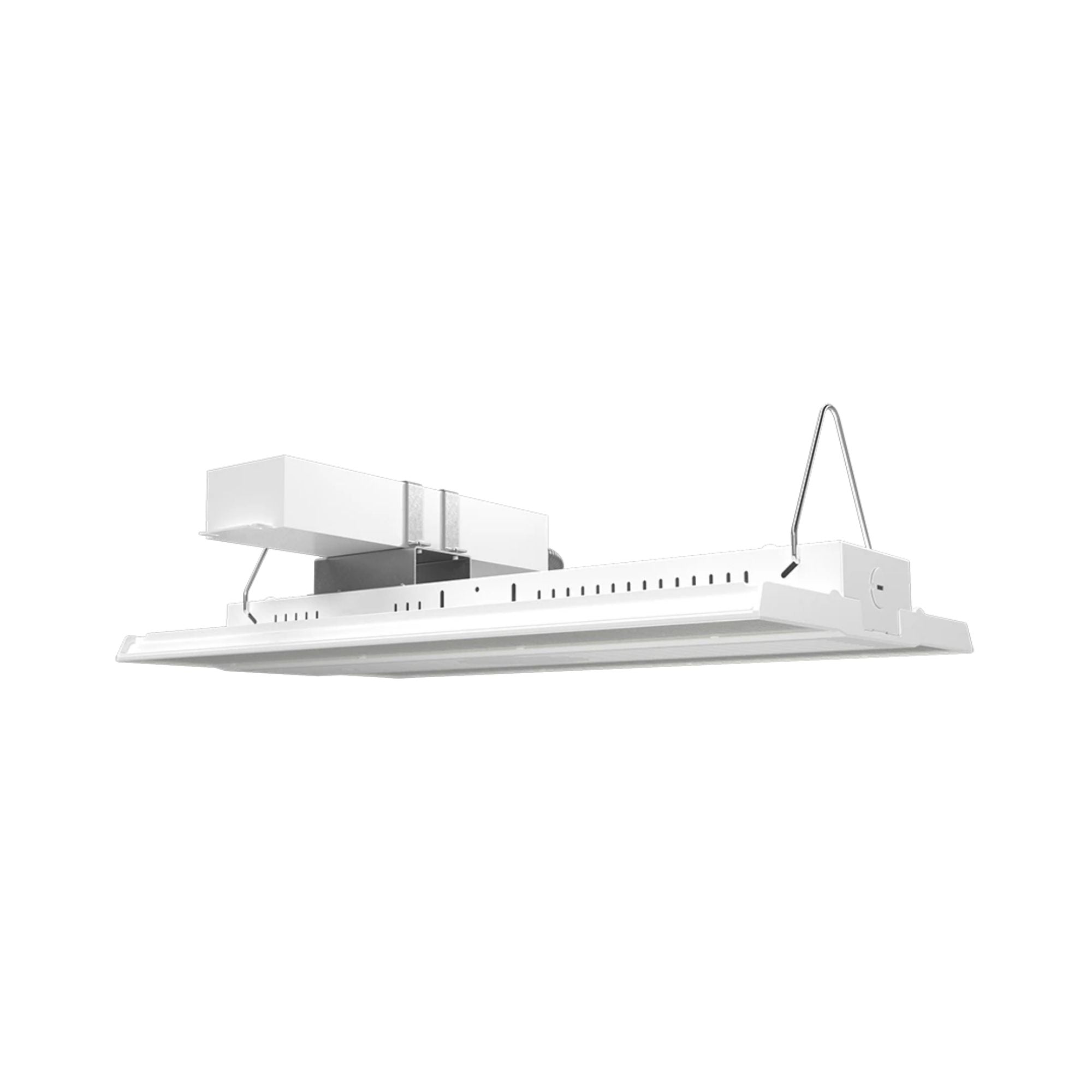

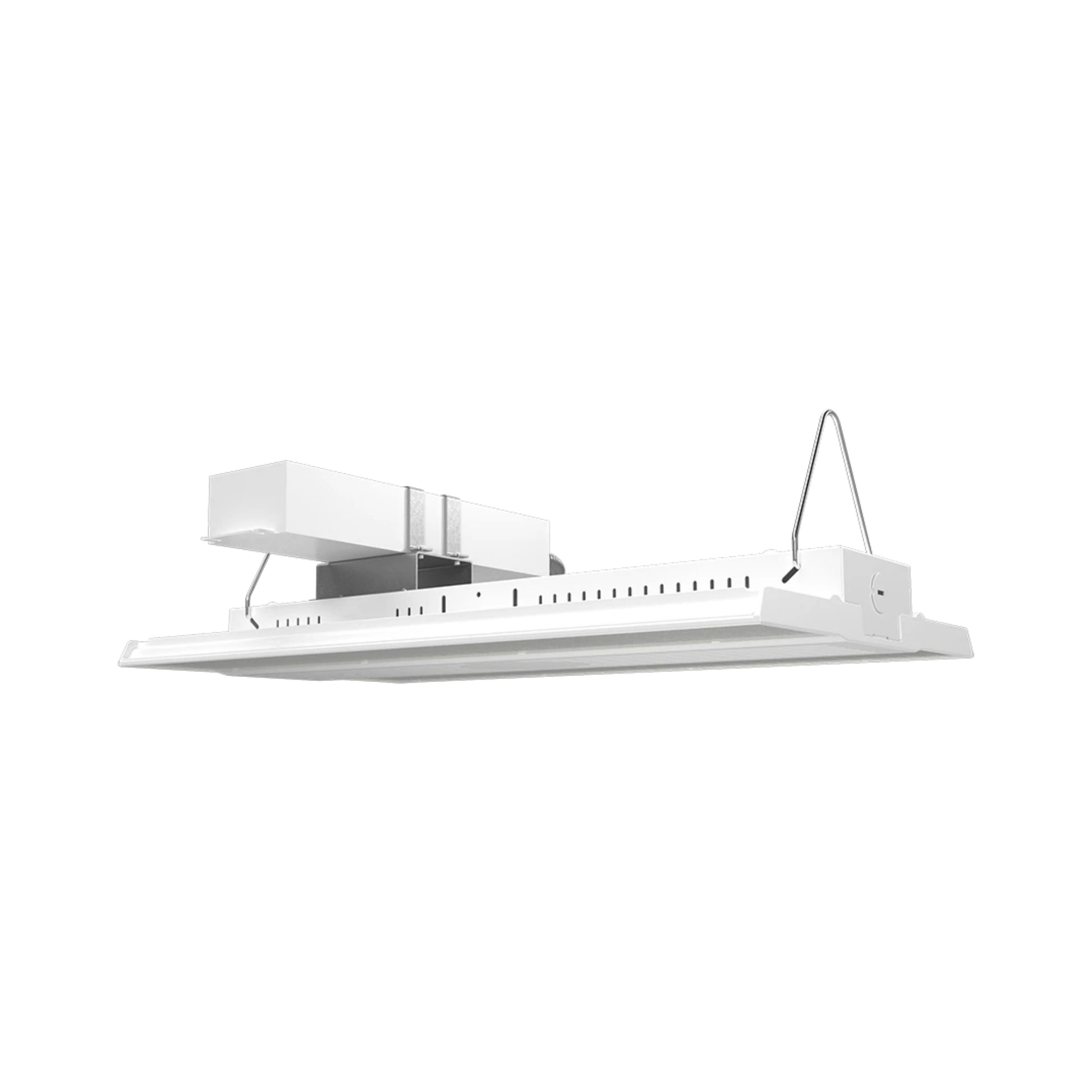

Standard Hardware: Ships standard with V-hooks for chain mounting installation.

Mounting Options: Compatible with rigid 3/4" NPS pendant mounting (via PMK kit) and direct surface mounting (via SMK kit).

Accessories (Sold Separately):

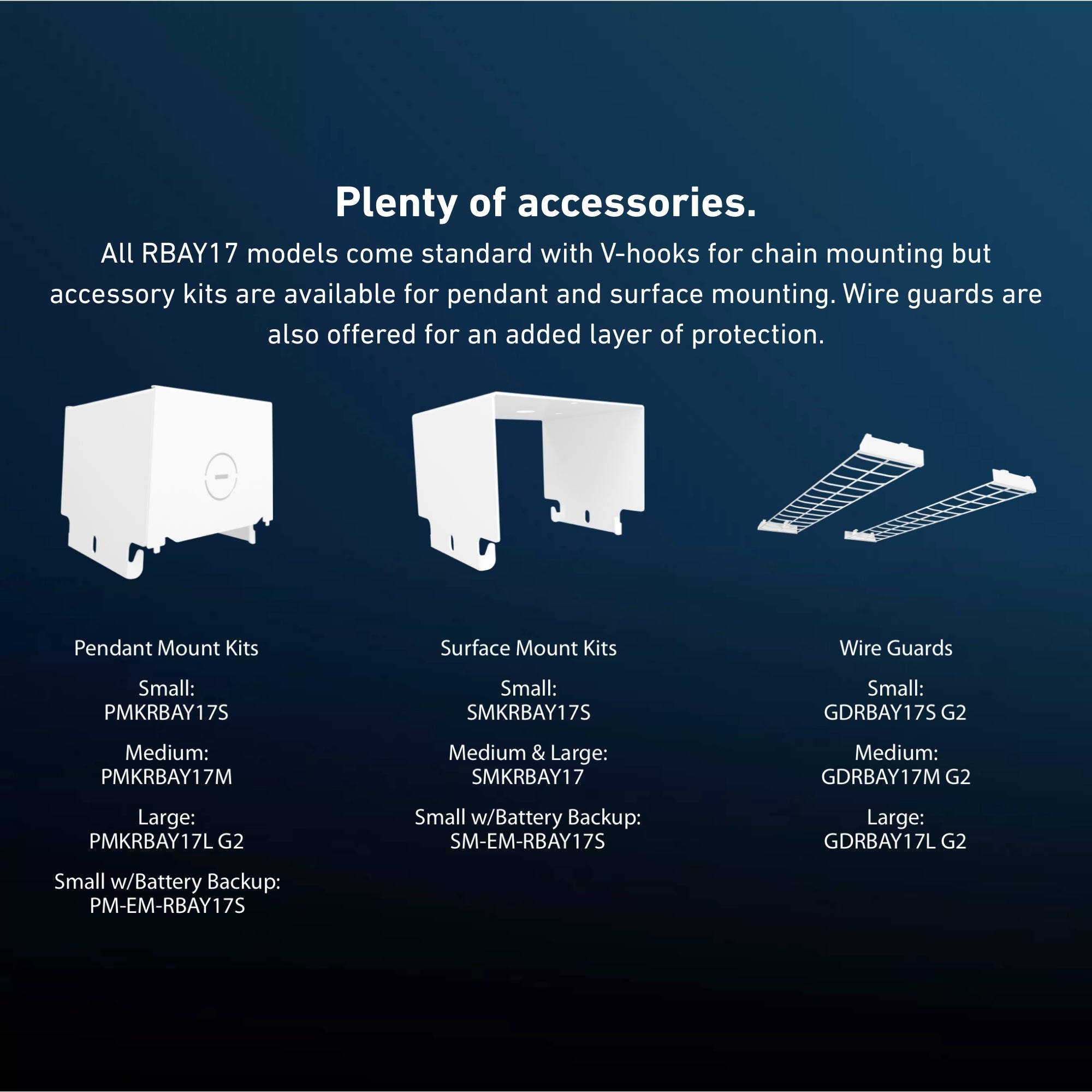

• Mounting Brackets: PMKRBAY17M G2 (Pendant Mount Kit) | SMKRBAY17 (Surface Mount Kit)
• Wire Guards: GDRBAY17M G2 (Protective Wire Guard)
• Sensors & Controls: PIR40 (PIR Sensor) | MVS50 (Microwave Sensor) | PIR40/LCB (Lightcloud Blue PIR) | MVS50/LCB (Lightcloud Blue MVS) | MSR1 (Programming Remote)

Certifications & Rebates

• DLC Premium: Qualifies for commercial lighting utility rebate programs nationwide (DLC ID: S-Z1IKAO)
• UL Listed: Certified for damp locations per UL standards for commercial luminaires
• RoHS Compliant: Manufactured free of lead, mercury, and hazardous heavy metals

Typical Applications

• Open Warehouse & Distribution Floors — high-lumen linear form factor provides broad, uniform footcandle distribution across large racking aisles and open spaces
• Unconditioned Warehouses & Cold Storage — 32°F (0°C) minimum ambient temperature rating supports reliable ignition in freezing environments
• Precision Assembly & Inspection Areas — field-adjustable CCT and 7-step MacAdam Ellipse binning allow illumination tuning for visual task accuracy
• Gymnasiums & Athletic Facilities — available protective wire guards ensure durability against mechanical impacts

What's Included

• RAB RBAY17M/E Linear LED High Bay — White
• V-hooks for chain mounting
• Installation and operation instructions
