RAB RBAY17M/480 LED Linear High Bay — 260/220/160W — Selectable CCT — 480V
Available in stock (300)
About this item
About this item
- 260/220/160W Selectable Output: 24,918–40,003 lumens at up to 168 lm/W — replaces 750W metal halide fixtures on 480V systems at a fraction of the energy cost.
- Field-Selectable CCT: Switch between 3500K, 4000K, and 5000K on the job site — no rewiring, no returns.
- 0–10V Dimming to 10%: Compatible with standard 480V dimming control systems for energy management and occupancy integration.

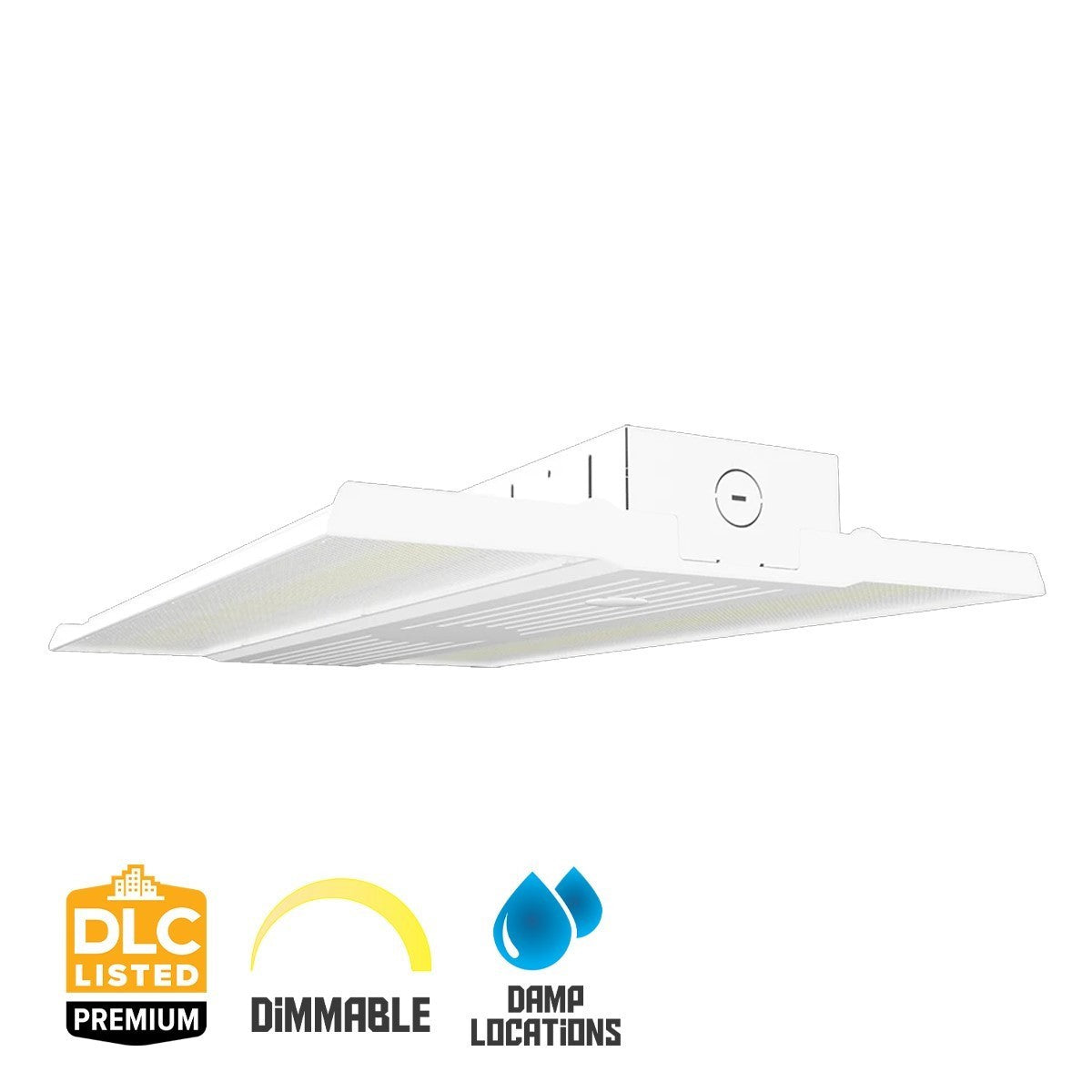

- DLC Premium Listed: Qualifies for utility rebate programs in most markets (DLC Code: 8RD5IX) — maximizes ROI on commercial lighting upgrades.
- Damp Location Rated: UL Listed for damp environments — suitable for warehouses, loading docks, gymnasiums, and covered 480V facilities.
We process payments securely and do not store credit card information.
Description
Description

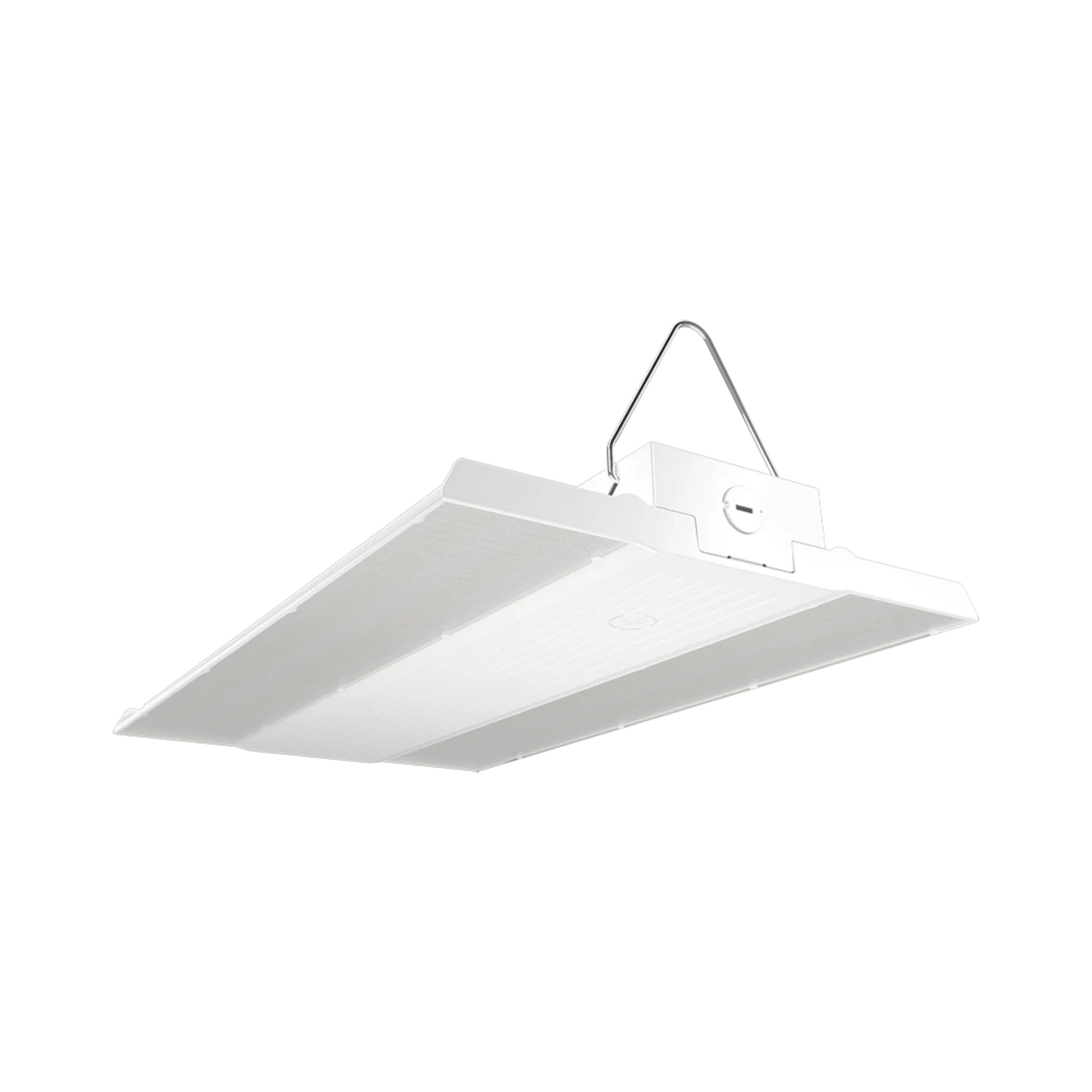

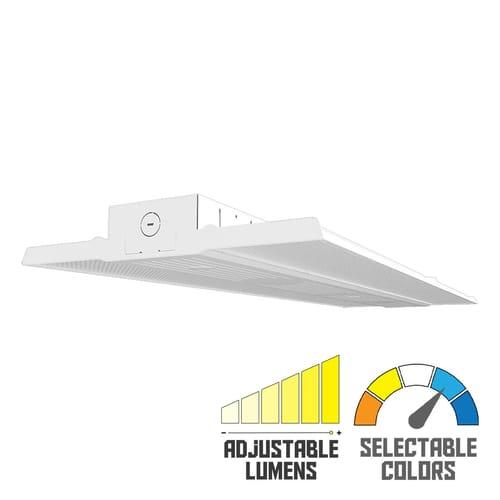

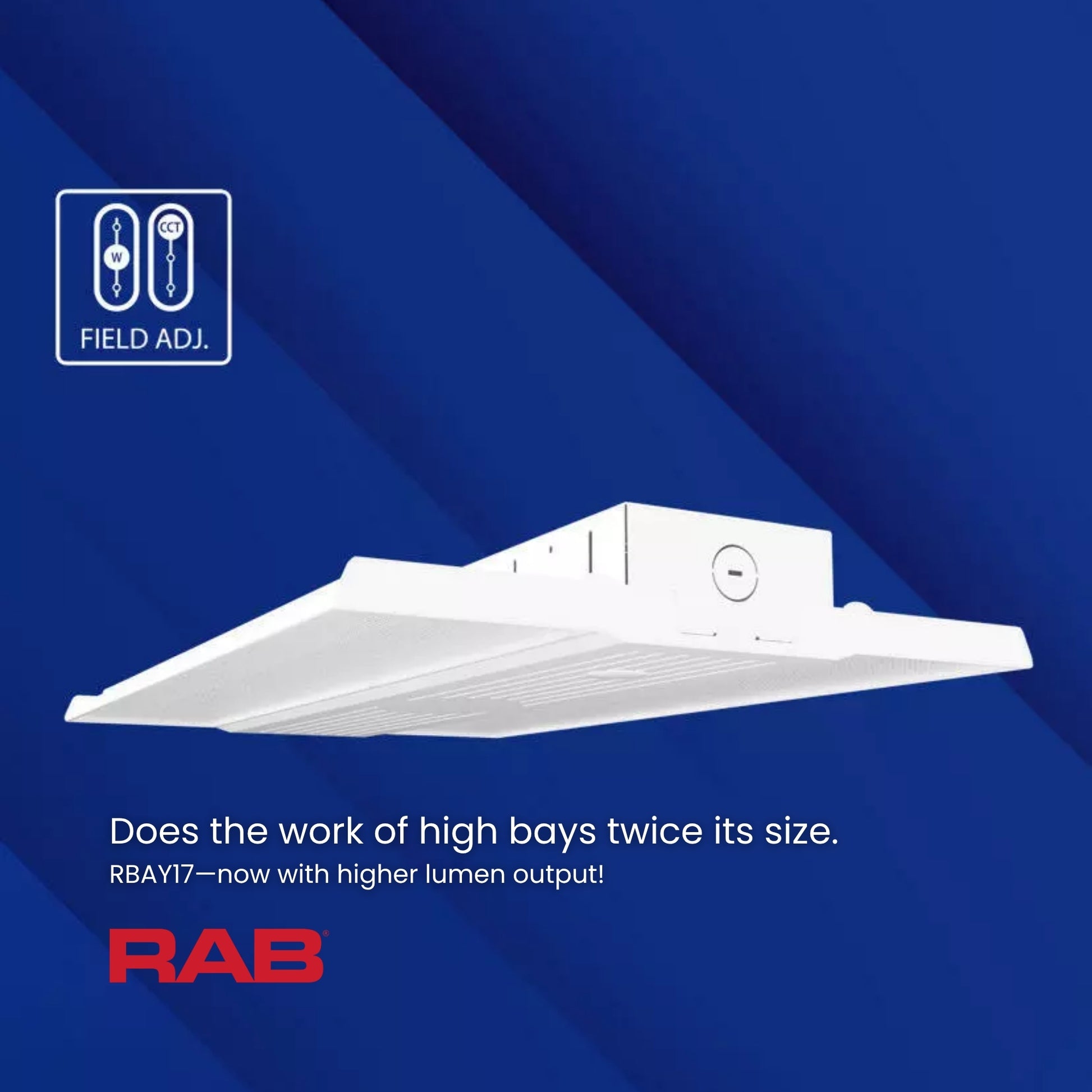

RAB RBAY17M/480 Field-Adjustable Linear LED High Bay — 260W / 220W / 160W Selectable
The RAB RBAY17M/480 is a field-adjustable linear LED high bay delivering 24,918 to 40,003 lumens with selectable wattage options of 260W, 220W, and 160W and selectable CCT of 3500K / 4000K / 5000K. Designed exclusively for 480V electrical systems, it integrates 0–10V dimming to 10% and is equivalent to a 750W metal halide fixture. UL Listed for damp locations and DLC Premium Listed (Product Code: 8RD5IX) for utility rebate eligibility.
Key Features

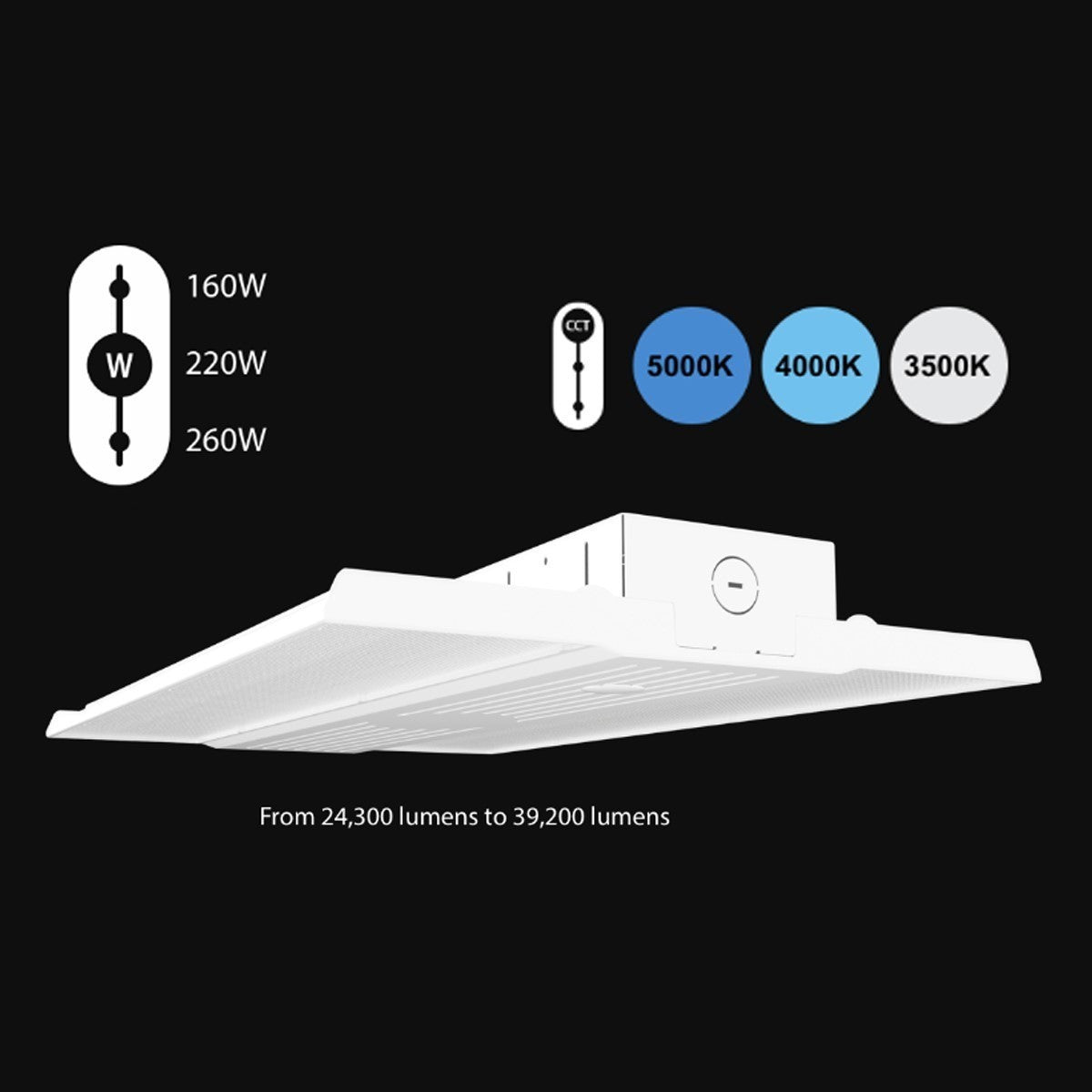

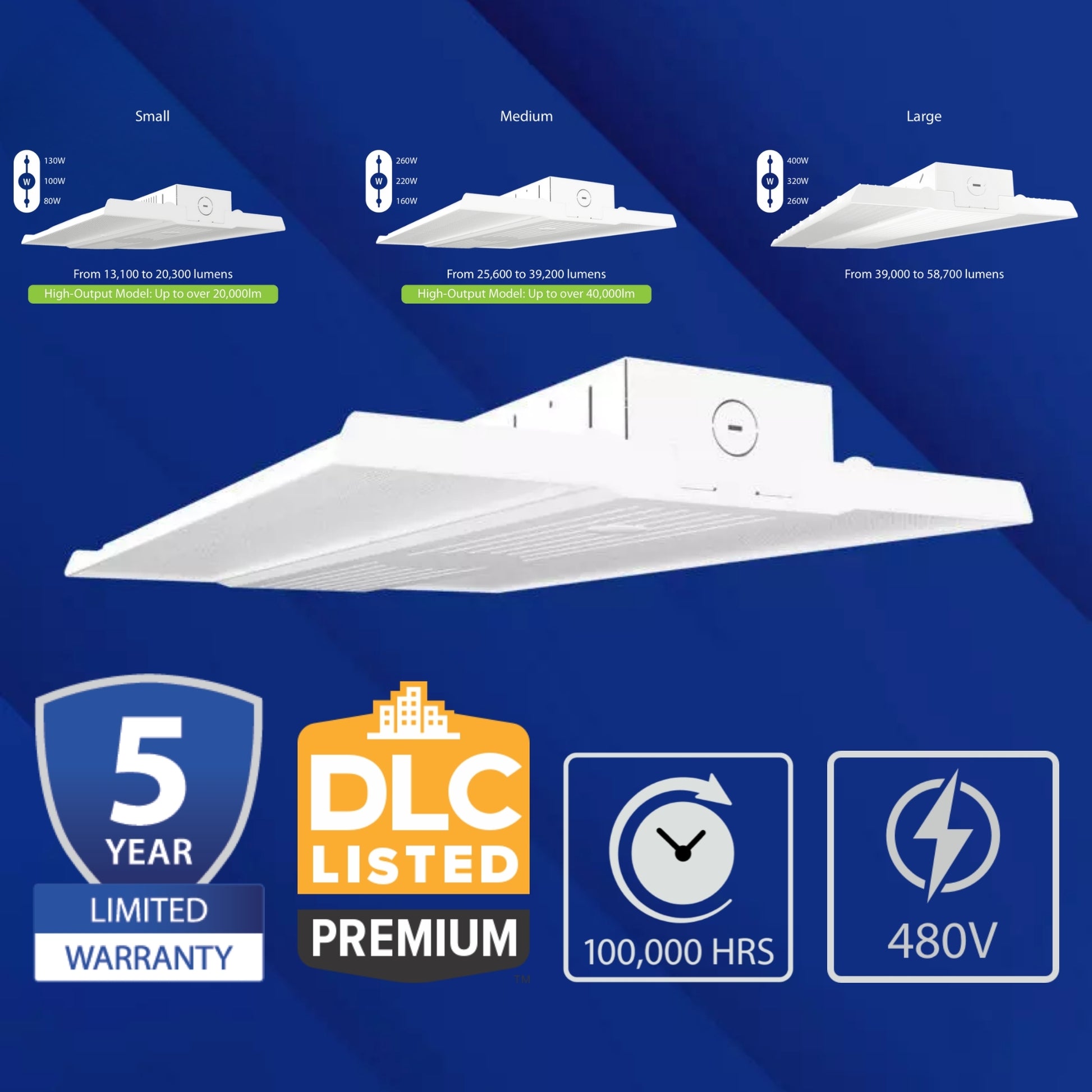

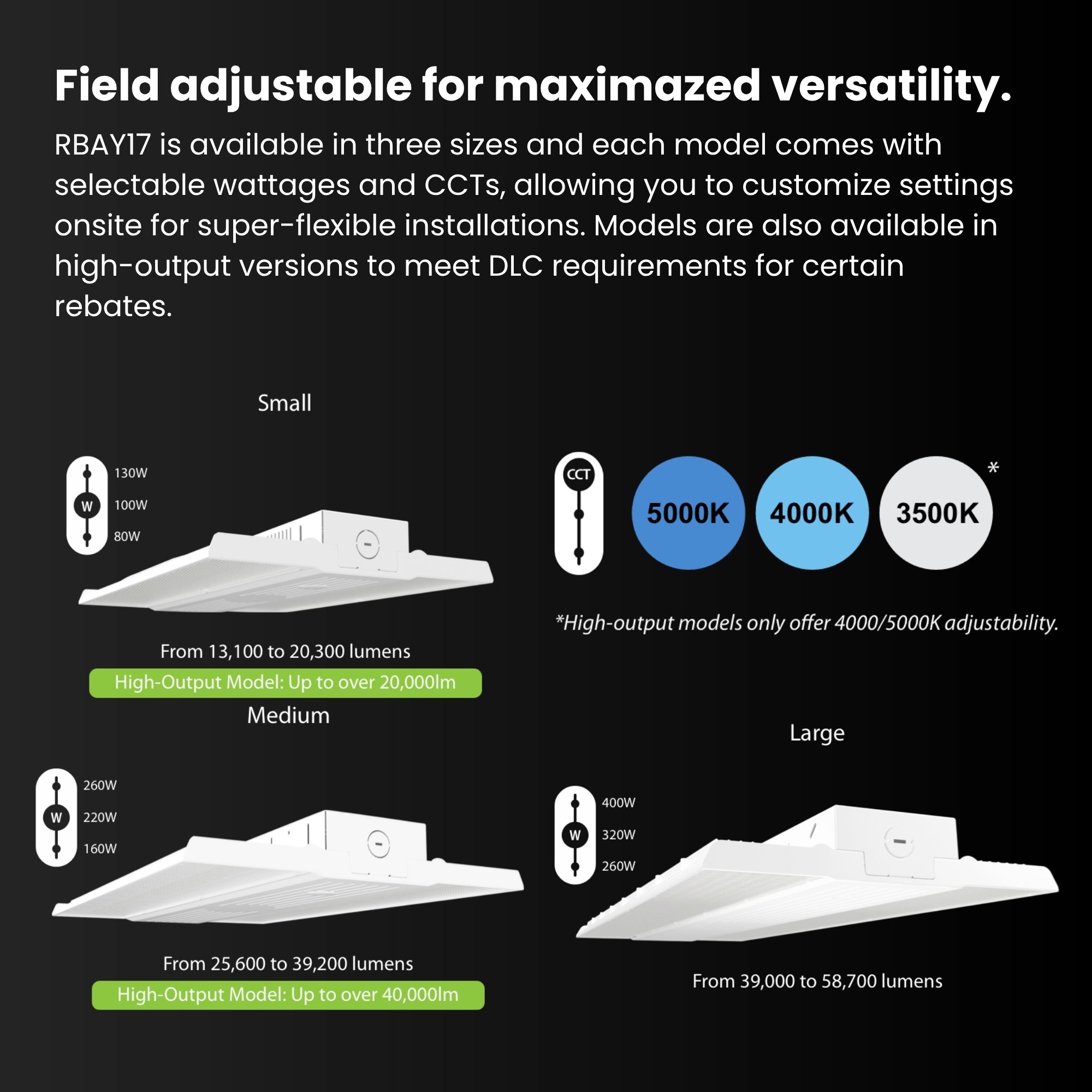

- Selectable Wattage: 260W / 220W / 160W (factory default: 260W)
- Selectable CCT: 3500K / 4000K / 5000K (factory default: 4000K)
- Lumen Output: 24,918–40,003 lm depending on wattage selection
- Efficacy: Up to 168 lm/W
- CRI: 81–84
- Dimming: 0–10V dimming to 10%
- Voltage: 480V, 50/60Hz (Constant Current, Class 1)
- Location Rating: UL Listed for damp locations | IP20
- Certifications: UL Listed; DLC Premium Listed (Code: 8RD5IX)
- Rated Life: 100,000 hours (L70, per IES LM-80)
- Warranty: 5-Year Limited (covers light output, driver, and paint finish)
- Operating Temperature: 20°C (4°F) min / 50°C (122°F) max
- Wattage Equivalency: Replaces up to 750W Metal Halide
💡 Rebate Eligible: The RBAY17M/480 is DLC Premium Listed (Code: 8RD5IX) and qualifies for utility rebate programs in most U.S. markets. Visit designlights.org to confirm available incentives with your local utility.
Typical Applications

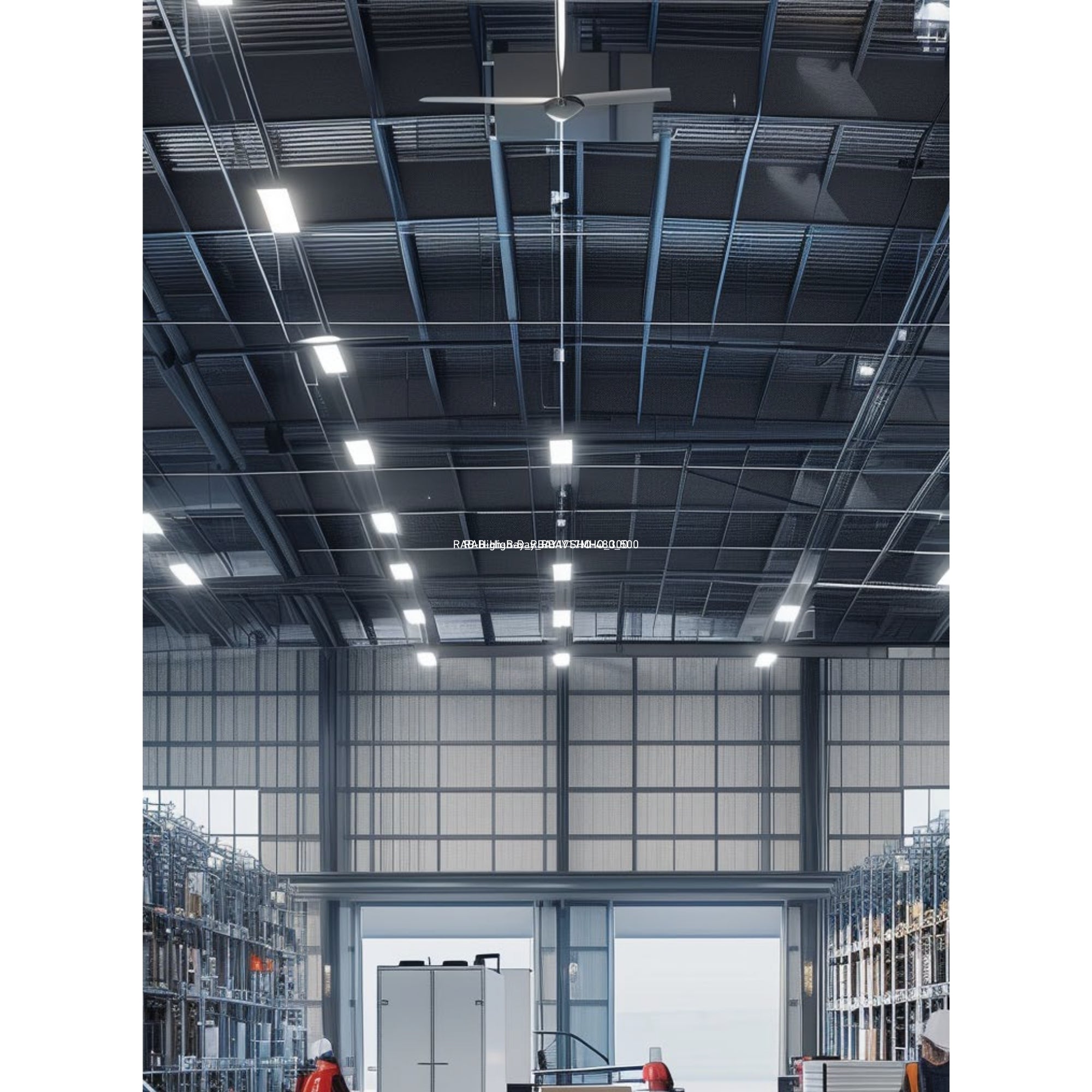

- Warehouses and distribution centers with 480V systems
- Manufacturing facilities and assembly areas
- Retail stockrooms and big box retail
- Gymnasiums and recreation centers
- Industrial workshops and service bays
- Loading docks and covered facilities
Performance & Light Output
Delivers 24,918 to 40,003 lumens at up to 168 lm/W efficacy with a CRI of 81–84 and a 100,000-hour L70 rated lifespan based on IES LM-80 testing. Replaces 750W metal halide fixtures — reducing energy consumption by up to 65%.
Smart & Control Features
Two control configurations available:
- 0–10V Dimming (standard): Dims to 10% via standard 0–10V DC dimming circuit. Compatible with most 480V building control and energy management systems.

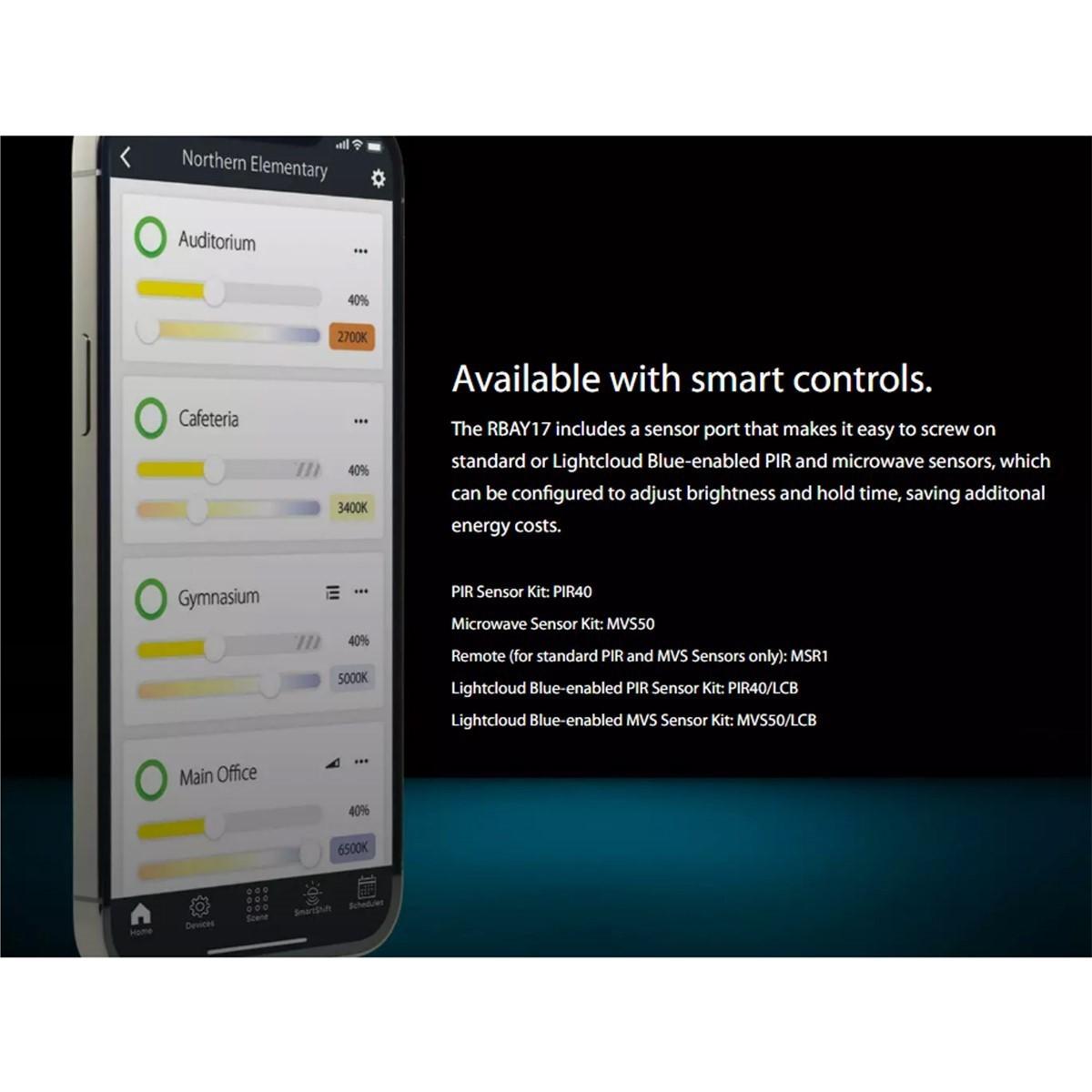

- Lightcloud Blue (/LCBS suffix): Factory-installed wireless Bluetooth mesh control system for networked group control without additional wiring. Available on 480V models.
Remote control accessory (catalog# MSR1) available for field adjustment of wattage and CCT settings on 0–10V dimming models.
Electrical & Installation
Operates on 480V, 50/60Hz with a Constant Current, Class 1 driver. Input watts: 154.3–256.7W. Power factor: 96.63%–96.65% at 480V. THD: 3.56% at 480V. Surge protection: L-N 10kV / L&N-GND 6kV. Mercury-free, UV-free, RoHS-compliant. Note: emergency battery backup (/E suffix) is not available on 480V models.
Construction

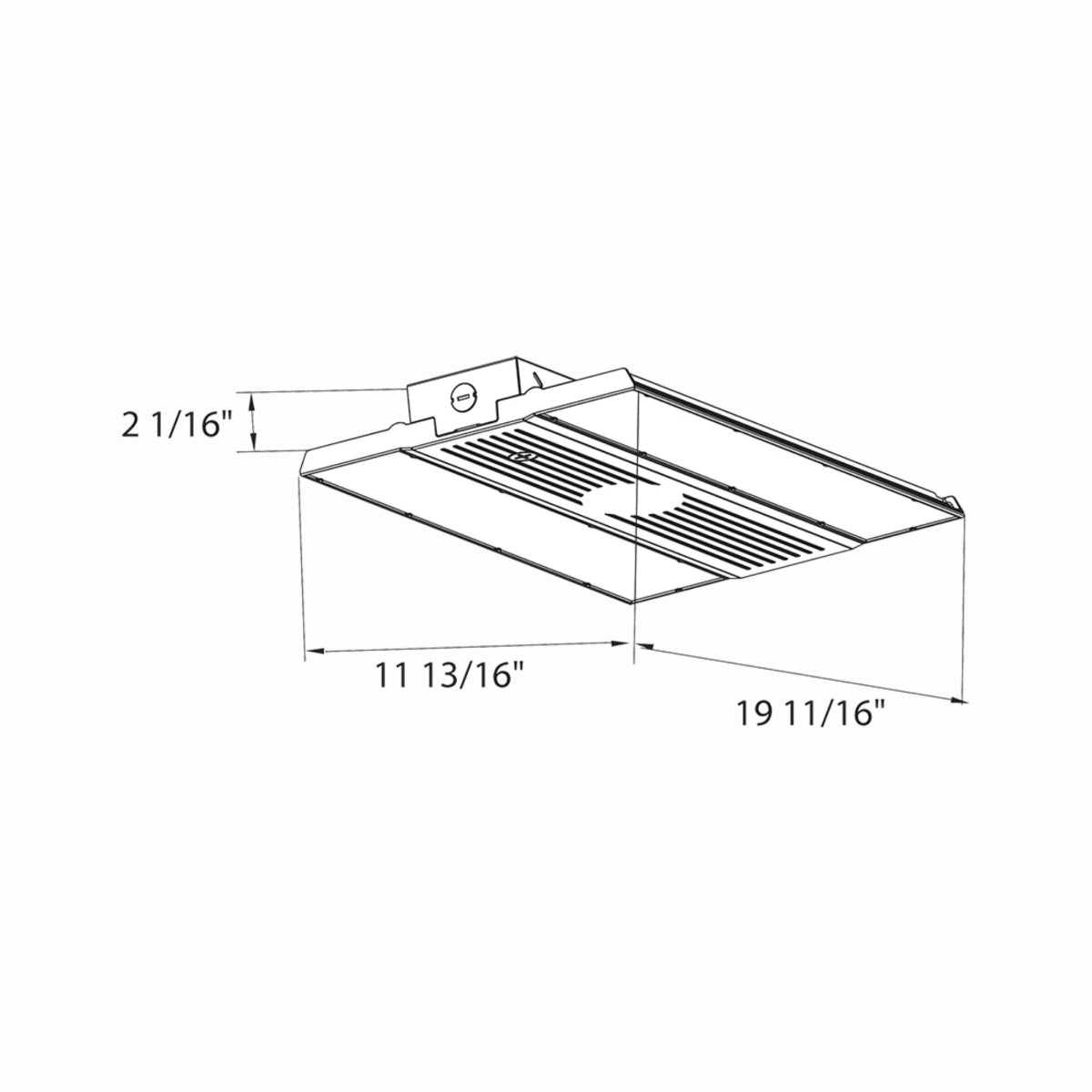

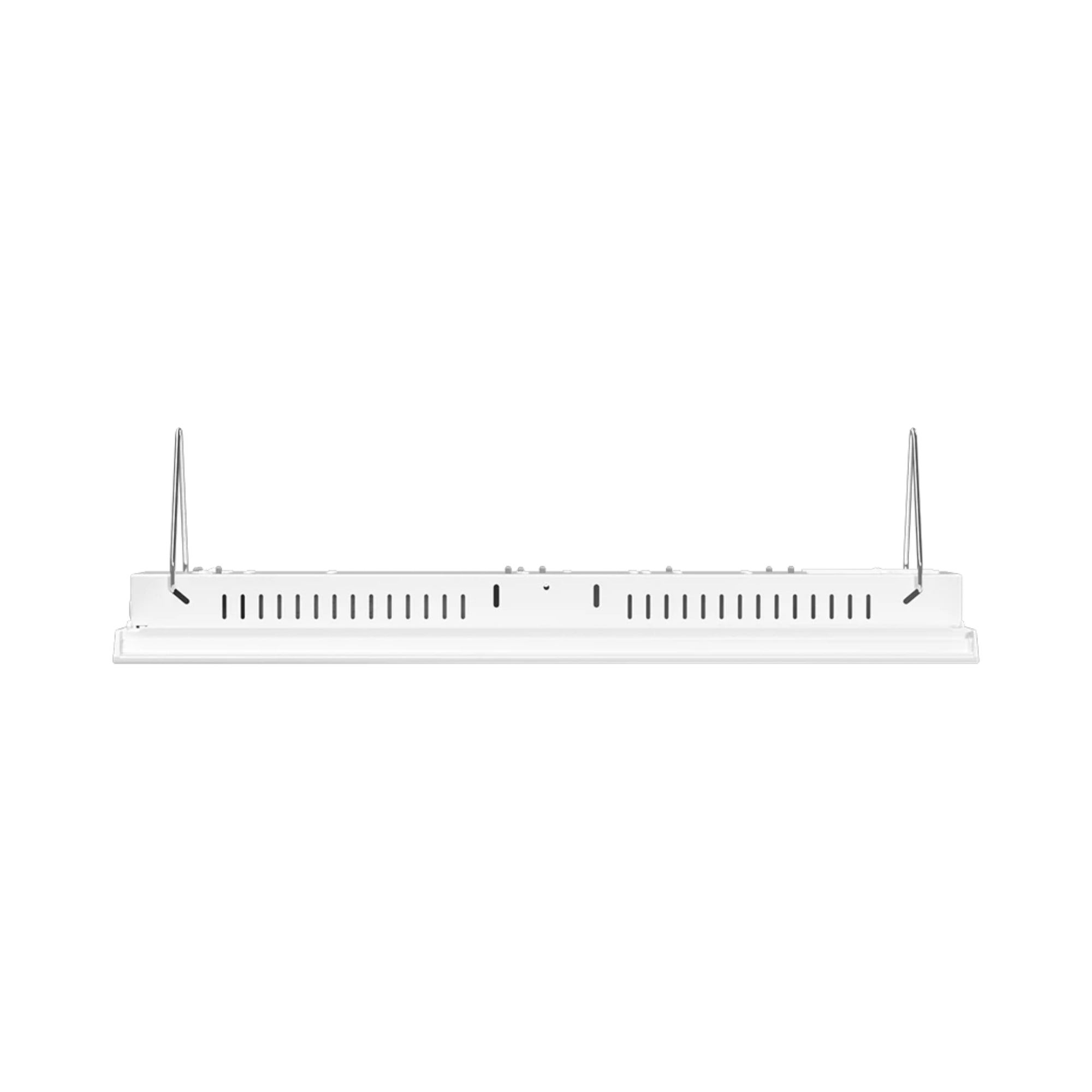

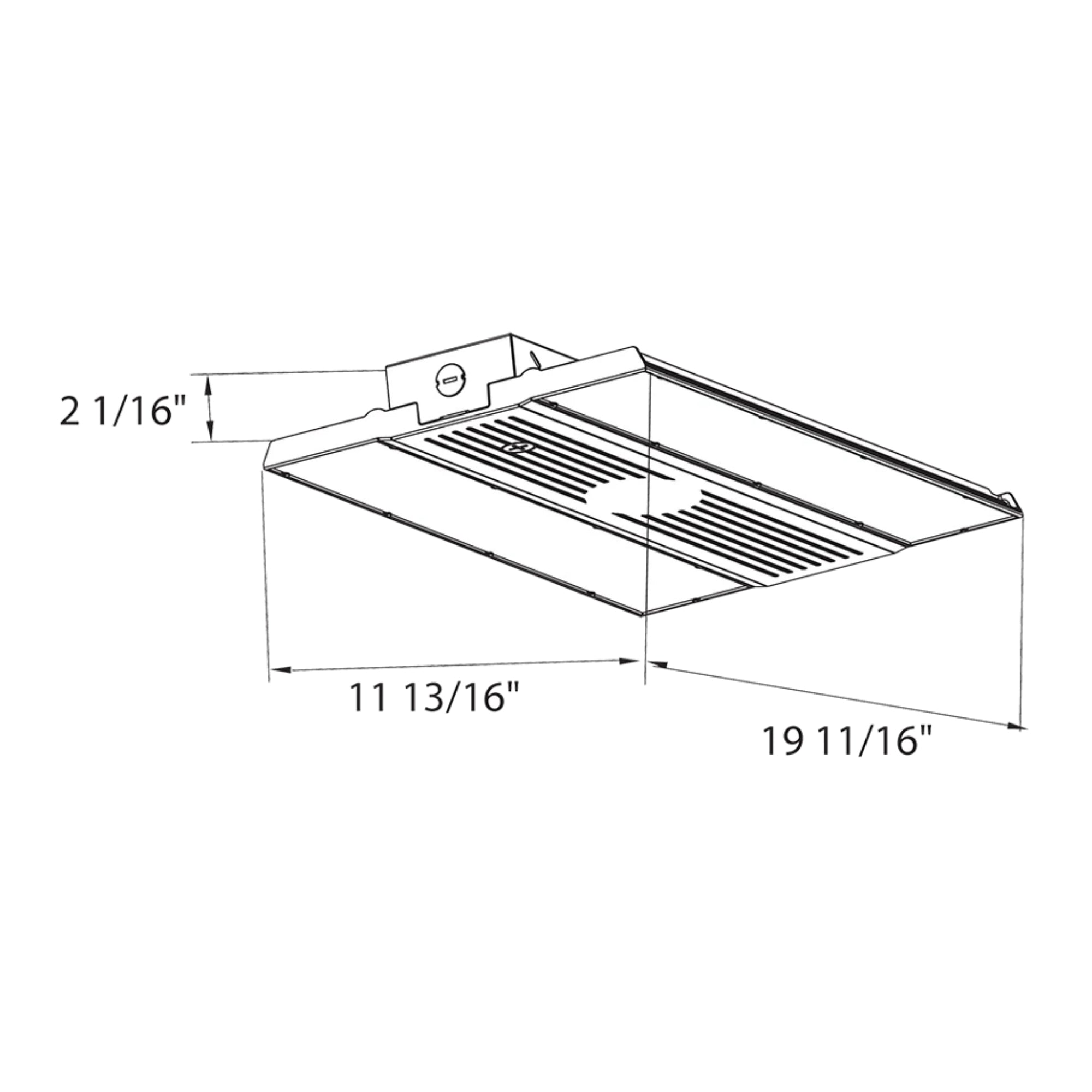

Die-cast aluminum housing with polycarbonate lens and reflector. White finish formulated for high durability and long-lasting color. Weight: 9.9 lbs. Dimensions: 19 11/16 in L x 11 13/16 in W x 2 1/16 in H.
Installation & Mounting

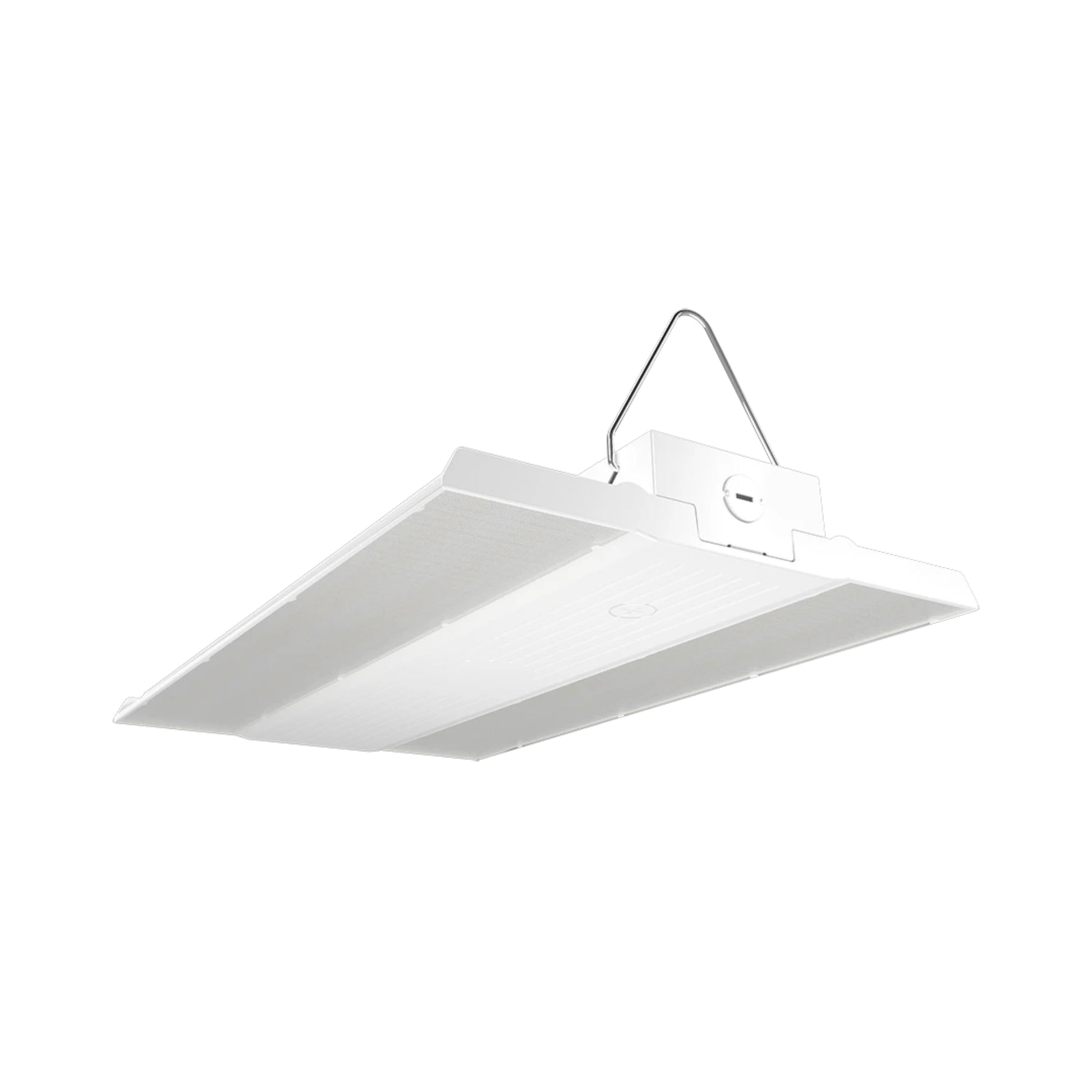

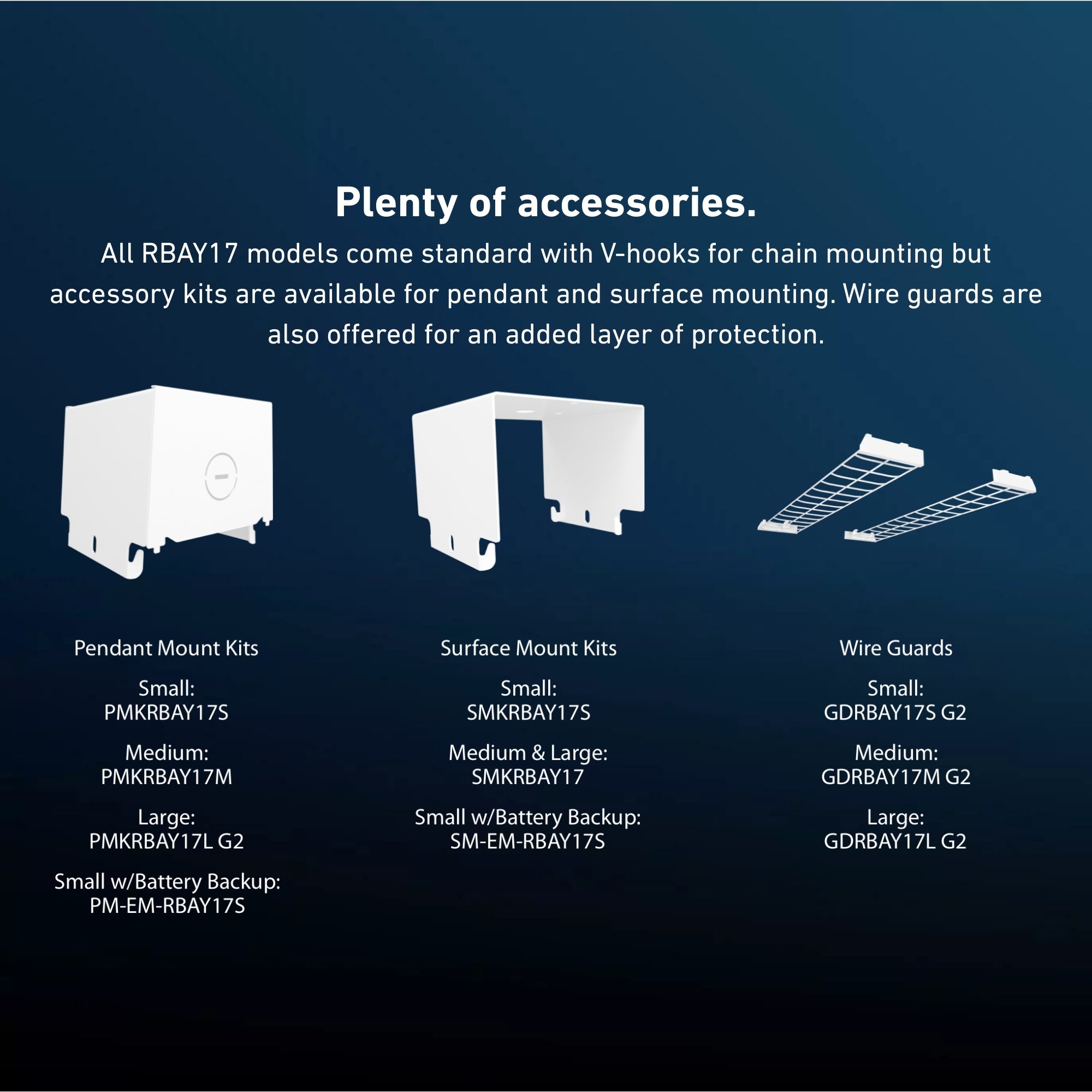

Includes V-hooks and chain for suspension mounting. Optional accessories (sold separately):
- Pendant Mount Kit: PMKRBAY17M
- Surface Mount Kit: SMKRBAY17M
- Wire Guard: GDRBAY17M G2
What's Included
- RAB RBAY17M/480 LED linear high bay fixture
- V-hooks and chain for suspension mounting
Specifications
Specifications
Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Is the RAB RBAY17M/480 rated for outdoor or wet locations?
Is the RAB RBAY17M/480 rated for outdoor or wet locations?
Can the wattage and color temperature be changed after installation?
Can the wattage and color temperature be changed after installation?
Is the RAB RBAY17M/480 compatible with smart controls or occupancy sensors?
Is the RAB RBAY17M/480 compatible with smart controls or occupancy sensors?
What voltage does the RAB RBAY17M/480 require?
What voltage does the RAB RBAY17M/480 require?
Is the RAB RBAY17M/480 eligible for utility rebates, and what ceiling height is it designed for?
Is the RAB RBAY17M/480 eligible for utility rebates, and what ceiling height is it designed for?
This LED Linear High Bay delivers exceptional brightness and performance. Customers praised the "easy to install" fixture, with one noting it provided "more light than expected" and was "quite an upgrade for the shop." Shoppers described the fixture as looking "sophisticated and expensive."
I've bought multiple times over the years. Great service and products!
great deal on lights fast and professional
High bay lights work great! They were shipped right out and were packaged perfect, no damage at all. Some vendors wouldn't ship because of the likely hood of being damaged. High quality light and easy to install and bright!!!! Bee's Lighting is the best!!
Works good so far
Highly recommended fixture!
This item has a lot of features and was explained very well by the guy I talked to.
The fixture has good quality. I would recommend it.
Fixtures from this brand are always great quality. Highly recommended!!!!
It's way brighter than I thought which is a good thing.
Fixtures from this brand are always great quality. Highly recommended!!!!
I got the item quick and in great condition. Website was easy to use and ordering was fast.
The fixture has good quality. I would recommend it.
The fixture has good quality. I would recommend it.
This item has a lot of features and was explained very well by the guy I talked to.
Very easy installation and works like a charm.
Bought from them before and ordering is always a breeze. This fixture looks really good and will definitely last a long time.
Bought from them before and ordering is always a breeze. This fixture looks really good and will definitely last a long time.
Highly recommended fixture!

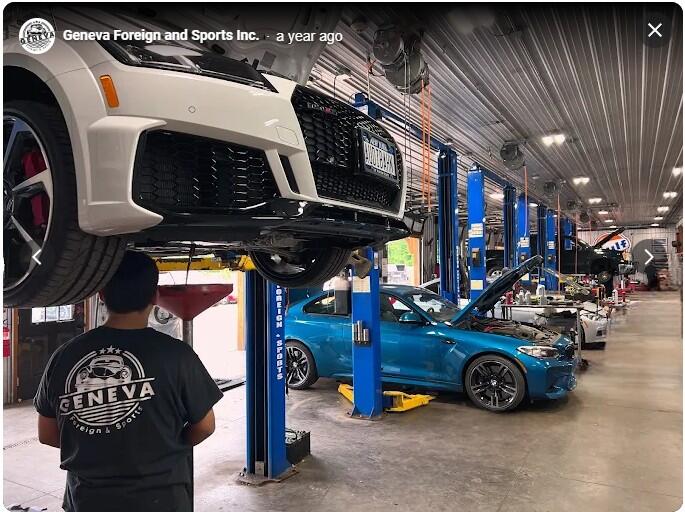

More light than I expected and easy to install. Quite an upgrade for the shop!
