RAB RBAY17M LED Linear High Bay — 260/220/160W — Selectable CCT — 120-277V
Available in stock (300)
About this item
About this item
- 260/220/160W Selectable Output: 25,587–39,200 lumens at up to 166 lm/W — replaces 750W metal halide fixtures at a fraction of the energy cost.
- Field-Selectable CCT: Switch between 3500K, 4000K, and 5000K on the job site — no rewiring, no returns.
- 0–10V Dimming to 10%: Compatible with standard dimming control systems for energy management and occupancy integration.
- DLC Premium Listed: Qualifies for utility rebate programs in most markets (DLC Code: Z1lKA0) — maximizes ROI on commercial lighting upgrades.
- Damp Location Rated: UL Listed for damp environments — suitable for warehouses, loading docks, gymnasiums, and covered facilities.
We process payments securely and do not store credit card information.
Description
Description

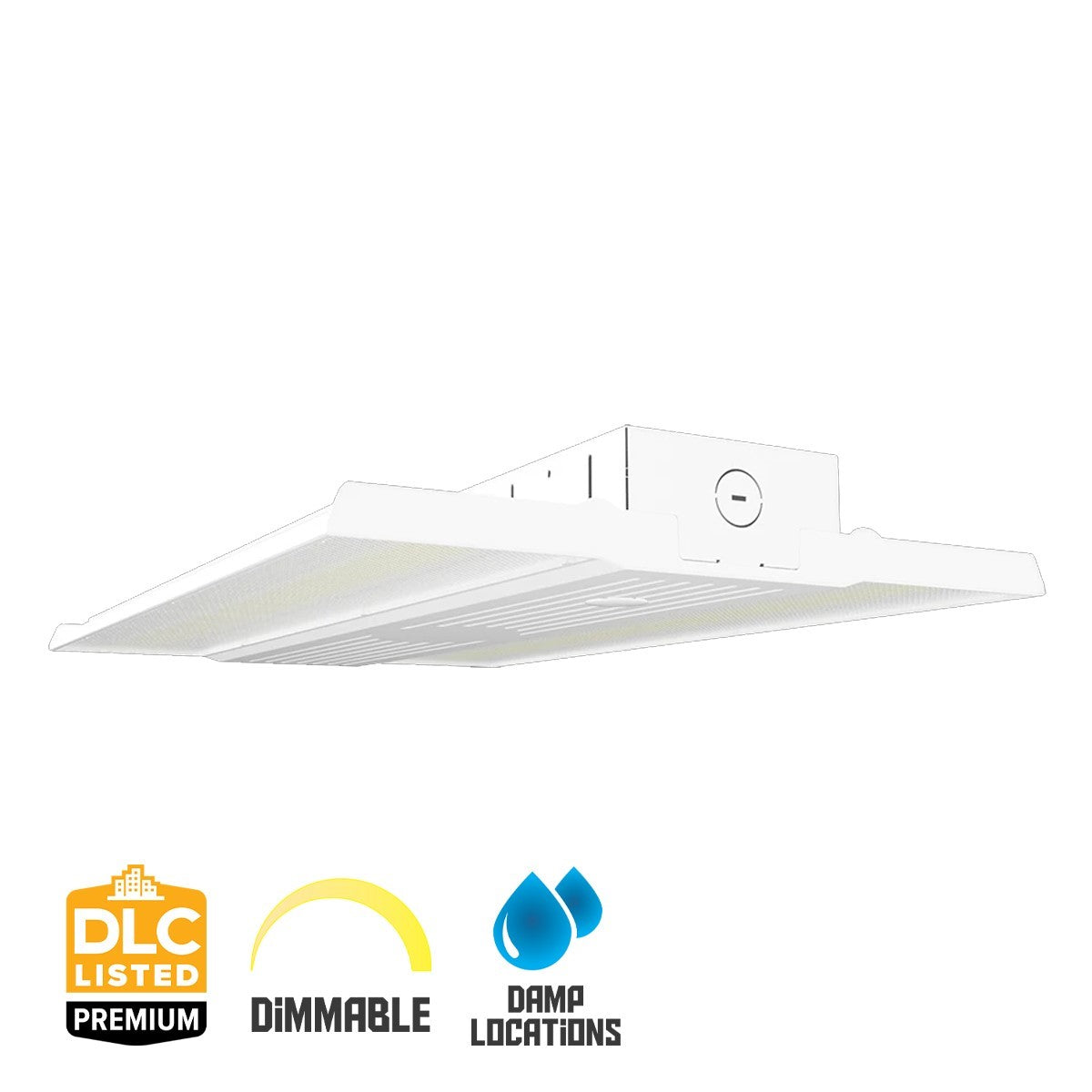

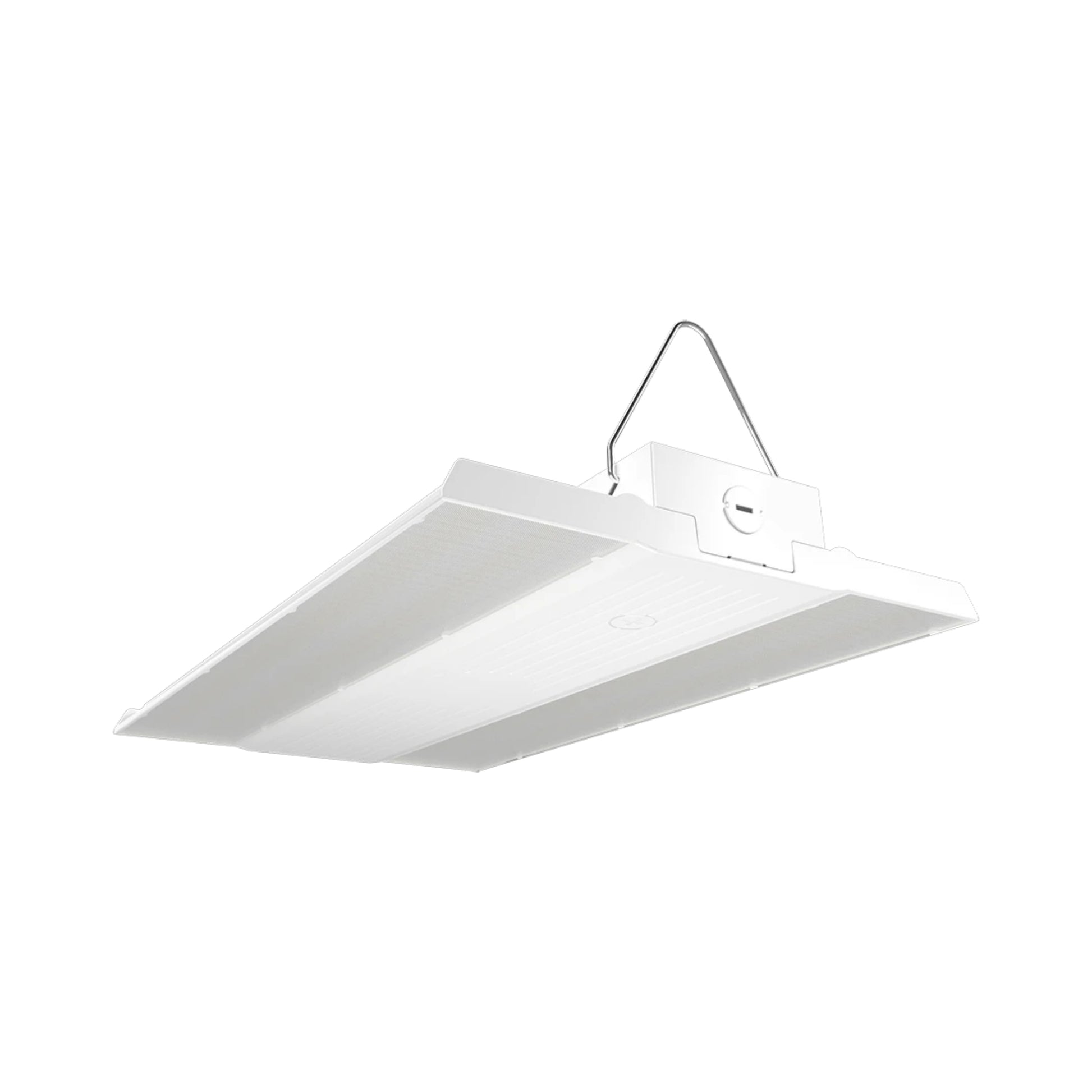

RAB RBAY17M Field-Adjustable Linear LED High Bay — 260W / 220W / 160W Selectable
The RAB RBAY17M is a field-adjustable linear LED high bay delivering 25,587 to 39,200 lumens with selectable wattage options of 260W, 220W, and 160W and selectable CCT of 3500K / 4000K / 5000K. Equivalent to a 750W metal halide fixture, it operates on 120–277V with integrated 0–10V dimming to 10%. UL Listed for damp locations and DLC Premium Listed (Product Code: Z1lKA0) for utility rebate eligibility.
Key Features

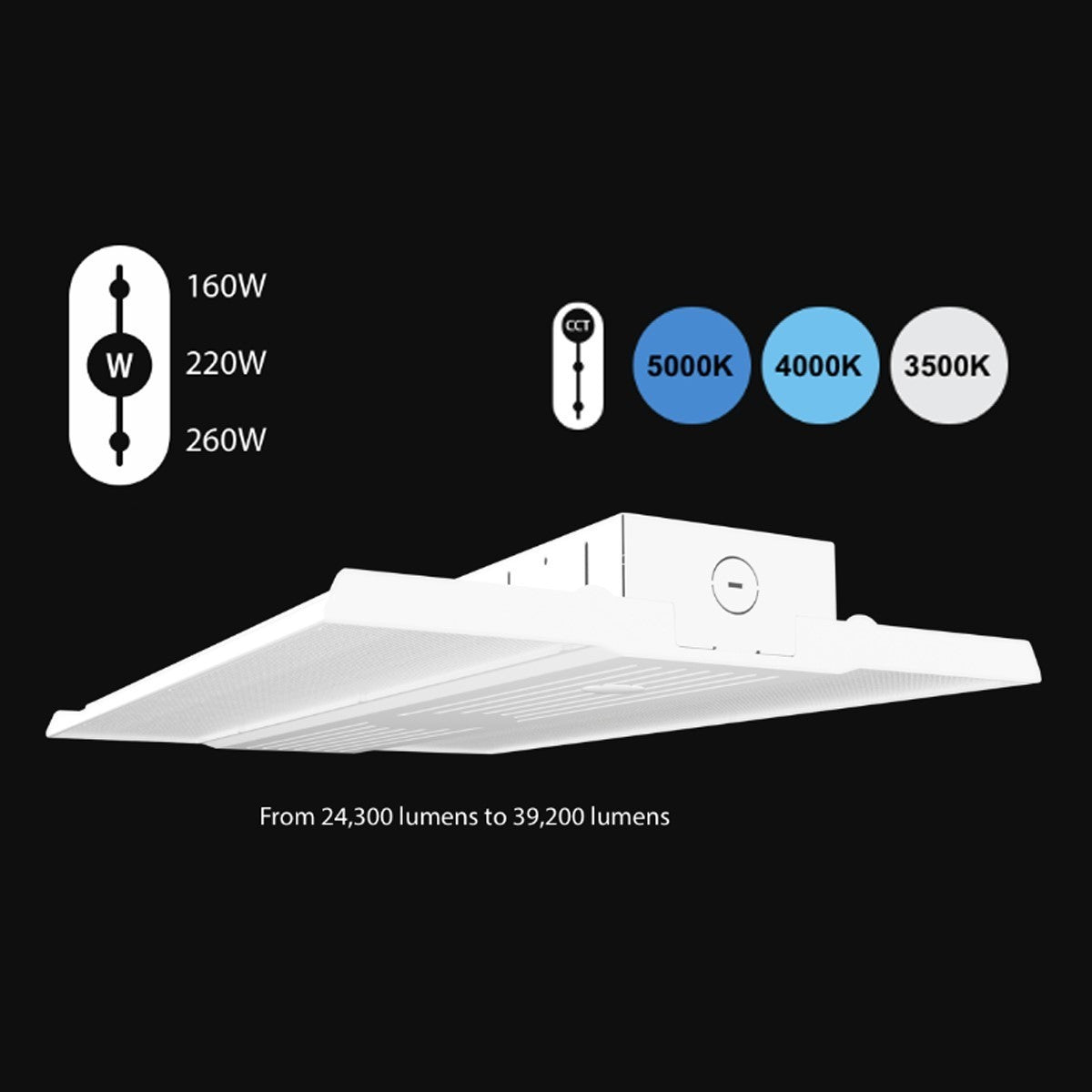

- Selectable Wattage: 260W / 220W / 160W (factory default: 260W)
- Selectable CCT: 3500K / 4000K / 5000K (factory default: 4000K)
- Lumen Output: 25,587–39,200 lm depending on wattage selection
- Efficacy: Up to 166 lm/W
- CRI: 81–84
- Dimming: 0–10V dimming to 10%
- Location Rating: UL Listed for damp locations | IP20
- Certifications: UL Listed; DLC Premium Listed (Code: Z1lKA0)
- Rated Life: 100,000 hours (L70, per IES LM-80)
- Warranty: 5-Year Limited (covers light output, driver, and paint finish)
- Operating Temperature: 20°C (4°F) min / 50°C (122°F) max
- Wattage Equivalency: Replaces up to 750W Metal Halide
💡 Rebate Eligible: The RBAY17M is DLC Premium Listed (Code: Z1lKA0) and qualifies for utility rebate programs in most U.S. markets. Visit designlights.org to confirm available incentives with your local utility.

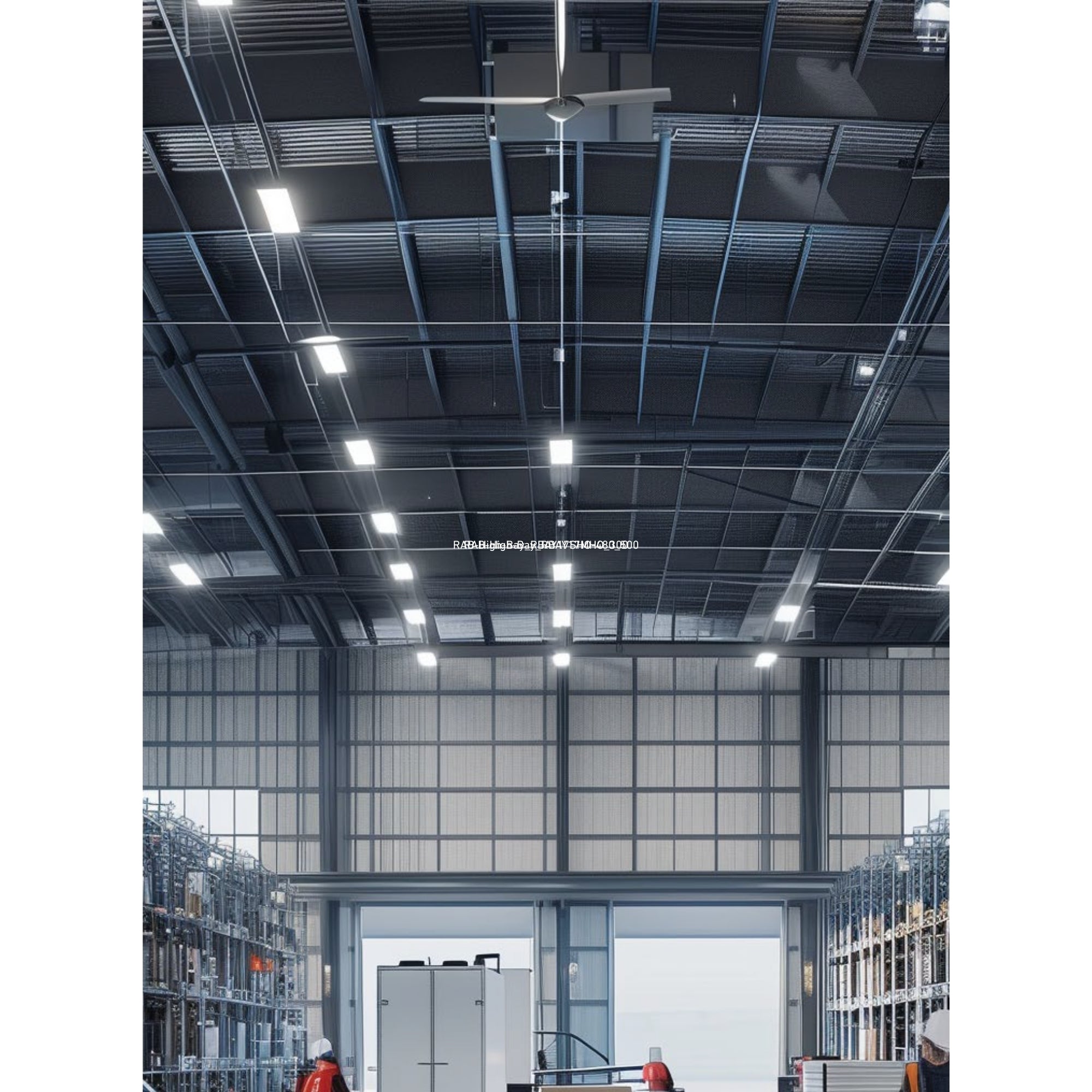

Typical Applications
- Warehouses and distribution centers
- Manufacturing facilities and assembly areas
- Retail stockrooms and big box retail
- Gymnasiums and recreation centers
- Industrial workshops and service bays
- Loading docks and covered facilities
Performance & Light Output
Delivers 25,587 to 39,200 lumens at up to 166 lm/W efficacy with a CRI of 81–84 and a 100,000-hour L70 rated lifespan based on IES LM-80 testing. Replaces 750W metal halide fixtures — reducing energy consumption by up to 65%.
Smart & Control Features
Two control configurations available:
- 0–10V Dimming (standard): Dims to 10% via standard 0–10V DC dimming circuit. Compatible with most building control and energy management systems.

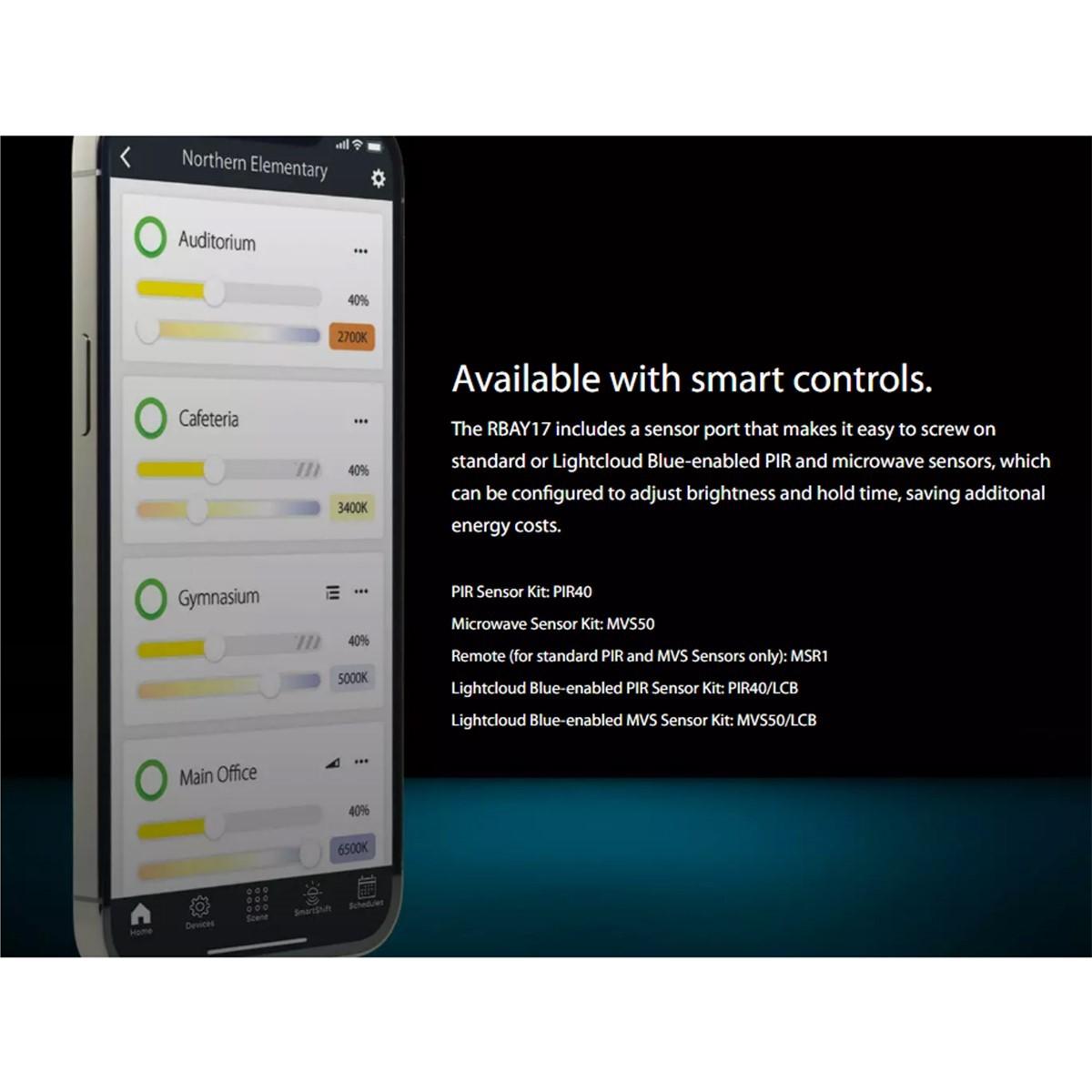

- Lightcloud Blue (/LCBS suffix): Factory-installed wireless Bluetooth mesh control system for networked group control without additional wiring.
Remote control accessory (catalog# MSR1) available for field adjustment of wattage and CCT settings on 0–10V dimming models.
Electrical & Installation
Operates on 120–277V, 50/60Hz with a Constant Current, Class 1 driver. Input watts: 158.9–256.6W. Power factor: 99.85% at 120V / 95.72% at 277V. THD: 4.51% at 120V / 7.07% at 277V. Surge protection: L-N 6kV / L&N-GND 6kV. Mercury-free, UV-free, RoHS-compliant.
Construction

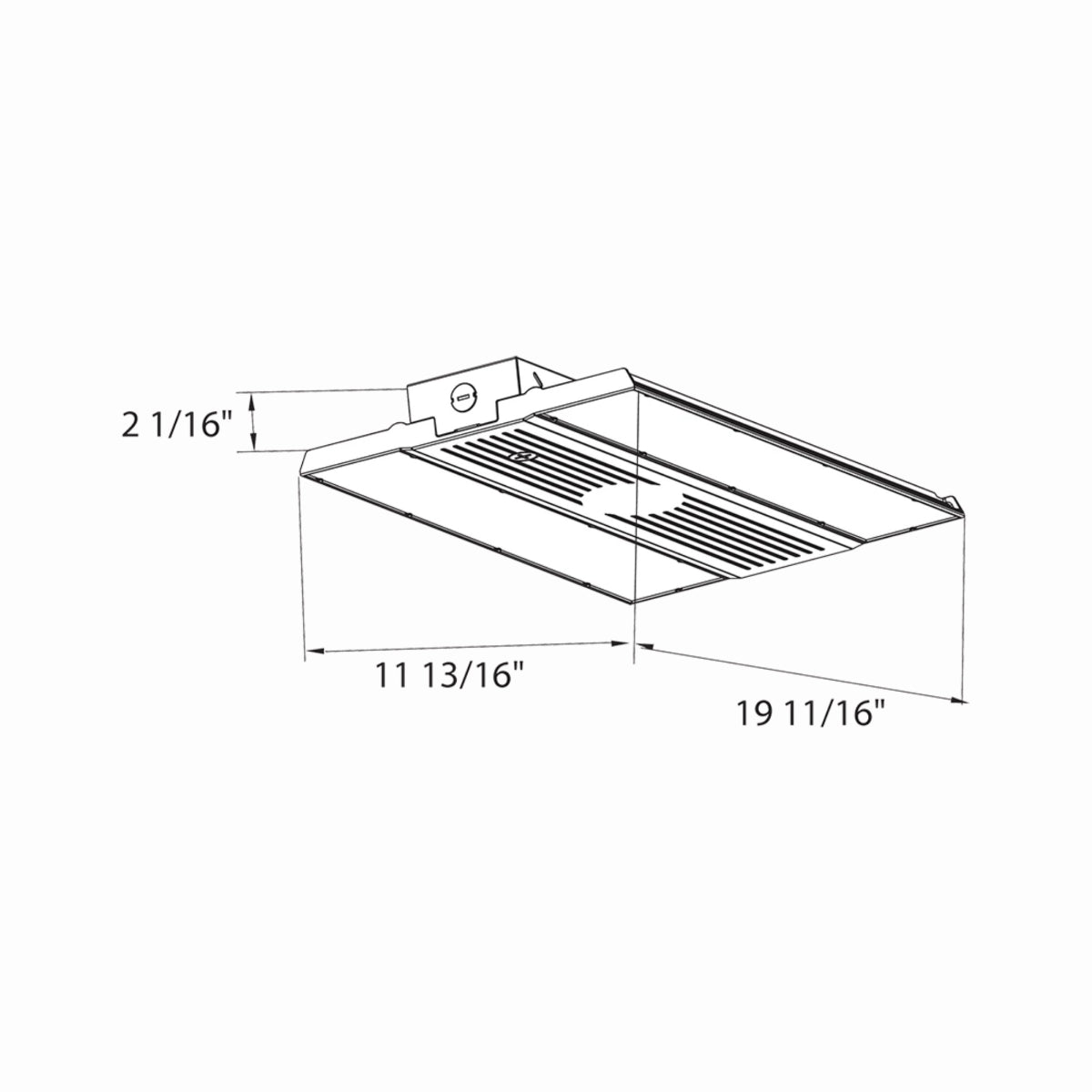

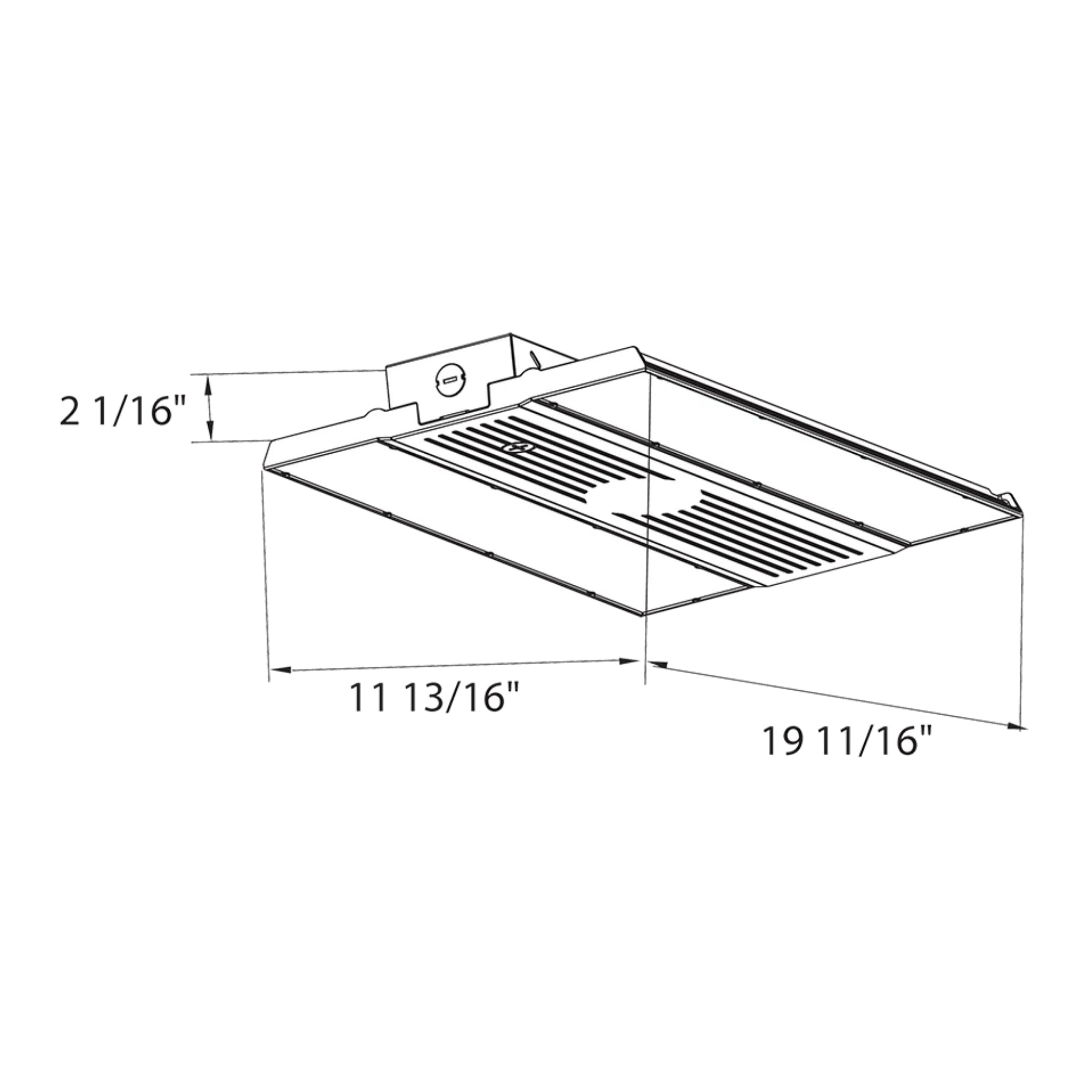

Die-cast aluminum housing with polycarbonate lens and reflector. White finish formulated for high durability and long-lasting color. Weight: 9.9 lbs. Dimensions: 19 11/16 in L x 11 13/16 in W x 2 1/16 in H.
Installation & Mounting

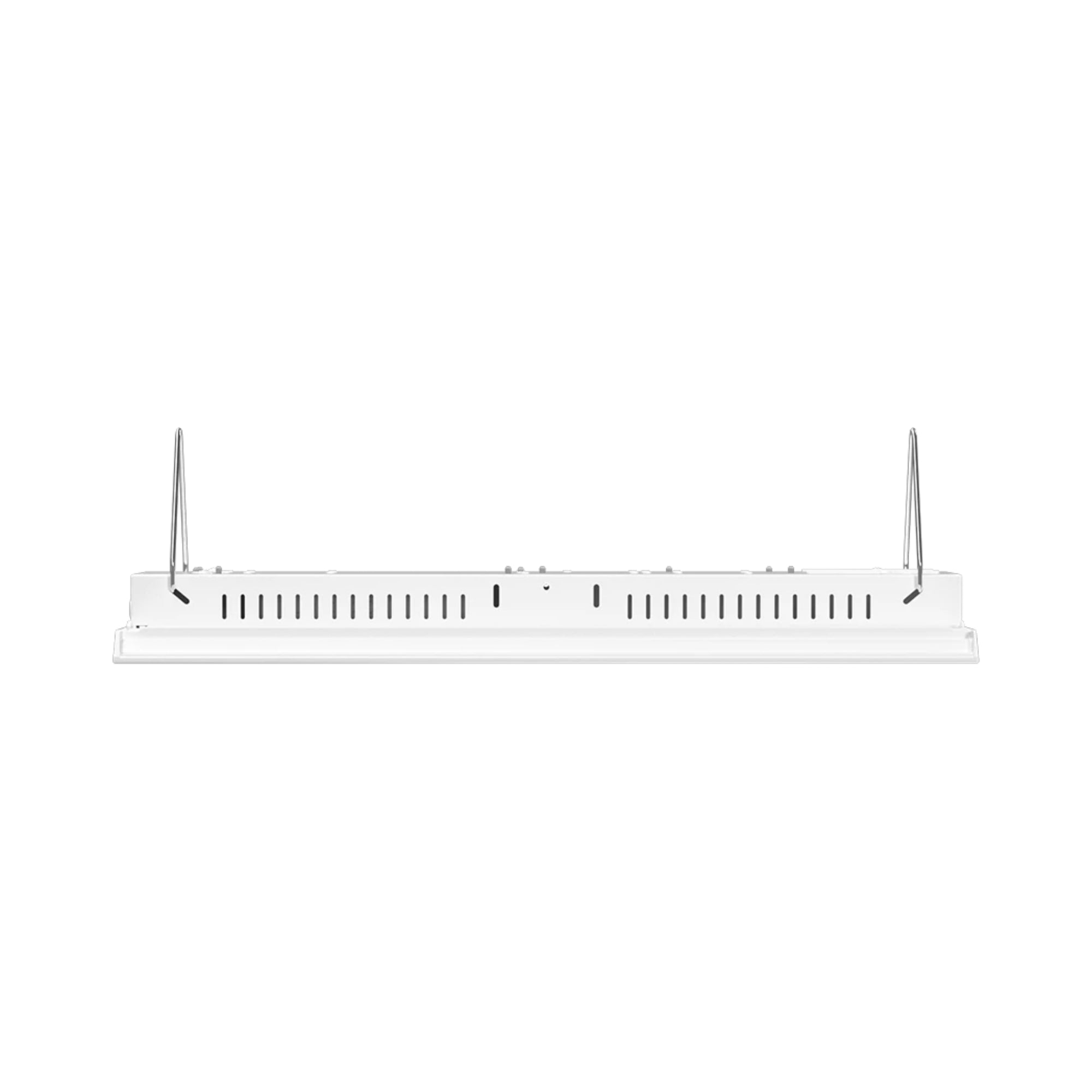

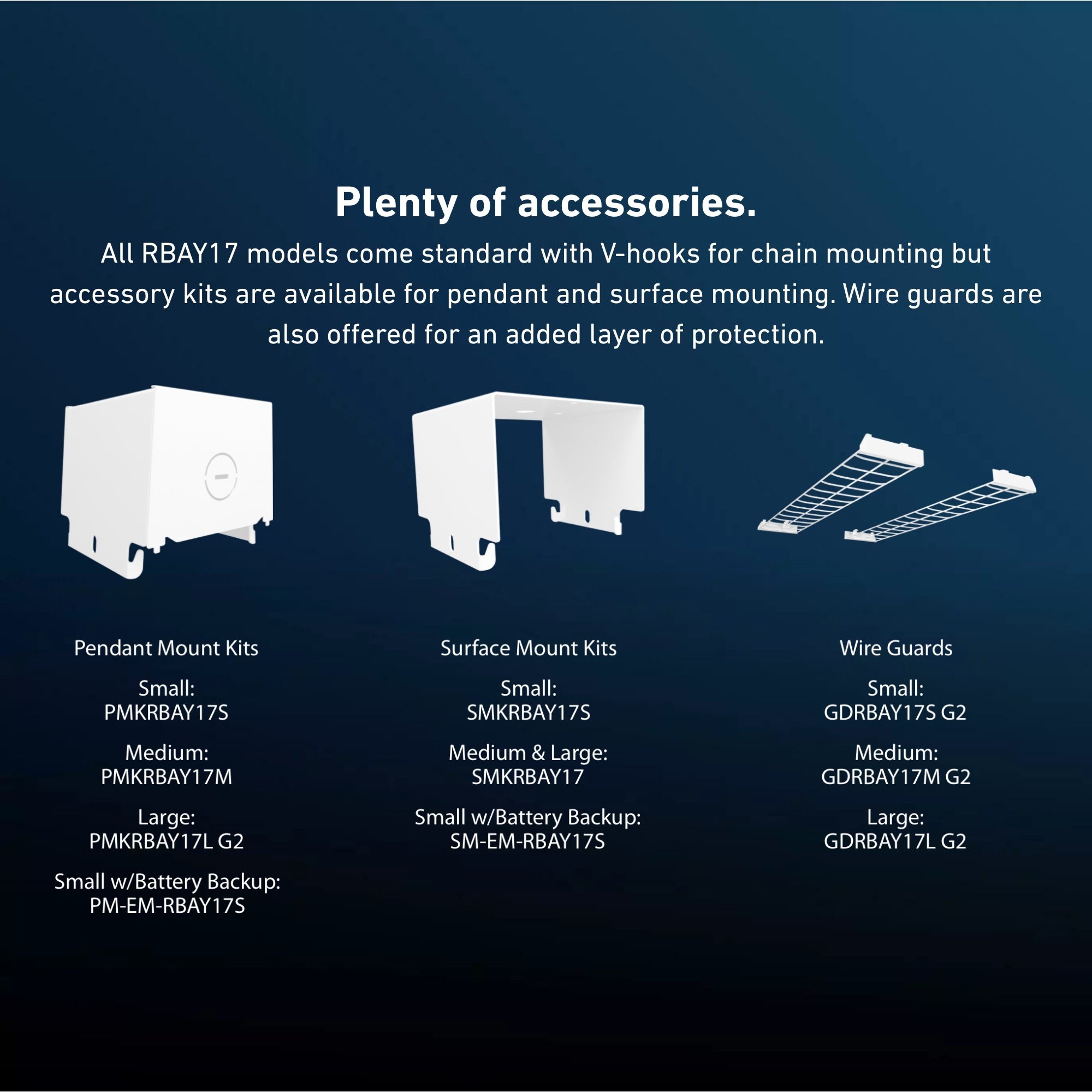

Includes V-hooks and chain for suspension mounting. Optional accessories (sold separately):
- Pendant Mount Kit: PMKRBAY17M
- Surface Mount Kit: SMKRBAY17M
- Wire Guard: GDRBAY17M G2
- Battery Backup models available (/E suffix, 120–277V only)
What's Included
- RAB RBAY17M LED linear high bay fixture
- V-hooks and chain for suspension mounting
