RAB RBAY17L LED Linear High Bay — 400/320/260W — Selectable CCT — 120-277V
Available in stock (300)
About this item
About this item
- 400/320/260W Selectable Output: 39,067–58,737 lumens at up to 160 lm/W — replaces 1000W metal halide fixtures at a fraction of the energy cost.
- Field-Selectable CCT: Switch between 3500K, 4000K, and 5000K on the job site — no rewiring, no returns.
- 0–10V Dimming to 10%: Compatible with standard dimming control systems for energy management and occupancy integration.
- DLC Premium Listed: Qualifies for utility rebate programs in most markets (DLC Code: 7C523X) — maximizes ROI on commercial lighting upgrades.
- Damp Location Rated: UL Listed for damp environments — suitable for warehouses, loading docks, gymnasiums, and high-ceiling covered facilities.
We process payments securely and do not store credit card information.
Description
Description

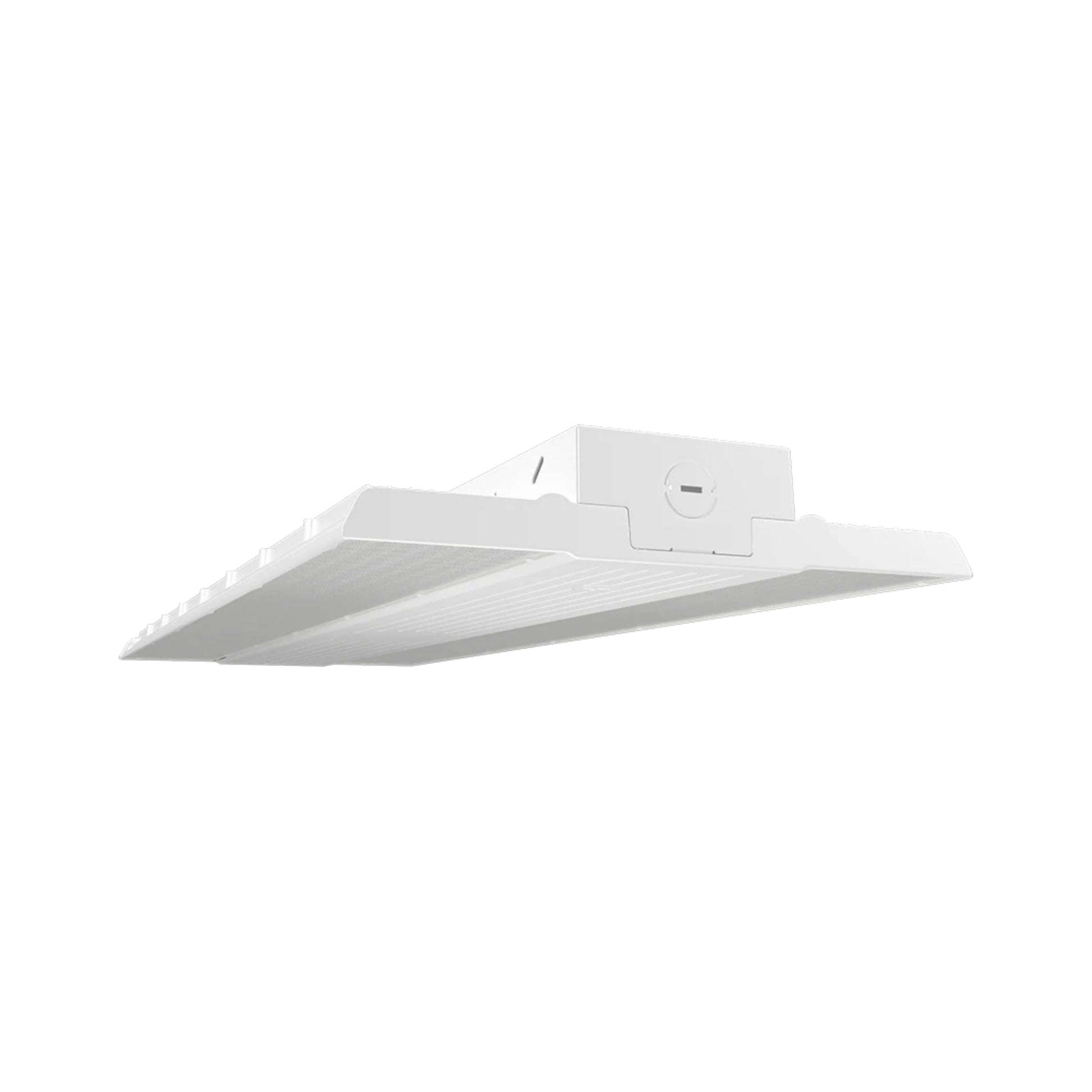

RAB RBAY17L Field-Adjustable Linear LED High Bay — 400W / 320W / 260W Selectable
The RAB RBAY17L is a large-format, field-adjustable linear LED high bay delivering 39,067 to 58,737 lumens with selectable wattage options of 400W, 320W, and 260W and selectable CCT of 3500K / 4000K / 5000K. Equivalent to a 1000W metal halide fixture, it operates on 120–277V with integrated 0–10V dimming to 10%. UL Listed for damp locations and DLC Premium Listed (Product Code: 7C523X) for utility rebate eligibility.
Key Features
- Selectable Wattage: 400W / 320W / 260W (factory default: 400W)
- Selectable CCT: 3500K / 4000K / 5000K (factory default: 4000K)
- Lumen Output: 39,067–58,737 lm depending on wattage selection
- Efficacy: Up to 160 lm/W
- CRI: 82–84
- Dimming: 0–10V dimming to 10%
- Location Rating: UL Listed for damp locations | IP20
- Certifications: UL Listed; DLC Premium Listed (Code: 7C523X)
- Rated Life: 100,000 hours (L70, per IES LM-80)
- Warranty: 5-Year Limited (covers light output, driver, and paint finish)
- Operating Temperature: 20°C (4°F) min / 50°C (122°F) max
- Wattage Equivalency: Replaces up to 1000W Metal Halide
💡 Rebate Eligible: The RBAY17L is DLC Premium Listed (Code: 7C523X) and qualifies for utility rebate programs in most U.S. markets. Visit designlights.org to confirm available incentives with your local utility.

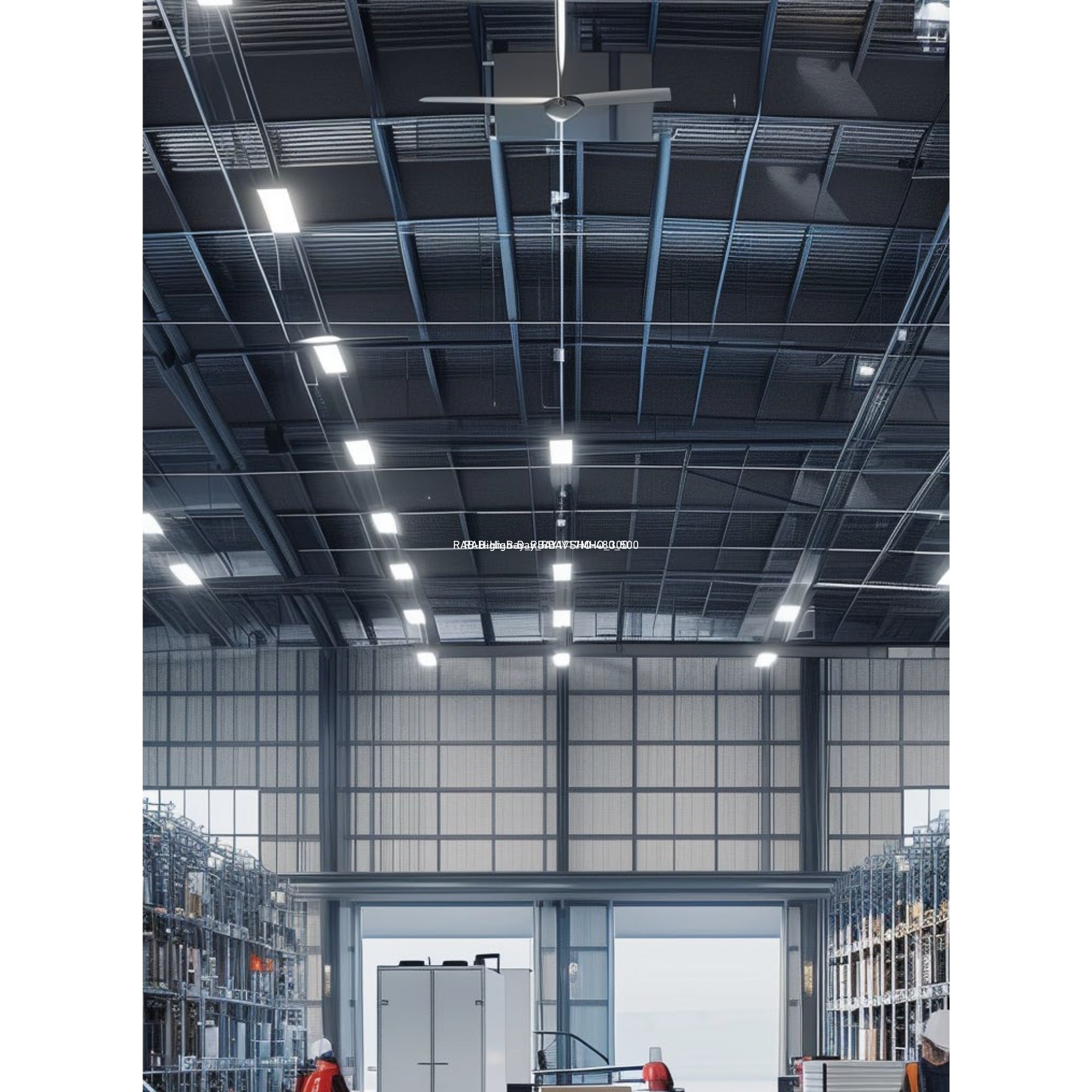

Typical Applications
- Large warehouses and distribution centers
- Manufacturing facilities and assembly areas
- Big box retail and retail stockrooms
- Gymnasiums and large recreation centers
- Industrial workshops and service bays
- Loading docks and high-ceiling covered facilities
Performance & Light Output
Delivers 39,067 to 58,737 lumens at up to 160 lm/W efficacy with a CRI of 82–84 and a 100,000-hour L70 rated lifespan based on IES LM-80 testing. Replaces 1000W metal halide fixtures — reducing energy consumption by up to 60%.
Smart & Control Features
Two control configurations available:
- 0–10V Dimming (standard): Dims to 10% via standard 0–10V DC dimming circuit. Compatible with most building control and energy management systems.
- Lightcloud Blue (/LCBS suffix): Factory-installed wireless Bluetooth mesh control system for networked group control without additional wiring. Available on 120–277V models.
Remote control accessory (catalog# MSR1) available for field adjustment of wattage and CCT settings on 0–10V dimming models.
Electrical & Installation
Operates on 120–277V, 50/60Hz with a Constant Current, Class 1 driver. Input watts: 254.8–390.4W. Power factor: 99.75% at 120V / 93.84% at 277V. THD: 4.88% at 120V / 11.2% at 277V. Surge protection: L-N 6kV / L&N-GND 6kV. Mercury-free, UV-free, RoHS-compliant.
Construction

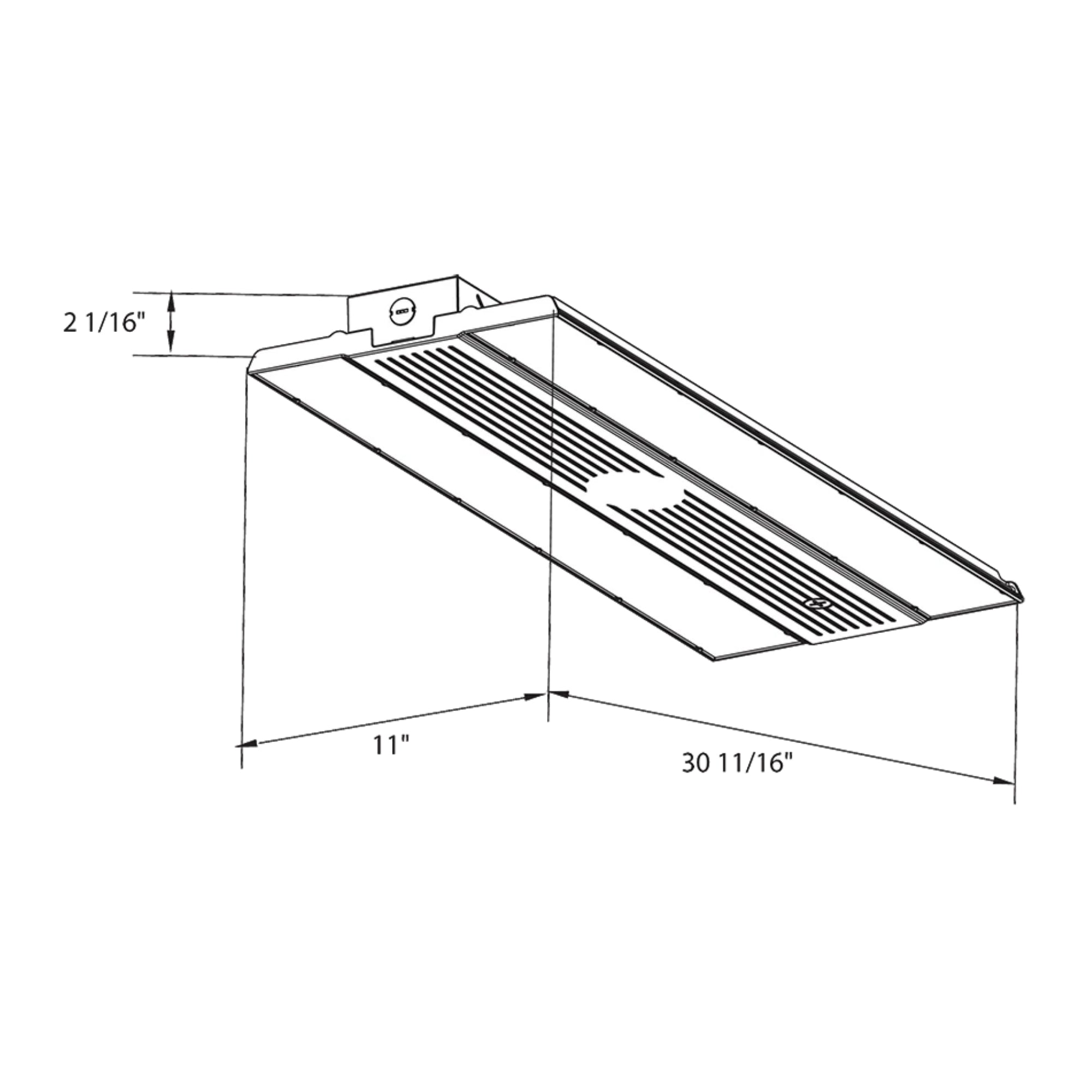

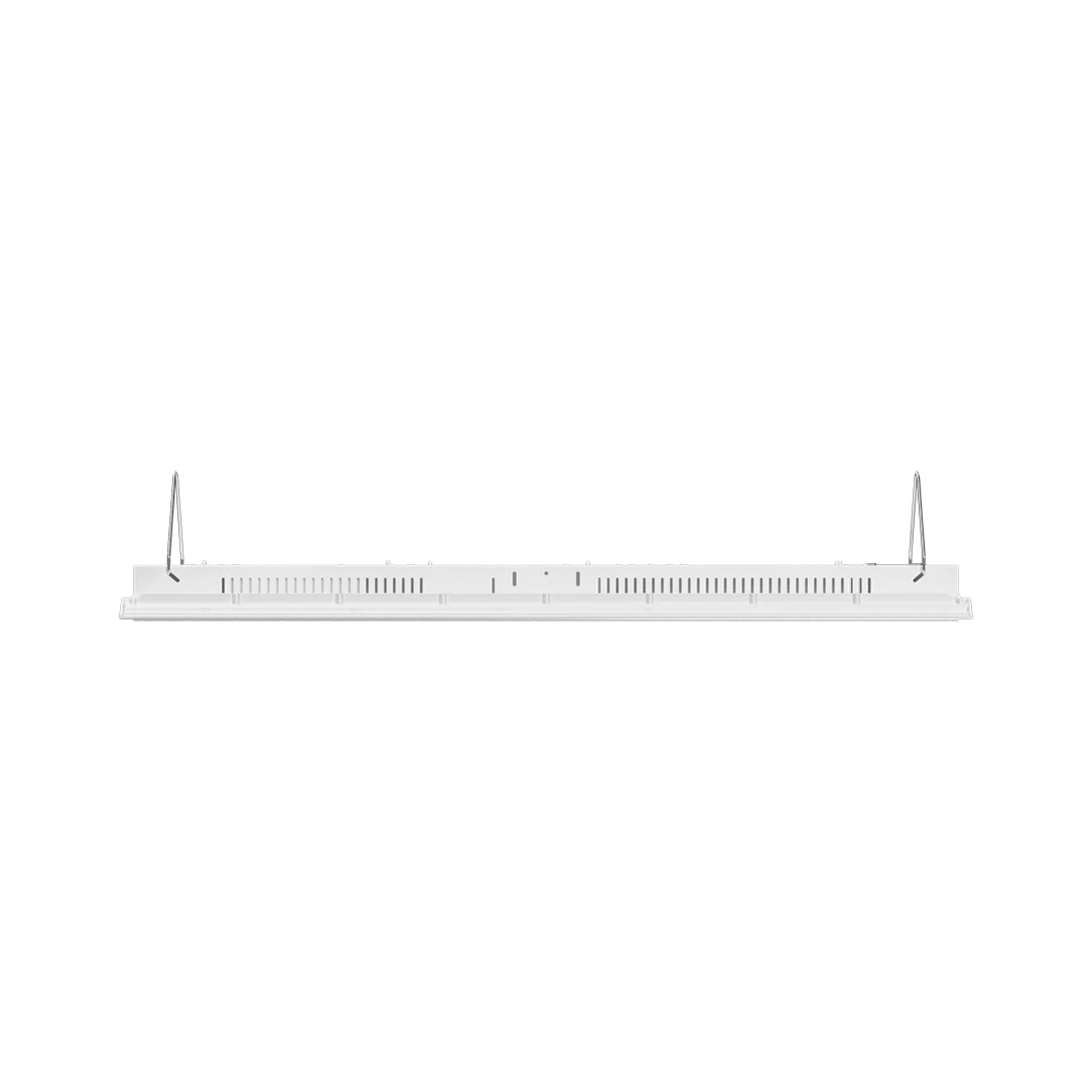

Die-cast aluminum housing with polycarbonate lens and reflector. White finish formulated for high durability and long-lasting color. Weight: 17.9 lbs. Dimensions: 30 11/16 in L x 11 in W x 2 1/16 in H.
Installation & Mounting

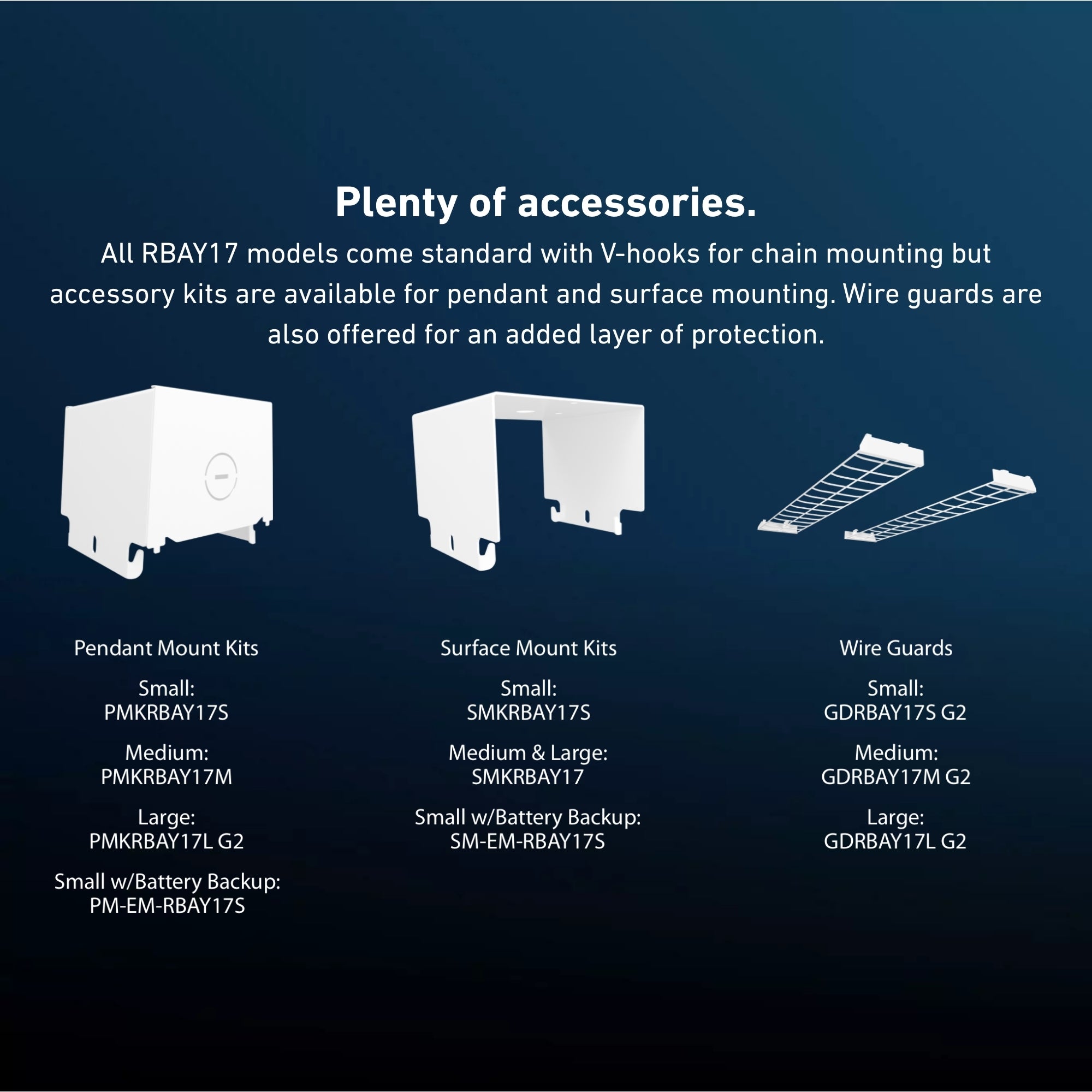

Includes V-hooks and chain for suspension mounting. Optional accessories (sold separately):
- Pendant Mount Kit: PMKRBAY17L
- Surface Mount Kit: SMKRBAY17L
- Wire Guard: GDRBAY17L G2
- Battery Backup models available (/E suffix, 120–277V only)
What's Included
- RAB RBAY17L LED linear high bay fixture

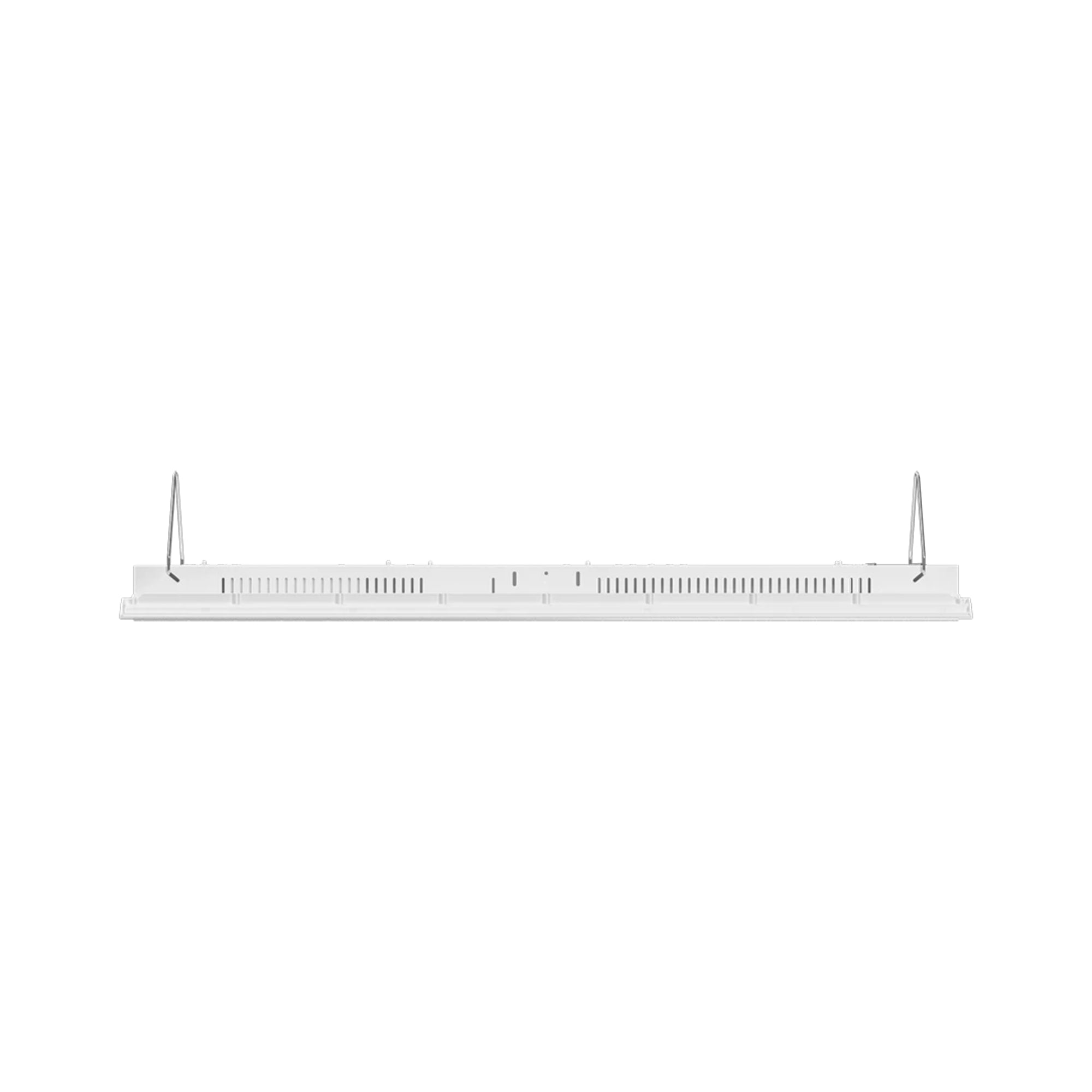

- V-hooks and chain for suspension mounting
Specifications
Specifications
Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
