RAB RBAY15S Field-Adjustable Linear High Bay — 130/100/80W Selectable — 3500K/4000K/5000K — 120–277V — White

The RAB RBAY15S is a commercial linear high bay engineered to deliver up to 21,019 lumens with field-adjustable 130W / 100W / 80W power settings and switchable 3500K / 4000K / 5000K color temperatures. Operating on 120–277V electrical systems with 0–10V continuous dimming, this luminaire provides energy-efficient replacement for legacy fixtures up to 400W MH. Built with an IP20 damp location rating and UL Listing, it is qualified for commercial utility rebates under DLC Premium standards and features an adjustable optical lens for tool-free open area or narrow aisle distributions.

Key Features

• Selectable Wattage: 130W / 100W / 80W — field-adjustable via onboard switch
• Wattage Equivalency: Replaces legacy 400W MH fixtures for up to 60% energy savings
• Maximum Lumen Output: 21,019 lm at 130 (4000K setting)
• Peak Efficacy: 170.2 lm/W for high-efficiency commercial operation
• Color Consistency: 7-step MacAdam Ellipse binning
• CRI: >82 color rendering across all settings
• Selectable CCT: 3500K / 4000K / 5000K — field-adjustable via onboard switch
• Lens & Optics: Field-adjustable polycarbonate lens rotates 180° to swap between 90x90° and 45x110° distributions
• Dimming: 0–10V continuous dimming standard (down to 10%)
• Voltage: Universal 120–277V AC, 50/60Hz constant current driver
• Location Rating: UL Listed for damp locations; IP20 ingress rated
• Operating Temperature: -40°F (-40°C) to 122°F (50°C) ambient range
• Certifications: DLC Premium, UL Listed, RoHS Compliant, IK08 Impact Rated
• Rated Life: L70 >100,000 hours per IES TM-21 standards
• Warranty: 5-year limited warranty — RAB
• Sensor Compatibility: Integrated sensor port accepts plug-and-play controls without internal wiring

Performance & Light Output

At 130W: 18,485 lm (3500K / 140.0 lm/W), 21,019 lm (4000K / 158.1 lm/W), 19,040 lm (5000K / 146.2 lm/W).

At 100W: 15,692 lm (3500K / 153.0 lm/W), 16,680 lm (4000K / 167.9 lm/W), 16,353 lm (5000K / 159.8 lm/W).

At 80W: 12,852 lm (3500K / 157.4 lm/W), 13,487 lm (4000K / 170.2 lm/W), 13,466 lm (5000K / 165.3 lm/W).

CRI >82 across all configurations. Rated life 100,000 hours (L70) per IES TM-21 testing. Delivers up to 60% direct energy reduction compared to traditional high-intensity discharge systems.

Lens & Optics

The Field-Adjustable optical system provides interchangeable aisle and open-area optics on the job site without tools or rewiring:

• 90x90° Standard Optic: Delivers broad, uniform beam distribution for open warehouse floors, staging areas, and general open-ceiling commercial layouts.
• 45x110° Aisle Optic: Concentrates beam distribution for narrow racking aisles, focused task areas, and elevated mounting heights.

Optics are swapped by simply rotating the lens assembly 180 degrees.

Smart & Control Features

The RBAY15S features an integrated low-voltage control receptacle supporting modular sensing and automated facility lighting control:

• 0–10V Continuous Dimming (Standard): Standard dimming control compatible with commercial 0–10V dimmers and centralized building automation systems (BAS).

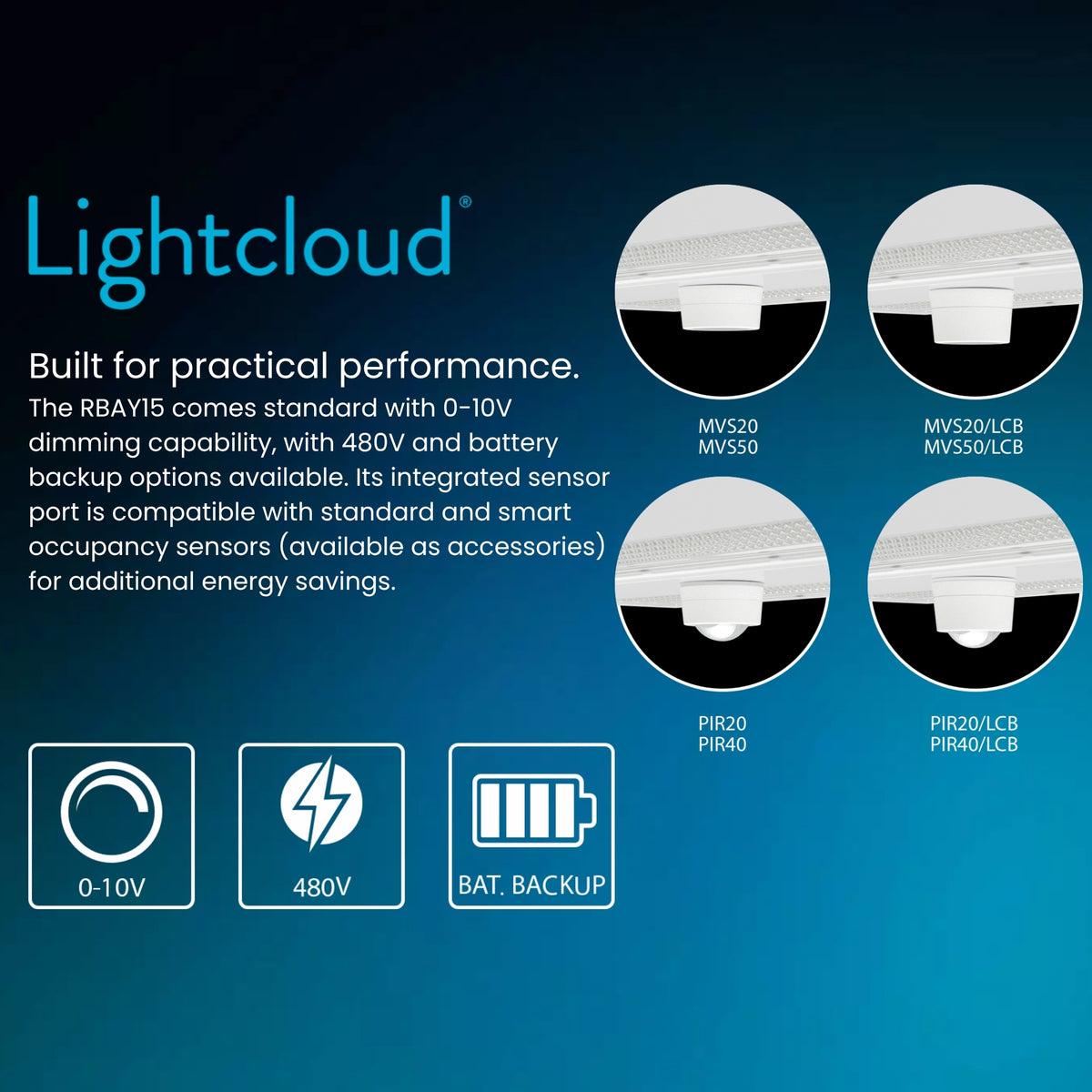

• Standard Sensors (Accessory): Accepts field-installable PIR and microwave occupancy sensors via the integrated sensor port.
• Lightcloud Blue (Accessory): Compatible with Lightcloud Blue Bluetooth mesh controllers for wireless group control, automated scheduling, and occupancy sensing.

Compatible plug-and-play sensors and the MSR1 remote are sold separately.

Electrical

Powered by a Class 1 constant current driver operating on 120–277V AC at 50/60Hz. Delivers high electrical efficiency with a Power Factor >0.90 and Total Harmonic Distortion (THD) <10%. Integrated 6kV surge protection protects internal electronics against line-to-line and line-to-ground transient voltage spikes. Includes pre-wired 0–10V dimming leads. RoHS compliant.

Operating current and amp draw across input voltages for branch circuit and breaker loading calculations:

Construction

Housing & Thermal: Aluminum housing engineered with radial convection cooling fins. The housing functions as a high-efficiency passive heatsink, dissipating heat away from LED arrays and internal driver circuits to preserve lumen maintenance across the 100,000-hour rated lifespan.

Lens & Optics: Polycarbonate lens platform. See Lens & Optics section above for beam spreads and swap procedures.

Finish: Commercial powder-coat finish in White formulated for high resistance against corrosion and surface wear in demanding industrial facilities.

Environmental Sealing: IP20 rated and UL Listed for damp locations, providing a barrier against solid objects. Ambient operating temperature range: -40°F (-40°C) to 122°F (50°C).

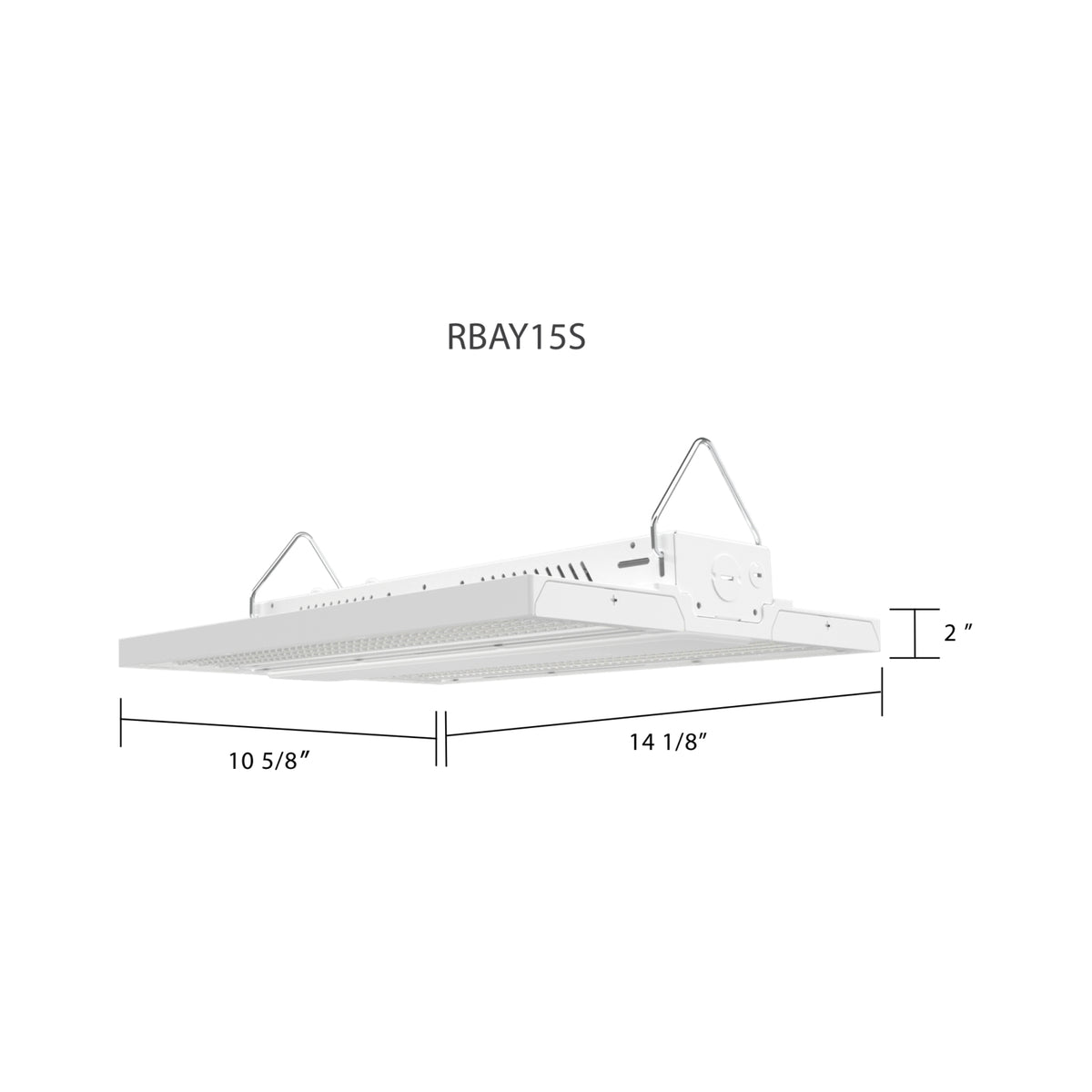

Dimensions & Weight: 14.125" L × 10.625" W × 2.125" H. Fixture weight: 4.4 lbs.

Installation & Mounting

Standard Hardware: Ships standard with V-hooks for chain suspension installation.

Mounting Options: Compatible with rigid pendant mounting and direct surface mounting via dedicated bracket accessories.

Wiring: Includes pre-wired 0–10V dimming leads.

Accessories (Sold Separately):

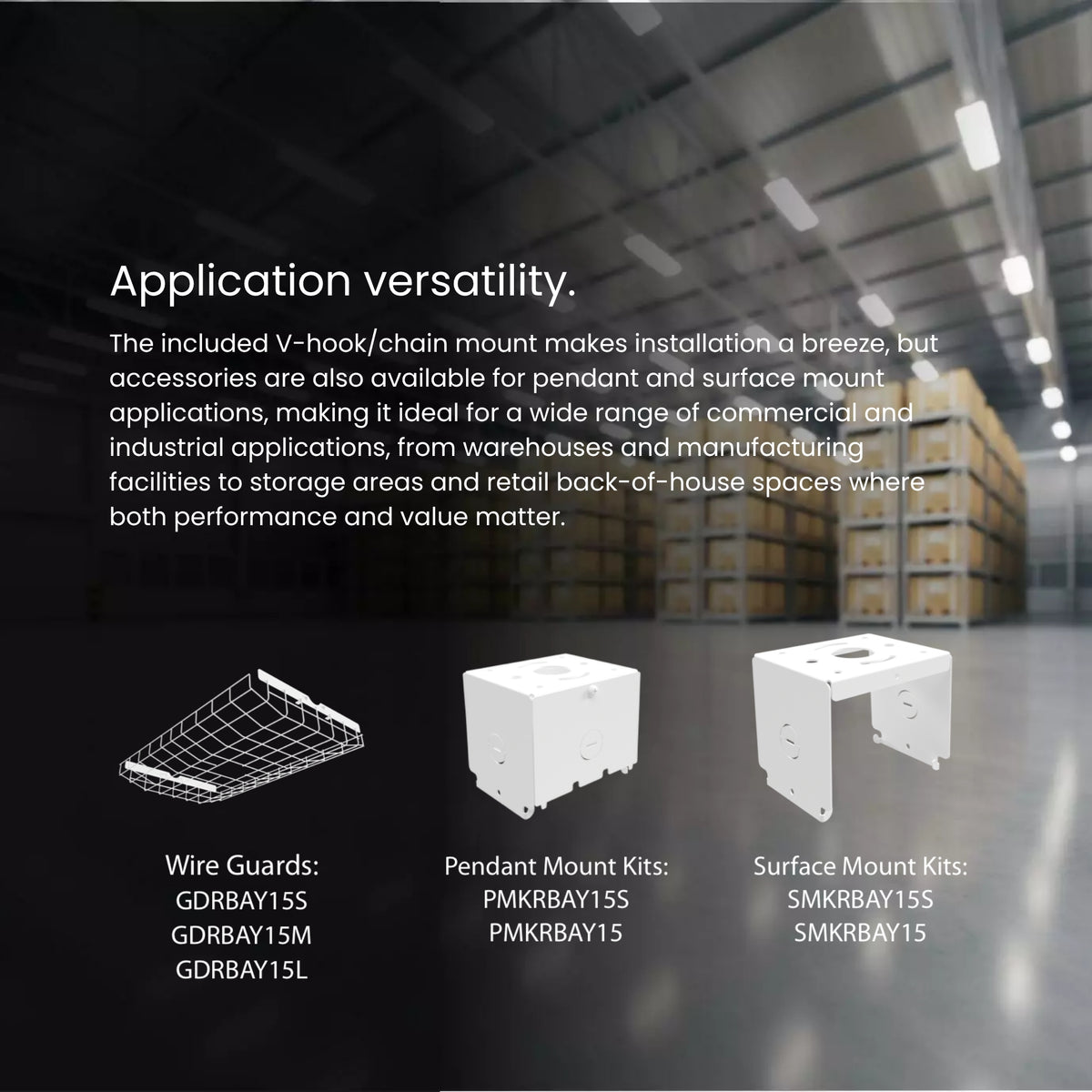

• Mounting Brackets: SMKRBAY15 (Surface Mount Kit) | PMKRBAY15 (Pendant Mount Kit)
• Sensors & Controls: PIR40 (High Ceiling PIR) | MVS50 (High Ceiling MVS) | PIR40/LCB (Lightcloud Blue PIR) | MSR1 (Remote Control)
• Emergency Battery Backup: (Purchased separately for standard models)

Certifications & Rebates

• DLC Premium: Qualifies for commercial lighting utility rebate programs nationwide
• UL Listed: Certified for damp locations per UL 1598 standards for commercial luminaires
• RoHS Compliant: Manufactured free of lead, mercury, and hazardous heavy metals
• IK08 Impact Rated: Certified housing durability against mechanical impact

Typical Applications

• Aisle Racking & Logistics Corridors — field-adjustable 45x110° aisle optic setting concentrates illumination along narrow storage rows to eliminate wasted vertical spill
• Open Warehouse Floors — field-adjustable 90x90° standard optic setting provides broad, uniform footcandle distribution
• Manufacturing & Assembly Facilities — field-adjustable CCT and 7-step MacAdam Ellipse binning supports visual task accuracy and tailored comfort
• Commercial Retail & Big Box — flexible outputs and swappable lens configurations adapt to changing merchandise layouts

What's Included

• RAB RBAY15S Linear High Bay — White
• V-hook mounting hardware
• Installation and operation instructions
