LED Flood Light, 80W, 12000lm, 30K/40K/50K, Knuckle|Trunnion, 120-277V, Bronze
LED Flood Light, 80W, 12000lm, 30K/40K/50K, Knuckle|Trunnion, 120-277V, Bronze
Available in stock (100)
Choose your location
enter a US zip code
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Description
Description
The RAB Lighting XL22-80 delivers powerful 12,000-lumen output for large-area commercial and industrial lighting applications. This 80-watt LED floodlight in bronze finish combines field-adjustable features with DLC Premium certification, providing exceptional energy efficiency for parking structures, warehouses, and outdoor industrial facilities.
Optimize your installation with field-selectable color temperatures of 3000K, 4000K, or 5000K, adjustable on-site to eliminate inventory complexity. Multiple beam angle options allow precise light control for varied applications from wide-area flood to focused spot illumination.
Powerful LED Performance:
- 80W LED platform generating 12,000 lumens
- On-site adjustable CCT: 3000K, 4000K, or 5000K
- Selectable beam angles for customized light distribution
- DLC Premium listed for maximum energy rebate eligibility
- Photocell-ready with on/off control capability
- 0-10V dimming for adaptive lighting strategies
Professional Installation Options:

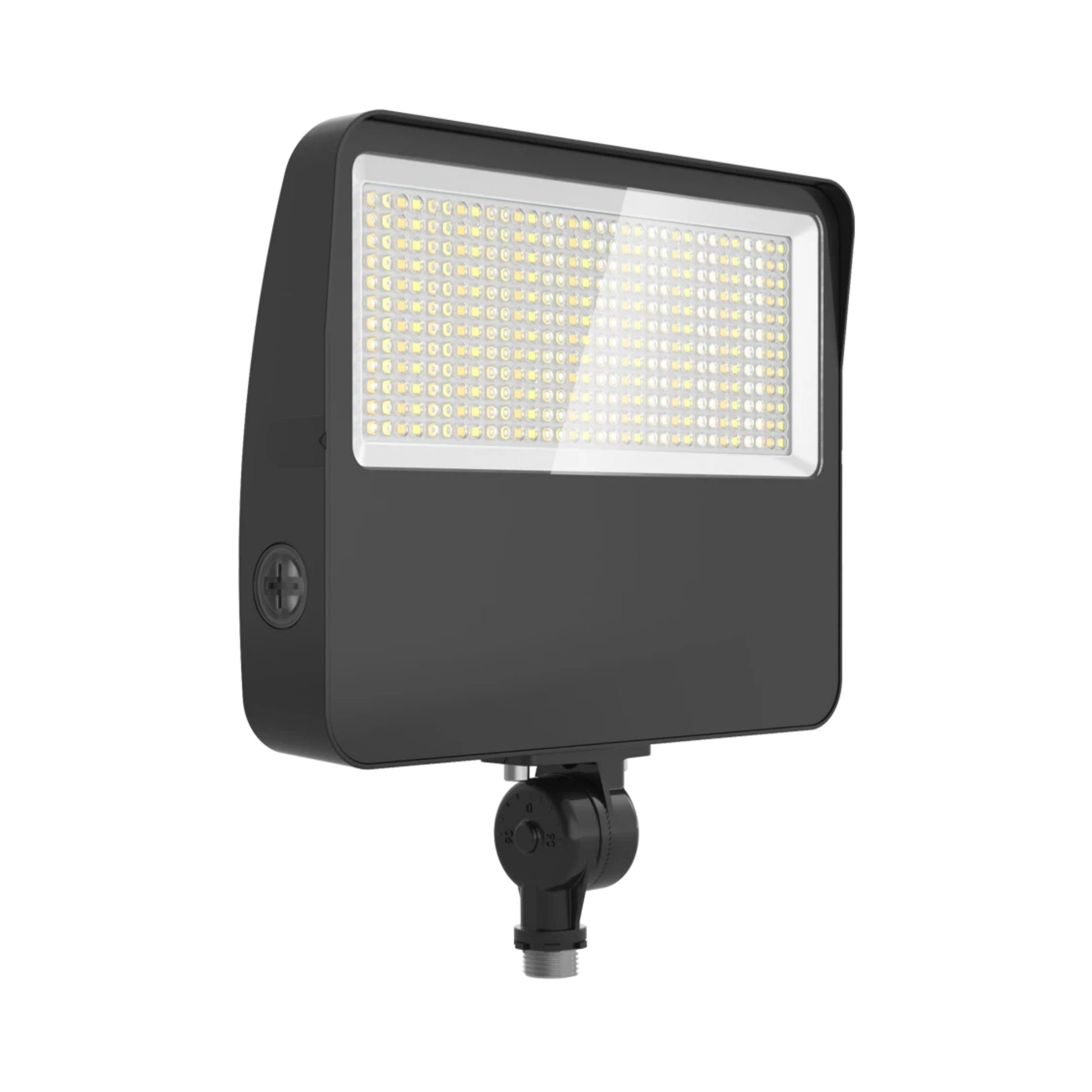

- Industrial knuckle mount with 180° swivel adjustment and 10° tilt increments

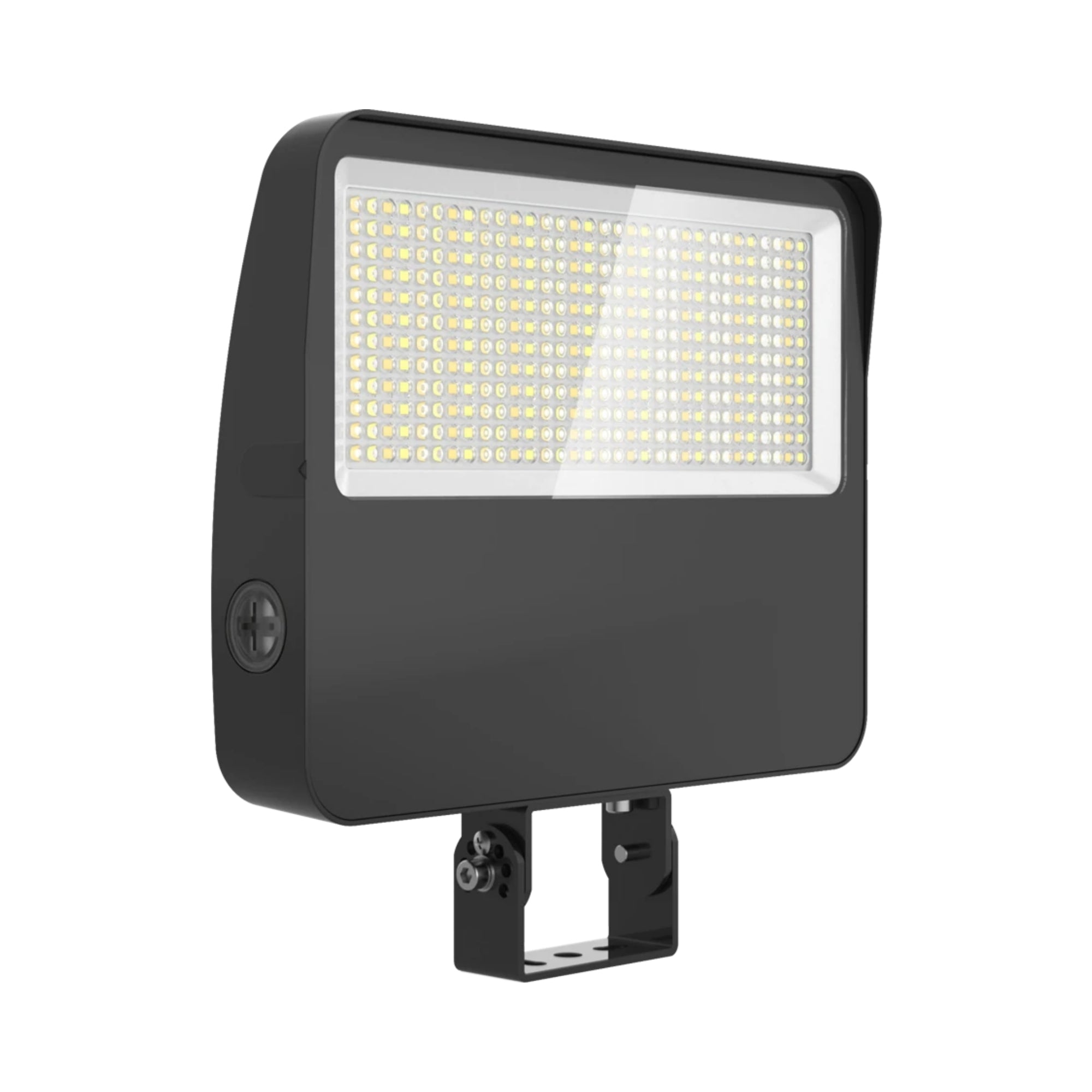

- Trunnion mounting accessory included for pole or arm mounting
- Bronze powder-coat finish over precision die-cast aluminum
- Impact-resistant polycarbonate optics
Electrical Specifications:
- Universal input voltage: 120-277V
- 0-10V dimming capability (10% minimum)
- Constant current Class 1 driver
Extreme Environment Protection:
- IP66 ingress protection for complete environmental sealing
- IK06 impact rating withstands 1 joule impacts
- Wet location certified for outdoor exposure
- Cold start capability down to -40°F (-40°C)
- Operates in ambient temperatures up to 122°F (50°C)
- High-performance silicone gasket for weatherproofing
Certification and Support:
- UL Listed safety certification
- 100,000-hour LED life per IES LM-80 standards
- Environmentally responsible: mercury-free, UV-free, RoHS compliant
- 5-year limited warranty from RAB Lighting
Designed for high-demand applications including commercial parking facilities, industrial yards, loading docks, and sports courts, the XL22-80 in bronze finish provides reliable, high-output illumination with minimal maintenance requirements. Field-selectable features streamline installation and reduce inventory costs.
Specifications
Specifications

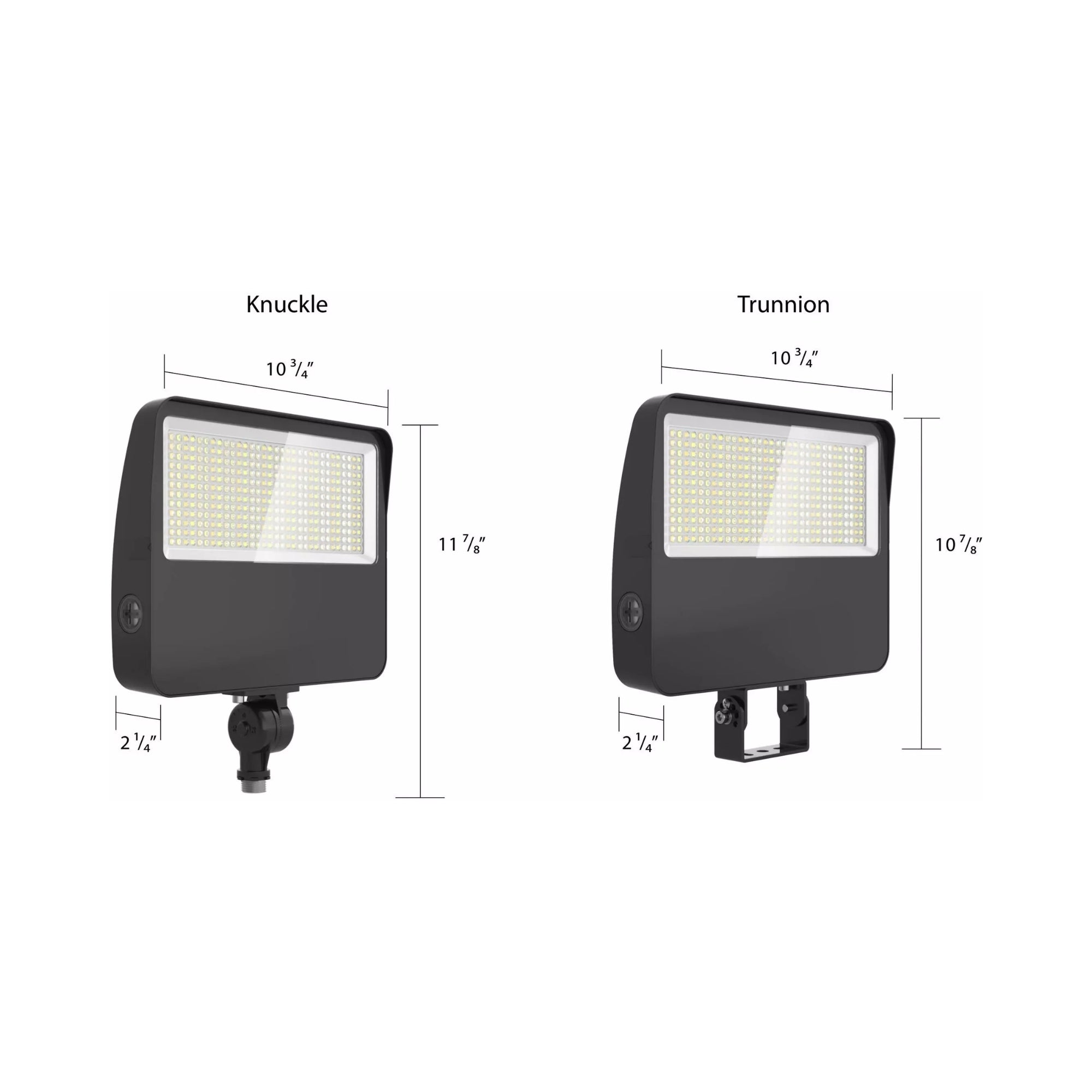

Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Frequently Asked Questions
What beam spread (NEMA Type) do I need?
What beam spread (NEMA Type) do I need?
For general area coverage, like a backyard or parking lot, choose a wide flood (NEMA 6x6 or 7x7), which spreads light over 100°+ to cover maximum ground. If you need to illuminate a specific object like a flag, sign, or tree from a distance, choose a narrow spot (NEMA 3x3 or 4x4) to concentrate the light where you need it.
How many lumens do I need for a backyard flood light?
How many lumens do I need for a backyard flood light?
For general backyard illumination, 1,500 to 3,000 lumens is usually sufficient. If you are lighting a large driveway or security zone, look for fixtures with 5,000 lumens or more.
What is a "Knuckle Mount"?
What is a "Knuckle Mount"?
A knuckle mount is an adjustable joint with a 1/2" threaded stem. It screws directly into a standard weatherproof junction box cover or landscape stake. It allows you to aim the light up or down and lock it in place.
Can I use these lights with a dimmer?
Can I use these lights with a dimmer?
Many commercial high output flood lights (typically 50W and above) come with 0-10V dimmable drivers. Smaller residential floods and bullet lights are often non-dimmable unless specified. Always check the product specifications if dimming is required.
What is the equivalent wattage for LED flood lights?
What is the equivalent wattage for LED flood lights?
15W LED ≈ 100W Halogen (Bullet Light)
30W LED ≈ 70W Metal Halide
50W LED ≈ 150W Metal Halide
150W LED ≈ 400W Metal Halide (Large Commercial Flood)
