LED Flood Light, 60W, 9000lm, 30K/40K/50K, Knuckle|Trunnion, 120-277V, White
LED Flood Light, 60W, 9000lm, 30K/40K/50K, Knuckle|Trunnion, 120-277V, White
Available in stock (100)
Choose your location
enter a US zip code
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Description
Description
Delivering exceptional illumination for large-scale commercial and industrial applications, the RAB Lighting XL22-80W produces an impressive 12,000 lumens from 80 watts. This white-finished LED floodlight features field-selectable color temperature and beam angle options, combined with DLC Premium certification for superior energy efficiency and rebate eligibility.
Configure your lighting on-site with selectable color temperatures of 3000K, 4000K, or 5000K to match architectural requirements or application needs. Adjustable beam angles provide precise light distribution for large parking facilities, sports fields, industrial yards, and building exteriors.
High-Output Performance:
- 80 watts producing 12,000 lumens for expansive coverage
- Field-selectable CCT: 3000K warm white, 4000K neutral, or 5000K daylight
- Adjustable beam angles for application-specific distribution
- DLC Premium certification maximizes energy incentives
- Photocell-ready with on/off automation
- 0-10V dimming for flexible light management

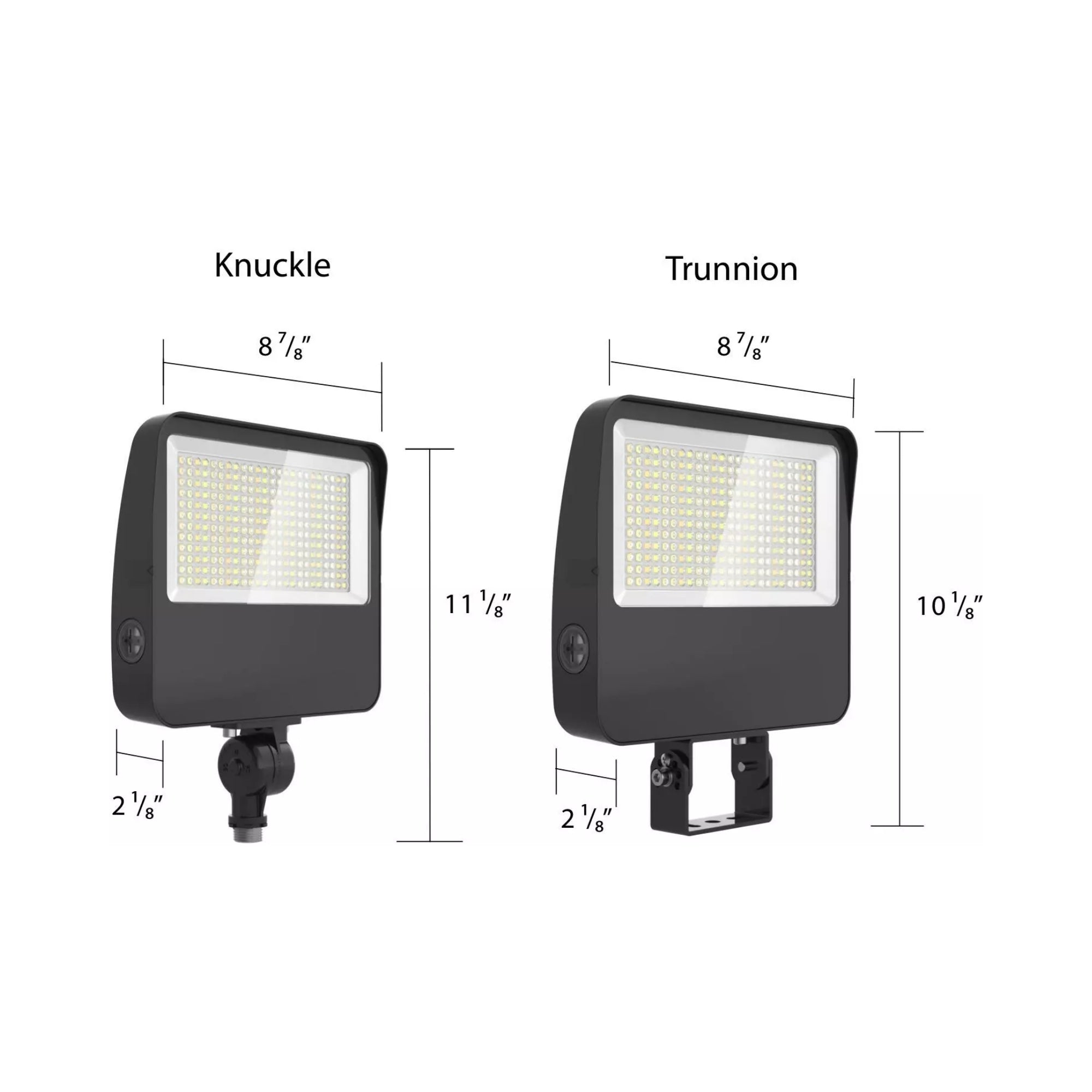

Robust Mounting System:

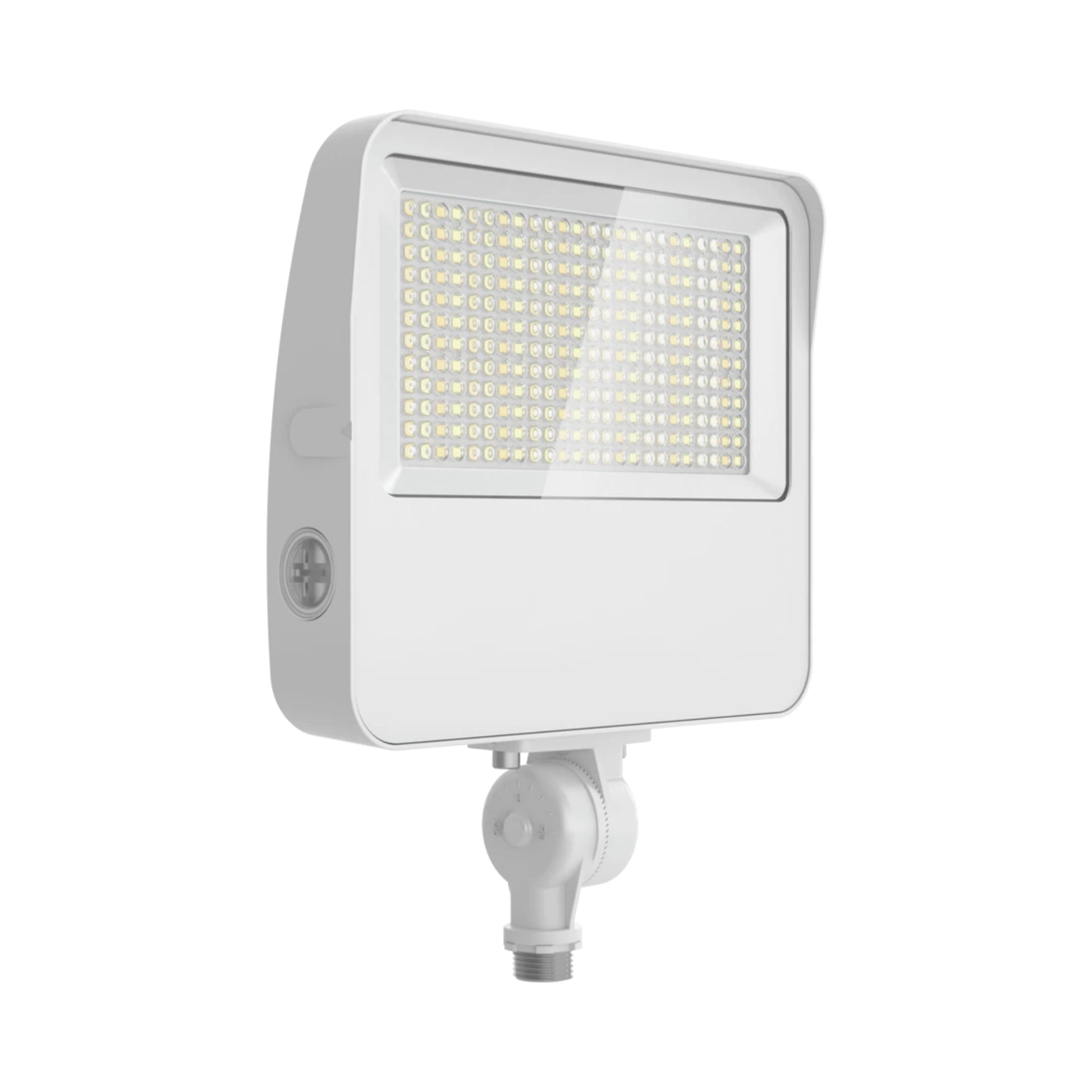

- Professional knuckle mount with 180° swivel arm and 10° tilt increments

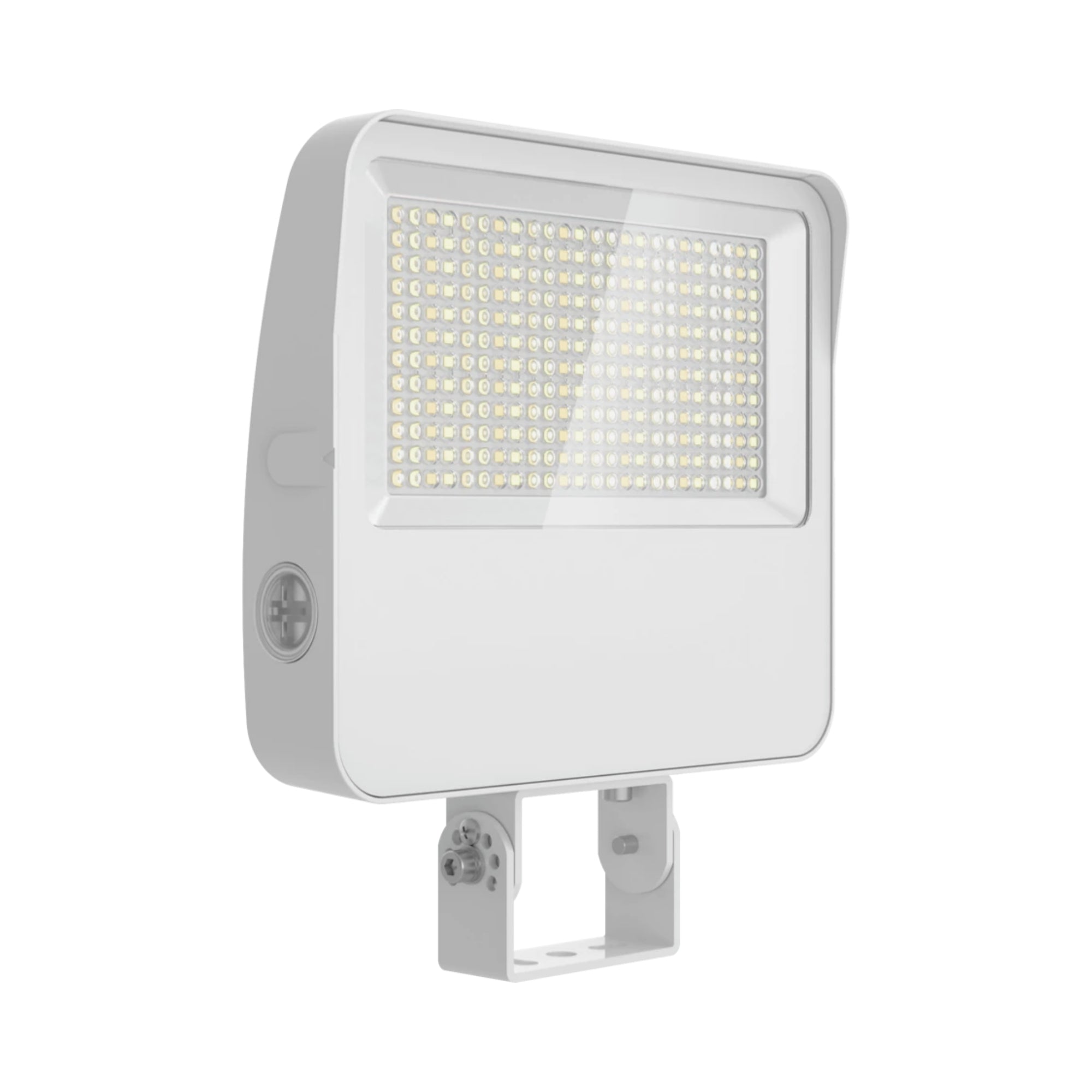

- Trunnion mounting hardware included for pole or bracket installations
- White powder-coat finish on die-cast aluminum construction
- High-impact polycarbonate lens
Electrical Capabilities:
- Universal voltage: 120-277V
- 0-10V dimming (minimum 10% output)
- Class 1 constant current driver for stable performance
Industrial-Grade Protection:
- IP66 ingress protection against dust and powerful water jets
- IK06 impact resistance (1 joule)
- Wet location rated for fully exposed outdoor use
- Cold weather starting to -40°F (-40°C)
- Maximum ambient operating temperature: 122°F (50°C)
- High-temperature silicone gasket ensures long-term sealing
Reliability and Warranty:
- UL Listed for safety compliance
- 100,000-hour LED lifespan based on IES LM-80 testing
- Mercury-free, UV-free, RoHS-compliant components
- RAB's comprehensive 5-year limited warranty
The XL22-80W in white finish is engineered for demanding applications including large parking structures, distribution centers, manufacturing facilities, and sports lighting. Its high lumen output and field-adjustable features make it a versatile solution for professional lighting installations.
Specifications
Specifications
Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Frequently Asked Questions
What beam spread (NEMA Type) do I need?
What beam spread (NEMA Type) do I need?
For general area coverage, like a backyard or parking lot, choose a wide flood (NEMA 6x6 or 7x7), which spreads light over 100°+ to cover maximum ground. If you need to illuminate a specific object like a flag, sign, or tree from a distance, choose a narrow spot (NEMA 3x3 or 4x4) to concentrate the light where you need it.
How many lumens do I need for a backyard flood light?
How many lumens do I need for a backyard flood light?
For general backyard illumination, 1,500 to 3,000 lumens is usually sufficient. If you are lighting a large driveway or security zone, look for fixtures with 5,000 lumens or more.
What is a "Knuckle Mount"?
What is a "Knuckle Mount"?
A knuckle mount is an adjustable joint with a 1/2" threaded stem. It screws directly into a standard weatherproof junction box cover or landscape stake. It allows you to aim the light up or down and lock it in place.
Can I use these lights with a dimmer?
Can I use these lights with a dimmer?
Many commercial high output flood lights (typically 50W and above) come with 0-10V dimmable drivers. Smaller residential floods and bullet lights are often non-dimmable unless specified. Always check the product specifications if dimming is required.
What is the equivalent wattage for LED flood lights?
What is the equivalent wattage for LED flood lights?
15W LED ≈ 100W Halogen (Bullet Light)
30W LED ≈ 70W Metal Halide
50W LED ≈ 150W Metal Halide
150W LED ≈ 400W Metal Halide (Large Commercial Flood)
