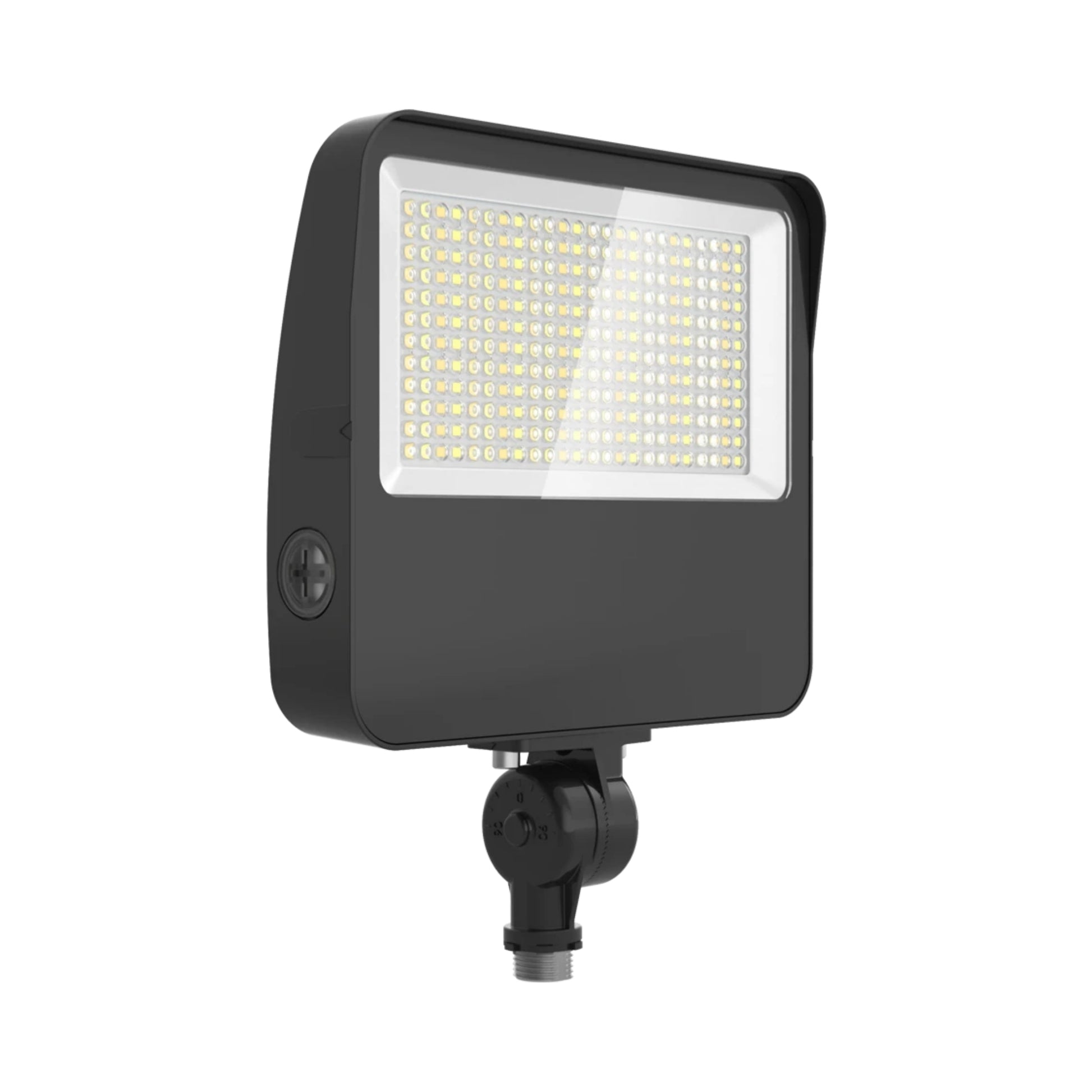

RAB XL22-60 Field-Adjustable Floodlight — 60W, Selectable CCT & Beam Angle, Photocell, Knuckle/Trunnion Mount, 120-277V, Bronze

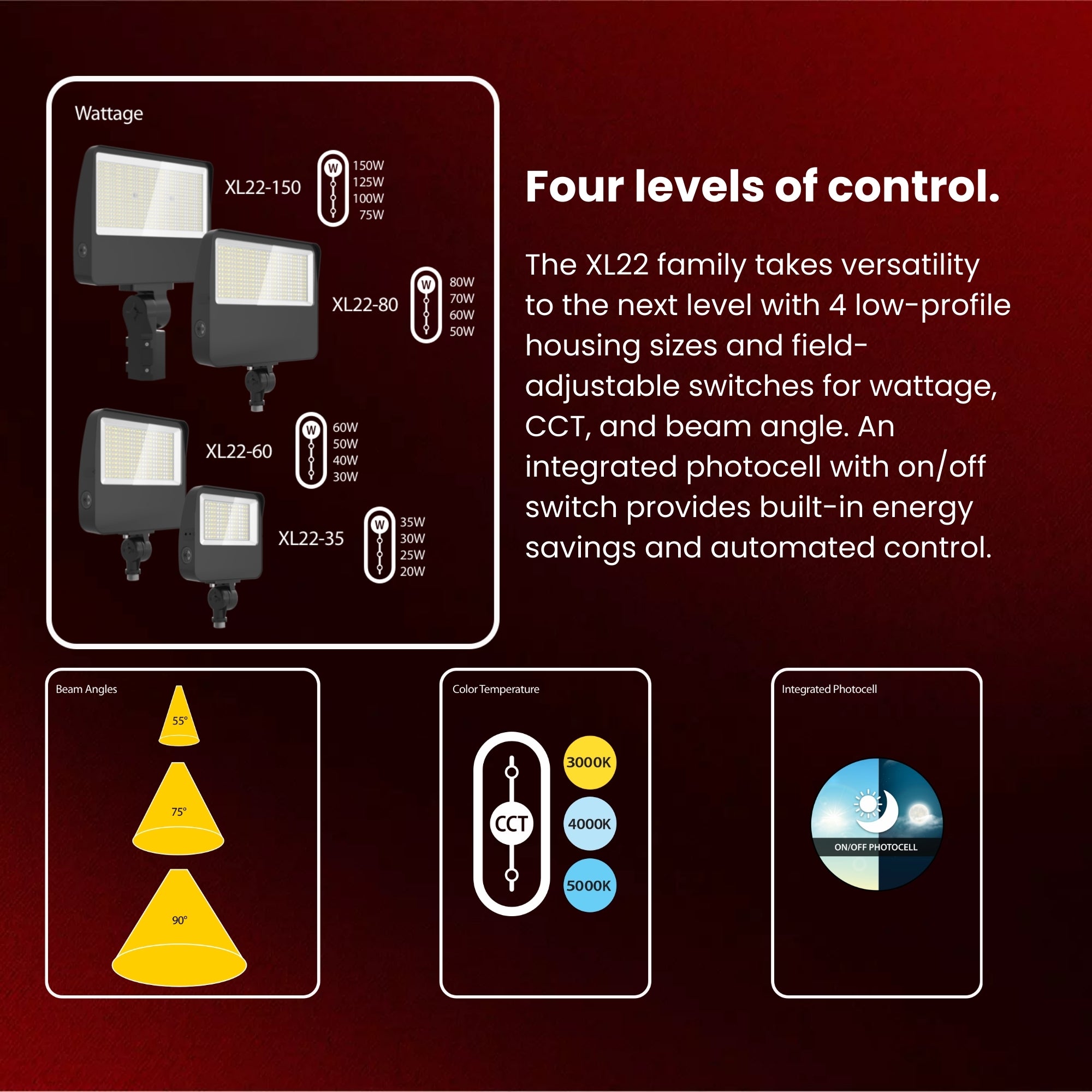

The RAB XL22-60 takes versatility to the next level by offering four levels of control in a single, low-profile LED flood light. Engineered to deliver true flexibility without compromising performance, this fixture produces up to 9,474 lumens and allows installers to seamlessly adjust the wattage (60W, 50W, 40W, 30W) and color temperature (3000K, 4000K, 5000K) directly on the job site. It goes a step further by offering field-adjustable optics, allowing you to select between three different NEMA beam angles (7Hx6V, 6Hx6V, 5Hx5V) to perfectly shape the light distribution. Operating on a 120-277V universal driver, it features 0-10V dimming and an integrated On/Off photocell for automated energy savings. With a rugged IP66-rated die-cast aluminum housing and two included mounting kits (knuckle and trunnion), the XL22-60 is the ultimate mid-sized floodlight for demanding commercial exteriors.

Key Features

• Wattage: Field adjustable to 60W, 50W, 40W, or 30W (defaults to 60W).
• Selectable CCT: Tunable white 3000K, 4000K, and 5000K (defaults to 4000K).
• Selectable Beam Angle: Optical field adjustability between 7Hx6V, 6Hx6V, and 5Hx5V (defaults to 7Hx6V).
• Delivered Lumens: 4,500 lumens up to 9,474 lumens depending on selected settings.
• Efficacy: Ultra-efficient performance ranging from 132.9 up to 178.5 Lumens Per Watt (LPW).
• Voltage: 120-277V AC @ 50/60Hz.
• Dimming: 0-10V dimming standard, dimming down to 10%.
• Photocell: Integrated On/Off photocell included (defaults to "On").
• Environmental Ratings: IP66 rated for dust and water, UL Listed for wet locations.
• Compliance & Certifications: RoHS Compliant, IK06 impact rating, DLC Premium listed.
• Warranty: 5-Year limited warranty.

Typical Applications

• Building perimeters and facades
• Landscape and signage lighting
• Commercial parking lots and pathways
• General purpose exterior security lighting

Performance & Light Output

The XL22-60 delivers highly consistent lumen output across all color temperature settings and light distributions. With a massive output of up to 9,474 lumens at its 60W setting, it provides brilliant, targeted illumination. The unique optical field adjustability allows you to narrow or widen the beam spread to fit the exact application. Boasting a 100,000-hour rated LED lifespan based on TM-21 calculations, this fixture dramatically reduces long-term maintenance costs.

Electrical & Controls

This fixture operates on a 120-277V AC input and features built-in surge protection (L-N: 4 kV, L/N-PE: 6 kV). It provides immediate energy savings straight out of the box with an integrated On/Off photocell for dusk-to-dawn operation, which can be easily toggled off via a switch if you prefer manual or centralized control. It also supports 0-10V dimming for integration with advanced lighting controls.

Construction & Durability

Engineered to withstand harsh environments, the XL22-60 features a heavy-duty die-cast aluminum housing finished in a durable bronze. The fixture is completely sealed with high-temperature silicone gaskets, earning it a rigorous IP66 rating against severe dust and water ingress. The tough polycarbonate lens is IK06 rated, protecting the LEDs against impacts up to 1 joule, and the fixture is rated for cold weather starting down to -40°F (-40°C) and ambient temperatures up to 122°F (50°C).

Installation & Mounting

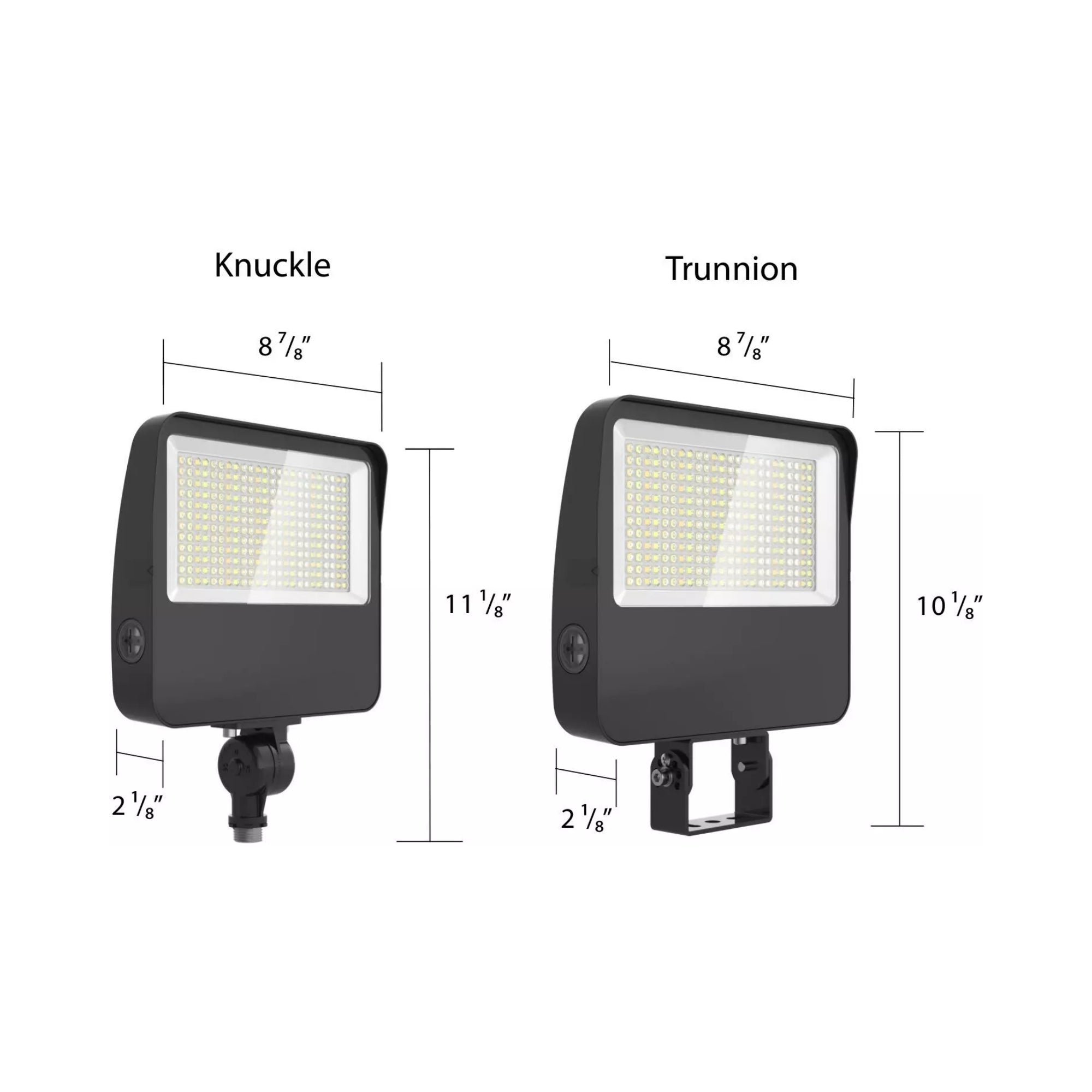

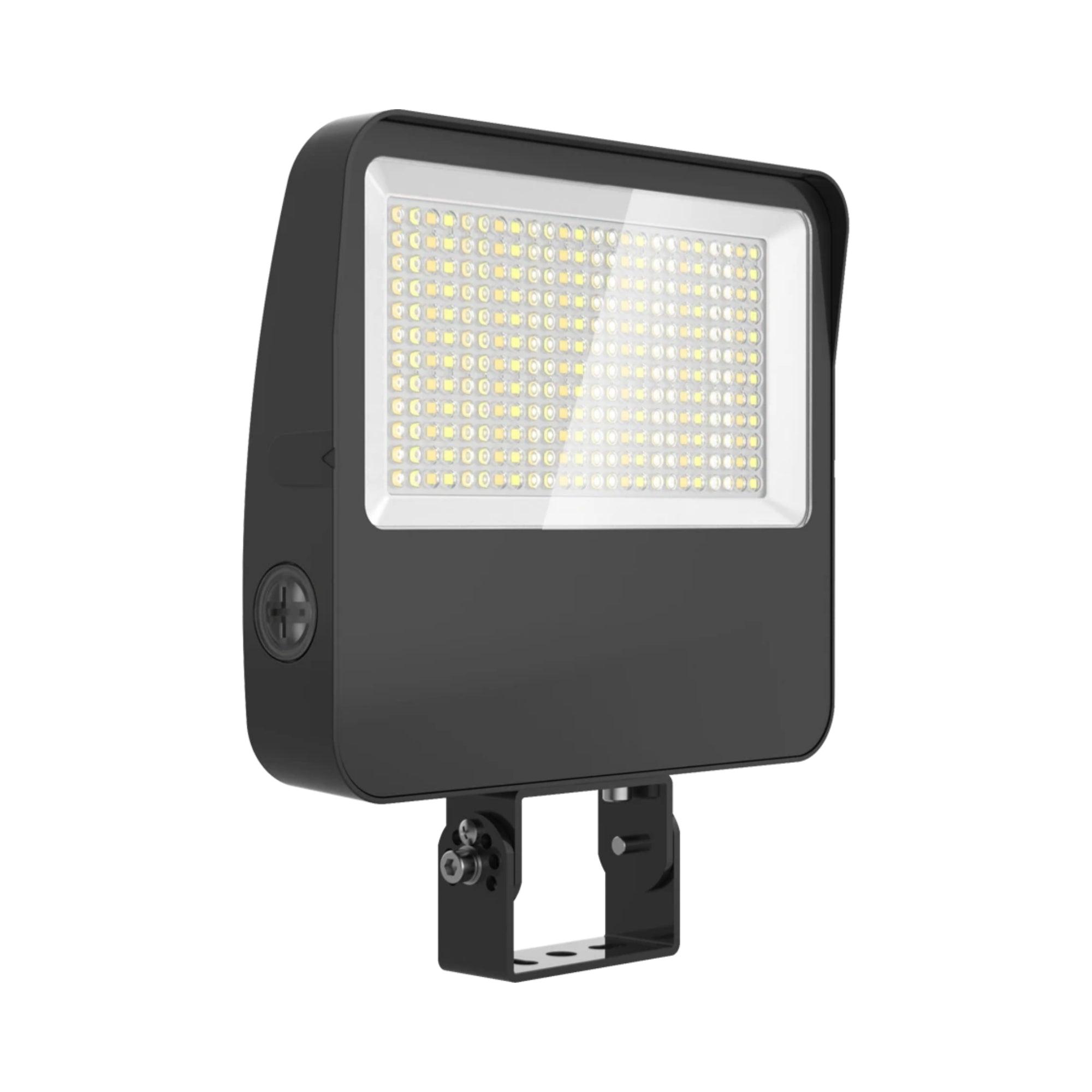

Designed to reduce SKU inventory and simplify installation, this 60W model comes standard with two complete mounting kits in the box: a pre-installed knuckle mount and a trunnion mount. The robust knuckle mount features a 180° adjustable swivel arm with tilt angles in 10° increments for precise aiming. Alternatively, the trunnion mount accessory can be swapped in for pole or arm installations.

What's Included

• RAB XL22-60 LED Field-Adjustable Floodlight (Bronze)
• Knuckle Mount Kit (Pre-installed)
• Trunnion Mount Kit
• Integrated Photocell
