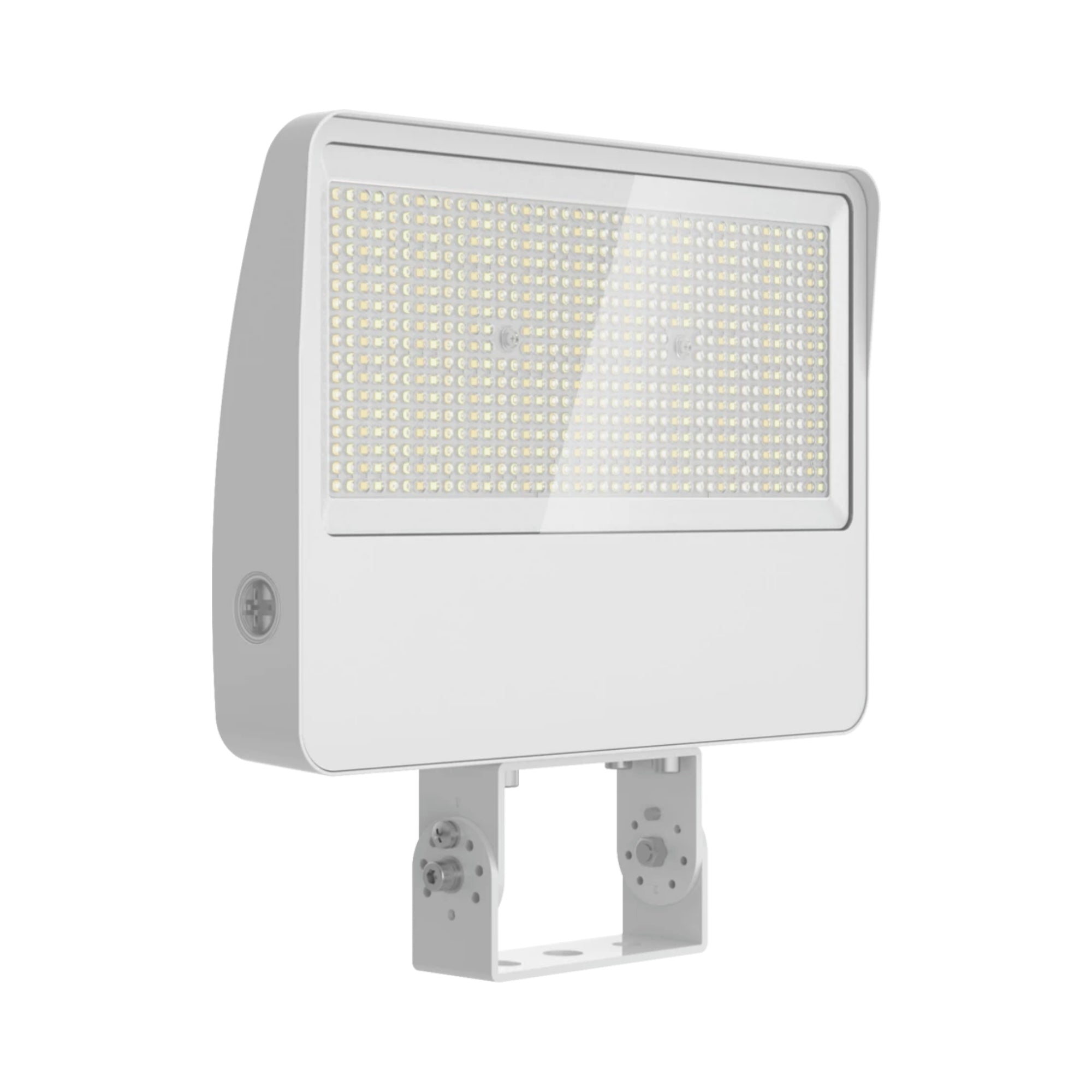

LED Flood Light, 150W, 22000lm, 30K/40K/50K, Slipfitter|Trunnion, 480V, White
LED Flood Light, 150W, 22000lm, 30K/40K/50K, Slipfitter|Trunnion, 480V, White
Available in stock (50)
Choose your location
enter a US zip code
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Description
Description
The RAB Lighting XL22-150W-480 provides maximum illumination for high-voltage commercial and industrial applications. Producing 22,000 lumens from 150 watts with 480V operation, this white-finished LED floodlight features field-selectable color temperature and beam angle options, designed for pole-mounted installations in large-scale facilities with 480V electrical systems.
Configure your high-voltage lighting on-site with selectable color temperatures of 3000K, 4000K, or 5000K to match architectural and operational requirements. Adjustable beam patterns allow you to optimize light distribution for large parking facilities, industrial yards, athletic complexes, and commercial building exteriors.
480V High-Output System:
- 150W LED producing 22,000 lumens for expansive area coverage
- On-site CCT selection: 3000K, 4000K, or 5000K
- Field-selectable beam angles for customized light distribution
- DLC Premium listed for maximum energy rebate eligibility
- Integrated photocell compatibility with on/off control
- 0-10V dimming for flexible light management
Professional Pole Mounting:

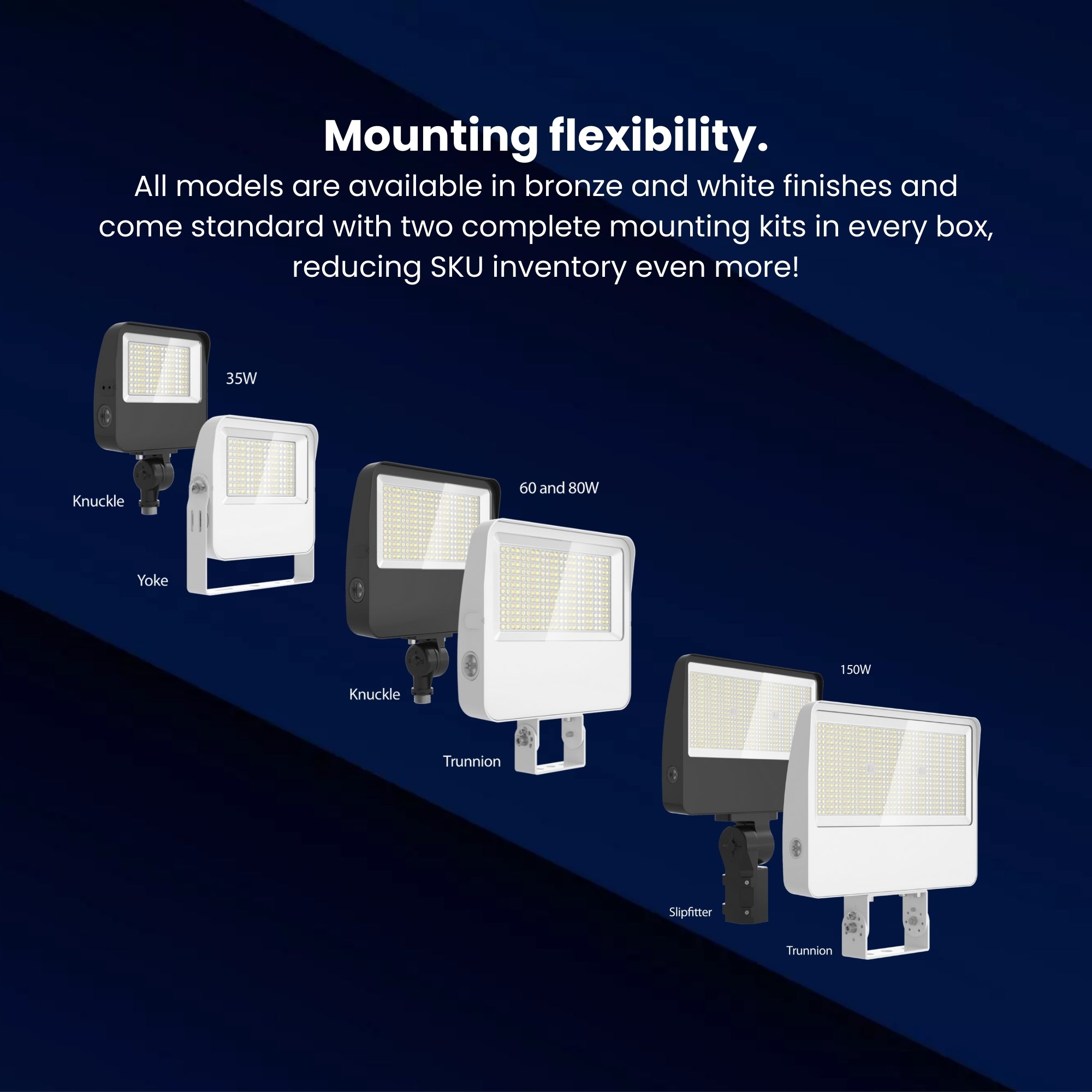

- Slipfitter mount for 2-3/8" tenon with 180° adjustability
- Trunnion mounting accessory included for versatile positioning
- White powder-coat finish on precision die-cast aluminum construction
- Polycarbonate lens for impact resistance and optical performance
Electrical Capabilities:
- 480V operation for high-voltage infrastructure
- 0-10V dimming (dims to 10%)
- Constant current Class 1 driver for stable operation
Heavy-Duty Construction:
- IP66 rated for complete dust and water resistance
- IK06 impact rating (1 joule resistance)
- Wet location certified for exposed outdoor use
- Operates from -40°F to 122°F (-40°C to 50°C)
- High-temperature silicone gasket for superior weatherproofing
Quality Assurance:
- UL Listed certification
- 100,000-hour LED life based on IES LM-80 testing
- Environmentally responsible: mercury-free, UV-free, RoHS compliant
- 5-year limited warranty from RAB Lighting
Ideal for large-scale 480V installations including industrial facilities, distribution centers, commercial parking structures, and sports complexes, the XL22-150W-480 in white finish delivers professional-grade illumination with exceptional energy efficiency. Its high-voltage design makes it perfect for LED retrofits in existing 480V lighting infrastructure.
Specifications
Specifications

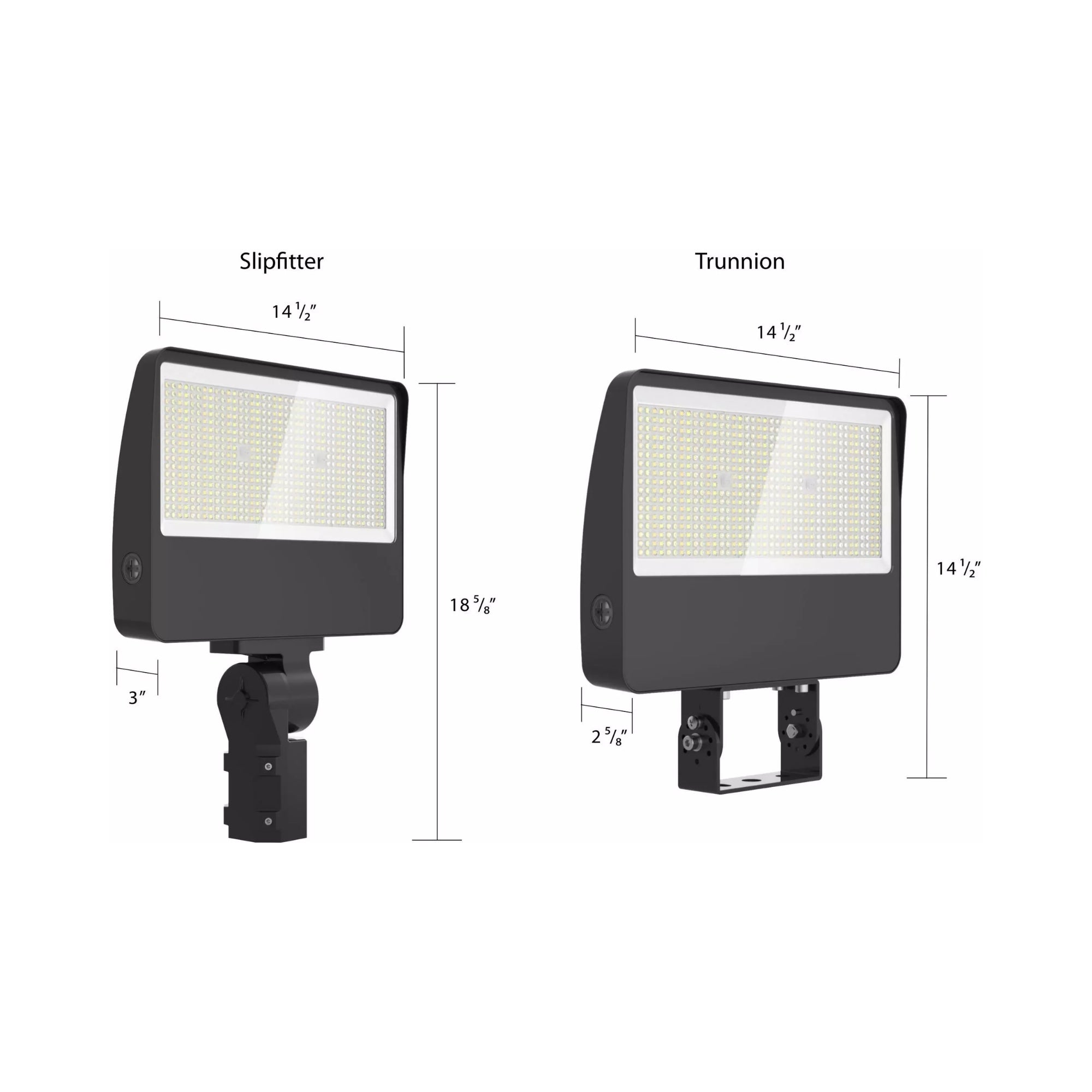

Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Frequently Asked Questions
What beam spread (NEMA Type) do I need?
What beam spread (NEMA Type) do I need?
For general area coverage, like a backyard or parking lot, choose a wide flood (NEMA 6x6 or 7x7), which spreads light over 100°+ to cover maximum ground. If you need to illuminate a specific object like a flag, sign, or tree from a distance, choose a narrow spot (NEMA 3x3 or 4x4) to concentrate the light where you need it.
How many lumens do I need for a backyard flood light?
How many lumens do I need for a backyard flood light?
For general backyard illumination, 1,500 to 3,000 lumens is usually sufficient. If you are lighting a large driveway or security zone, look for fixtures with 5,000 lumens or more.
What is a "Knuckle Mount"?
What is a "Knuckle Mount"?
A knuckle mount is an adjustable joint with a 1/2" threaded stem. It screws directly into a standard weatherproof junction box cover or landscape stake. It allows you to aim the light up or down and lock it in place.
Can I use these lights with a dimmer?
Can I use these lights with a dimmer?
Many commercial high output flood lights (typically 50W and above) come with 0-10V dimmable drivers. Smaller residential floods and bullet lights are often non-dimmable unless specified. Always check the product specifications if dimming is required.
What is the equivalent wattage for LED flood lights?
What is the equivalent wattage for LED flood lights?
15W LED ≈ 100W Halogen (Bullet Light)
30W LED ≈ 70W Metal Halide
50W LED ≈ 150W Metal Halide
150W LED ≈ 400W Metal Halide (Large Commercial Flood)
