LED Flood Light, 150W, 22000lm, 30K/40K/50K, Slipfitter|Trunnion, 480V, Bronze
LED Flood Light, 150W, 22000lm, 30K/40K/50K, Slipfitter|Trunnion, 480V, Bronze
Available in stock (100)
Choose your location
enter a US zip code
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Description
Description

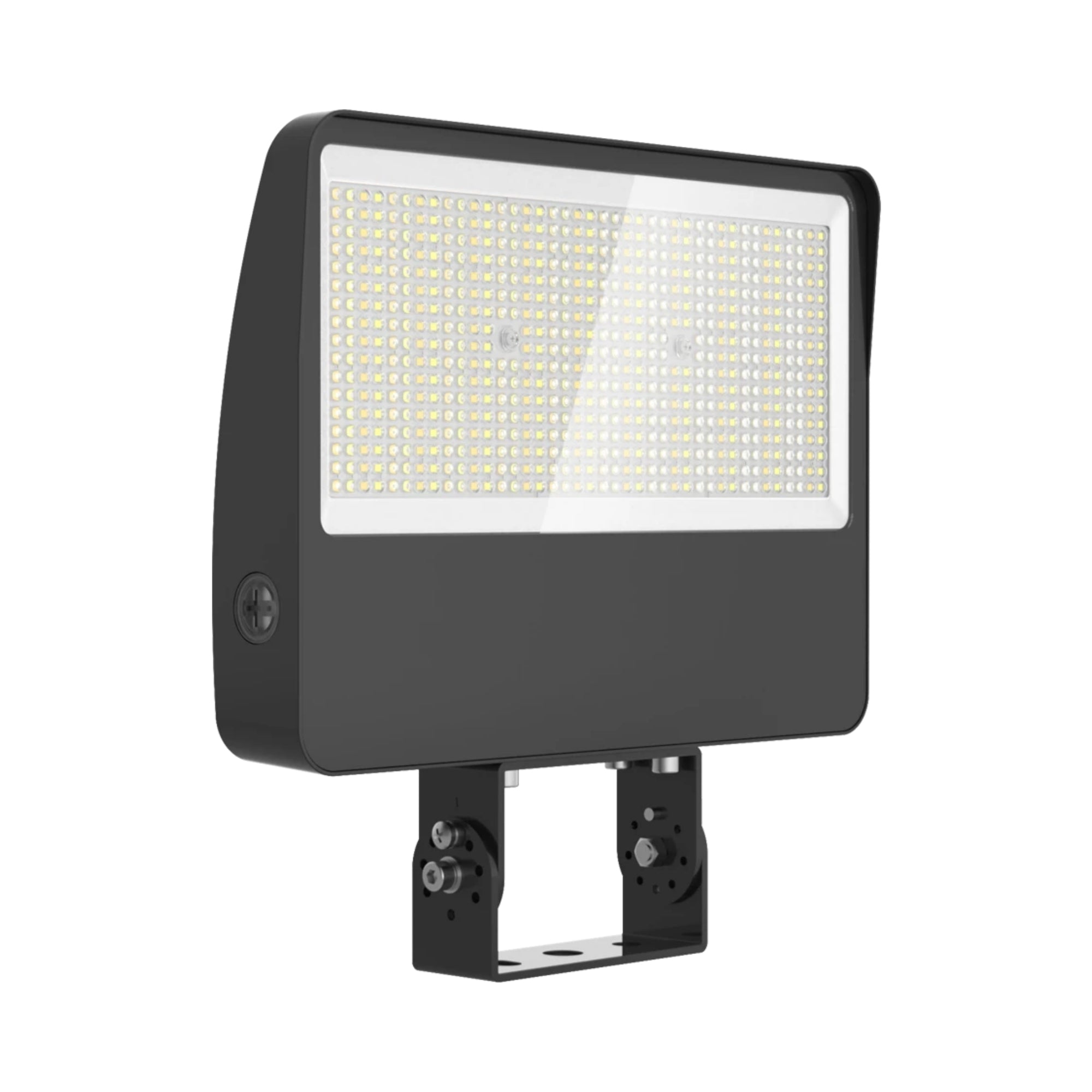

Designed for high-voltage commercial and industrial installations, the RAB Lighting XL22-150-480 delivers 22,000 lumens from 150 watts with 480V operation. This bronze-finished LED floodlight features field-selectable color temperature and beam angle options, engineered for pole-mounted applications in large-scale facilities with 480V electrical infrastructure.

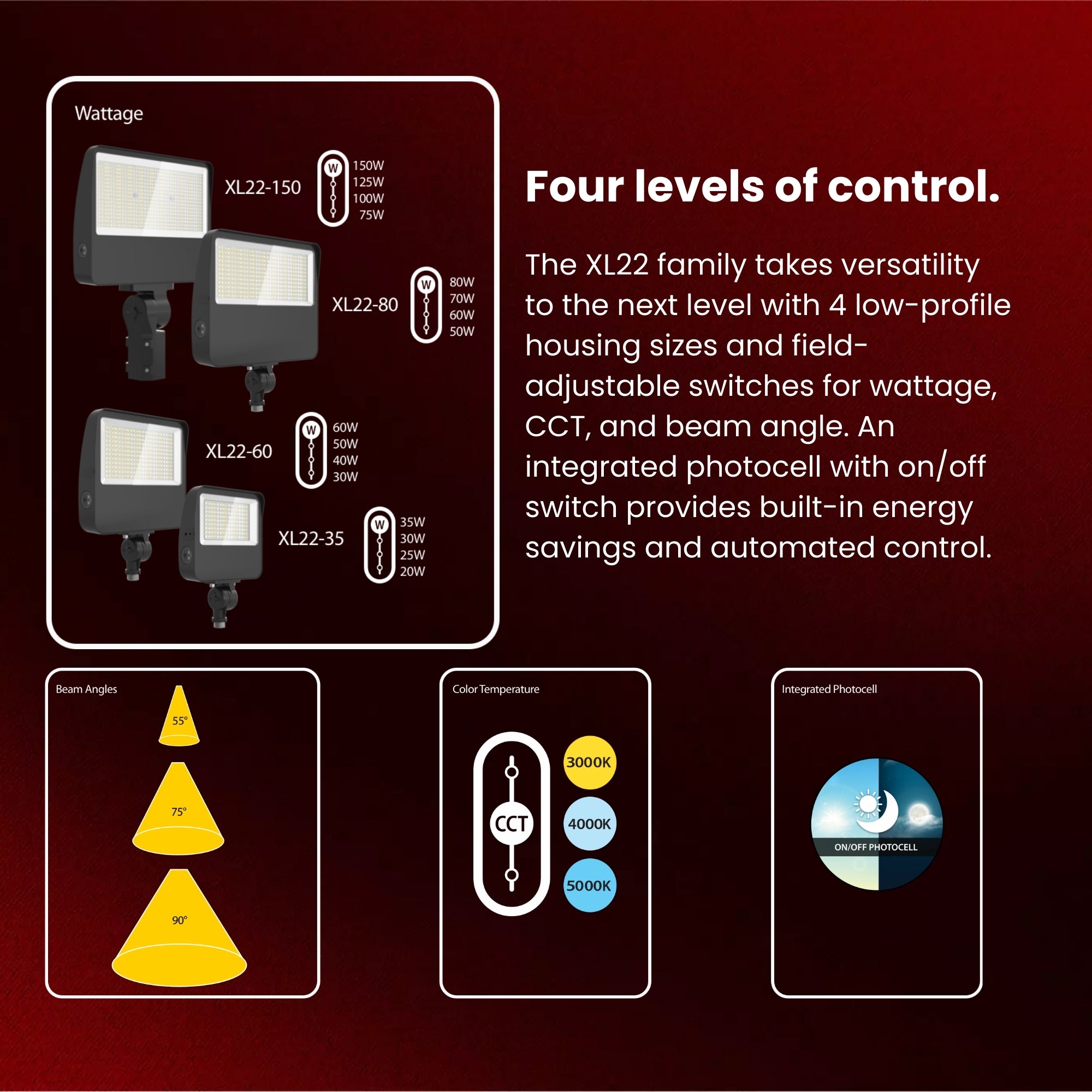

Optimize your high-voltage lighting system with field-selectable color temperatures of 3000K, 4000K, or 5000K, adjustable on-site to match project requirements. Selectable beam angles provide precise light control for expansive parking areas, industrial complexes, sports facilities, and large commercial properties.
High-Voltage Performance:
- 150 watts producing 22,000 lumens for maximum coverage

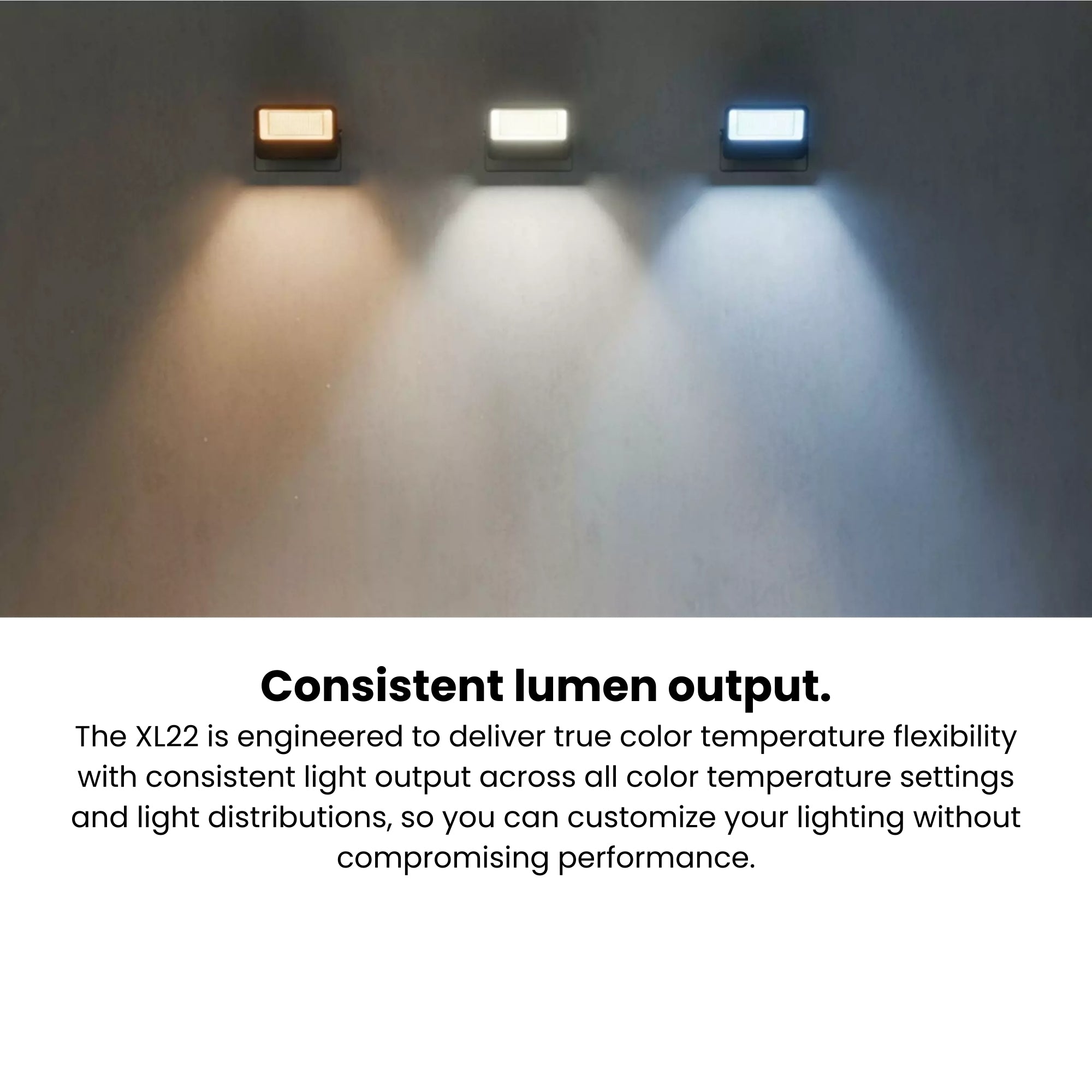

- Field-adjustable CCT: 3000K warm white, 4000K neutral, or 5000K daylight
- Multiple beam angle options for application-specific distribution
- DLC Premium certification for energy incentive programs
- Photocell-ready with on/off automation
- 0-10V dimming for adaptive lighting control
480V Pole-Mount Design:

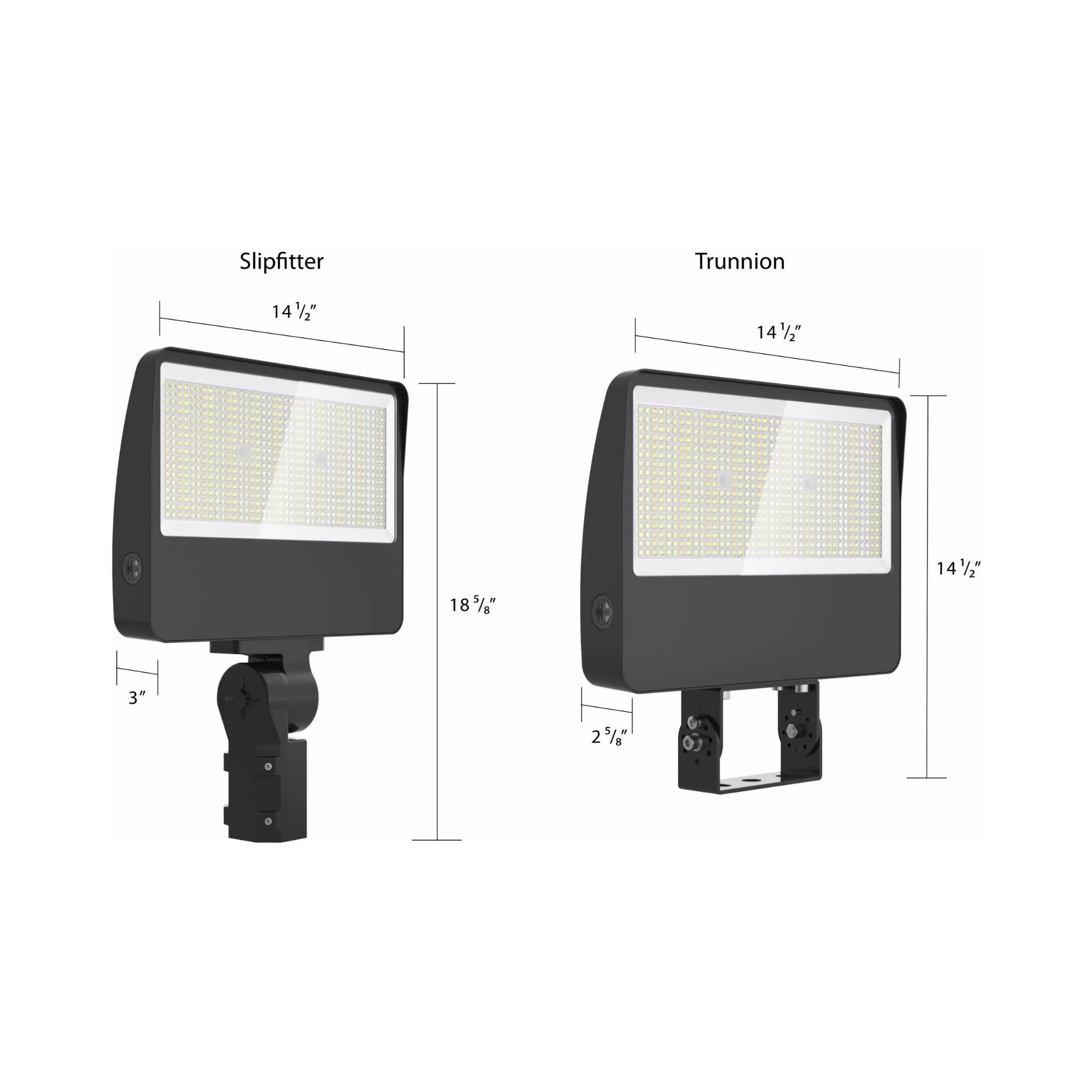

- Slipfitter mount on 2-3/8" tenon with 180° adjustability for pole installations
- Trunnion mounting hardware included for alternative mounting configurations
- Bronze powder-coat finish over heavy-duty die-cast aluminum housing
- High-impact polycarbonate lens
Electrical Specifications:
- 480V operation for high-voltage systems
- 0-10V dimming capability (minimum 10% output)
- Class 1 constant current driver for reliable performance
Extreme Environment Protection:
- IP66 ingress protection for complete environmental sealing
- IK06 impact resistance (1 joule)
- Wet location rated for fully exposed outdoor installations
- Cold start capability to -40°F (-40°C)
- Maximum ambient operating temperature: 122°F (50°C)
- Premium silicone gasket ensures long-term weatherproofing
Certification and Warranty:
- UL Listed safety certification
- 100,000-hour LED lifespan per IES LM-80 standards
- Mercury-free, UV-free, RoHS-compliant components
- RAB's comprehensive 5-year limited warranty
The XL22-150-480 in bronze finish is engineered for large-scale 480V installations including industrial parks, manufacturing facilities, distribution centers, and commercial parking structures. Its high-voltage capability and pole-mount design make it ideal for replacing traditional HID fixtures in existing 480V infrastructure.
Specifications
Specifications
Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Frequently Asked Questions
What beam spread (NEMA Type) do I need?
What beam spread (NEMA Type) do I need?
For general area coverage, like a backyard or parking lot, choose a wide flood (NEMA 6x6 or 7x7), which spreads light over 100°+ to cover maximum ground. If you need to illuminate a specific object like a flag, sign, or tree from a distance, choose a narrow spot (NEMA 3x3 or 4x4) to concentrate the light where you need it.
How many lumens do I need for a backyard flood light?
How many lumens do I need for a backyard flood light?
For general backyard illumination, 1,500 to 3,000 lumens is usually sufficient. If you are lighting a large driveway or security zone, look for fixtures with 5,000 lumens or more.
What is a "Knuckle Mount"?
What is a "Knuckle Mount"?
A knuckle mount is an adjustable joint with a 1/2" threaded stem. It screws directly into a standard weatherproof junction box cover or landscape stake. It allows you to aim the light up or down and lock it in place.
Can I use these lights with a dimmer?
Can I use these lights with a dimmer?
Many commercial high output flood lights (typically 50W and above) come with 0-10V dimmable drivers. Smaller residential floods and bullet lights are often non-dimmable unless specified. Always check the product specifications if dimming is required.
What is the equivalent wattage for LED flood lights?
What is the equivalent wattage for LED flood lights?
15W LED ≈ 100W Halogen (Bullet Light)
30W LED ≈ 70W Metal Halide
50W LED ≈ 150W Metal Halide
150W LED ≈ 400W Metal Halide (Large Commercial Flood)
