RAB WPT Field-Adjustable LED Tall Wall Pack 5,345 Lumens 15/25/40W Selectable 30K/40K/50K 120-277V Photocell Bronze
Available in stock (200)
About this item
About this item

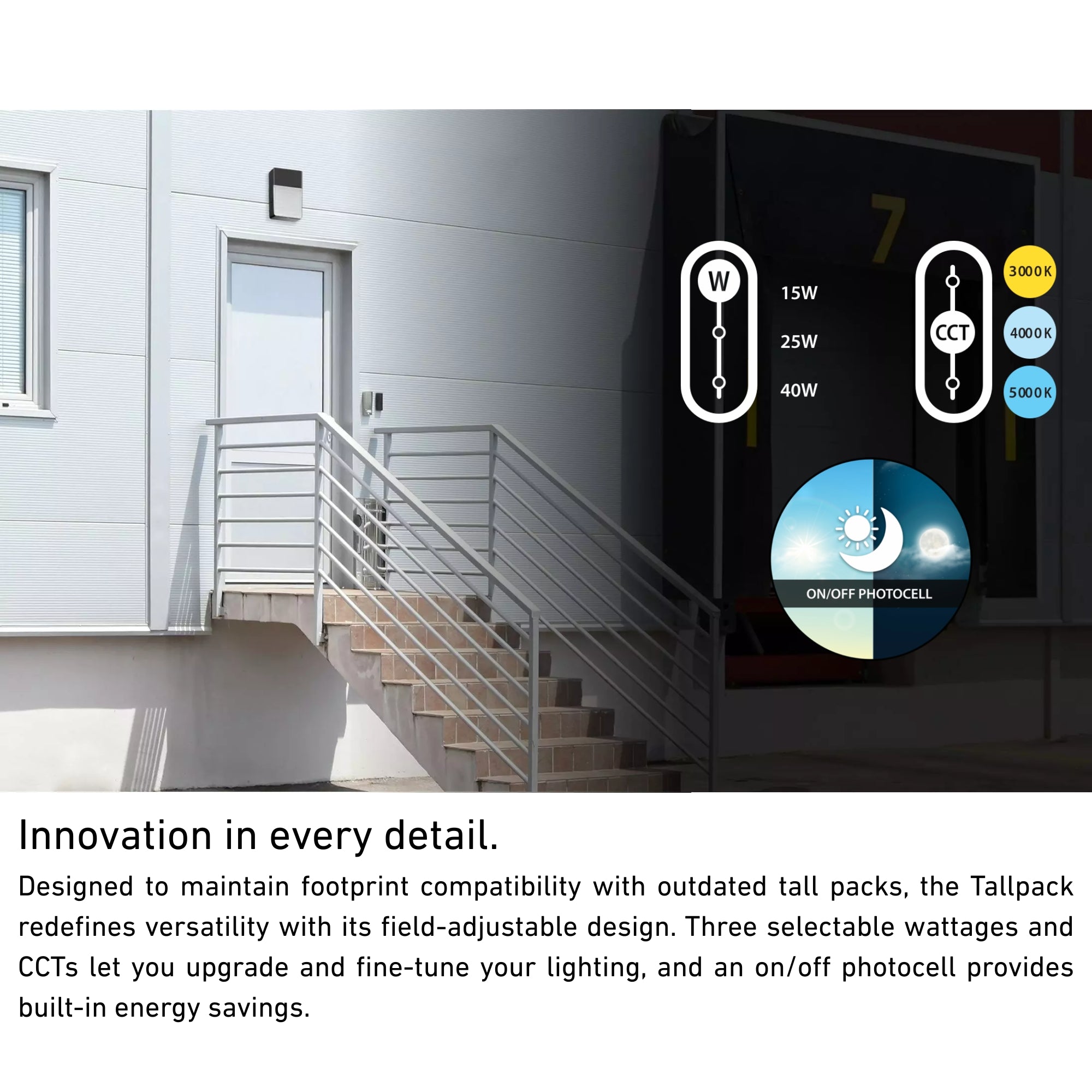

- Selectable Output: Field-adjustable 15W / 25W / 40W delivering up to 5,345 lumens to customize lighting needs for building perimeters and facades.
- Selectable CCT: Easily switch between warm 3000K, neutral 4000K, or daylight 5000K color temperatures directly on the fixture.
- Integrated Photocell: Comes factory-equipped with a built-in selectable on/off photocell for automated, hands-free dusk-to-dawn energy savings.
- Universal Voltage: Operates on a 120–277V constant current driver equipped with standard 0–10V dimming.
- Rugged Construction: Features a precision die-cast aluminum housing, polycarbonate lens, and a sealed IP65 wet location rating for durable outdoor performance.
We process payments securely and do not store credit card information.
Description
Description

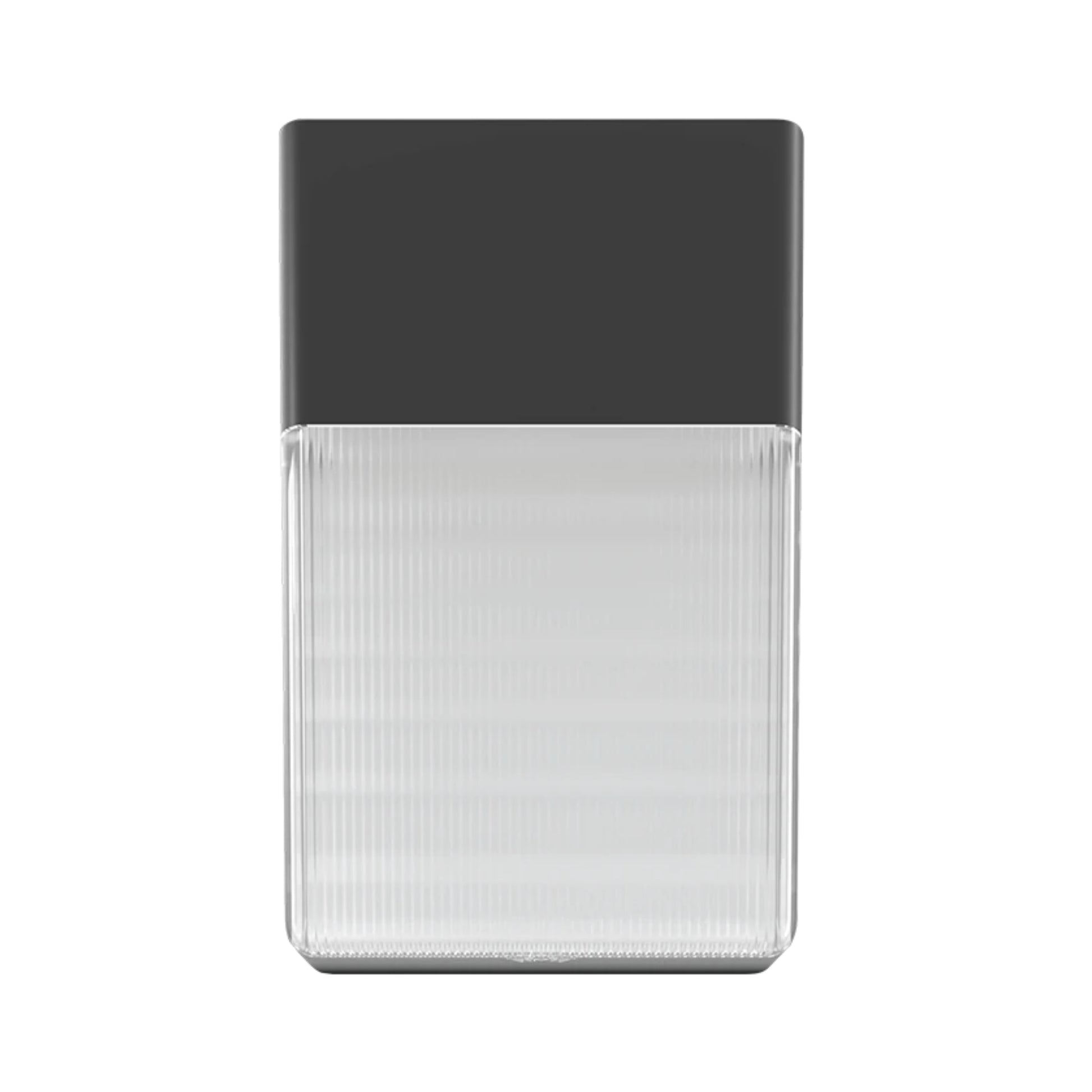

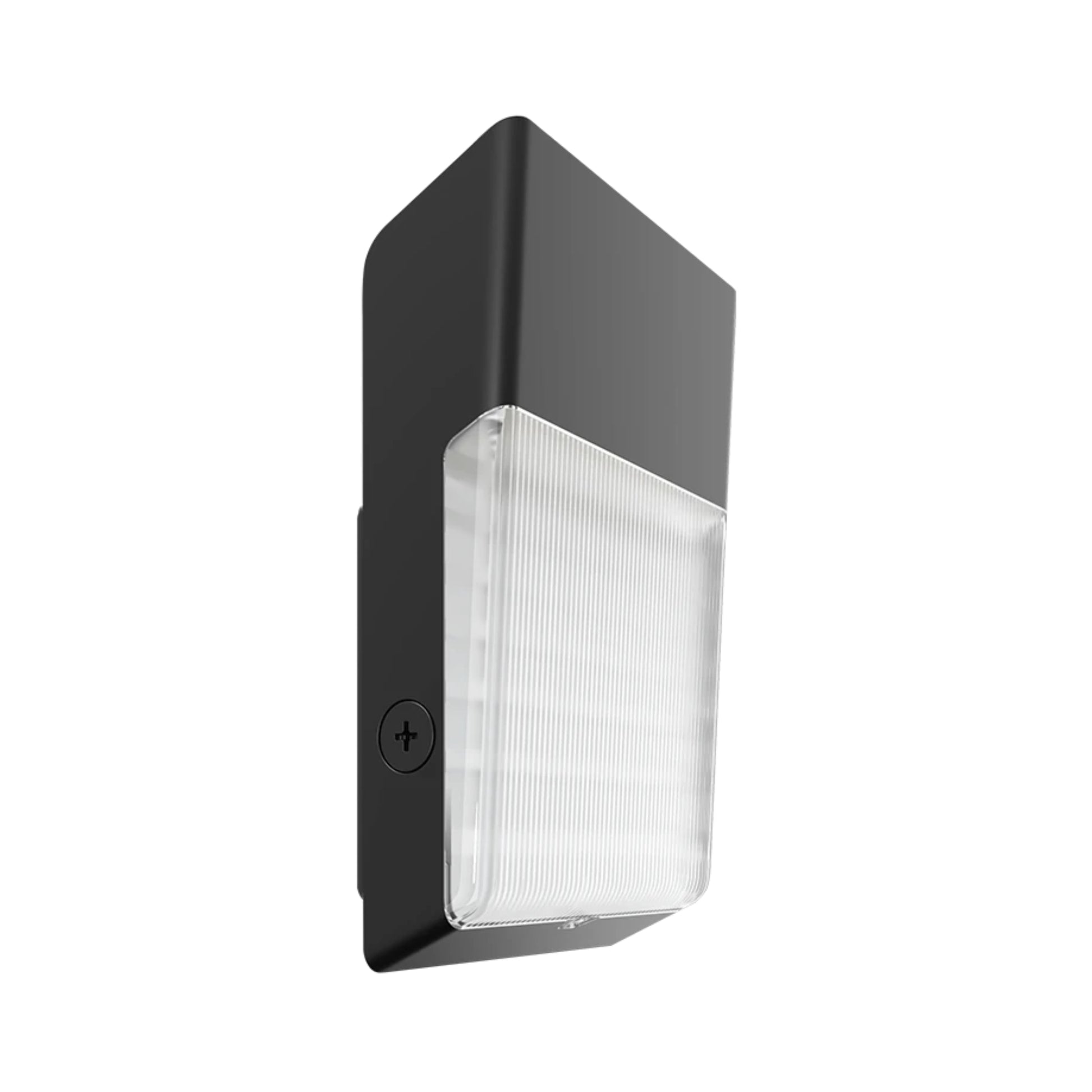

RAB WPT Field-Adjustable LED Tall Wall Pack — 15/25/40W Selectable, 120–277V
The RAB WPT is a highly versatile LED tall wall pack delivering up to 5,345 lumens with field-selectable 15W/25W/40W output and adjustable 3000K/4000K/5000K color temperatures. Operating on a 120–277V universal driver, this luminaire comes standard with an integrated selectable on/off photocell for automated dusk-to-dawn operation. Built with an IP65 Wet Location rating and DLC Premium listing, it provides an ultra-durable, adaptable lighting solution that perfectly covers the footprint of most traditional HID tall packs.
Key Features
- Selectable Wattage: 15W / 25W / 40W (40W default)
- Selectable CCT: 3000K / 4000K / 5000K (4000K default)
- Delivered Lumens: 2,162 to 5,345 lumens
- Voltage: 120–277V input
- Dimming: 0–10V dimming (dims down to 10%)
- Controls: Integrated selectable on/off photocell
- CRI: 83-84
- Environmental Ratings: IP65 Wet Location rated
- Certifications: UL Listed, DLC Premium Listed, Trade Agreements Act (TAA) Compliant
- Estimated Life: 100,000 hours (L70 / TM-21 calculations)
Typical Applications

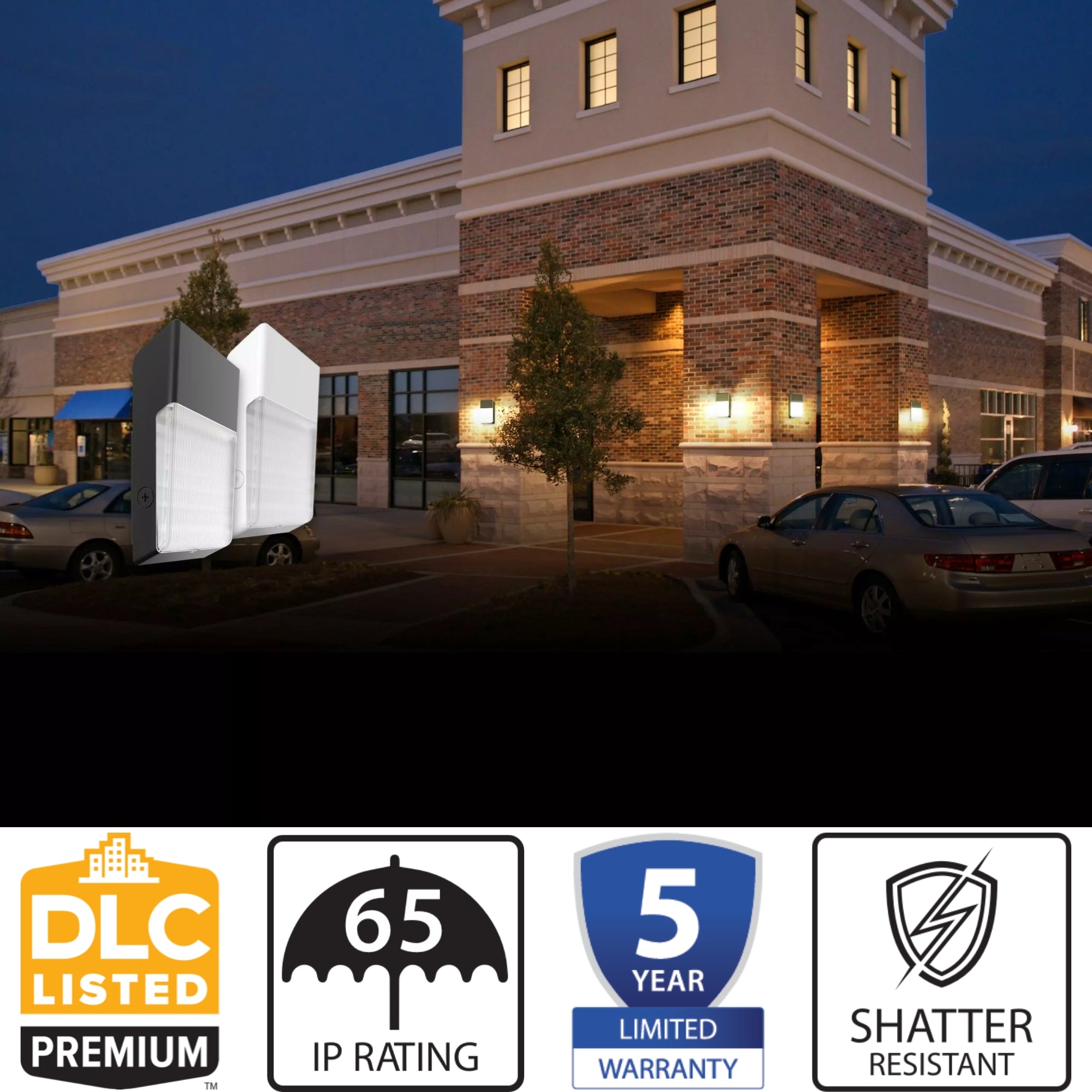

- Building perimeters and facades
- Security and pathway lighting
- Commercial and industrial exteriors
- Retrofit over existing HID tall pack footprints
Performance & Light Output
This tall wall pack provides highly scalable illumination ranging from 2,162 to 5,345 lumens depending on the selected wattage and color temperature, achieving an excellent efficacy of up to 146.1 lumens per watt. It features a durable polycarbonate lens that ensures smooth, uniform light distribution across building perimeters. The high-performance, surface-mount LEDs deliver consistent color with a CRI over 80 and maintain a highly prolonged rated life of 100,000 hours based on TM-21 calculations.
Electrical & Controls
This fixture operates on a constant current 120–277V AC driver with standard 0–10V dimming functionality (requires a separate 0-10V DC dimming circuit to operate, dims down to 10%). The robust electrical components are securely protected by built-in 4kV surge protection. To maximize energy savings out of the box, the WPT includes an integrated selectable on/off photocell, enabling hands-free dusk-to-dawn operation without the need for external timers.
Construction & Durability
Engineered for tough outdoor environments, the luminaire features a housing made from precision die-cast aluminum, finished in a high-durability, long-lasting bronze color. It carries a UL listing for wet locations and an IP65 rating, indicating complete protection against dust and water ingress. The fixture operates safely in extreme temperatures, starting as low as -40°C (-40°F) and handling ambient heat up to 40°C (104°F).
Installation & Mounting

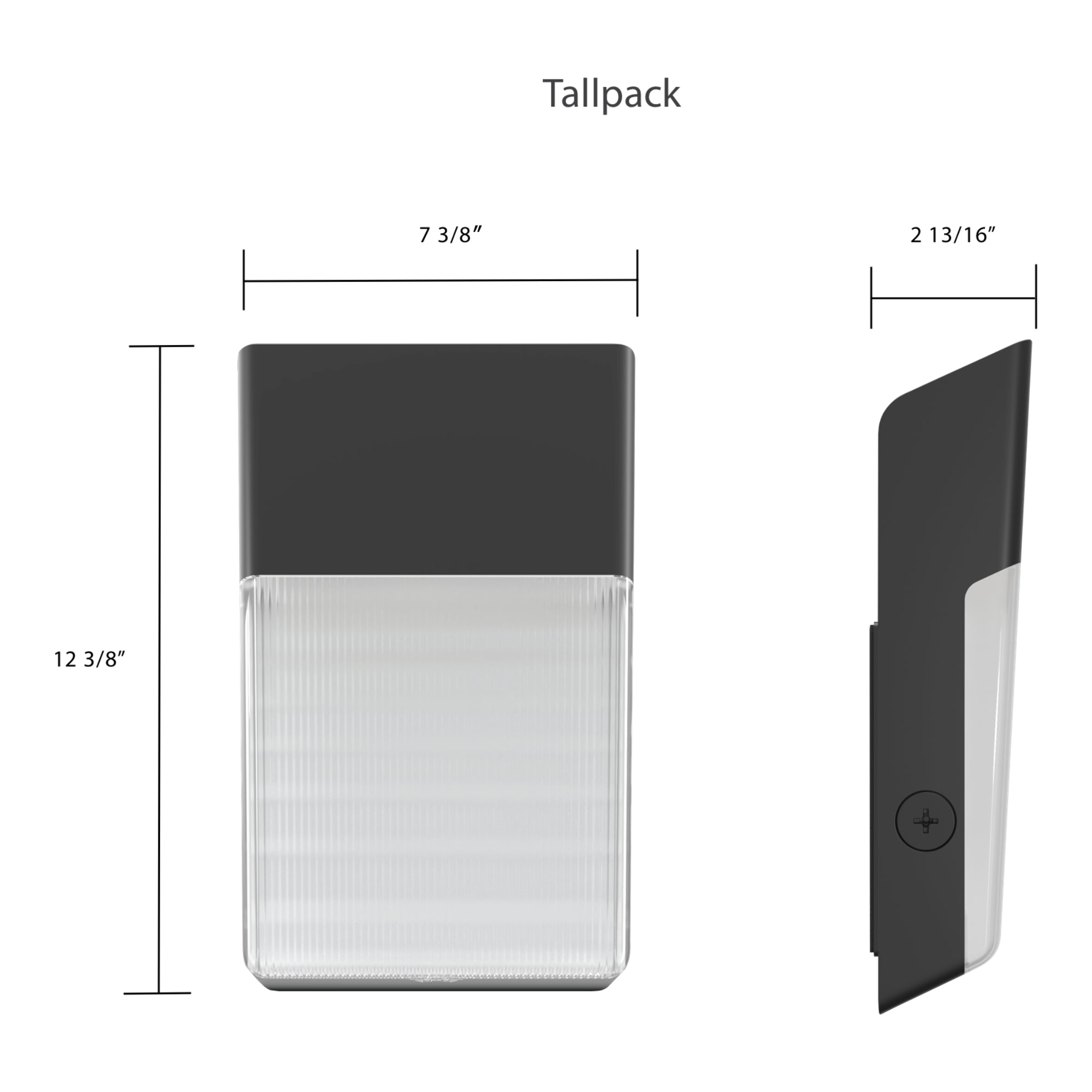

The WPT is designed for simple surface mounting and is specifically proportioned to cover the unsightly footprints left behind by traditional HID tall packs, minimizing the need for patching or repainting during retrofits.
What's Included
- RAB WPT LED Tall Wall Pack Fixture (Bronze)
- Integrated Photocell
Specifications
Specifications
Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Yes, the WPT comes standard with an integrated selectable on/off photocell, enabling hands-free dusk-to-dawn security lighting right out of the box.
Yes, the WPT comes standard with an integrated selectable on/off photocell, enabling hands-free dusk-to-dawn security lighting right out of the box.
Is the RAB WPT suitable for wet and harsh environments?
Is the RAB WPT suitable for wet and harsh environments?
Yes, it is UL Listed for wet locations and carries an IP65 rating, ensuring protection against dust and water ingress. The rugged precision die-cast aluminum housing and polycarbonate lens are built for extended outdoor durability.
Yes, it is UL Listed for wet locations and carries an IP65 rating, ensuring protection against dust and water ingress. The rugged precision die-cast aluminum housing and polycarbonate lens are built for extended outdoor durability.
Is this fixture good for retrofitting older lights?
Is this fixture good for retrofitting older lights?
Yes, it features a traditional tall pack design explicitly dimensioned to cover the footprints left behind by older HID wall packs, eliminating the need to repaint or patch the wall surface.
Yes, it features a traditional tall pack design explicitly dimensioned to cover the footprints left behind by older HID wall packs, eliminating the need to repaint or patch the wall surface.
