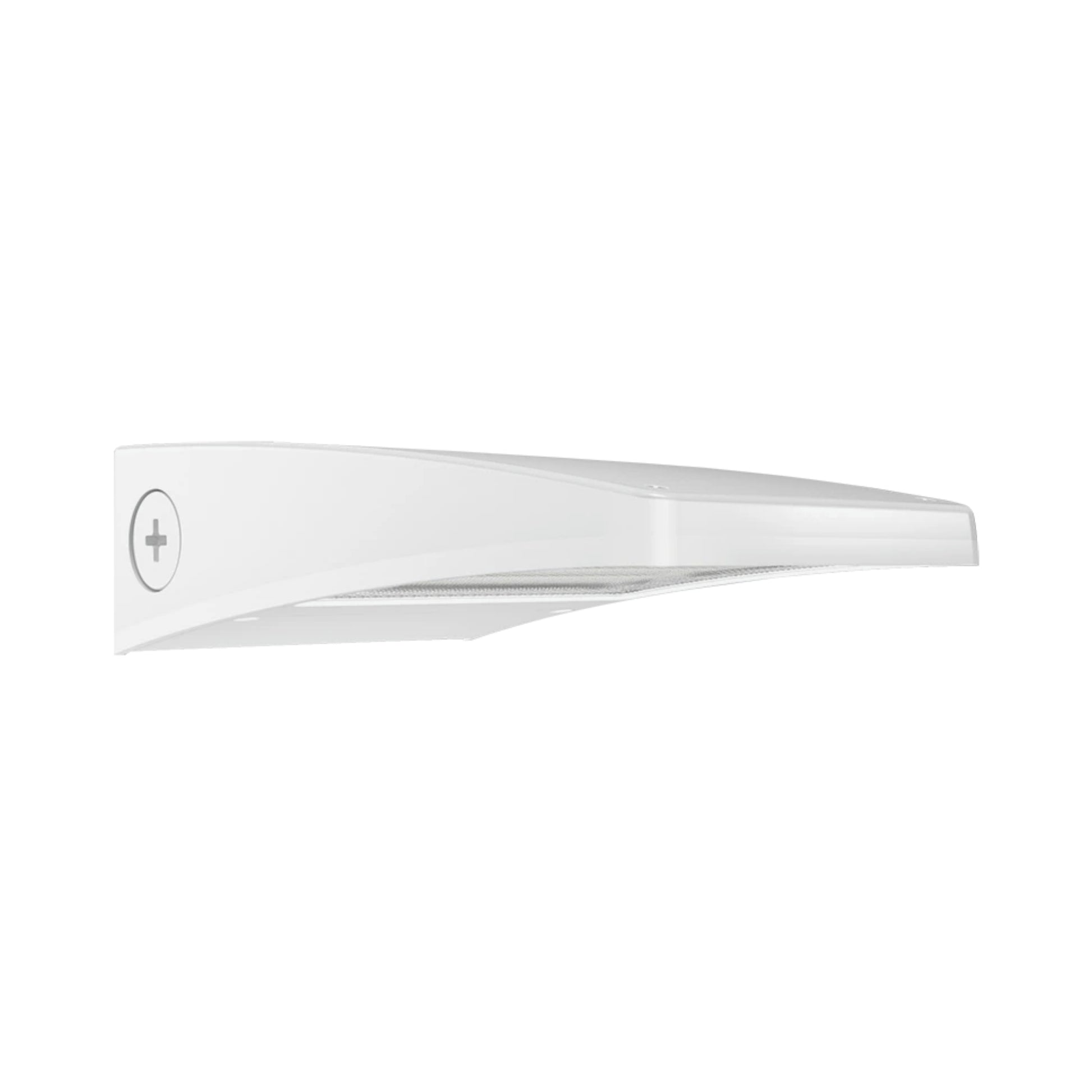

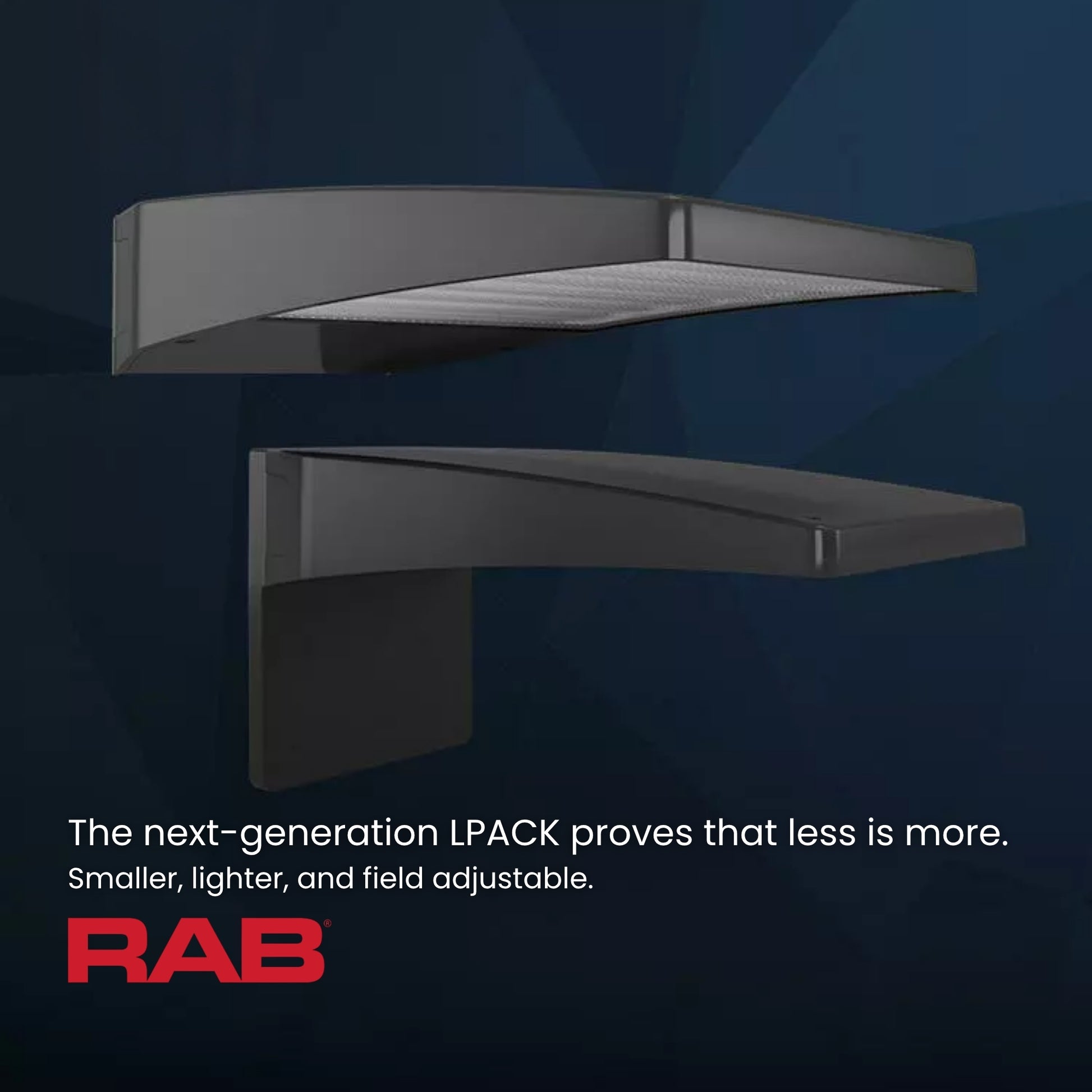

RAB LPACK Small Amber LED Wall Pack — 13/10/6W Selectable

The WPLEDSYAW is a compact, full cutoff LED wall pack designed to provide wildlife-friendly illumination for sensitive environments. Delivering up to 548 lumens, it features field-adjustable 13/10/6W power settings and operates efficiently on a universal 120-277V electrical input. Finished in a clean commercial white, this DarkSky Approved luminaire meets strict coastal zoning requirements and zero-uplight cutoff standards, making it an ideal choice for beachfront commercial buildings and nature reserves.

Key Features

• Cutoff Classification: Full cutoff, zero-uplight design approved by DarkSky International.

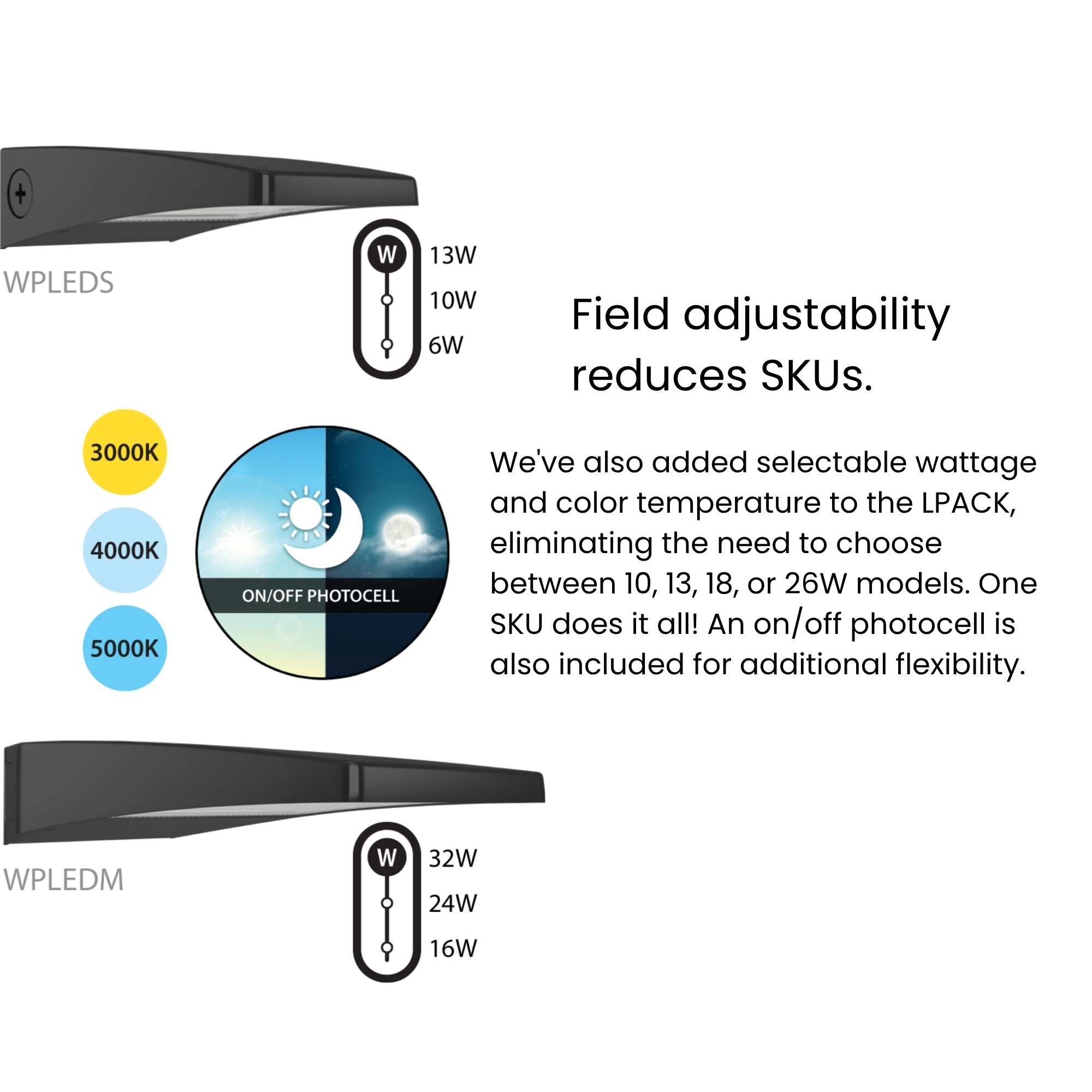

• Wattage Selectable: Field-adjustable between 13W, 10W, and 6W to strictly tailor energy consumption.
• Color Temperature: Produces a wildlife-friendly amber wavelength of 592nm.
• Voltage: Operates efficiently across a universal 120-277V electrical input range.
• Dimming: Includes a 0-10V dimming driver capable of smoothly dimming down to 10 percent.
• Photocell: Features an integrated dusk-to-dawn photocell with an easily accessible on/off switch.
• Surge Protection: Built-in 2kV line-to-line and 4kV line-to-ground surge protection.
• Lifespan: Rated for a 50,000-hour LED lifespan based on IES LM-80 results.
• BUG Rating: Achieves a B0 U0 G1 rating for precise downward light control.

Typical Applications

• Coastal properties and beachfront commercial buildings.
• Nature reserves and marine wildlife sanctuaries.
• Observatories and strict dark sky compliance zones.
• Commercial facility perimeters and walkways.
• Locations requiring LUNA-listed amber illumination.

Performance & Light Output

This precision-engineered fixture delivers up to 548 lumens with an efficacy of up to 55.7 LPW. It generates a specialized amber wavelength with a dominant 592nm peak, specifically designed to be ignored by sea turtles and nocturnal wildlife. The full cutoff design utilizes a high-reflection polycarbonate reflector and an acrylic lens to optimize downward light distribution, eliminating glare and sustaining superior output over a 50,000-hour rated lifespan.

Electrical & Controls

Powered by a robust constant current Class 2 driver, the unit operates seamlessly on a universal 120-277V electrical input. It comes standard with a 0-10V dimming interface that reliably dims down to 10 percent, maximizing energy savings during off-peak hours. The system includes an integrated 120-277V photocell for automated dusk-to-dawn operation, while built-in 4kV surge protection safeguards internal components from job site power spikes.

Construction & Durability

The compact housing is constructed from rugged die-cast aluminum finished in a crisp commercial white formulated for long-lasting color. Tightly sealed against the elements, the fixture is UL Listed for wet locations when used in downlight applications. It reliably operates in extreme ambient temperatures ranging from -40°F up to 104°F without performance degradation.

Installation & Mounting

Designed for straightforward surface wall mounting, the fixture provides a secure and stable attachment to commercial building exteriors. It includes an integrated junction box and an optional wall plate to simplify the mounting process and accommodate various electrical routing requirements.

What's Included

• Small Amber LED Wall Pack (White Finish)
• Integrated Selectable Photocell
• Mounting Wall Plate
