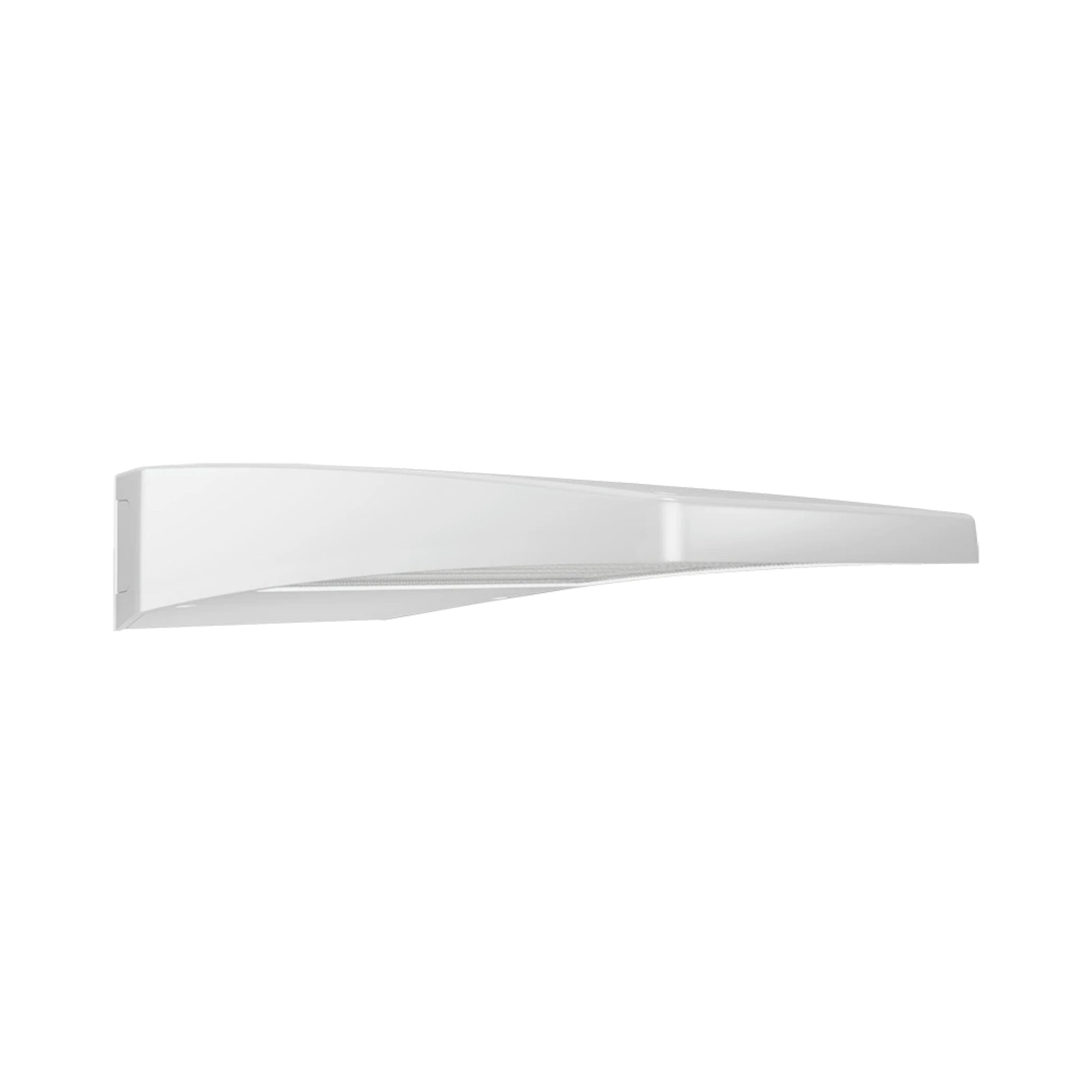

RAB WPLEDMYAW LPACK Field-Adjustable Full Cutoff Wall Pack — 32W — Amber (592 nm) — White
Out of stock
About this item
About this item
- Selectable Amber Output: Field-adjustable 32W, 24W, and 16W power settings (factory default 16W) deliver up to 1,005 lumens at up to 48.6 lm/W.
- Zero-Uplight DarkSky Optics: Full cutoff downlight distribution (B0-U0-G1) with an acrylic lens, high-reflection polycarbonate reflector, integrated junction box, and included wall plate.
- 592 nm Amber Wavelength: Monochromatic amber LED spectrum with a dominant 592 nm wavelength and 16 nm FWHM for DarkSky and ecologically sensitive outdoor zones.
- Photocell & Dimming: Integrated on/off photocell, 120-277V Class 2 driver, and 0-10V dimming down to 10%.
- Rebates & Ingress: DarkSky Approved and DLC LUNA V2.0 listed, UL Wet Location rated for downlight application, with 2kV (L-L) / 4kV (L/N-G) surge protection.
Description
Description
RAB WPLEDMYAW LPACK Field-Adjustable Full Cutoff LED Wall Pack - 32W/24W/16W Selectable - Amber (592 nm) - White
The RAB WPLEDMYAW LPACK is a commercial full cutoff LED wall pack and the field-adjustable wall pack with amber wavelength and selectable on/off photocell engineered to deliver up to 1,005 lumens across field-adjustable 32W, 24W, and 16W power settings (factory default 16W) at a narrow-spectrum 592 nm dominant amber wavelength (16 nm FWHM). Operating on 120-277V electrical systems with 0-10V dimming down to 10%, it is both DarkSky Approved (DarkSky International Approved Commercial & Pedestrian Comfort Luminaire) and DLC LUNA V2.0 listed for dark-sky and wildlife-sensitive ordinances. Built with a corrosion-resistant aluminum body, this UL wet-location downlight luminaire features a 0° zero-uplight full cutoff profile (B0-U0-G1), an integrated junction box with an included wall plate, and includes an acrylic lens, high-reflection polycarbonate reflector, an integrated selectable on/off photocell, and 2kV/4kV surge protection.
Key Features

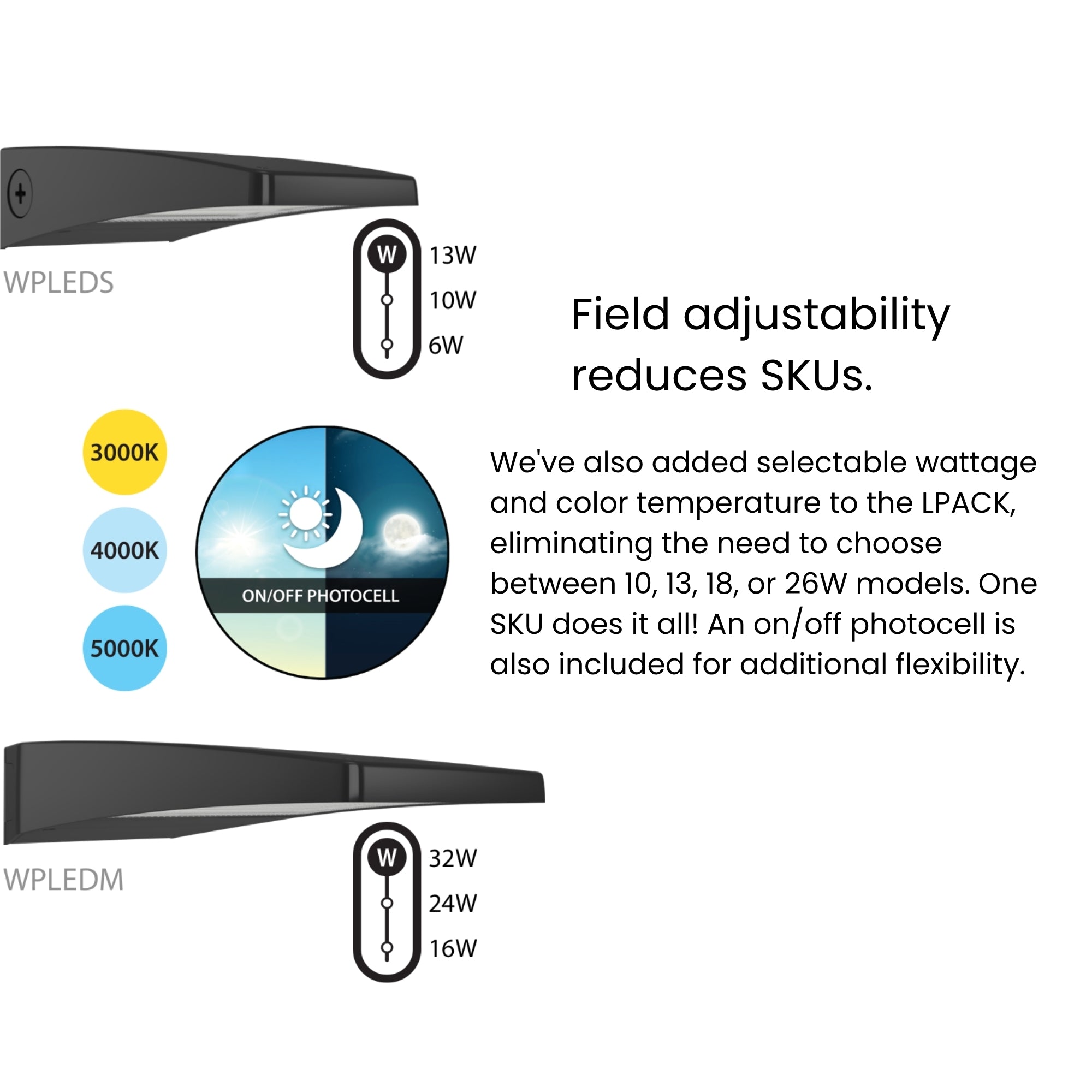

- Selectable Wattage: 32W / 24W / 16W field-adjustable (Factory default 16W)
- Wavelength & Spectrum: Monochromatic Amber with 592 nm dominant wavelength and 16 nm FWHM
- Maximum Lumen Output: Up to 1,005 lm
- Peak Efficacy: Up to 48.6 lm/W
- BUG Rating: B0-U0-G1 (across 32W, 24W, and 16W)
- Color Consistency: 7-step MacAdam Ellipse binning
- Lens & Optics: Full cutoff downlight distribution with acrylic lens and high-reflection polycarbonate reflector
- Photocell & Controls: Integrated selectable on/off photocell
- Dimming: 0-10V continuous dimming down to 10%
- Voltage & Surge Protection: 120-277V AC, 50/60Hz; L-L 2kV, L/N-G 4kV surge protection
- Mounting & J-Box: Integrated junction box with optional wall plate included in the carton
- Location & Body Rating: UL Listed for wet locations (downlight application only); aluminum housing
- Operating Temperature: -40°F (-40°C) to 104°F (40°C)
- Certifications: DarkSky Approved (DarkSky International Approved Commercial & Pedestrian Comfort Luminaire), DLC LUNA V2.0, UL Listed, IESNA LM-79 & LM-80 tested, RoHS
- Rated Life & Warranty: L70 50,000 hours; 5-year no-compromise warranty covering light output, color stability, driver performance, paint finish, and labor - RAB
Performance & Light Output
| Nominal Wattage | Input Watts | Wavelength / Spectrum | Total Lumens | Efficacy | BUG Rating |
|---|---|---|---|---|---|
| 32W | 31.2W | Amber (592 nm dominant, 16 nm FWHM) | 1,005 lm | 32.2 lm/W | B0-U0-G1 |
| 24W | 23.6W | Amber (592 nm dominant, 16 nm FWHM) | 900 lm | 38.1 lm/W | B0-U0-G1 |
| 16W (Factory Default) | 15.3W | Amber (592 nm dominant, 16 nm FWHM) | 743 lm | 48.6 lm/W | B0-U0-G1 |
Engineered with long-life, high-efficacy surface-mount LEDs tuned to a 592 nm dominant amber wavelength (16 nm FWHM). Achieves a BUG Rating of B0-U0-G1 (across 32W, 24W, and 16W). Rated life 50,000 hours (L70) based on independent IESNA LM-79/LM-80 testing and TM-21 calculations.
Lens & Optics
Engineered with an optical-grade acrylic lens and a high-reflection polycarbonate reflector delivering a dedicated Full Cutoff zero-uplight (U0) downlight optical distribution. Approved by DarkSky International and listed under DLC LUNA V2.0 for amber luminaires, the shielded downlight geometry and 592 nm narrow-band amber spectrum eliminate skyglow, backlight, and blue-light emission in environmentally sensitive zones.
Smart & Control Features
Engineered for automated exterior operation and commercial lighting control integration:
- Dusk-to-Dawn Photocell (Integrated): Built-in photocell with an internal on/off selector switch allows automatic dusk-to-dawn operation or manual wall-switch and timeclock control.
- 0-10V Continuous Dimming: Class 2 driver includes dimming control wiring for commercial 0-10V dimming systems (requires separate 0-10V DC dimming circuit) and dims smoothly down to 10%.
Electrical
Powered by a Constant Current, Class 2 driver operating on 120-277V AC at 50/60Hz with a Power Factor of 99.1% at 120V (90.7% at 277V) at 32W, 99.5% at 120V (94.0% at 277V) at 24W, and 99.5% at 120V (90.7% at 277V) at 16W, alongside Total Harmonic Distortion (THD) of 7.0% at 120V (6.0% at 277V) at 32W, 5.3% at 120V (10.7% at 277V) at 24W, and 7.0% at 120V (11.9% at 277V) at 16W. Integrated L-L 2kV, L/N-G 4kV surge protection safeguards internal electronics against utility line transients. Includes pre-wired 0-10V dimming leads.
Operating current and amp draw across input voltages for branch circuit and breaker loading calculations:
| Wattage | 120V Current (A) | 208V Current (A) | 240V Current (A) | 277V Current (A) |
|---|---|---|---|---|
| 32W | 0.26A | 0.15A | 0.13A | 0.12A |
| 24W | 0.20A | 0.11A | 0.10A | 0.09A |
| 16W (Default) | 0.13A | 0.08A | 0.07A | 0.06A |
Construction

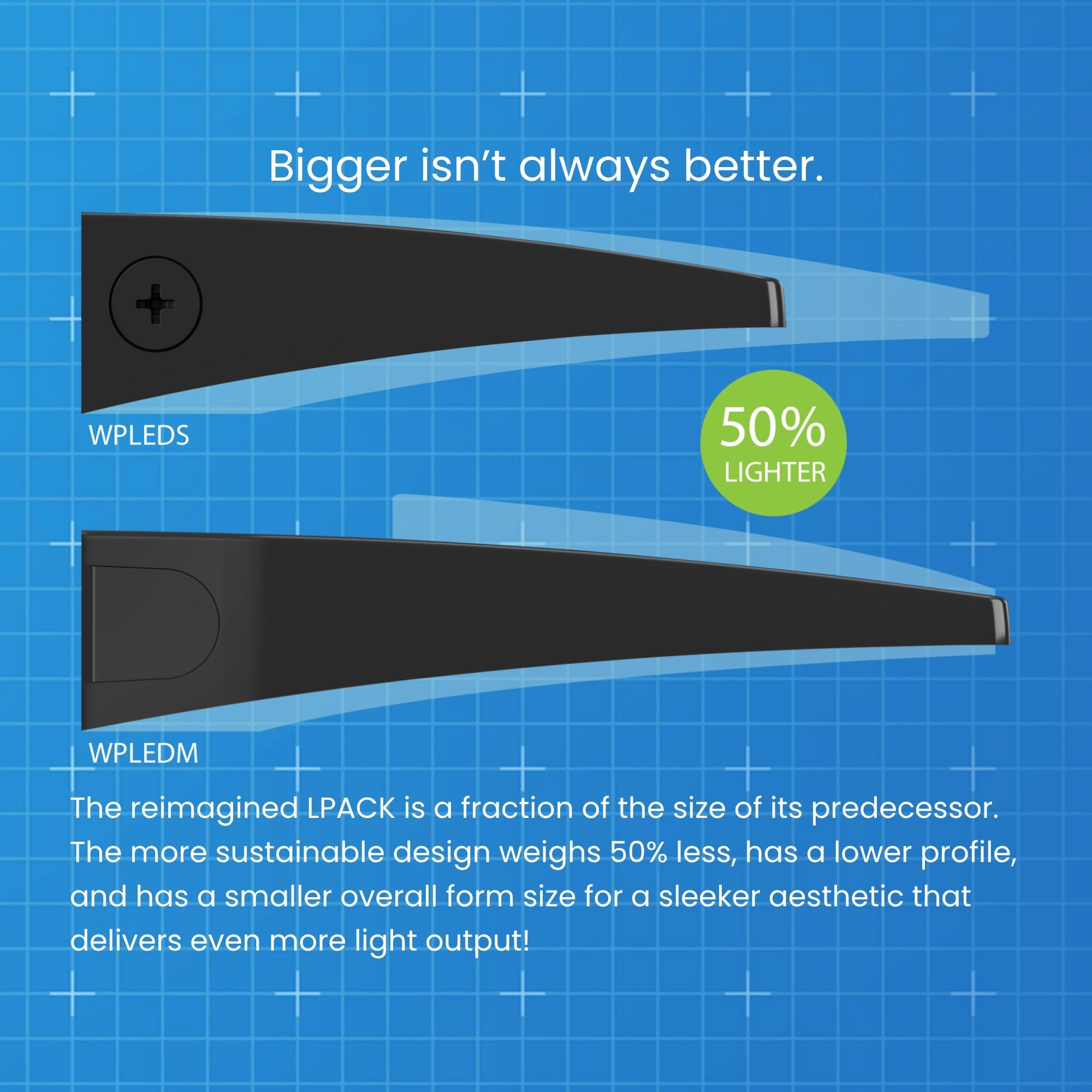

Housing & Thermal: Precision aluminum body with a slim 2 5/16" luminaire head profile engineered with passive convection thermal management to draw heat away from the surface-mount LED array and Class 2 driver.
Finish: Architectural white finish formulated for high durability, weather resistance, and long-lasting color retention.
Environmental Sealing: UL Listed for wet locations (downlight application only). Ambient operating temperature: -40°F (-40°C) to 104°F (40°C).

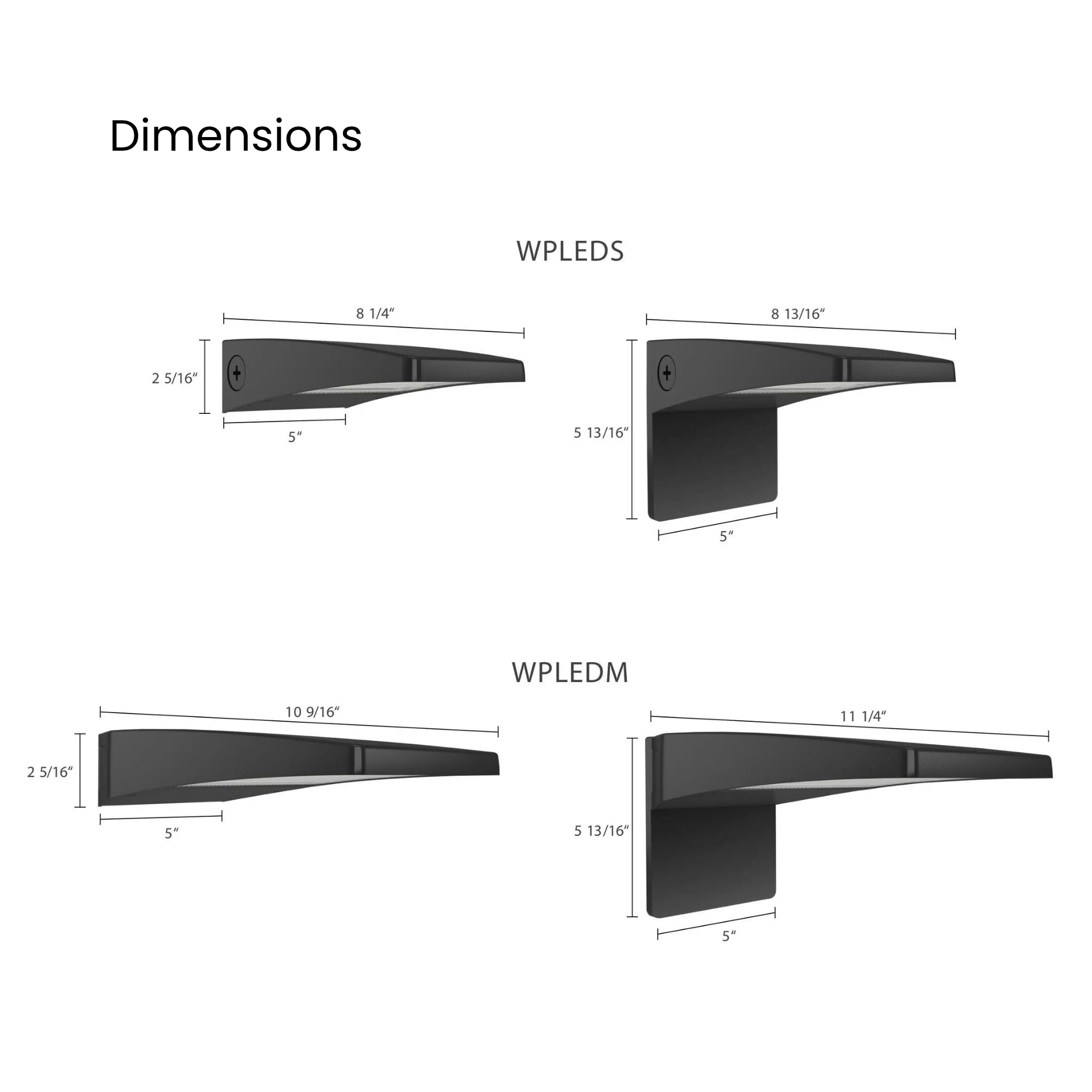

Dimensions & Weight: 6 1/4" W x 5 13/16" H x 11 1/4" D (2 5/16" luminaire housing height). Fixture weight: 3.35 lbs.
Installation & Mounting
Mounting Hardware: Ships complete with an integrated junction box and an included wall plate that mounts directly over standard recessed junction boxes or vertical wall surfaces while maintaining a true 0° zero-uplight cutoff plane.
Conduit & Wiring Access: Integrated junction box base provides threaded side and rear wiring entry access for surface conduit or concealed branch-circuit feeds.
Accessories (Sold Separately):
- ARM24M: 24" Mounting Arm in Bronze (Dark Sky & DLC LUNA Approved) (sold separately)
- ARM24SVM: 24" Swivel Arm in Bronze (sold separately)
- SWIVEL65M: 65° Swivel Arm in Bronze (UPC 192552044257) (sold separately)
- ARM24MW: 24" Mounting Arm in White (Dark Sky & DLC LUNA Approved) (sold separately)
- ARM24SVMW: 24" Swivel Arm in White (sold separately)
- SWIVEL65MW: 65° Swivel Arm in White (UPC 192552044264) (sold separately)
Certifications & Rebates
- DarkSky International Approved: Certified under the DarkSky International Approved Luminaires Program (DarkSky International Approved Commercial & Pedestrian Comfort Luminaire)
- DLC LUNA V2.0 Listed: Qualified on the DesignLights Consortium LUNA V2.0 list for amber outdoor luminaires
- UL Listed: Certified for wet locations (suitable for downlight application only)
- RoHS Compliant: Mercury and UV free with RoHS-compliant components
Typical Applications
- Dark-Sky & Ecological Preservation Zones - DarkSky International approval, DLC LUNA V2.0 listing, and U0 zero-uplight optics comply with strict municipal night-sky ordinances
- Parks, Nature Centers & Wildlife Corridors - Narrow-band 592 nm dominant amber wavelength (16 nm FWHM) eliminates disruptive short-wavelength blue light
- Commercial Building Perimeters & Walkways - Certified as both a DarkSky Commercial and Pedestrian Comfort Luminaire for low-glare walkway and doorway illumination
- Hospitality, Resorts & Campus Exteriors - Architectural white aluminum housing with integrated junction box and wall plate provides clean surface or J-box installation
-
Extended Arm Wall & Facade Mounting - Compatible with Dark Sky and LUNA approved 24" straight mounting arms (
ARM24M/ARM24MW, sold separately)
What's Included
- RAB WPLEDMYAW LPACK Field-Adjustable Full Cutoff Amber Wall Pack - White
- Integrated junction box and included wall mounting plate
- Pre-installed integrated dusk-to-dawn photocell with on/off switch
- Installation hardware and operation manual
