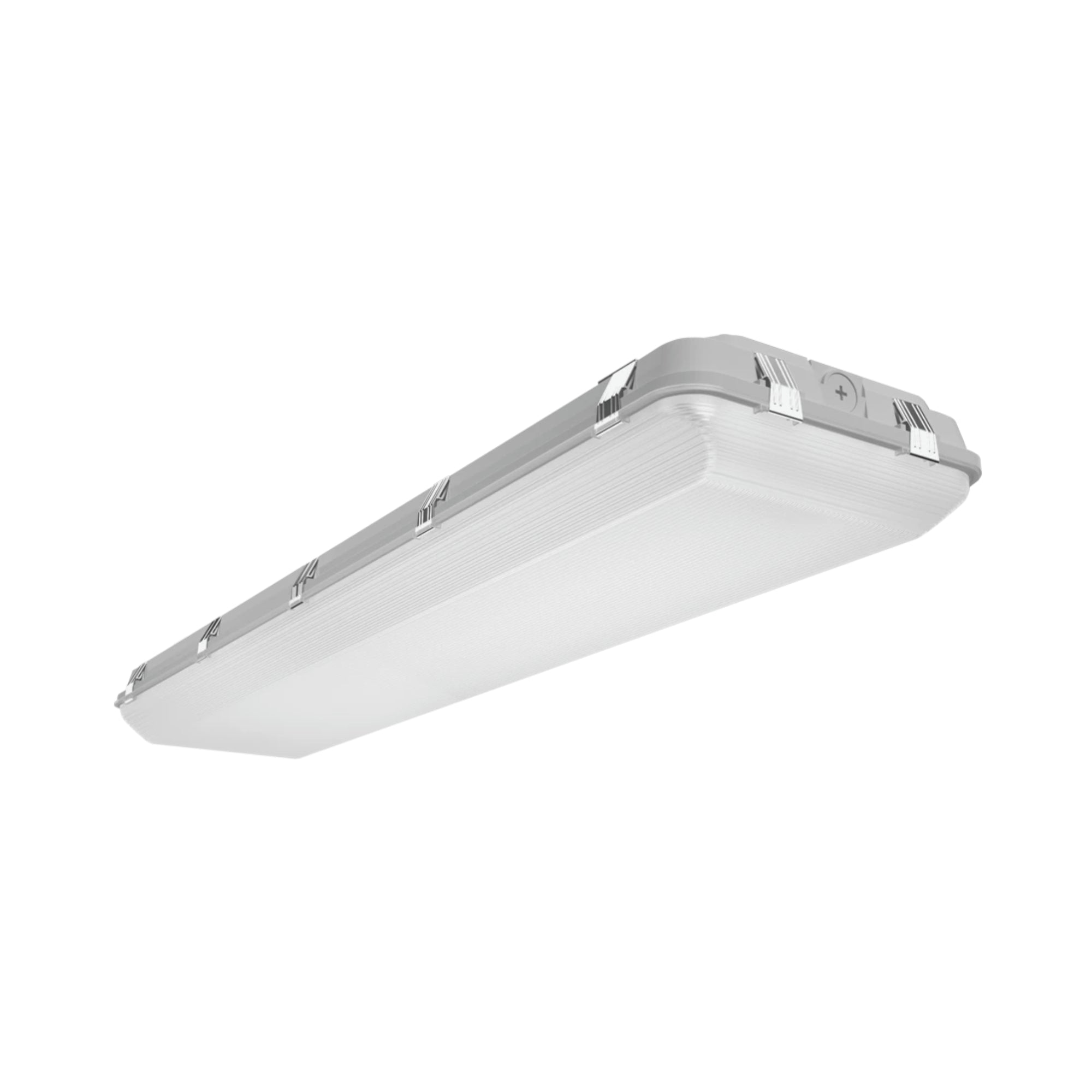

RAB WHALE4H Field-Adjustable, Linear Washdown Vapor Tight — 265/225/145W Selectable — 3500K/4000K/5000K — Gray

The RAB WHALE4H is a 4-foot high-output field-adjustable linear washdown vapor tight fixture delivering up to 38,081 lumens with field-selectable wattage (265W / 225W / 145W, factory default 265W) and field-selectable CCT (3500K / 4000K / 5000K, factory default 4000K) via onboard switches. The WHALE4H shares the same 4-foot footprint as the WHALE4 but delivers significantly higher lumen output — suitable for high-ceiling industrial and commercial facilities requiring premium light levels. Operating on 120–277V / 50–60Hz with 0–10V dimming to 10%, the WHALE4H is UL Listed for Wet Locations, IP67 rated, IK09 impact resistant, and NSF Certified. Surge protection: Ringwave LN4kV / LN-GND 6kV. Rated for 100,000 hours, backed by a 5-year RAB warranty. DLC Premium listed.

Key Features

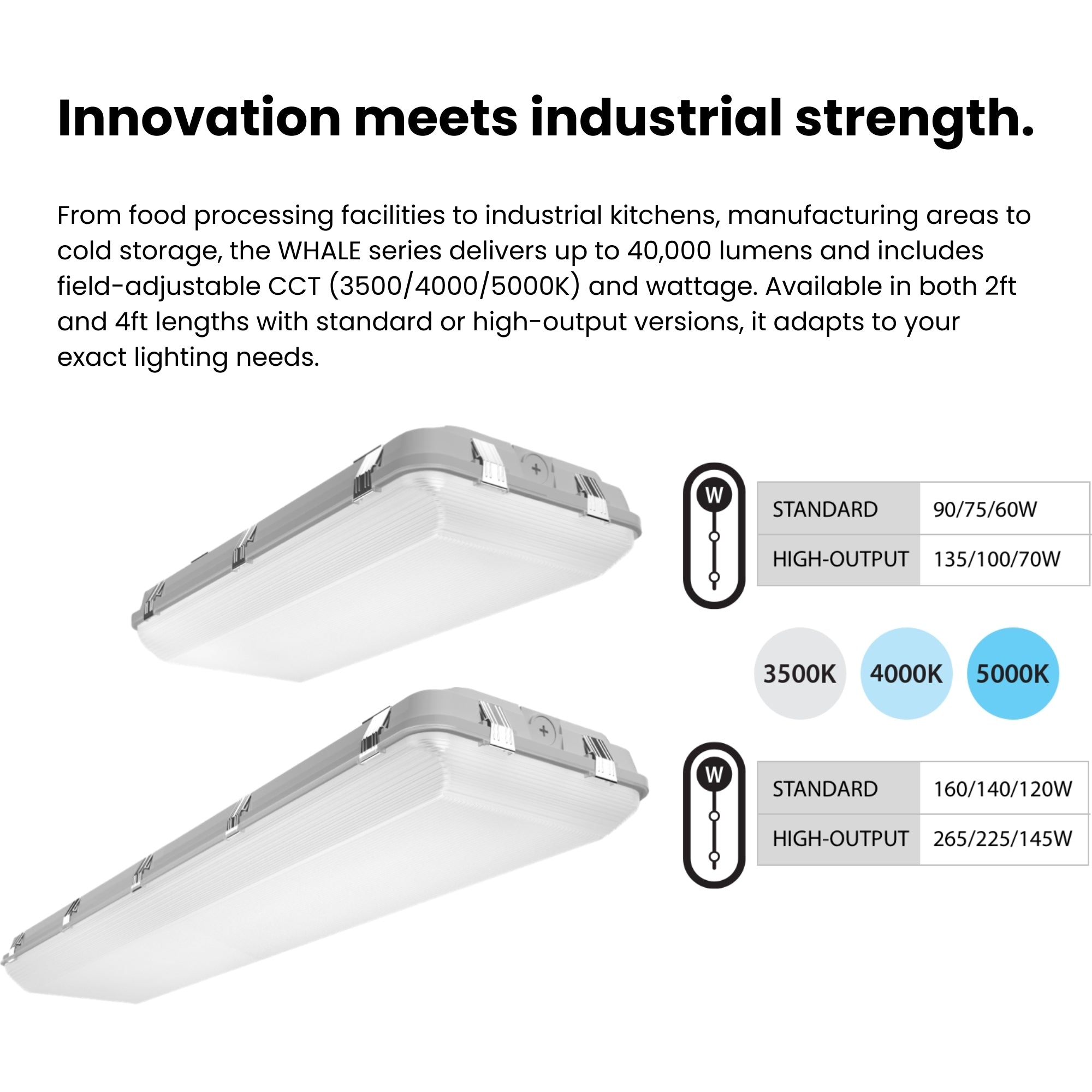

• Selectable Wattage: Field-adjustable 265W / 225W / 145W via onboard switch — factory default 265W. No tools or rewiring required.
• High Output in 4-Foot Format: Up to 38,081 lumens at 265W — significantly higher than the WHALE4 (24,462 lm max) in the same footprint.
• Maximum Lumen Output: Up to 38,081 lumens at 265W / 4000K.
• Peak Efficacy: Up to 163 lm/W at 265W / 4000K.
• CRI: 84–86 CRI (86 CRI at 4000K across all wattages).
• Selectable CCT: Field-adjustable 3500K / 4000K / 5000K via onboard switch — factory default 4000K.
• Lens & Optics: Polycarbonate lens for broad, even light distribution.
• Dimming Protocol: 0–10V continuous dimming to 10% — requires separate 0–10V DC dimming circuit.
• Voltage & Driver: 120–277V / 50–60Hz; Control circuit class 2; constant-current driver.
• Location Rating: UL Listed for Wet Locations · IP67 · IK09 · NSF Certified.
• Operating Temperature: Cold-start to −40°F (−40°C); maximum ambient +104°F (+40°C).
• Certifications: UL Listed (Wet) · IP67 · IK09 · NSF · IES LM-79 & LM-80 · DLC Premium · RoHS Compliant.
• Rated Life: 100,000 hours (L70) based on IES LM-80 and TM-21 calculations.
• Warranty: 5-year RAB limited warranty covering light output, driver performance, and paint finish.
• Surge Protection: Ringwave LN4kV / LN-GND 6kV.

Performance & Light Output

At 265W: 36,983 lm / 3500K · 38,081 lm / 4000K · 37,710 lm / 5000K. At 225W: 32,217 lm / 3500K · 33,135 lm / 4000K · 32,912 lm / 5000K. At 145W: 21,705 lm / 3500K · 21,860 lm / 4000K · 21,989 lm / 5000K. Peak efficacy: 163 lm/W at 265W / 4000K. THD: 4.8% at 120V / 9.8% at 277V (@ 4000K, 265W). PF: 99.9% at 120V / 97.0% at 277V. CRI: 84 at 3500K, 86 at 4000K, 85 at 5000K. Rated life: 100,000 hours (L70).

Smart & Control Features

Supports built-in 0–10V dimming. Optional suffix configurations:

• /PIR: Passive infrared — 40 ft. max height, 40 ft. detection diameter.
• /MVS: Microwave — 50 ft. max height, 50 ft. detection diameter.
• /LCBS: Lightcloud Blue PIR — Bluetooth Mesh, no hub required.
• /LCBS/MVS: Lightcloud Blue microwave sensor.
• /E: 90-minute battery backup — cold-start limit: 32°F (0°C); max ambient with backup: 140°F (60°C).

Sensor defaults: sensitivity High · triggered 100% · hold 20 min · standby dim 20% · standby time 1 min · vacant Off · daylight Disabled. Lightcloud Blue via mobile app; others via MSR1 Remote (sold separately).

Electrical

Control circuit class 2 · 120–277V / 50–60Hz · Surge: Ringwave LN4kV / LN-GND 6kV · 0–10V dimming to 10%.

Input current at 265W: 120V — 2.21A · 208V — 1.27A · 240V — 1.10A · 277V — 0.96A.
At 225W: 120V — 1.88A · 208V — 1.08A · 240V — 0.94A · 277V — 0.81A.
At 145W: 120V — 1.21A · 208V — 0.70A · 240V — 0.60A · 277V — 0.52A.

THD / PF at 265W / 4000K: 4.8% / 99.9% (120V) · 9.8% / 97.0% (277V). Mercury-free, RoHS compliant.

Construction

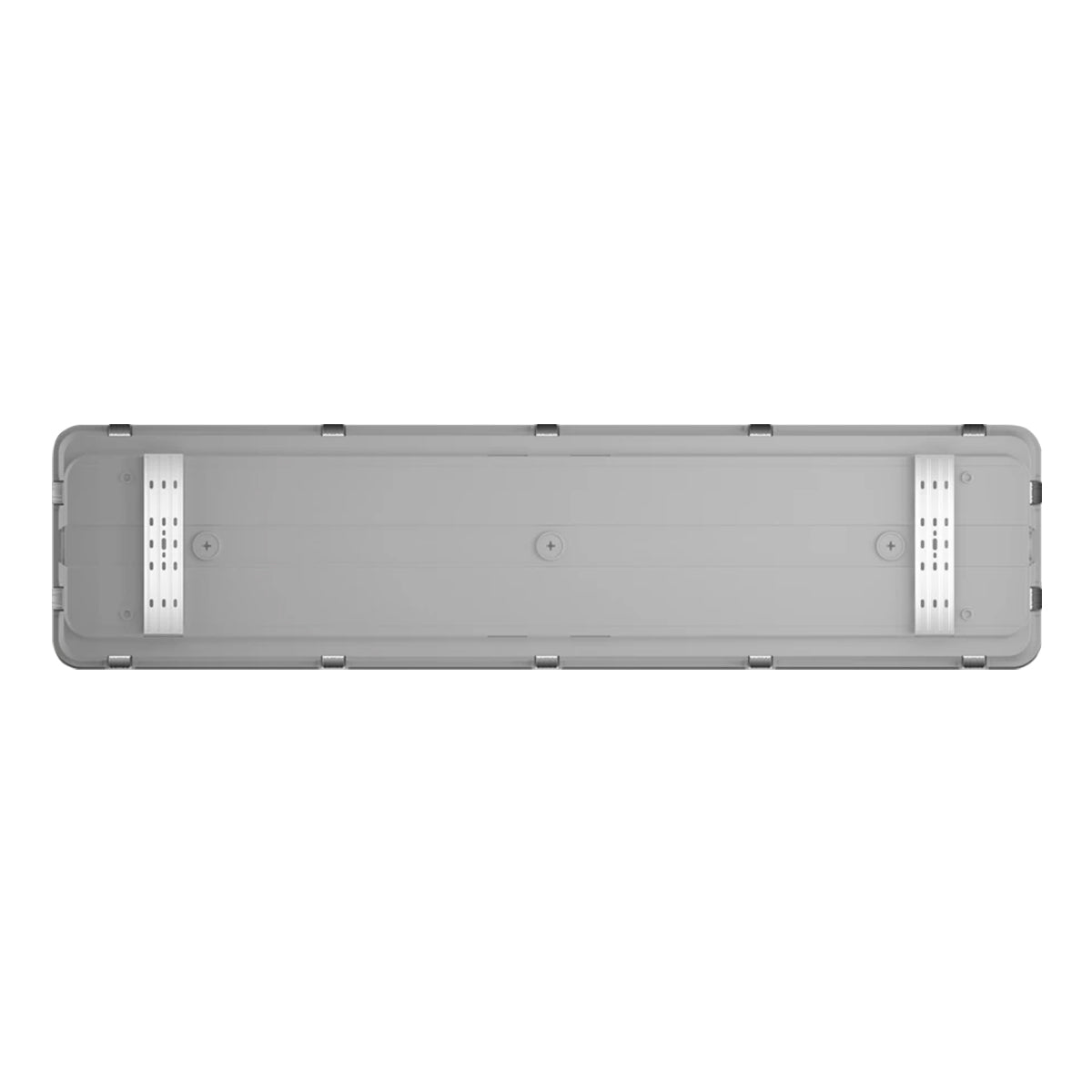

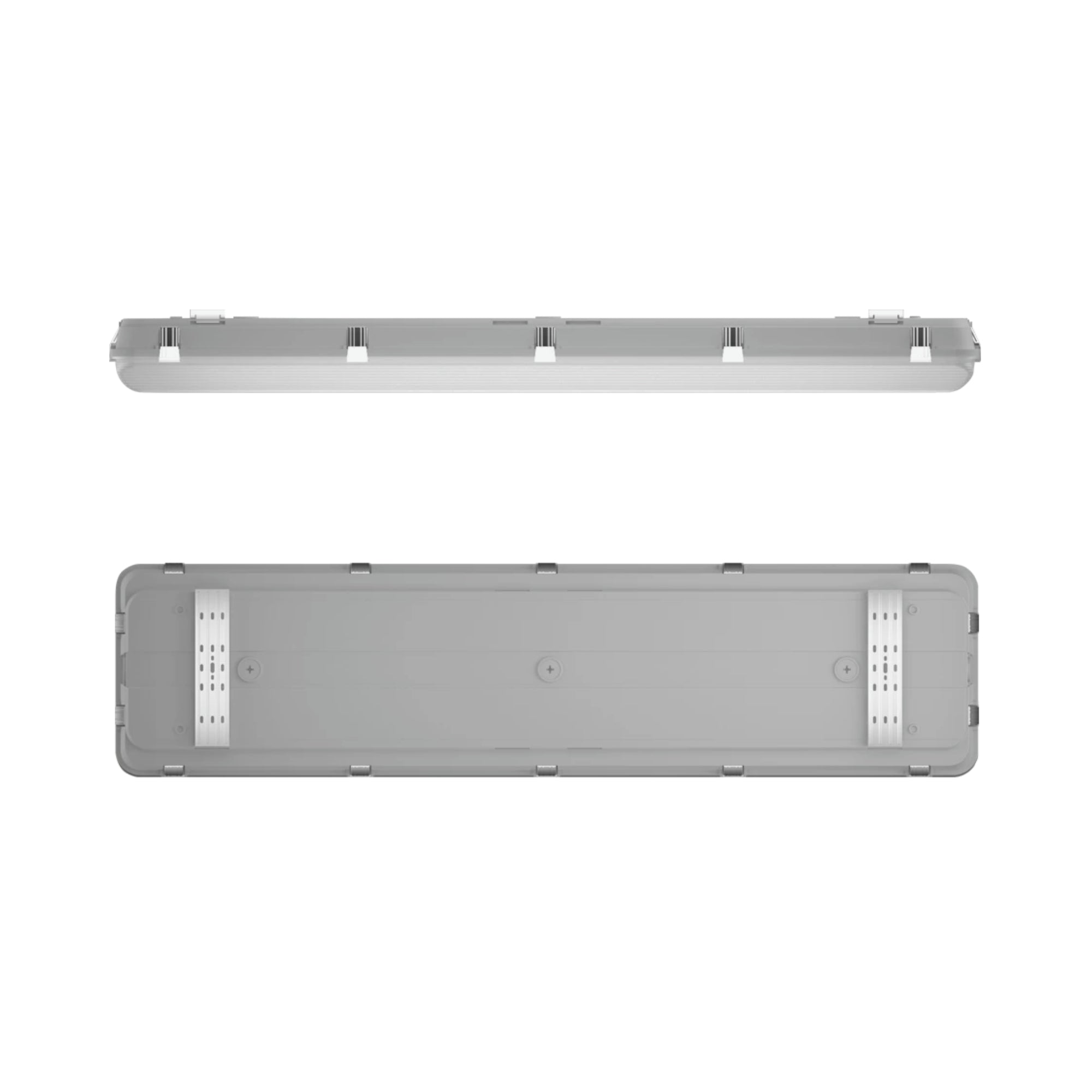

Housing: Polycarbonate with stainless steel surface-mount brackets and v-hooks.

Lens: Polycarbonate.

Gasket: Silicone.

Finish: Gray — formulated for high durability and long-lasting color.

Environmental: IP67 · IK09 · UL Listed Wet · NSF Certified · −40°F to +104°F. Mercury-free, UV-free.

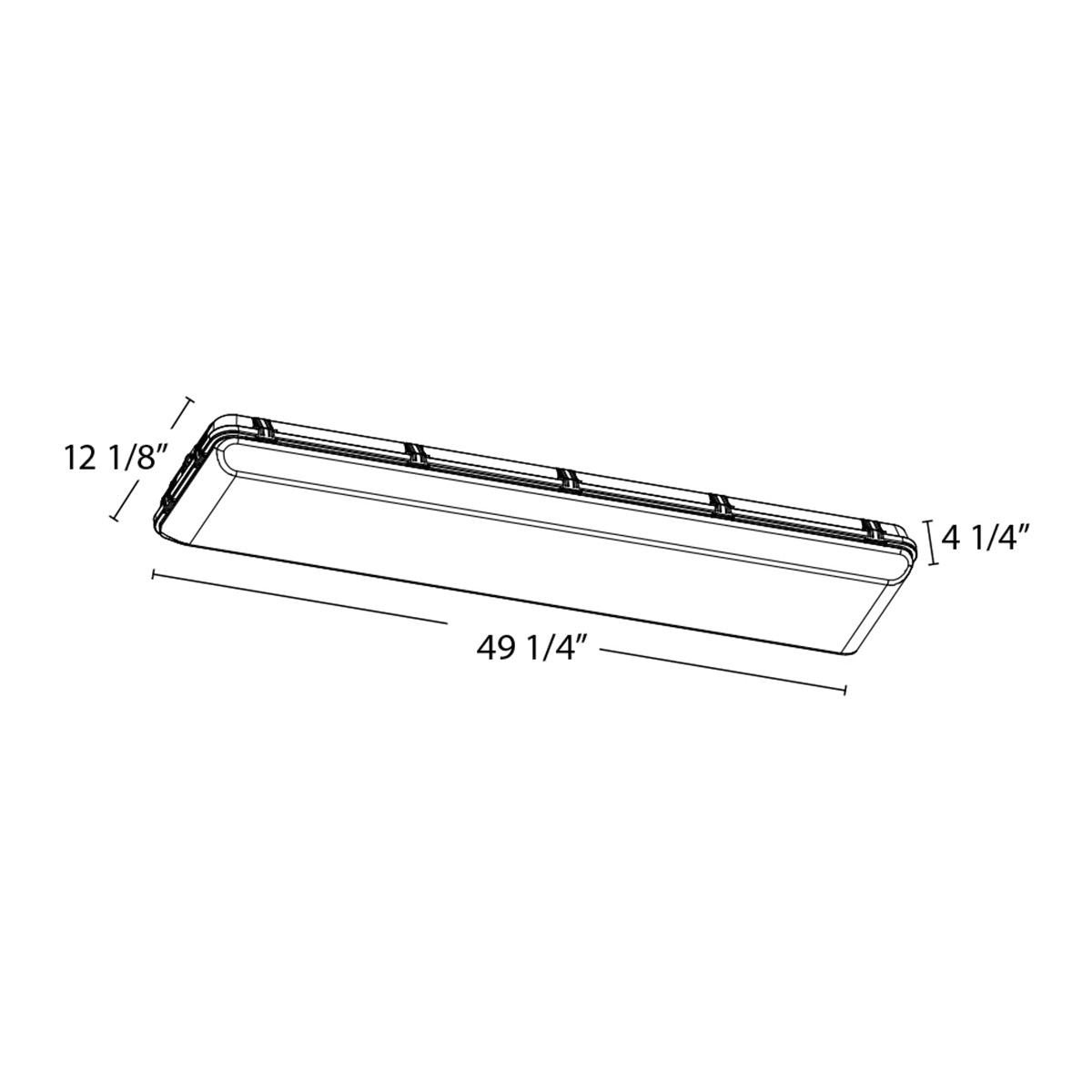

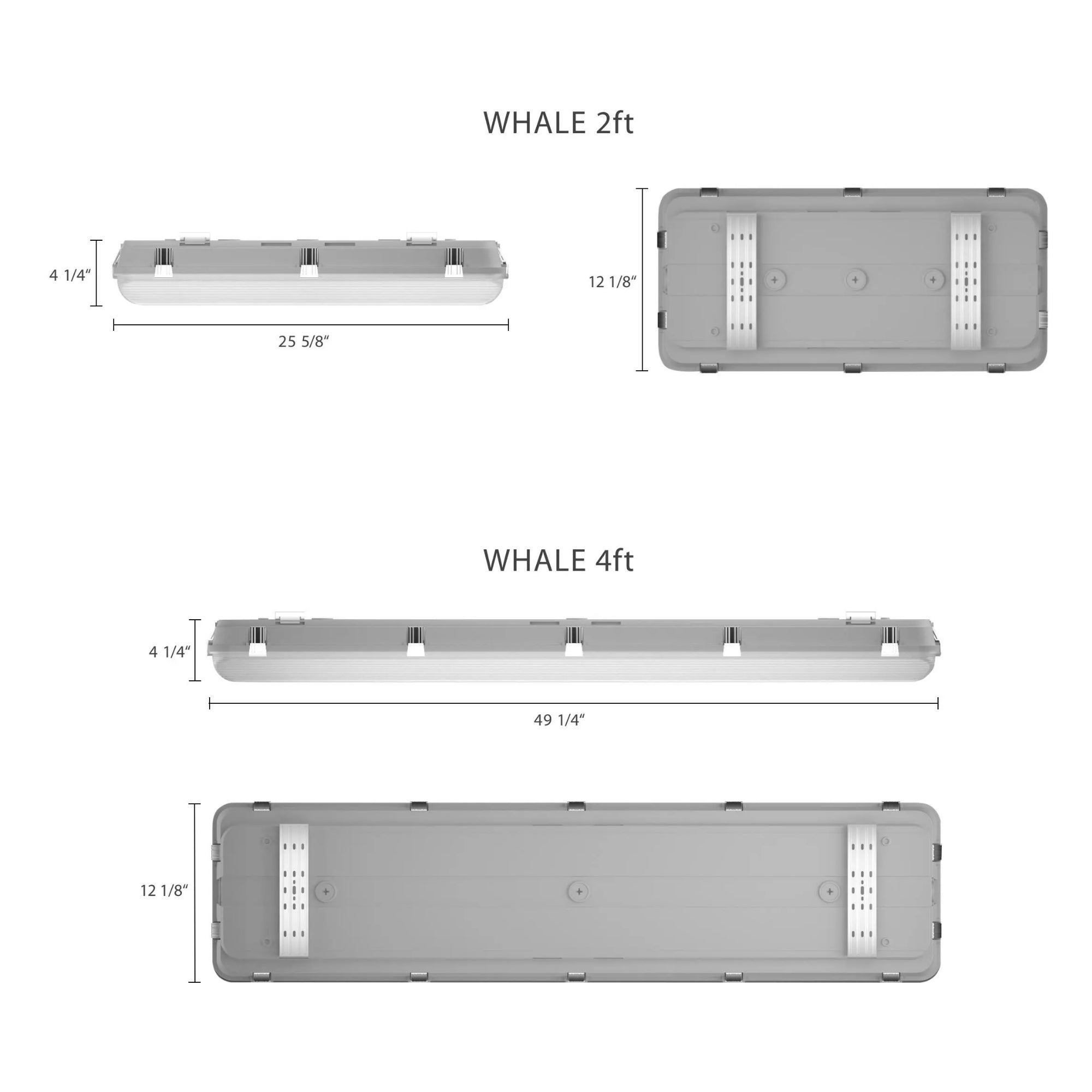

Dimensions & Weight: 49 1/4″ L × 12 1/8″ W × 4 1/4″ H (without sensor) · 51 3/8″ L × 12 1/8″ W (with sensor) · Weight: 23.37 lbs.

Installation & Mounting

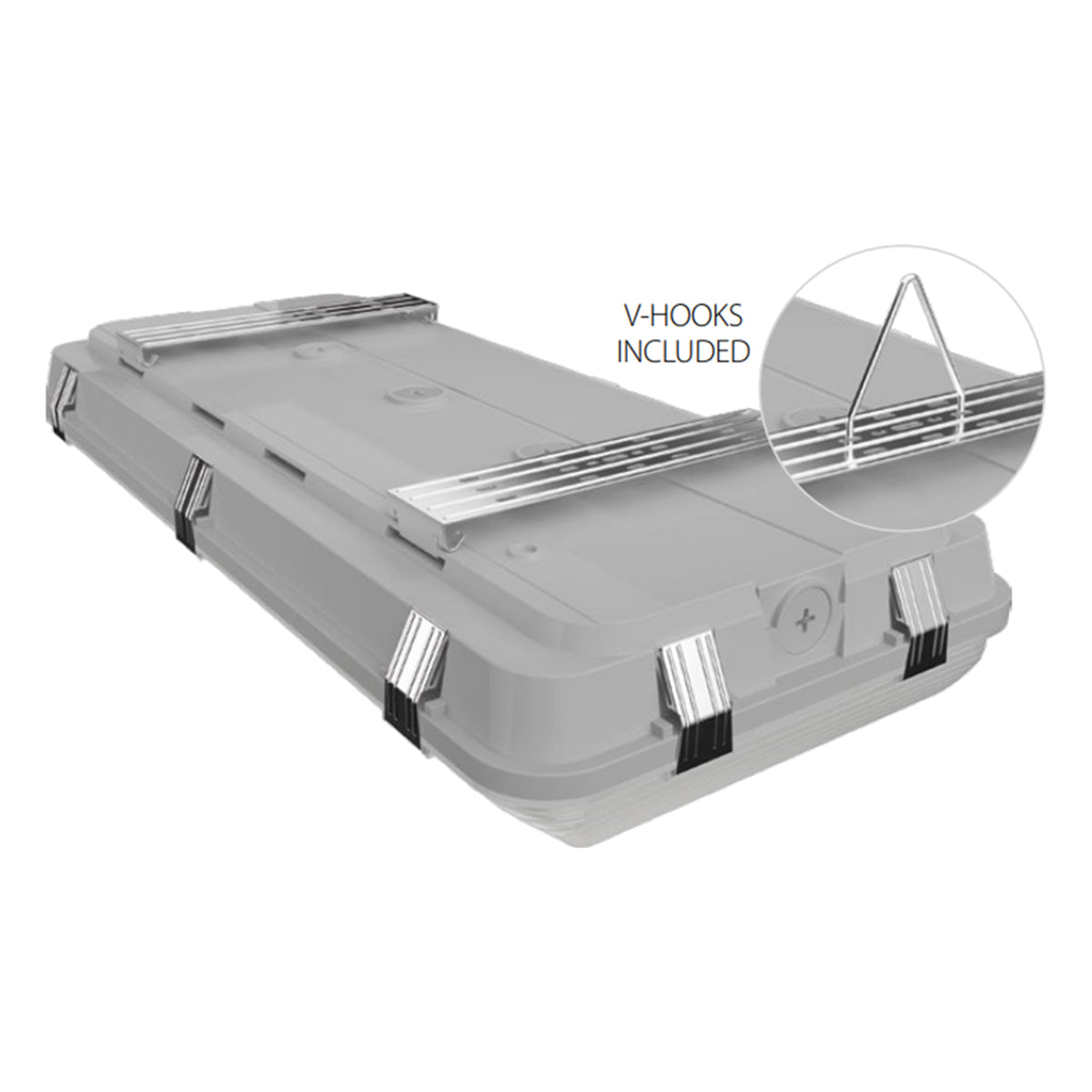

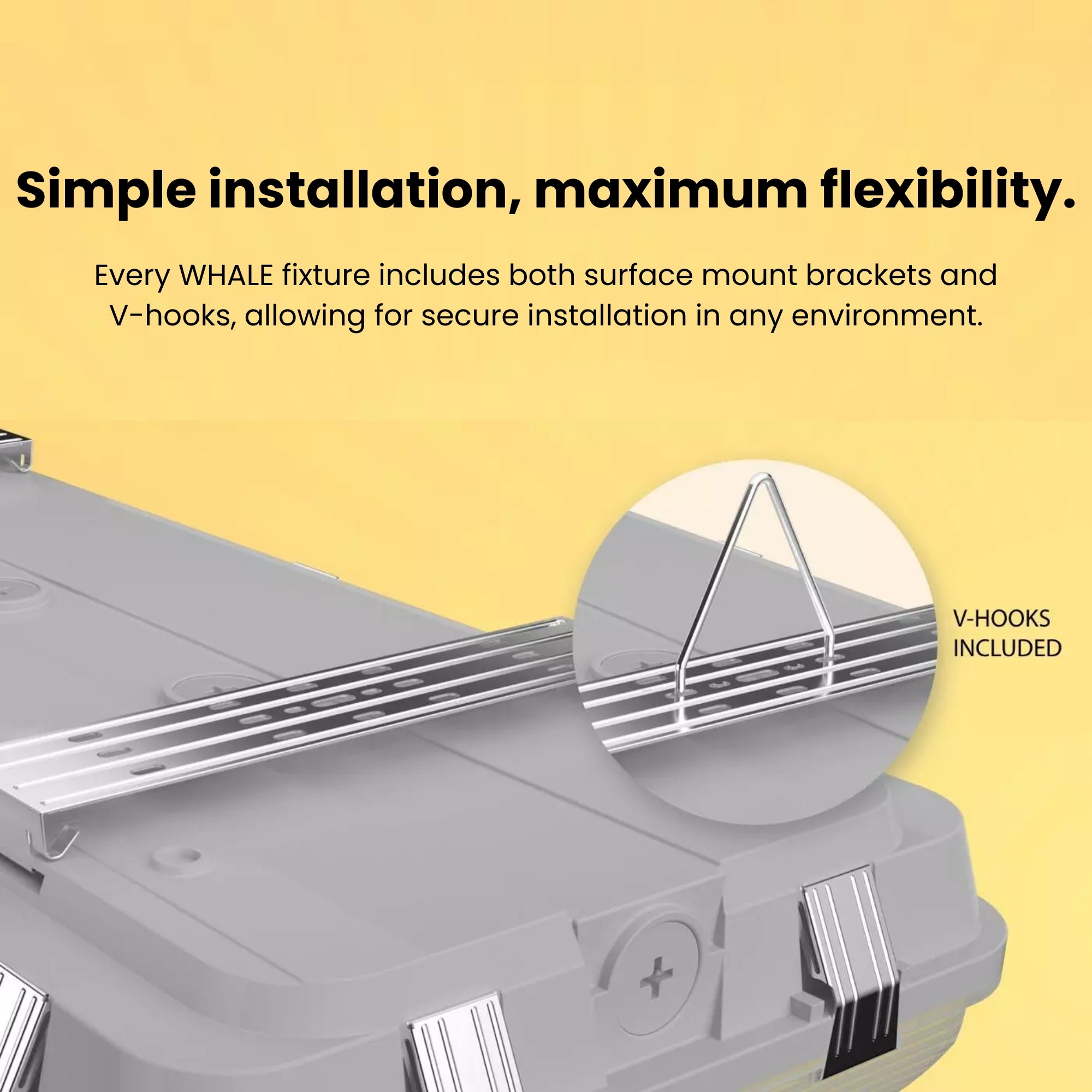

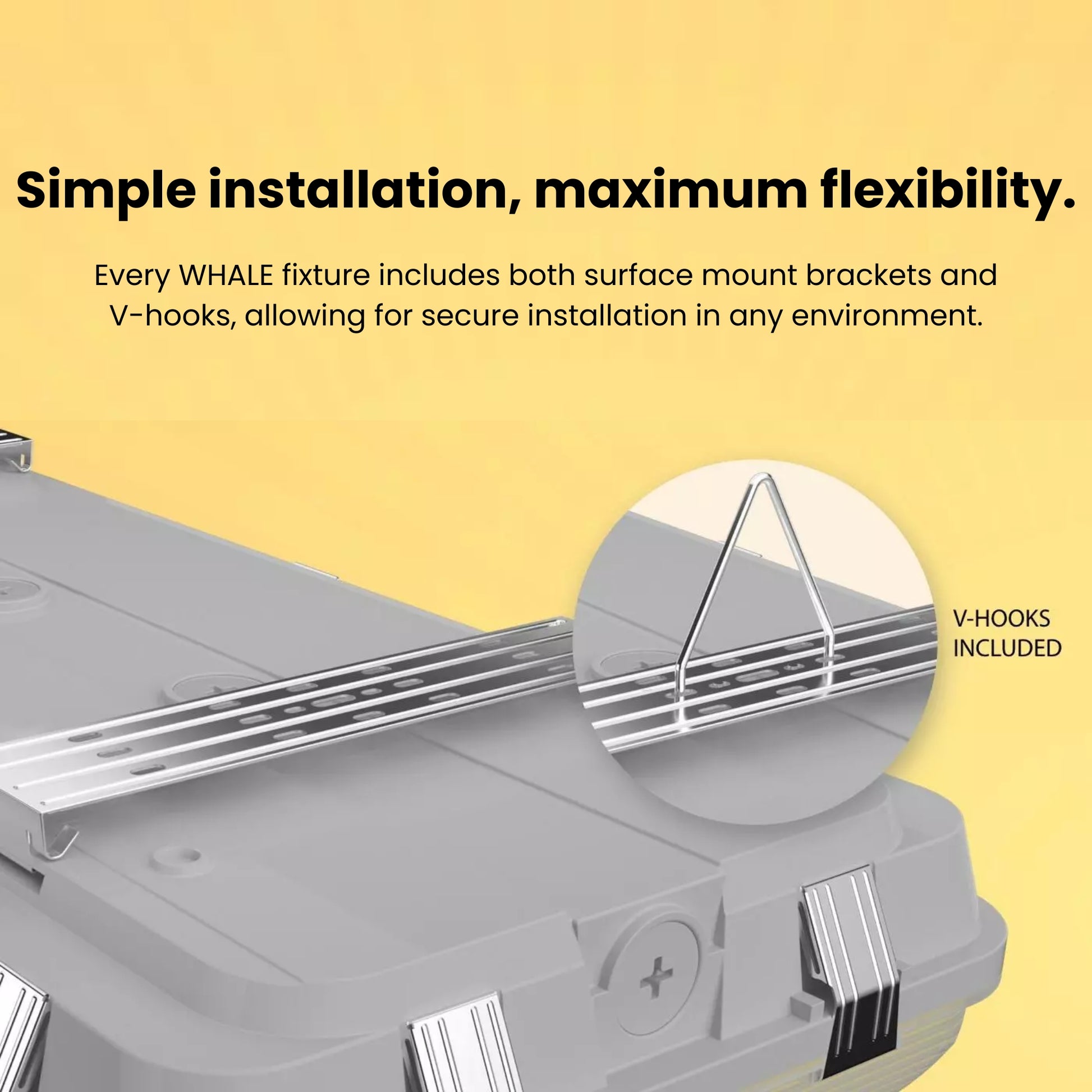

Stainless steel surface-mount brackets and v-hooks supplied. 0–10V dimming requires a separate 0–10V DC circuit. Battery backup (/E) activates automatically on power loss.

Accessories (sold separately):

• MSR1 — Multi-sensor remote control IP20 — required for non-Lightcloud sensor adjustments

Certifications & Rebates

• UL Listed: Wet Location.
• NSF Certified.
• IP67 · IK09.
• IESNA LM-79 & LM-80 tested.
• DLC Premium Listed: Stairwell/Passageway — S-3M6RH4 · High-bay Commercial & Industrial — S-LQ560N. Search at designlights.org.
• RoHS Compliant.

Typical Applications

• High-bay Industrial Washdown: 38,081 lm at 265W in a 4-foot fixture replaces 400W–600W HID in high-ceiling washdown facilities.
• Food Processing & Commercial Kitchens: NSF Certified, IP67, IK09 — withstands aggressive chemical washdown and impact in food-safe environments.
• Cold Storage & Freezer Rooms: −40°F cold-start (battery backup models limited to 32°F cold-start).
• Stairwells & Passageways: DLC Premium listed — highest-tier utility rebate eligibility.
• Car Washes & Wash Bays: IP67 immersion-resistant and IK09 impact-rated for demanding washdown environments.

What’s Included

• RAB WHALE4H 4-foot High-Output Field-Adjustable, Linear Washdown Vapor Tight fixture — Gray
• Stainless steel surface-mount brackets and v-hooks
