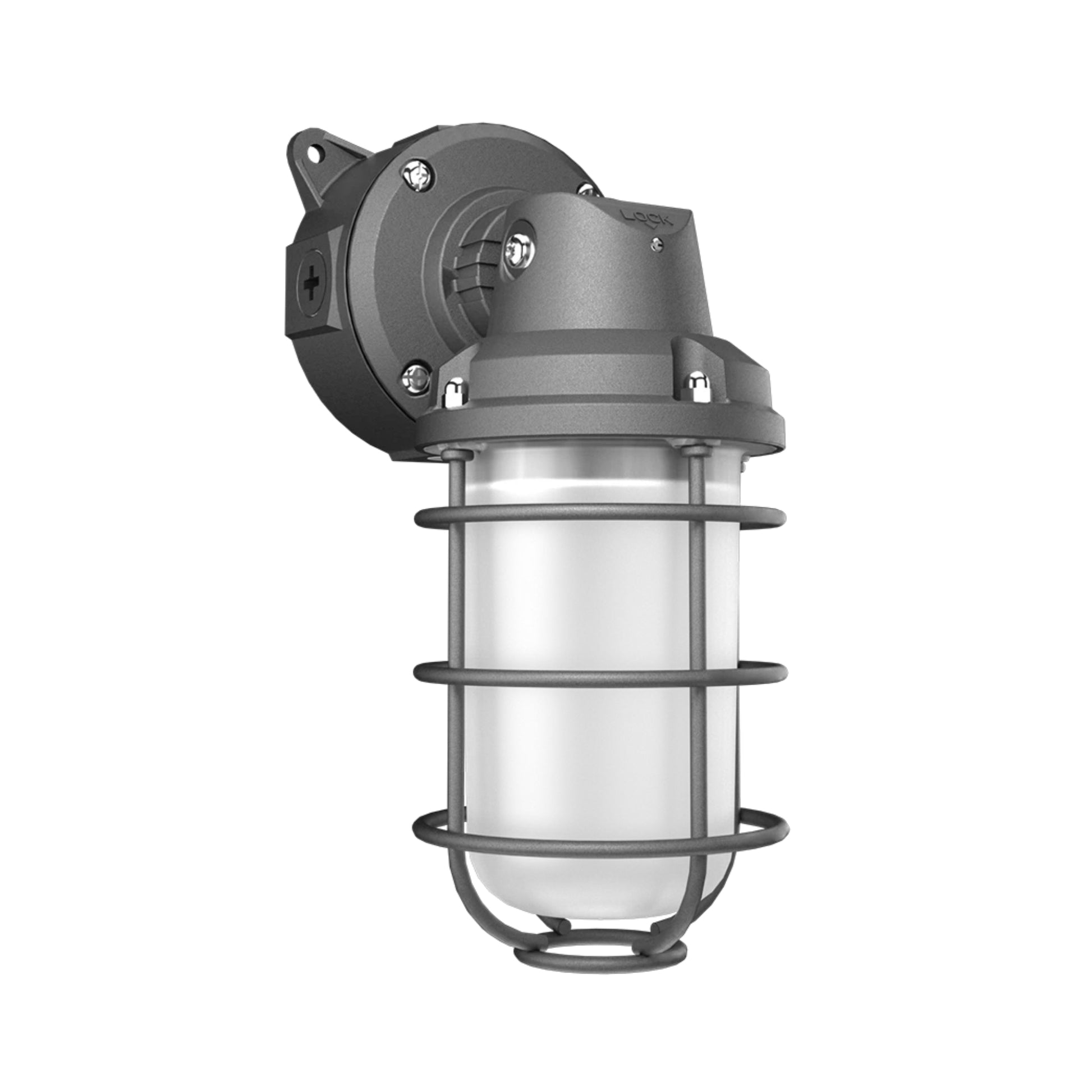

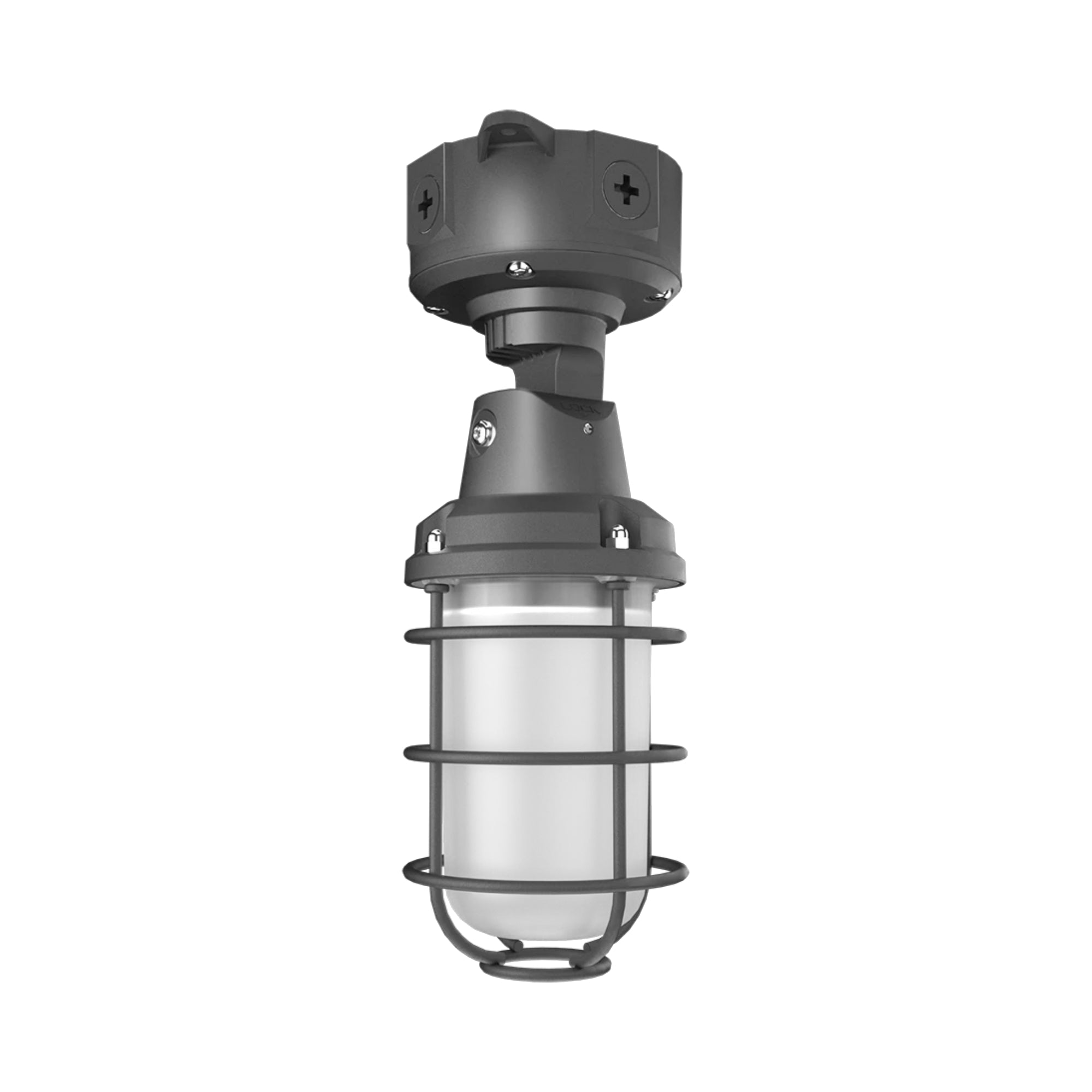

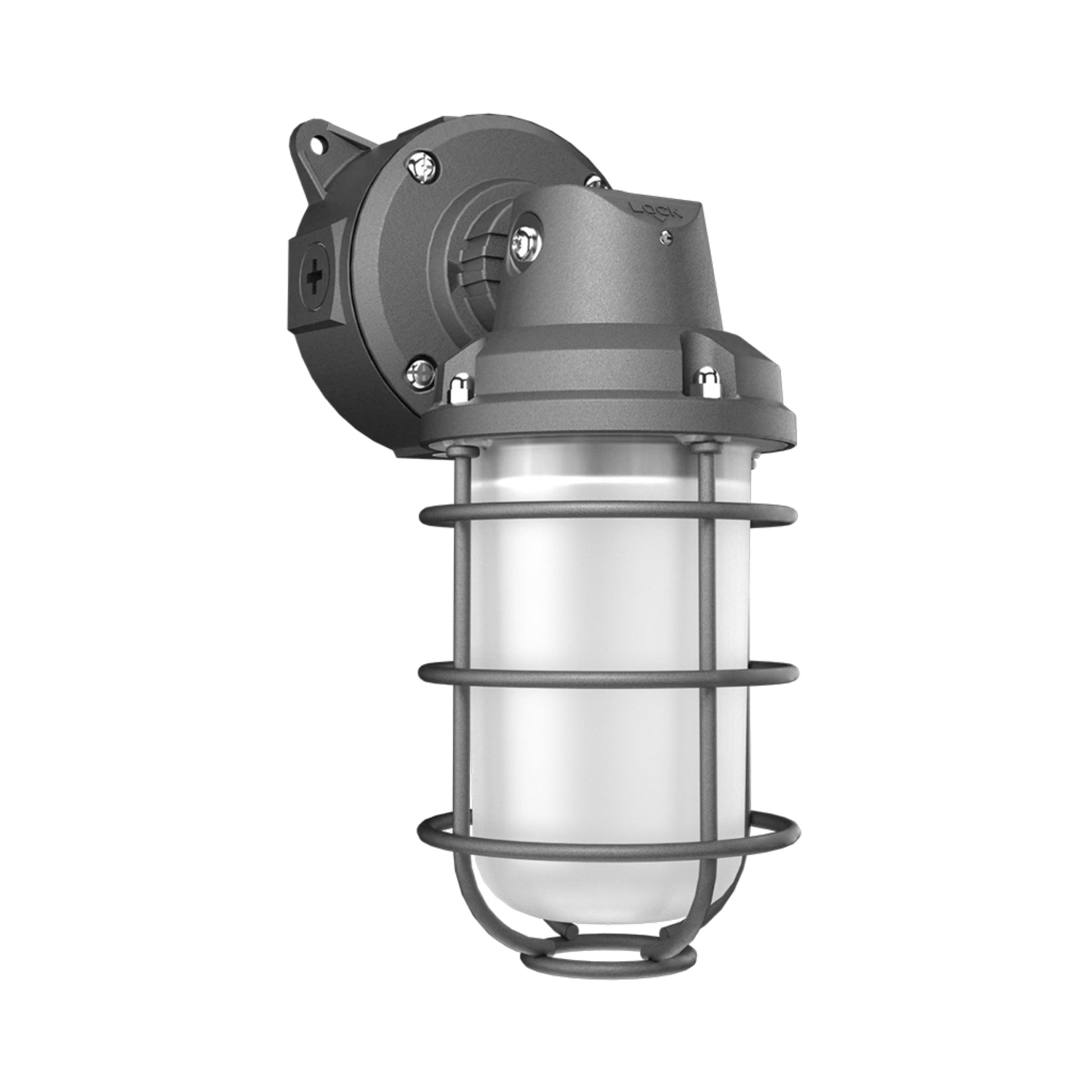

RAB VXRGB26 Field-Adjustable Wall Mount Vaporproof — 26W — RGB/5000K — Built-In Daylight Sensor — Natural Aluminum
Available in stock (100)
About this item
About this item
- Field-Adjustable Output: Switchable 26W, 18W (factory default), and 12W variable power settings delivering 268 to 3,151 lumens at up to 121.5 lm/W efficacy.
- Rugged Vaporproof Enclosure: Die-cast aluminum housing, polycarbonate lens and reflector, and high-temperature silicone gaskets for dust and water defense.

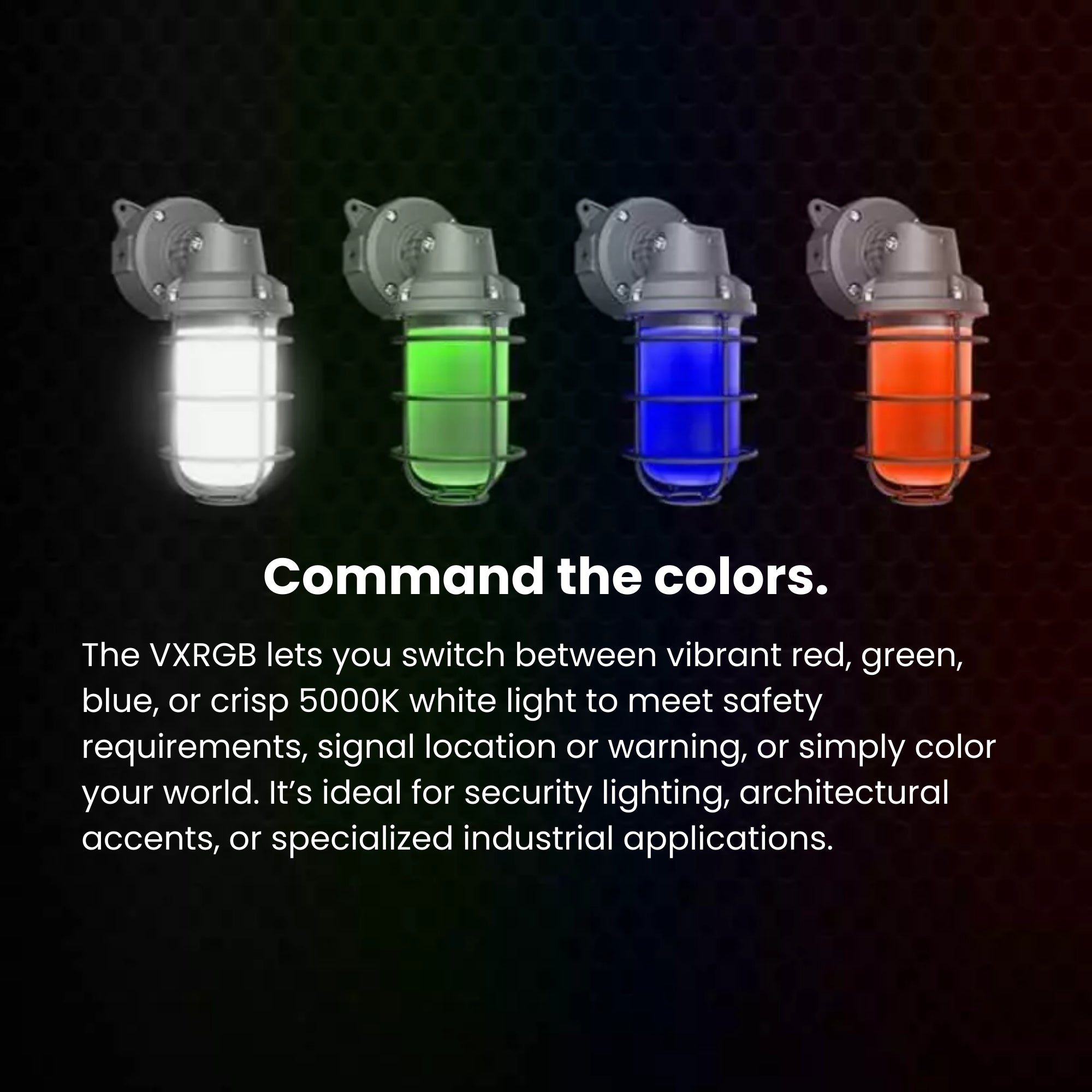

- Selectable RGB & 5000K: Field-adjustable color temperature switch enables selection between Red, Green, Blue (RGB), and 5000K (factory default).
- Built-In Daylight Sensor: Integrated selectable ON/OFF photocell (factory default off) paired with a 120–277V Class 1 constant current driver.
- Wet Location & Ingress Defense: UL Listed for wet locations, IP65 sealed against dust and water jets, 4kV surge protected, and RoHS compliant.
Description
Description
RAB VXRGB26 Field-Adjustable Wall Mount Vaporproof — 26W/18W/12W Selectable — RGB/5000K — Built-In Daylight Sensor — Natural Shot Blasted Aluminum/Polycarbonate Lens
The RAB VXRGB26 is a commercial Wall Mount Vaporproof luminaire engineered to deliver 268–3,151 lumens with field-adjustable 26W/18W/12W power settings and switchable Red/Green/Blue (RGB) and 5000K color options. Operating on 120–277V electrical systems with a built-in selectable ON/OFF daylight sensor (photocell), this luminaire provides versatile colored signaling and 5000K illumination for commercial and industrial exteriors and utility spaces. Built with a UL Listed for wet locations rating, it features an IP65-sealed die-cast aluminum enclosure with high-temperature silicone gaskets and a protective cage guard.
Key Features

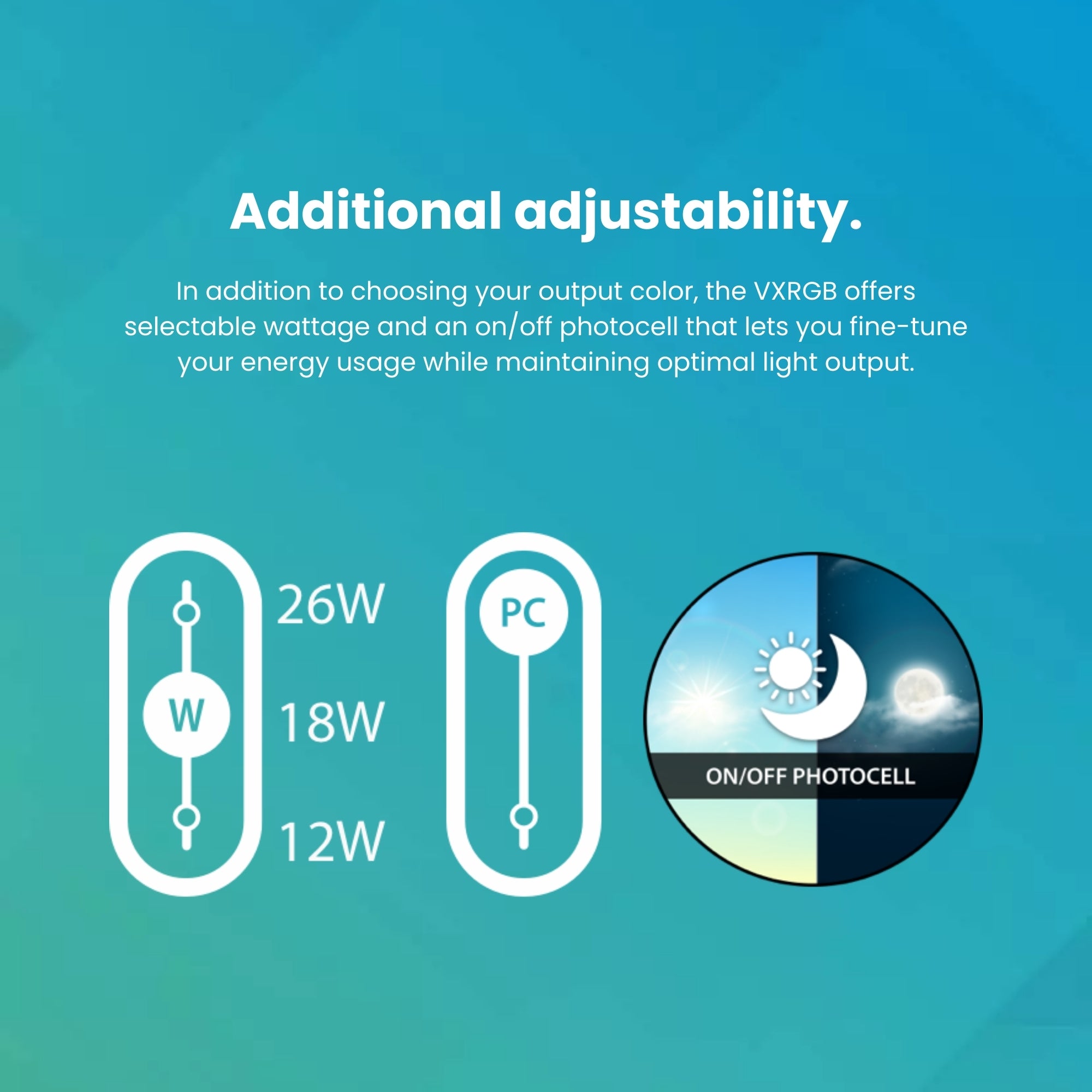

- Selectable Wattage: 26W / 18W / 12W (factory default 18W, 9–27.9W input watts) — field-adjustable multi-wattage selectable driver for variable power settings
- Lumen Output Range: 268–3,151 lm across selectable wattage and color settings
- Peak Efficacy: 22.6–121.5 lm/W for high-efficiency commercial operation
- CRI: 84 CRI color rendering (3-step MacAdam Ellipse binning; 7-step MacAdam Ellipse binning standard)

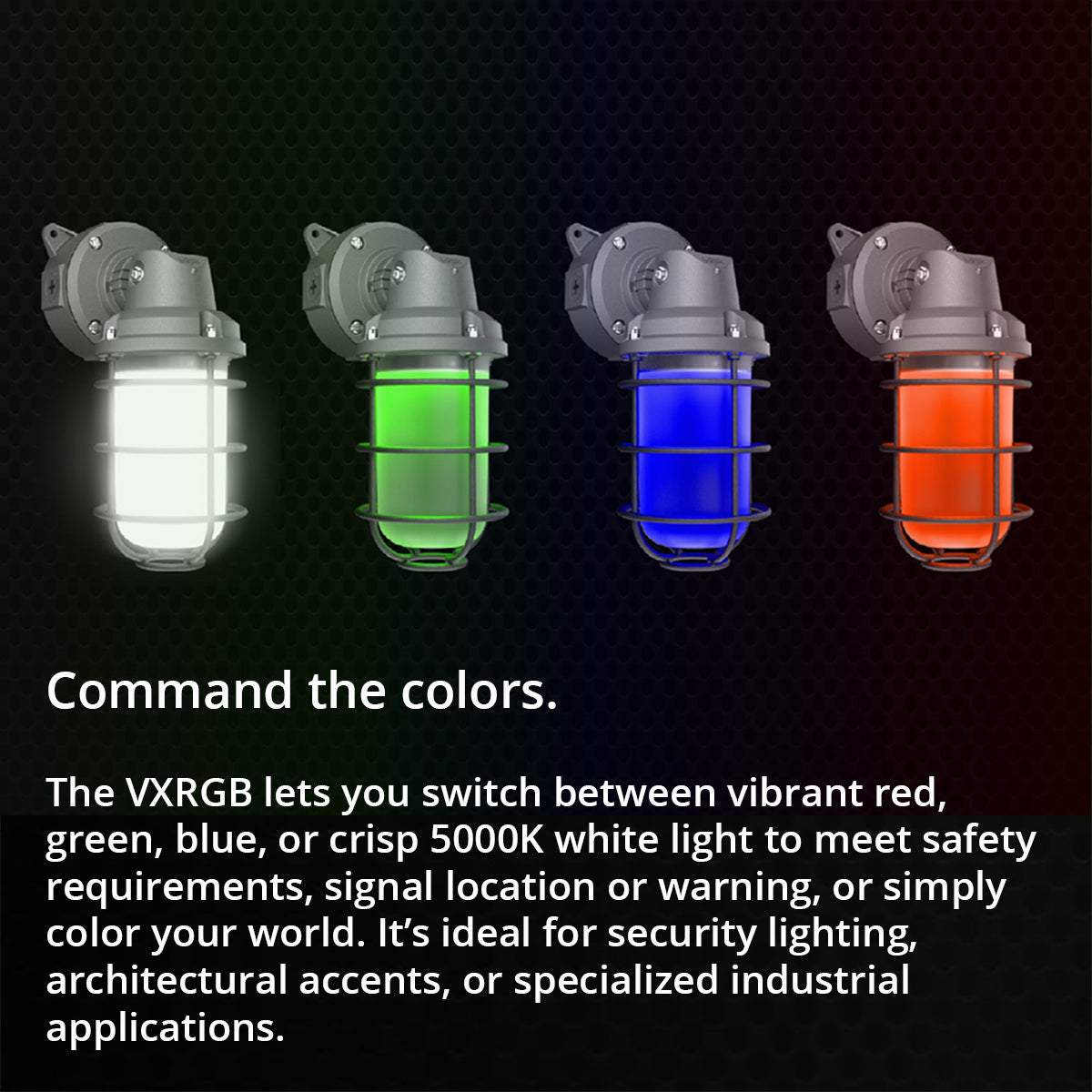

- Selectable CCT & Color: Red / Green / Blue (RGB) and 5000K (factory default 5000K) — field-adjustable CCT for color temperature selectable operation
- Lens & Optics: Polycarbonate lens and polycarbonate reflector (Downlight Only optics; BUG ratings: 26W B1 U3 G2, 18W B1 U3 G1, 12W B1 U3 G1)
- Photocell Control: Built-in selectable ON/OFF daylight sensor (factory default: off)
- Voltage: Universal 120–277V AC, 50/60Hz Class 1 constant current driver
- Location Rating: UL Listed for wet locations
- Operating Temperature: -40°F (-40°C) to 113°F (45°C) ambient operating range
- Certifications: UL Listed, IP65, IESNA LM-79 & LM-80 tested, RoHS Compliant, BAA Compliant upon request
- Rated Life: 100,000 hours (L70) per IES LM-80 and TM-21 standards
- Warranty: 5-year limited warranty — RAB
Performance & Light Output
Across selectable 26W / 18W / 12W (9–27.9W input) and RGB / 5000K settings, the VXRGB26 delivers 268 to 3,151 lm at 22.6 to 121.5 lm/W efficacy. Optical distribution is configured for downlight-only operation with BUG ratings of B1 U3 G2 at 26W, B1 U3 G1 at 18W, and B1 U3 G1 at 12W.
CRI 84 across white light operation with 3-step MacAdam Ellipse binning and color stability warrantied to shift no more than 200K over a 5-year period. Rated life 100,000 hours (L70) per IES TM-21 testing.
Smart & Control Features
The VXRGB26 includes a built-in selectable ON/OFF daylight sensor (photocell, factory default set to off) for automated dusk-to-dawn operation without external control wiring (Aux Power Supply: No; Dim to Off: No).
Electrical
Powered by a Class 1 constant current driver operating on 120–277V AC at 50/60Hz (9–27.9W input watts). Delivers high electrical efficiency with a Power Factor of 98.9% at 120V (85.8% at 277V) and Total Harmonic Distortion (THD) of 4.91% at 120V (17.7% at 277V). Integrated 4kV surge protection protects internal electronics against transient voltage spikes.
Operating current and amp draw across input voltages for branch circuit and breaker loading calculations:
| Wattage | 120V Current (A) | 208V Current (A) | 240V Current (A) | 277V Current (A) |
|---|---|---|---|---|
| 26W | 0.23A | 0.14A | 0.12A | 0.11A |
| 18W | 0.15A | 0.09A | 0.08A | 0.07A |
| 12W | 0.10A | 0.06A | 0.06A | 0.05A |
Construction

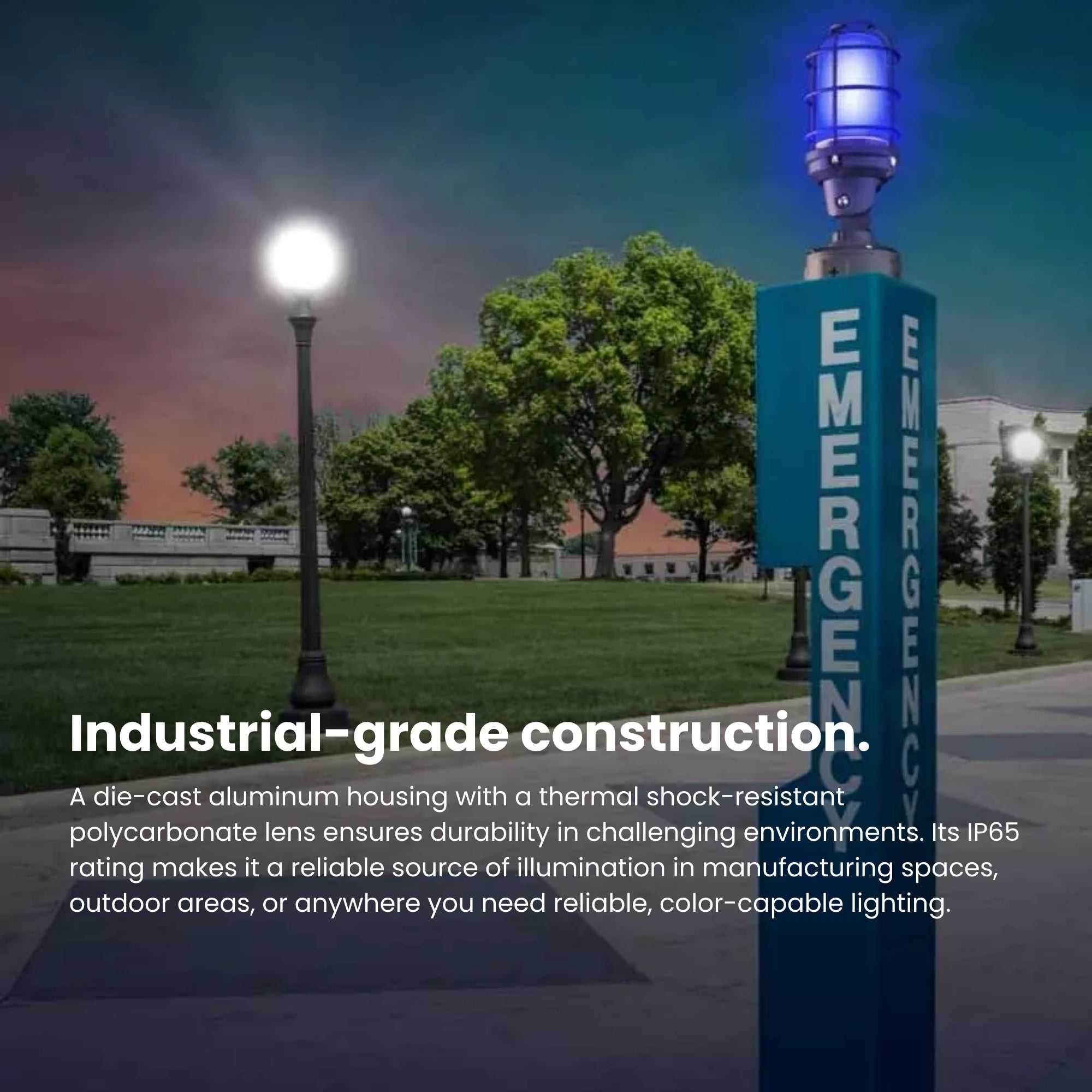

Durability & Impact Protection: Die-cast aluminum housing and protective guard with high-temperature silicone gaskets engineered for thermal dissipation and moisture exclusion.
Ingress Protection: IP65 rated for protection against airborne dust and water jets.
Operating Temperature: Cold weather starting at -40°F (-40°C); suitable for use in ambient temperatures up to 113°F (45°C).
Lens & Optics: Polycarbonate lens paired with a polycarbonate reflector for durable, downlight-only optical control.
Finish: Natural shot blasted aluminum finish formulated for high resistance against corrosion and surface wear.

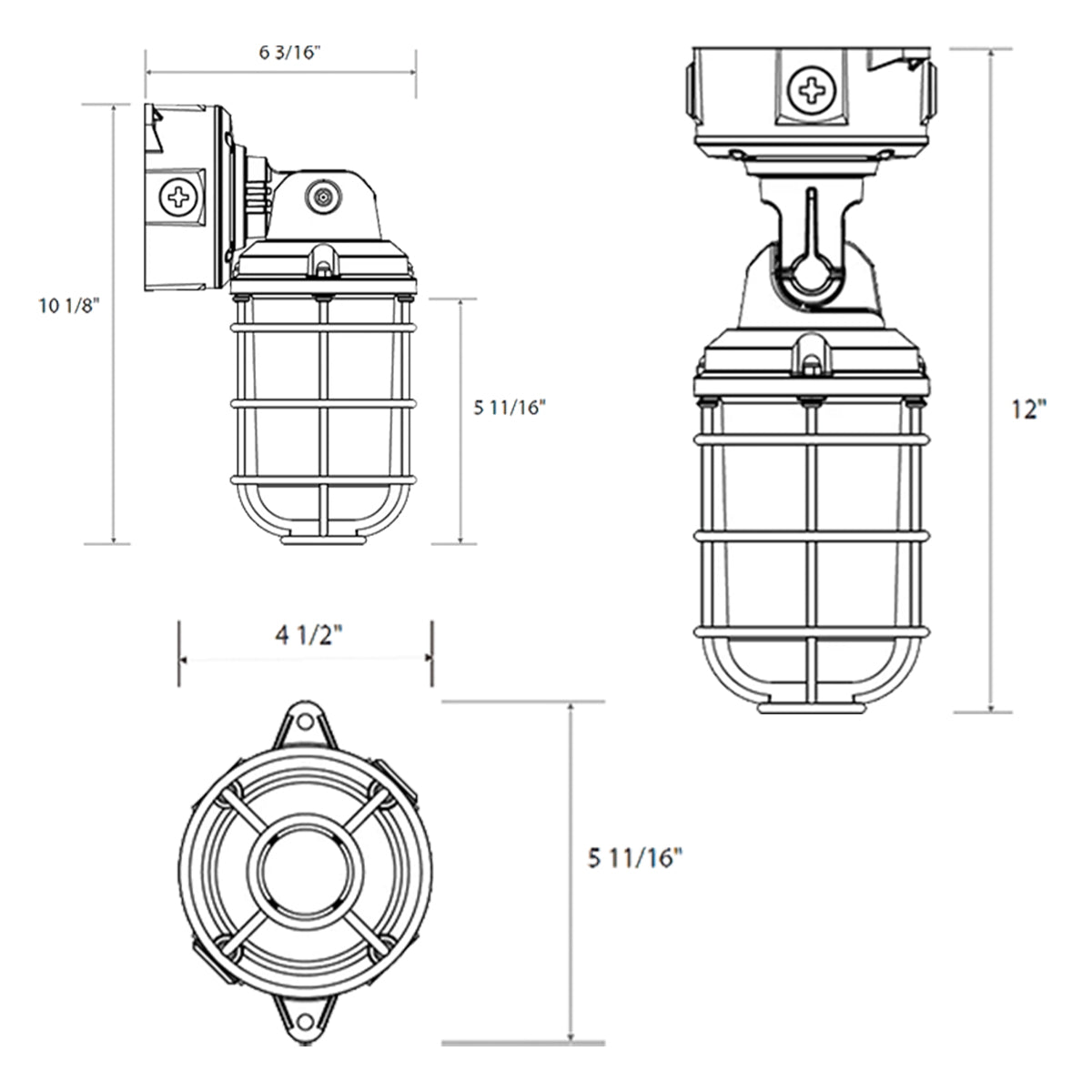

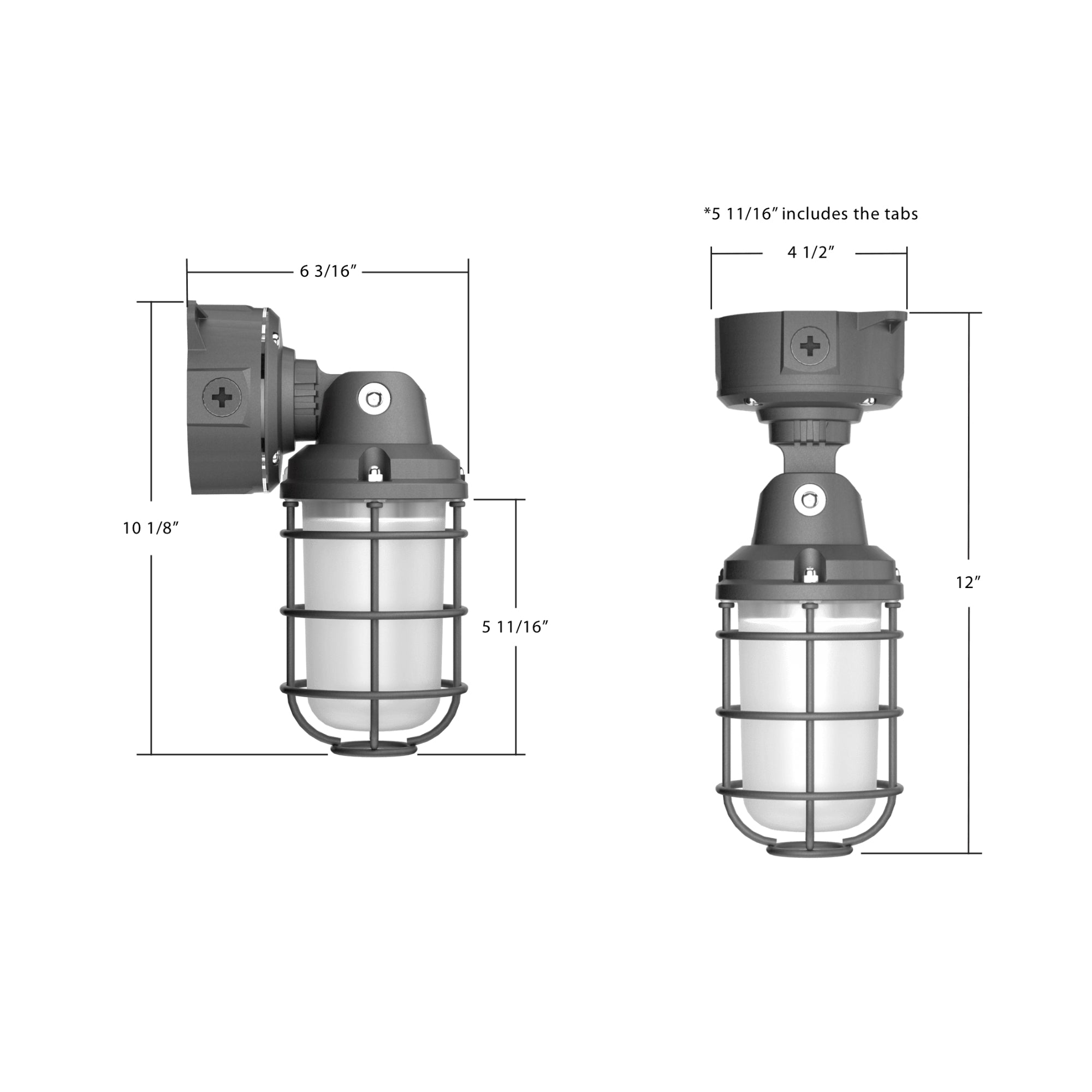

Dimensions & Weight: Fixture weight: 2.8 lbs.
Installation & Mounting

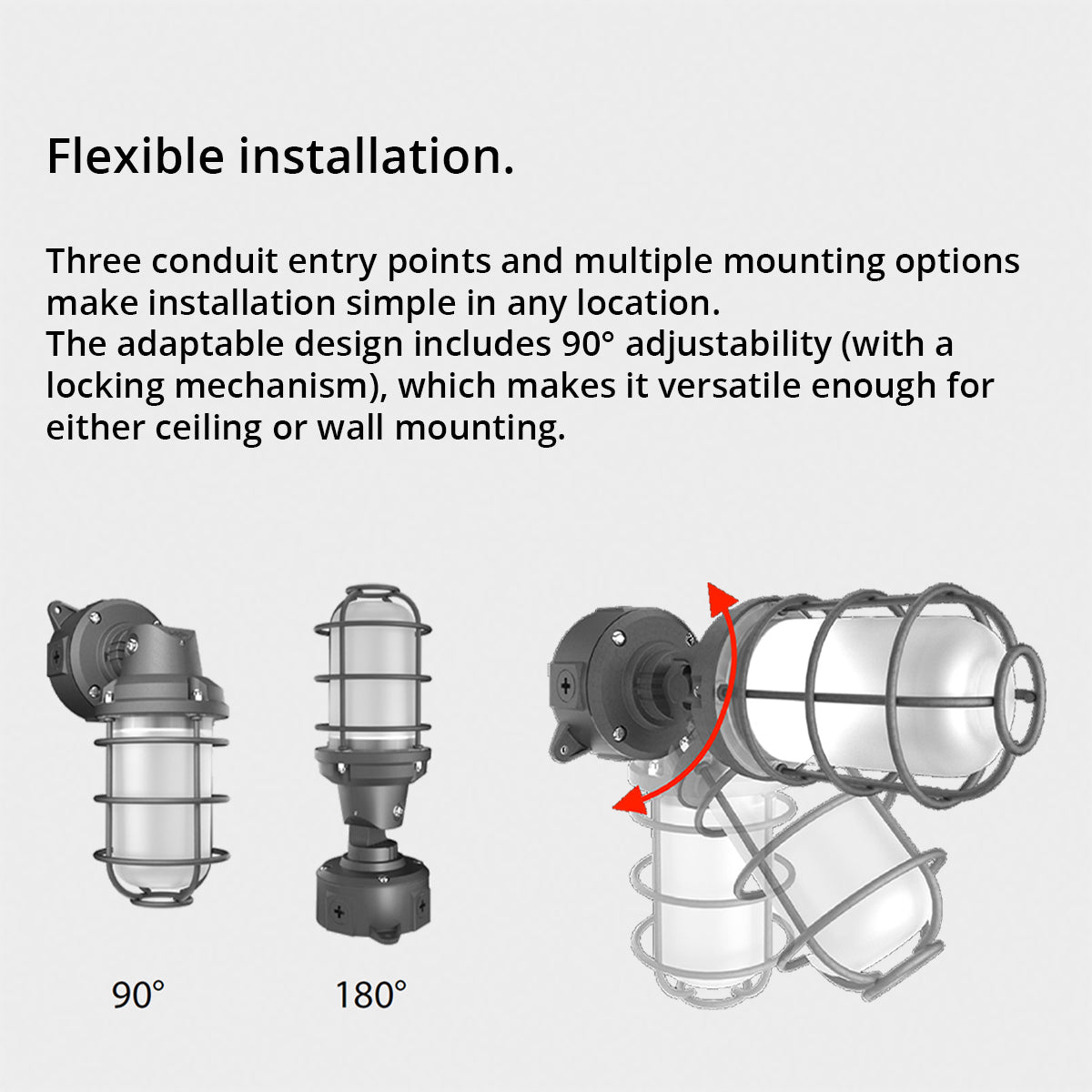

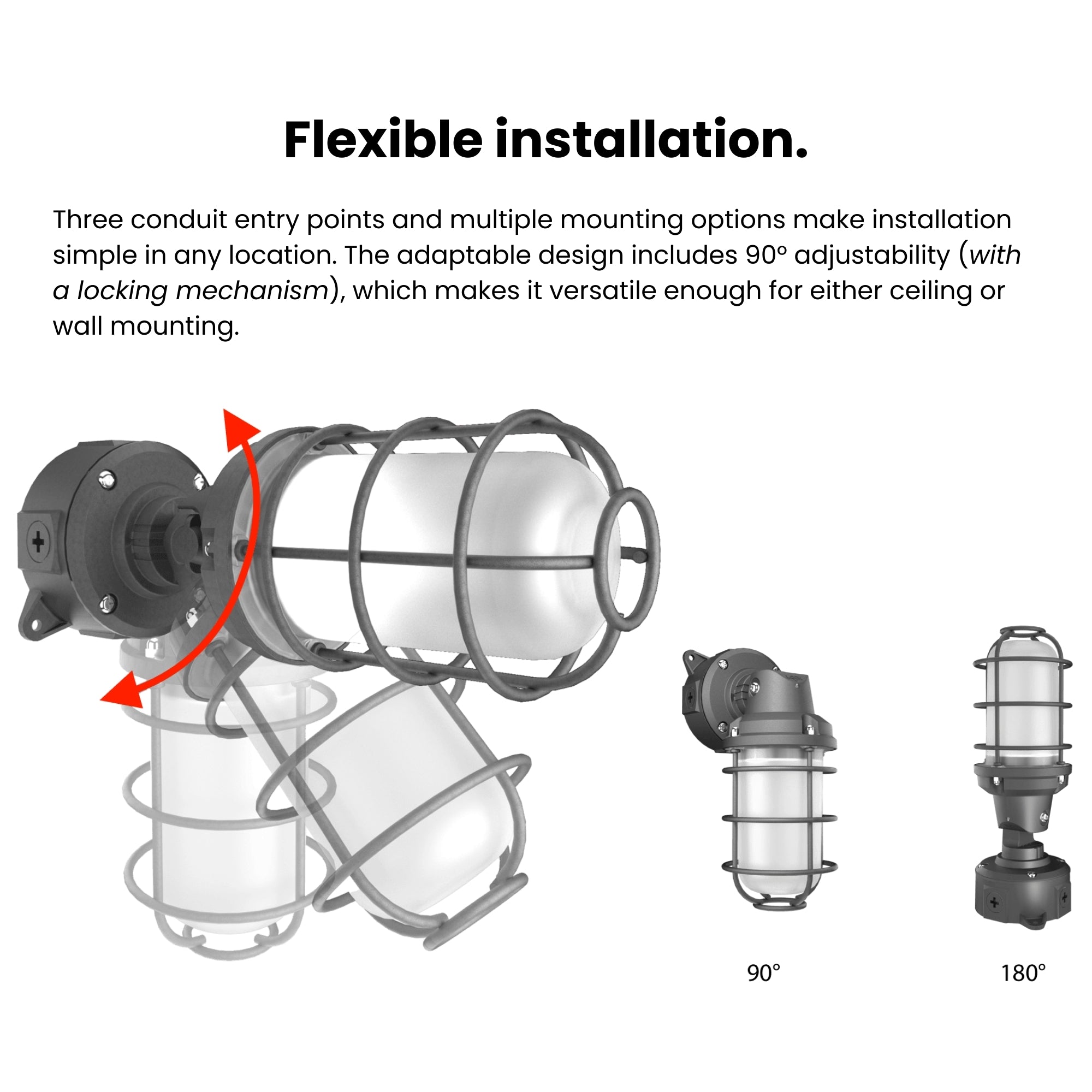

Standard Mounting: Wall mount configuration equipped with three 1/2" NPS conduit entry points for direct conduit and wiring installation.
Certifications & Rebates
- UL Listed: Certified for wet locations.
- BAA Compliant (Upon Request): Available to be manufactured compliant with the Buy American Act (BAA) upon request.
- IP65 Rated: Ingress protection rating of IP65 for dust and water.
- IESNA LM-79 & LM-80 Tested: Tested by an independent laboratory in accordance with IESNA LM-79 and LM-80 standards.
- RoHS Compliant: Mercury and UV free; engineered with RoHS-compliant components free of hazardous substances.
Typical Applications
- Building Entrances & Loading Docks — Selectable RGB and 5000K output enables status indicator signaling or bright 5000K security lighting at dock bays.
- Industrial Walkways & Catwalks — Die-cast aluminum housing, cage guard, and IP65 sealing protect the luminaire in exposed industrial corridors.
- Mechanical & Utility Rooms — Three 1/2" NPS conduit entry points simplify surface conduit routing in commercial utility spaces.
- Cold Storage & Exterior Perimeters — Reliable -40°F (-40°C) cold weather starting and built-in daylight sensor ensure dependable operation in freezing outdoor environments.
- Wet Location Passageways & Tunnels — High-temperature silicone gaskets and UL wet location listing resist moisture and dust ingress.
What's Included
- RAB VXRGB26 Field-Adjustable Wall Mount Vaporproof — Natural Shot Blasted Aluminum
- Built-in selectable daylight sensor (photocell)
- Installation and operation manual
