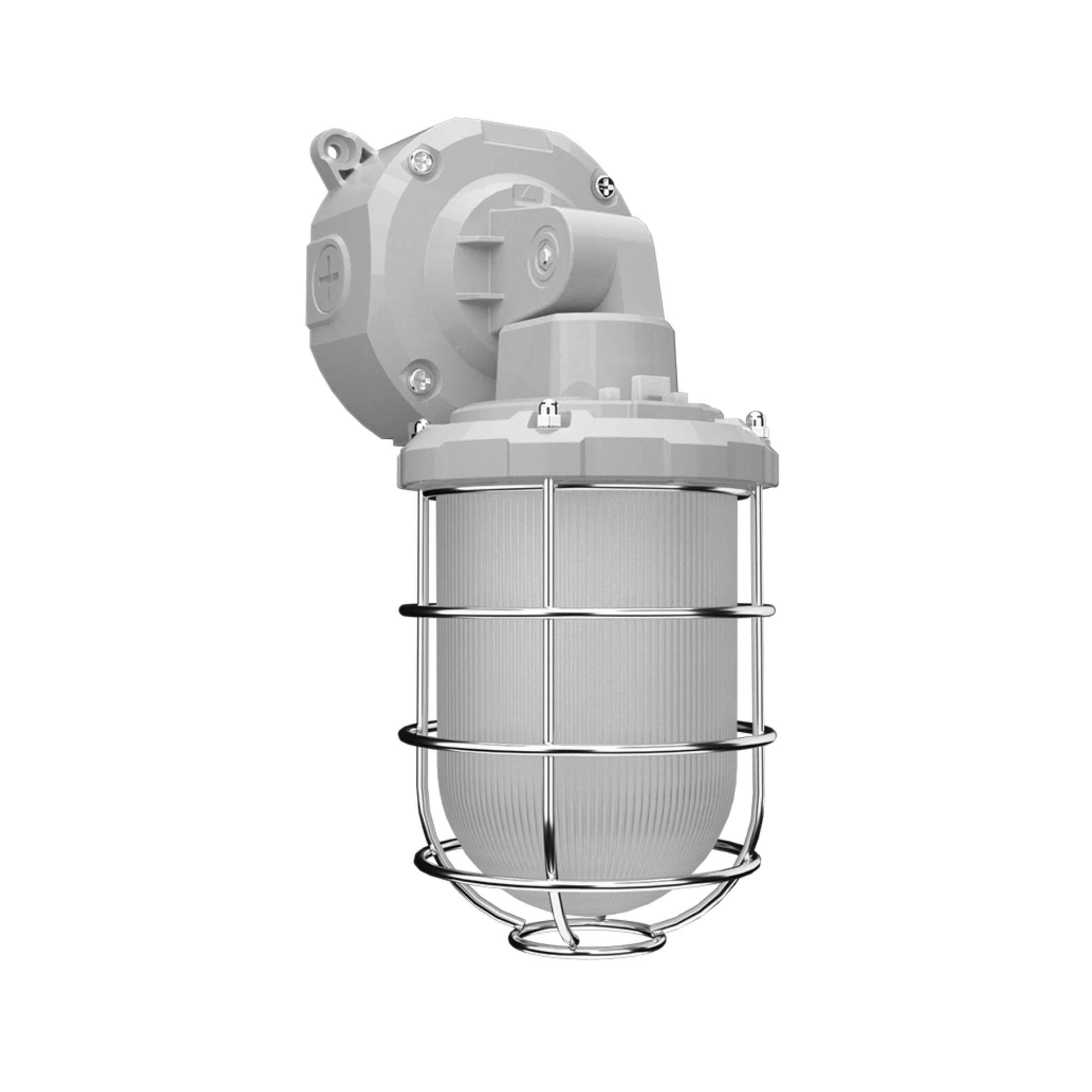

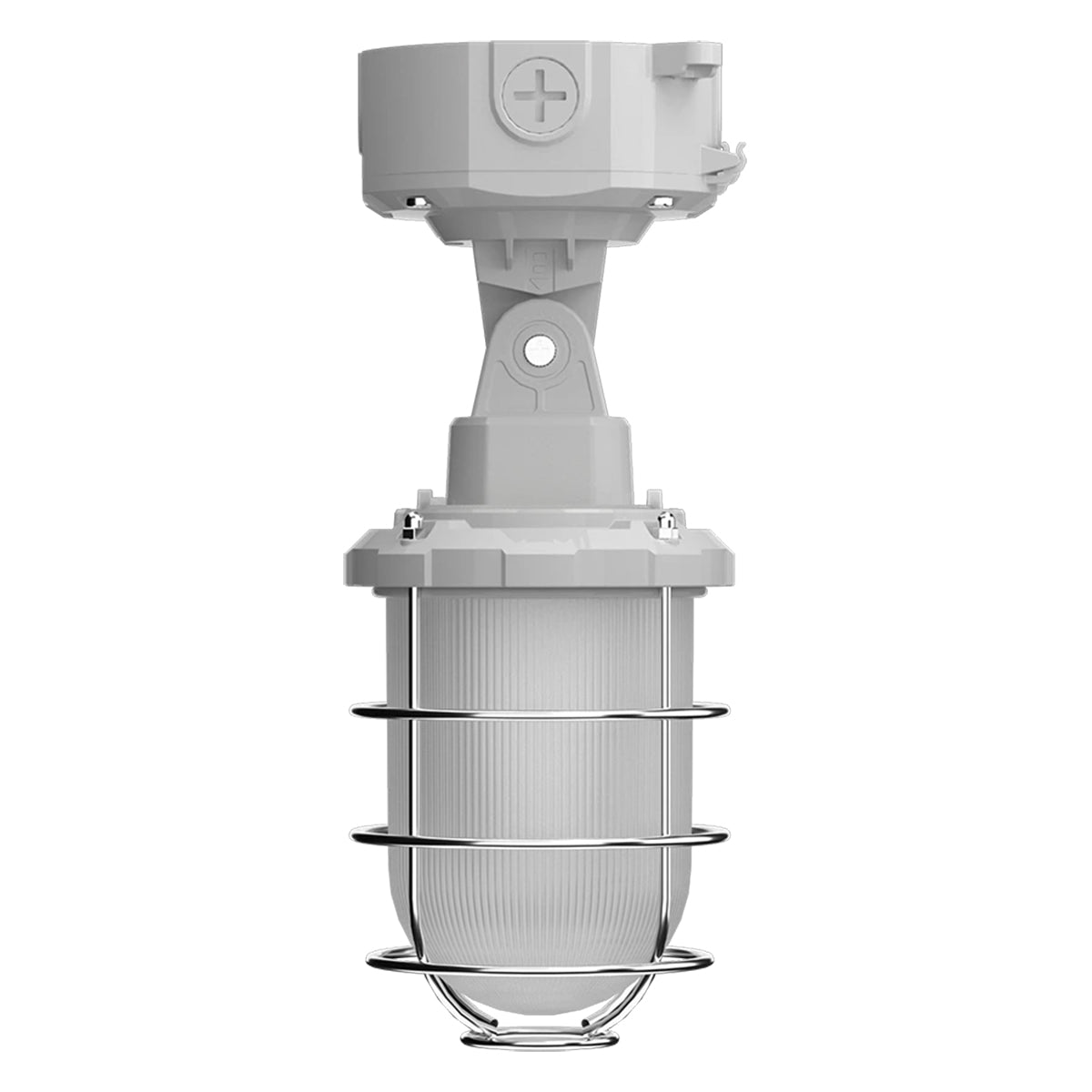

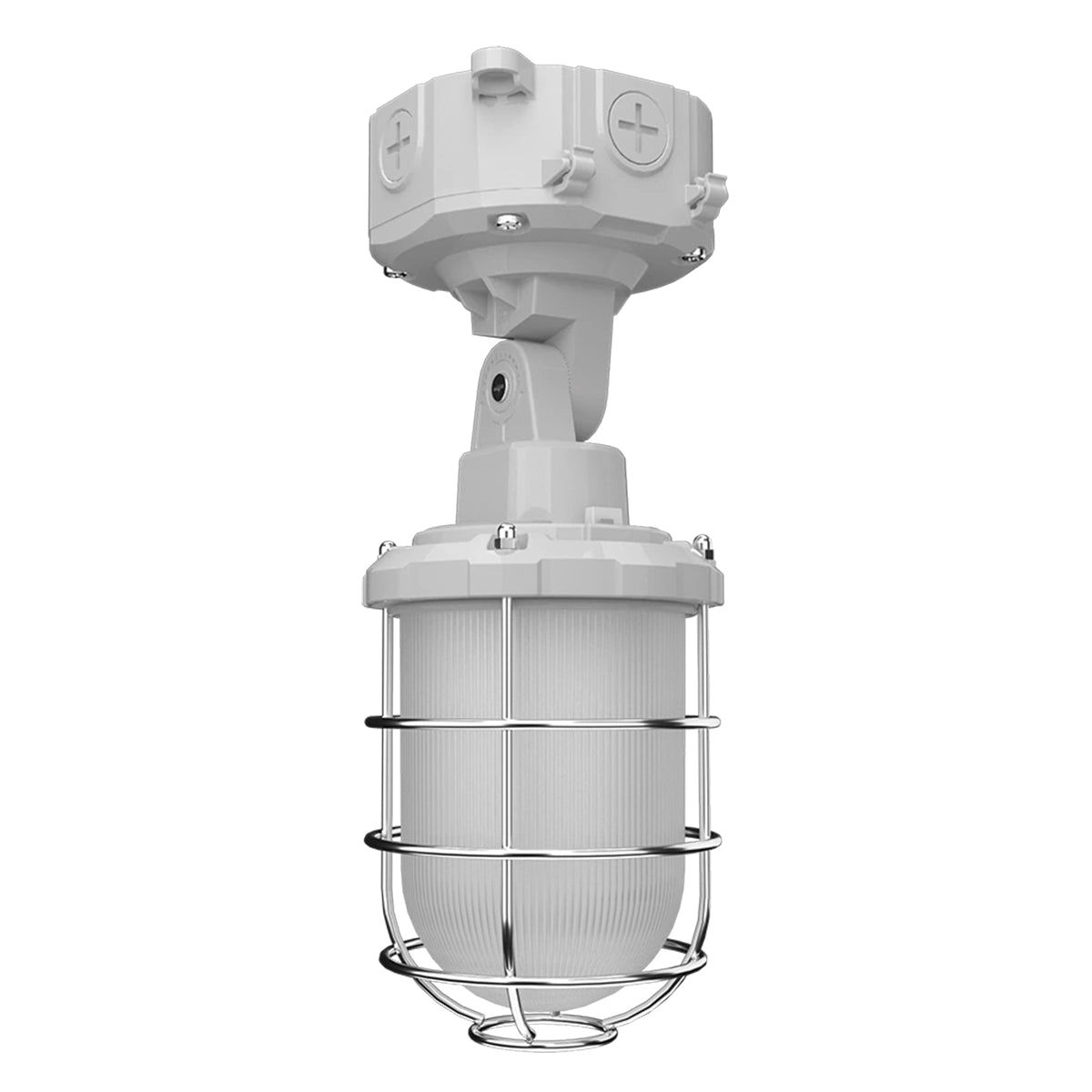

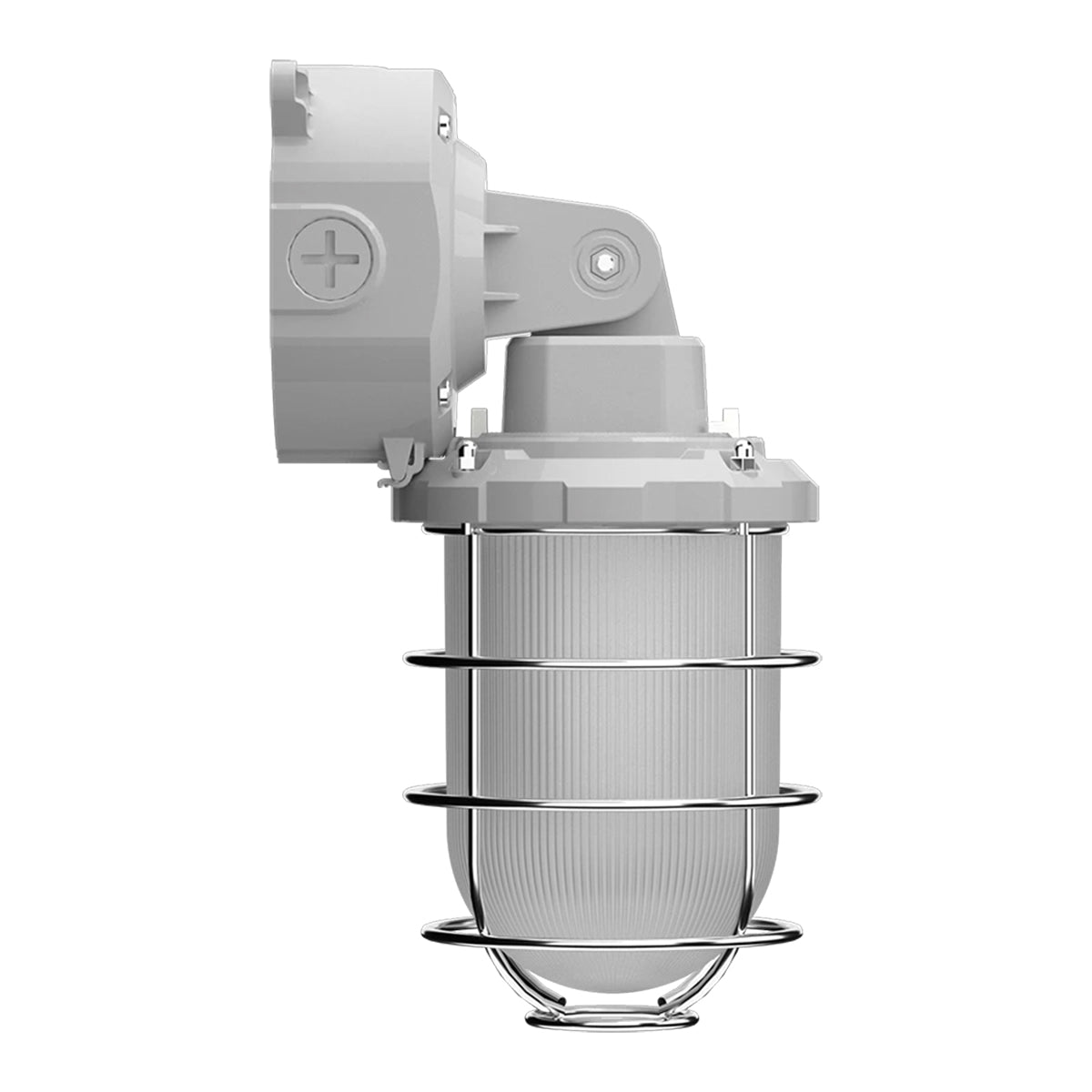

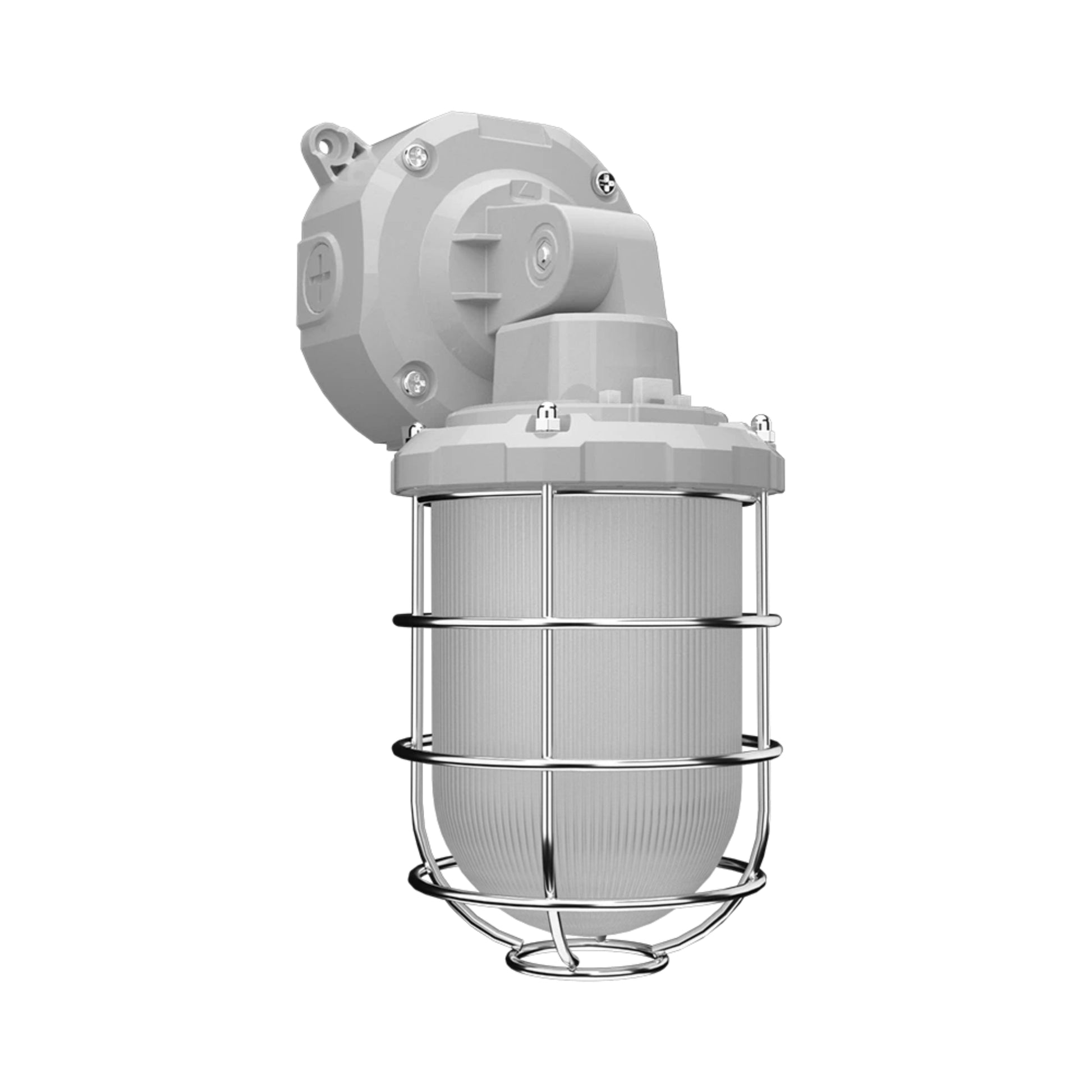

RAB VX20 Field-Adjustable Wall/Ceiling Mount Vaporproof — 20W/16W/12W Selectable — 3000K/4000K/5000K — Integrated Photocell — Gray/Polycarbonate Lens

The RAB VX20 is a commercial Wall and Ceiling Mount Vaporproof luminaire engineered to deliver 1,405–2,421 lumens with field-adjustable 20W/16W/12W power settings and switchable 3000K/4000K/5000K color temperatures. Operating on 120–277V electrical systems with an integrated ON/OFF DC photocell and selectable Downlight or Up+Downlight optics, this luminaire provides versatile illumination for commercial utility spaces, walkways, and building perimeters. Built with a UL Listed for wet locations rating, it features an IP65-sealed polycarbonate enclosure with high-temperature silicone gaskets, a protective cage guard, and a knuckle that rotates in 10-degree increments.

Key Features

• Selectable Wattage: 20W / 16W / 12W (factory default 20W, 12.1–19.8W input watts) — field-adjustable multi-wattage selectable driver for variable power settings
• Lumen Output Range: 1,405–2,421 lm across selectable wattage and color settings
• Peak Efficacy: 110.9–127.7 lm/W for high-efficiency commercial operation
• CRI: 83–86 CRI color rendering (3-step MacAdam Ellipse binning; 7-step MacAdam Ellipse binning standard)
• Selectable CCT: 3000K / 4000K / 5000K (factory default 5000K) — field-adjustable CCT for tunable white and switchable Kelvin control
• Lens & Optics: Polycarbonate lens and polycarbonate reflector with selectable Downlight / Up+Downlight distribution (BUG ratings: 20W B1 U4 G2, 16W B1 U4 G2, 12W B1 U3 G1)
• Photocell Control: Integrated ON/OFF DC photocell
• Voltage: Universal 120–277V AC, 50/60Hz Class 1 constant current driver
• Location Rating: UL Listed for wet locations
• Operating Temperature: -40°F (-40°C) to 113°F (45°C) ambient operating range
• Certifications: UL Listed, IP65, IESNA LM-79 & LM-80 tested, RoHS Compliant, BAA Compliant upon request
• Rated Life: 100,000 hours (L70) per IES LM-80 and TM-21 standards
• Warranty: 5-year limited warranty — RAB

Performance & Light Output

Across selectable 20W / 16W / 12W (12.1–19.8W input) and 3000K / 4000K / 5000K settings, the VX20 delivers 1,405 to 2,421 lm at 110.9 to 127.7 lm/W efficacy. Optical distribution supports Downlight or Up+Downlight operation with BUG ratings of B1 U4 G2 at 20W, B1 U4 G2 at 16W, and B1 U3 G1 at 12W.

CRI 83–86 across all configurations with 3-step MacAdam Ellipse binning and color stability warrantied to shift no more than 200K over a 5-year period. Rated life 100,000 hours (L70) per IES TM-21 testing.

Smart & Control Features

The VX20 features an integrated ON/OFF DC photocell for automated dusk-to-dawn operation without external control wiring (Aux Power Supply: No; Dim to Off: No).

Electrical

Powered by a Class 1 constant current driver operating on 120–277V AC at 50/60Hz (12.1–19.8W input watts). Delivers high electrical efficiency with a Power Factor of 98.7% at 120V (92.9% at 277V) for both Downlight and Up+Downlight modes, and Total Harmonic Distortion (THD) of 11.37% at 120V / 9.73% at 277V (Downlight) and 11.38% at 120V / 9.69% at 277V (Up+Downlight). Integrated 2kV surge protection protects internal electronics against transient voltage spikes.

Operating current and amp draw across input voltages for branch circuit and breaker loading calculations:

Construction

Durability & Impact Protection: Polycarbonate housing, polycarbonate reflector, and wire cage guard sealed with high-temperature silicone gaskets engineered for thermal dissipation and moisture exclusion. Features an adjustable knuckle that rotates in 10-degree tilt increments for directional aiming.

Ingress Protection: IP65 rated for protection against airborne dust and water jets.

Operating Temperature: Cold weather starting at -40°F (-40°C); suitable for use in ambient temperatures up to 113°F (45°C).

Lens & Optics: Polycarbonate lens paired with a polycarbonate reflector for Downlight or Up+Downlight optical distribution.

Finish: Gray / natural shot blasted aluminum finish formulated for high resistance against corrosion and surface wear.

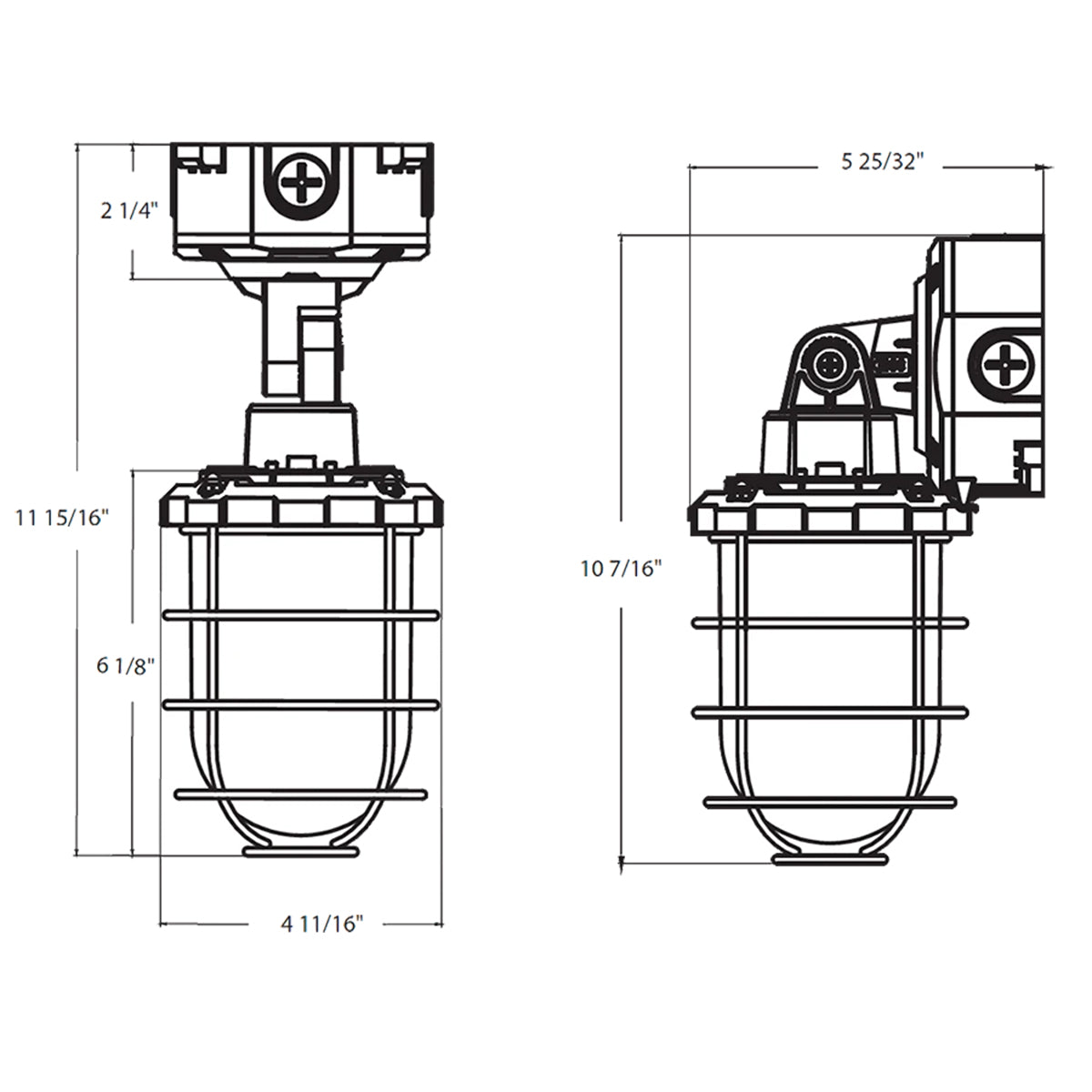

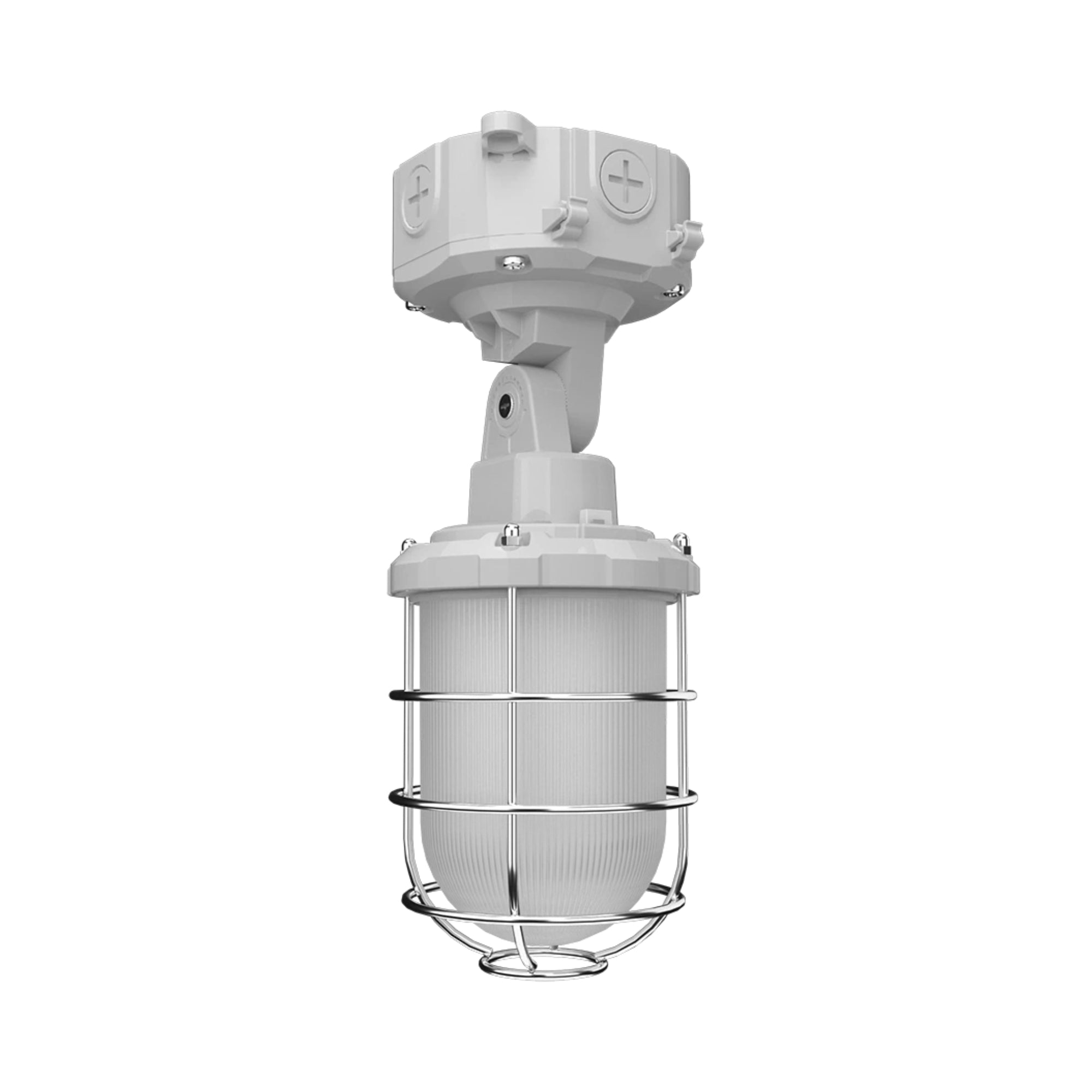

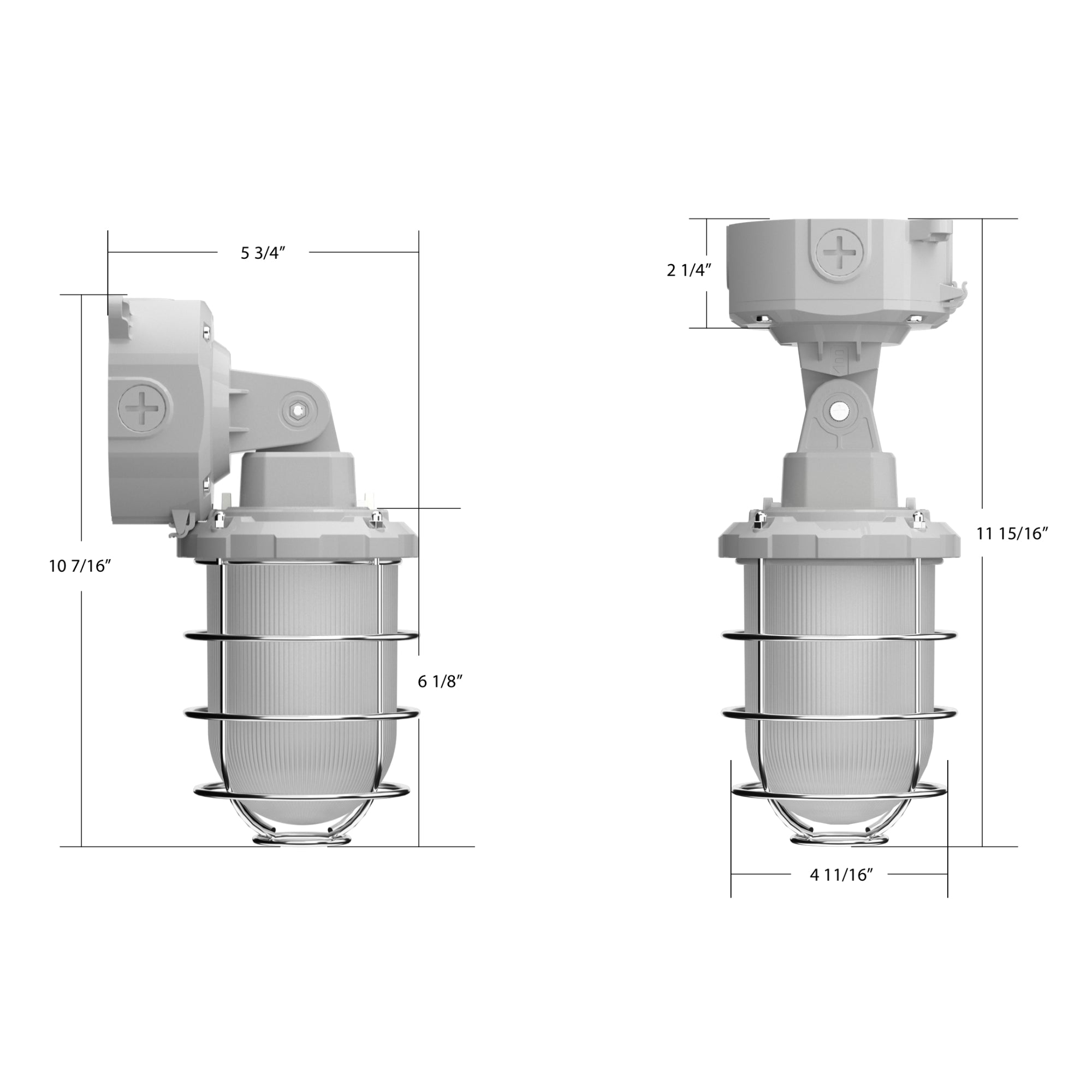

Dimensions & Weight: 10.44" H × 5.78" D × 4.69" W (10 7/16" H × 5 25/32" D × 4 11/16" W in wall-mount position; 11.94" / 11 15/16" overall length in pendant/ceiling position). Fixture weight: 2.0 lbs.

Installation & Mounting

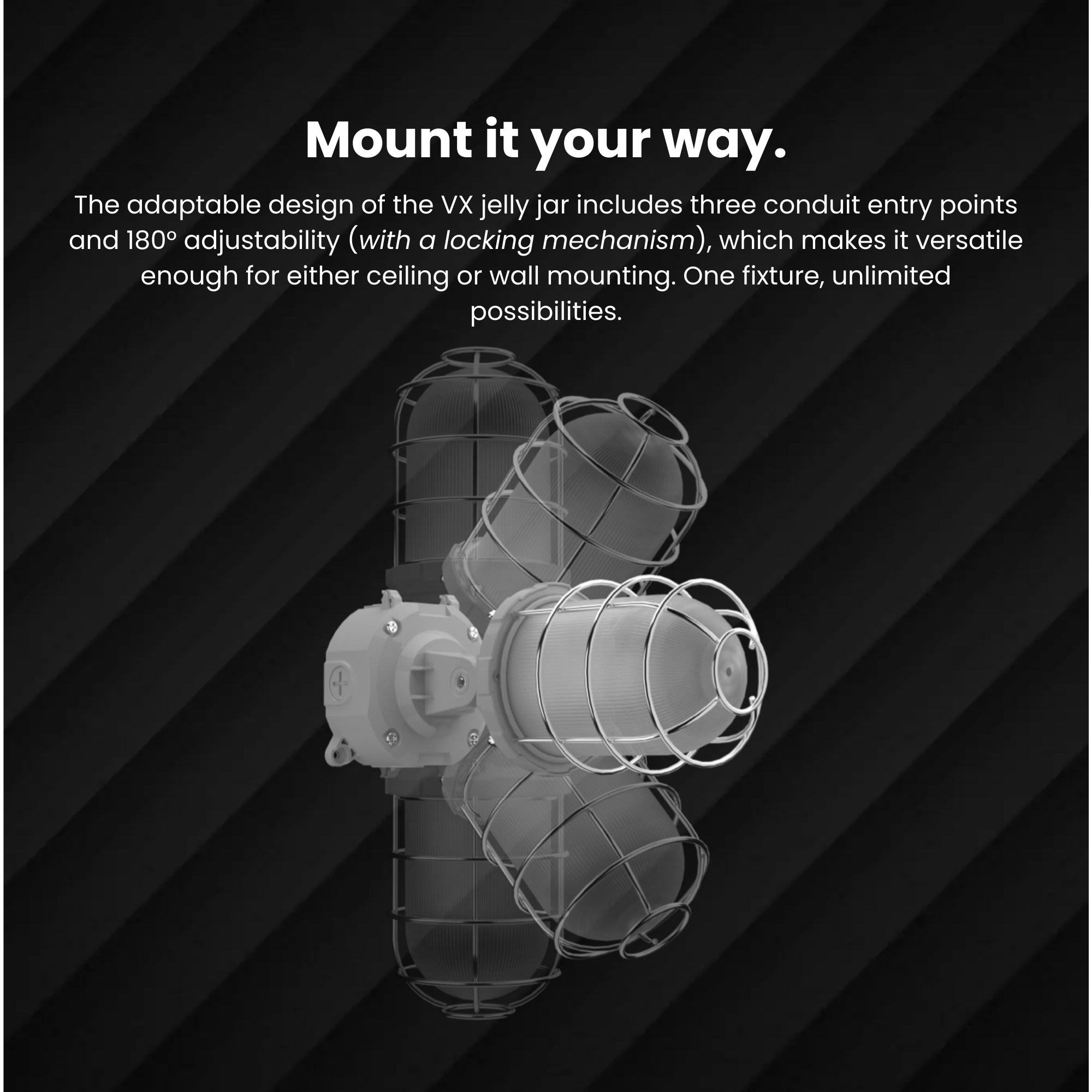

Standard Mounting: Equipped with three 1/2" NPS conduit entry points and an adjustable knuckle that rotates in 10-degree increments for wall or ceiling surface conduit mounting.

Certifications & Rebates

• UL Listed: Certified for wet locations.
• BAA Compliant (Upon Request): Available to be manufactured compliant with the Buy American Act (BAA) upon request.
• IP65 Rated: Ingress protection rating of IP65 for dust and water.
• IESNA LM-79 & LM-80 Tested: Tested by an independent laboratory in accordance with IESNA LM-79 and LM-80 standards.
• RoHS Compliant: Mercury and UV free; engineered with RoHS-compliant components free of hazardous substances.

Typical Applications

• Building Entrances & Loading Docks — Integrated DC photocell and selectable 3000K/4000K/5000K CCT provide automated dusk-to-dawn perimeter lighting.
• Industrial Walkways & Stairwells — 10-degree tilt rotation increments and Downlight or Up+Downlight optics adapt to sloped ceilings and wall-mount corridors.
• Mechanical & Utility Rooms — Three 1/2" NPS conduit entry points simplify surface conduit routing in commercial utility spaces.
• Cold Storage & Exterior Perimeters — Reliable -40°F (-40°C) cold weather starting and IP65 sealing ensure dependable operation in freezing and wet environments.
• Tunnels & Covered Breezeways — Polycarbonate housing with high-temperature silicone gaskets and wire guard resist moisture, dust, and surface wear.

What's Included

• RAB VX20 Field-Adjustable Vaporproof Luminaire — Gray
• Integrated ON/OFF DC photocell
• Installation and operation manual
