RAB Lighting TOD 96W LED Driver 24V DC Universal Dimming, Wet Rated, 120-277V
Available in stock (200)
About this item
About this item
- Output Voltage: Delivers a consistent 24V DC output for reliable LED lighting performance.
- Dimming Capability: Supports TRIAC, ELV, and 0-10V dimming for versatile lighting control.
- Input Voltage: Operates efficiently across a wide range of 120-277V input voltages.
- Enclosure: Designed for wet environments, ensuring durability and safety in various conditions.
- Protection: Features an IP65 rating, offering robust protection against dust and water ingress.
We process payments securely and do not store credit card information.
Description
Description

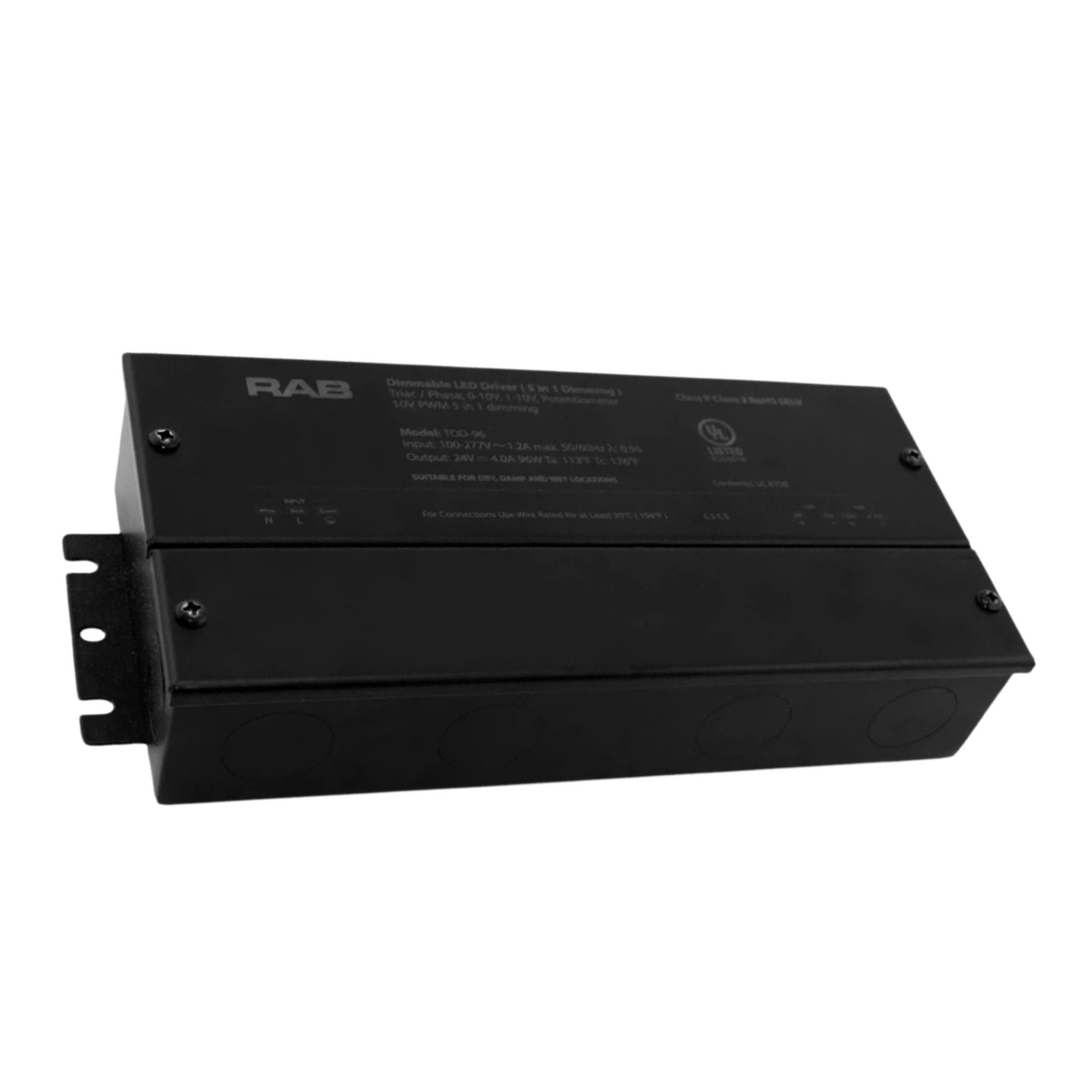

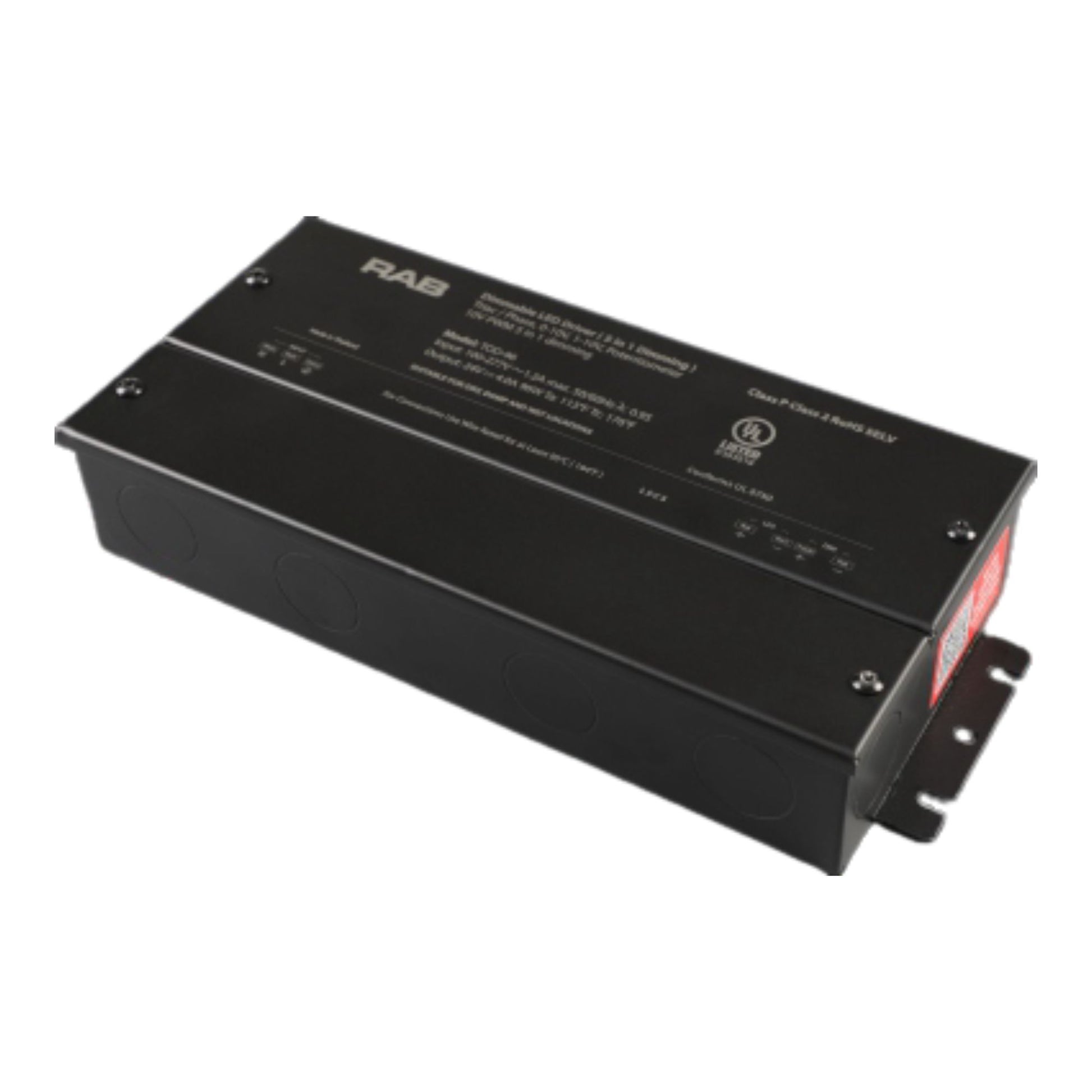

RAB Lighting TOD-96 96W LED Driver — 24V DC
The RAB Lighting TOD-96 is a high-performance LED Driver designed to provide a reliable 24V DC output for LED lighting systems. With a power rating of 96W, this driver is ideal for both indoor and outdoor applications, thanks to its wet-rated enclosure. It supports universal dimming protocols, including TRIAC, ELV, and 0-10V, making it a versatile choice for various lighting setups. The driver operates on a wide 120-277V input voltage range, ensuring compatibility with different electrical systems.
Key Features
- Power Output: Provides a maximum output power of 96W for efficient LED operation.
- Output Voltage: Consistently delivers 24V DC for stable lighting performance.
- Dimming Protocols: Compatible with TRIAC, ELV, and 0-10V dimming systems for flexible lighting control.
- Minimum Load: Not specified, ensuring broad compatibility with various LED setups.

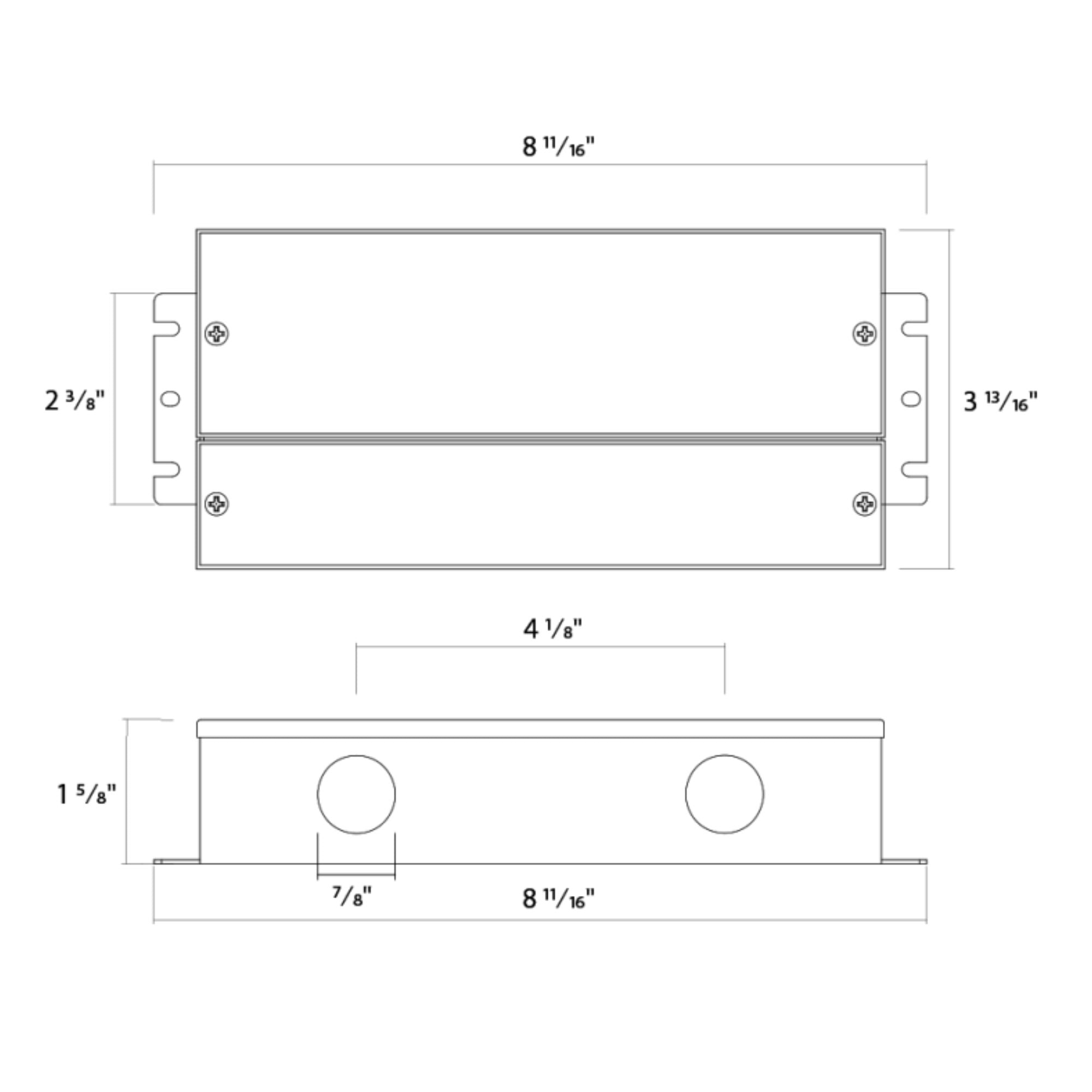

- Dimensions: Compact design measuring 8.70 in. L x 3.80 in. W x 1.60 in. H for easy installation.
- Enclosure Type: Robust design suitable for wet environments, enhancing durability.
- IP Rating: IP65 rated for superior protection against dust and water ingress.
- Class 2: Complies with Class 2 standards for safe and efficient operation.
- Certifications: UL Listed and Title 24 JA8 compliant, ensuring quality and safety.
Physical Design & Installation
The driver features a durable enclosure suitable for wet environments, ensuring long-lasting performance and safety. Its compact size allows for easy integration into various lighting setups.
Dimming & Controls
Supports a wide range of dimming protocols, including TRIAC, ELV, and 0-10V, providing flexibility in lighting control. Operates efficiently across 120-277V input voltage, accommodating various electrical systems.
Performance & Build
Offers robust protection with an IP65 rating, ensuring resistance to dust and water. Complies with Class 2 standards and includes short circuit, over-voltage, and thermal protection features.
Typical Applications
- Commercial lighting installations
- Outdoor landscape lighting
- Architectural lighting projects
- Residential LED lighting systems
Specifications
Specifications
Dimensions
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is an LED driver?
What is an LED driver?
An LED driver is the essential power supply for modern, energy-efficient LED lighting. It converts your building's high-voltage AC power into the low-voltage DC power that LEDs need to operate. It regulates the power, protecting the sensitive LED chips from fluctuations that could cause them to flicker or fail prematurely.
What is a light ballast?
What is a light ballast?
A light ballast is the traditional power supply for fluorescent and HID (High-Intensity Discharge) lamps. If you have older tube lighting, you have a ballast. It provides a burst of high voltage to get the lamp started and then controls the electrical current to keep it running steadily.
How do I choose the right wattage for my LED driver?
How do I choose the right wattage for my LED driver?
To ensure safety and longevity, it's best to follow the "80% Rule." Add up the total wattage of all the lights you will connect to the driver, then choose a driver with a maximum wattage rating that is at least 20% higher. For example, if your lights total 80 watts, you should select an LED driver rated for 100 watts or more.
What is the difference between a constant current and a constant voltage driver?
What is the difference between a constant current and a constant voltage driver?
The key difference is what they keep stable. A constant current driver maintains a fixed output current (e.g., 700mA) while letting the voltage change. A constant voltage driver maintains a fixed output voltage (e.g., 12V or 24V) while the current varies. Use constant current for high-power LEDs and constant voltage for fixtures like LED strip lights.
How do I know if I need to replace my fluorescent light ballast?
How do I know if I need to replace my fluorescent light ballast?
Common signs of a failing light ballast include your lights flickering, making an audible humming or buzzing sound, taking a long time to turn on, or not turning on at all. If you've already tried replacing the bulbs and the problem persists, the ballast is the most likely cause.
