RAB PURELINE 16 ft COB LED Tape Light, IP67, 5000K, 278 Lumens per Foot, 24V
In stock
About this item
About this item
- Color Temperature: Provides a bright 5000K illumination ideal for task lighting.
- Voltage: Operates on 24V DC, ensuring compatibility with low-voltage systems.
- Max Run Length: Supports a maximum continuous run of 16 ft to prevent voltage drop.
- Cuttable Increments: Field cuttable every 2 inches for custom installations.
- IP Rating: IP67 rated for wet environments, suitable for outdoor use.
We process payments securely and do not store credit card information.
Description
Description

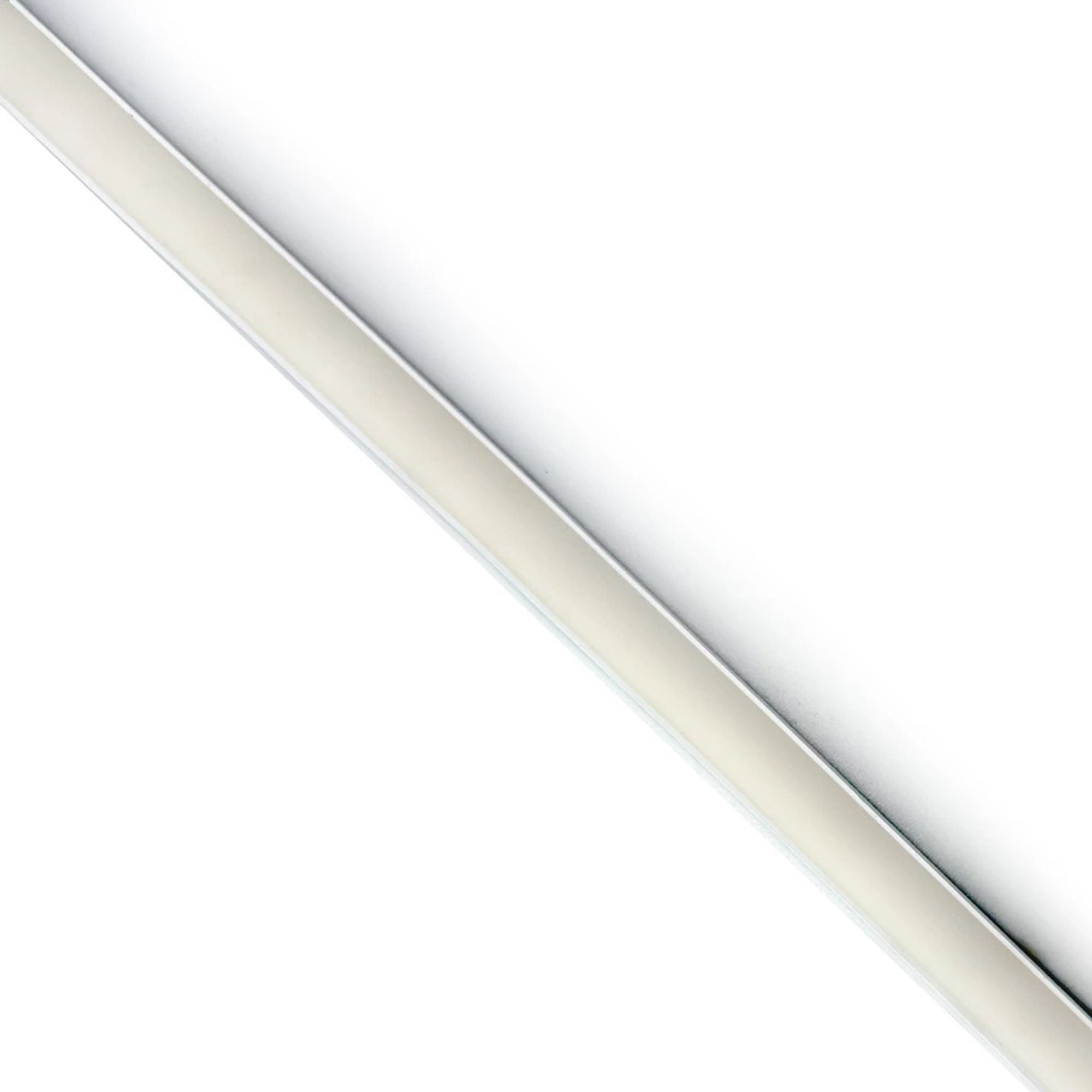

RAB PURELINE LED Tape Light — 5000K & COB Dotless
The RAB TOCCW LED tape light is a premium linear lighting solution designed for smooth, consistent illumination in architectural, accent, and decorative applications. With a length of 16 ft, this tape light operates on 24V DC and is IP67 rated for wet environments, making it suitable for both indoor and outdoor use.
Key Features
- Voltage: 24V DC for low-voltage applications.
- Wattage: 3.66W per foot for energy-efficient operation.
- Lumens per Foot: 278 lm/ft for bright, effective lighting.
- LED Density: 480 LEDs per foot for uniform light distribution.
- Max Run Length: 16 ft to prevent voltage drop.
- Cuttable Increments: Every 2 inches for precise customization.
- PCB Width: 12mm for compatibility with standard channels.
- Beam Angle: 150° for wide light dispersion.
- IP Rating: IP67 for wet and outdoor environments.
- Certifications: Meets California Title 24 JA8 standards.
Core Design & Construction
The tape light features a 12mm wide PCB, ensuring compatibility with various aluminum channels. It includes a durable 3M adhesive backing for secure mounting and is constructed with a super-flexible, ultra-thin design that incorporates thick copper for consistent voltage and brightness.
LED Illumination & Performance
Delivering 278 lumens per foot with a high CRI of 90, this COB tape light ensures vibrant, true-to-life colors. The dot-free, uniform light output is ideal for creating a seamless lighting effect.
Power, Wiring & Installation
Operating at 24V, this tape light requires a compatible driver (sold separately). It is field-cuttable every 2 inches, allowing for tailored installations. The tape is dimmable, providing flexibility in light intensity.
Where This Tape Works Best
- Outdoor pathways and landscapes
- Architectural accent lighting
- Under-cabinet lighting
- Commercial display lighting
What's Included
- 16 ft spool of LED tape light
- Pre-attached 3M adhesive backing
Specifications
Specifications
Dimensions
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the maximum run length for the RAB TOCCW tape light?
What is the maximum run length for the RAB TOCCW tape light?
How often can the RAB TOCCW tape light be cut?
How often can the RAB TOCCW tape light be cut?
What voltage is required for the RAB TOCCW tape light?
What voltage is required for the RAB TOCCW tape light?
Is the RAB TOCCW tape light suitable for outdoor use?
Is the RAB TOCCW tape light suitable for outdoor use?
What type of adhesive backing does the RAB TOCCW tape light use?
What type of adhesive backing does the RAB TOCCW tape light use?
