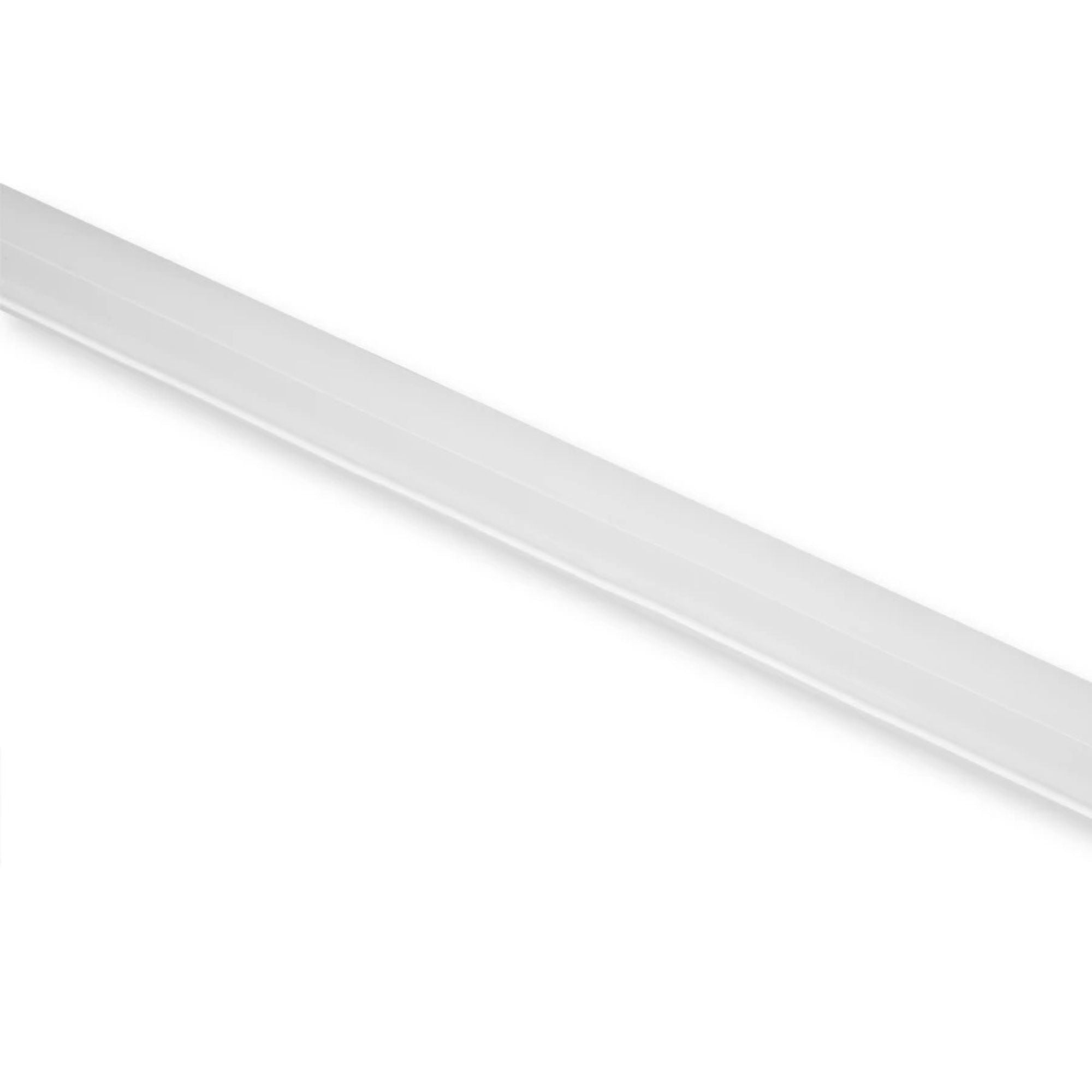

RAB NEOFLEX 16 ft Neon Tape Light, IP67, 5000K, 218 Lumens per Foot, 24V

RAB NEOFLEX Neon Tape Light — 5000K & Wet Rated

The RAB TNFCW Neon Tape Light is a versatile lighting solution designed for both indoor and outdoor applications. Featuring a 16 ft length and 24V DC input, this tape light is IP67 rated for wet environments, making it ideal for diverse installations. With a luminous output of 218 lumens per foot and a color temperature of 5000K, it provides bright, cool white illumination.

Key Features

• Voltage: Operates on 24V DC for efficient energy consumption.
• Wattage: Consumes 4.27 watts per foot.
• Lumens per Foot: Delivers 218 lumens per foot for bright illumination.
• LED Density: 37 LEDs per foot ensure smooth, dot-free lighting.
• Max Run Length: Supports up to 16 ft continuous run.
• Field Cuttable: Can be cut at any point for custom lengths.
• PCB Width: 16mm width for compatibility with various channels.
• Beam Angle: 120-degree beam angle for wide light distribution.
• IP Rating: IP67 rated for wet environments.
• Certifications: UL2108, RoHS compliant, suitable for Title 24 applications.

Core Design & Construction

The NEOFLEX features a dual-flex design, allowing for curved and complex installations. Its 16mm PCB width ensures compatibility with standard aluminum channels, while the IP67 rating guarantees durability in wet conditions.

LED Illumination & Performance

With a luminous efficacy of 51 lm/W and a CRI of 90, this tape light offers high-quality, consistent lighting. The COB LED technology ensures a smooth, dot-free light output.

Power, Wiring & Installation

Requiring a 24V DC power source, the TNFCW is field-cuttable at any point, allowing for tailored installations. It supports dimming for customizable lighting environments.

Where This Tape Works Best

• Architectural accent lighting
• Outdoor pathways and landscapes
• Signage and display lighting
• Under-cabinet lighting

What's Included

• 16 ft spool of neon tape light
• Mounting brackets
• Drivers sold separately
