RAB ARCTAPE 32.8 ft LED Tape Light, 4000K, 238 Lumens per Foot, 24V
Available in stock (200)
About this item
About this item
- Color Temperature: Provides a crisp 4000K light for versatile applications.
- Voltage: Operates on 24V DC, requiring a compatible driver.
- Max Run: Supports a continuous run of up to 32 ft without voltage drop.
- Cuttable Increments: Field cuttable every 1.97 inches for custom lengths.
- IP Rating: Rated IP20, suitable for dry and damp indoor environments.
We process payments securely and do not store credit card information.
Description
Description

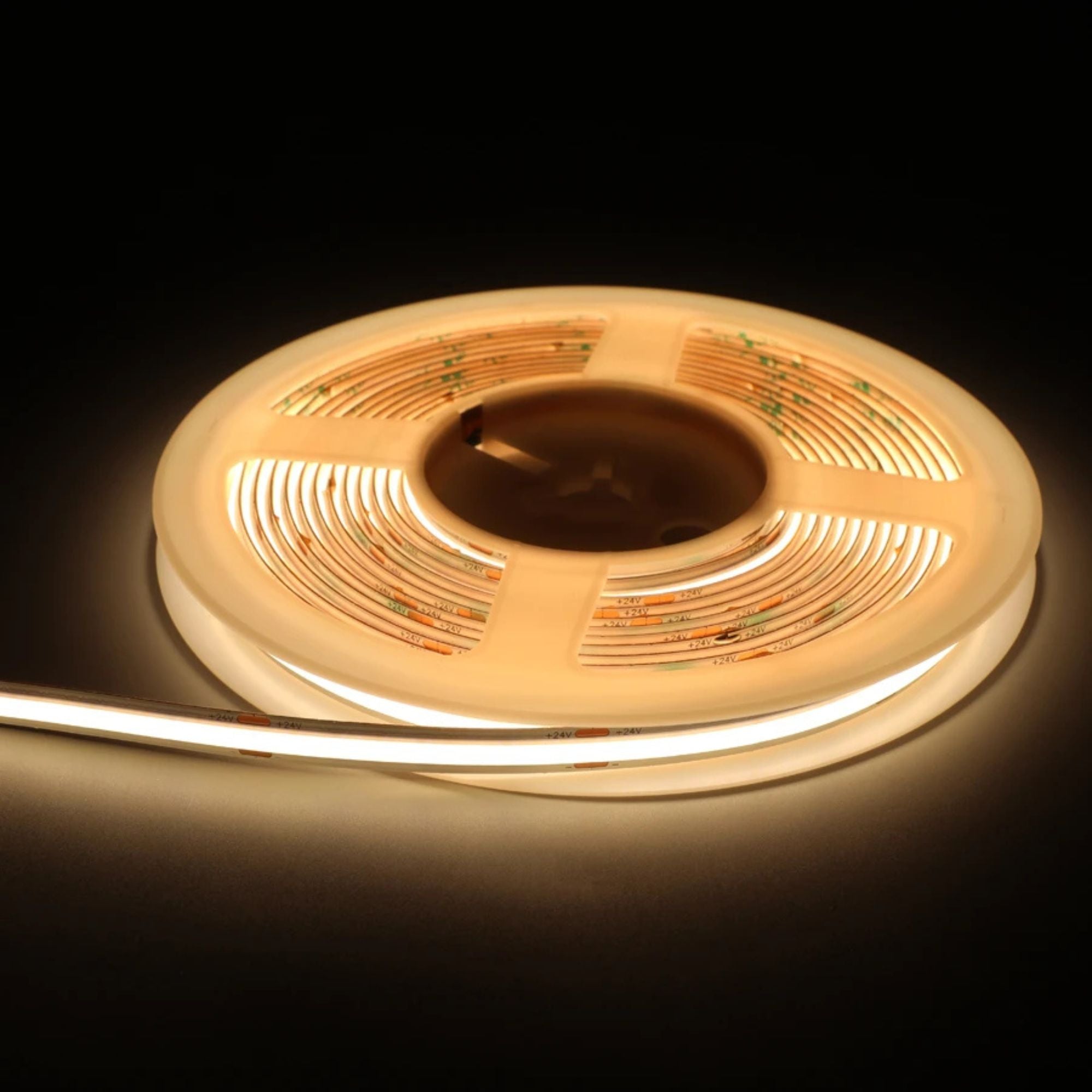

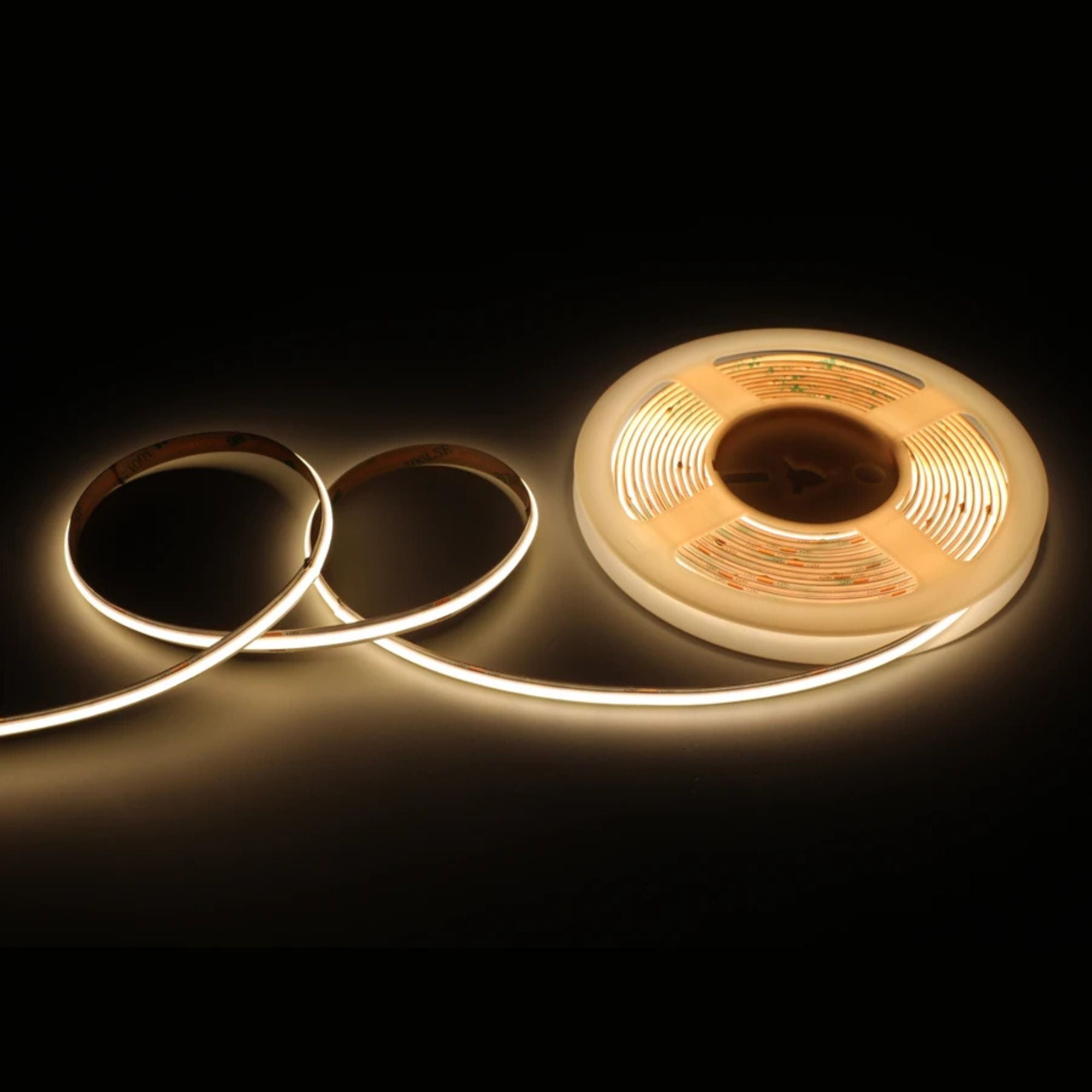

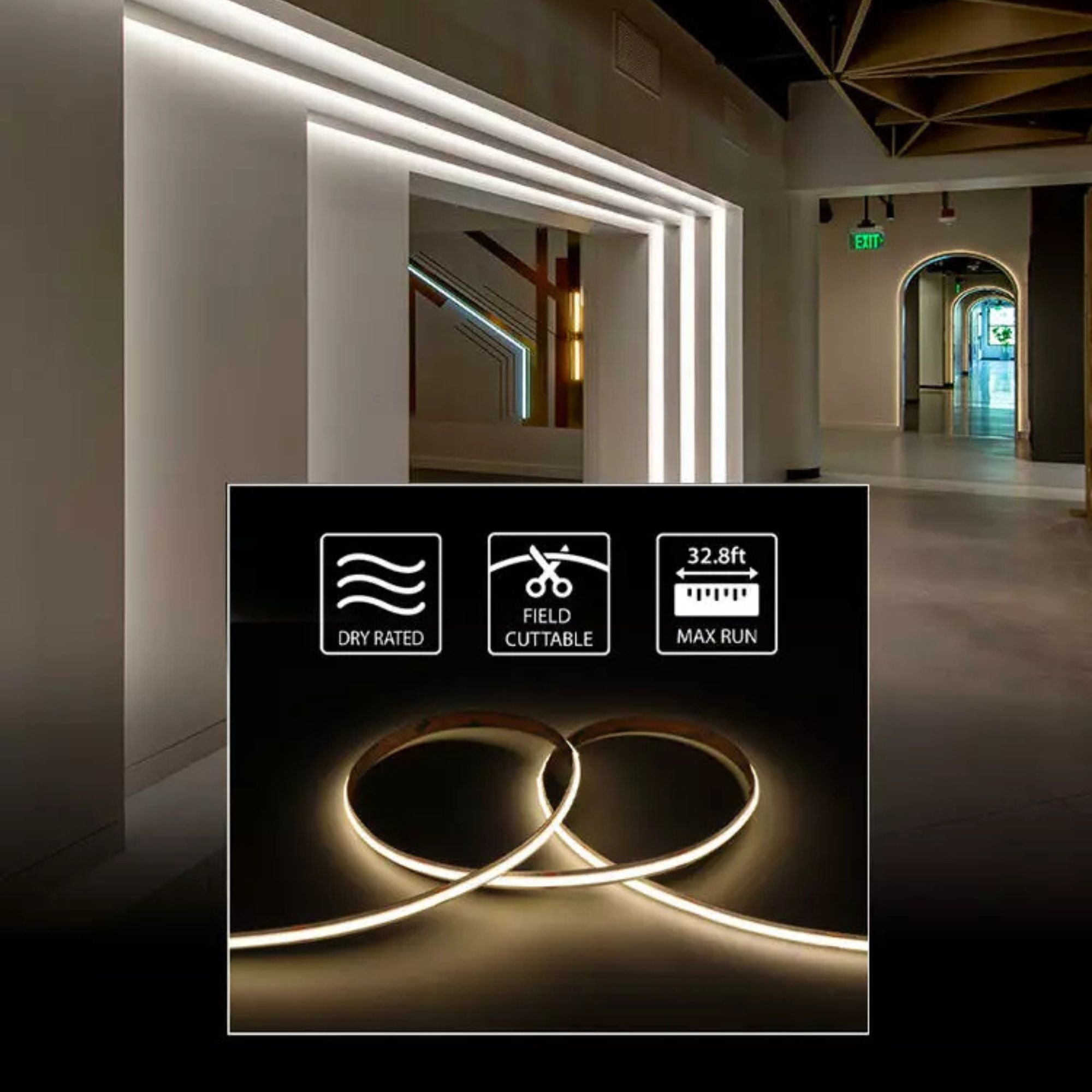

RAB ARCTAPE LED Tape Light — 4000K & COB Dotless

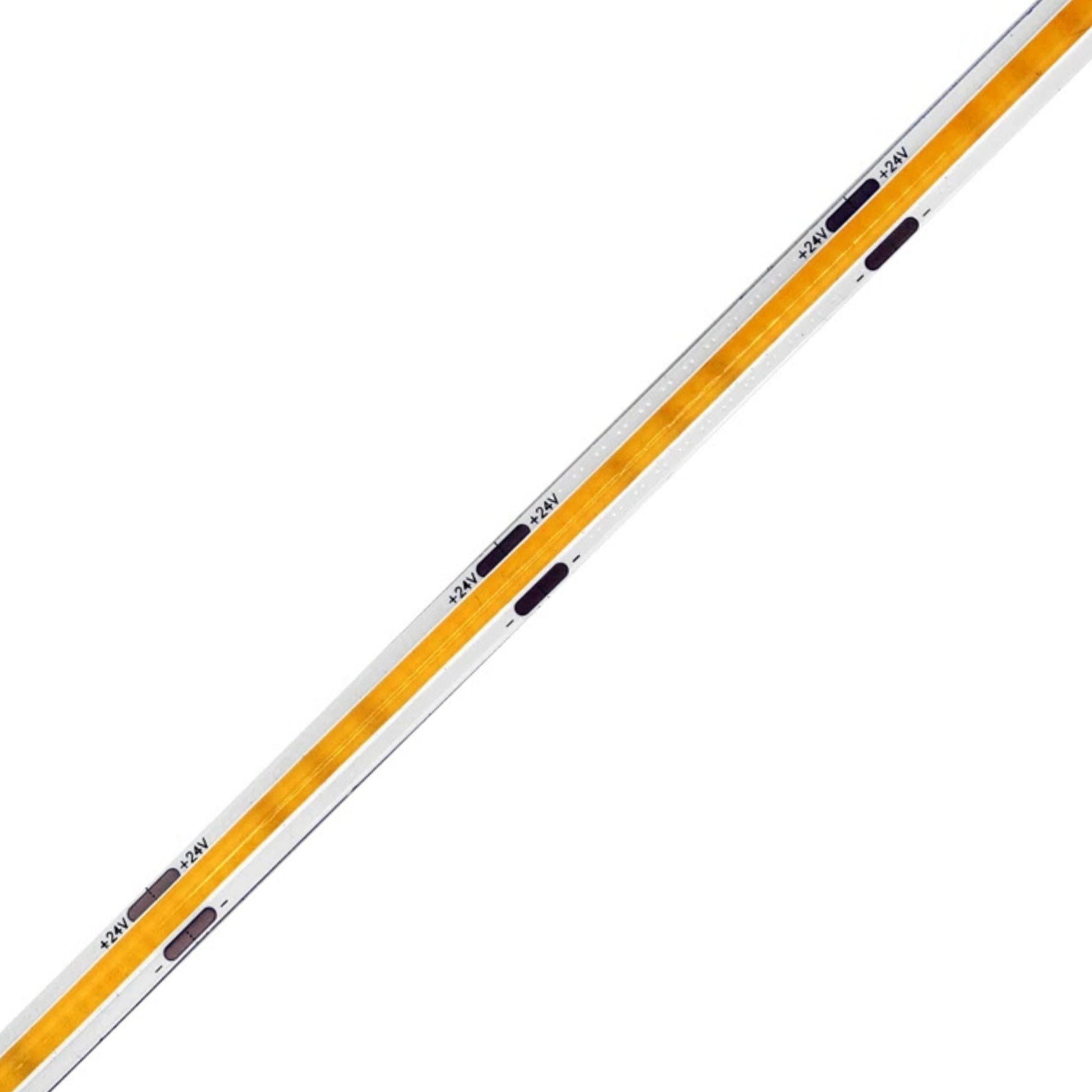

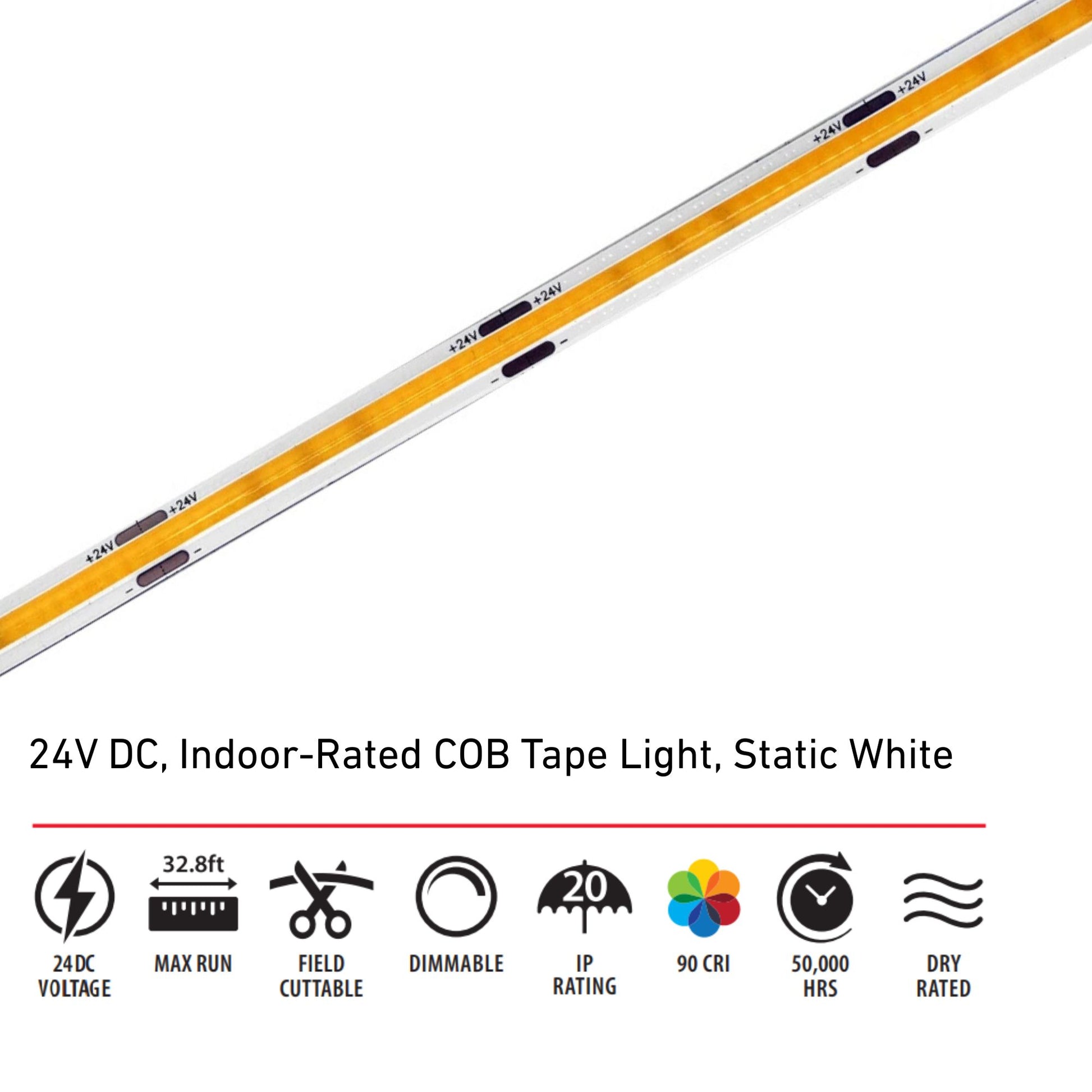

The RAB TICN is a high-performance COB LED tape light offering a continuous band of flawless light output with no pixelated hot spots. This 32.8 ft tape light operates on 24V DC and is rated IP20, making it suitable for indoor dry and damp environments.

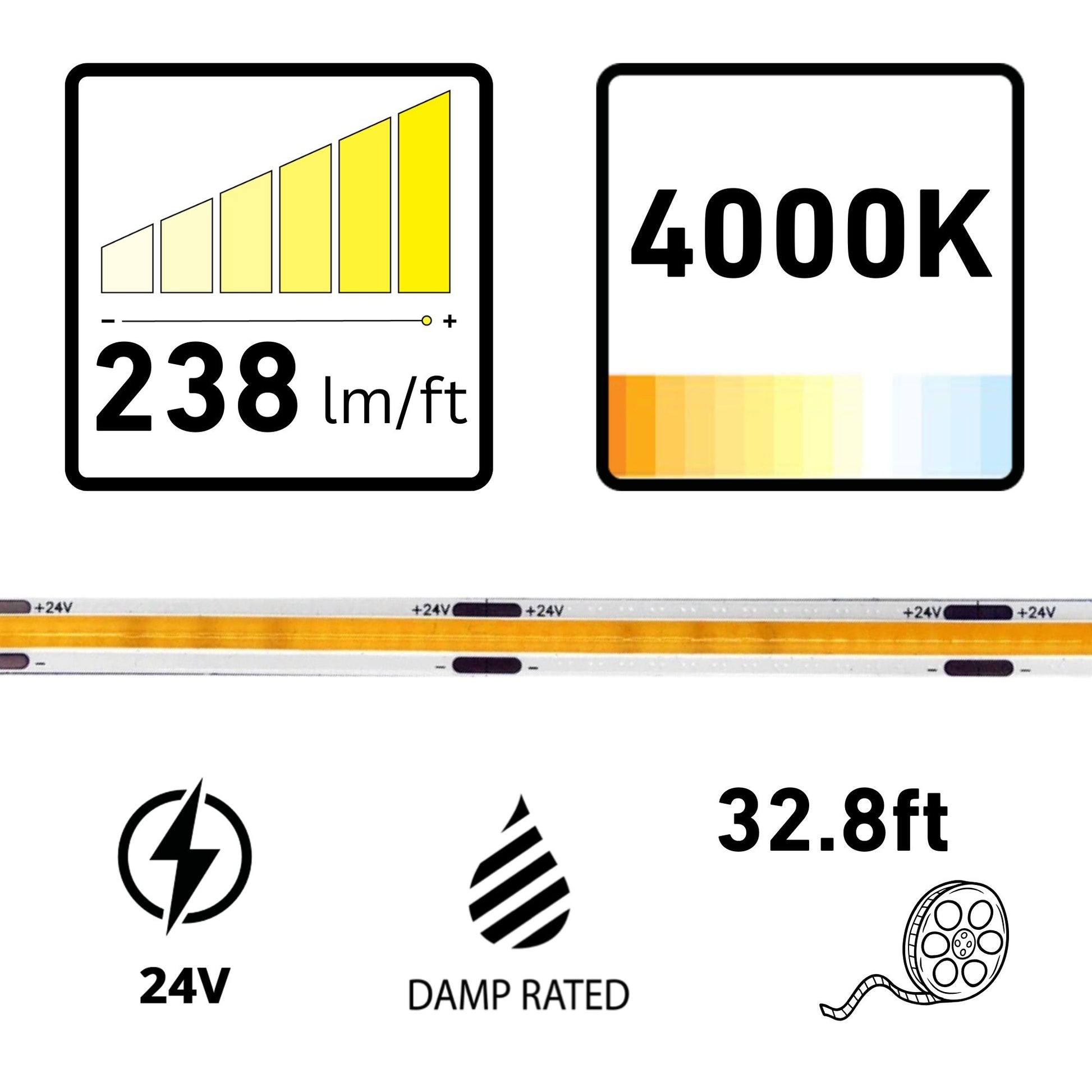

Key Features
- Voltage: Operates on 24V DC, requiring a compatible driver.
- Wattage: Consumes 2.5 watts per foot.
- Lumens: Delivers 238 lumens per foot.
- LEDs per Foot: Utilizes COB technology for a seamless light output.
- Max Run: Supports a continuous run of up to 32 ft.

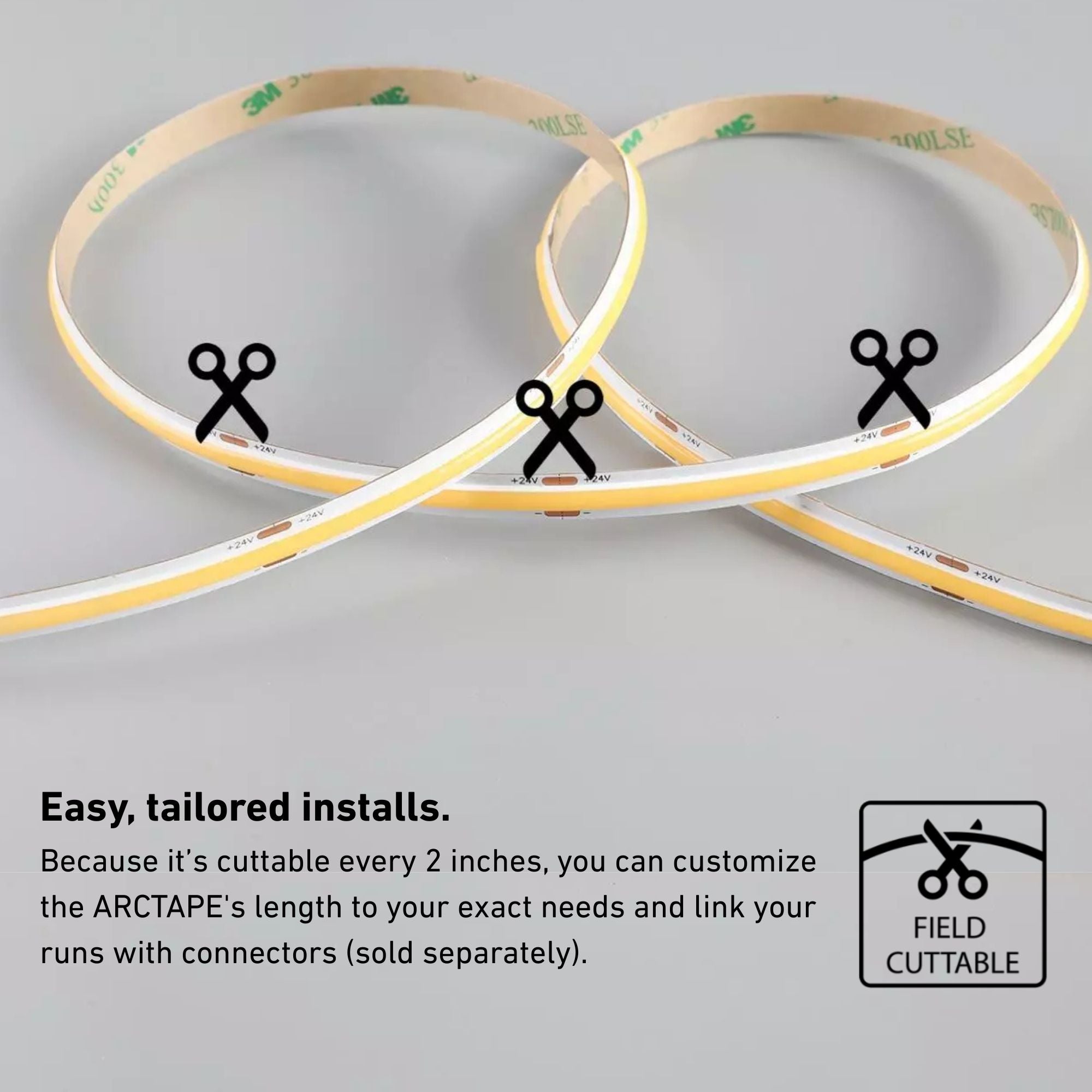

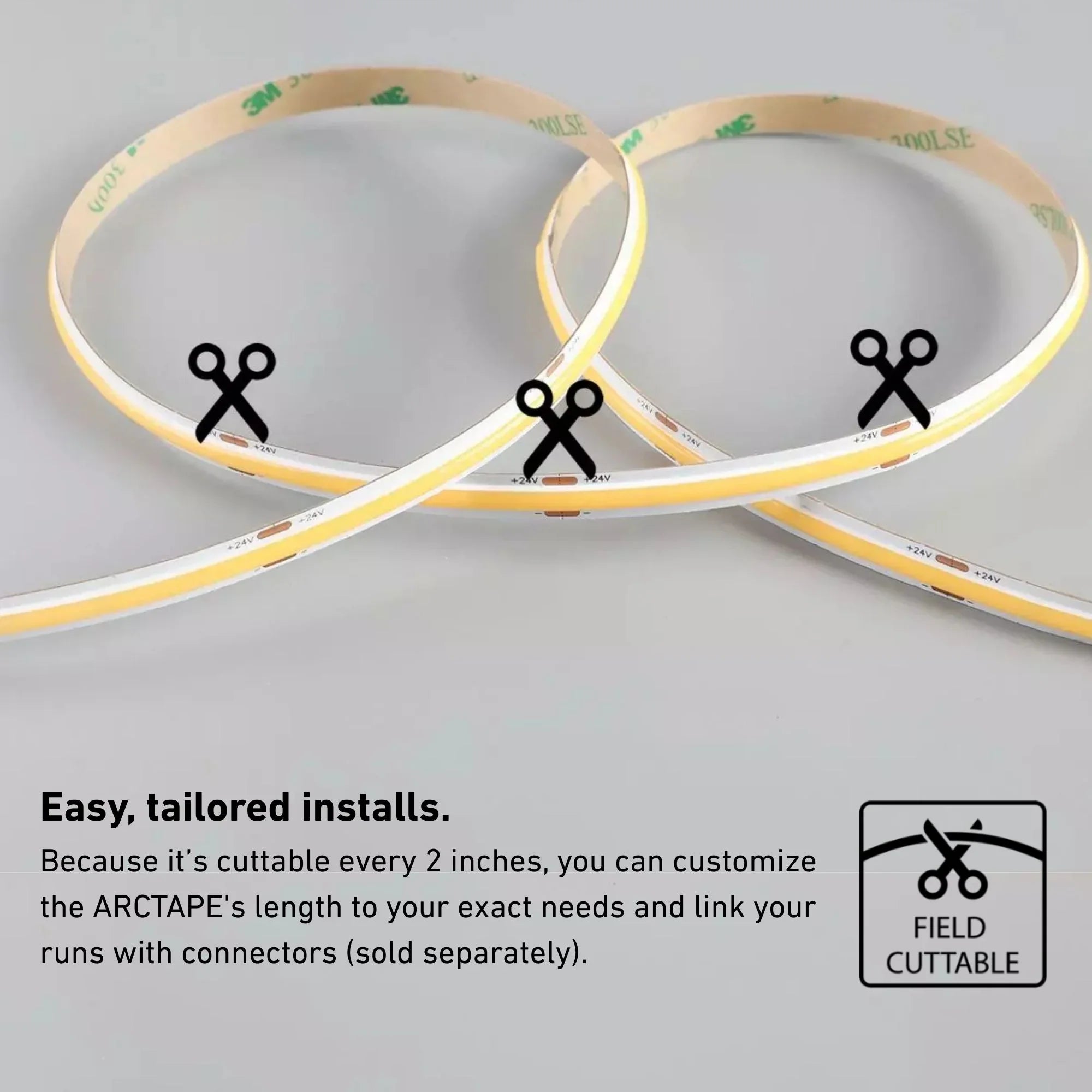

- Cuttable Increments: Field cuttable every 1.97 inches for custom lengths.

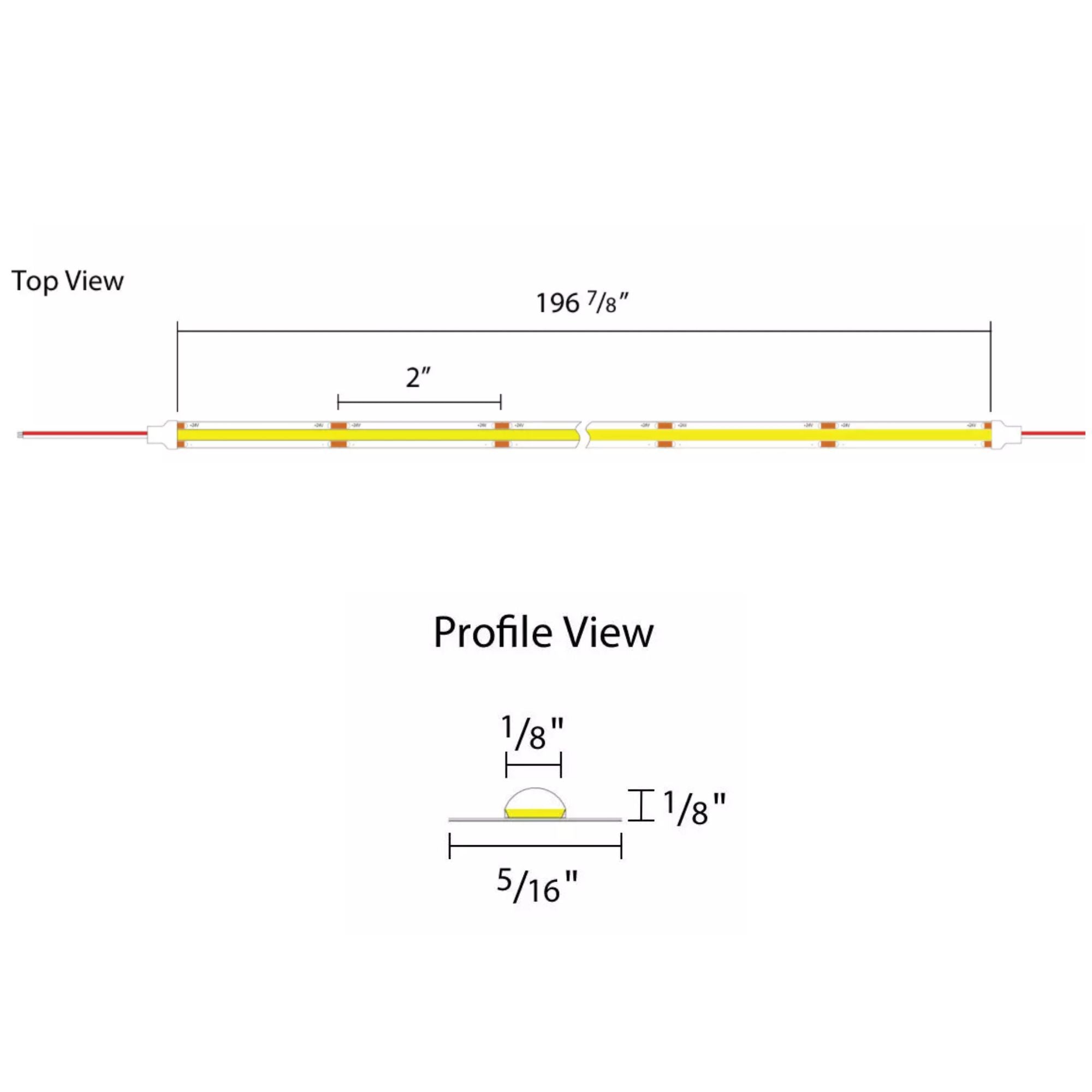

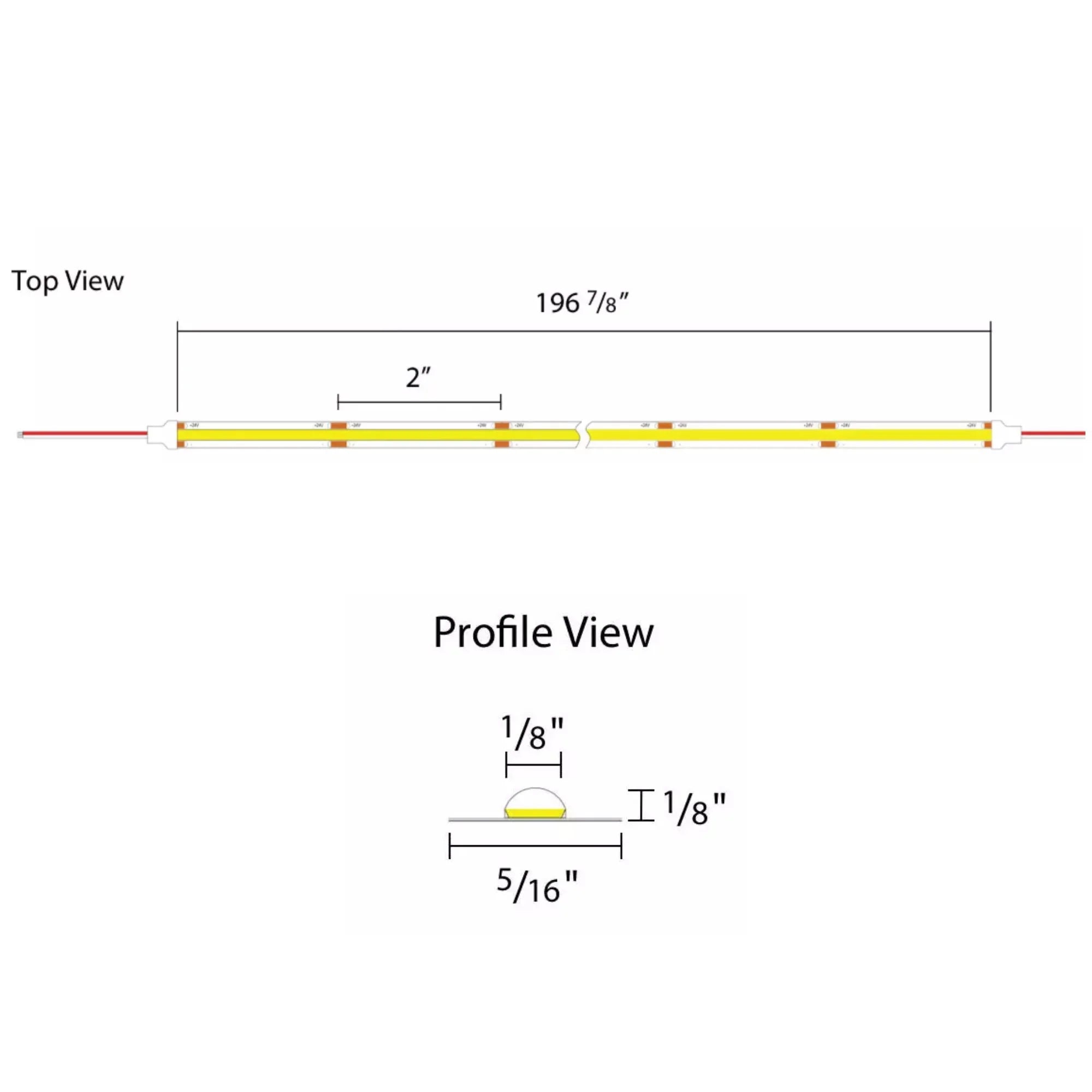

- PCB Width: Compatible with 12mm wide aluminum channel kits.
- Beam Angle: Offers a wide 150-degree beam angle.
- IP Rating: Rated IP20 for indoor use.
- Certifications: UL Listed, RoHS compliant, Title 24 compliant.
Core Design & Construction
The tape features a super flexible design with a premium wall structure and thick copper to ensure consistent voltage and brightness. It includes pre-attached 3M double-sided tape for easy installation on most surfaces.
LED Illumination & Performance
With a high CRI of 90+, this tape light provides excellent color rendering and a continuous band of light output, thanks to its COB technology.
Power, Wiring & Installation

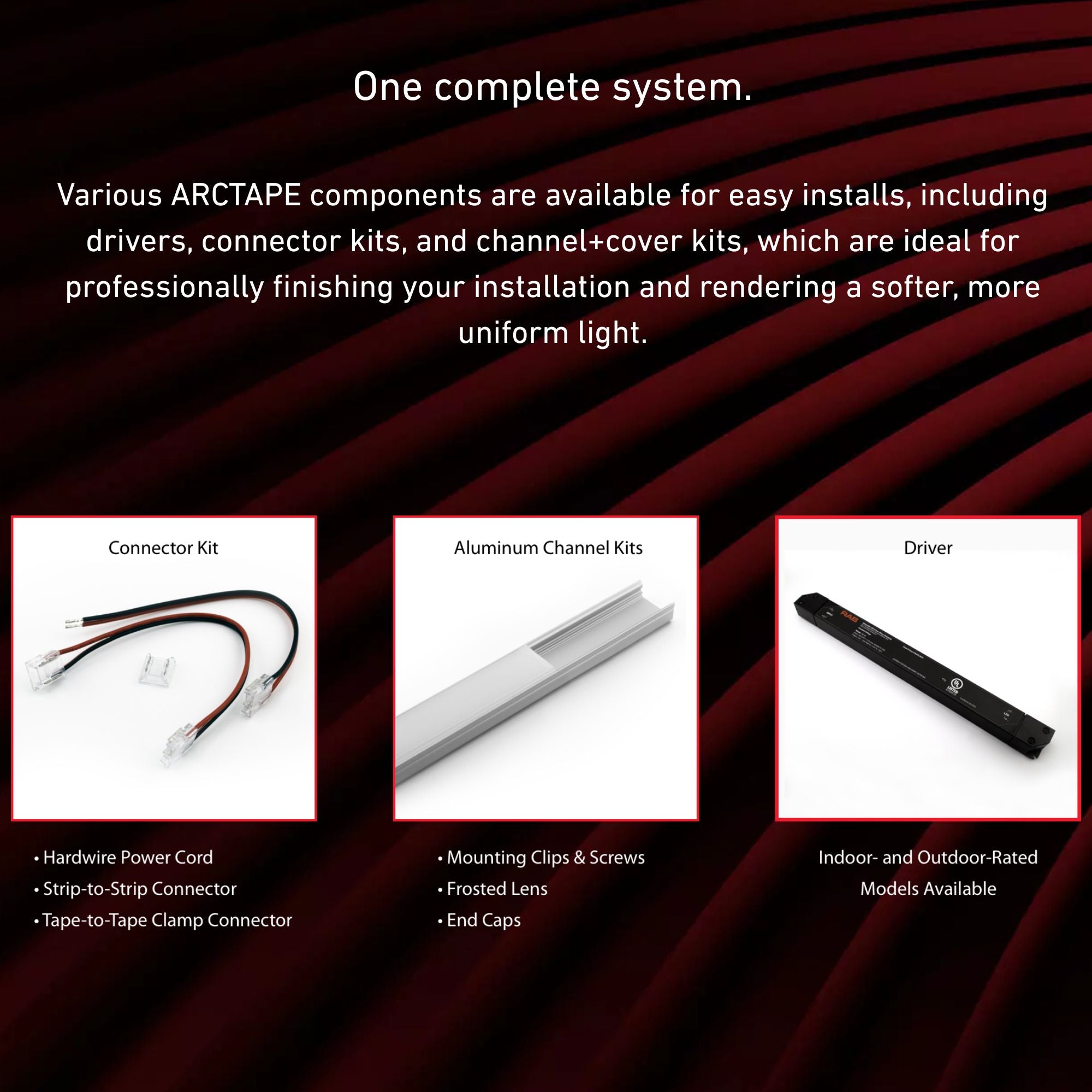

This tape light requires a 24V DC driver (sold separately) and is dimmable down to 0.1% with a PWM dimming signal. It can be field-cut every 1.97 inches and supports a maximum continuous run of 32 ft to prevent voltage drop.

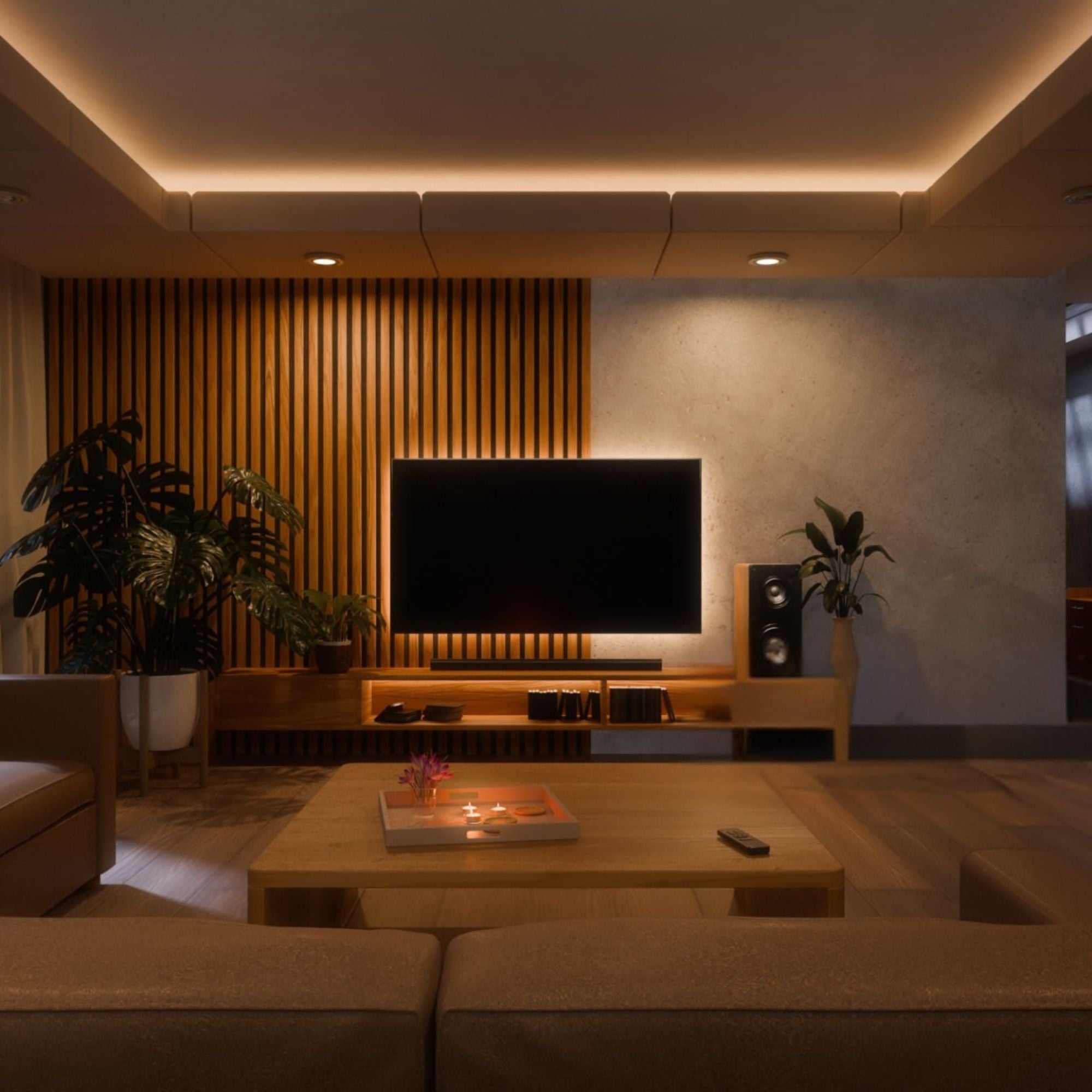

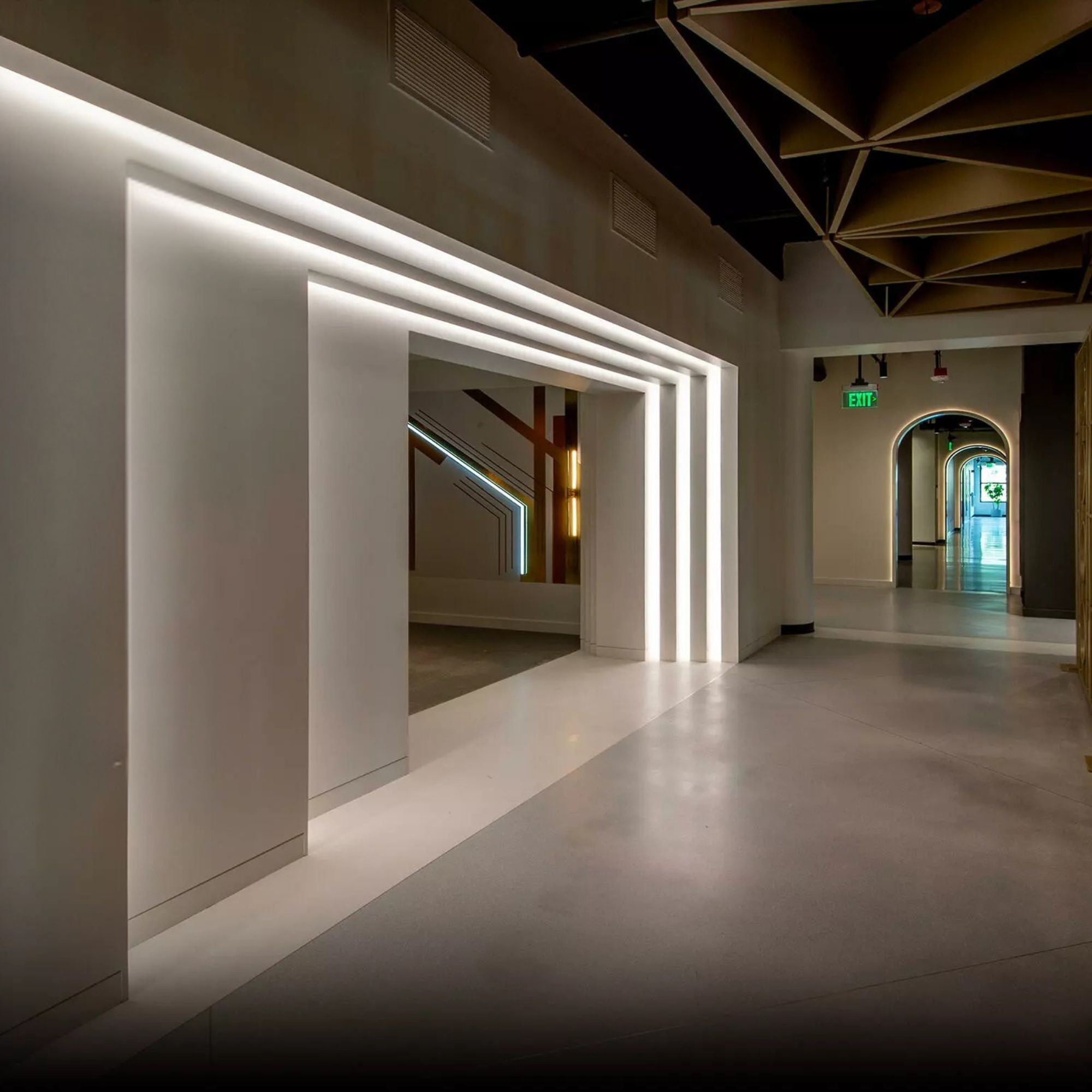

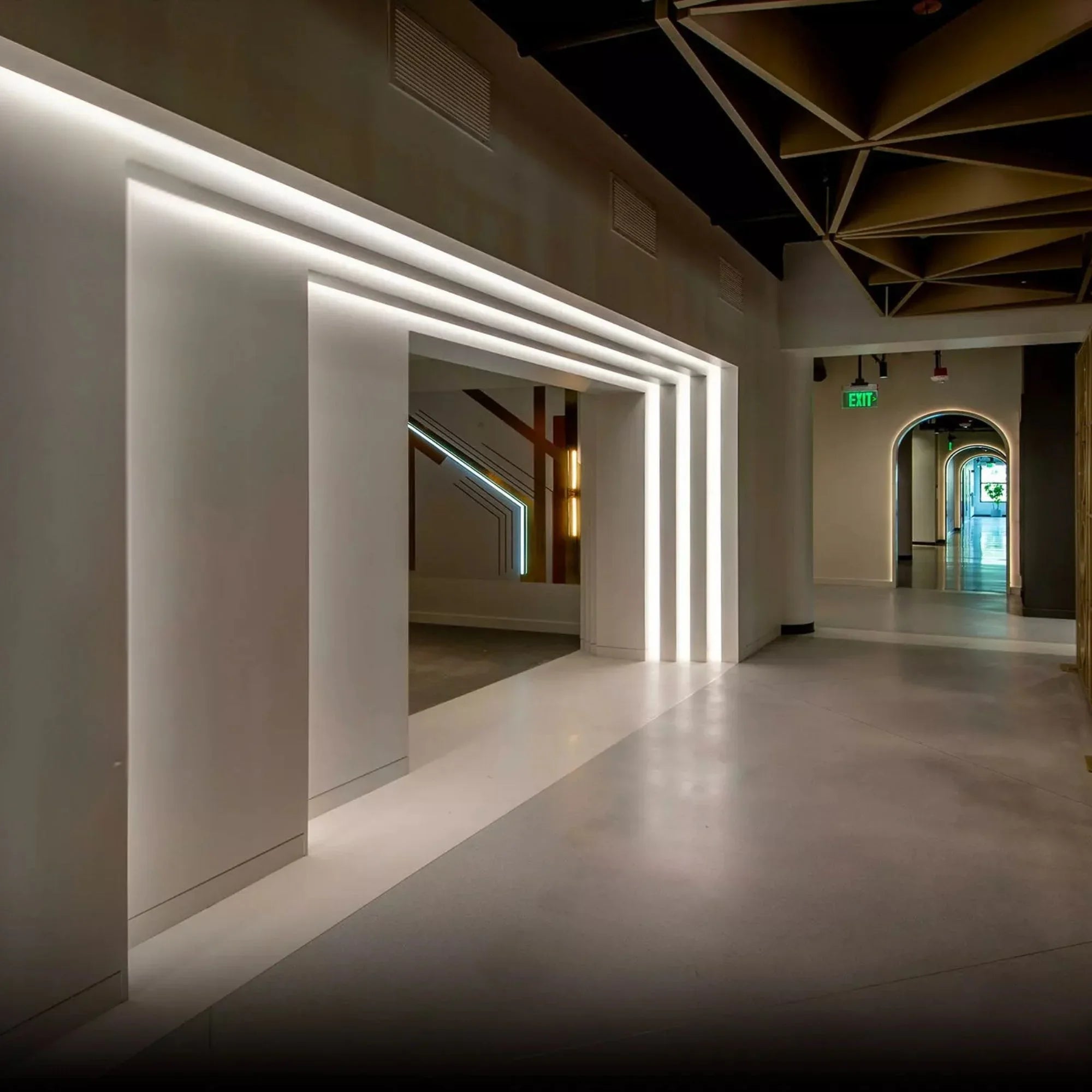

Where This Tape Works Best
- Cove lighting
- Under cabinet lighting
- Accent lighting
- Display case lighting
What's Included
- 32.8 ft spool of LED tape light
- Pre-attached 3M double-sided tape
Specifications
Specifications
Dimensions
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the maximum run length for the RAB TICN tape light?
What is the maximum run length for the RAB TICN tape light?
How often can the RAB TICN tape light be cut?
How often can the RAB TICN tape light be cut?
What voltage is required for the RAB TICN tape light?
What voltage is required for the RAB TICN tape light?
Is the RAB TICN tape light dimmable?
Is the RAB TICN tape light dimmable?
What type of mounting accessories are compatible with the RAB TICN tape light?
What type of mounting accessories are compatible with the RAB TICN tape light?
